navigation system HONDA ACCORD 2015 9.G Navigation Manual

46

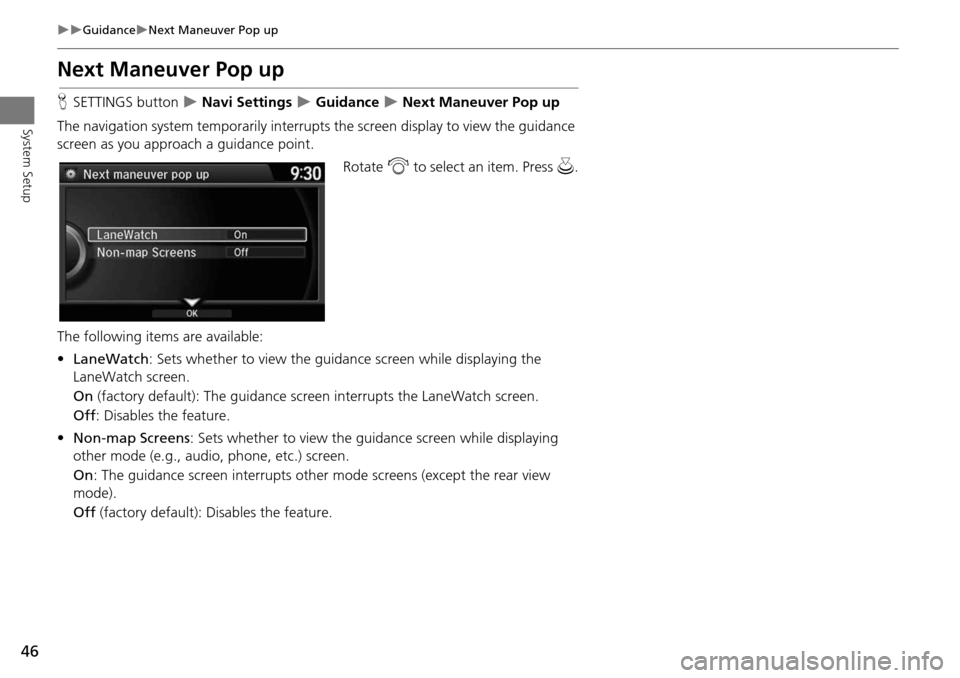

GuidanceNext Maneuver Pop up
System Setup
Next Maneuver Pop up
HSETTINGS button  Navi Settings  Guidance  Next Maneuver Pop up
The navigation system temporarily interrupts the screen display to view the guidance
screen as you approach a guidance point.
Rotate i to select an item. Press u .
The following item s are available:
• LaneWatch : Sets whether to view the guidanc e screen while displaying the
LaneWatch screen.
On (factory default): The guidance scre en interrupts the LaneWatch screen.
Off : Disables the feature.
• Non-map Screens : Sets whether to view the guid ance screen while displaying
other mode (e.g., audio, phone, etc.) screen.
On : The guidance screen interrupts other mode screens (except the rear view
mode).
Off (factory default): Disables the feature.

59

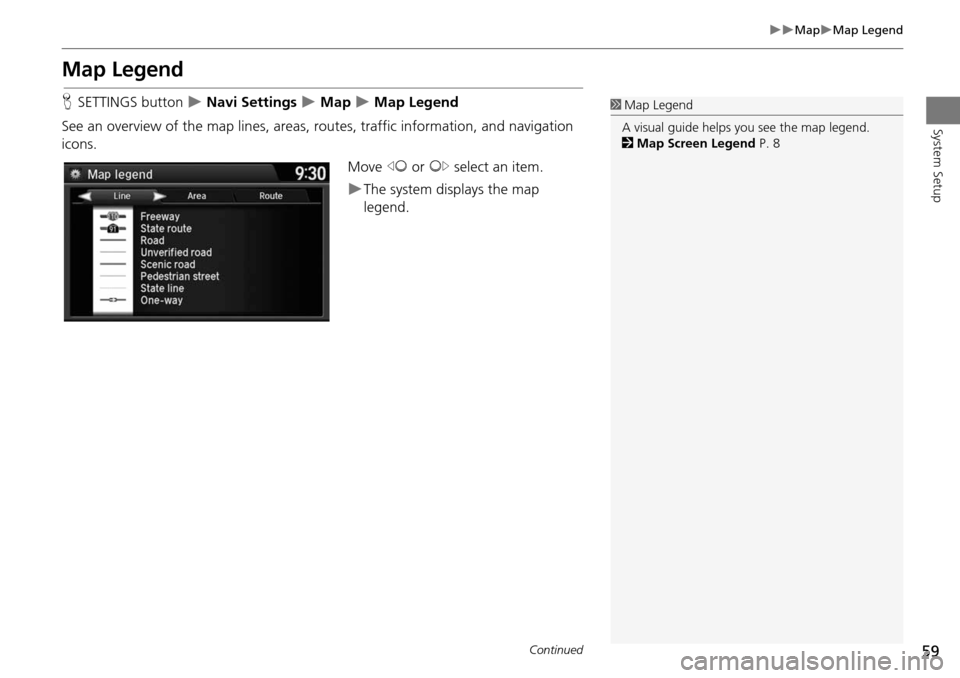

MapMap Legend
System Setup
Map Legend
HSETTINGS button  Navi Settings  Map  Map Legend
See an overview of the map lines, areas, routes, traffic information, and navigation
icons.
Move w or y select an item.
The system displays the map
legend.
1Map Legend
A visual guide helps you see the map legend.
2 Map Screen Legend P. 8
Continued

63

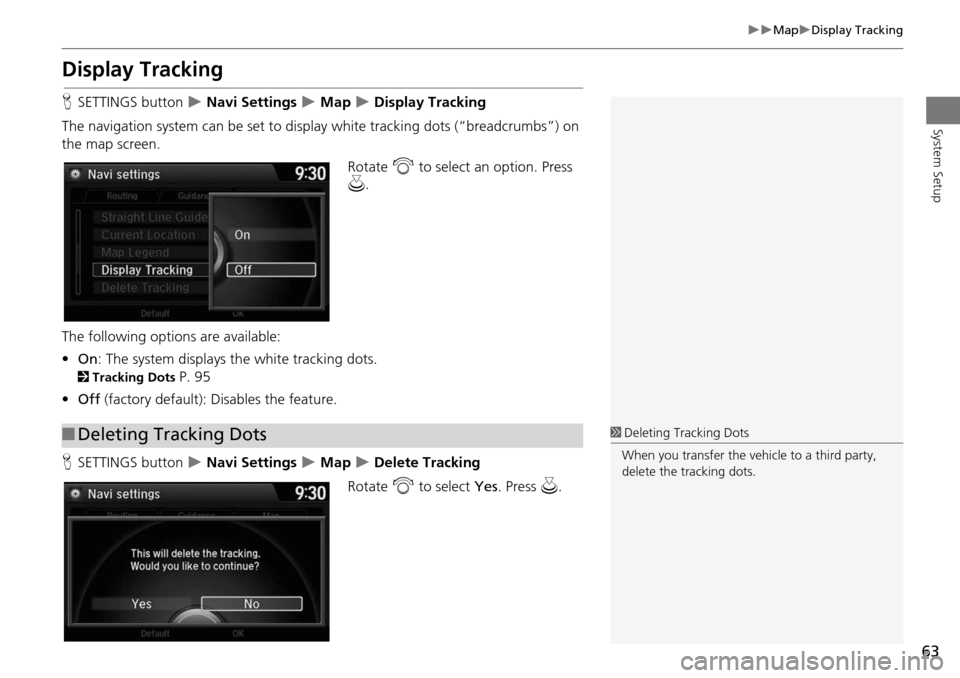

MapDisplay Tracking
System Setup
Display Tracking
HSETTINGS button  Navi Settings  Map  Display Tracking
The navigation system can be set to di splay white tracking dots (“breadcrumbs”) on
the map screen.
Rotate i to select an option. Press
u .
The following options are available:
• On : The system displays the white tracking dots.
2Tracking Dots P. 95
• Off (factory default): Disables the feature.
H SETTINGS button
 Navi Settings  Map  Delete Tracking
Rotate i to select Yes. Press u.
■Deleting Tracking Dots1 Deleting Tracking Dots
When you transfer the vehicle to a third party,
delete the tracking dots.

65

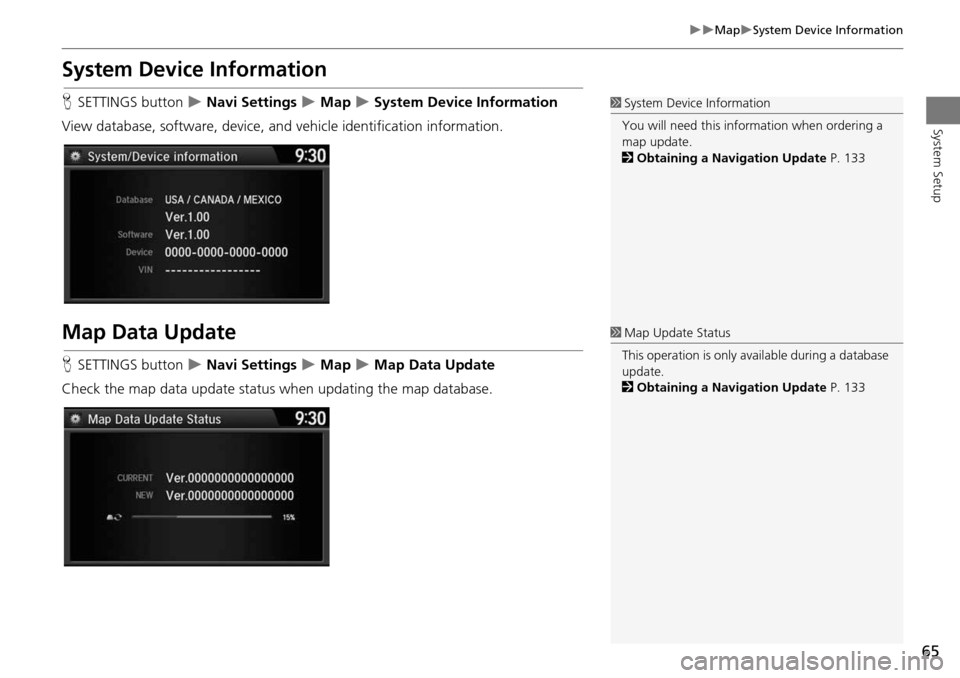

MapSystem Device Information
System Setup
System Device Information
HSETTINGS button  Navi Settings  Map  System Device Information
View database, software, device, and vehicle identification information.
Map Data Update
HSETTINGS button  Navi Settings  Map  Map Data Update
Check the map data update status when updating the map database.
1 System Device Information
You will need this info rmation when ordering a
map update.
2 Obtaining a Navigation Update P. 133
1Map Update Status
This operation is only avai lable during a database
update.
2 Obtaining a Navigation Update P. 133

70
Entering a DestinationAddress
Navigation
Address
HMENU button  Address
Enter an address to use as th e destination. The state or pr ovince you are currently in
is displayed (e.g., California).
Rotate i to select an item. Press u .
The following item s are available:
• City : Selects your destination city.
2Selecting a City P. 72
• Street : Selects your destination street.
2Selecting a Street P. 73
• House Number: Enters the house number to select the street.
2 Selecting a Street by House Number P. 75
• ZIP Code : Enters the zip code to select the city.
2Selecting a City by Zip Code P. 71
• Change State : Selects the state or province.
2Selecting the State or Province P. 71
1Address
Using Voice Command (English only)
You can say the entire address at once using
voice commands. Say d “Address ” on the
Voice Portal screen, then say the entire address.
For example, “ 1-2-3-4 Main Stre et, Los Angeles,
California. ” The system interprets the address.
Say d “Set as destination ” to begin the route.
The system language needs to be set in English.
U.S. models

80

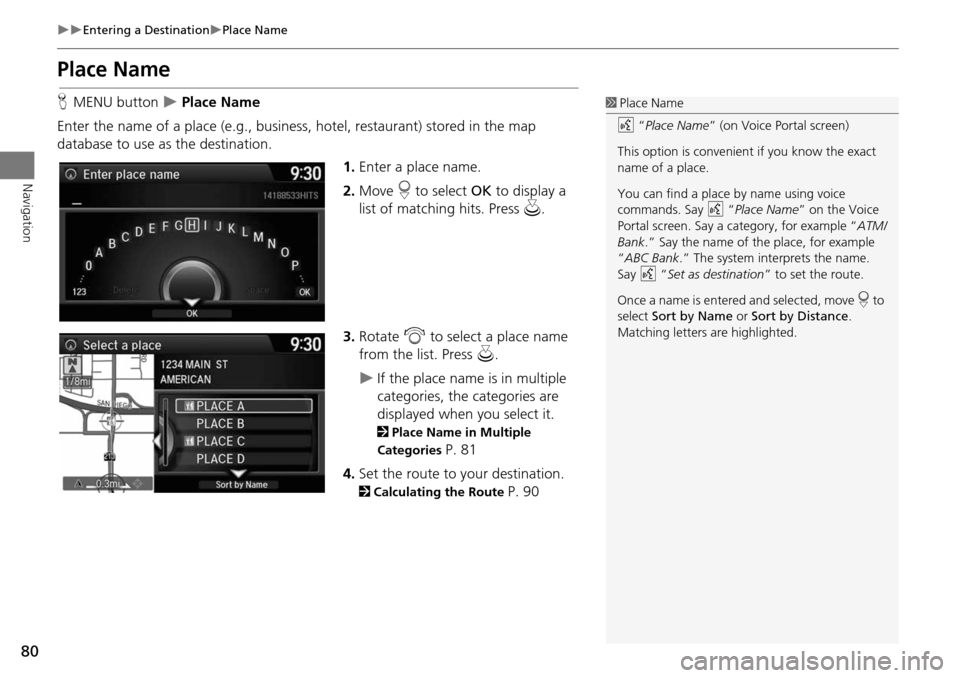

Entering a DestinationPlace Name
Navigation
Place Name
HMENU button  Place Name
Enter the name of a place (e.g., business, hotel, restaurant) stored in the map
database to use as the destination.
1.Enter a place name.
2. Move r to select OK to display a
list of matching hits. Press u.
3. Rotate i to select a place name
from the list. Press u.
If the place name is in multiple
categories, the categories are
displayed when you select it.
2Place Name in Multiple
Categories
P. 81
4. Set the route to your destination.
2 Calculating the Route P. 90
1Place Name
d “Place Name” (on Voice Portal screen)
This option is convenient if you know the exact
name of a place.
You can find a place by name using voice
commands. Say d “Place Name ” on the Voice
Portal screen. Say a category, for example “ ATM/
Bank .” Say the name of the place, for example
“ABC Bank .” The system interprets the name.
Say d “Set as destination ” to set the route.
Once a name is entered and selected, move r to
select Sort by Name or Sort by Distance .
Matching letters are highlighted.

84
Entering a DestinationDownload POI
Navigation
Download POI
HMENU button  More Search Methods  Download POI
Select a place imported into the navi gation system as the destination.
1.Rotate i to select a category
from the list. Press u.
2. Rotate i to select a place. Press
u .
3. Set the route to your destination.
2 Calculating the Route P. 90
1Download POI
Move r and rotate i to select the following
items:
•Import from USB : Imports POI data into the
navigation system.
2 Importing POI Categories P. 31
•Delete All: Deletes all POI entries.
•Help with Feature : Views tips for the
Download POI feature.

90
Navigation
Calculating the Route
This section describes how to calculate your route.1.Rotate i to select Set as
Destination . Press u.
The system calculates and
displays the route line on the
map screen.
2Route Line P. 94
Move w to scroll the map
around the destination.
The following options are available:
• View Routes : Displays three different routes.
2Viewing the Routes P. 91
• Route Preference : Move r to select Route Preference to change the route
preferences (calculating method).
2 Route Preference P. 35
2.Follow the route guidance to your
destination.
2 Driving to Your Destination P. 92
The system provides you with
pop-up messages if your route
passes through unverified areas,
avoid areas, or areas with traffic
restrictions.
1Calculating the Route
The straight line distance (as the crow flies, not
driving distance) and dire ction to the destination
are shown.
You cannot use voice commands while the
system is calculating the route.
Search Nearby
You can find the nearest place/landmark (e.g.,
nearest gas station) by specifying a category.
2 Find Nearest Place P. 115
Call
You can place a telephone ca ll to the destination
phone number. See your Owner’s Manual.
Save to Address Book
You can add the destination address to the
address book.
2 Adding an Address Book Entry P. 23
Edit/Delete Entry
You can edit or delete the address book entry.
2 Editing an Address Book Entry P. 25
Edit Home Entry
You can edit your home address entry.
2 Home Address P. 27

91
Calculating the RouteViewing the Routes
Navigation
Viewing the Routes
View three different routes to your destination.Rotate i to select a route. Press u.
The travel distance and estimated
travel time is displayed for each
route.
The system calculat es and displays
the route line on the map screen.
2 Route Line P. 94
1Viewing the Routes
It is not unusual for so me calculated route
options to be identical.

92
Navigation
Driving to Your Destination
This section describes how to follow the route guidance to your destination, receive
traffic and weather information and choose the icons displayed on the map screen.
Viewing the Route
After calculating the route to your
destination, the route is displayed on
the map screen.
2Map Screen Legend P. 8
As you drive, the system tracks your
position on the map in real time and
provides guidance as you approach
each guidance point on the route.
2 During Route Guidance P. 9
■Map Screen
1 Viewing the Route
d “Display Map”
You can change the map scale using voice
commands (e.g., say d “Display 2 mile scale”).
2 Map Scale Commands P. 142
You can also change the map scale by rotating
i .
You can control the icons displayed on the map
screen using voice commands (e.g., say d
“Display post office” ).
2 Map Display Commands P. 142
You can obtain information about the route
using voice commands (e.g., say d “How long
to the destination?” ).
2 Route Commands P. 144
You can display the next guidance point on the
map screen by saying d “Display Map Guide”
(when en route).
If you scroll the map while en route, the time and
distance to destination indicators are replaced
with an indicator showing distance from the
current vehicle position.
You can display only the map screen or a split
map-guidance screen.
2 Guidance Mode P. 43
