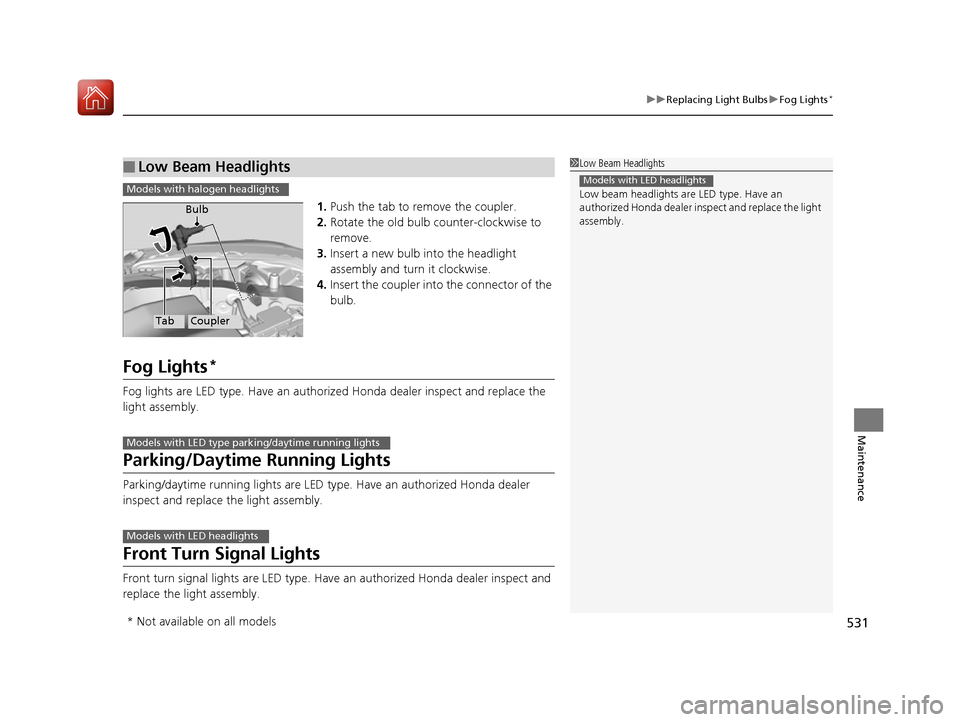

Page 532 of 609
531
uuReplacing Light Bulbs uFog Lights*
Maintenance
1. Push the tab to remove the coupler.
2. Rotate the old bulb counter-clockwise to
remove.
3. Insert a new bulb into the headlight
assembly and turn it clockwise.
4. Insert the coupler into the connector of the
bulb.
Fog Lights*
Fog lights are LED type. Have an authoriz ed Honda dealer inspect and replace the
light assembly.
Parking/Daytime Running Lights
Parking/daytime running lights are LED type. Have an authorized Honda dealer
inspect and replace the light assembly.
Front Turn Signal Lights
Front turn signal lights are LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
■Low Beam Headlights1 Low Beam Headlights
Low beam headlights are LED type. Have an
authorized Honda dealer in spect and replace the light
assembly.
Models with LED headlightsModels with halogen headlights
TabCoupler
Bulb
Models with LED type parking/daytime running lights
Models with LED headlights
* Not available on all models
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 531 ページ ２０１５年７月２８日 火曜日 午後３時３分

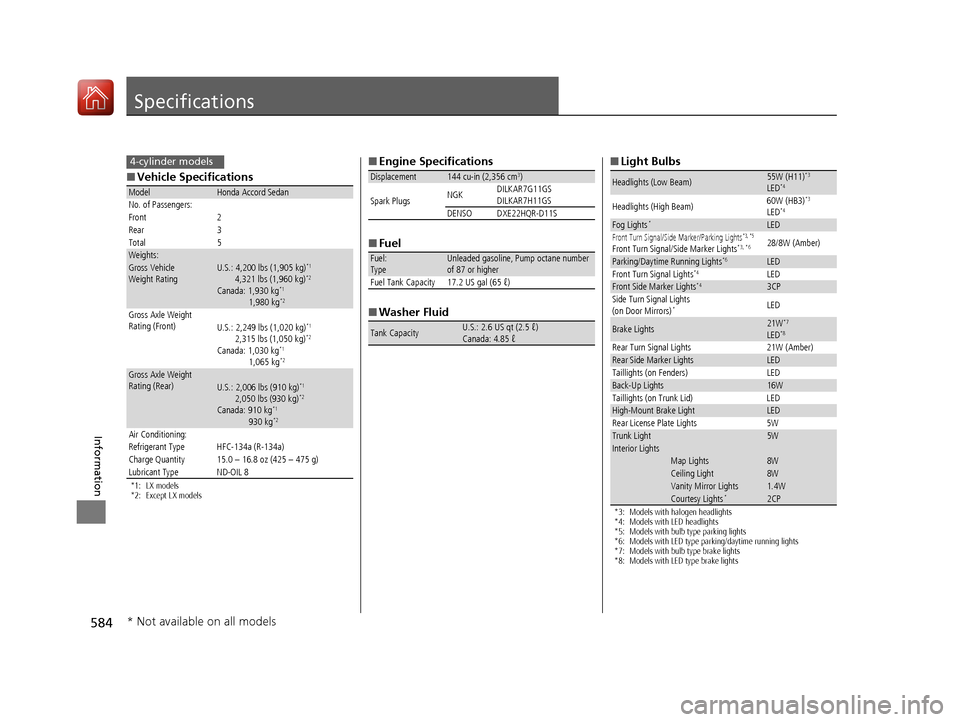

Page 585 of 609
584
Information
Specifications
■Vehicle Specifications
*1: LX models
*2: Except LX models
ModelHonda Accord Sedan
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating U.S.: 4,200 lbs (1,905 kg)*1
4,321 lbs (1,960 kg)*2
Canada: 1,930 kg*1
1,980 kg*2
Gross Axle Weight
Rating (Front)U.S.: 2,249 lbs (1,020 kg)*1
2,315 lbs (1,050 kg)*2
Canada: 1,030 kg*1
1,065 kg*2
Gross Axle Weight
Rating (Rear)U.S.: 2,006 lbs (910 kg)*1
2,050 lbs (930 kg)*2
Canada: 910 kg*1
930 kg*2
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 15.0 – 16.8 oz (425 – 475 g)
Lubricant Type ND-OIL 8
4-cylinder models■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement144 cu-in (2,356 cm3)
Spark Plugs NGK
DILKAR7G11GS
DILKAR7H11GS
DENSO DXE22HQR-D11S
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 17.2 US gal (65 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.85 ℓ
■ Light Bulbs
*3: Models with halogen headlights
*4: Models with LED headlights
*5: Models with bulb type parking lights
*6: Models with LED type parking/daytime running lights
*7: Models with bulb type brake lights
*8: Models with LED type brake lights
Headlights (Low Beam)55W (H11)*3
LED*4
Headlights (High Beam) 60W (HB3)*3
LED*4
Fog Lights*LEDFront Turn Signal/Side Marker/Parking Lights*3, *5
Front Turn Signal/Side Marker Lights*3, *628/8W (Amber)
Parking/Daytime Running Lights*6LED
Front Turn Signal Lights*4LEDFront Side Marker Lights*43CP
Side Turn Signal Lights
(on Door Mirrors)
*LED
Brake Lights21W*7
LED*8
Rear Turn Signal Lights 21W (Amber)Rear Side Marker LightsLED
Taillights (on Fenders) LED
Back-Up Lights16W
Taillights (on Trunk Lid) LED
High-Mount Brake LightLED
Rear License Plate Lights 5W
Trunk Light5WInterior LightsMap Lights8WCeiling Light8WVanity Mirror Lights1.4WCourtesy Lights*2CP
* Not available on all models
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 584 ページ ２０１５年７月２８日 火曜日 午後３時３分

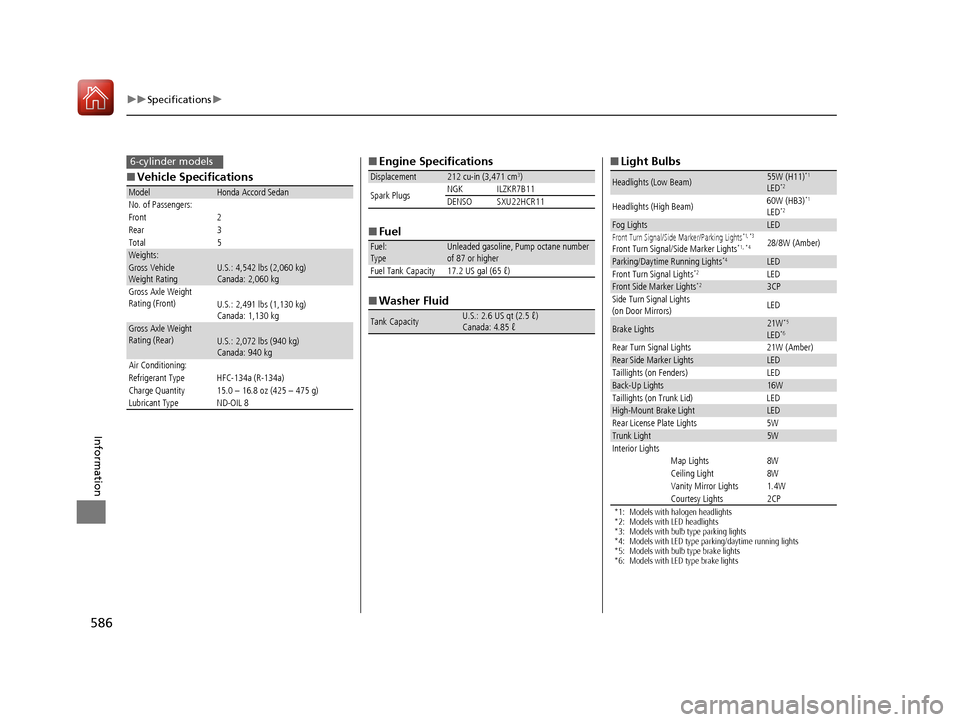

Page 587 of 609
586
uuSpecifications u
Information
■Vehicle Specifications
ModelHonda Accord Sedan
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating U.S.: 4,542 lbs (2,060 kg)
Canada: 2,060 kg
Gross Axle Weight
Rating (Front)U.S.: 2,491 lbs (1,130 kg)
Canada: 1,130 kg
Gross Axle Weight
Rating (Rear)U.S.: 2,072 lbs (940 kg)
Canada: 940 kg
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 15.0 – 16.8 oz (425 – 475 g)
Lubricant Type ND-OIL 8
6-cylinder models■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement212 cu-in (3,471 cm3)
Spark Plugs NGK ILZKR7B11
DENSO SXU22HCR11
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 17.2 US gal (65 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.85 ℓ
■ Light Bulbs
*1: Models with halogen headlights
*2: Models with LED headlights
*3: Models with bulb type parking lights
*4: Models with LED type parking/daytime running lights
*5: Models with bulb type brake lights
*6: Models with LED type brake lights
Headlights (Low Beam)55W (H11)*1
LED*2
Headlights (High Beam) 60W (HB3)*1
LED*2
Fog LightsLEDFront Turn Signal/Side Marker/Parking Lights*1, *3
Front Turn Signal/Side Marker Lights*1, *428/8W (Amber)
Parking/Daytime Running Lights*4LED
Front Turn Signal Lights*2LEDFront Side Marker Lights*23CP
Side Turn Signal Lights
(on Door Mirrors) LED
Brake Lights21W*5
LED*6
Rear Turn Signal Lights
21W (Amber)Rear Side Marker LightsLED
Taillights (on Fenders) LED
Back-Up Lights16W
Taillights (on Trunk Lid) LED
High-Mount Brake LightLED
Rear License Plate Lights 5W
Trunk Light5WInterior LightsMap Lights8WCeiling Light8WVanity Mirror Lights1.4WCourtesy Lights2CP
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 586 ページ ２０１５年７月２８日 火曜日 午後３時３分

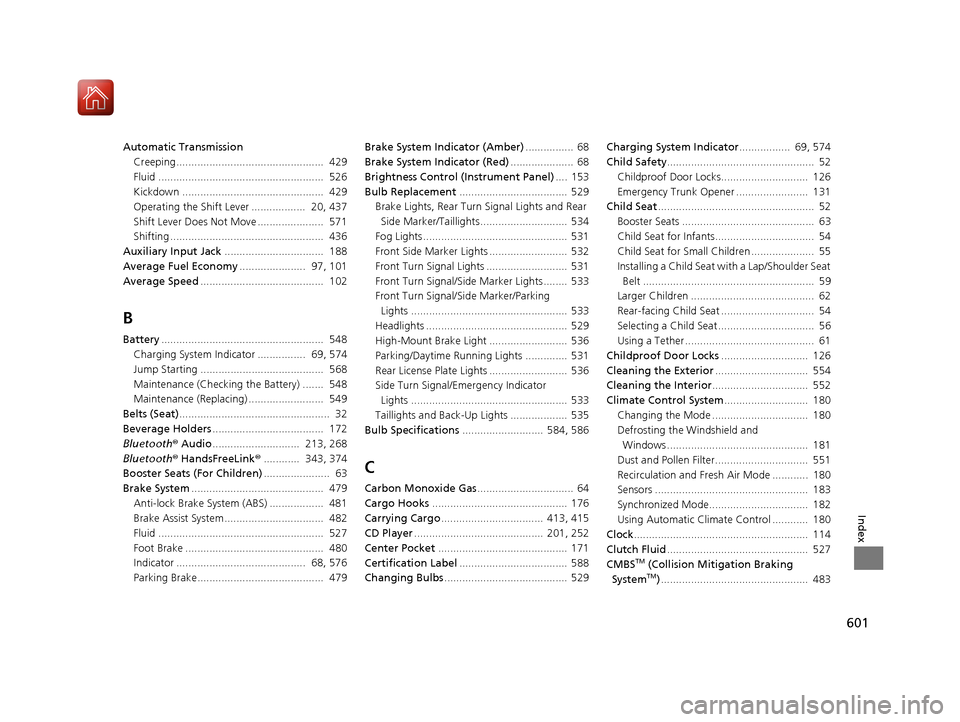

Page 602 of 609
601
Index
Automatic TransmissionCreeping................................................. 429
Fluid ....................................................... 526
Kickdown ............................................... 429
Operating the Shift Lever .................. 20, 437
Shift Lever Does Not Move ...................... 571
Shifting ................................................... 436
Auxiliary Input Jack ................................. 188
Average Fuel Economy ...................... 97, 101
Average Speed ......................................... 102
B
Battery...................................................... 548
Charging System Indicator ................ 69, 574
Jump Starting ......................................... 568
Maintenance (Checking the Battery) ....... 548
Maintenance (Replacing) ......................... 549
Belts (Seat) .................................................. 32
Beverage Holders ..................................... 172
Bluetooth ® Audio ............................. 213, 268
Bluetooth ® HandsFreeLink ®............ 343, 374
Booster Seats (For Children) ...................... 63
Brake System ............................................ 479
Anti-lock Brake System (ABS) .................. 481
Brake Assist System................................. 482
Fluid ....................................................... 527
Foot Brake .............................................. 480
Indicator ........................................... 68, 576
Parking Brake.......................................... 479 Brake System Indicator (Amber)
................ 68
Brake System Indicator (Red) ..................... 68
Brightness Control (Instrument Panel) .... 153
Bulb Replacement .................................... 529
Brake Lights, Rear Turn Signal Lights and Rear
Side Marker/Taillights............................. 534
Fog Lights ................................................ 531
Front Side Marker Lights .......................... 532
Front Turn Signal Lights ........................... 531
Front Turn Signal/Side Marker Lights ........ 533
Front Turn Signal/Si de Marker/Parking
Lights .................................................... 533
Headlights ............................................... 529
High-Mount Brake Light .......................... 536
Parking/Daytime Running Lights .............. 531
Rear License Plate Lights .......................... 536
Side Turn Signal/Em ergency Indicator
Lights .................................................... 533
Taillights and Back-Up Lights ................... 535
Bulb Specifications ........................... 584, 586
C
Carbon Monoxide Gas ................................ 64
Cargo Hooks ............................................. 176
Carrying Cargo .................................. 413, 415
CD Player ........................................... 201, 252
Center Pocket ........................................... 171
Certification Label .................................... 588
Changing Bulbs ......................................... 529 Charging System Indicator
................. 69, 574
Child Safety ................................................. 52
Childproof Door Locks............................. 126
Emergency Trunk Opener ........................ 131
Child Seat .................................................... 52
Booster Seats ............................................ 63
Child Seat for Infants................................. 54
Child Seat for Small Children ..................... 55
Installing a Child Seat wi th a Lap/Shoulder Seat
Belt ......................................................... 59
Larger Children ......................................... 62
Rear-facing Child Seat ............................... 54
Selecting a Child Seat ................................ 56
Using a Tether ........................................... 61
Childproof Door Locks ............................. 126
Cleaning the Exterior ............................... 554
Cleaning the Interior ................................ 552
Climate Control System ............................ 180
Changing the Mode ................................ 180
Defrosting the Windshield and Windows ............................................... 181
Dust and Pollen Filter............................... 551
Recirculation and Fresh Air Mode ............ 180
Sensors ................................................... 183
Synchronized Mode................................. 182
Using Automatic Climate Control ............ 180
Clock .......................................................... 114
Clutch Fluid ............................................... 527
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................. 483
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 601 ページ ２０１５年７月２８日 火曜日 午後３時３分

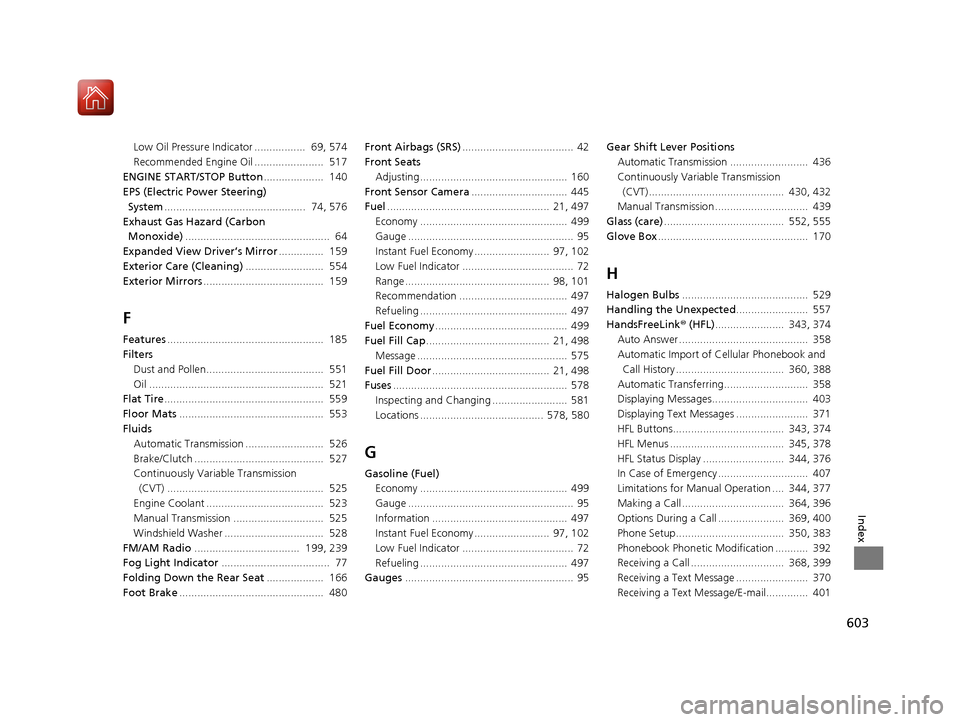

Page 604 of 609
603
Index
Low Oil Pressure Indicator ................. 69, 574
Recommended Engine Oil ....................... 517
ENGINE START/STOP Button .................... 140
EPS (Electric Power Steering) System ............................................... 74, 576
Exhaust Gas Hazard (Carbon Monoxide) ................................................ 64
Expanded View Driver’s Mirror ............... 159
Exterior Care (Cleaning) .......................... 554
Exterior Mirrors ........................................ 159
F
Features.................................................... 185
Filters Dust and Pollen....................................... 551
Oil .......................................................... 521
Flat Tire ..................................................... 559
Floor Mats ................................................ 553
Fluids Automatic Transmission .......................... 526
Brake/Clutch ........................................... 527
Continuously Variable Transmission (CVT) .................................................... 525
Engine Coolant ....................................... 523
Manual Transmission .............................. 525
Windshield Washer ................................. 528
FM/AM Radio ................................... 199, 239
Fog Light Indicator .................................... 77
Folding Down the Rear Seat ................... 166
Foot Brake ................................................ 480 Front Airbags (SRS)
..................................... 42
Front Seats
Adjusting ................................................. 160
Front Sensor Camera ................................ 445
Fuel ...................................................... 21, 497
Economy ................................................. 499
Gauge ....................................................... 95
Instant Fuel Economy ......................... 97, 102
Low Fuel Indicator ..................................... 72
Range ................................................ 98, 101
Recommendation .................................... 497
Refueling ................................................. 497
Fuel Economy ............................................ 499
Fuel Fill Cap ......................................... 21, 498
Message .................................................. 575
Fuel Fill Door ....................................... 21, 498
Fuses .......................................................... 578
Inspecting and Changing ......................... 581
Locations ......................................... 578, 580
G
Gasoline (Fuel) Economy ................................................. 499
Gauge ....................................................... 95
Information ............................................. 497
Instant Fuel Economy ......................... 97, 102
Low Fuel Indicator ..................................... 72
Refueling ................................................. 497
Gauges ........................................................ 95 Gear Shift Lever Positions
Automatic Transmission .......................... 436
Continuously Variable Transmission (CVT) ............................................. 430, 432
Manual Transmission ............................... 439
Glass (care) ........................................ 552, 555
Glove Box .................................................. 170
H
Halogen Bulbs .......................................... 529
Handling the Unexpected ........................ 557
HandsFreeLink ® (HFL) ....................... 343, 374
Auto Answer ........................................... 358
Automatic Import of Ce llular Phonebook and
Call History .................................... 360, 388
Automatic Transferring............................ 358
Displaying Messages................................ 403
Displaying Text Messages ........................ 371
HFL Buttons..................................... 343, 374
HFL Menus ...................................... 345, 378
HFL Status Display ........................... 344, 376
In Case of Emergency .............................. 407
Limitations for Manual Operation .... 344, 377
Making a Call .................................. 364, 396
Options During a Call ...................... 369, 400
Phone Setup.................................... 350, 383
Phonebook Phonetic Modification ........... 392
Receiving a Call ............................... 368, 399
Receiving a Text Message ........................ 370
Receiving a Text Message/E-mail.............. 401
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 603 ページ ２０１５年７月２８日 火曜日 午後３時３分

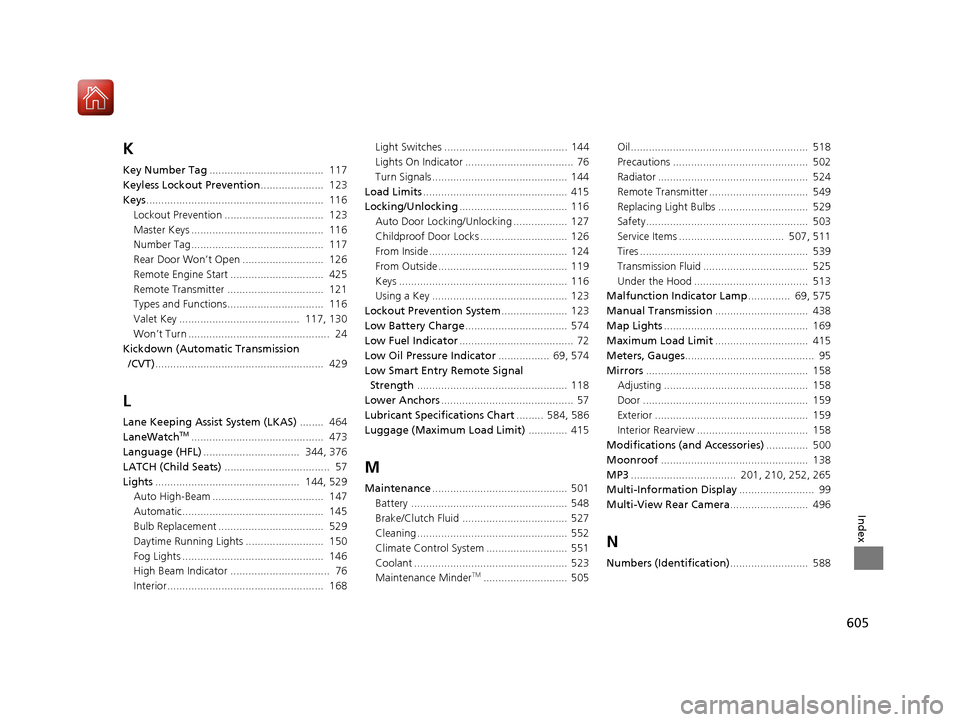

Page 606 of 609
605
Index
K
Key Number Tag...................................... 117
Keyless Lockout Prevention ..................... 123
Keys ........................................................... 116
Lockout Prevention ................................. 123
Master Keys ............................................ 116
Number Tag............................................ 117
Rear Door Won’t Open ........................... 126
Remote Engine Start ............................... 425
Remote Transmitter ................................ 121
Types and Functions................................ 116
Valet Key ........................................ 117, 130
Won’t Turn ............................................... 24
Kickdown (Automatic Transmission
/CVT) ........................................................ 429
L
Lane Keeping Assist System (LKAS) ........ 464
LaneWatchTM............................................ 473
Language (HFL) ................................ 344, 376
LATCH (Child Seats) ................................... 57
Lights ................................................ 144, 529
Auto High-Beam ..................................... 147
Automatic............................................... 145
Bulb Replacement ................................... 529
Daytime Running Lights .......................... 150
Fog Lights ............................................... 146
High Beam Indicator ................................. 76
Interior.................................................... 168 Light Switches ......................................... 144
Lights On Indicator .................................... 76
Turn Signals ............................................. 144
Load Limits ................................................ 415
Locking/Unlocking .................................... 116
Auto Door Locking/Unlocking .................. 127
Childproof Door Locks ............................. 126
From Inside .............................................. 124
From Outside ........................................... 119
Keys ........................................................ 116
Using a Key ............................................. 123
Lockout Prevention System ...................... 123
Low Battery Charge .................................. 574
Low Fuel Indicator ...................................... 72
Low Oil Pressure Indicator ................. 69, 574
Low Smart Entry Remote Signal Strength .................................................. 118
Lower Anchors ............................................ 57
Lubricant Specifications Chart ......... 584, 586
Luggage (Maximum Load Limit) ............. 415
M
Maintenance............................................. 501
Battery .................................................... 548
Brake/Clutch Fluid ................................... 527
Cleaning .................................................. 552
Climate Control System ........................... 551
Coolant ................................................... 523
Maintenance Minder
TM............................ 505 Oil ........................................................... 518
Precautions ............................................. 502
Radiator .................................................. 524
Remote Transmitter ................................. 549
Replacing Light Bulbs .............................. 529
Safety...................................................... 503
Service Items ................................... 507, 511
Tires ........................................................ 539
Transmission Fluid ................................... 525
Under the Hood ...................................... 513
Malfunction Indicator Lamp .............. 69, 575
Manual Transmission ............................... 438
Map Lights ................................................ 169
Maximum Load Limit ............................... 415
Meters, Gauges ........................................... 95
Mirrors ...................................................... 158
Adjusting ................................................ 158
Door ....................................................... 159
Exterior ................................................... 159
Interior Rearview ..................................... 158
Modifications (and Accessories) .............. 500
Moonroof ................................................. 138
MP3 ................................... 201, 210, 252, 265
Multi-Information Display ......................... 99
Multi-View Rear Camera .......................... 496
N
Numbers (Identification).......................... 588
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 605 ページ ２０１５年７月２８日 火曜日 午後３時３分

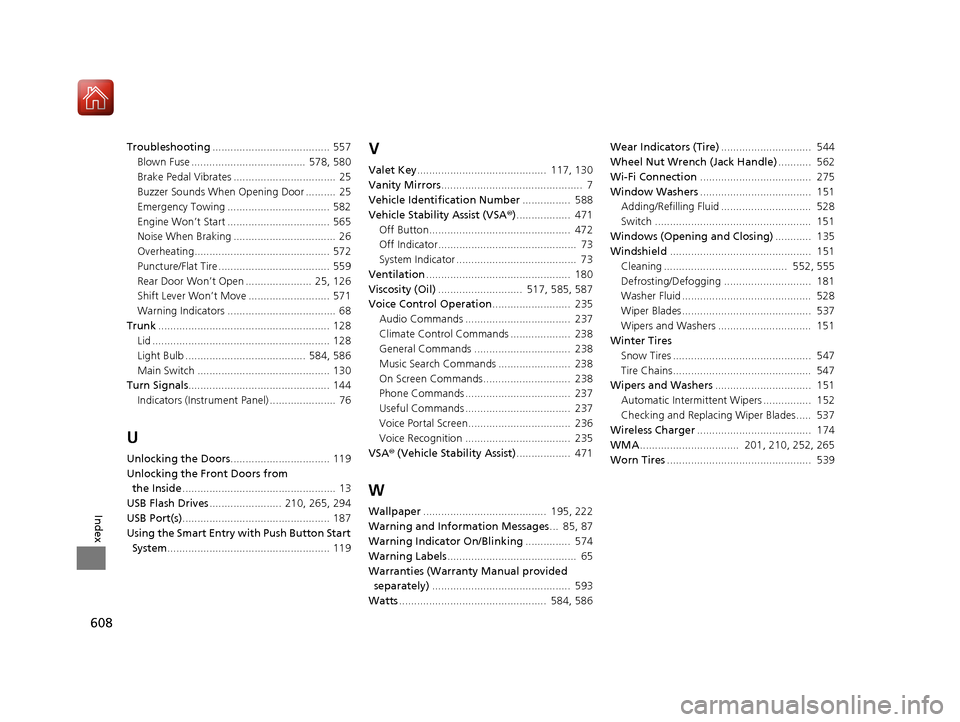

Page 609 of 609
608
Index
Troubleshooting....................................... 557
Blown Fuse ...................................... 578, 580
Brake Pedal Vibrates .................................. 25
Buzzer Sounds When Opening Door .......... 25
Emergency Towing .................................. 582
Engine Won’t Start .................................. 565
Noise When Braking .................................. 26
Overheating............................................. 572
Puncture/Flat Tire ..................................... 559
Rear Door Won’t Open ...................... 25, 126
Shift Lever Won’t Move ........................... 571
Warning Indicators .................................... 68
Trunk ......................................................... 128
Lid ........................................................... 128
Light Bulb ........................................ 584, 586
Main Switch ............................................ 130
Turn Signals ............................................... 144
Indicators (Instrum ent Panel) ...................... 76
U
Unlocking the Doors ................................. 119
Unlocking the Front Doors from the Inside ................................................... 13
USB Flash Drives ........................ 210, 265, 294
USB Port(s) ................................................. 187
Using the Smart Entry wi th Push Button Start
System ...................................................... 119
V
Valet Key ........................................... 117, 130
Vanity Mirrors ............................................... 7
Vehicle Identification Number ................ 588
Vehicle Stability Assist (VSA ®).................. 471
Off Button............................................... 472
Off Indicator.............................................. 73
System Indicator ........................................ 73
Ventilation ................................................ 180
Viscosity (Oil) ............................ 517, 585, 587
Voice Control Operation .......................... 235
Audio Commands ................................... 237
Climate Control Commands .................... 238
General Commands ................................ 238
Music Search Commands ........................ 238
On Screen Commands............................. 238
Phone Commands ................................... 237
Useful Commands ................................... 237
Voice Portal Screen.................................. 236
Voice Recognition ................................... 235
VSA ® (Vehicle Stability Assist) .................. 471
W
Wallpaper......................................... 195, 222
Warning and Information Messages ... 85, 87
Warning Indicator On/Blinking ............... 574
Warning Labels ........................................... 65
Warranties (Warranty Manual provided separately) .............................................. 593
Watts ................................................. 584, 586 Wear Indicators (Tire)
.............................. 544
Wheel Nut Wrench (Jack Handle) ........... 562
Wi-Fi Connection ..................................... 275
Window Washers ..................................... 151
Adding/Refilling Fluid .............................. 528
Switch .................................................... 151
Windows (Opening and Closing) ............ 135
Windshield ............................................... 151
Cleaning ......................................... 552, 555
Defrosting/Defogging ............................. 181
Washer Fluid ........................................... 528
Wiper Blades........................................... 537
Wipers and Washers ............................... 151
Winter Tires
Snow Tires .............................................. 547
Tire Chains.............................................. 547
Wipers and Washers ................................ 151
Automatic Intermittent Wipers ................ 152
Checking and Replacing Wiper Blades..... 537
Wireless Charger ...................................... 174
WMA ................................. 201, 210, 252, 265
Worn Tires ................................................ 539
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 608 ページ ２０１５年７月２８日 火曜日 午後３時３分
