start stop button HONDA ACCORD 2016 9.G Quick Guide

| 1

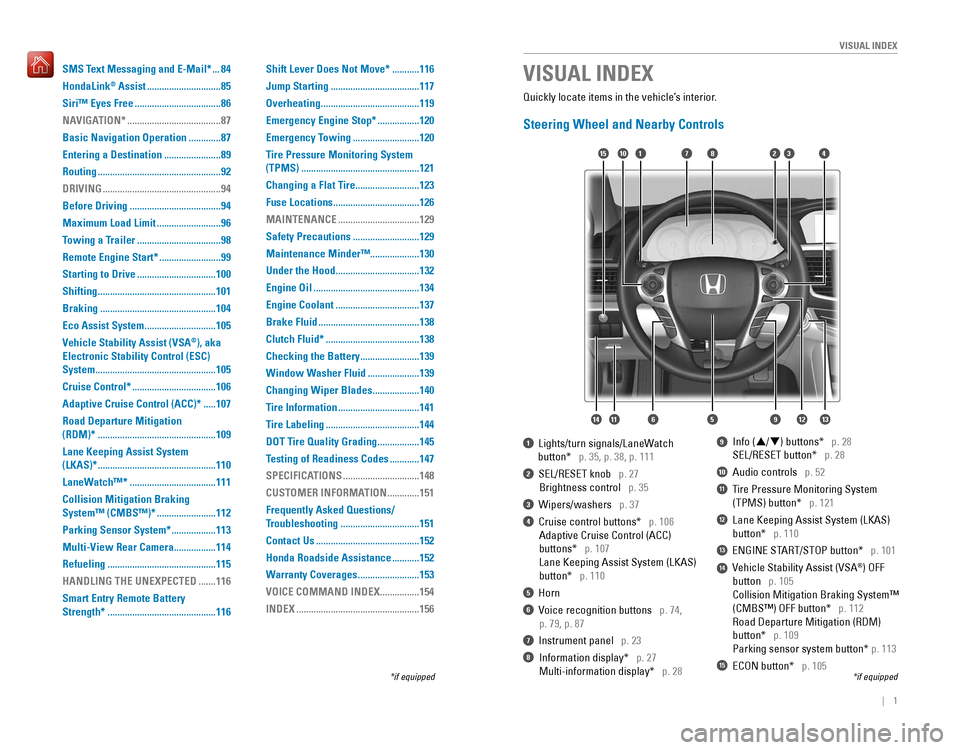

VISUAL INDEX
1  Lights/turn signals/LaneWatch
      button*   p. 35, p. 38, p. 111
2  SEL/RESET knob   p. 27
Brightness control p. 35
3  Wipers/washers   p. 37
4  Cruise control buttons*   p. 106
Adaptive Cruise Control (ACC)
 buttons*   p. 107
Lane Keeping Assist System (LKAS)
 button*   p. 110
5 Horn
6  Voice recognition buttons   p. 74,
p. 79, p. 87
7  Instrument panel   p. 23
8 Information display*   p. 27
 Multi-information display*   p. 28
9 Info (p/q) buttons*   p. 28
 SEL/RESET button*   p. 28
10 Audio controls p. 52
11 Tire Pressure Monitoring System
 (TPMS) button*   p. 121
12 Lane Keeping Assist System (LKAS)
 button*   p. 110
13  ENGINE START/STOP button*   p. 101
14  Vehicle Stability Assist (VSA®) oFF
 button   p. 105
Collision Mitigation Braking System™
 (CMBS™) OFF button*   p. 112
road Departure Mitigation (rDM)
 button*   p. 109
Parking sensor system button* p. 113
15 ECON button*   p. 105
VISUAL INDEX
*if equipped*if equipped
Quickly locate items in the vehicle’s interior.
Steering Wheel and Nearby Controls
12
5
107415
116
38
9121314
SMS Text Messaging and E-Mail* ...84
HondaLink
® Assist ..............................85
Siri™ Eyes Free
...................................86
NAVIGATION*
......................................87
Basic Navigation Operation
.............87
Entering a Destination
.......................89
Routing
..................................................92
DRIVING
................................................94
Before Driving
.....................................94
Maximum Load Limit
..........................96
Towing a Trailer
..................................98
Remote Engine Start*
.........................99
Starting to Drive
................................100
Shifting
................................................101

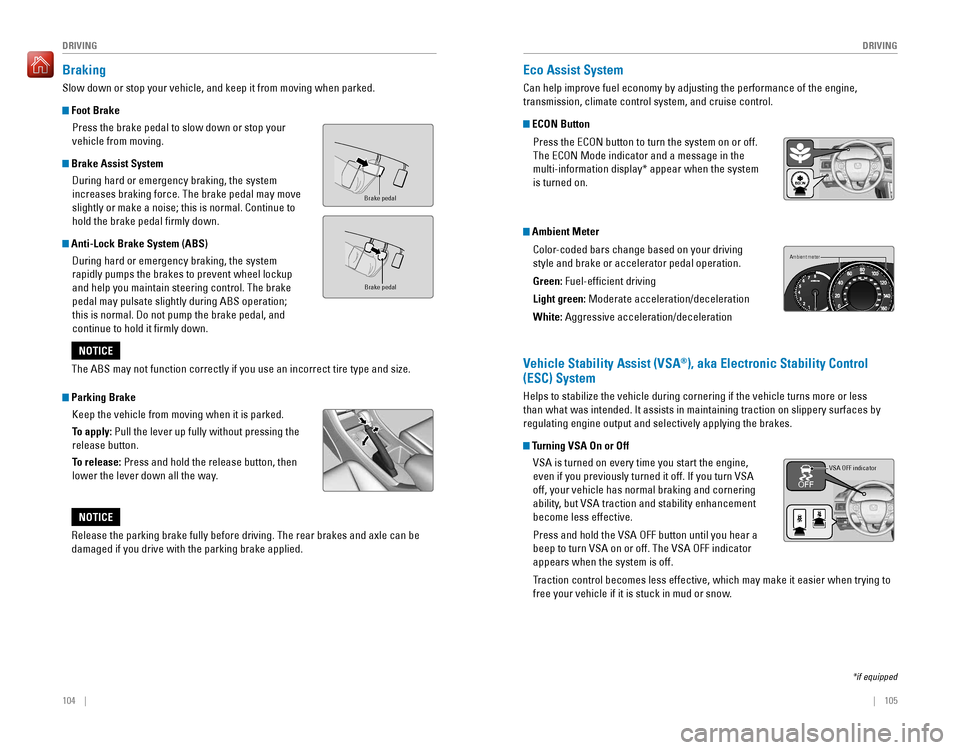

Braking
...............................................104
Eco Assist System
.............................105
Vehicle Stability Assist (VSA
®), aka
Electronic Stability Control (ESC)
System
.................................................105
Cruise Control*
..................................106
Adaptive Cruise Control (ACC)*
.....107
Road Departure Mitigation
(RDM)*
................................................109
Lane Keeping Assist System
(LKAS)*
................................................110
LaneWatch™*
...................................111
Collision Mitigation Braking
System™ (CMBS™)*
........................112
Parking Sensor System*
..................113
Multi-View Rear Camera
.................114
Refueling
............................................115

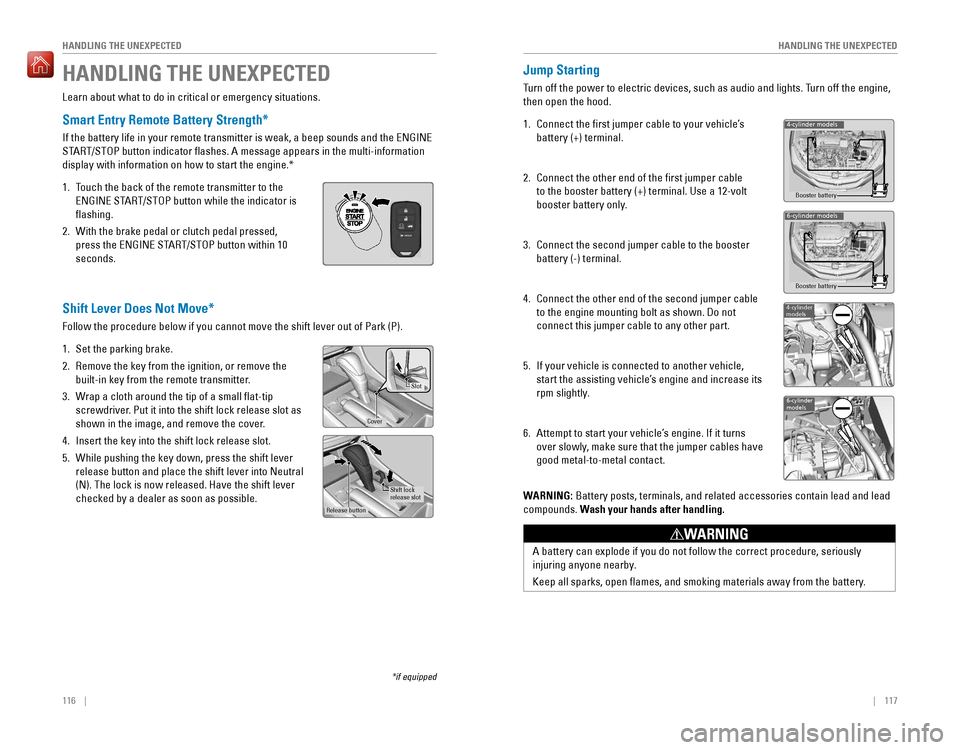

HANDLING THE UNEXPECTED
.......116
Smart Entry Remote Battery
Strength*
............................................116 Shift Lever Does Not Move*
...........116
Jump Starting
....................................117
Overheating
........................................119

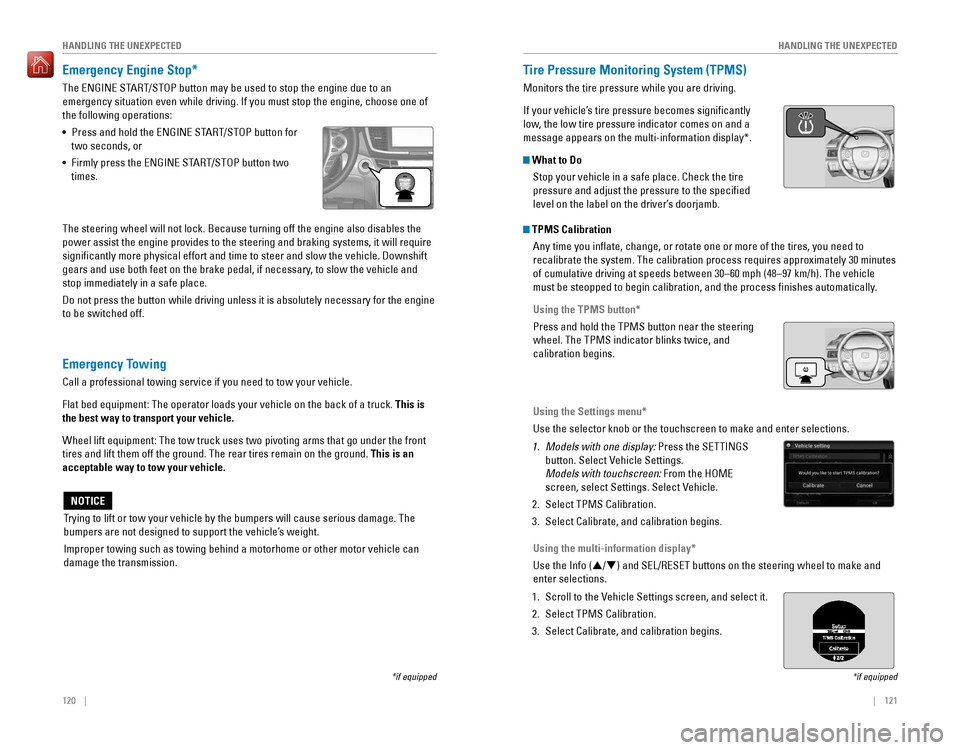

Emergency Engine Stop*
.................120
Emergency Towing
...........................120
Tire Pressure Monitoring System
(TPMS)
................................................121
Changing a Flat Tire
..........................123
Fuse Locations
...................................126
MAINTENANCE
.................................129
Safety Precautions
...........................129
Maintenance Minder™ ....................130
Under the Hood
..................................132
Engine Oil
...........................................134
Engine Coolant
..................................137
Brake Fluid
.........................................138
Clutch Fluid*
......................................138
Checking the Battery
........................139
Window Washer Fluid
.....................139
Changing Wiper Blades
...................140
Tire Information
.................................141
Tire Labeling
......................................144
DOT Tire Quality Grading
.................145
Testing of Readiness Codes
............147
SPECIFICATIONS
...............................148
CUSTOMER INFORMATION
.............151
Frequently Asked Questions/
Troubleshooting
................................151
Contact Us
..........................................152
Honda Roadside Assistance
...........152
Warranty Coverages
.........................153
VOICE COMMAND INDEX
................154

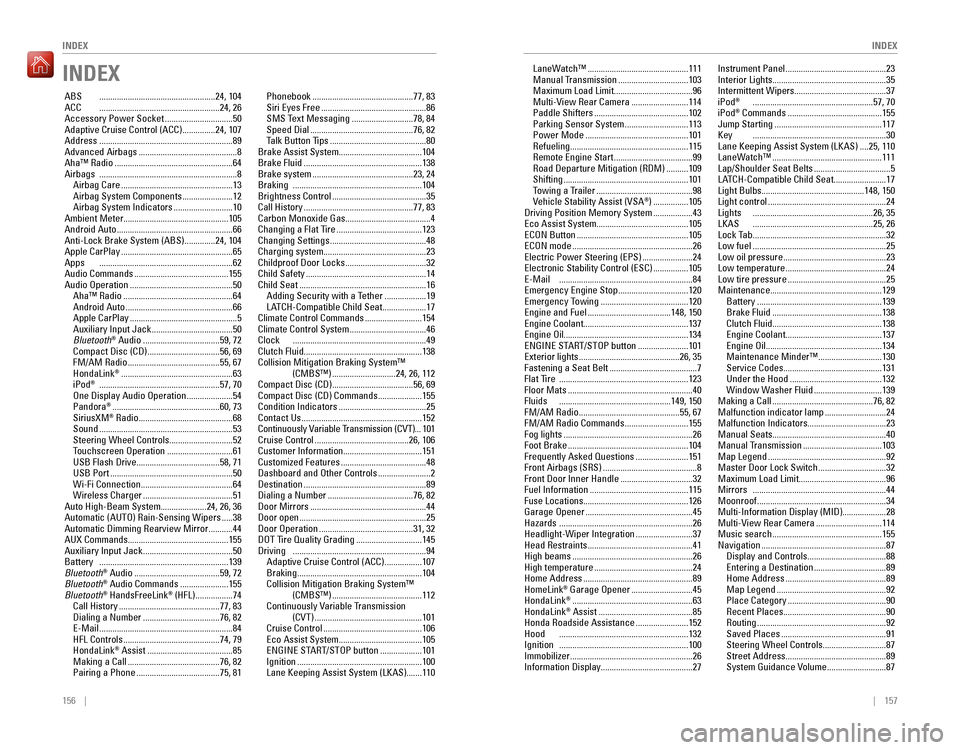

INDEX
..................................................156

24 || 25

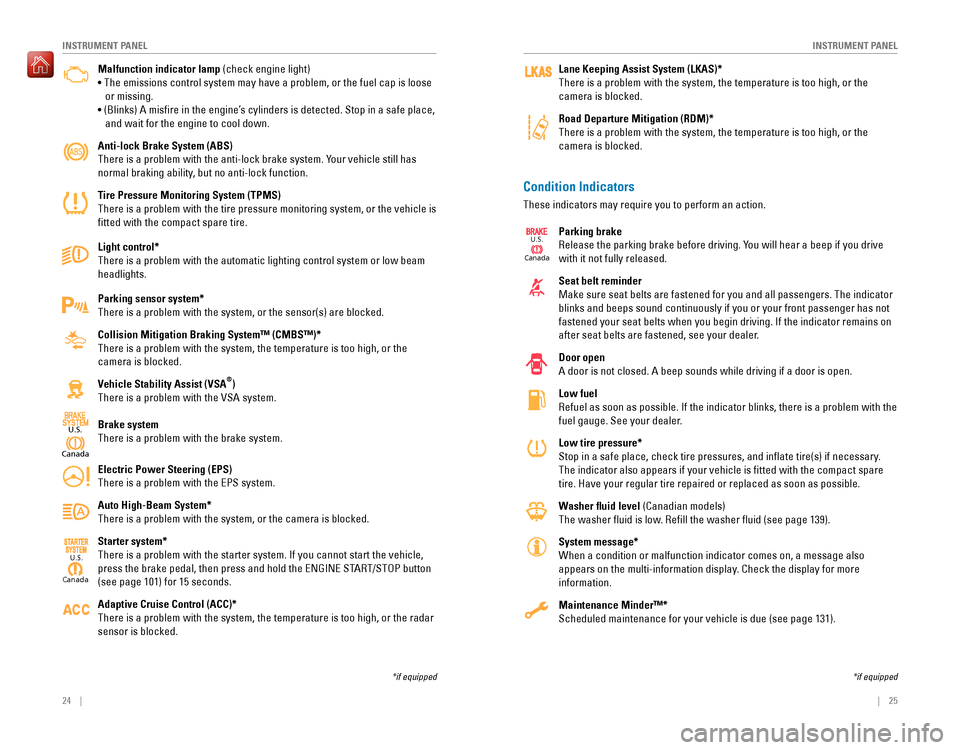

INSTRUMENT PANELINSTRUMENT PANEL
Malfunction indicator lamp (check engine light)
• The emissions control system may have a problem, or the fuel cap is loose  
or missing.
• (Blinks) A misfire in the engine’s cylinders is detected. Stop in a safe place, 
and wait for the engine to cool down.
Anti-lock Brake System (ABS)
There is a problem with the anti-lock brake system. Your vehicle still has 
normal braking ability, but no anti-lock function. 
Tire Pressure Monitoring System (TPMS)
There is a problem with the tire pressure monitoring system, or the vehicle is 
fitted with the compact spare tire.
Light control*
There is a problem with the automatic lighting control system or low beam 
headlights.
Parking sensor system*
There is a problem with the system, or the sensor(s) are blocked.
Collision Mitigation Braking System™ (CMBS™)*
There is a problem with the system, the temperature is too high, or the 
camera is blocked.
Vehicle Stability Assist (VSA®)
There is a problem with the VSA system.
Brake system
There is a problem with the brake system.
Electric Power Steering (EPS)
There is a problem with the EPS system.
Auto High-Beam System*
There is a problem with the system, or the camera is blocked.
Starter system*
There is a problem with the starter system. If you cannot start the vehicle, 
press the brake pedal, then press and hold the ENGINE START/STOP button 
(see page 101) for 15 seconds.
Adaptive Cruise Control (ACC)*
There is a problem with the system, the temperature is too high, or the radar 
sensor is blocked.
Canad a
U.S.
*if equipped
Condition Indicators
These indicators may require you to perform an action.
Parking brake
Release the parking brake before driving. You will hear a beep if you drive 
with it not fully released.
Seat belt reminder
Make sure seat belts are fastened for you and all passengers. The indicator 
blinks and beeps sound continuously if you or your front passenger has not 
fastened your seat belts when you begin driving. If the indicator remains on 
after seat belts are fastened, see your dealer.
Door open
A door is not closed. A beep sounds while driving if a door is open.
Low fuel
Refuel as soon as possible. If the indicator blinks, there is a problem with the 
fuel gauge. See your dealer.
Low tire pressure*
Stop in a safe place, check tire pressures, and inflate tire(s) if n\
ecessary.
The indicator also appears if your vehicle is fitted with the compact \
spare
tire. Have your regular tire repaired or replaced as soon as possible.
Washer fluid level (Canadian models)
The washer fluid is low. refill the washer fluid (see page 139).
System message*
When a condition or malfunction indicator comes on, a message also 
appears on the multi-information display. Check the display for more
information.
Maintenance Minder™*
Scheduled maintenance for your vehicle is due (see page 131).
*if equipped
Lane Keeping Assist System (LKAS)*
There is a problem with the system, the temperature is too high, or the 
camera is blocked.
Road Departure Mitigation (RDM)*
There is a problem with the system, the temperature is too high, or the 
camera is blocked.
Canada
U.S.
Canada
U.S.

98 || 99
DRIVING
DRIVING

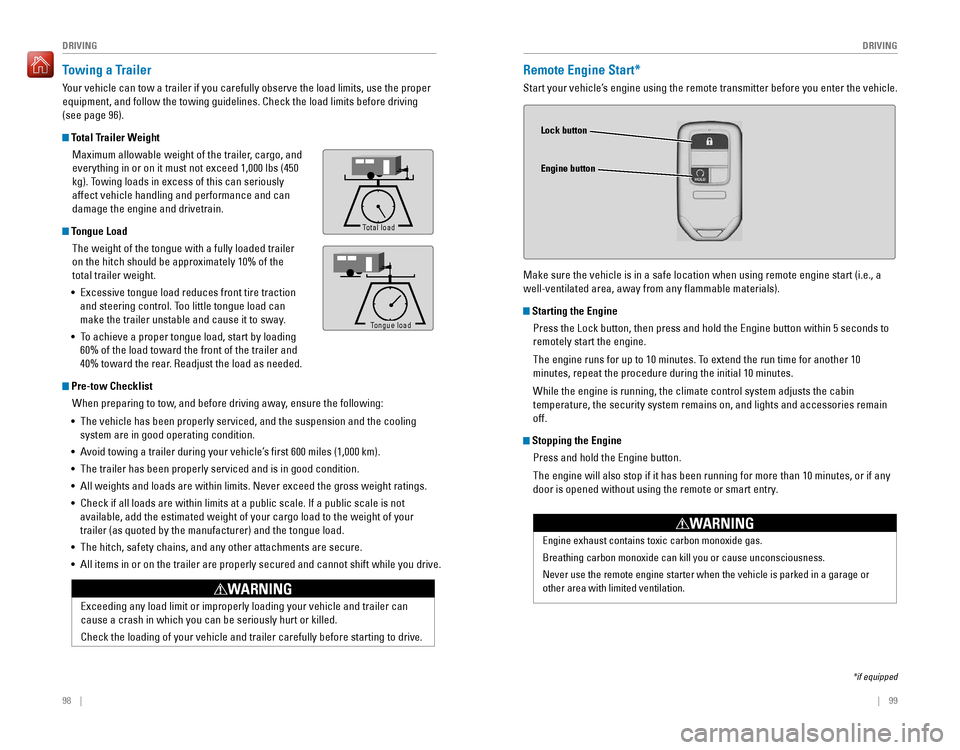

Towing a Trailer
Your vehicle can tow a trailer if you carefully observe the load limits, use the proper 
equipment, and follow the towing guidelines. Check the load limits before driving 
(see page 96).
Total Trailer Weight
Maximum allowable weight of the trailer, cargo, and 
everything in or on it must not exceed 1,000 lbs (450 
kg). Towing loads in excess of this can seriously
affect vehicle handling and performance and can
damage the engine and drivetrain.
Tongue Load
The weight of the tongue with a fully loaded trailer
on the hitch should be approximately 10% of the 
total trailer weight.
• 
excessive tongue load reduces front tire traction
and steering control. Too little tongue load can
make the trailer unstable and cause it to sway.
• To achieve a proper tongue load, start by loading 
60% of the load toward the front of the trailer and 
40% toward the rear. Readjust the load as needed.
Pre-tow Checklist
When preparing to tow, and before driving away, ensure the following:
• The vehicle has been properly serviced, and the suspension and the cooling 
system are in good operating condition.
•  Avoid towing a trailer during your vehicle’s first 600 miles (1,000 km).
• 
The trailer has been properly serviced and is in good condition.
•  All weights and loads are within limits. Never exceed the gross weight r\
atings.
• 
Check if all loads are within limits at a public scale. If a public scale is not 
available, add the estimated weight of your cargo load to the weight of your 
trailer (as quoted by the manufacturer) and the tongue load.
•  The hitch, safety chains, and any other attachments are secure.
•  All items in or on the trailer are properly secured and cannot shift whi\
le you drive.
exceeding any load limit or improperly loading your vehicle and trailer c\
an
cause a crash in which you can be seriously hurt or killed.
Check the loading of your vehicle and trailer carefully before starting to drive.
WARNING
To ngue Load
Total load
Tongue LoadTongue load
Remote Engine Start*
Start your vehicle’s engine using the remote transmitter before you enter the vehicle.
Make sure the vehicle is in a safe location when using remote engine start (i.e., a
well-ventilated area, away from any flammable materials).
Starting the Engine
Press the Lock button, then press and hold the Engine button within 5 seconds to 
remotely start the engine.
The engine runs for up to 10 minutes. To extend the run time for another 10
minutes, repeat the procedure during the initial 10 minutes.
While the engine is running, the climate control system adjusts the cabin 
temperature, the security system remains on, and lights and accessories remain
off.
Stopping the Engine
Press and hold the Engine button.
The engine will also stop if it has been running for more than 10 minutes, or if any 
door is opened without using the remote or smart entry.
Engine exhaust contains toxic carbon monoxide gas.
Breathing carbon monoxide can kill you or cause unconsciousness.
Never use the remote engine starter when the vehicle is parked in a gara\
ge or
other area with limited ventilation.
WARNING
Lock button
Engine button
*if equipped

100 || 101
DRIVING
DRIVING

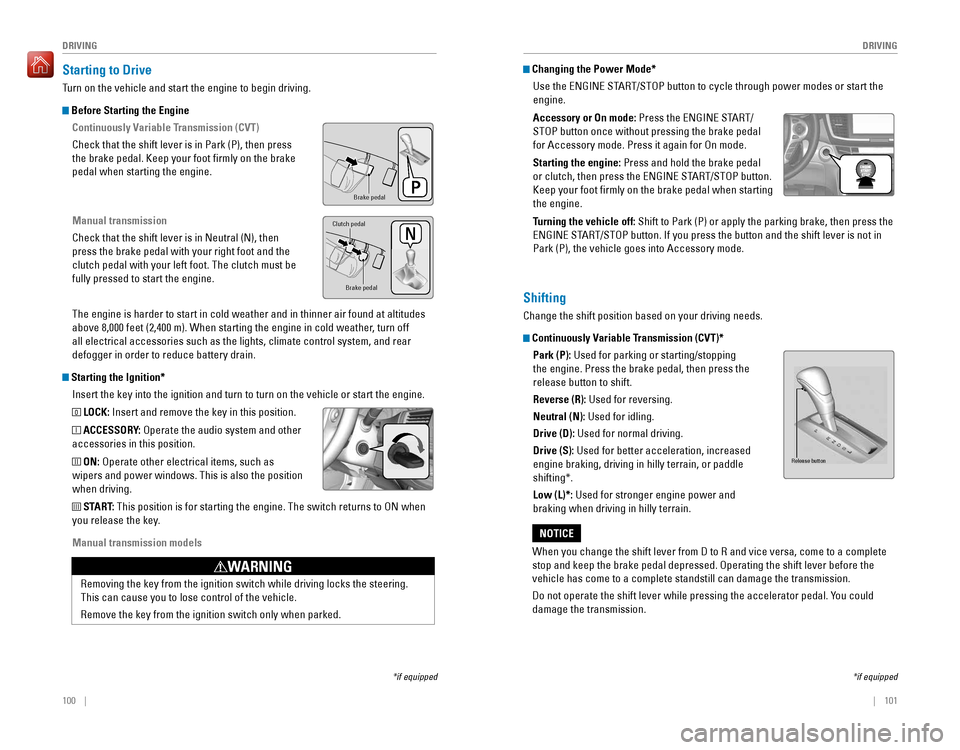

Starting to Drive
Turn on the vehicle and start the engine to begin driving.
Before Starting the Engine
Continuously Variable Transmission (CVT)
Check that the shift lever is in Park (P), then press
the brake pedal. Keep your foot firmly on the brake 
pedal when starting the engine.
Manual transmission
Check that the shift lever is in Neutral (N), then
press the brake pedal with your right foot and the 
clutch pedal with your left foot. The clutch must be 
fully pressed to start the engine.
The engine is harder to start in cold weather and in thinner air found a\
t altitudes
above 8,000 feet (2,400 m). When starting the engine in cold weather, turn off 
all electrical accessories such as the lights, climate control system, a\
nd rear
defogger in order to reduce battery drain.
Starting the Ignition*
Insert the key into the ignition and turn to turn on the vehicle or start the engine.
0 LOCK: Insert and remove the key in this position.
I ACCESSORY: operate the audio system and other
accessories in this position.
II ON: operate other electrical items, such as
wipers and power windows. This is also the position
when driving.
III START: This position is for starting the engine. The switch returns to oN when
you release the key.
Manual transmission models
*if equipped
Brake peda l
Brake pedal
Clutch pedal
removing the key from the ignition switch while driving locks the steerin\
g.
This can cause you to lose control of the vehicle.
remove the key from the ignition switch only when parked.
WARNING
Changing the Power Mode*
Use the
ENGINE START/STOP button to cycle through power modes or start the 
engine.
Accessory or On mode:
Press the ENGINE START/
STOP button once without pressing the brake pedal 
for Accessory mode. Press it again for on mode.
Starting the engine: Press and hold the brake pedal 
or clutch, then press the ENGINE START/STOP button. 
Keep your foot firmly on the brake pedal when starting 
the engine.
Turning the vehicle off:
Shift to Park (P) or apply the parking brake, then press the 
ENGINE START/STOP button. If you press the button and the shift lever is not in 
Park (P), the vehicle goes into Accessory mode.
*if equipped
Shifting
Change the shift position based on your driving needs.
Continuously Variable Transmission (CVT)*Park (P):
Used for parking or starting/stopping 
the engine. Press the brake pedal, then press the 
release button to shift.
Reverse (R): Used for reversing.
Neutral (N): Used for idling.
Drive (D): Used for normal driving.
Drive (S):
Used for better acceleration, increased 
engine braking, driving in hilly terrain, or paddle 
shifting*.
Low (L)*: Used for stronger engine power and
braking when driving in hilly terrain.
When you change the shift lever from D to R and vice versa, come to a complete 
stop and keep the brake pedal depressed. Operating the shift lever before the 
vehicle has come to a complete standstill can damage the transmission.
Do not operate the shift lever while pressing the accelerator pedal. You could
damage the transmission.
NOTICE
Release button

104 || 105
DRIVING
DRIVING
Braking
Slow down or stop your vehicle, and keep it from moving when parked.
Foot Brake
Press the brake pedal to slow down or stop your 
vehicle from moving.
Brake Assist System
During hard or emergency braking, the system 
increases braking force. The brake pedal may move 
slightly or make a noise; this is normal. Continue to
hold the brake pedal firmly down. 
Anti-Lock Brake System (ABS)
During hard or emergency braking, the system 
rapidly pumps the brakes to prevent wheel lockup 
and help you maintain steering control. The brake 
pedal may pulsate slightly during ABS operation;
this is normal. Do not pump the brake pedal, and 
continue to hold it firmly down.
Parking Brake
Keep the vehicle from moving when it is parked.
To apply: Pull the lever up fully without pressing the
release button. 
To release: Press and hold the release button, then 
lower the lever down all the way.
Brake peda l
Brake pedal
The ABS may not function correctly if you use an incorrect tire type and size. 
NOTICE
Release the parking brake fully before driving. The rear brakes and axle can be 
damaged if you drive with the parking brake applied. 
NOTICE
Eco Assist System
Can help improve fuel economy by adjusting the performance of the engine, 
transmission, climate control system, and cruise control.
ECON Button
Press the ECON button to turn the system on or off. 
The eCoN Mode indicator and a message in the
multi-information display* appear when the system 
is turned on.
Ambient Meter
Color-coded bars change based on your driving 
style and brake or accelerator pedal operation.
Green: Fuel-efficient driving
Light green:
 Moderate acceleration/deceleration
White: Aggressive acceleration/deceleration
Ambient meter
Vehicle Stability Assist (VSA®), aka Electronic Stability Control
(ESC) System
Helps to stabilize the vehicle during cornering if the vehicle turns more or less 
than what was intended. It assists in maintaining traction on slippery surfaces by 
regulating engine output and selectively applying the brakes.
Turning VSA On or Off
vSA is turned on every time you start the engine,
even if you previously turned it off. If you turn VSA 
off, your vehicle has normal braking and cornering 
ability, but VSA traction and stability enhancement 
become less effective.
Press and hold the VSA OFF button until you hear a 
beep to turn VSA on or off. The VSA OFF indicator 
appears when the system is off.
Traction control becomes less effective, which may make it easier when trying to 
free your vehicle if it is stuck in mud or snow.
VSA OFF indicator
*if equipped

116 || 117
HANDLING THE UNEXPECTED
HANDLING THE UNEXPECTED
HANDLING THE UNEXPECTED
Learn about what to do in critical or emergency situations.
Smart Entry Remote Battery Strength*
If the battery life in your remote transmitter is weak, a beep sounds and the ENGINE 
START/STOP button indicator flashes. A message appears in the multi-information 
display with information on how to start the engine.*
1. Touch the back of the remote transmitter to the 
ENGINE START/STOP button while the indicator is 
flashing.
2. With the brake pedal or clutch pedal pressed, 
press the ENGINE START/STOP button within 10 
seconds.
Shift Lever Does Not Move*
Follow the procedure below if you cannot move the shift lever out of Park (P).
1. Set the parking brake.
2. remove the key from the ignition, or remove the
built-in key from the remote transmitter.
3. Wrap a cloth around the tip of a small flat-tip 
screwdriver. Put it into the shift lock release slot as
shown in the image, and remove the cover.
4. Insert the key into the shift lock release slot.
5. While pushing the key down, press the shift lever 
release button and place the shift lever into Neutral  
(N). The lock is now released. Have the shift lever
checked by a dealer as soon as possible.
*if equipped
Slo t
Cove r
Release button
Shift lock
release slot
FPO
Jump Starting
Turn off the power to electric devices, such as audio and lights. Turn off the engine,
then open the hood.
1. Connect the first jumper cable to your vehicle’s 
battery (+) terminal.
2. Connect the other end of the first jumper cable 
to the booster battery (+) terminal. Use a 12-volt 
booster battery only.
3. Connect the second jumper cable to the booster 
battery (-) terminal.
4. Connect the other end of the second jumper cable 
to the engine mounting bolt as shown. Do not 
connect this jumper cable to any other part.
5. If your vehicle is connected to another vehicle, 
start the assisting vehicle’s engine and increase its
rpm slightly.
6. Attempt to start your vehicle’s engine. If it turns 
over slowly, make sure that the jumper cables have 
good metal-to-metal contact.
WARNING: Battery posts, terminals, and related accessories contain lead and lead\

compounds. Wash your hands after handling.
Booster battery
4-cylinder model s
6-cylinder models
Booster battery
4-cylinder
models
6-cylinder
models
A battery can explode if you do not follow the correct procedure, seriously 
injuring anyone nearby.
Keep all sparks, open flames, and smoking materials away from the battery.
WARNING

120 || 121
HANDLING THE UNEXPECTED
HANDLING THE UNEXPECTED
Emergency Engine Stop*
The ENGINE START/STOP button may be used to stop the engine due to an 
emergency situation even while driving. If you must stop the engine, choose one of 
the following operations:
• 
Press and hold the ENGINE START/STOP button for 
two seconds, or
• 
Firmly press the ENGINE START/STOP button two 
times.
The steering wheel will not lock. Because turning off the engine also disables the 
power assist the engine provides to the steering and braking systems, it will require 
significantly more physical effort and time to steer and slow the vehi\
cle. Downshift
gears and use both feet on the brake pedal, if necessary, to slow the vehicle and 
stop immediately in a safe place.
Do not press the button while driving unless it is absolutely necessary for the engine 
to be switched off.
*if equipped
Trying to lift or tow your vehicle by the bumpers will cause serious damage. The 
bumpers are not designed to support the vehicle’s weight.
Improper towing such as towing behind a motorhome or other motor vehicle can 
damage the transmission.
NOTICE
Emergency Towing
Call a professional towing service if you need to tow your vehicle.
Flat bed equipment: The operator loads your vehicle on the back of a truck. This is
the best way to transport your vehicle.
Wheel lift equipment: The tow truck uses two pivoting arms that go under the front 
tires and lift them off the ground. The rear tires remain on the ground.\
This is an
acceptable way to tow your vehicle.
Tire Pressure Monitoring System (TPMS)
Monitors the tire pressure while you are driving.
If your vehicle’s tire pressure becomes significantly 
low, the low tire pressure indicator comes on and a
message appears on the multi-information display*.
What to Do
Stop your vehicle in a safe place. Check the tire
pressure and adjust the pressure to the specified
level on the label on the driver’s doorjamb.
*if equipped
TPMS CalibrationAny time you inflate, change, or rotate one or more of the tires, you \
need to
recalibrate the system. The calibration process requires approximately 30 minutes 
of cumulative driving at speeds between 30–60 mph (48–97 km/h). The vehicle 
must be steopped to begin calibration, and the process finishes automatically.
Using the TPMS button*
Press and hold the TPMS button near the steering 
wheel. The TPMS indicator blinks twice, and 
calibration begins.
Using the Settings menu*
Use the selector knob or the touchscreen to make and enter selections.
1. Models with one display: Press the SETTINGS 
button. Select Vehicle Settings.
Models with touchscreen: From the HoMe
screen, select Settings. Select vehicle.
2. Select TPMS Calibration.
3. Select Calibrate, and calibration begins.
Using the multi-information display*
Use the Info (p/q) and SEL/RESET buttons on the steering wheel to make and 
enter selections.
1. Scroll to the vehicle Settings screen, and select it.
2. Select TPMS Calibration.
3. Select Calibrate, and calibration begins.

150 || 151
CUSTOMER INFORMATION
SPECIFICATIONS
6-cylinder models
Vehicle
Engine and Fuel
Tires
Light Bulbs
Fluids
ModelHonda Accord SedanNo. of Passengers:
Front 2
Rear 3
Tota l5
Weights:Gross Vehicle
Weight Rating U.S.: 4,542 lbs (2,060 kg )
Canada: 2,060 kg
Gross Axle Weight
Rating (Front)U.S.: 2,491 lbs (1,130 kg )
Canada: 1,130 kg
Gross Axle Weight
Rating (Rear)U.S.: 2,072 lbs (940 kg )
Canada: 940 kg
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantit y15.0 – 16.8 oz (425 – 475 g)
Lubricant Type ND-OIL 8
Engine
FuelDisplacement212 cu-in (3,471 cm3)
Spark Plugs NG
KI LZKR7B11
DENSO SXU22HCR11
Fuel:
TypeUnleaded gasoline
Pump octane number of 87 or higher
Fuel Tank Capacity 17.2 US gal (65 )
*1: EX-L V6 models*2: U.S. Touring models and Canadian V6 Touring models
Regular
Size215/55R17 94 V*1235/40R19 96V*2
Pressure
psi (kPa [kgf/cm2])33 (225 [2.3])*133 (230 [2.3])*2Front
Rear33 (225 [2.3])*132 (220 [2.2])*2
Compact
Spar e Size
T135/90D16 102M*1T135/80D17 103M*2Pressure
psi (kPa [kgf/cm2])
60 (420 [4.2])
Wheel SizeRegula
r17 x 7 1/2J*119 x 8J*2
Compact Spar e16 x 4T*117 x 4T*2
*1:Models with halogen headlights*2:Models with LED headlights*3:Models with bulb type parking lights*4:Models with LED type parking/daytime running lights*5:Models with bulb type brake lights*6: Models with LED type brake lights
Headlights (Low Beam)55W (H11)*1LED*2
Headlights (High Beam )60W (HB3
)*1LED*2Fog LightsLEDFront Turn Si gnal/Side Marker/Parki ng Ligh ts*1, *3Front Turn Signal/Side Marker Light s*1, *428/8W (Amber )
Parking/Daytime Running Lights*4LE D
Front Turn Signal Light s*2LEDFront Side Marker Lights*23CP
Side Turn Signal Lights
(on Door Mirrors ) LE
D
Brake Lights21W*5LED*6Rear Turn Signal Lights 21W (Amber)Rear Side Marker LightsLED
Taillights (on Fenders) LED
Back-Up Lights16W
Taillights (on Trunk Lid) LED
High-Mount Brake LightLED
Rear License Plate Lights5WTrunk Light5WIn terior Light sMap Lights8WCeiling Ligh t8WVanity Mirror Light s1.4WCourtesy Lights2CP
Brake Fluid
Automatic Transmission Fluid
SpeciedHonda Heavy Duty Brake Fluid DOT 3
SpeciedHonda ATF DW-1
(automatic transmission uid )
Capacit yC hange3 .3 US qt (3.1 )
Engine Oil
Engine Coolan
t
Recommended·Genuine Honda Motor Oil 0W-2 0
·API Premium-grade 0W-20 detergent oi l
Capacity Chang
e4 .2 US qt (4.0 )
Change
including
lter 4.5 US qt (4.3 )
Specie
dHonda Long-Life Anti freeze/Coolant Type 2
Ratio 50/50 with distilled wate r
Capacity1.72 US gal (6.5 )
(change including the remaining
0.17 US gal (0.64 ) in the reserve tank )
Washer Fluid
Tank CapacityU.S.: 2.6 US qt (2.5 )
Canada: 4.85
CUSTOMER INFORMATION
*if equipped
Learn about information specific to you as a Honda customer and how to get help.
Frequently Asked Questions/Troubleshooting
Below are some frequently asked questions and troubleshooting items that you may 
have about the vehicle.
Q: How do I set the vehicle clock?
A: For vehicles without navigation, see page 49. For vehicles with navigati\
on, the
time is automatically set using GPS signals.
Q: Why doesn’t the vehicle start when I press the ENGINE START/STOP button?*
A: The brake pedal (and/or clutch pedal*) must be pressed to start the engine.
Q: What is the AUTO setting on my headlight lever?
A: When in the AUTO position, the vehicle’ s exterior lights will automatically turn
 on or off depending on the ambient lighting.
Q: Why won’t the driver’s door unlock when I grab the door handle, even though 
 the keyless access remote is within range?*
A: If you pull the handle too quickly, the system may not have time to confirm the
 door is unlocked. Wait to hear a beep to confirm the door is unlocked. If you are
 wearing gloves, the system may be slow to respond.
Q: After my battery was disconnected or went dead, the audio system is asking for 
 a code. Where do I find this?
A: In most cases, you do not need to enter a code. T urn on the vehicle and the
 audio system, and press and hold the power button until the system reactivates.
Q: Why can’t I operate Pandora® through the audio system?*
A: Audio may be streaming through Bluetooth® Audio. Make sure Pandora mode
 is selected and the phone cable is properly connected to the USB adapter  
 cable (if using). Some phones may prompt you to “Allow” a connection.
Q: Is my phone compatible with Bluetooth features?
A: visit handsfreelink.com (U.S.) or www.handsfreelink.ca (Canada) to
 check phone compatibility for Bluetooth® Audio, Bluetooth® HandsFreeLink®,
and SMS text messaging.
Q: Every time I press the Talk button, the system gives me voice prompts. Can I turn 
 these off?*
A: From the Home screen, select SETTINGS. Select System, then select V oice 
Prompt. Select off.

156 || 157
INDEX
INDEX
INDEX
ABS .....................................................24, 104ACC .......................................................24, 26
Accessory Power Socket ...............................50
Adaptive Cruise Control (ACC) ...............24, 107Address .............................................................89Advanced Airbags .............................................8Aha™ radio ......................................................64Airbags  ...............................................................8Airbag Care ...................................................13Airbag System Components .......................12Airbag System Indicators ...........................10Ambient Meter................................................ 105
Android Auto .....................................................66
Anti-Lock Brake System (ABS) ..............24, 104
Apple CarPlay ...................................................65Apps .............................................................62
Audio Commands ...........................................155Audio operation ...............................................50Aha™ radio ..................................................64
Android Auto .................................................66
Apple CarPlay .................................................5Auxiliary Input Jack .....................................50
Bluetooth® Audio ...................................59, 72
Compact Disc (CD) .................................56, 69FM/AM Radio ..........................................55, 67
HondaLink® ...................................................63
iPod® .......................................................57, 70one Display Audio operation .....................54
Pandora® .................................................60, 73
SiriusXM® radio ...........................................68Sound .............................................................53Steering Wheel Controls .............................52Touchscreen operation ..............................61
USB Flash Drive ......................................58, 71
USB Port ........................................................50Wi-Fi Connection ..........................................64Wireless Charger .........................................51
Auto High-Beam System .....................24, 26, 36
Automatic (AUTO) Rain-Sensing Wipers .....38Automatic Dimming rearview Mirror ...........44
AUX Commands .............................................. 155
Auxiliary Input Jack .........................................50Battery ...........................................................139
Bluetooth® Audio .......................................59, 72
Bluetooth® Audio Commands ......................155
Bluetooth® HandsFreeLink® (HFL) .................74
Call History ..............................................77, 83Dialing a Number ...................................76, 82e-Mail .............................................................84
HFL Controls ............................................74, 79
HondaLink® Assist .......................................85
Making a Call ..........................................76, 82
Pairing a Phone ......................................75, 81 Phonebook
..............................................77, 83Siri eyes Free ................................................86
SMS Text Messaging ............................78, 84
Speed Dial ...............................................76, 82
Talk Button Tips ............................................80
Brake Assist System ...................................... 104
Brake Fluid
......................................................138
Brake system ..............................................23, 24Braking ...........................................................104
Brightness Control ...........................................35
Call History ..................................................77, 83Carbon Monoxide Gas....................................... 4
Changing a Flat Tire .......................................123
Changing Settings ............................................48
Charging system ............................................... 23
Childproof Door Locks
.....................................32
Child Safety .......................................................14
Child Seat ..........................................................16
Adding Security with a Tether ...................19LATCH-Compatible Child Seat ....................17
Climate Control Commands ..........................154
Climate Control System ...................................46Clock .............................................................49
Clutch Fluid ...................................................... 138
Collision Mitigation Braking System™ (CMBS™)
.............................24, 26, 112
Compact Disc (CD) .....................................56, 69
Compact Disc (CD) Commands ....................155Condition Indicators ........................................25
Contact Us .......................................................152Continuously Variable Transmission (CVT)... 101
Cruise Control ...........................................26, 106Customer Information.................................... 151Customized Features .......................................48Dashboard and Other Controls ........................2
Destination ........................................................89Dialing a Number .......................................76, 82
Door Mirrors .....................................................44
Door open ..........................................................25Door operation ...........................................31, 32DoT Tire Quality Grading ..............................145Driving .............................................................94
Adaptive Cruise Control (ACC) .................107
Braking .........................................................104
Collision Mitigation Braking System™ (CMBS™)
.........................................112Continuously Variable Transmission (CvT) .................................................101
Cruise Control .............................................106eco Assist System ......................................105ENGINE START/STOP button ...................101
Ignition .........................................................100
Lane Keeping Assist System (LKAS) .......110 LaneWatch™
..............................................111
Manual Transmission ................................103
Maximum Load Limit ....................................96Multi-view rear Camera ..........................114
Paddle Shifters ...........................................102
Parking Sensor System .............................113
Power Mode ...............................................101refueling ......................................................115remote engine Start ....................................99road Departure Mitigation (rDM) ..........109
Shifting .........................................................101
Towing a Trailer ............................................98Vehicle Stability Assist (VSA®) ................105
Driving Position Memory System ..................43eco Assist System.......................................... 105eCoN Button ...................................................105eCoN mode .......................................................26electric Power Steering (ePS) .......................24Electronic Stability Control (ESC) ................105e-Mail .............................................................84emergency engine Stop ................................120emergency Towing ........................................120engine and Fuel ......................................148, 150engine Coolant................................................ 137engine oil......................................................... 134ENGINE START/STOP button .......................101exterior lights ..............................................26, 35
Fastening a Seat Belt ........................................7Flat Tire ...........................................................123
Floor Mats .........................................................40Fluids ...................................................149, 150FM/AM Radio ..............................................55, 67FM/AM Radio Commands .............................155
Fog lights ...........................................................26
Foot Brake .......................................................104Frequently Asked Questions ........................151Front Airbags (SRS) ...........................................8Front Door Inner Handle .................................32Fuel Information .............................................115
Fuse Locations ................................................ 126
Garage opener .................................................45Hazards  .............................................................26Headlight-Wiper Integration ..........................37Head restraints ................................................41High beams .......................................................26
High temperature .............................................24
Home Address ..................................................89
HomeLink® Garage opener ............................45
HondaLink® .......................................................63
HondaLink® Assist ...........................................85Honda roadside Assistance ........................152Hood ...........................................................132Ignition  ...........................................................100
Immobilizer ........................................................26Information Display.......................................... 27
Instrument Panel ..............................................23Interior Lights.................................................... 35Intermittent Wipers..........................................37
iPod® .......................................................57, 70
iPod® Commands ...........................................155
Jump Starting .................................................117Key .............................................................30
Lane Keeping Assist System (LKAS) ....25, 110
LaneWatch™ ..................................................111Lap/Shoulder Seat Belts ...................................5LATCH-Compatible Child Seat ........................17Light Bulbs............................................... 148, 150
Light control ......................................................24Lights .......................................................26, 35LKAS .......................................................25, 26Lock Tab .............................................................32Low fuel .............................................................25
Low oil pressure ...............................................23
Low temperature ..............................................24
Low tire pressure .............................................25
Maintenance ................................................... 129
Battery
.........................................................139
Brake Fluid ..................................................138
Clutch Fluid ..................................................138engine Coolant ............................................137engine oil .....................................................134
Maintenance Minder™ .............................130
Service Codes .............................................131
Under the Hood ..........................................132Window Washer Fluid ...............................139
Making a Call ..............................................76, 82
Malfunction indicator lamp ............................24Malfunction Indicators.................................... 23
Manual Seats .................................................... 40
Manual Transmission
....................................103
Map Legend ......................................................92
Master Door Lock Switch ...............................32
Maximum Load Limit ........................................ 96
Mirrors .............................................................44
Moonroof ...........................................................34Multi-Information Display (MID).................... 28Multi-view rear Camera ..............................114
Music search ..................................................155
Navigation .........................................................87
Display and Controls ....................................88entering a Destination .................................89
Home Address ..............................................89
Map Legend ..................................................92
Place Category .............................................90recent Places ...............................................90routing ...........................................................92
Saved Places ................................................91Steering Wheel Controls .............................87
Street Address ..............................................89System Guidance volume ...........................87
