uuMaintenance Under the Hood uChanging the Engine Oil and Oil Filter
524
Maintenance
4. Remove the oil filter and dispose of the
remaining oil.
5. Check that the filter ga sket is not stuck to
the engine contact surface.
u If it is stuck, you must detach it.
6. Wipe away dirt and dust adhering to the
contact surface of the engine block, and
install a new oil filter.
u Apply a light coat of new engine oil to
the oil gasket.
7. Put a new washer on the drain bolt, then
reinstall the drain bolt.
u Tightening torque:
30 lbf∙ft (40 N∙m, 4.0 kgf∙m)
29 lbf∙ft (39 N∙m, 4.0 kgf∙m)
8.Pour the recommended engine oil into the engine.uEngine oil change capacity (including
filter):
4.4 US qt (4.2 L)
4.5 US qt (4.3 L)
9. Reinstall the engine oil fill cap securely and
start the engine.
10. Run the engine for a few minutes, and
then check that ther e is no leak from the
drain bolt or oil filter.
11. Stop the engine, wait for three minutes,
and then check the oil level on the dipstick.
u If necessary, add more engine oil.
1Changing the Engine Oil and Oil Filter
You will need a special wrench to replace the oil
filter. You can buy this wrench from a dealer.
When installing the new oil filter, follow the
instructions supplied with the oil filter.
Reinstall the engine oil fill cap. Start the engine. The
low oil pressure indicator should go off within five
seconds. If it does not, turn off the engine, and check
your work.4-cylinder models
6-cylinder models
Oil Filter
Oil Filter
4-cylinder models
6-cylinder models
4-cylinder models
6-cylinder models
17 ACCORD 4D GAS-31T2A6400.book 524 ページ ２０１６年６月７日　火曜日　午後５時６分

588
Information
Specifications
■Vehicle Specifications
*1: LX models
*2: Except LX models
■Air Conditioning
ModelHonda Accord Sedan
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating U.S.: 4,200 lbs (1,905 kg)*1
4,321 lbs (1,960 kg)*2
Canada: 1,930 kg*1
1,980 kg*2
Gross Axle Weight
Rating (Front)U.S.: 2,249 lbs (1,020 kg)*1
2,315 lbs (1,050 kg)*2
Canada: 1,030 kg*1
1,065 kg*2
Gross Axle Weight
Rating (Rear)U.S.: 2,006 lbs (910 kg)*1
2,050 lbs (930 kg)*2
Canada: 910 kg*1
930 kg*2
Refrigerant TypeHFC-134a (R-134a)
Charge Quantity 15.0 – 16.8 oz (425 – 475 g)
Lubricant TypeND-OIL 8
Quantity 4.3 – 5.0 cu-in (70 – 82 cm3)
4-cylinder models■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement144 cu-in (2,356 cm3)
Spark Plugs NGK
DILKAR7G11GS
DILKAR7H11GS
DENSO DXE22HQR-D11S
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 17.2 US gal (65 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.85 ℓ
■ Light Bulbs
*3: Models with halogen headlights
*4: Models with LED headlights
*5: Models with bulb type parking lights
*6: Models with LED type parking/daytime running lights
*7: Models with bulb type brake lights
*8: Models with LED type brake lights
Headlights (Low Beam)55W (H11)*3
LED*4
Headlights (High Beam) 60W (HB3)*3
LED*4
Fog Lights*LEDFront Turn Signal/Side Marker/Parking Lights*3, *5
Front Turn Signal/Side Marker Lights*3, *628/8W (Amber)
Parking/Daytime Running Lights*6LED
Front Turn Signal Lights*4LEDFront Side Marker Lights*43CP
Side Turn Signal Lights
(on Door Mirrors)
*LED
Brake Lights21W*7
LED*8
Rear Turn Signal Lights 21W (Amber)Rear Side Marker LightsLED
Taillights (on Fenders) LED
Back-Up Lights16W
Taillights (on Trunk Lid) LED
High-Mount Brake LightLED
Rear License Plate Lights 5W
Trunk Light5W
Interior Lights Map Lights 8W
Ceiling Light 8W
Vanity Mirror Lights 1.4W
Courtesy Lights
*2CP
* Not available on all models
17 ACCORD 4D GAS-31T2A6400.book 588 ページ ２０１６年６月７日　火曜日　午後５時６分

589
uuSpecifications u
Continued
Information
■Brake/Clutch Fluid
■ Continuously Variable Transmission
(CVT) Fluid
■ Manual Transmission Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHCF-2
Capacity Change 3.9 US qt (3.7 ℓ)
SpecifiedHonda Manual Transmission Fluid
Capacity Change 2.0 US qt (1.9 ℓ)
■ Engine Oil
■ Engine Coolant
*1: Continuously variable transmission (CVT) models
*2: Manual transmission models
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.2 US qt (4.0 ℓ)
Change
including
filter
4.4 US qt (4.2 ℓ)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.66 US gal (6.28 ℓ)*1
1.66 US gal (6.30 ℓ) *2
(change including the remaining
0.17 US gal (0.64 ℓ) in the reserve tank)
■ Tire
*3: U.S. LX models
*4: U.S. EX, EX-L models and Canadian LX, EX-L models
*5: U.S. Sport models and Canadian Sport, Touring models
Regular
Size205/65R16 95H*3
215/55R17 94V*4
235/40R19 96V*5
Pressure
psi (kPa [kgf/cm2])
Front33 (230 [2.3])*3, *5
33 (225 [2.3])*4
Rear32 (220 [2.2])*3, *5
33 (225 [2.3])*4
Compact
Spare Size
T135/90D16 102M
*3, *4
T135/80D17 103M*5
Pressure
psi (kPa [kgf/cm2])60 (420 [4.2])
Wheel SizeRegular16 x 7J*3
17 x 7 1/2J*4
19 x 8J*5
Compact Spare16 x 4T*3, *4
17 x 4T*5
17 ACCORD 4D GAS-31T2A6400.book 589 ページ ２０１６年６月７日　火曜日　午後５時６分

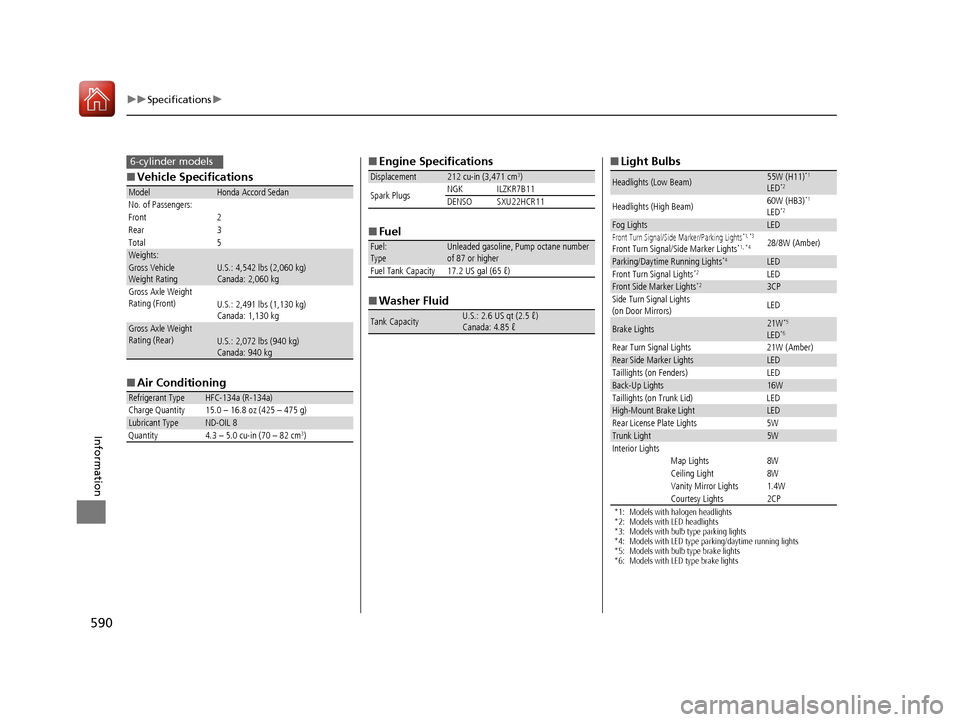

590
uuSpecifications u
Information
■Vehicle Specifications
■ Air Conditioning
ModelHonda Accord Sedan
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating U.S.: 4,542 lbs (2,060 kg)
Canada: 2,060 kg
Gross Axle Weight
Rating (Front)U.S.: 2,491 lbs (1,130 kg)
Canada: 1,130 kg
Gross Axle Weight
Rating (Rear)U.S.: 2,072 lbs (940 kg)
Canada: 940 kg
Refrigerant TypeHFC-134a (R-134a)
Charge Quantity 15.0 – 16.8 oz (425 – 475 g)
Lubricant TypeND-OIL 8
Quantity 4.3 – 5.0 cu-in (70 – 82 cm3)
6-cylinder models■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement212 cu-in (3,471 cm3)
Spark Plugs NGK ILZKR7B11
DENSO SXU22HCR11
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 17.2 US gal (65 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.85 ℓ
■ Light Bulbs
*1: Models with halogen headlights
*2: Models with LED headlights
*3: Models with bulb type parking lights
*4: Models with LED type parking/daytime running lights
*5: Models with bulb type brake lights
*6: Models with LED type brake lights
Headlights (Low Beam)55W (H11)*1
LED*2
Headlights (High Beam) 60W (HB3)*1
LED*2
Fog LightsLEDFront Turn Signal/Side Marker/Parking Lights*1, *3
Front Turn Signal/Side Marker Lights*1, *428/8W (Amber)
Parking/Daytime Running Lights*4LED
Front Turn Signal Lights*2LEDFront Side Marker Lights*23CP
Side Turn Signal Lights
(on Door Mirrors) LED
Brake Lights21W*5
LED*6
Rear Turn Signal Lights
21W (Amber)Rear Side Marker LightsLED
Taillights (on Fenders) LED
Back-Up Lights16W
Taillights (on Trunk Lid) LED
High-Mount Brake LightLED
Rear License Plate Lights 5W
Trunk Light5WInterior LightsMap Lights8WCeiling Light8WVanity Mirror Lights1.4WCourtesy Lights2CP
17 ACCORD 4D GAS-31T2A6400.book 590 ページ ２０１６年６月７日　火曜日　午後５時６分

591
uuSpecifications u
Information
■Brake Fluid
■ Automatic Transmission Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda ATF DW-1
(automatic transmission fluid)
Capacity Change 3.3 US qt (3.1 ℓ)
■ Engine Oil
■ Engine Coolant
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.2 US qt (4.0 ℓ)
Change
including
filter
4.5 US qt (4.3 ℓ)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.72 US gal (6.5 ℓ)
(change including the remaining
0.17 US gal (0.64 ℓ) in the reserve tank)
■ Tire
*1: EX-L V6 models
*2: U.S. Touring models and Canadian V6 Touring models
Regular
Size215/55R17 94V*1
235/40R19 96V*2
Pressure
psi (kPa [kgf/cm2])33 (225 [2.3])*1
33 (230 [2.3])*2Front
Rear33 (225 [2.3])*1
32 (220 [2.2])*2
Compact
Spare Size
T135/90D16 102M
*1
T135/80D17 103M*2
Pressure
psi (kPa [kgf/cm2])
60 (420 [4.2])
Wheel SizeRegular17 x 7 1/2J*1
19 x 8J*2
Compact Spare16 x 4T*1
17 x 4T*2
