stop start HONDA ACCORD 2022 Workshop Manual

603
Handling the Unexpected

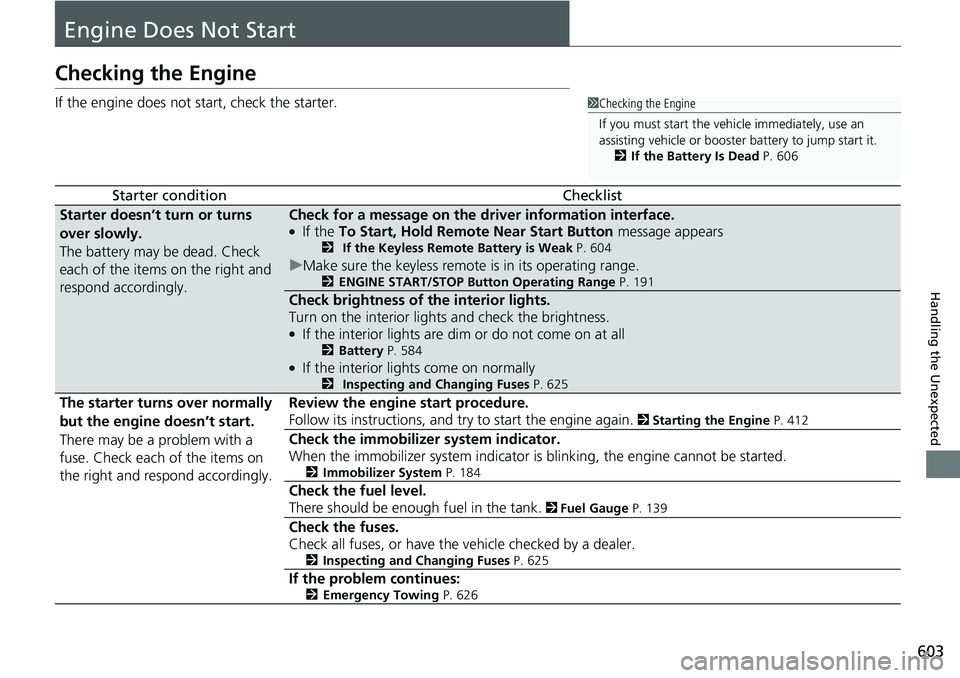

Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.Check for a message on the driver information interface.●If the To Start, Hold Remote Near Start Button message appears2 If the Keyless Remote Battery is Weak P. 604
uMake sure the keyless remote is in its operating range.2ENGINE START/STOP Button Operating Range P. 191
Check brightness of the interior lights.
Turn on the interior lights and check the brightness.
●If the interior lights are dim or do not come on at all2Battery P. 584●If the interior lights come on normally2 Inspecting and Changing Fuses P. 625
The starter turns over normally
but the engine doesn’t start.
There may be a problem with a
fuse. Check each of the items on
the right and respond accordingly. Review the engine start procedure.
Follow its instructions, and try
to start the engine again.
2 Starting the Engine P. 412
Check the immobilize r system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.
2 Immobilizer System P. 184
Check the fuel level.
There should be enough fuel in the tank.
2 Fuel Gauge P. 139
Check the fuses.
Check all fuses, or have the vehicle checked by a dealer.
2 Inspecting and Changing Fuses P. 625
If the problem continues:2Emergency Towing P. 626
1Checking the Engine
If you must start the vehi cle immediately, use an
assisting vehicle or booster battery to jump start it.
2 If the Battery Is Dead P. 606

604
uuEngine Does Not Start uIf the Keyless Remote Battery is Weak
Handling the Unexpected

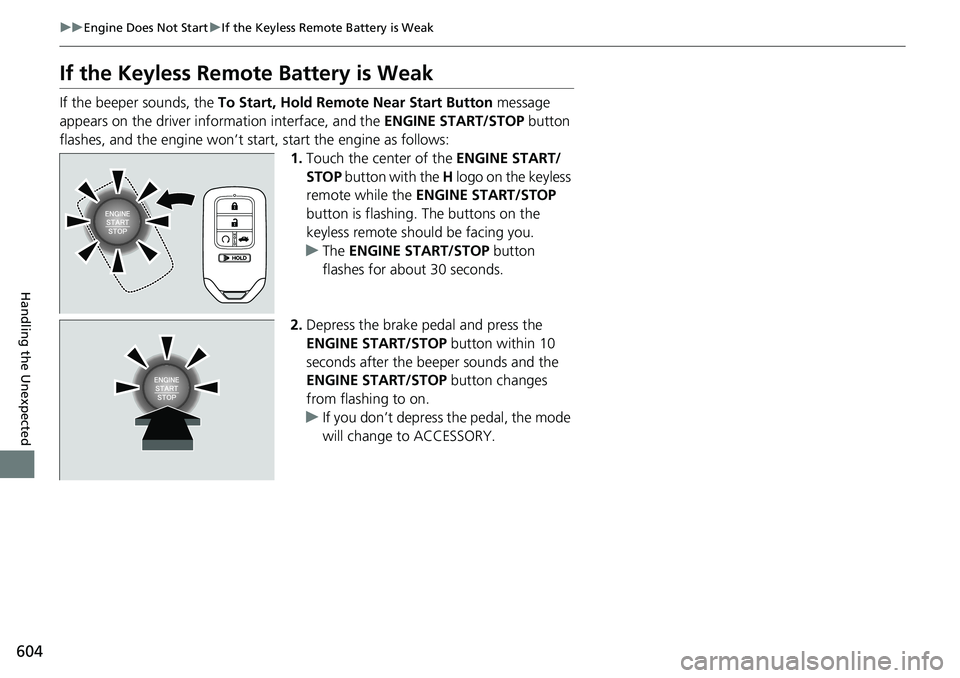

If the Keyless Remote Battery is Weak
If the beeper sounds, the To Start, Hold Remote Near Start Button message
appears on the driver information interface, and the ENGINE START/STOP button
flashes, and the engine won’t star t, start the engine as follows:
1.Touch the center of the ENGINE START/
STOP button with the H logo on the keyless
remote while the ENGINE START/STOP
button is flashing. The buttons on the
keyless remote should be facing you.
u The ENGINE START/STOP button
flashes for about 30 seconds.
2. Depress the brake pedal and press the
ENGINE START/STOP button within 10
seconds after the beeper sounds and the
ENGINE START/STOP button changes
from flashing to on.
u If you don’t depress the pedal, the mode
will change to ACCESSORY.

605
uuEngine Does Not Start uEmergency Engine Stop
Handling the Unexpected
Emergency Engine Stop
The ENGINE START/STOP button may be used to stop the engine due to an
emergency situation even while driving. If you must stop the engine, do either of the
following operations:
• Press and hold the ENGINE START/STOP button for about two seconds.
• Firmly press the ENGINE START/STOP button three times.
The steering wheel will not lock. However, because turning off the engine disables
the power assist the engine provides to the steering and braking systems, it will
require significantly more physical effort an d time to steer and slow the vehicle. Use
both feet on the brake pedal to slow down the vehicle and stop immediately in a
safe place.
The transmission automa tically changes to
(P after the vehicle comes to a complete
stop. Then, the power mode changes to VEHICLE OFF.
The power mode is in ACCESSORY when the engine is stopped.
To change the mode to VEHICLE OFF, put the transmission into
(P after the vehicle
comes to a complete stop.
Then, press the ENGINE START/STOP button twice without depressing the brake
pedal.
1 Emergency Engine Stop
Do not press the ENGINE START/STOP button while
driving unless it is absolute ly necessary for the engine
to be turned off.
If you press the ENGINE START/STOP button while
driving, the beeper sounds.
Automatic transmission models
Continuously variable transmission models
Continuously variable transmission models for Canadian models

uuOverheating uHow to Handle Overheating
612
Handling the Unexpected

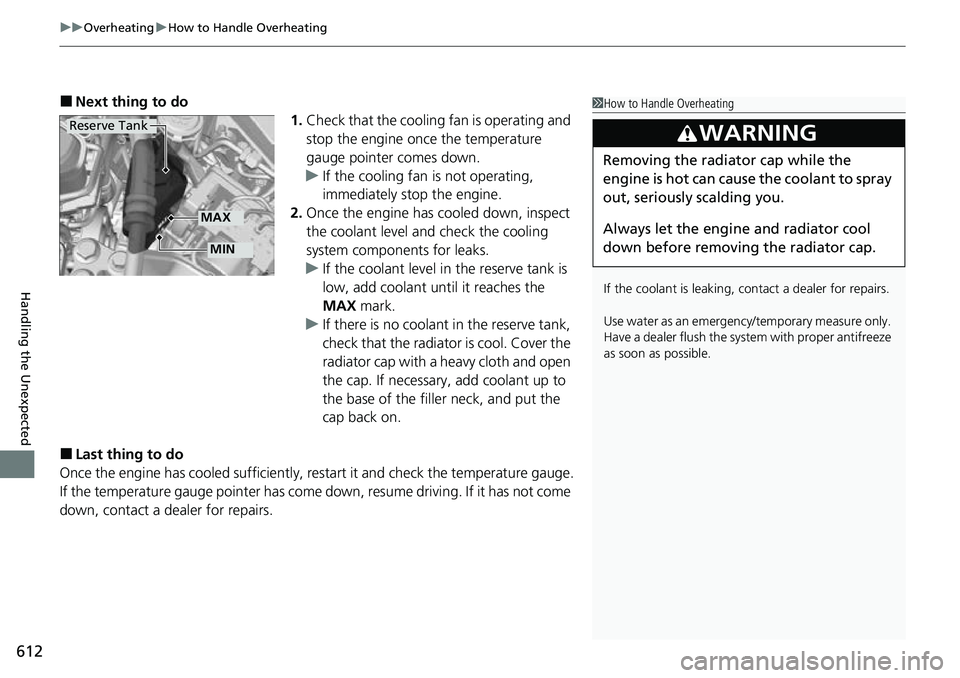

■Next thing to do
1.Check that the cooling fan is operating and
stop the engine once the temperature
gauge pointer comes down.
u If the cooling fan is not operating,
immediately stop the engine.
2. Once the engine has cooled down, inspect
the coolant level an d check the cooling
system components for leaks.
u If the coolant level in the reserve tank is
low, add coolant until it reaches the
MAX mark.
u If there is no coolan t in the reserve tank,
check that the radiator is cool. Cover the
radiator cap with a heavy cloth and open
the cap. If necessary, add coolant up to
the base of the filler neck, and put the
cap back on.
■Last thing to do
Once the engine has cooled sufficiently, restart it and check the temperature gauge.
If the temperature gauge pointer has come do wn, resume driving. If it has not come
down, contact a dealer for repairs.
1 How to Handle Overheating
If the coolant is leaking, contact a dealer for repairs.
Use water as an emergency/temporary measure only.
Have a dealer flush the system with proper antifreeze
as soon as possible.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
MAX
Reserve Tank
MIN

613
Handling the Unexpected

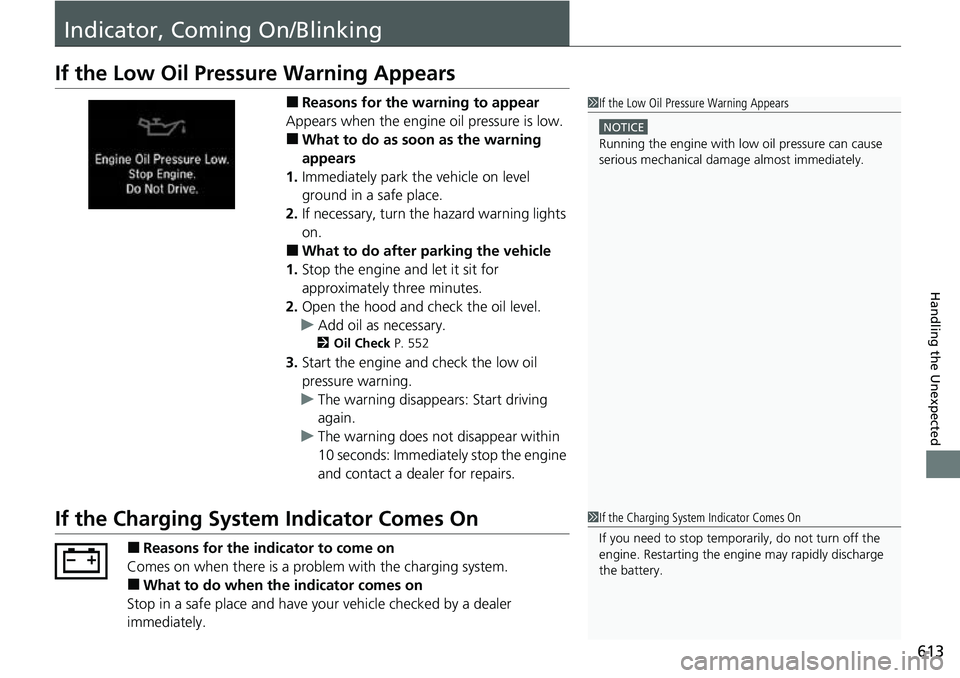

Indicator, Coming On/Blinking
If the Low Oil Pressure Warning Appears
■Reasons for the warning to appear
Appears when the engine oil pressure is low.
■What to do as soon as the warning
appears
1. Immediately park the vehicle on level
ground in a safe place.
2. If necessary, turn the hazard warning lights
on.
■What to do after parking the vehicle
1. Stop the engine and let it sit for
approximately three minutes.
2. Open the hood and ch eck the oil level.
u Add oil as necessary.
2 Oil Check P. 552
3.Start the engine and check the low oil
pressure warning.
u The warning disappears: Start driving
again.
u The warning does not disappear within
10 seconds: Immediately stop the engine
and contact a dealer for repairs.
If the Charging System Indicator Comes On
■Reasons for the indicator to come on
Comes on when there is a prob lem with the charging system.
■What to do when the indicator comes on
Stop in a safe place and have y our vehicle checked by a dealer
immediately.
1 If the Low Oil Pressure Warning Appears
NOTICE
Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.
1If the Charging System Indicator Comes On
If you need to stop temporarily, do not turn off the
engine. Restarting the engi ne may rapidly discharge
the battery.

614
uuIndicator, Coming On/BlinkinguIf the Malfunction Indicator Lamp Comes On or Blinks
Handling the Unexpected

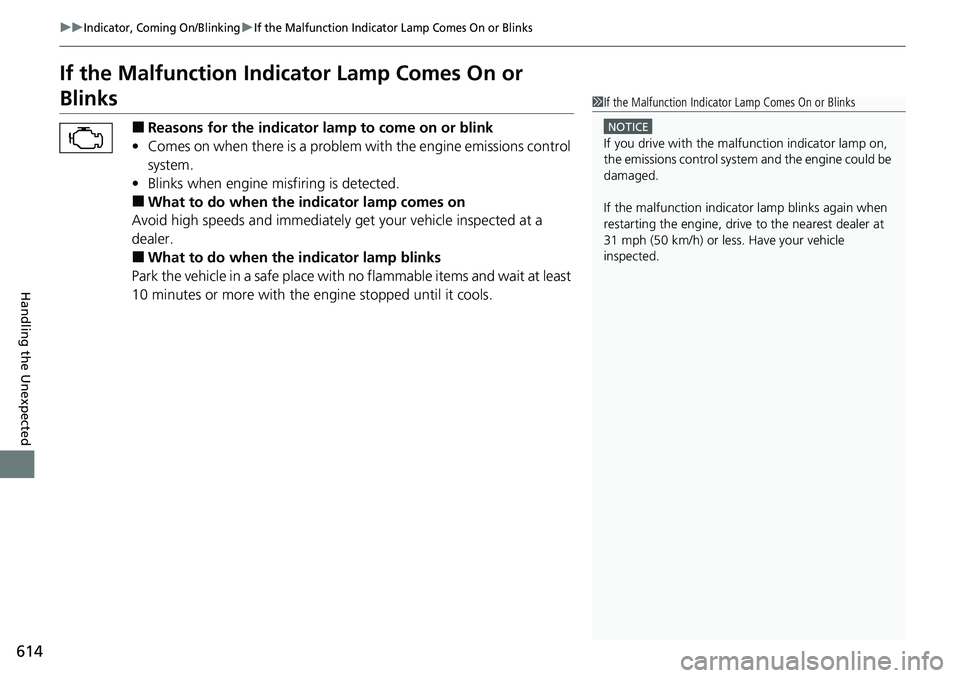

If the Malfunction Indicator Lamp Comes On or
Blinks
■Reasons for the indicator lamp to come on or blink
• Comes on when there is a problem with the engine emissions control
system.
• Blinks when engine misfiring is detected.
■What to do when the indicator lamp comes on
Avoid high speeds and immediately get your vehicle inspected at a
dealer.
■What to do when the indicator lamp blinks
Park the vehicle in a safe place with no flammable items and wait at least
10 minutes or more with the engine stopped until it cools.
1 If the Malfunction Indicato r Lamp Comes On or Blinks
NOTICE
If you drive with the malf unction indicator lamp on,
the emissions control system and the engine could be
damaged.
If the malfunction indicator lamp blinks again when
restarting the engine, drive to the nearest dealer at
31 mph (50 km/h) or less. Have your vehicle
inspected.

617
uuIndicator, Coming On/Blinking uIf the Electric Power Steering (EPS) System Indicator Comes On
Handling the Unexpected

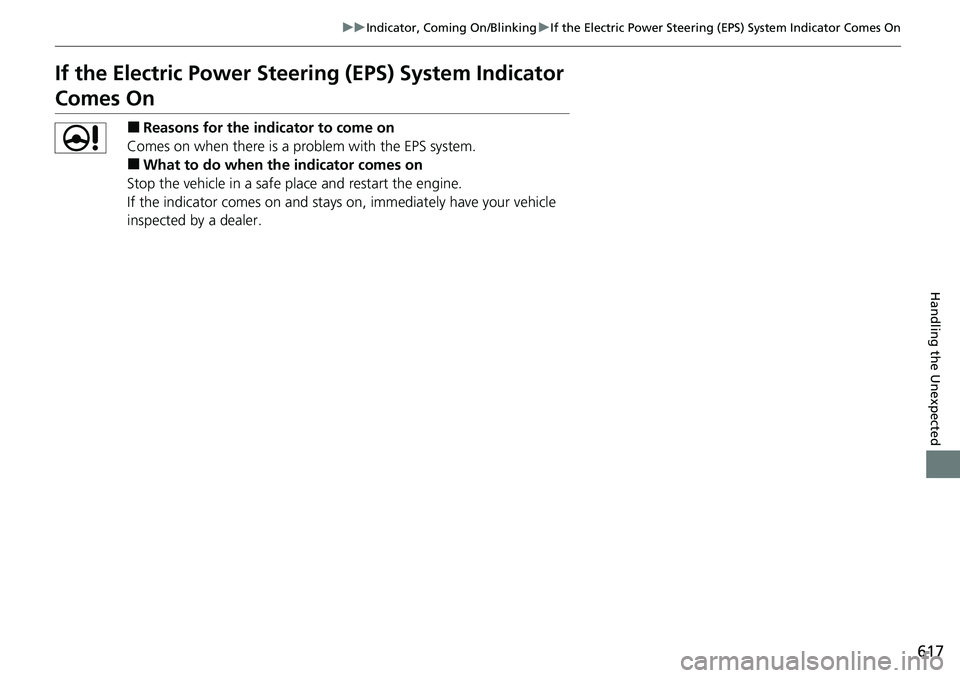

If the Electric Power Steeri ng (EPS) System Indicator
Comes On
■Reasons for the indicator to come on
Comes on when there is a pr oblem with the EPS system.
■What to do when the indicator comes on
Stop the vehicle in a safe place and restart the engine.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.

648

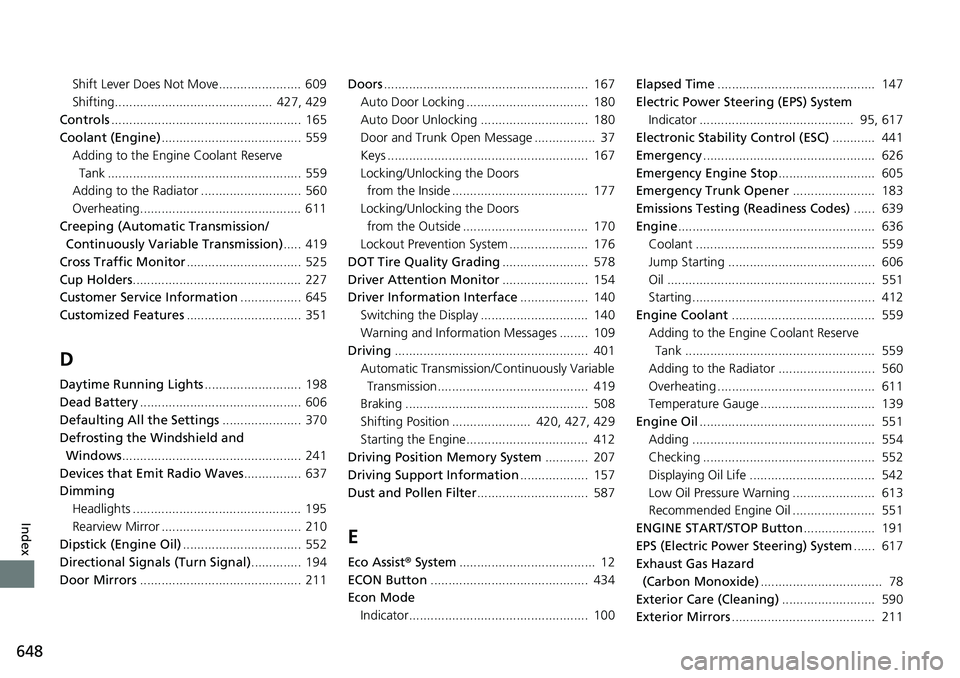

Index
Shift Lever Does Not Move....................... 609
Shifting............................................ 427, 429
Controls ..................................................... 165
Coolant (Engine) ....................................... 559
Adding to the Engine Coolant Reserve
Tank ...................................................... 559
Adding to the Radiator ............................ 560
Overheating............................................. 611
Creeping (Automatic Transmission/ Continuously Variable Transmission) ..... 419
Cross Traffic Monitor ................................ 525
Cup Holders ............................................... 227
Customer Service Information ................. 645
Customized Features ................................ 351
D
Daytime Running Lights ........................... 198
Dead Battery ............................................. 606
Defaulting All the Settings ...................... 370
Defrosting the Windshield and
Windows .................................................. 241
Devices that Emit Radio Waves ................ 637
Dimming
Headlights ............................................... 195
Rearview Mirror ....................................... 210
Dipstick (Engine Oil) ................................. 552
Directional Signals (Turn Signal) .............. 194
Door Mirrors ............................................. 211 Doors
......................................................... 167
Auto Door Locking .................................. 180
Auto Door Unlocking .............................. 180
Door and Trunk Open Message ................. 37
Keys ........................................................ 167
Locking/Unlocking the Doors from the Inside ...................................... 177
Locking/Unlocking the Doors
from the Outside ................................... 170
Lockout Prevention System ...................... 176
DOT Tire Quality Grading ........................ 578
Driver Attention Monitor ........................ 154
Driver Information Interface ................... 140
Switching the Display .............................. 140
Warning and Information Messages ........ 109
Driving ...................................................... 401
Automatic Transmission/Continuously Variable
Transmission.......................................... 419
Braking ................................................... 508
Shifting Position ...................... 420, 427, 429
Starting the Engine.................................. 412
Driving Position Memory System ............ 207
Driving Support Information ................... 157
Dust and Pollen Filter ............................... 587
E
Eco Assist® System ...................................... 12
ECON Button ............................................ 434
Econ Mode
Indicator.................................................. 100 Elapsed Time
............................................ 147
Electric Power Steering (EPS) System
Indicator ........................................... 95, 617
Electronic Stability Control (ESC) ............ 441
Emergency ................................................ 626
Emergency Engine Stop ........................... 605
Emergency Trunk Opener ....................... 183
Emissions Testing (Readiness Codes) ...... 639
Engine ....................................................... 636
Coolant .................................................. 559
Jump Starting ......................................... 606
Oil .......................................................... 551
Starting................................................... 412
Engine Coolant ........................................ 559
Adding to the Engine Coolant Reserve Tank ..................................................... 559
Adding to the Radiator ........................... 560
Overheating ............................................ 611
Temperature Gauge ................................ 139
Engine Oil ................................................. 551
Adding ................................................... 554
Checking ................................................ 552
Displaying Oil Life ................................... 542
Low Oil Pressure Warning ....................... 613
Recommended Engine Oil ....................... 551
ENGINE START/STOP Button .................... 191
EPS (Electric Power Steering) System ...... 617
Exhaust Gas Hazard
(Carbon Monoxide) .................................. 78
Exterior Care (Cleaning) .......................... 590
Exterior Mirrors ........................................ 211

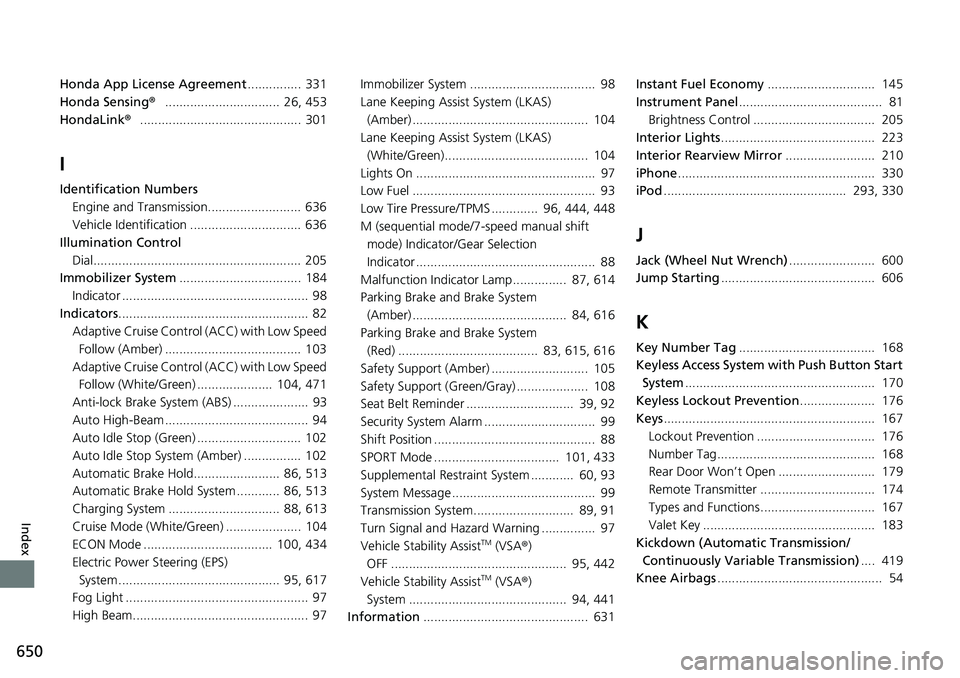

650
Index
Honda App License Agreement............... 331
Honda Sensing ®................................ 26, 453
HondaLink ®............................................. 301
I
Identification Numbers
Engine and Transmission.......................... 636
Vehicle Identification ............................... 636
Illumination Control
Dial.......................................................... 205
Immobilizer System .................................. 184
Indicator .................................................... 98
Indicators ..................................................... 82
Adaptive Cruise Control (ACC) with Low Speed Follow (Amber) ...................................... 103
Adaptive Cruise Control (ACC) with Low Speed Follow (White/Green) ..................... 104, 471
Anti-lock Brake System (ABS) ..................... 93
Auto High-Beam ........................................ 94
Auto Idle Stop (Green) ............................. 102
Auto Idle Stop System (Amber) ................ 102
Automatic Brake Hold........................ 86, 513
Automatic Brake Hold System ............ 86, 513
Charging System ............................... 88, 613
Cruise Mode (White/Green) ..................... 104
ECON Mode .................................... 100, 434
Electric Power Steering (EPS) System ............................................. 95, 617
Fog Light ................................................... 97
High Beam................................................. 97 Immobilizer System ................................... 98
Lane Keeping Assist System (LKAS)
(Amber) ................................................. 104
Lane Keeping Assist System (LKAS) (White/Green)........................................ 104
Lights On .................................................. 97
Low Fuel ................................................... 93
Low Tire Pressure/TPMS ............. 96, 444, 448
M (sequential mode/7-speed manual shift mode) Indicator/Gear Selection
Indicator .................................................. 88
Malfunction Indicator Lamp............... 87, 614
Parking Brake a nd Brake System
(Amber) ........................................... 84, 616
Parking Brake a nd Brake System
(Red) ....................................... 83, 615, 616
Safety Support (Amber) ........................... 105
Safety Support (Green/Gray) .................... 108
Seat Belt Reminder .............................. 39, 92
Security System Alarm ............................... 99
Shift Position ............................................. 88
SPORT Mode ................................... 101, 433
Supplemental Restraint System ............ 60, 93
System Message ........................................ 99
Transmission System............................ 89, 91
Turn Signal and Hazard Warning ............... 97
Vehicle Stability Assist
TM (VSA ®)
OFF ................................................. 95, 442
Vehicle Stability Assist
TM (VSA ®)
System ............................................ 94, 441
Information .............................................. 631 Instant Fuel Economy
.............................. 145
Instrument Panel ........................................ 81
Brightness Control .................................. 205
Interior Lights ........................................... 223
Interior Rearview Mirror ......................... 210
iPhone ....................................................... 330
iPod ................................................... 293, 330
J
Jack (Wheel Nut Wrench) ........................ 600
Jump Starting ........................................... 606
K
Key Number Tag ...................................... 168
Keyless Access System wi th Push Button Start
System ..................................................... 170
Keyless Lockout Prevention ..................... 176
Keys ........................................................... 167
Lockout Prevention ................................. 176
Number Tag............................................ 168
Rear Door Won’t Open ........................... 179
Remote Transmitter ................................ 174
Types and Functions................................ 167
Valet Key ................................................ 183
Kickdown (Automatic Transmission/ Continuously Variable Transmission) .... 419
Knee Airbags .............................................. 54

653
Index
Shifting (Transmission)............ 420, 427, 429
Shoulder Anchor ........................................ 43
Side Airbags ............................................... 57
Side Curtain Airbags .................................. 59
Siri Eyes Free ............................................. 312
SiriusXM ® Radio ....................................... 282
Snow Tires ................................................ 583
Spare Tire ................................. 597, 633, 635
Spark Plugs ....................................... 632, 634
Specifications ........................................... 632
Specified Fuel ........................... 531, 632, 634
Speedometer ............................................ 139
SPORT Mode ............................................. 433
Indicator ................................................. 101
SRS Airbags (Airbags) ................................ 49
Starting Assist Brake Function ................ 439
Starting the Engine .................................. 412
Does Not Start ........................................ 603
Jump Starting ......................................... 606
Steering Wheel Adjusting ................................................ 209
Stopping ................................................... 518
Summer Tires ............................................ 583
Sunglasses Holder .................................... 230
Supplemental Restraint System (SRS) ....... 49
Switches (Around the Steering Wheel) ........ 6, 7, 191
System Message Indicator ......................... 99
System Updates ........................................ 266T
Tachometer....................................... 151, 162
Temperature Gauge ..................................................... 139
Outside Temperature ............................... 143
Temperature Sensor ......................... 143, 243
Time (Adjusting) ....................................... 166
Tire Pressure Monitoring System
(TPMS) ..................................................... 444
Indicator ............................................ 96, 618
Tires ........................................................... 575
Air Pressure ............................. 576, 633, 635
Checking and Maintaining ....................... 575
Inspection ................................................ 575
Labeling .................................................. 576
Puncture (Flat Tire) ................................... 597
Regulations ............................................. 578
Rotation .................................................. 582
Spare Tire ................................ 597, 633, 635
Summer .................................................. 583
Tire Chains .............................................. 583
Wear Indicators ....................................... 580
Winter ..................................................... 583
Tools .......................................................... 596
Towing a Trailer ....................................... 407
Equipment and Accessories ..................... 409
Load Limits .............................................. 407
Towing Your Vehicle ................................ 411
Emergency .............................................. 626 TPMS
(Tire Pressure Monitoring System) ........ 444
Indicator............................................ 96, 618
Traffic Sign Recognition System .............. 498
Transmission ..................... 419, 420, 427, 429
Automatic ............................................... 420
Continuously Variable ..................... 427, 429
Fluid ........................................................ 561
Number................................................... 636
Shift Position Indicator............................... 88
Transmission System
Indicator.............................................. 89, 91
TRIP Button ............................................... 142
Trip Computer .................................. 144, 146
Trip Meter ................................. 143, 145, 147
Troubleshooting ....................................... 595
Blown Fuse.............................. 620, 622, 624
Brake Pedal Vibrates .................................. 30
Buzzer Sounds When Opening Door.......... 31
Emergency Towing .................................. 626
Engine Won’t Start .................................. 603
Noise When Braking .................................. 32
Overheating ............................................ 611
Puncture/Flat Tire .................................... 597
Rear Door Won’t Open...................... 31, 179
Shift Lever Won’t Move ........................... 609
Warning Indicators .................................... 82
Trunk ......................................................... 181
Lid........................................................... 181
Light Bulb........................................ 632, 634
Main Switch ............................................ 183
