HONDA ACCORD 2022 Owners Manual

639Continued
Information

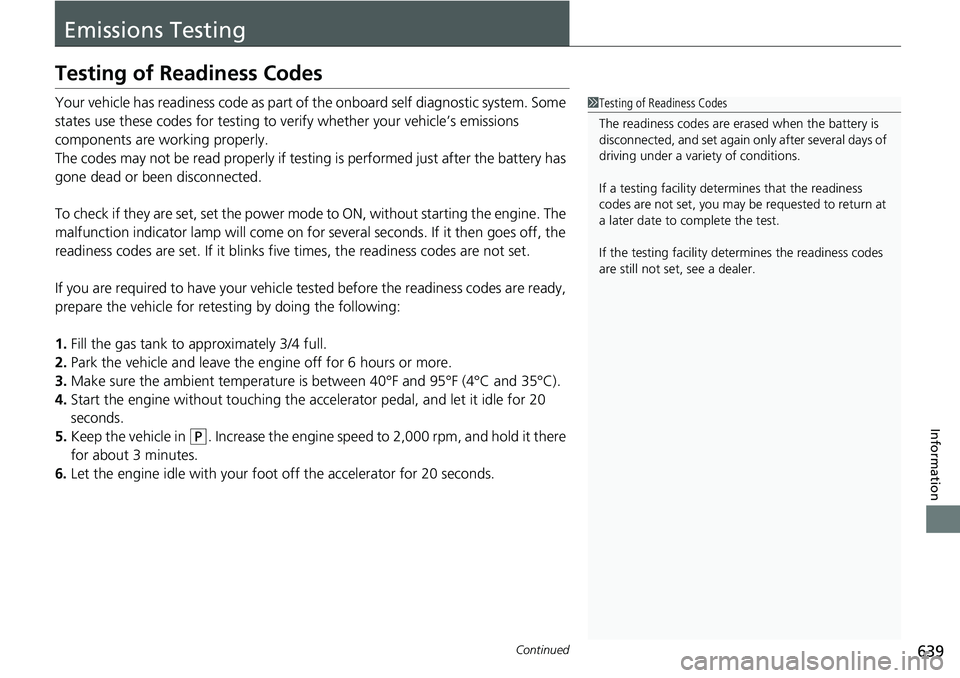

Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness code as part of the onboard self diagnostic system. Some
states use these codes for testing to ve rify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, set the power mo de to ON, without starting the engine. The
malfunction indicator lamp will come on for several seconds. If it then goes off, the
readiness codes are set. If it blinks fi ve times, the readiness codes are not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P. Increase the engine speed to 2,000 rpm, and hold it there
for about 3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
1Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again onl y after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.

640
uuEmissions Testing uTesting of Readiness Codes
Information
7. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D. Do not use cruise control. When tra ffic allows, drive for 90 seconds without
moving the accelerator pedal. (Vehicle spee d may vary slightly; this is okay.) If you
cannot do this for a continuous 90 seconds because of traffic conditions, drive for
at least 30 seconds, then repeat it two mo re times (for a total of 90 seconds).
8. Drive in city or suburban traffic for at le ast 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.

641Continued
Information

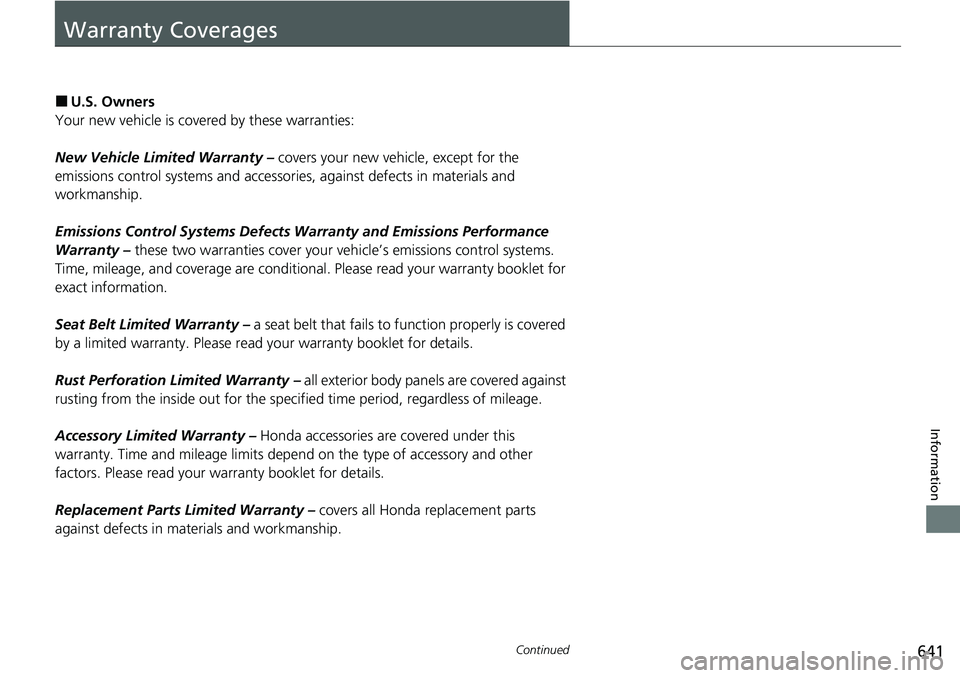

Warranty Coverages
■U.S. Owners
Your new vehicle is covered by these warranties:
New Vehicle Limited Warranty – covers your new vehicle, except for the
emissions control systems and accessorie s, against defects in materials and
workmanship.
Emissions Control Systems Defects Warranty and Emissions Performance
Warranty – these two warranties cover your ve hicle’s emissions control systems.
Time, mileage, and coverage are conditional. Please read your warranty booklet for
exact information.
Seat Belt Limited Warranty – a seat belt that fails to function properly is covered
by a limited warranty. Please read your warranty booklet for details.
Rust Perforation Limited Warranty – all exterior body panels are covered against
rusting from the inside out for the specified time period, regardless of mileage.
Accessory Limited Warranty – Honda accessories are covered under this
warranty. Time and mileage limits depend on the type of accessory and other
factors. Please read your warranty booklet for details.
Replacement Parts Limited Warranty – covers all Honda replacement parts
against defects in mate rials and workmanship.

642
uuWarranty Coverages u
Information

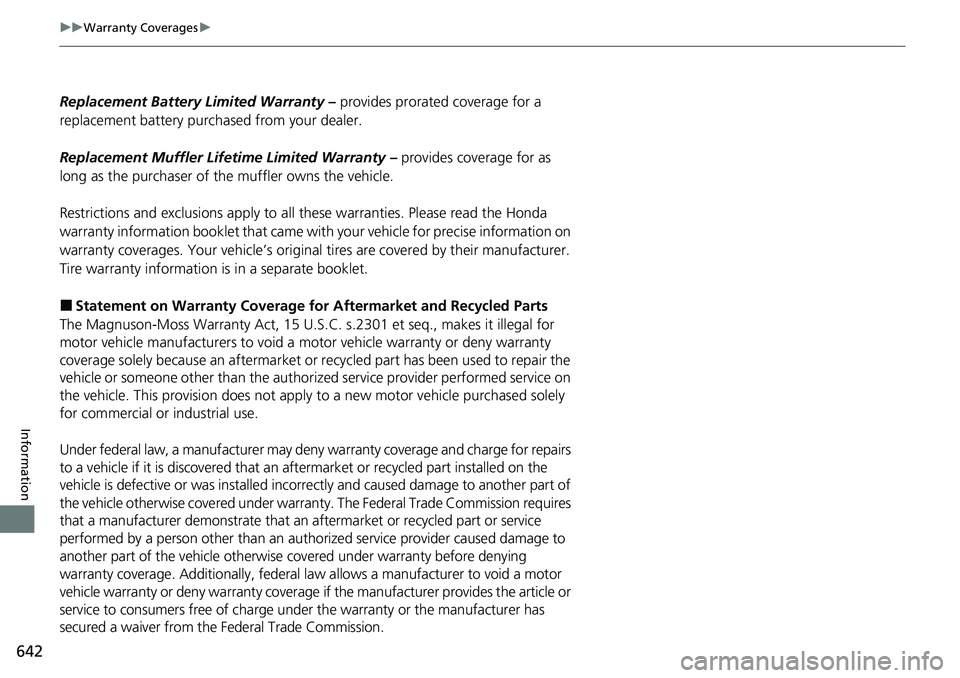

Replacement Battery Limited Warranty – provides prorated coverage for a
replacement battery purchased from your dealer.
Replacement Muffler Life time Limited Warranty – provides coverage for as
long as the purchaser of the muffler owns the vehicle.
Restrictions and exclusions apply to a ll these warranties. Please read the Honda
warranty information booklet that came wi th your vehicle for precise information on
warranty coverages. Your vehi cle’s original tires are covered by their manufacturer.
Tire warranty information is in a separate booklet.
■Statement on Warranty Coverage for Aftermarket and Recycled Parts
The Magnuson-Moss Warranty Act, 15 U.S.C. s.2301 et seq., makes it illegal for
motor vehicle manufacturers to void a motor vehicle warranty or deny warranty
coverage solely because an aftermarket or recycled part has been used to repair the
vehicle or someone other than the authorized service provider performed service on
the vehicle. This provision does not apply to a new motor vehicle purchased solely
for commercial or industrial use.
Under federal law, a manufacturer may deny warranty coverage and charge for repairs
to a vehicle if it is discovered that an aftermarket or recycled part installed on the
vehicle is defective or was in stalled incorrectly and caused damage to another part of
the vehicle otherwise covered under warran ty. The Federal Trade Commission requires
that a manufacturer demonstrate that an aftermarket or recycled part or service
performed by a person other than an authorized service provider caused damage to
another part of the vehicle otherwise covered under warranty before denying
warranty coverage. Additionally, federal law allows a manufacturer to void a motor
vehicle warranty or deny warranty coverage if the manufacturer provides the article or
service to consumers free of charge unde r the warranty or the manufacturer has
secured a waiver from the Federal Trade Commission.

643
uuWarranty Coverages u
Information

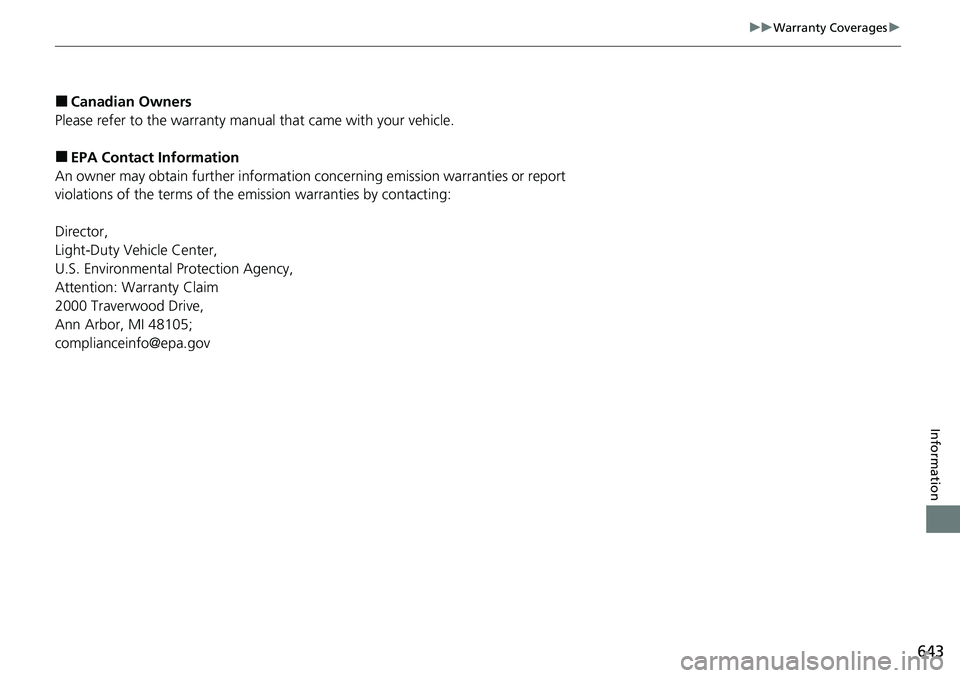

■Canadian Owners
Please refer to the warranty manual that came with your vehicle.
■EPA Contact Information
An owner may obtain further information conc erning emission warranties or report
violations of the terms of the emission warranties by contacting:
Director,
Light-Duty Vehicle Center,
U.S. Environmental Protection Agency,
Attention: Warranty Claim
2000 Traverwood Drive,
Ann Arbor, MI 48105;
[email protected]

644
Information

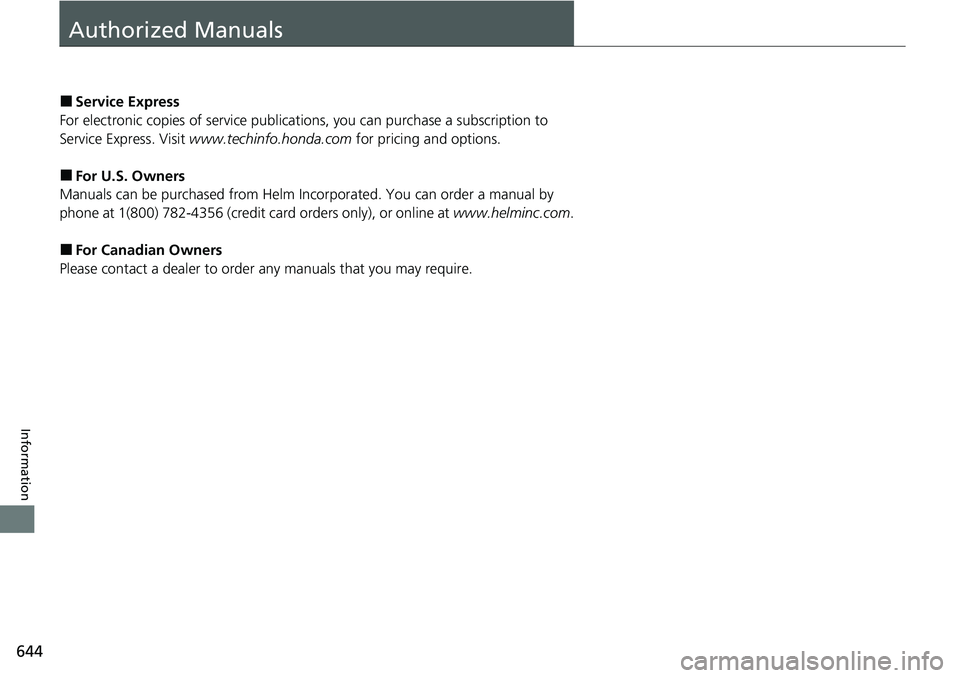

Authorized Manuals
■Service Express
For electronic copies of service publications, you can purchase a subscription to
Service Express. Visit www.techinfo.honda.com for pricing and options.
■For U.S. Owners
Manuals can be purchased from Helm Incorporated. You can order a manual by
phone at 1(800) 782-4356 (credit ca rd orders only), or online at www.helminc.com.
■For Canadian Owners
Please contact a dealer to order any manuals that you may require.

645
Information
Customer Service Information
Honda dealership personnel are trained professionals who should be able to deal
with any problems you may encounter with your vehicle. If, however, you are faced
with a problem that they cannot resolve to your satisfaction, contact Honda
Customer Services.
U.S. Owners
American Honda Motor Co., Inc.
Honda Automobile Customer Service
Mail Stop CHI-5
1919 Torrance Blvd.
Torrance, CA 90501-2746
Tel: 1 (800) 999-1009 Canadian Owners
Honda Canada Inc.
Customer Relations
180 Honda Boulevard
Markham, ON
L6C 0H9
Tel: 1-888-9-HONDA-9
Fax: 1-877-939-0909
E-mail: [email protected]
In Puerto Rico a nd the U.S. Virgin
Islands
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: 1 (787) 620-75461 Customer Service Information
When you call or write, please give us the following
information:
•Vehicle Identification Number
2Vehicle Identification Number (VIN),
Engine Number, and Transmission
Number P. 636
•Date of purchase•Odometer reading of your vehicle
•Your name, address, and telephone number
•A detailed description of the problem•Name of the dealer who sold the vehicle to you

Index
646
Index
Index
Numbers
7-Speed Manual Shift Mode.................... 431
Operation ................................................ 432
A
ABS (Anti-lock Brake System) ................... 516
Accessories and Modifications ................. 593
Accessory Power Sockets .......................... 231
Adaptive Cruise Control (ACC) with Low
Speed Follow ........................... 103, 104, 470
Adaptive Damper System ......................... 440
Additives
Coolant ................................................... 559
Engine Oil ................................................ 551
Washer .................................................... 563
Additives, Engine Oil ................................ 551
Adjusting
Armrest ................................................... 222
Front Seats .............................................. 212
Head Restraints........................................ 219
Mirrors .................................................... 210
Rear Seats................................................ 216
Steering Wheel ........................................ 209
Agile Handling Assist ................................ 443
Air Conditioning System (Climate Control System) ........................ 240
Changing the Mode ................................ 240
Defrosting the Windshield and Windows ............................................... 241
Dust and Pollen Filter ............................... 587 Recirculation/Fresh Air Mode ................... 240
Sensors ................................................... 243
Synchronized Mode................................. 242
Using Automatic Climate Control ............ 240
Air Pressure ............................... 576, 633, 635
Airbags ........................................................ 46
Advanced Airbags ..................................... 52
After a Collision ........................................ 49
Airbag Care............................................... 63
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 49
Indicator.............................................. 60, 93
Knee Airbags............................................. 54
Passenger Airbag Off Indicator .................. 61
Sensors ..................................................... 46
Side Airbags .............................................. 57
Side Curtain Airbags.................................. 59
AM/FM Radio ............................................ 278
Android Auto ........................................... 320
Anti-lock Brake System (ABS) .................. 516
Indicator.................................................... 93
Apple CarPlay ........................................... 313
Armrest ..................................................... 222
AT&T Hotspot ........................................... 311
Audio Remote Controls ........................... 250
Audio System ............................................ 246
Adjusting the Sound................................ 272
Audio/Information Screen........................ 254
Display Setup .......................................... 273
Error Messages ........................................ 327
General Information ................................ 329 Home Screen .......................................... 259
How to Update Wirelessly ....................... 266
How to Update with a USB Device .......... 270
How to use Siri Eyes Free ........................ 312
iPod ........................................................ 293
Limitations for Manual Operation ............ 274
MP3/WMA/AAC ..................................... 296
Reactivating ............................................ 249
Remote Controls ..................................... 250
Security Code ......................................... 249
Selecting an Audio Source ...................... 274
Status Area ............................................. 264
System Updates ...................................... 266
Theft Protection ...................................... 249
USB Flash Drives.............................. 296, 330
USB Ports ................................................ 247
Wallpaper Setup ..................................... 257
Audio/Information Screen ....................... 254
Authorized Manuals ................................ 644
Auto Door Locking/Unlocking ................ 180
Customize .............................................. 368
Auto High-Beam ...................................... 199
Indicator ................................................... 94
Auto Idle Stop .......................................... 435
Auto Idle Stop OFF Button ...................... 436
Automatic Brake Hold ............................. 513
Indicator ........................................... 86, 513
Automatic Brake Hold System
Indicator ........................................... 86, 513
Automatic Intermittent Wipers .............. 203
Automatic Lighting .................................. 196

647
Index
Automatic TransmissionCreeping................................................. 419
Fluid ....................................................... 561
Kickdown ............................................... 419
Shift Operation ....................................... 421
Shifting ................................................... 420
Average Fuel Economy ............................ 145
Average Speed ......................................... 147
B
Battery...................................................... 584
Charging System Indicator ................ 88, 613
Jump Starting ......................................... 606
Maintenance (Checking the Battery) ....... 584
Maintenance (Replacing) ......................... 586
Belts (Seat) .................................................. 38
Beverage Holders ..................................... 227
Blind spot information System ................ 450
Bluetooth ® Audio ..................................... 299
Bluetooth ® HandsFreeLink ®................... 374
Booster Seats (For Children) ...................... 77
Brake System ............................................ 508
Anti-lock Brake System (ABS) .................. 516
Automatic Brake Hold ............................. 513
Brake Assist System................................. 517
Fluid ....................................................... 562
Foot Brake .............................................. 512
Indicator ............................. 83, 84, 615, 616
Parking Brake.......................................... 508
Brightness Control (Instrument Panel) ... 205Bulb Replacement
.................................... 564
Brake, Taillight, Rear Side Marker Lights and
Rear Turn Signal Light ............................ 567
Fog Lights ................................................ 566
Front Side Marker Lights .......................... 566
Front Turn Signal Lights ........................... 566
Headlights ............................................... 564
High-Mount Brake Light .......................... 571
Parking/Daytime Running Lights .............. 566
Rear License Plate Lights .......................... 571
Side Turn Signal/Em ergency Indicator
Lights .................................................... 566
Taillight, Brake Light and Back-Up Light ... 569
Bulb Specifications ........................... 632, 634
C
Carbon Monoxide Gas ................................ 78
Cargo Hooks ............................................. 229
Carrying Cargo .................................. 403, 405
Center Pocket ........................................... 225
Certification Label .................................... 636
Changing Bulbs ......................................... 564
Charging System Indicator ................. 88, 613
Child Safety ................................................. 64
Childproof Door Locks ............................. 179
Emergency Trunk Opener ........................ 183
Child Seat .................................................... 64
Booster Seats ............................................. 77
Child Seat for Infants ................................. 66
Child Seat for Small Children ..................... 67 Installing a Child Seat wi
th a Lap/Shoulder Seat
Belt ......................................................... 72
Larger Children ......................................... 76
Rear-facing Child Seat ............................... 66
Selecting a Child Seat ................................ 68
Using a Tether ........................................... 74
Childproof Door Locks ............................. 179
Cleaning the Exterior ............................... 590
Cleaning the Interior ................................ 588
Climate Control System ............................ 240
Changing the Mode ................................ 240
Defrosting the Windshield and Windows ............................................... 241
Dust and Pollen Filter............................... 587
Recirculation and Fresh Air Mode ............ 240
Sensors ................................................... 243
Synchronized Mode................................. 242
Using Automatic Climate Control ............ 240
Clock .......................................................... 166
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................. 456
Coat Hook ................................................. 229
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 456
Compact Spare Tire .................. 597, 633, 635
Console Compartment ............................. 226
Continuously Variable Transmission Creeping ................................................. 419
Fluid ........................................................ 561
Kickdown ................................................ 419
Operating the Shift Lever........... 24, 428, 430

648
Index
Shift Lever Does Not Move....................... 609
Shifting............................................ 427, 429
Controls ..................................................... 165
Coolant (Engine) ....................................... 559
Adding to the Engine Coolant Reserve
Tank ...................................................... 559
Adding to the Radiator ............................ 560
Overheating............................................. 611
Creeping (Automatic Transmission/ Continuously Variable Transmission) ..... 419
Cross Traffic Monitor ................................ 525
Cup Holders ............................................... 227
Customer Service Information ................. 645
Customized Features ................................ 351
D
Daytime Running Lights ........................... 198
Dead Battery ............................................. 606
Defaulting All the Settings ...................... 370
Defrosting the Windshield and
Windows .................................................. 241
Devices that Emit Radio Waves ................ 637
Dimming
Headlights ............................................... 195
Rearview Mirror ....................................... 210
Dipstick (Engine Oil) ................................. 552
Directional Signals (Turn Signal) .............. 194
Door Mirrors ............................................. 211 Doors
......................................................... 167
Auto Door Locking .................................. 180
Auto Door Unlocking .............................. 180
Door and Trunk Open Message ................. 37
Keys ........................................................ 167
Locking/Unlocking the Doors from the Inside ...................................... 177
Locking/Unlocking the Doors
from the Outside ................................... 170
Lockout Prevention System ...................... 176
DOT Tire Quality Grading ........................ 578
Driver Attention Monitor ........................ 154
Driver Information Interface ................... 140
Switching the Display .............................. 140
Warning and Information Messages ........ 109
Driving ...................................................... 401
Automatic Transmission/Continuously Variable
Transmission.......................................... 419
Braking ................................................... 508
Shifting Position ...................... 420, 427, 429
Starting the Engine.................................. 412
Driving Position Memory System ............ 207
Driving Support Information ................... 157
Dust and Pollen Filter ............................... 587
E
Eco Assist® System ...................................... 12
ECON Button ............................................ 434
Econ Mode
Indicator.................................................. 100 Elapsed Time
............................................ 147
Electric Power Steering (EPS) System
Indicator ........................................... 95, 617
Electronic Stability Control (ESC) ............ 441
Emergency ................................................ 626
Emergency Engine Stop ........................... 605
Emergency Trunk Opener ....................... 183
Emissions Testing (Readiness Codes) ...... 639
Engine ....................................................... 636
Coolant .................................................. 559
Jump Starting ......................................... 606
Oil .......................................................... 551
Starting................................................... 412
Engine Coolant ........................................ 559
Adding to the Engine Coolant Reserve Tank ..................................................... 559
Adding to the Radiator ........................... 560
Overheating ............................................ 611
Temperature Gauge ................................ 139
Engine Oil ................................................. 551
Adding ................................................... 554
Checking ................................................ 552
Displaying Oil Life ................................... 542
Low Oil Pressure Warning ....................... 613
Recommended Engine Oil ....................... 551
ENGINE START/STOP Button .................... 191
EPS (Electric Power Steering) System ...... 617
Exhaust Gas Hazard
(Carbon Monoxide) .................................. 78
Exterior Care (Cleaning) .......................... 590
Exterior Mirrors ........................................ 211
