70
uuChild Safety uSafety of Infants and Small Children
Safe Driving

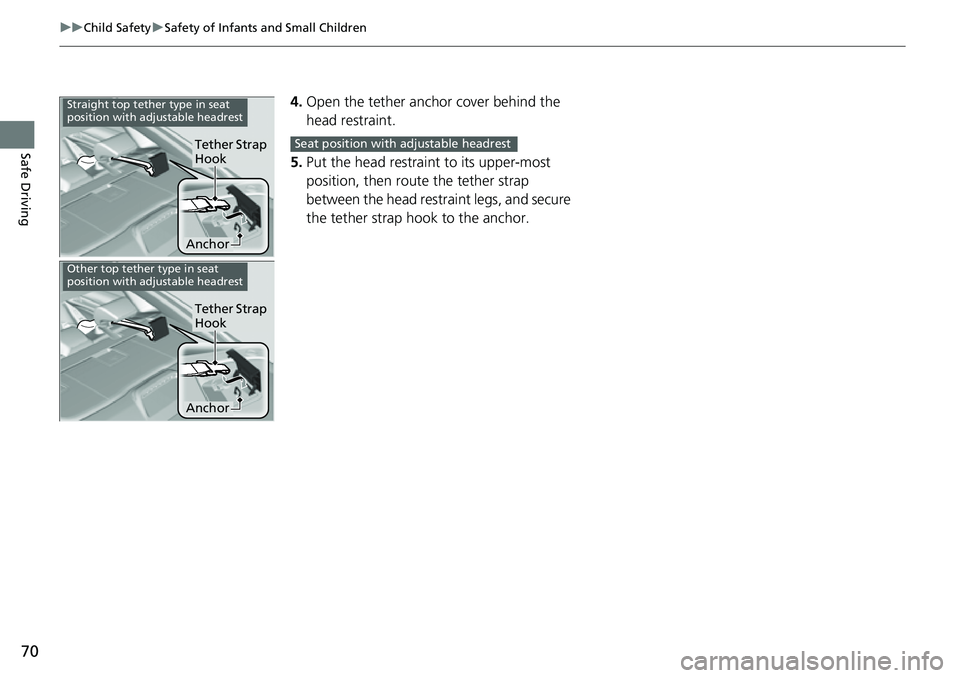

4. Open the tether anchor cover behind the
head restraint.
5. Put the head restraint to its upper-most
position, then rout e the tether strap
between the head restraint legs, and secure
the tether strap hook to the anchor.
Anchor
Tether Strap
Hook
Straight top tether type in seat
position with adjustable headrest
Seat position with adjustable headrest
Anchor
Tether Strap
Hook
Other top tether type in seat
position with adjustable headrest

Continued71
uuChild Safety uSafety of Infants and Small Children

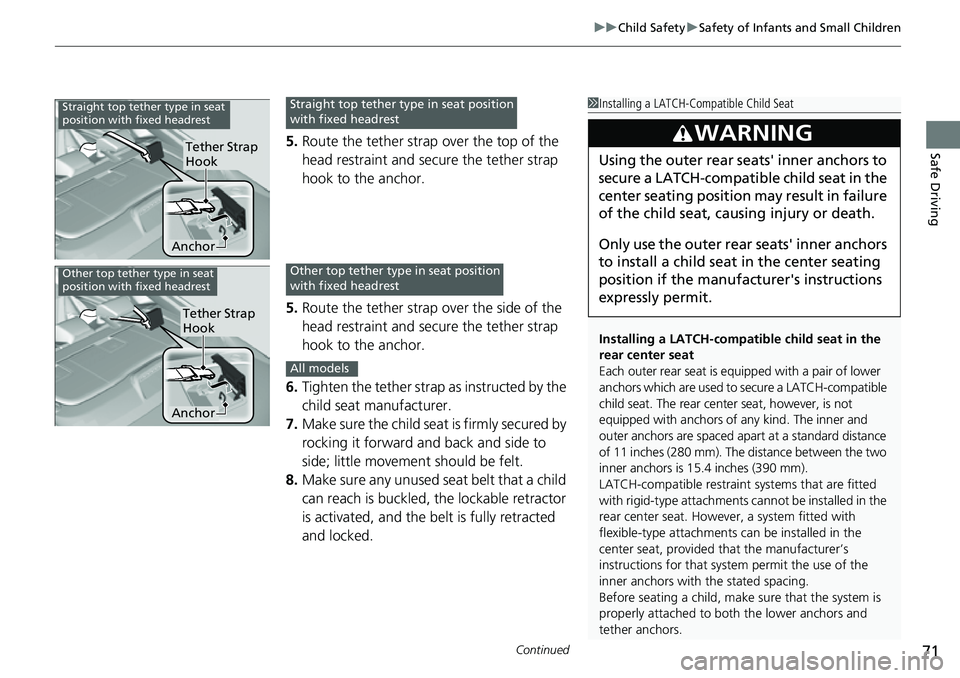

Safe Driving5. Route the tether strap over the top of the
head restraint and secure the tether strap
hook to the anchor.
5. Route the tether strap over the side of the
head restraint and secure the tether strap
hook to the anchor.
6. Tighten the tether strap as instructed by the
child seat manufacturer.
7. Make sure the child seat is firmly secured by
rocking it forward and back and side to
side; little movement should be felt.
8. Make sure any unused seat belt that a child
can reach is buckled, the lockable retractor
is activated, and the be lt is fully retracted
and locked.
1 Installing a LATCH-Compatible Child Seat
Installing a LATCH-compatible child seat in the
rear center seat
Each outer rear seat is equipped with a pair of lower
anchors which are used to secure a LATCH-compatible
child seat. The rear center seat, however, is not
equipped with anchors of any kind. The inner and
outer anchors are spaced apart at a standard distance
of 11 inches (280 mm). The distance between the two
inner anchors is 15.4 inches (390 mm).
LATCH-compatible restraint systems that are fitted
with rigid-type attachments cannot be installed in the
rear center seat. However, a system fitted with
flexible-type attachments can be installed in the
center seat, provided that the manufacturer’s
instructions for that system permit the use of the
inner anchors with the stated spacing.
Before seating a child, make sure that the system is
properly attached to both the lower anchors and
tether anchors.
3WARNING
Using the outer rear seats' inner anchors to
secure a LATCH-compatible child seat in the
center seating position may result in failure
of the child seat, causing injury or death.
Only use the outer rear seats' inner anchors
to install a child seat in the center seating
position if the manufa cturer's instructions
expressly permit.
Anchor
Tether Strap
Hook
Straight top tether type in seat
position with fixed headrestStraight top tether type in seat position
with fixed headrest
Anchor
Tether Strap
Hook
Other top tether type in seat
position with fixed headrestOther top tether type in seat position
with fixed headrest
All models

uuChild Safety uSafety of Infants and Small Children
74

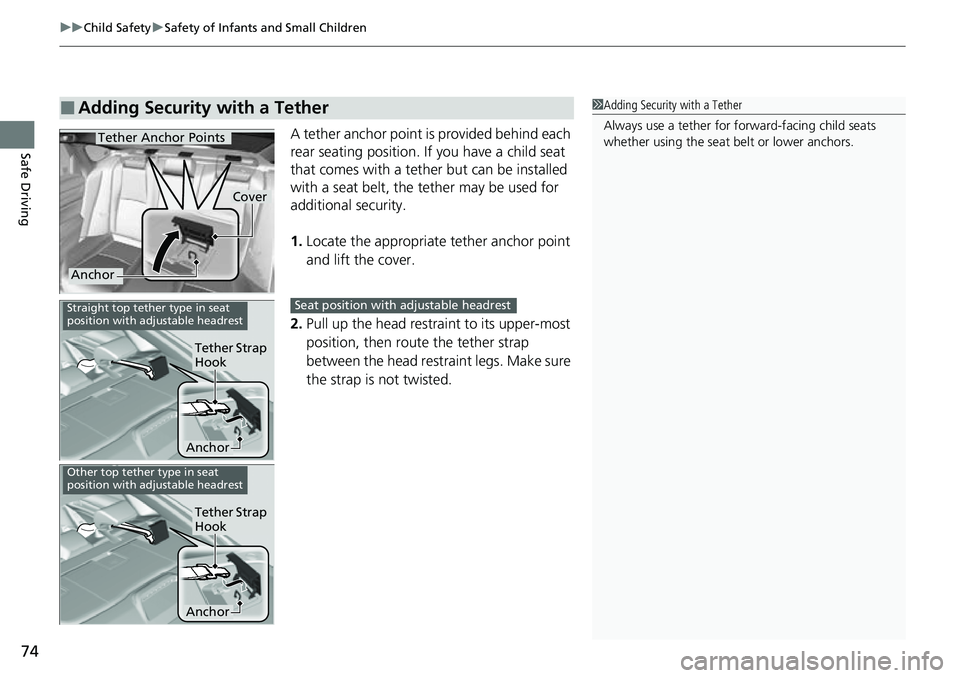

Safe DrivingA tether anchor point is provided behind each
rear seating position. If you have a child seat
that comes with a tether but can be installed
with a seat belt, the tether may be used for
additional security.
1. Locate the appropriate tether anchor point
and lift the cover.
2. Pull up the head restraint to its upper-most
position, then rout e the tether strap
between the head restraint legs. Make sure
the strap is not twisted.
■Adding Security with a Tether1 Adding Security with a Tether
Always use a tether for forward-facing child seats
whether using the seat belt or lower anchors.
Tether Anchor Points
Cover
Anchor
Anchor
Tether Strap
Hook
Straight top tether type in seat
position with adjustable headrestSeat position with adjustable headrest
Anchor
Tether Strap
Hook
Other top tether type in seat
position with adjustable headrest

75
uuChild Safety uSafety of Infants and Small Children

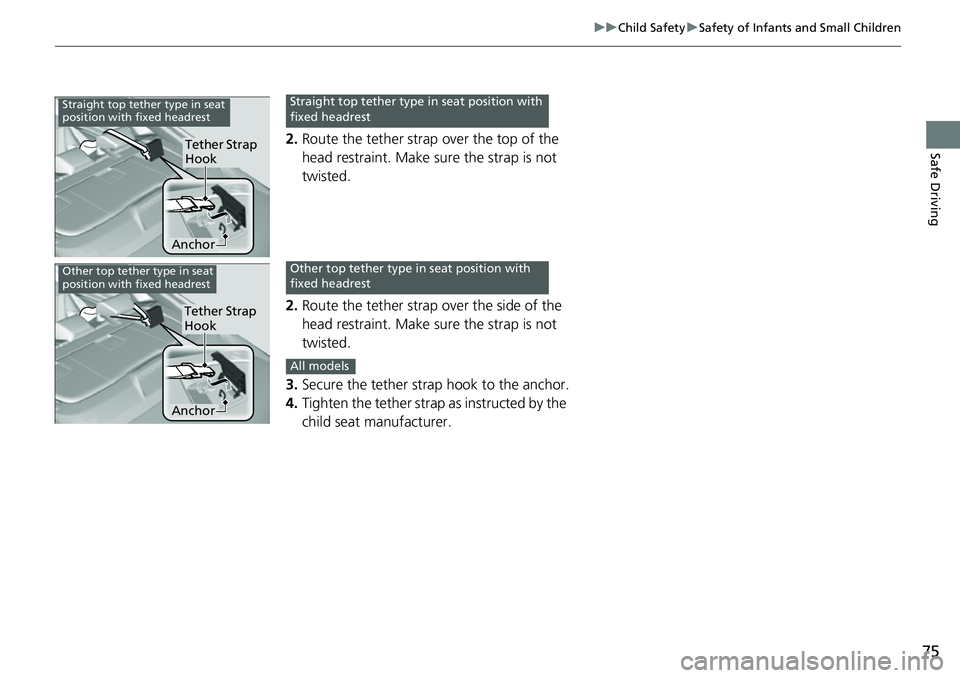

Safe Driving2. Route the tether strap over the top of the
head restraint. Make sure the strap is not
twisted.
2. Route the tether strap over the side of the
head restraint. Make sure the strap is not
twisted.
3. Secure the tether strap hook to the anchor.
4. Tighten the tether strap as instructed by the
child seat manufacturer.
Anchor
Tether Strap
Hook
Straight top tether type in seat
position with fixed headrestStraight top tether type in seat position with
fixed headrest
Anchor
Tether Strap
Hook
Other top tether type in seat
position with fixed headrestOther top tether type in seat position with
fixed headrest
All models

628
Handling the Unexpected
If You Cannot Open the Trunk
If you cannot open the trunk, use the following procedure.1.Remove the driver side rear outer head
restraint.
2 Removing and Reinstalling the Head
Restraints P. 221
2.Remove the built-in key from the keyless
remote.
3. Wrap a cloth around the tip of the built-in
key. Put it into the cover (as shown in the
image) and remove the cover.
4. Insert the key into the cylinder and turn it
clockwise.
u The trunk unlocks and opens.
■What to Do If Unable to Open the Trunk1If You Cannot Open the Trunk
Following up:
After taking these steps, cont act a dealer to have the
vehicle checked.
Cover
Models with adjustable headrest
All models
Key
Models with the cylinder in the cover
