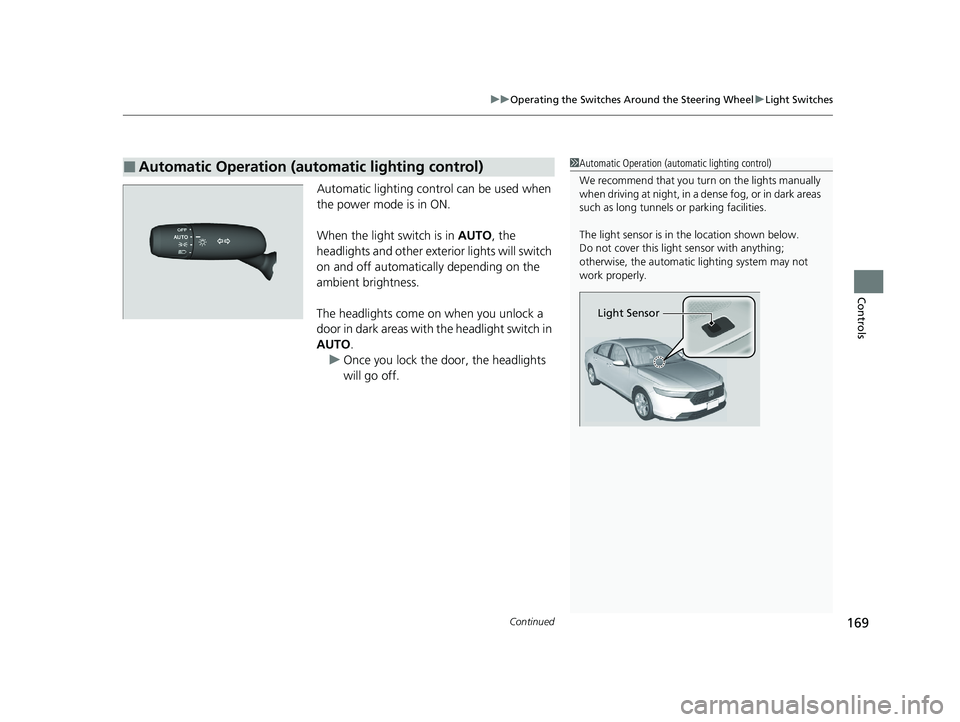

sensor HONDA ACCORD 2023 Owner's Manual

Continued169
uuOperating the Switches Around the Steering Wheel uLight Switches
Controls
Automatic lighting control can be used when
the power mode is in ON.
When the light switch is in AUTO, the
headlights and other exterior lights will switch
on and off automatically depending on the
ambient brightness.
The headlights come on when you unlock a
door in dark areas with the headlight switch in
AUTO .
u Once you lock the door, the headlights
will go off.
■Automatic Operation (automatic lighting control)1Automatic Operation (aut omatic lighting control)
We recommend that you tu rn on the lights manually
when driving at night, in a de nse fog, or in dark areas
such as long tunnels or parking facilities.
The light sensor is in the location shown below.
Do not cover this light sensor with anything;
otherwise, the automatic lighting system may not
work properly.
Light Sensor
23 ACCORD 4D US PET MAP-3130A6000_01.book 169 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

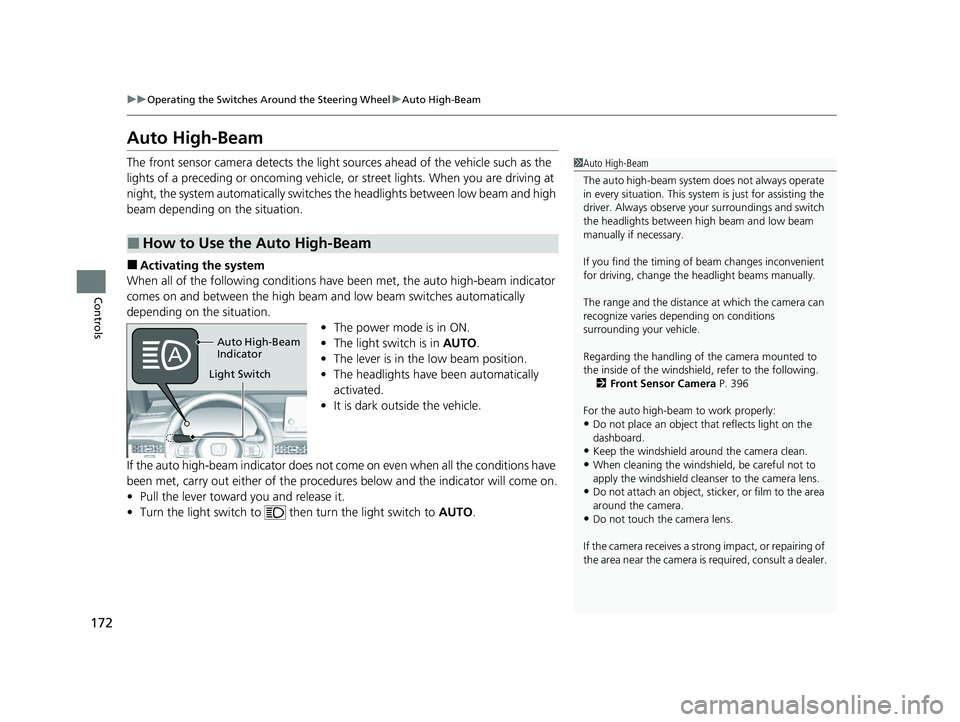

172
uuOperating the Switches Around the Steering Wheel uAuto High-Beam
Controls
Auto High-Beam
The front sensor camera detects the light sources ahead of the vehicle such as the
lights of a preceding or oncoming vehicle, or street lights. When you are driving at
night, the system automatically switches the headlights between low beam and high
beam depending on the situation.
■Activating the system
When all of the following conditions have been met, the auto high-beam indicator
comes on and between the high beam and low beam switches automatically
depending on the situation. •The power mode is in ON.
• The light switch is in AUTO.
• The lever is in the low beam position.
• The headlights have been automatically
activated.
• It is dark outside the vehicle.
If the auto high-beam indicator does not co me on even when all the conditions have
been met, carry out either of the proced ures below and the indicator will come on.
• Pull the lever toward you and release it.
• Turn the light switch to th en turn the light switch to AUTO.
■How to Use the Auto High-Beam
1Auto High-Beam
The auto high-beam system does not always operate
in every situation. This syst em is just for assisting the
driver. Always observe your surroundings and switch
the headlights between high beam and low beam
manually if necessary.
If you find the timing of beam changes inconvenient
for driving, change the headlight beams manually.
The range and the distance at which the camera can
recognize varies de pending on conditions
surrounding your vehicle.
Regarding the handling of the camera mounted to
the inside of the windshiel d, refer to the following.
2 Front Sensor Camera P. 396
For the auto high-beam to work properly:
•Do not place an object that reflects light on the
dashboard.
•Keep the windshield around the camera clean.
•When cleaning the windshield, be careful not to
apply the windshield cleans er to the camera lens.
•Do not attach an object, sticker, or film to the area
around the camera.
•Do not touch the camera lens.
If the camera receives a st rong impact, or repairing of
the area near the camera is required, consult a dealer.
Auto High-Beam
Indicator
Light Switch
23 ACCORD 4D US PET MAP-3130A6000_01.book 172 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

184
uuSeats uRear Seats
Controls

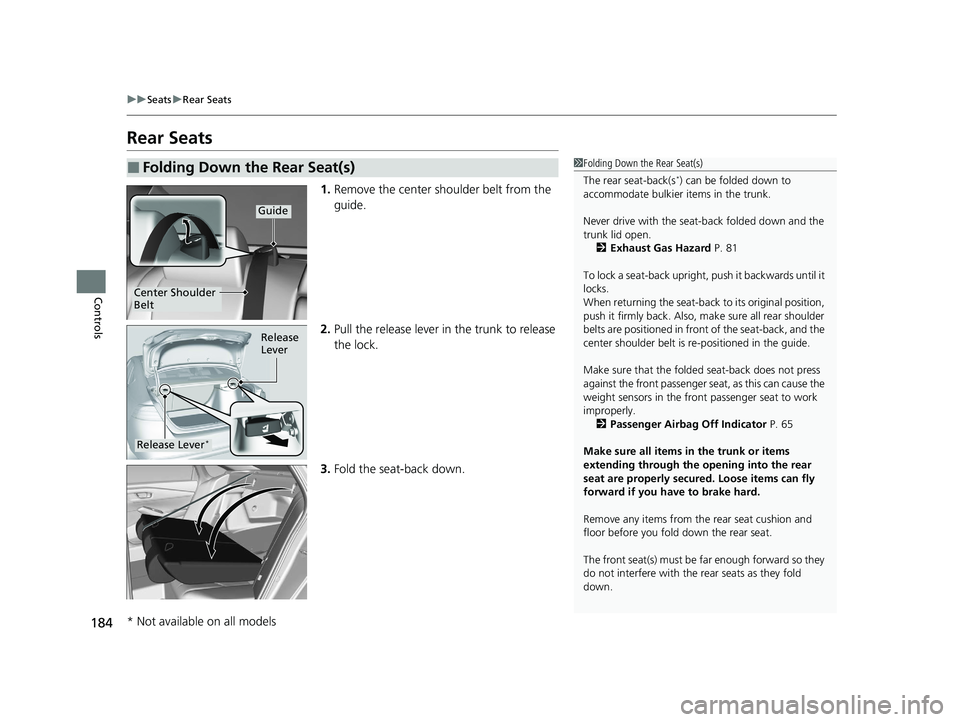

Rear Seats
1. Remove the center shoulder belt from the
guide.
2. Pull the release lever in the trunk to release
the lock.
3. Fold the seat-back down.
■Folding Down the Rear Seat(s)1Folding Down the Rear Seat(s)
The rear seat-back(s
*) can be folded down to
accommodate bulkier items in the trunk.
Never drive with the seat-back folded down and the
trunk lid open.
2 Exhaust Gas Hazard P. 81
To lock a seat-back upright, push it backwards until it
locks.
When returning the seat-back to its original position,
push it firmly back. Also, m ake sure all rear shoulder
belts are positioned in front of the seat-back, and the
center shoulder belt is re -positioned in the guide.
Make sure that the folded seat-back does not press
against the front passenger seat, as this can cause the
weight sensors in the front passenger seat to work
improperly. 2 Passenger Airbag Off Indicator P. 65
Make sure all items in the trunk or items
extending through the opening into the rear
seat are properly secured. Loose items can fly
forward if you have to brake hard.
Remove any items from th e rear seat cushion and
floor before you fold down the rear seat.
The front seat(s) must be far enough forward so they
do not interfere with the rear seats as they fold
down.
Guide
Center Shoulder
Belt
Release
Lever
Release Lever*
* Not available on all models
23 ACCORD 4D US PET MAP-3130A6000_01.book 184 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

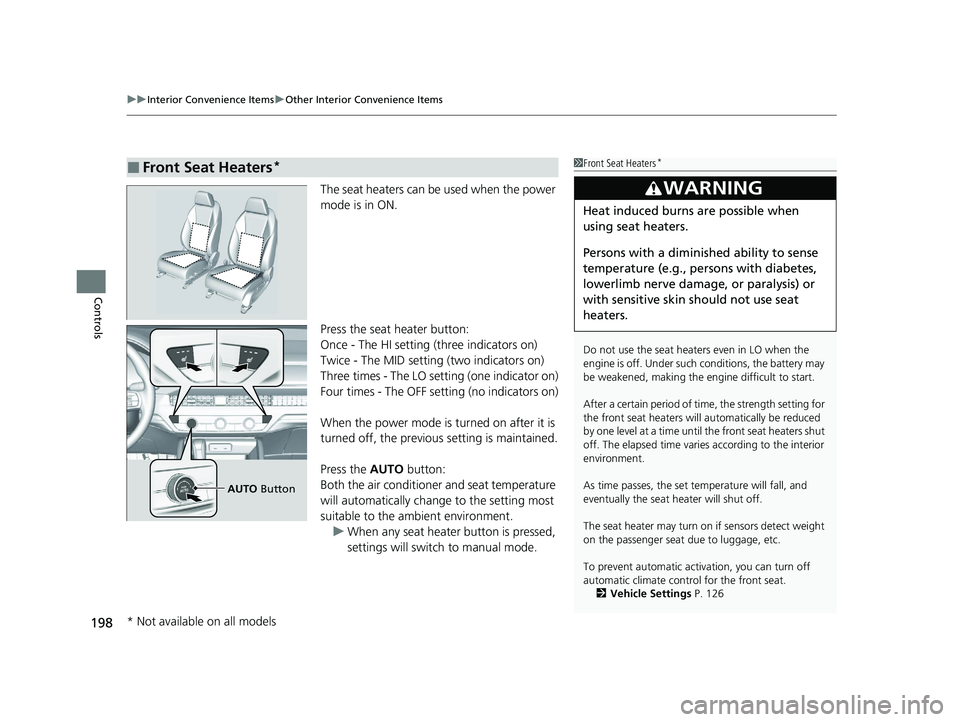

uuInterior Convenience Items uOther Interior Convenience Items
198
Controls
The seat heaters can be used when the power
mode is in ON.
Press the seat heater button:
Once - The HI setting (three indicators on)
Twice - The MID setting (two indicators on)
Three times - The LO setting (one indicator on)
Four times - The OFF se tting (no indicators on)
When the power mode is turned on after it is
turned off, the previous setting is maintained.
Press the AUTO button:
Both the air conditioner and seat temperature
will automatically change to the setting most
suitable to the ambient environment. u When any seat heater button is pressed,
settings will switch to manual mode.
■Front Seat Heaters*1Front Seat Heaters*
Do not use the seat heaters even in LO when the
engine is off. Under such conditions, the battery may
be weakened, making the engine difficult to start.
After a certain period of time, the strength setting for
the front seat heaters will automatically be reduced
by one level at a ti me until the front seat heaters shut
off. The elapsed time varies according to the interior
environment.
As time passes, the set temperature will fall, and
eventually the seat heater will shut off.
The seat heater may turn on if sensors detect weight
on the passenger seat due to luggage, etc.
To prevent automatic activation, you can turn off
automatic climate control for the front seat. 2 Vehicle Settings P. 126
3WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lowerlimb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
AUTO Button
* Not available on all models
23 ACCORD 4D US PET MAP-3130A6000_01.book 198 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

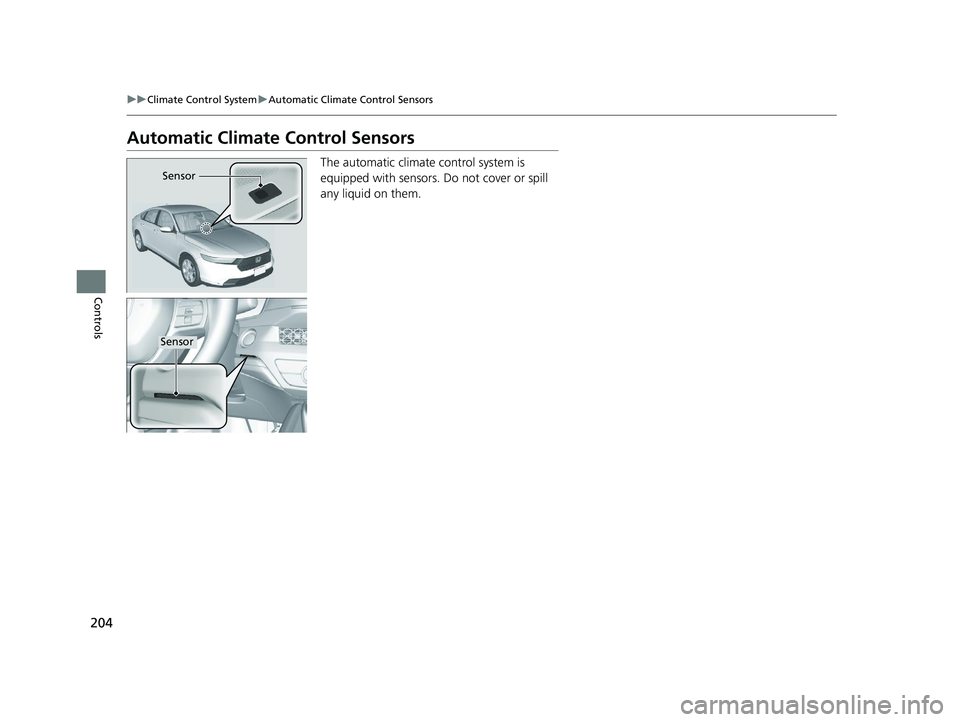

204
uuClimate Control System uAutomatic Climate Control Sensors
Controls
Automatic Climate Control Sensors
The automatic climate control system is
equipped with sensors. Do not cover or spill
any liquid on them.Sensor
Sensor
23 ACCORD 4D US PET MAP-3130A6000_01.book 204 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

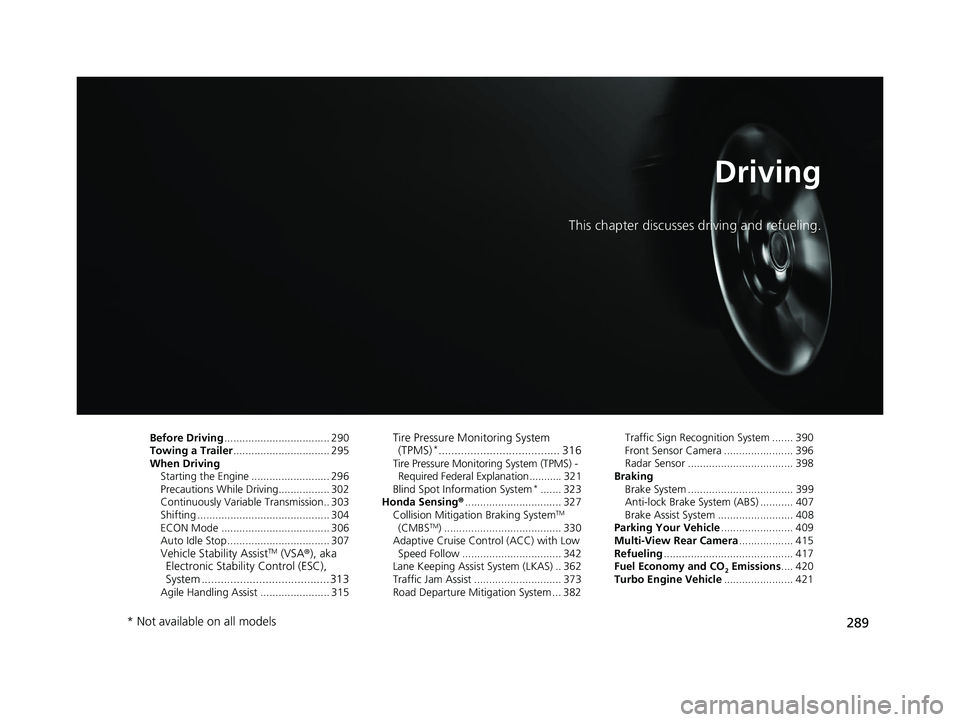

289
Driving
This chapter discusses driving and refueling.
Before Driving................................... 290
Towing a Trailer ................................ 295
When Driving
Starting the Engine .......................... 296
Precautions While Driving................. 302
Continuously Variable Transmission.. 303
Shifting ............................................ 304
ECON Mode .................................... 306
Auto Idle Stop .................................. 307
Vehicle Stability AssistTM (VSA® ), aka
Electronic Stability Control (ESC),
System ........................................ 313
Agile Handling Assist ....................... 315
Tire Pressure Monitoring System (TPMS)*...................................... 316Tire Pressure Monitoring System (TPMS) -
Required Federal Explanation ........... 321
Blind Spot Information System
*....... 323
Honda Sensing ®................................ 327
Collision Mitigati on Braking System
TM
(CMBSTM) ....................................... 330
Adaptive Cruise Control (ACC) with Low
Speed Follow ................................. 342
Lane Keeping Assist System (LKAS) .. 362
Traffic Jam Assist ............................. 373
Road Departure Mitigation System ... 382 Traffic Sign Recognition System ....... 390
Front Sensor Camera ....................... 396
Radar Sensor ................................... 398
Braking Brake System ................................... 399
Anti-lock Brake System (ABS) ........... 407
Brake Assist System ......................... 408
Parking Your Vehicle ........................ 409
Multi-View Rear Camera .................. 415
Refueling ........................................... 417
Fuel Economy and CO
2 Emissions .... 420
Turbo Engine Vehicle ....................... 421
* Not available on all models
23 ACCORD 4D US PET MAP-3130A6000_01.book 289 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

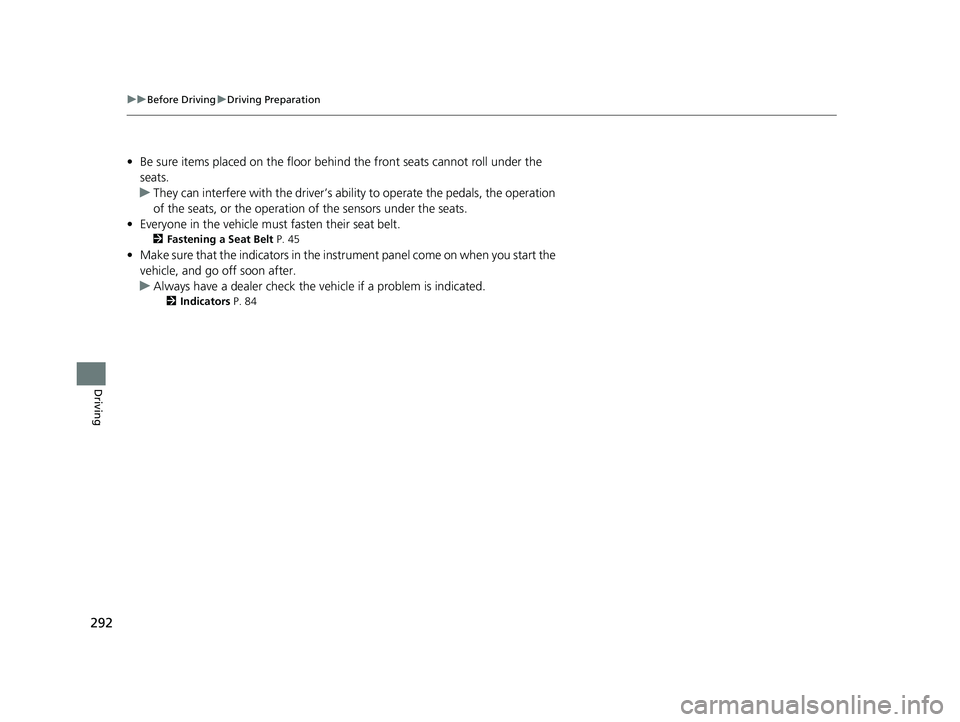

292
uuBefore Driving uDriving Preparation
Driving
• Be sure items placed on the floor behind the front seats cannot roll under the
seats.
u They can interfere with the driver’s ability to operate the pedals, the operation
of the seats, or the operation of the sensors under the seats.
• Everyone in the vehicle must fasten their seat belt.
2Fastening a Seat Belt P. 45
•Make sure that the indicators in the instrument panel come on when you start the
vehicle, and go off soon after.
u Always have a dealer check the vehicle if a problem is indicated.
2 Indicators P. 84
23 ACCORD 4D US PET MAP-3130A6000_01.book 292 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

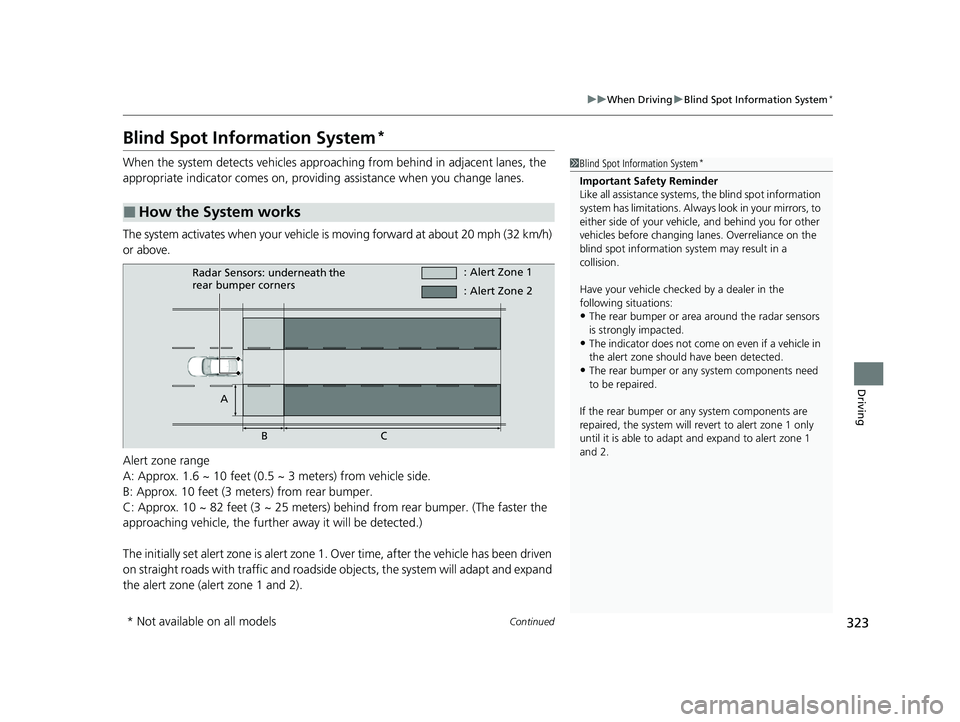

323
uuWhen Driving uBlind Spot Information System*
Continued
Driving
Blind Spot Information System*
When the system detects vehicles approaching from behind in adjacent lanes, the
appropriate indicator comes on, providin g assistance when you change lanes.
The system activates when your vehicle is moving forward at about 20 mph (32 km/h)
or above.
Alert zone range
A: Approx. 1.6 ~ 10 feet (0.5 ~ 3 meters) from vehicle side.
B: Approx. 10 feet (3 meters) from rear bumper.
C: Approx. 10 ~ 82 feet (3 ~ 25 meters) behind from rear bumper. (The faster the
approaching vehicle, the further away it will be detected.)
The initially set alert zone is alert zone 1. Over time, after the vehicle has been driven
on straight roads with traffic and roadside objects, the system will adapt and expand
the alert zone (alert zone 1 and 2).
■How the System works
1 Blind Spot Information System*
Important Safety Reminder
Like all assistance systems, the blind spot information
system has limitations. Always look in your mirrors, to
either side of your vehicl e, and behind you for other
vehicles before changing la nes. Overreliance on the
blind spot information sy stem may result in a
collision.
Have your vehicle checked by a dealer in the
following situations:
•The rear bumper or area around the radar sensors
is strongly impacted.
•The indicator does not come on even if a vehicle in
the alert zone should have been detected.
•The rear bumper or any system components need
to be repaired.
If the rear bumper or any system components are
repaired, the system will re vert to alert zone 1 only
until it is able to adapt and expand to alert zone 1
and 2.
Radar Sensors: underneath the
rear bumper corners : Alert Zone 1
A BC : Alert Zone 2
* Not available on all models
23 ACCORD 4D US PET MAP-3130A6000_01.book 323 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

uuWhen Driving uBlind Spot Information System*
324
Driving

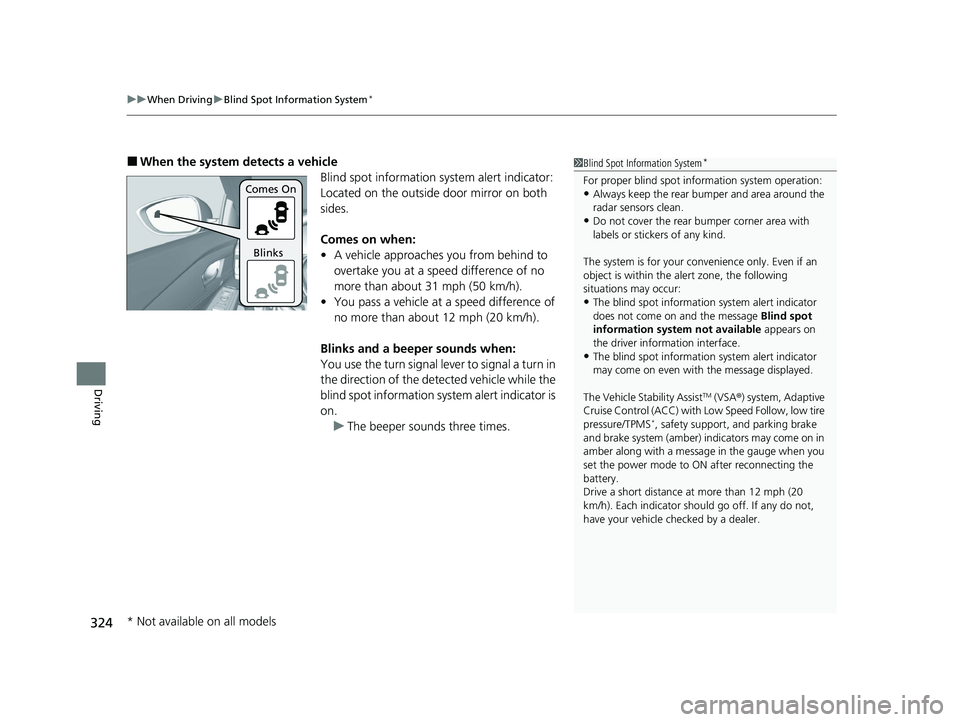

■When the system detects a vehicle
Blind spot information system alert indicator:
Located on the outside door mirror on both
sides.
Comes on when:
• A vehicle approaches you from behind to
overtake you at a speed difference of no
more than about 31 mph (50 km/h).
• You pass a vehicle at a speed difference of
no more than about 12 mph (20 km/h).
Blinks and a beeper sounds when:
You use the turn signal lever to signal a turn in
the direction of the detected vehicle while the
blind spot information system alert indicator is
on. u The beeper sounds three times.1Blind Spot Information System*
For proper blind spot information system operation:•Always keep the rear bumper and area around the
radar sensors clean.
•Do not cover the rear bumper corner area with
labels or sticke rs of any kind.
The system is for your convenience only. Even if an
object is within the alert zone, the following
situations may occur:
•The blind spot informatio n system alert indicator
does not come on and the message Blind spot
information system not available appears on
the driver information interface.
•The blind spot informatio n system alert indicator
may come on even with the message displayed.
The Vehicle Stability Assist
TM (VSA ®) system, Adaptive
Cruise Control (ACC) with Low Speed Follow, low tire
pressure/TPMS
*, safety support, and parking brake
and brake system (amber) indicators may come on in
amber along with a message in the gauge when you
set the power mode to ON after reconnecting the
battery.
Drive a short distance at more than 12 mph (20
km/h). Each indicator should go off. If any do not,
have your vehicle ch ecked by a dealer.
Comes On
Blinks
* Not available on all models
23 ACCORD 4D US PET MAP-3130A6000_01.book 324 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

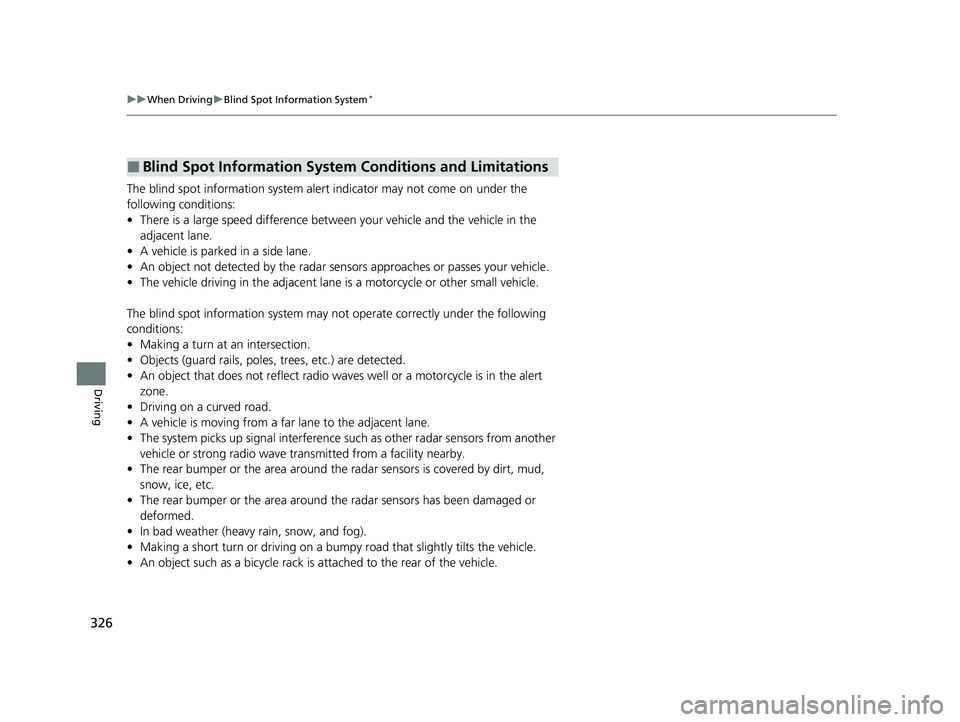

326
uuWhen Driving uBlind Spot Information System*
Driving
The blind spot information system alert indicator may not come on under the
following conditions:
• There is a large speed difference betwee n your vehicle and the vehicle in the
adjacent lane.
• A vehicle is parked in a side lane.
• An object not detected by the radar se nsors approaches or passes your vehicle.
• The vehicle driving in the adjacent lane is a motorcycle or other small vehicle.
The blind spot information system may not operate correctly under the following
conditions:
• Making a turn at an intersection.
• Objects (guard rails, poles, trees, etc.) are detected.
• An object that does not reflect radio wave s well or a motorcycle is in the alert
zone.
• Driving on a curved road.
• A vehicle is moving from a far lane to the adjacent lane.
• The system picks up signal interference such as other radar sensors from another
vehicle or strong radio wave transmitted from a facility nearby.
• The rear bumper or the area around the radar sensors is covered by dirt, mud,
snow, ice, etc.
• The rear bumper or the area around the radar sensors has been damaged or
deformed.
• In bad weather (heavy rain, snow, and fog).
• Making a short turn or driving on a bumpy road that slightly tilts the vehicle.
• An object such as a bicycle rack is attached to the rear of the vehicle.
■Blind Spot Information System Conditions and Limitations
23 ACCORD 4D US PET MAP-3130A6000_01.book 326 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分
