headlight bulb HONDA ACCORD COUPE 2002 CL7 / 7.G Owners Manual

Canadian models only
This indicator lights when you turn
the ignition switch to ON (II) with
the headlight switch of f and the
parking brake set. It should go of f if
youturnontheheadlightsorrelease
the parking brake. If it comes on at
any other time, it means there is a
problem with the DRL. There may
also be a problem with the high
beam headlights.
The lef t or right turn signal light
blinks when you signal a lane change
or turn. If the light does not blink or
blinks rapidly, it usually means one
of the turn signal bulbs is burned out
(see page ). Replace the bulb as
soon as possible, since other drivers
cannot see that you are signalling.
A burned out brake light is a hazard
when drivers behind you cannot tell
you are braking. Have your brake
lights repaired right away. The appropriate light comes on in
this display if the trunk or either
door is not closed tightly. If a brake
light does not work, the indicator comes on when you
push the brake pedal with the
ignition switch ON (II).
All the lights in the monitor display
come on when you turn the ignition
switch ON (II). The lights go of f
af ter the engine starts and the trunk
and both doors are closed tightly. WhenyouturnontheHazard
Warning switch, both turn signal
lights blink. All turn signals on the
outside of the car should f lash.
292 ‘‘Daytime Running
Lights’’ Indicator
Turn Signal and
Hazard Warning
Indicators
Door and Brake L amp Monitor
Indicator L ights
Inst rument s and Cont rols61
BRAKE
LAMP

This section also includes
Maintenance Schedules f or normal
driving and severe driving conditions,
a Maintenance Record, and instruc-
tions f or simple maintenance tasks
you may want to take care of
yourself .
If you have the skills and tools to per-
f orm more complex maintenance
tasks on your Honda, you may want
to purchase the Service Manual. See
page f or inf ormation on how to
obtain a copy, or see your Honda
dealer. This section explains why it is
important to keep your car well
maintained and to f ollow basic
maintenance saf ety precautions.......................
Maintenance Saf ety .234
.
Important Safety Precautions . 235
.................
Maintenance Schedule . 236
...
Required Maintenance Record . 243 .......
Owner Maintenance Checks . 245
..............................
Fluid Locations .246
......................................
Engine Oil .248
..................................
Adding Oil .248
....................
Recommended Oil .248
..............................
Synthetic Oil .250
....................................
Additives .250
.....
Changing the Oil and Filter . 250
.............................
Cooling System .253
............
Adding Engine Coolant . 253
.......
Replacing Engine Coolant . 255
....................
Windshield Washers .260
.......................
Transmission Fluid .261
Automatic .........................
Transmission .261
5-speed Manual .........................
Transmission .263
................
Brake and Clutch Fluid . 264
............................
Brake System .264
...........................
Clutch System .265
..............................
Power Steering .266
.....................
Air Cleaner Element .267
....................................
Hood Latch .269
Spark Plugs ..............
(4-cylinder Models) . 269
..............................
Replacement .269 ............................
Specif ications .270
Spark Plugs ..............
(6-cylinder Models) . 271
..............................
Replacement .271
............................
Specif ications .273
...........................................
Battery .274
.................................
Wiper Blades .277
..............
Air Conditioning System . 279
.................
Dust and Pollen Filter . 280
.....................................
Drive Belts .280
....................................
Timing Belt .281
...............................................
Tires .282
......................................
Inf lation .282
..................................
Inspection .283
..............................
Maintenance .284
.............................
Tire Rotation .285
...
Replacing Tires and Wheels . 285
......................
Wheels and Tires .286
..........................
Winter Driving .286
.............................
Snow Tires .287
............................
Tire Chains .287
.............................................
Lights .288
.....................
Headlight Aiming .290
........................
Replacing Bulbs .290
...........................
Storing Your Car .291
361
Maintenance
Maint enance233

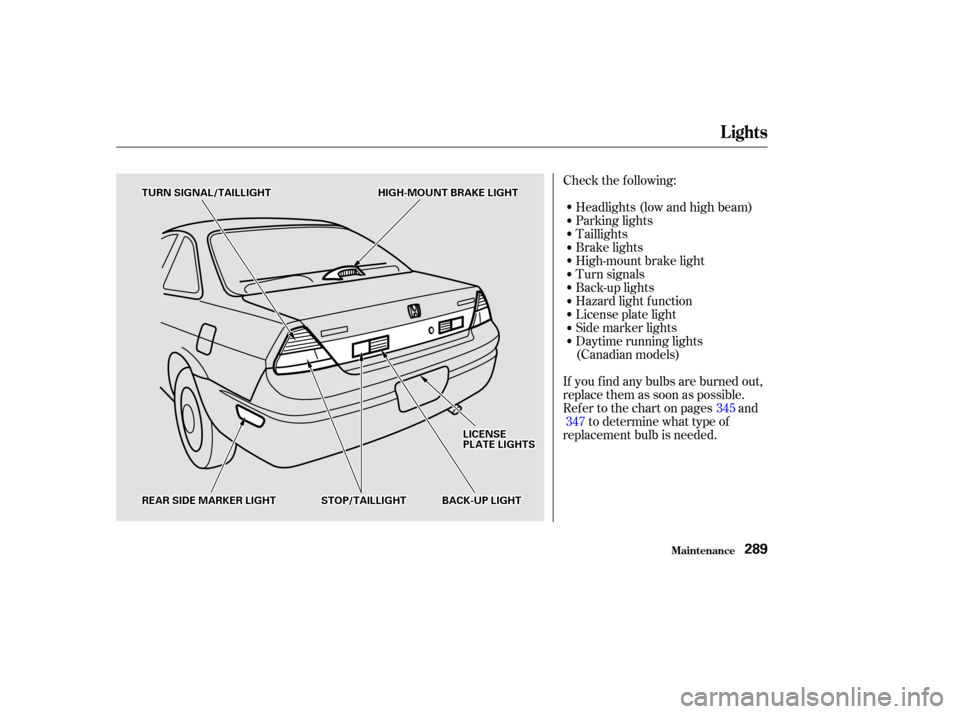

Check the f ollowing:Headlights (low and high beam)
Parking lights
Taillights
Brake lights
High-mount brake light
Turn signals
Back-up lights
Hazard light f unction
License plate light
Side marker lights
Daytime running lights
(Canadian models)
If you f ind any bulbs are burned out,
replace them as soon as possible.
Refer to the chart on pages and to determine what type of
replacement bulb is needed. 347 345
Lights
Maint enance289
T T
U
UR RNN S
SIIGGN NAAL
L//T
T A
A I
ILLL LIIGGH HT
T H
HI
IGGH H-
-M
M O
OUUNNTT B
BRRAA K
KEE L
LIIGGH HT
T
B
BA A C
CKK--U
UP P L
LIIGGH HT
T
R
RE EA
A R
R S
SIIDD E
E M
M A
AR
RKKEER
R L
LIIGGH HT
T S
STTO
OP P/
/T
T A
A I
ILLL LIIGGH HT
T L
LI
ICCE EN
NS SEE
P
P L
LAA T
TE
E L
LIIGGH HT
TS
S

Your car has two bulbs on each side,
four in total. Make sure you are
replacing the bulb that is burned out.
Your car uses halogen headlight
bulbs. When replacing a bulb, handle
it by its plastic case and protect the
glass from contact with your skin or
hard objects. If you touch the glass,
clean it with denatured alcohol and a
clean cloth.
Theheadlightswereproperlyaimed
when your car was new. If you
regularly carry heavy items in the
trunk or pull a trailer, readjustment
may be required. Adjustment of the
headlights should be perf ormed by a
Honda technician or other qualif ied
mechanic.
Open the hood.
If you need to change the head-
light bulb on the passenger’s side,
remove the radiator reserve tank
and the air intake duct.
If you need to change the
headlight bulb on the driver’s side,
remove the radiator reserve tank.
1.
4-cylinder models
6-cylinder models
Replacing a Headlight Bulb
Headlight A iming
Lights
Maint enance290
4 4- -c
cy yl liinn d
de
err m
m o
od
de
ellss A
A
I
IRR I
INNT TA
A K
KEE
D
D U
UC CTT
Halogen headlight bulbs get very hot
when lit. Oil, perspiration, or a scratch
on the glass can cause the bulb to
overheat and shatter.

Remove the electrical connector
f rom the bulb by squeezing the
connector to unlock the tab, then
slide the connector of f the bulb.
Remove the bulb by turning it
approximately one-quarter turn
counterclockwise.Reinstall the radiator reserve tank. (Driver’s side) Reinstall the radiator reserve tank
and the air intake duct. (Passenger’s side) Turn on the headlights to test the
new bulb. Push the electrical connector back
onto the bulb. Make sure it is on
all the way. Insert the new bulb into the hole
and turn it one-quarter turn clock-
wise to lock it in place.
2.
3. 4.
7. 6. 5.
6-cylinder models
4-cylinder models
Lights
Maint enance291
B BU
UL LBB
T
T A
A B
B

Testthelightstomakesurethe
new bulb is working. Insert the socket back into the
headlight assembly. Turn it
clockwise to lock it in place. Install the new bulb in the socket.
Turn it clockwise to lock it in place. Remove the burned out bulb f rom
thesocketbypushingitinand
turning the bulb counterclockwise
until it unlocks.
Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.
If you are changing the bulb on
the driver’s side, start the engine,
turn the steering wheel all the way
to the right, and turn off the
engine. If you are changing the
bulb on the passenger’s side, turn
the steering wheel to the left.

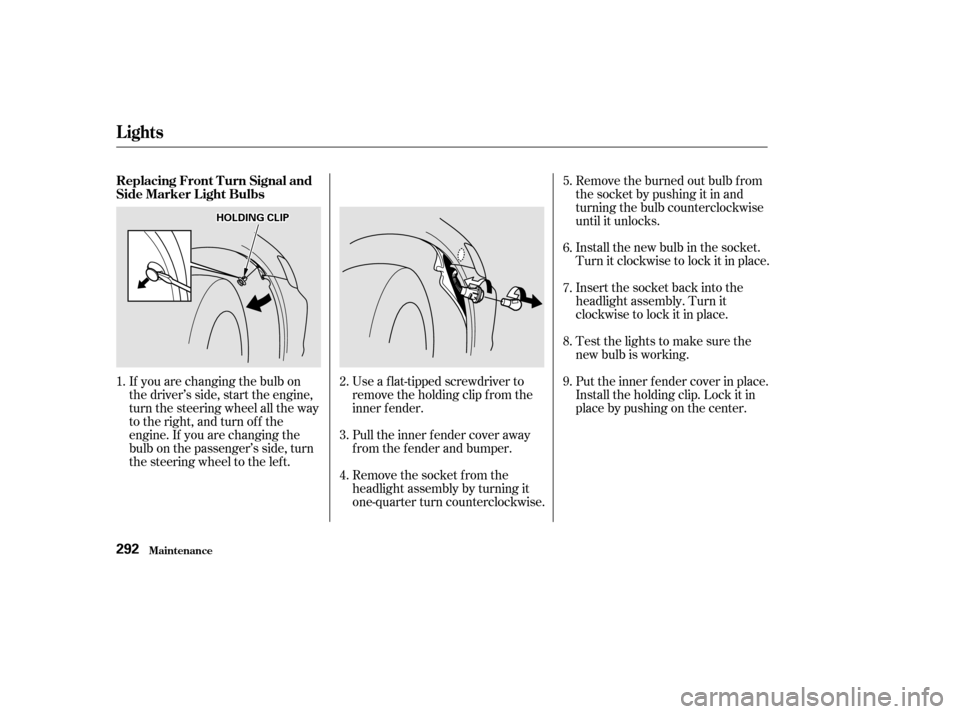

Use a f lat-tipped screwdriver to
remove the holding clip f rom the
inner f ender.
Pull the inner f ender cover away
f rom the f ender and bumper.
Put the inner f ender cover in place.
Install the holding clip. Lock it in
place by pushing on the center.
1.
3. 2.
4.5.
6.
7.
8.
9.
Replacing Front Turn Signal and
Side Marker L ight Bulbs
Lights
Maint enance292
H H
O
OL LDD I
INNG G C
CLLIIPP

Pull the bulb straight out of its
socket.
Push the new bulb straight into
the socket until it bottoms.
Open the hood. The f ront parking
light is next to the headlight bulb. Insert the socket back into the
headlight assembly. Turn it
clockwise to lock it in place.
Turn on the parking lights to
make sure the new bulb works.
(Passenger’s side)
Reinstall the radiator reserve tank.
(Driver’s side)
If you need to change a bulb on the driver’s side, remove the
radiator reserve tank.
Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.
(Driver’s side)

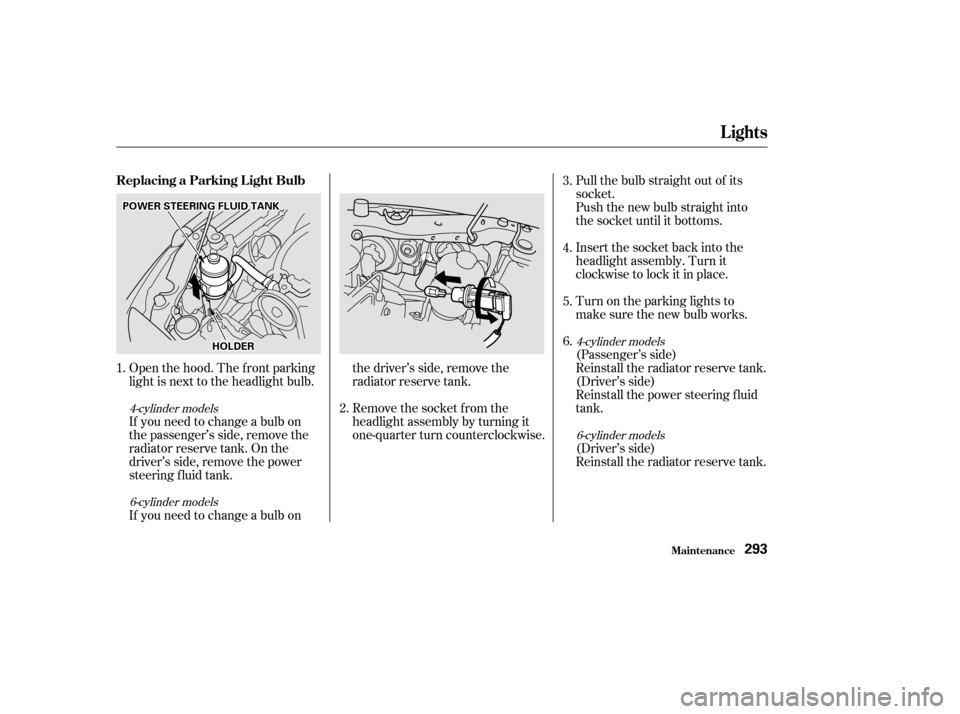

Reinstall the power steering f luid
tank.
Reinstall the radiator reserve tank.
If you need to change a bulb on
the passenger’s side, remove the
radiator reserve tank. On the
driver’s side, remove the power
steering f luid tank. 2. 3.
1. 4.
5.
6.
4-cylinder models
6-cylinder models
6-cylinder models 4-cylinder models
Replacing a Parking L ight Bulb
Lights
Maint enance293
P P
O
OW WE ER
R S
STTE
EE
ER
RI INNG G F
FLLUUI IDD T
TA
A N
NK K
H
H O
OL LDD E
ER
R

Remove the socket by turning it
one-quarter turn counterclockwise.
Pull the bulb straight out of its
socket.
Push the new bulb straight into
the socket until it bottoms.
Reinstall the socket into the light
assembly.
Testthelightstomakesurethe
new bulb is working.
Reinstall the plastic cover and

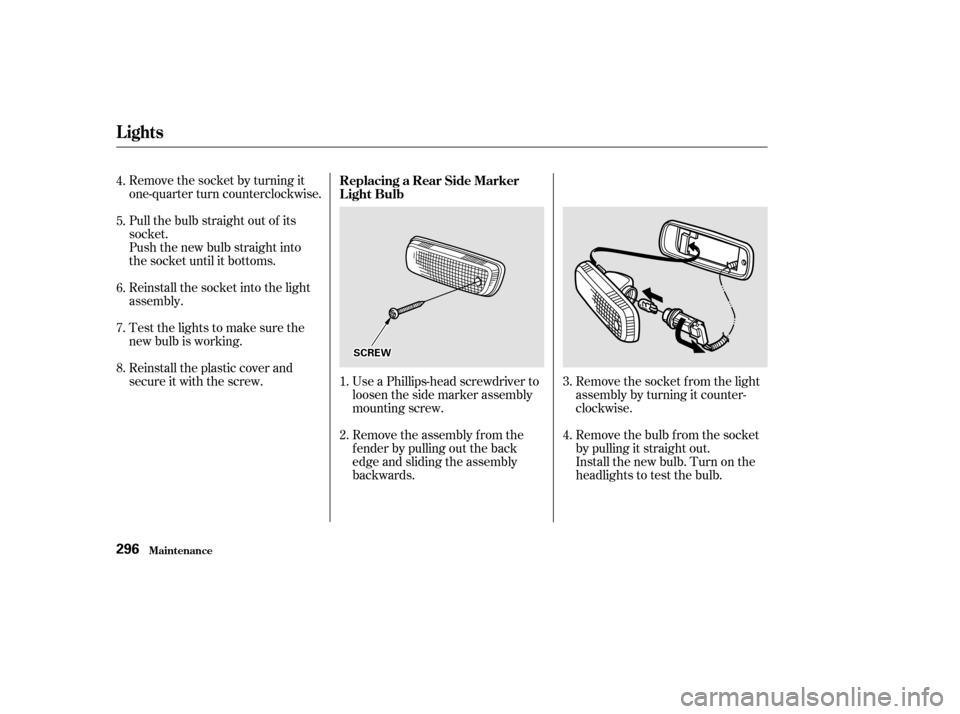

secure it with the screw.Use a Phillips-head screwdriver to
loosen the side marker assembly
mounting screw.
Remove the assembly f rom the
f ender by pulling out the back
edge and sliding the assembly
backwards. Remove the socket f rom the light
assembly by turning it counter-
clockwise.
Remove the bulb f rom the socket
by pulling it straight out.
Install the new bulb. Turn on the
headlights to test the bulb.
1.
2.
4.
5.
6.
7.
8.
4. 3.
Replacing a Rear Side Marker
Light Bulb
Lights
Maint enance296
S SC
CRREEW
W

CONT INUED
BatteryCharging System ...........................
Indicator .58, 328
............................
Jump Starting .321
..............................
Maintenance .274
....................
Specif ications .345, 347
..............................
Bef ore Driving .191
....................................
Belts,Seat .8,41
...........................
Beverage Holder .101
...................................
Body Repair .310 Brakes
...........
Anti-lock System (ABS) . 218
.............
Break-in, New Linings . 192
............
Bulb Replacement . 294,295
...........................................
Fluid .264
.........................................
Parking .99
.................
System Indicator . 59,331
........................
Wear Indicators .217
.............................
Braking System .217
........................
Break-in, New Car .192
..
Brightness Control, Instruments . 69
........................
Brights, Headlights .67
Bulb Replacement ..........................
Back-up Lights .295
.....................
Brake Lights .294, 295
..............................
Ceiling Light .299
........................
Courtesy Lights .299
................
Front Parking Lights . 293
........
Front Side Marker Lights . 292
.................................
Headlights .290
.........
High-mount Brake Light . 297
.................
License Plate Lights . 298
.........
Rear Side Marker Lights . 296
....................
Specif ications .345, 347
...
Accessories and Modif ications . 200
................................
Accessories .200
.
Additional Safety Precautions . 201
............................
Modif ications .201
ACCESSORY (Ignition Key .......................................
Position) .77
.............
Accessory Power Socket . 104
....................
Additives, Engine Oil . 250
...............................
Airbag (SRS) .9, 45
.....................
Air Cleaner Element .267
.................
Air Conditioning Filter . 280
......
Air Conditioning System . 108,115
..............................
Maintenance .279
.................................
Usage .111, 117
...............
Air Outlets (Vents) . 110,115
.......................
Air Pressure, Tires .282
.......................
Alcohol in Gasoline .350
.......
Aluminum Wheels, Cleaning . 305
......................................
Antif reeze .253
Anti-lock Brakes (ABS) ...............................
Indicator .59, 219
...................................
Operation .218
..............
Anti-thef t, Audio System . 179
.
Anti-thef t Steering Column Lock . 76..........................
Appearance Care .303
................
Audio System . 123,138,161
...
Automatic Lighting Off Feature . 68
...
Automatic Seat Belt Tensioners . 43
.............
Automatic Speed Control . 181
..............
Automatic Transmission . 210
..................
Capacity, Fluid . 344,346
...............
Checking Fluid Level . 261
.......................................
Shif ting .211
.
Shif t Lever Position Indicator . 211
................
Shif t Lever Positions . 211
....................
Shif t Lock Release . 214
Index
A
B
I

Î
Bulb Replacement...................................
Spotlights .299
...............................
Trunk Light .300
....................
Turn Signal Lights . 292
..............................
Bulbs, Halogen .290
................
DANGER, Explanation of . ii
...................................
Dashboard .2, 56
................
Daytime Running Lights . 68
............
Def ects, Reporting Saf ety . 360
................
Def ogger, Rear Window . 72
......
Def rosting the Windows . 113,121
............................
Dimensions .344, 346
...............
Dimming the Headlights . 67
Dipstick ..........
Automatic Transmission . 261
..................................
Engine Oil .196
...................
Capacities Chart . 344,346
.............
Carbon Monoxide Hazard . 52
.............................
Carrying Cargo .202
Cassette Player ....................................
Care .150, 178
...................
Operation . 135,146,175
..............
CAUTION, Explanation of . ii
..................
CD Changer . 132,151,171
..............................
CD Player .130, 169
..................................
Ceiling Light .105
...............................
Center Pocket .104
........................
Certif ication Label .342
............................................
Chains .287
Changing Oil ........................................
How to .250
......................................
When to .238
....................
Changing a Flat Tire .313
............
Changing Engine Coolant . 255 ...
Charging System Indicator . 58,328
............
Checklist, Bef ore Driving . 206
.....................................
Child Saf ety .20
.......................................
Child Seats .25
..........
Tether Anchorage Points . 40
....................
Cleaner Element, Air . 267
Cleaning ....................
Aluminum Wheels .305
...................................
Carpeting .306
......................................
Exterior .304
.........................................
Fabric .307
.......................................
Interior .306
.......................................
Leather .307
...................................
Seat Belts .307
...........................................
Vinyl .307
....................................
Windows .308
...............
Climate Control System . 115
.........................
Clock, Setting the .100
...................................
Clutch Fluid .265
........................
CO in the Exhaust .352
........................................
Coin Box .104
............
Cold Weather, Starting in . 208
..............................
Compact Spare .312
.................
Console Compartment . 102
...............
Consumer Inf ormation . 358
.............
Controls, Instruments and . 55Coolant
........................................
Adding .253
....................................
Checking .198
.........................
Proper Solution .253
...................................
Replacing .255
...................
Temperature Gauge . 64
....................
Corrosion Protection .309
............................
Courtesy Lights .106
Crankcase Emissions Control ........................................
System .352
............
Cruise Control Operation . 181
..........
Customer Relations Of f ice . 359
Index
C
D
II
