The most important things you need
to know about your airbags are:They are designed to supplement
the seat belts.
To do
their job, airbags must inf late with
tremendous f orce. So while
airbags help save lives, they can
cause minor injuries or more
serious or even fatal injuries if
occupants are not properly
restrained or sitting properly. Always wear
your seat belt properly, and sit
upright, and as f ar back f rom the
steering wheel while allowing f ull
control of the vehicle. A f ront
passenger should move their seat as
f ar back f rom the dashboard as
possible.
The rest of this section gives more
detailed inf ormation about how you
can maximize your saf ety.
Remember, however, that no saf ety
system can prevent all injuries or
deaths that can occur in severe
crashes, even when seat belts are
properly worn and the airbags deploy.
Your vehicle also has side curtain
airbags to help protect the heads of
the driver, f ront passenger, and
passengers in the outer rear seating
positions (see page f or more
inf ormation on how your side curtain
airbags work). 27
Standard on U.S. 4-cylinder EX-L and
EX-V6 models
Your Vehicle’s Saf ety Features
Driver and Passenger Saf ety
Airbags do not replace seat belts.
A irbags of f er no prot ect ion in rearimpact s, rollovers, or minorf ront al or side collisions.
A irbags can pose hazards. What you should do:
10
——y

y
(%
y
y

If you sit too close to the steering
wheel or dashboard, you can be
seriously injured by an inf lating f ront
airbag, or by striking the steering
wheel or dashboard.
The National Highway Traffic Safety
Administration and Transport
Canada recommend that drivers
allow at least 10 inches (25 cm)
between the center of the steering
wheel and the chest. In addition to
adjusting the seat, you can adjust the
steering wheel in and out (see page). Adjust the driver’s seat-back to a
comf ortable, upright position,
leaving ample space between your
chest and the airbag cover in the
center of the steering wheel.
Passengers with adjustable seat-
backs should also adjust their seat-
back to a comf ortable, upright
position.
Once your seat is adjusted correctly,
rock it back and f orth to make sure
the seat is locked into position. See
page f or how to adjust the f ront
seats.
If you cannot get f ar enough away
f rom the steering wheel and still
reach the controls, we recommend
that you investigate whether some
type of adaptive equipment may help. 74 83
Protecting A dults and Teens
Driver and Passenger Saf ety
Adjust the Seat-Backs
3.
12
Sitting too close to a front
airbag can result in serious
injury or death if the front
airbags inflate.
Always sit as far back from the
front airbags as possible.
——y
y
(%
y
y

Your airbag system includes:On models equipped with two side
airbags, one for the driver and one
f or a f ront passenger. The airbags
arestoredintheouteredgesof
the seat-backs. Both are marked
‘‘SIDE AIRBAG’’ (see page ).
Two SRS (Supplemental Restraint
System) f ront airbags. The driver’s
airbag is stored in the center of
the steering wheel; the f ront
passenger’sairbagisstoredinthe
dashboard. Both are marked ‘‘SRS
AIRBAG’’ (see page ).
On models equipped with two side
curtain airbags, one f or each side
of the vehicle. The airbags are
stored in the f ront, center, and
rear pillars. The f ront and rear
pillars on both sides are marked
‘‘SIDE CURTAIN AIRBAG’’ (see
page ).
26
22
27
CONT INUED
Additional Inf ormation About Your Airbags
Driver and Passenger Saf ety

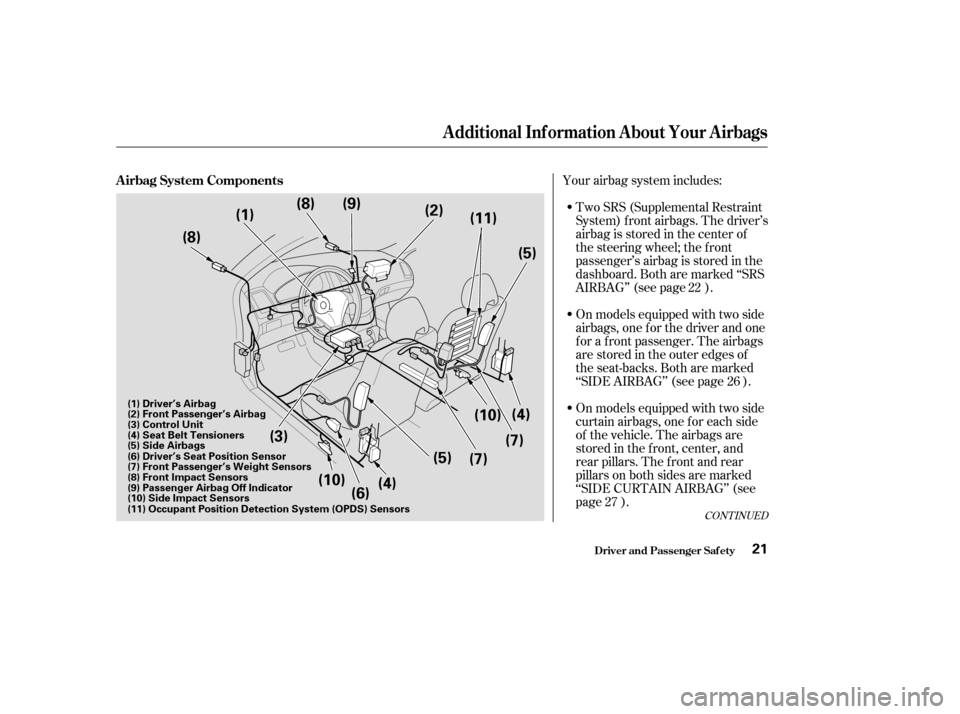

A irbag System Components
21
(1) (2)
(3) (4)(5)
(8)
(7)
(10) (11)
(9)
(6) (4)
(7)
(8)
(10)(5)
(1) Driver’s Airbag
(2) Front Passenger’s Airbag
(3) Control Unit
(4) Seat Belt Tensioners
(5) Side Airbags
(6) Driver’s Seat Position Sensor
(7) Front Passenger’s Weight Sensors
(8) Front Impact Sensors
(9) Passenger Airbag Off Indicator
(10) Side Impact Sensors
(11) Occupant Position Detection System (OPDS) Sensors
——y
y
(%
yy

Automatic seat belt tensioners
(see page ).
Sensors that can detect a
moderate to severe front impact,
or side impact in models equipped
with side airbags.
A sophisticated electronic system
that continually monitors and
records inf ormation about the
sensors, the control unit, the
airbag activators, and driver and
frontpassengerseatbeltusewhen
the ignition is in the ON (II)
position.
A driver’s seat position sensor that
monitors the seat position. If the
seat is too far forward, the airbag
will inf late with less f orce (see
page ).
Weight sensors that monitor the
weight on the f ront passenger’s
seat. These prevent the passenger’sf ront airbag f rom inf lating if the
weight is less than about 65 lbs
(30 kg) (see page ).
An indicator on the instrument
panel that alerts you to a possible
problem with your airbags (see
page ).
Emergency backup power in case
your vehicle’s electrical system is
disconnected in a crash.
An indicator on the dashboard that
alerts you that the passenger’s
f ront airbag has been turned of f
(see page ).
On models equipped, an indicator
on the instrument panel that alerts
you that the f ront passenger’s side
airbag has been turned of f (see
page ).
If you ever have a moderate to
severe f rontal collision, sensors will
detect the vehicle’s rapid
deceleration. If the rate of
deceleration is high enough, the
control unit will instantly inf late the
driver’s and f ront passenger’s f ront
airbags, at the appropriate time and
with the f orce needed.
19
25 25
27 29
28
Additional Inf ormation About Your Airbags
Driver and Passenger Saf ety
How Your Front Airbags Work
22
——y

y
(%
yy

When the airbag is turned of f , an
indicator in the center of the
dashboard will come on indicating
‘‘Passenger Airbag Of f ’’ (see page).
If there is a problem with the seat
position sensor, the SRS indicator
will come on in the instrument panel.
In this case, the driver’s airbag will
inf late in the normal manner during a crash regardless of the driver’s
seating position.

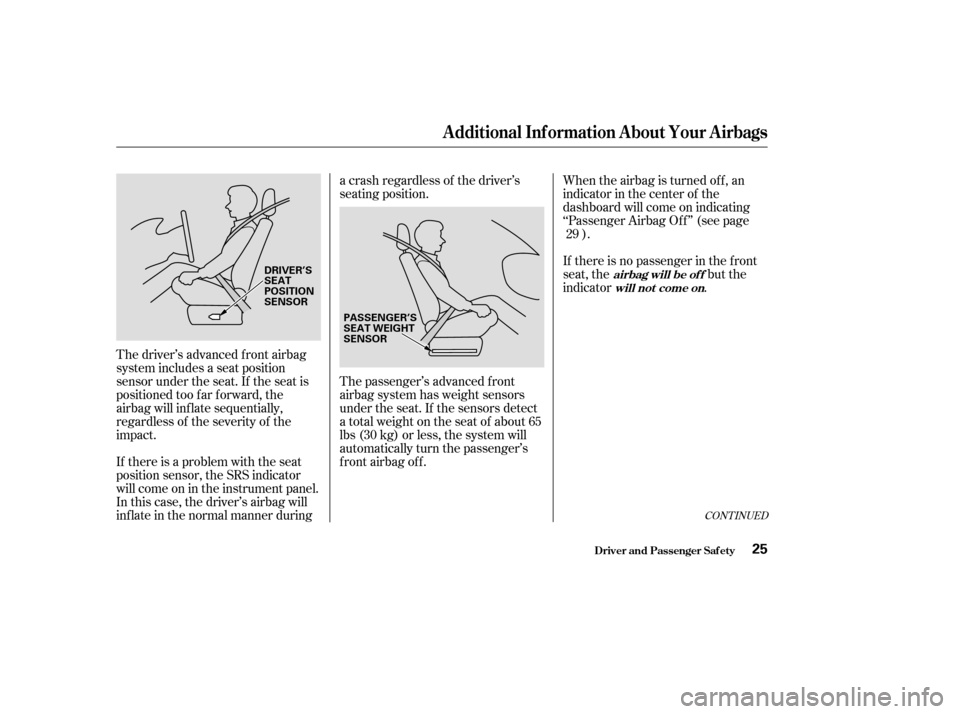

The passenger’s advanced f ront
airbag system has weight sensors
under the seat. If the sensors detect
a total weight on the seat of about 65
lbs (30 kg) or less, the system will
automatically turn the passenger’s
front airbag off.
The driver’s advanced front airbag
system includes a seat position
sensor under the seat. If the seat is
positioned too f ar f orward, the
airbag will inf late sequentially,
regardless of the severity of the
impact. If there is no passenger in the f ront
seat, the but the
indicator .
29
CONT INUED
Additional Inf ormation About Your Airbags
Driver and Passenger Saf ety
airbag will be of f
will not come on
25
DRIVER’S
SEAT
POSITION
SENSOR
PASSENGER’S
SEAT WEIGHT
SENSOR
——y
y
(%
yy

µ

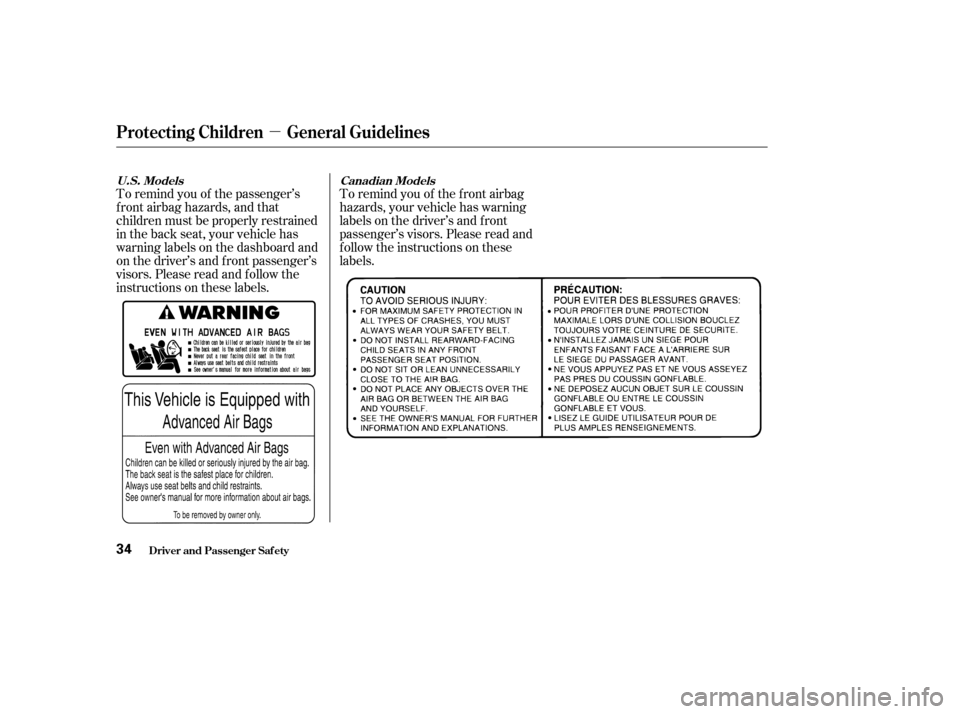

To remind you of the passenger’s
f ront airbag hazards, and that
children must be properly restrained
in the back seat, your vehicle has
warninglabelsonthedashboardand
on the driver’s and f ront passenger’s
visors. Please read and f ollow the
instructions on these labels.To remind you of the f ront airbag
hazards, your vehicle has warning
labels on the driver’s and f ront
passenger’s visors. Please read and
f ollow the instructions on these
labels.
Protecting Children General Guidelines
Driver and Passenger Saf ety
U.S. Models Canadian Models
34
——y
y
(%
yy

µ
Never put a seat belt over yourself
and a child. During a crash, the
belt could press deep into the child
and cause serious or fatal injuries.
Never let two children use the
same seat belt. If they do, they
could be very seriously injured in a
crash.Do not leave children alone in a
vehicle. Leaving children without
adult supervision is illegal in most
states and Canadian provinces,
and can be very hazardous.
For example, infants and small
childrenleftinavehicleonahot
day can die f rom heatstroke. A
child lef t alone with the key in the
ignition can accidentally set the
vehicle in motion, possibly injuring
themselves or others.
Lock both doors and the trunk
when your vehicle is not in use.
Children who play in vehicles can
accidentally get trapped inside the
trunk and be seriously injured or
could die. Teach your children not
to play in or around vehicles.
Know how to operate the
emergency trunk opener and
decide if your children should be
shown how to use this f eature (see
page ).Keep vehicle keys/remote
transmitters out of the reach of
children. Even very young
children learn how to unlock
vehicle doors, turn on the ignition,
and open the trunk, which can
lead to accidental injury or death.
Neverholdaninfantorchildon
your lap. If you are not wearing a
seat belt in crash, you could be
thrown f orward and crush the
child against the dashboard or a
seat-back. If you are wearing a
seat belt, the child can be torn
from your arms and be seriously
hurt or killed.
82
Additional Saf ety Precautions
Protecting Children General Guidelines
Driver and Passenger Saf ety36
——y
y
(%
yy

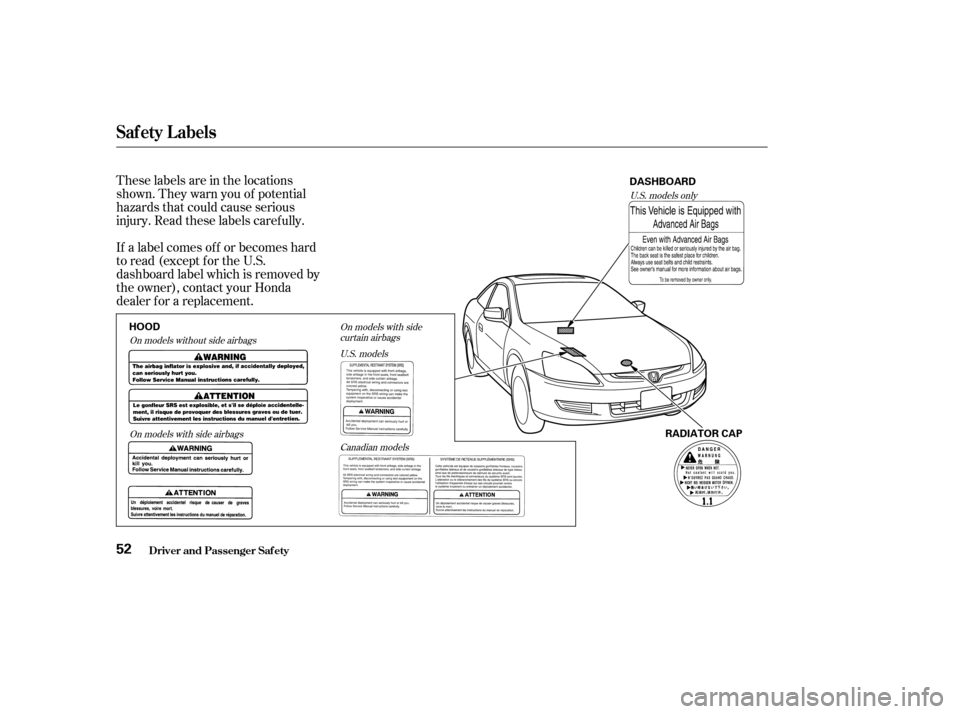

These labels are in the locations
shown. They warn you of potential
hazards that could cause serious
injury. Read these labels caref ully.
If a label comes of f or becomes hard
to read (except for the U.S.
dashboard label which is removed by
the owner), contact your Honda
dealer f or a replacement.
U.S. modelsCanadian models U.S. models only
On models without side airbags On models with side airbags On models with side
curtain airbags
Saf ety L abels
Driver and Passenger Saf ety52
HOOD DASHBOARD
RADIATOR CAP
——y
y
(%
yy

The moonroof has two positions: it
can be tilted up in the back f or
ventilation, or it can be slid back into
the roof . Use the switch under the
lef t dashboard vent to operate the
moonroof . The ignition switch must
be ON (II).
To close the windows f urther, turn
andholdthekeyagain(within
10 seconds).
NOTE: If the window stops bef ore
the desired position, repeat steps 2
and 3.
Turn the key counterclockwise
again, and hold it. Both windows
starttoclose.Tostopthewindows,
release the key.
Turn the key counterclockwise,
then release it.
Insert the key in the driver’s door
lock.
To close: Turnthekeyclockwiseagain,and
hold it. Both windows start to open.
To stop the windows, release thekey.
To open the windows f urther, turn
andholdthekeyagain(within
10 seconds).
NOTE: If the window stops bef ore
the desired position, repeat steps 2
and 3. 1.2.3.
4.
3.
4.
On all EX and EX-V6 models
Power Windows, Moonroof
Inst rument s and Cont rols
Moonroof
94
MOONROOF SWITCH
——y

y
(%
yy

Press the A/C button to turn the air
conditioningonandoff.Youwillsee
A/C ON or A/C OFF selected in the
display.
Press the A/C button to view the
display. Touching ON or OFF in the
display turns the air conditioning on
andoff.YouwillseeA/CONorA/C
OFF in the display.
When you turn the A/C of f , the
system cannot regulate the inside
temperature if you set the
temperature control below the
outside temperature.When the light in/above the button
is on, air f rom the vehicle’s interior is
sent throughout the system again.
When the light is of f , air is brought
in f rom the outside of the vehicle
(Fresh Air mode).
The outside air intakes f or the
heating and cooling system are at
the base of the windshield. Keep this
area clear of leaves and other debris.
ThesystemshouldbeleftinFresh
Air mode under almost all conditions.
Keeping the system in Recirculation
mode, particularly with the A/C of f ,
can cause the windows to fog up.
Switch to Recirculation mode when
driving through dusty or smoky
conditions, then return to Fresh Air
mode.This button turns the rear window
def ogger of f and on (see page ).
Use the mode control buttons or
icons to select the vents the air f lows
f rom. Some air will f low f rom the
dashboard corner vents in all modes.
Each time you press the MODE
button, the display shows the mode
selected.
Press the A/C button to view the
display, then touch any of the mode
icons on the display.
73
For Vehicles without Navigation System
For Vehicles with Navigation System For vehicles without Navigation System
For vehicles with Navigation System
On EX-L and EX-V6 models On EX-L and EX-V6 models
On EX-L and EX-V6 models
CONT INUED
Vents, Heating, and A/C
Comf ort and Convenience Feat ures
Recirculation Button Rear Window Def ogger Button
Mode Control
111
——y
y
(%
y

y
