Page 60 of 289
¶¶µµµµ
µ µµµ This meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it.
There are two trip meters: Trip A
and Trip B. Switch between these
displays and the odometer/outside
temperature display by pressing the
Select/Reset knob repeatedly. Each
trip meter works independently, so
you can keep track of two dif f erent
distances.
This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise
from the bottom white mark to about
the middle of the gauge. In severe
driving conditions, such as very hot
weather or a long period of uphill
driving, the pointer may rise into the
upperhalfofthegauge.Ifitreaches
the red (Hot) mark, pull safely to the
side of the road. Turn to page f or
instructions and precautions on
checking the engine’s cooling
system.
If the outside temperature is
incorrectly displayed, you can adjust
it up to 5°F ( 3°C) warmer or
cooler.
NOTE: The temperature must be
stabilized bef ore doing this
procedure.
Select the outside temperature
display, then press the Select/Reset
knob f or ten seconds. The f ollowing
sequence will appear f or one second
each:0,1,2,3,4,5, 5, 4, 3, 2,
1, 0, 1 (0, 1, 2, 3, 3, 2, 1, 0, 1).
When it reaches the desired value,
release the Select/Reset knob. You
should see the new outside
temperature displayed.
In certain weather conditions,
temperature readings near f reezing
(32°F, 0°C) could mean that ice is
f orming on the road surf ace. When you turn the ignition switch to
ON (II), what you last selected is
displayed.
To reset a trip meter, display it and
then press and hold the Select/Reset
knob until the number resets to ‘‘0.0.’’
Both trip meters will reset if the
vehicle’s battery goes dead or is
disconnected. 256
Trip Meter Temperature Gauge
Gauges
Inst rument s and Cont rols
65
— —
y
y
( y y
Page 105 of 289
ÛÝ
The heater uses engine coolant to
warm the air. If the engine is cold, it
will be several minutes bef ore you
f eel warm air coming f rom the
system.
Air conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page
). If it moves near the red zone,
turn of f the A/C until the gauge
reads normally.
Turn on the A/C by pressing the
ON button. The indicator in the
button comes on when a f an speed
is selected.
Make sure the temperature
control dial or button is set to
maximum cool.
Select .
If the outside air is humid, select
Recirculation mode. If the outside
air is dry, select Fresh Air mode.
Set the f an to the desired speed. Press the A/C button, the Manual
Operation A/C screen will appear.
Select the ON icon on the display.
Select the desired temperature
and MODE selections. If the
outside air is humid, select the
Recirculation mode. If the outside
air is dry, select Fresh Air mode.
you can
cool it down more rapidly by partially
opening the windows, turning on the
A/C, and setting the fan to
maximum speed in Fresh Air mode.
Select .
When you select , the system
automatically switches to the
Fresh Air mode.
Set the f an to the desired speed.
Adjust the warmth of the air with
the temperature control dial.
Press the A/C button, the manual
operation of A/C screen will
appear.
Select the desired mode and f an
speed icons on the display.
Adjustforwarmthwiththe
temperature buttons ( or ). To cool the interior with MAX A/C:
Set the f an to the desired speed.
Select the MAX A/C mode.
The system automatically turns on
the A/C, selects and
switches to Recirculation mode.
Make sure the temperature
control dial is all the way to the left.
1. 2. 3. 4. 5.
1.2. 3. 1.2. 3.
1. 2. 3. 1.2. 3.
65
If the interior is very warm,
On all models except EX-L and EX-V6
Except EX-L and EX-V6 with Navigation
System Except EX-L and EX-V6 with Navigation SystemEX-L and EX-V6 with Navigation System
EX-L and EX-V6 with Navigation System
Using the Heater Using the A /C
Vents, Heating, and A/C
Features
111
— —y
y
( y
y
Page 159 of 289
Look at the coolant level in the
radiator reserve tank. Make sure it is
between the MAX and MIN lines. If
it is below the MIN line, seeon page f or
inf ormation on adding the proper
coolant. Refer to
on page f or inf ormation
about checking other items on your
vehicle.
217 201
Engine Coolant Check
A dding
Engine Coolant Owner’s Maintenance
Checks
Service Station Procedure
166
UPPER MARK
LOWER MARK RESERVE TANK
4-cylinder models MIN
MAX MAX
RESERVE TANK
6-cylinder models MIN
6-cylinder models
— —y
y
( y
y
Page 192 of 289
µµ µ
µ
µ
µ µ
Youshouldcheckthefollowing
items at the specif ied intervals. If
you are unsure of how to perf orm
any check, turn to the appropriate
page listed.
Engine oil level Check every
time you fill the fuel tank. See
page .
Engine coolant level Check the
radiator reserve tank every time
you f ill the f uel tank. See page . Brakes Check the f luid level
monthly. See page .
Tires Check the tire pressure
monthly. Examine the tread f or
wear and foreign objects. See page
.
Automatic transmission Check
the f luid level monthly. See pages . Lights Check the operation of
the headlights, parking lights,
taillights, high-mount brake light,
and license plate lights monthly.
165
166
219 222 223
236
Maintenance Schedule
Owner’s Maintenance Checks
Maint enance
201
— —y
y
( y y
Page 193 of 289
Ì ÎÌ
Ì
Î
4-cylinder Models
202
miles x 1,000
km x 1,000
Service the items listed at the indicated distance (or time, if given).
Check oil and coolant at each fuel stop
Check inflation and condition once a month
Every 10,000 miles (16,000 km) or every 1 year, whichever comes first
Every 10,000 miles (16,000 km)
Every 30,000 miles (48,000 km) or every 2 years, whichever comes first
Inspect every 110,000 miles (176,000 km), otherwise adjust only if noisy
Every 120,000 miles (192,000 km) or every 6 years, whichever comes first Every 160,000 miles (256,000 km)
120,000 miles (192,000 km) or 10 years, then every 60,000 miles (96,000 km) or 5 years Every 3 years (independent of mileage)
Every 20,000 miles (32,000 km) or every 1 year, whichever comes first
1016
20323048 50806096 70
112 80
128 90
144 100160110176 120192130208140224 150240
See information on maintenance and emissions warranty, last column, page .
Replace at 120,000 miles (192,000 km) or 6 years, then every 90,000 miles (144,000 km) or 5 years. 4064
Check engine oil and coolant
Check tires
Replace engine oil
Rotate tires (follow pattern on page 239 )
Replace engine oil filter
Check front and rear brakes
Check parking brake adjustment
Inspect the following items: Tie-rod ends, steering gearbox, and boots
Suspension components
Driveshaft boots
Brake hoses and lines (including ABS)
All fluid levels and condition of fluids
Exhaust system
Fuel lines and connections
Inspect drive belt
Replace dust and pollen filter
Replace air cleaner element
Replace spark plugs
Inspect valve clearance
Replace automatic transmission fluid
Replace manual transmission fluid
Inspect idle speed
Replace engine coolant
Replace brake fluid
:: 200
Maintenance Schedule for Normal Conditions
— —y
y
( y y
Page 194 of 289
Ì
Î Î Ì
Ì
Î
Î
4-cylinder Models
203
miles x 1,000
km x 1,000
Service the items listed at the indicated distance (or time, if given).
Check oil and coolant at each fuel stop
Check inflation and condition once a month
Every 10,000 miles (16,000 km)
Every 3 years (independent of mileage)
120,000 miles (192,000 km) or 10 years, then every 60,000 miles (96,000 km) or 5 years
Every 160,000 miles (256,000 km)
Every 60,000 miles (96,000 km) or every 3 years, whichever comes first
Inspect every 110,000 miles (176,000 km), otherwise adjust only if noisy
Every 15,000 miles (24,000 km) (Use normal schedule except in dusty conditions) Every 30,000 miles (48,000 km) or every 2 years, whichever comes firstEvery 20,000 miles (32,000 km) or every 1 year, whichever comes first
Every 10,000 miles (16,000 km) or every 1 year, whichever comes first
Every 5,000 miles (8,000 km) or every 6 months, whichever comes first
Replace at 60,000 miles (96,000 km) or 3 years, then every 30,000 miles (48,000 km) or 2 years.
See dust and pollen filter on page for replacement information under special driving conditions.
See information on maintenance and emissions warranty, last column, page . 1016
2032 304840645080 70
112 80
128 90
144 100160 110176120192130208 140224150240
6096
Check engine oil and coolant
Check tires
Replace engine oil
Rotate tires (follow pattern on page 239 )
Replace engine oil filter
Check front and rear brakes
Lubricate all hinges, locks and latches
Inspect the following items: Tie-rod ends, steering gearbox, and boots
Suspension components
Driveshaft boots
Check parking brake adjustment
Inspect the following items:
Brake hoses and lines (including ABS)
All fluid levels and condition of fluids
Exhaust system
Fuel lines and connections
Lights and controls/vehicle underbody
Inspect drive belt
Replace dust and pollen filter
Replace air cleaner element
Replace spark plugs
Inspect valve clearance
Replace automatic transmission fluid
Replace manual transmission fluid
Inspect idle speed
Replace engine coolant
Replace brake fluid
:
1:2: 235 200
1
2
Maintenance Schedule for Severe Conditions
— —y
y
( y y
Page 195 of 289
Ì ÎÌ
Ì
Î
6-cylinder Models
204
Service the items listed at the indicated distance (or time, if given).
See information on maintenance and emissions warranty, last column, page .
Replace at 120,000 miles (192,000 km) or 6 years, then every 90,000 miles (144,000 km) or 5 years. miles x 1,000
km x 1,000
Check oil and coolant at each fuel stop
Check inflation and condition once a month
Every 30,000 miles (48,000 km) or every 2 years, whichever comes first
120,000 miles (192,000 km) or 10 years, then every 60,000 miles (96,000 km) or 5 years Every 3 years (independent of mileage)
Every 7,500 miles (12,000 km) or every 1 year, whichever comes first
Every 7,500 miles (12,000 km)
Every 15,000 miles (24,000 km) or every 1 year, whichever comes first
Inspect every 105,000 miles (168,000 km), otherwise adjust only if noisy Inspect every 165,000 miles (264,000 km)
Every 105,000 miles (168,000 km) or every 7 years, whichever comes first 4572
3048 609675
120 90
144 105168120192 135216150240
1524
Check engine oil and coolant
Check tires
Replace engine oil
Rotate tires (follow pattern on page 239 )
Replace engine oil filter
Check front and rear brakes
Check parking brake adjustment
Inspect the following items: Tie-rod ends, steering gearbox, and boots
Suspension components
Driveshaft boots
Brake hoses and lines (including ABS)
All fluid levels and condition of fluids
Exhaust system
Fuel lines and connections
Inspect drive belt
Replace dust and pollen filter
Replace air cleaner element
Replace spark plugs
Inspect valve clearance
Replace automatic transmission fluid
Inspect idle speed
Replace timing belt and inspect water pump
Replace engine coolant
Replace brake fluid
:: 200
Maintenance Schedule for Normal Conditions
— —y
y
( y y
Page 196 of 289
Ì
Î ÎÎ Ì
Ì
Î
Î
ÌÎ
6-cylinder Models
205
Service the items listed at the indicated distance (or time, if given).
miles x 1,000
km x 1,000 Check oil and coolant at each fuel stop
Check inflation and condition once a month
Every 3,750 miles (6,000 km) or every 6 months, whichever comes first Every 7,500 miles (12,000 km)
1524
30484572 75
120 135216
Every 15,000 miles (24,000 km) or every 1 year, whichever comes first
Every 30,000 miles (48,000 km) or every 2 years, whichever comes first
Every 15,000 miles (24,000 km) (Use normal schedule except in dusty conditions) 105168
6096 90
144 120192
Inspect every 105,000 miles (168,000 km), otherwise adjust only if noisy Inspect every 165,000 miles (264,000 km)
Every 105,000 miles (168,000 km) or every 7 years, whichever comes first
120,000 miles (192,000 km) or 10 years, then every 60,000 miles (96,000 km) or 5 years Every 3 years (independent of mileage)
See information on maintenance and emissions warranty, last column, page .
See dust and pollen filter on page for replacement information under special driving conditions.
Replace at 60,000 miles (96,000 km) or 3 years, then every 30,000 miles (48,000 km) or 2 years.
See timing belt on page for replacement information under special driving conditions. Every 7,500 miles (12,000 km) or every 6 months, whichever comes first
Check engine oil and coolant
Check tires
Replace engine oil and oil filter
Rotate tires (follow pattern on page 239 )
Check front and rear brakes
Inspect the following items:
Tie-rod ends, steering gearbox, and boots
Suspension components
Driveshaft boots
Check parking brake adjustment
Lubricate all hinges, locks and latches
Inspect the following items: Brake hoses and lines (including ABS)
All fluid levels and condition of fluids
Exhaust system
Fuel lines and connections
Lights and controls/vehicle underbody
Inspect drive belt
Replace dust and pollen filter
Replace air cleaner element
Replace spark plugs
Inspect valve clearance
Replace automatic transmission fluid
Inspect idle speed
Replace timing belt , and inspect water pump
Replace engine coolant
Replace brake fluid 150240
:
1:2:3: 200
225 233
1
2
3
Maintenance Schedule for Severe Conditions
— —y
y
( y y
Page 201 of 289

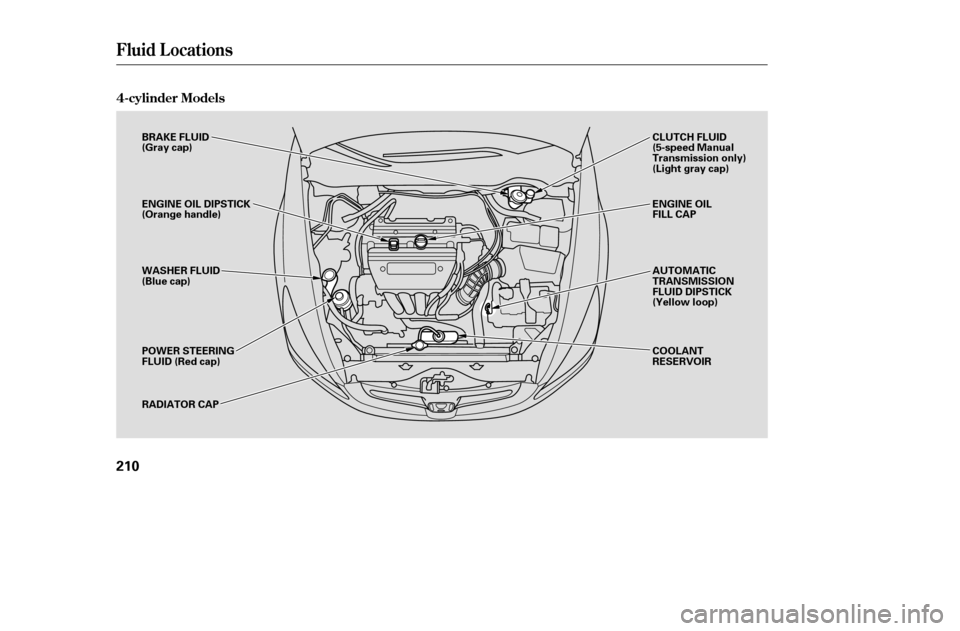

Fluid Locations
4-cylinder Models
210
BRAKE FLUID
(Gray cap)
ENGINE OIL DIPSTICK
(Orange handle)
WASHER FLUID
(Blue cap)
POWER STEERING
FLUID (Red cap)
RADIATOR CAPCLUTCH FLUID
(5-speed Manual
Transmission only)
(Light gray cap)
ENGINE OIL
FILL CAP
AUTOMATIC
TRANSMISSION
FLUID DIPSTICK
(Yellow loop)
COOLANT
RESERVOIR
— —y
y
( y
y
Page 202 of 289

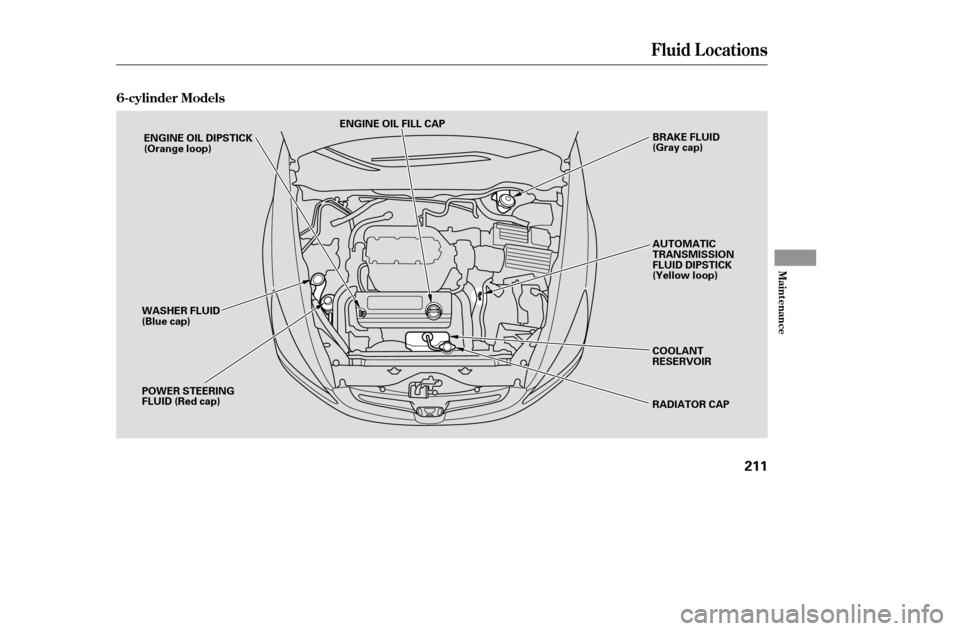

Fluid Locations
6-cylinder Models
Maint enance
211
ENGINE OIL FILL CAPBRAKE FLUID
(Gray cap)
AUTOMATIC
TRANSMISSION
FLUID DIPSTICK
(Yellow loop)
COOLANT
RESERVOIR
RADIATOR CAP
POWER STEERING
FLUID (Red cap)
WASHER FLUID
(Blue cap) ENGINE OIL DIPSTICK
(Orange loop)
— —y
y
( y
y
