navigation system HONDA ACCORD COUPE 2005 CL7 / 7.G Owners Manual

Î
ÎOnly on vehicles equipped with Navigation System. Ref er to the Navigation System O wner’s Manual.
:
Your Vehicle at a Glance
Your Vehicle at a Glance
5
WINDSHIELD
WIPERS/WASHERS
INSTRUMENT PANEL
BRIGHTNESS
MOONROOF
SWITCH VOICE CONTROL
SWITCHES HEADLIGHTS/
TURN SIGNALS
REMOTE AUDIO
CONTROLS
TRACTION CONTROL SYSTEM HORN STEERING WHEEL
ADJUSTMENT CRUISE CONTROLS
REAR WINDOW
DEFOGGER
PASSENGER AIRBAG
OFF INDICATOR
(P.31)
HAZARD
WARNING BUTTON
(P.72)
(P.70)
(P.147)
(P.98)
(P.187) (P.74) (P.73, 109, 112)
(P.151)
(P.72)
(P.69)
——y
y
(yy

Î
ÎOnly on vehicles equipped with Navigation System. Ref er to the Navigation System O wner’s Manual.
:

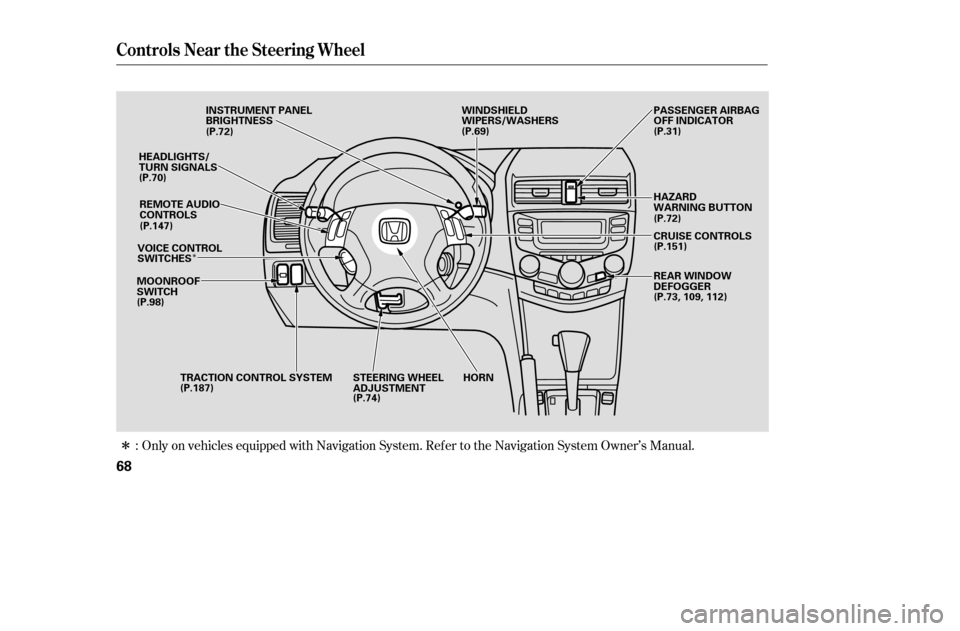

Controls Near the Steering Wheel
68
WINDSHIELD
WIPERS/WASHERS
INSTRUMENT PANEL
BRIGHTNESS
MOONROOF
SWITCH VOICE CONTROL
SWITCHES HEADLIGHTS/
TURN SIGNALS
REMOTE AUDIO
CONTROLS
TRACTION CONTROL SYSTEM HORN STEERING WHEEL
ADJUSTMENT CRUISE CONTROLS
REAR WINDOW
DEFOGGER
PASSENGER AIRBAG
OFF INDICATOR
(P.31)
HAZARD
WARNING BUTTON
(P.72)
(P.70)
(P.147)
(P.98)
(P.187) (P.74) (P.73, 109, 112)
(P.151)
(P.72)
(P.69)
——y
y
(y
y

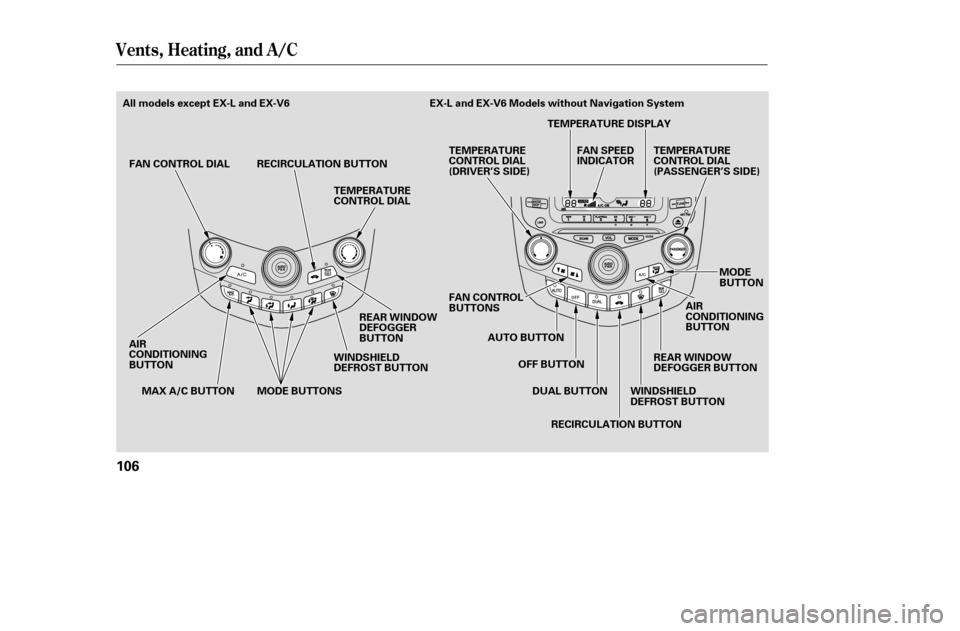

Vents, Heating, and A/C
106
TEMPERATURE
CONTROL DIAL
MAX A/C BUTTON REAR WINDOW
DEFOGGER BUTTON
TEMPERATURE
CONTROL DIAL
(DRIVER’S SIDE)
FAN CONTROL
BUTTONS
TEMPERATURE
CONTROL DIAL
(PASSENGER’S SIDE)
MODE
BUTTON
RECIRCULATION BUTTON AIR
CONDITIONING
BUTTON
AUTO BUTTON
OFF BUTTONDUAL BUTTON WINDSHIELD DEFROST BUTTON
FAN SPEED
INDICATOR
AIR
CONDITIONING
BUTTON MODE BUTTONS
RECIRCULATION BUTTON
REAR WINDOW
DEFOGGER
BUTTON
WINDSHIELD
DEFROST BUTTON
FAN CONTROL DIAL
All models except EX-L and EX-V6 EX-L and EX-V6 Models without Navigation System
TEMPERATURE DISPLAY
——y

y
(y
y

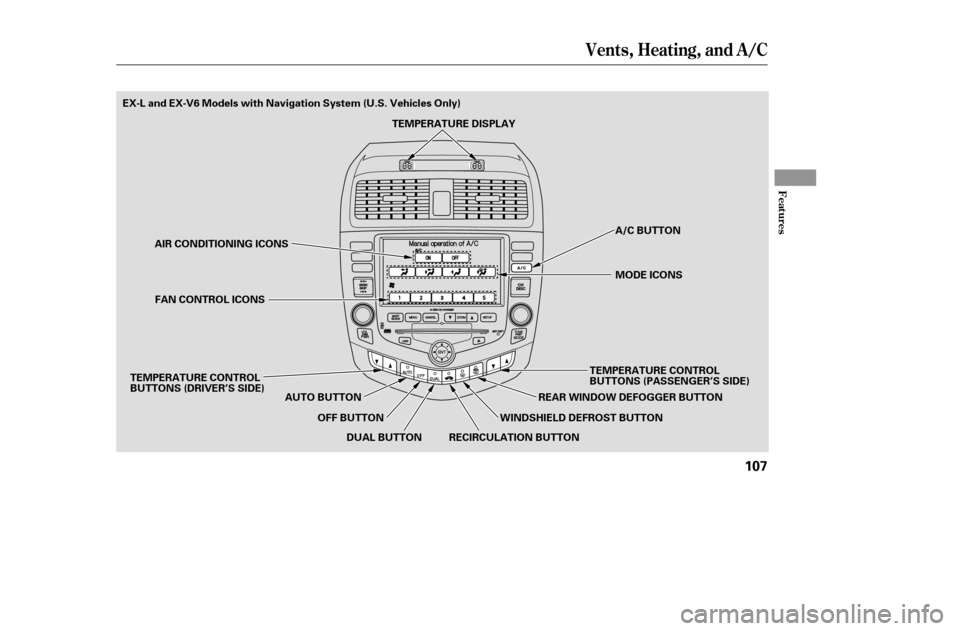

Vents, Heating, and A/C
Features
107
AUTO BUTTONMODE ICONS
A/C BUTTON
AIR CONDITIONING ICONS
FAN CONTROL ICONS
DUAL BUTTON TEMPERATURE CONTROL
BUTTONS (PASSENGER’S SIDE)
RECIRCULATION BUTTON WINDSHIELD DEFROST BUTTONREAR WINDOW DEFOGGER BUTTON
TEMPERATURE CONTROL
BUTTONS (DRIVER’S SIDE)
OFF BUTTON
EX-L and EX-V6 Models with Navigation System (U.S. Vehicles Only)
TEMPERATURE DISPLAY
——y
y
(y

y

Û
Ý
For EX-L and EX-V6 with navigation
system, see page f or Automatic
Climate Control and Manual
Operations inf ormation. On EX-L and EX-V6 models with the
navigation system, you can manually
select the f an speed by pressing the
A/C button next to the display and
then, pressing the f an control icons.
On all models except EX-L and
EX-V6, turn this dial to increase or
decrease the f an speed airf low. Turning this dial clockwise increases
the temperature of the airflow.For vehicles with the navigation
system, press the DUAL button. The
indicator will come on. The driver
and passenger can each select the
temperature control buttons ( or
) to the desired setting.
The driver and passenger can select
independent temperature settings by
selecting the DUAL button.
For vehicles without navigation
system, push the DUAL button.
When the indicator in the button is
lit, turn the dials to adjust the
temperature.
Air conditioning is optional f or U.S.
DX model. Your Honda dealer can
install a Honda air conditioning
system that is designed to f it in your
vehicle.
On EX-L and EX-V6 models without
the navigation system, you can
manually select the f an speed by
pressing the f an control buttons. The
f an speed is represented by vertical
bars in the display.
When the indicator in the DUAL
button is off, both sides adjust to the
same temperature.
117
On all models except EX-L and EX-V6
with Navigation System
On EX-L and EX-V6 models
Heating and Cooling
What Each Control Does T emperature Control
Fan Control
Vents, Heating, and A/C
108
——y
y
(y


y

On all models except EX-L and
EX-V6, this button turns the air
conditioning on and of f . The
indicatorinthebuttonisonwhen
the A/C is on.
On vehicles without the navigation
system, press the A/C button to turn
on the A/C. You will see A/C ON or
A/C OFF in the display.When the recirculation indicator is
on, air f rom the vehicle’s interior is
sent throughout the system again.
When the indicator is off, air is
brought in f rom the outside of the
vehicle (Fresh Air mode).
The outside air intakes f or the
heating and cooling system are at
the base of the windshield. Keep this
area clear of leaves and other debris.
ThesystemshouldbeleftinFresh
Air mode under almost all conditions.
Keeping the system in Recirculation
mode, particularly with the A/C of f ,
can cause the windows to fog up.
Switch to Recirculation mode when
driving through dusty or smoky
conditions, then return to Fresh Air
mode.
When you turn the A/C of f , the
system cannot regulate the inside
temperature if you set the
temperature control buttons below
the outside temperature.
On vehicles with the navigation
system, press the A/C button to view
the display. Touching ‘‘ON’’ or
‘‘OFF’’ in the display turns the air
conditioningonandoff.Youwillsee
A/C ON or A/C OFF in the display.
This button turns the rear window
def ogger of f and on (see page ).73
EX-L and EX-V6Air Conditioning (A/C) Button
Rear Window Def ogger Button
Recirculation Button
Vents, Heating, and A/C
Features
109
——y
y
(y

y

Use the mode control buttons or
icons to select the vents the air f lows
f rom. Some air will f low f rom the
dashboard corner vents in all modes.Air flows from the center
and corner vents in the dashboard.
Air f lows f rom the f loor
vents.
Air f lows f rom the def roster
vents at the base of the windshield. When you select or ,
the system automatically switches to
Fresh Air mode and turns on the
A/C. In these modes, the A/C stays
on with the indicator off.
When you select , the system
automatically switches to Fresh Air
mode.
Each time you press the MODE
button, the display shows the mode
selected.
Press the A/C button to view the
display, then touch any of the mode
icons on the display.
Airf low is divided between
the vents in the dashboard and the
f loor vents.
Airf low is drivided between
the f loor vents and the def roster
vents at the base of the windshield. Set the temperature to the lower
limit.
Make sure the A/C is of f .
Select and Fresh Air mode.
Set the f an to the desired speed.
The f low-through ventilation system
draws in outside air, circulates it
through the interior, then exhausts it
through vents near the rear window. The system automatically
turns on the A/C and switches to
Recirculation mode. Air f lows f rom
the center and side vents in the
dashboard. 1. 2. 3.4.
For Vehicles without Navigation System
For Vehicles with Navigation System
On EX-L and EX-V6 model On LX, EX, LX-V6 and Canadian DX
models
Mode Control MAX A/C Button
Ventilation
Vents, Heating, and A/C
110
——y

y
(y

y

ÛÝ
The heater uses engine coolant to
warm the air. If the engine is cold, it
will be several minutes bef ore you
f eel warm air coming f rom the
system.
Air conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page
). If it moves near the red zone,
turn of f the A/C until the gauge
reads normally.
Turn on the A/C by pressing the
ON button. The indicator in the
button comes on when a f an speed
is selected.
Make sure the temperature
control dial or button is set to
maximum cool.
Select .
If the outside air is humid, select
Recirculation mode. If the outside
air is dry, select Fresh Air mode.
Set the f an to the desired speed. Press the A/C button, the Manual
Operation A/C screen will appear.
Select the ON icon on the display.
Select the desired temperature
and MODE selections. If the
outside air is humid, select the
Recirculation mode. If the outside
air is dry, select Fresh Air mode.
you can
cool it down more rapidly by partially
opening the windows, turning on the
A/C, and setting the fan to
maximum speed in Fresh Air mode.
Select .
When you select , the system
automatically switches to the
Fresh Air mode.
Set the f an to the desired speed.
Adjust the warmth of the air with
the temperature control dial.
Press the A/C button, the manual
operation of A/C screen will
appear.
Select the desired mode and f an
speed icons on the display.
Adjustforwarmthwiththe
temperature buttons ( or ). To cool the interior with MAX A/C:
Set the f an to the desired speed.
Select the MAX A/C mode.
The system automatically turns on
the A/C, selects and
switches to Recirculation mode.
Make sure the temperature
control dial is all the way to the left.
1. 2. 3. 4. 5.
1.2. 3. 1.2. 3.
1. 2. 3. 1.2. 3.
65
If the interior is very warm,
On all models except EX-L and EX-V6
Except EX-L and EX-V6 with Navigation
System Except EX-L and EX-V6 with Navigation SystemEX-L and EX-V6 with Navigation System
EX-L and EX-V6 with Navigation System
Using the Heater Using the A /C
Vents, Heating, and A/C
Features
111
——y

y
(y

y

µ
Û
Ý The system automatically selects the
proper mix of conditioned and/or
heated air to raise or lower the
interior temperature to the
temperature you selected.
If you set the temperature to its
lowest limit, (Lo) or its highest limit,
(Hi) the system runs at f ull cooling
or heating only. It does not regulate
the interior temperature.
In cold weather, the f an will not
come on automatically until the
heater starts to develop warm air.
When
the indicator in the Dual button is on,
the driver’s side and passenger’s side
temperature can be controlled
independently (see page ).
The automatic climate control
system adjusts the f an speed and
airflow levels to maintain the interior
temperature you select.
In the AUTO mode, the vehicle’s
interior temperature is
independently regulated f or the
driver and passenger. If the driver’s
side of the vehicle is getting too
much sun, the system will adjust to a
lower temperature.
Press the AUTO button.
Set the
desired temperature by turning
the Temperature Control dial. You
will see AUTO in the system’s
display. Set the
desired temperature by pressing
the to raise the temperature or
to lower the temperature. The
selected temperature will show in
the upper display.
115Dual Temperature Control
On models with Navigation System
Without Navigation System:
With Navigation System:
On EX-L and EX-V6 models
Vents, Heating, and A/C
Automatic Climate Control
Features
113
——y

y
(y

y

µ µ
If you press OFF, the Climate
Control system shuts of f completely.
Keep the system completely of f
f or short periods only.
To keep stale air and mustiness
f rom collecting, you should have
the f an running at all times.
When the Climate Control System is
turned OFF, the temperature in the
upper display will also turn of f .
Turningthefanspeedand
temperature control dials all the way
to the left shuts off the system
completely.
You can manually select various
functions of the automatic climate
controlsystemwhenitisinAUTO.
All other f eatures remain
automatically controlled.
Manual selections will cause the
word AUTO in the display to go out.
Press the OFF button. However, a
lack of airf low can cause the
windowstofogup.Youshouldkeep
the fan on at all times so stale air and
moisture do not build up in the
interior and cause f ogging.
If you press the A/C button next to
the display, the manual selections
will show in the display. Manual
selection will cause the light in the
AUTO button to turn of f .
With Navigation System Except f or EX and EX-V6 models
EX-L and EX-V6 without Navigation
System
EX-L and EX-V6 with Navigation System
Vents, Heating, and A/C
Manual Operation To Turn Everything Of f
114
——y

y
(y

y
