CONT INUED
If no f luid comes out, remove the
f iller bolt. Slowly add Honda Manual
Transmission Fluid (MTF) until it
starts to run out of the check bolt
hole. Let the f luid run out until it
stops, then reinstall the check bolt
and the f iller bolt.If Honda MTF is not available, you
may use an SAE 10W-30 or 10W-40
viscosity motor oil with the API
Certif ication seal that says ‘‘FOR
GASOLINE ENGINES’’ as a
temporary replacement. However,
motor oil does not contain the proper
additives, and continued use can
cause stiffer shifting. Replace as
soon as it is convenient.
If you are not sure how to check and
add f luid, contact your dealer.Check the f luid level in the
reservoirs monthly. There are up to
two reservoirs, depending on the
model. They are:
Brake f luid reservoir (all models)
Clutch f luid reservoir
(manual transmission only)
Check the brake f luid level in the
reservoir monthly.
Replace the brake f luid according to
the time recommendation in the
maintenance minder schedule.
Pour the f luid to the f iller hole slowly
and caref ully so you do not spill.
Clean up any spills immediately; it
could damage components in the
engine compartment.
Brake and Clutch Fluid
Transmission Fluid, Brake and Clutch Fluid
Maint enance
243
FILLER BOLT
WASHER
——y
y
(#yy

Check the level on the side of the
reservoir when the engine is cold.
The f luid should be between the
UPPER LEVEL and LOWER LEVEL.
If not, add power steering f luid to the
UPPER LEVEL mark.Always use Honda Power Steering
Fluid. You may use another power
steering f luid as an emergency
replacement, but have the power
steering system f lushed and ref illed
with Honda PSF as soon as possible.
A low power steering f luid level can
indicate a leak in the system. Check
the f luid level f requently, and have
the system inspected as soon as
possible.
Pour the f luid slowly and caref ully so
you do not spill any. Clean up any
spills immediately; it could damage
components in the engine
compartment.
Power Steering Fluid
Maint enance
245
UPPER LEVEL
4-cylinder models LOWER LEVEL
LOWER LEVEL
UPPER LEVEL
6-cylinder models
T urning the steering wheel to f ull lef t
or right lock and holding it there can
damage the power steering pump.
——y
y
(#yy

Store the jack in its holder. Turn
the jack’s end bracket to lock it in
place. Replace the cover. Store the
tools.
Lower the trunk f loor, then close
the trunk lid.Diagnosing why the engine won’t
start f alls into two areas, depending
on what you hear when you turn the
ignition switch to the START (III)
position:
When you turn the ignition switch to
the START (III) position, you do not
hear the normal noise of the engine
trying to start. You may hear a
clicking sound, a series of clicks, or
nothing at all.
Check these things:
You hear nothing, or almost
nothing. The engine’s starter
motor does not operate at all, or
operates very slowly.
You can hear the starter motor
operating normally, or the starter
motor sounds like it is spinning
f aster than normal, but the engine
does not start up and run.
Turn the ignition switch to the ON
(II) position. Turn on the
headlights, and check their
brightness. If the headlights are
very dim or do not come on at all,
the battery is discharged. Seeon page .
Check the transmission interlock.
If you have a manual transmission,
the clutch pedal must be pushed
all the way to the f loor or the
starter will not operate. With an
automatic transmission, it must be
in Park or neutral.
Store the center cap in the trunk.
Make sure it does not get
scratched or damaged.
20.
21. 22.
272
If the Engine Won’t Start Nothing Happens or the Starter
Motor Operates Very Slowly
Jump Starting
Changing a Flat T ire, If the Engine Won’t Start
270
Loose items can fly around the
interior in a crash and could
seriously injure the occupants.
Store the wheel, jack, and tools
securely before driving.
——y
y
(#yy

If youfindnothingwrong,youwill
need a qualif ied technician to f ind
the problem. Seeon page .
There may be an electrical
problem, such as no power to the
f uel pump. Check all the f uses
(see page ).
Do you have f uel? Check the f uel
gauge; the low f uel indicator may
not be working.
Are you using a properly coded
key? An improperly coded key will
cause the immobilizer system
indicator in the instrument panel
to blink rapidly (see page ).
In this case, the starter motor’s
speed sounds normal, or even f aster
than normal, when you turn the
ignition switch to the START (III)
position, but the engine does not run.
Are you using the proper starting
procedure? Ref er to on page .
Turn the ignition switch to the
START (III) position. If the
headlights do not dim, check the
condition of the f uses. If the f uses
areOK,thereisprobably
something wrong with the
electrical circuit for the ignition
switch or starter motor. You will
need a qualif ied technician to
determine the problem. See
on page .
If the headlights dim noticeably or
go out when you try to start the
engine, either the battery is
discharged or the connections are
corroded. Check the condition of the
battery and terminal connections
(see page ). You can then try
jump starting the vehicle from a
booster battery (see page ). 59
199
280 285
285
272
260
If theEngineWon’tStart
Emergency
Towing
T he Starter Operates Normally
Starting the
Engine
Emergency T owing
T aking Care of t he Unexpect ed
271
——y
y
(#yy

µ
´
´ Start the vehicle. If the starter
motor still operates slowly, check
that the jumper cables have good
metal-to-metal contact.
If the booster battery is in another
vehicle, have an assistant start
that vehicle and run it at a fast idle.

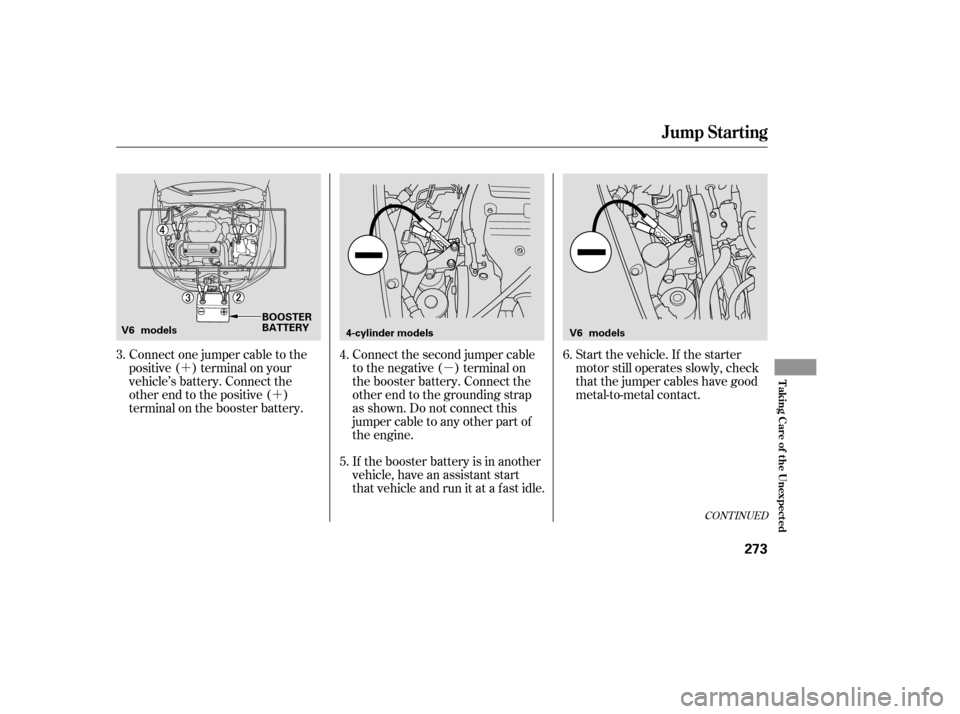

Connect the second jumper cable
to the negative ( ) terminal on
the booster battery. Connect the
other end to the grounding strap
as shown. Do not connect this
jumper cable to any other part of
the engine.
Connect one jumper cable to the
positive ( ) terminal on your
vehicle’s battery. Connect the
other end to the positive ( )
terminal on the booster battery.
6.
5.
4.
3.
CONT INUED
Jump Start ing
T aking Care of t he Unexpect ed
273
4-cylinder models
BOOSTER
BATTERY
——y

y
(#yy
V6 models
V6 models

If the temperature stays normal,
check the coolant level in the
radiator reserve tank. If it has
gone down, add coolant to the
MAX mark. Put the cap back on
tightly.
Using gloves or a large heavy
cloth, turn the radiator cap
counterclockwise, without pushing
down, to the f irst stop. Af ter the
pressure releases, push down on
the cap, and turn it until it comes
off.
If there was no coolant in the
reserve tank, you may need to add
coolant to the radiator. Let the
engine cool down until the pointer
reaches the middle of the
temperature gauge or lower
bef ore checking the radiator.
If you do not see steam or spray,
leave the engine running, and
watch the temperature gauge. If
the high heat is due to overloading,
the engine should start to cool
down almost immediately. If it
does, wait until the temperature
gauge comes down to the midpoint,
then continue driving.
If the temperature gauge stays at
the red mark, turn of f the engine.
Look f or any obvious coolant leaks,
such as a split radiator hose.
Everything is still extremely hot,
so use caution. If you f ind a leak, it
must be repaired bef ore you
continue driving (see
on page ).
If you do not f ind an obvious leak,
check the coolant level in the
radiator reserve tank. Add coolant
if the level is below the MIN mark. Start the engine, and set the
temperature to maximum heat
(climate control to AUTO at
‘‘ ’’). Add coolant to the
radiator up to the base of the f iller
neck. If you do not have the
proper coolant mixture available,
you can add plain water.
Remember to have the cooling
system drained and ref illed with
the proper mixture as soon as you
can.
Put the radiator cap back on
tightly. Run the engine, and check
the temperature gauge. If it goes
back to the red mark, the engine
needs repair (see
on page ).
6. 7. 8.
9.
10. 11.
3. 4. 5.
285 285
If theEngineOverheats
Emergency
Towing Emergency
Towing
T aking Care of t he Unexpect ed
275
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.
——y

y
(#yy

This indicator should never come on
when the engine is running. If it
starts flashing or stays on, the oil
pressure has dropped very low or
lost pressure. Serious engine
damage is possible, and you should
take immediate action.Let the vehicle sit f or a minute.
Open the hood, and check the oil
level (see page ). An engine
very low on oil can lose pressure
during cornering and other driving
maneuvers.
If necessary, add oil to bring the
level back to the full mark on the
dipstick (see page ).
Start the engine, and watch the oil
pressure indicator. If it does not go
out within 10 seconds, turn of f the
engine. There is a mechanical
problem that needs to be repaired
bef ore you can continue driving
(see on page
). If the charging system indicator
comes on brightly when the engine
is running, the battery is not being
charged.
Immediately turn of f all electrical
accessories. Try not to use other
electrically operated controls such as
the power windows. Keep the engine
running; starting the engine will
discharge the battery rapidly.
Go to a service station or garage
where you can get technical
assistance.
Saf ely pull of f the road and shut
of f the engine. Turn on the hazard
warning lights.
1. 2. 3. 4. 188
232
285
L ow Oil Pressure
Indicator
Emergency T owing Charging System
Indicator
L ow Oil Pressure Indicator, Charging System Indicator
276
Running the engine with low oil
pressure can cause serious mechanical
damage almost immediately. Turn of f
the engine as soon as you can saf ely get
the vehicle stopped.
——y
y
(#y
y

If the indicator comes on
while driving, it means one
of the engine’s emissions control
systems may have a problem. Even
though you may f eel no dif f erence in
your vehicle’s perf ormance, it can
reduce your f uel economy and cause
increased emissions. Continued
operation may cause serious damage.
If your vehicle has an automatic
transmission, the malf unction
indicator lamp may also come on
with the ‘‘D’’ indicator.
If the indicator comes on repeatedly,
even though it may turn of f as you
continue driving, have your vehicle
checked by your dealer as soon as
possible.
If you have recently ref ueled your
vehicle, the indicator coming on
could be due to a loose or missing
f uel f ill cap. You will also see a
‘‘CHECK FUEL CAP’’ message on
the inf ormation display. Tighten the
cap until it clicks at least once (see
page ). Tightening the cap will
not turn the indicator of f
immediately; it takes at least three
days of normal driving. Your vehicle has certain ‘‘readiness
codes’’ that are part of the on-board
diagnostics f or the emissions
systems. In some states, part of the
emissions testing is to make surethese codes are set. If they are not
set, the test cannot be completed.
To check if they are set, turn the
ignition switch to the ON (II)
position without starting the engine.
The malf unction indicator lamp will
come on f or 20 seconds. If it then
goes of f , the readiness codes are set.
If it blinks 5 times, the readiness
codes are not set. If possible, do not
take your vehicle for a state
emissions test until the readiness
codes are set. Ref er to
for more
inf ormation (see page ).
If the battery in your vehicle has
been disconnected or gone dead,
these codes are erased. It can take
several days of driving under various
conditions to set the codes again.
186 300
Malf unct ion Indicat or L amp
Readiness CodesState
Emissions T esting
T aking Care of t he Unexpect ed
277
If you keep driving with the
malf unction indicator lamp on, you can
damage your vehicle’s emissions
controls and the engine. Those repairs
may not be covered by your vehicle’s
warranties.
——y
y
(#yy

µµ
µ
( % ) $
%."#)
This manual covers maintenance and recommended
procedures f or repair to engine and chassis components.
It is written f or the journeyman mechanic, but is simple
enough f or most mechanically-inclined owners to under-
stand.
This manual complements the service manual by
providing in-depth troubleshooting inf ormation f or each
electrical circuit in your vehicle.
This manual describes the procedures involved in the
replacement of damaged body parts.
Authorized Manuals
Service Manual:
Electrical T roubleshooting Manual:
Body Repair Manual:
306 NOTE: Dealers and Companies please provide dealer or company name,
and also the name of the person to whose attention the shipment should
be sent. For purchases outside U.S.A. please write to the address shown
below for a quotation.
P.O. BOX 07280·DETROIT, MICHIGAN 48207·1-800-782-4356
Customer Name Attention
Apartment Number
State & Zip Code
City
Daytime Telephone Number
Check or money order enclosed payable to Helm Inc U.S. funds only.
Do not send cash
Master
Card VISA Check here if your billing address is different
from the shipping address shown above.
Account Number Expiration: Mo. Yr.
CUSTOMER SIGNATURE DATE
Street Address No P.O. Box Number
()
These Publications cannot be returned for credit without receiving advance authorization within 14
days of delivery. On returns, a restocking fee may be applied against the original order.
——y
y
(#y

y

CONT INUED
BatteryCharging System ...........................
Indicator . 57, 276
............................
Jump Starting . 272
..............................
Maintenance . 260
....................
Specif ications . 291, 293
..............................
Bef ore Driving . 183
....................................
Belts,Seat .8,17
...........................
Beverage Holders . 98
..................................
Booster Seats . 47
Brakes
...........
Anti-lock System (ABS) . 209
.............
Break-in, New Linings . 184
...........................................
Fluid . 243
.........................................
Parking . 96
..........................
System Design . 208
.................
System Indicator . 58, 278
........................
Wear Indicators . 208
.............................
Braking System . 208
.................
Break-in, New Vehicle . 184
..
Brightness Control, Instruments . 71
........................
Brights, Headlights . 69
....................................
Accessories . 191
ACCESSORY (Ignition Key
.......................................
Position) . 76
............
Accessory Power Sockets . 100
................
Adding Engine Coolant . 236
Additional Inf ormation About Your
.........................................
Airbags . 21
....................
Additives, Engine Oil . 233
.......
Adjusting the Steering Wheel . 73
...........................
Advanced Airbags . 25
.........
Advice f or Pregnant Women . 15
...............................
Airbag (SRS) . 9, 21
..............
Air Conditioning System . 106
.........................
Manual System . 108
.....................
Automatic System . 113
Automatic System with
.................
navigation system . 117
.......................
Air Pressure, Tires . 256
.......................
Alcohol in Gasoline . 184
All Children Should Sit in a
.....................................
Back Seat . 33
......................................
Antif reeze . 236
Anti-lock Brakes (ABS)
...............................
Indicator . 59, 209 ...................................
Operation . 209
..............
Anti-thef t, Audio System . 172
.
Anti-thef t Steering Column Lock . 76
............................................
Armrest . 85
................................
Audio System . 124
.................
AM/FM/CD Player . 126
.............
AM/FM/CD Changer . 136
AM/FM/CD Changer with
.................
navigation system . 149
...
Automatic Lighting Off Feature . 70
...
Automatic Seat Belt Tensioners . 19
..
Automatic Climate Control . 113, 117
.............
Automatic Speed Control . 175
..............
Automatic Transmission . 203
..................
Capacity, Fluid . 290, 292
.......
Checking Fluid Level . 239, 240
.......................................
Shif ting . 203
Shif t Lever Position
...............................
Indicators . 203
................
Shif t Lever Positions . 204
....................
Shif t Lock Release . 206
Index
A B
INDEX
I
——y
y
(#y
y
