engine HONDA ACCORD COUPE 2007 CL7 / 7.G Workshop Manual

Open the hood, and remove the
engine oil f ill cap. Remove the oil
drain bolt and washer f rom the
bottom of the engine. Drain the oil
into an appropriate container.Remove the oil f ilter, and let the
remaining oil drain. A special
wrench (available from your
dealer) is required.
Check the oil f ilter to make sure its
gasket did not stick to the f ilter base.
A stuck gasket could cause an oil
leak.
3.
2.
Changing the Oil and Filter
234
4-cylinder models OIL DRAIN BOLT OIL DRAIN BOLT
WASHER
OIL FILTER
4-cylinder models
WASHER
——y
y
(#yy
V6 models

Reinstall the engine oil f ill cap.
Start the engine. The oil pressure
indicator should go out within 5
seconds. If it does not, turn of f the
engine, and check your work.
Let the engine run f or several
minutes, then check the drain bolt
and oil f ilter f or leaks.
Turn of f the engine and let it sit
f or several minutes, then check
the oil level on the dipstick. If
necessary, add more oil.
Put a new washer on the drain bolt,
then reinstall the drain bolt.
Tighten the drain bolt to:
(4-cylinder models)
(6-cylinder models)
Refill the engine with the
recommended oil.
Engine oil change capacity
(including f ilter):
(4-cylinder models)
Install a new oil f ilter according to
the instructions that come with it.
Make sure to clean of f any dirt
and dust on the connecting
surf ace of a new oil f ilter.
4. 5. 6.
7. 8. 9.
Changing the Oil and Filter
Maint enance
235
OIL FILTER
33 lbf·ft (44 N·m , 4.5 kgf·m)
29 lbf·ft (39 N·m , 4.0 kgf·m)
4.4 US qt (4.2
)
4.5 US qt (4.3
) Improper disposal of engine oil can be
harmf ul to the environment. If you
change your own oil, please dispose of
the used oil properly. Put it in a sealed
container and take it to a recycling
center. Do not discard it in a trash bin
or dump it on the ground.
——y
y
(#yy
V6 models
(V6 models)

If the coolant level in the reserve
tank is at or below the MIN line, add
coolant to bring it up to the MAX line.
Inspect the cooling system f or leaks.Always use Honda Long-lif e Anti-
f reeze/Coolant Type 2. This coolant
is pre-mixed with 50 percent
antif reeze and 50 percent water.
Never add straight antifreeze or
plain water.
If Honda antif reeze/coolant is not
available, you may use another
major-brand non-silicate coolant as a
temporaryreplacement.Makesureit
is a high-quality coolantrecommended f or aluminum engines.
Continued use of any non-Honda
coolant can result in corrosion,
causing the cooling system to
malf unction or f ail. Have the cooling
system f lushed and ref illed with
Honda antif reeze/coolant as soon as
possible.
If the reserve tank is completely
empty, you should also check the
coolant level in the radiator.
A dding Engine Coolant
Engine Coolant
236
RESERVE TANK
4-cylinder models RESERVE TANK
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.
——y
y
(#y
y
V6 models

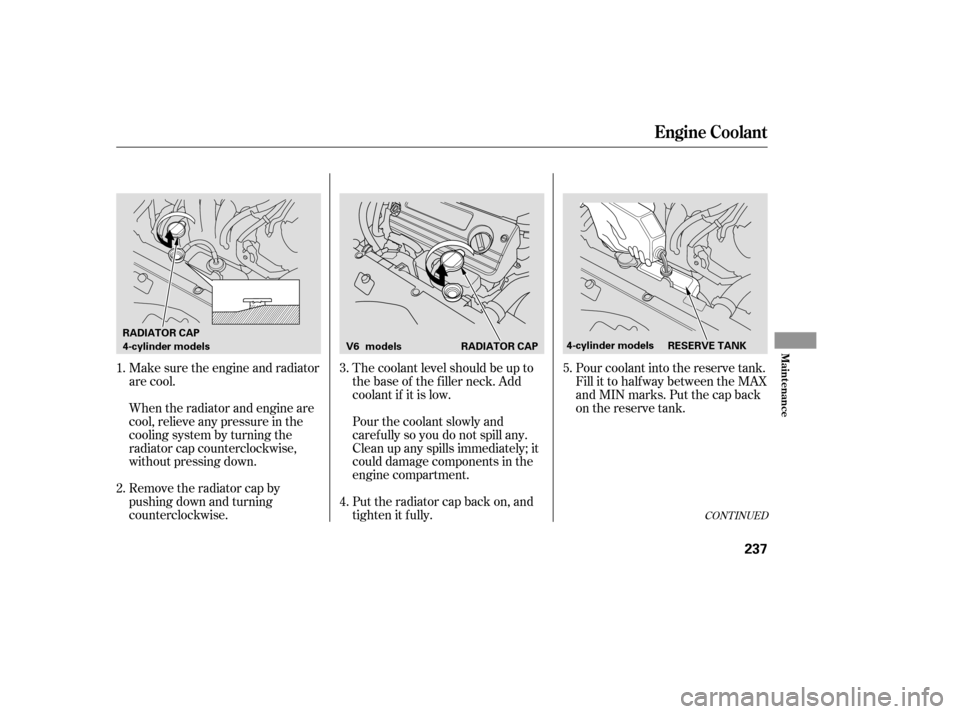

Remove the radiator cap by
pushing down and turning
counterclockwise.
When the radiator and engine are
cool, relieve any pressure in the
cooling system by turning the
radiator cap counterclockwise,
without pressing down.
Make sure the engine and radiator
are cool.
The coolant level should be up to
the base of the f iller neck. Add
coolant if it is low.
Put the radiator cap back on, and
tighten it fully.Pour coolant into the reserve tank.
Fill it to half way between the MAX
and MIN marks. Put the cap back
on the reserve tank.
Pourthecoolantslowlyand
caref ully so you do not spill any.
Clean up any spills immediately; it
could damage components in the
engine compartment.
4.
1.
3.
2. 5.
CONT INUED
Engine Coolant
Maint enance
237
4-cylinder models
RADIATOR CAP
RADIATOR CAP
4-cylinder modelsRESERVE TANK
——y
y
(#yy
V6 models

Do not add any rust inhibitors or
other additives to your vehicle’s
cooling system. They may not be
compatible with the coolant or
engine components.Check the f luid level in the
windshield washer reservoir at least
monthly during normal use.
Check the reservoir’s f luid level by
removing the cap and looking at the
level gauge attached to the cap.
The low washer
level indicator comes on when the
level is low (see page ).
Fill the reservoir with a good-quality
windshield washer f luid. This
increases the cleaning capability and
prevents f reezing in cold weather.
When you ref ill the reservoir, clean
the edges of the windshield wiper
blades with windshield washer f luid
on a clean cloth. This will help to
condition them.
60
Windshield Washers
Engine Coolant, Windshield Washers
238
RESERVE TANK LEVEL GAUGE
4-cylinder models
——y

y
(#yy
V6 models
Canadian models:

CONT INUED
4-cylinder models
Check the f luid level with the engine
at normal operating temperature.Remove the dipstick (yellow loop)
f rom the transmission, and wipe it
with a clean cloth.
Park the vehicle on level ground.
Start the engine let it run until the
radiator f an comes on, then shut
of f the engine. For accurate
results, wait about 60 seconds
bef ore going step 2, but don’t wait
longer than 90 seconds.
1.
2.
Automatic Transmission
Windshield Washers, T ransmission Fluid
Maint enance
239
LEVEL GAUGE
DIPSTICKUPPER MARK
LOWER MARK
Do not use engine antif reeze or a
vinegar/water solution in the
windshield washer reservoir. Antif reeze
can damage your vehicle’s paint, while
a vinegar/water solution can damage
the windshield washer pump. Use only
commercially-available windshield
washer f luid.
——y
y
(#yy
V6 models

Check the f luid level with the engine
at normal operating temperature.Park the vehicle on level ground.
Start the engine let it run until the
radiator f an comes on, then shut
of f the engine. For accurate
results, wait about 60 seconds
bef ore going step 2, but don’t wait
longer than 90 seconds.
Always use Honda ATF-Z1
(automatic transmission f luid). If
it’s not available, you may use a
DEXRON
III automatic
transmission f luid as a temporary
replacement. However, continued
use can af f ect the shif t quality.
Have the transmission f lushed and
ref illed with Honda ATF-Z1 as
soon as it is convenient.
Insert the dipstick all the way back
into the transmission securely as
shown in the illustration.
Make sure the notch fits in the
dipstick guide and the dipstick is
down all the way.
If you are not sure how to add f luid,
contact your dealer.
If the level is below the lower
mark, add f luid into the dipstick
hole to bring it to the level
between the upper and lower
marks.
Remove the dipstick and check
the f luid level. It should be
between the upper and lower
marks.
Insert the dipstick all the way into
the transmission securely as
shown in the illustration.
Make sure the notch in the rubber
cap f its in the dipstick guide and
that you push the dipstick in all
the way.
Pour the f luid slowly and caref ully
so you do not spill any. Clean up
any spills immediately; it could
damage components in the engine
compartment.
5.
4.
6.
1.
3.
T ransmission Fluid
Automatic Transmission
240
DIPSTICK
——y

y
(#yy
V6 mo de ls

Always use Honda ATF-Z1
(automatic transmission f luid). If
it’s not available, you may use a
DEXRON
III automatic
transmission f luid as a temporary
replacement. However, continued
use can af f ect the shif t quality.
Have the transmission f lushed and
ref illed with Honda ATF-Z1 as
soon as it is convenient.
Insert the dipstick all the way back
into the transmission securely as
shown in the illustration.
Make sure the notch fits in the
dipstick guide and the dipstick is
down all the way.
If you are not sure how to add f luid,
contact your dealer.
Remove the dipstick and check
the f luid level. It should be
between the upper and lower
marks.
Insert the dipstick all the way into
the transmission securely as
shown in the illustration.
Make sure the notch in the rubber
cap f its in the dipstick guide and
that you push the dipstick in all
the way.
If the level is below the lower
mark, add f luid into the dipstick
hole to bring it to the level
between the upper and lower
marks.
Pour the f luid slowly and caref ully
so you do not spill any. Clean up
any spills immediately; it could
damage components in the engine
compartment.
Remove the dipstick (yellow loop)
f rom the transmission, and wipe it
with a clean cloth. 3. 4. 5.
6.
2.
T ransmission Fluid
Maint enance
241
UPPER MARK
LOWER MARK
——y
y
(#yy

Check the f luid level with the
transmission at normal operating
temperature and the vehicle
sitting on level ground. Remove
the transmission f iller bolt, and
caref ully f eel inside the bolt hole
with your f inger.Check the f luid level with the
transmission at normal operating
temperature and the vehicle sitting
on level ground.
The f luid level should be up to the
edge of the bolt hole. If it is not, add
Honda Manual Transmission Fluid
(MTF) until it starts to run out of the
hole. Reinstall the f iller bolt, and
tighten it securely.
If Honda MTF is not available, you
may use an SAE 10W-30 or 10W-40
viscosity motor oil with the API
Certif ication seal that says ‘‘FOR
GASOLINE ENGINES’’ as a
temporary replacement. However,
motor oil does not contain the proper
additives, and continued use can
cause stiffer shifting. Replace as
soon as it is convenient.
If you are not sure how to check and
add f luid, contact your dealer. Remove the check bolt and look f or
transmission f luid coming out of the
bolt hole. If a small amount of f luid
drips out of the bolt hole, reinstall
the check bolt.
On 4-cylinder models On EX-V6 model
T ransmission Fluid
Manual TransmissionManual Transmission
242
FILLER BOLT
Correct level CHECK BOLT
WASHER
DRAIN BOLT
——y
y
(#yy

CONT INUED
If no f luid comes out, remove the
f iller bolt. Slowly add Honda Manual
Transmission Fluid (MTF) until it
starts to run out of the check bolt
hole. Let the f luid run out until it
stops, then reinstall the check bolt
and the f iller bolt.If Honda MTF is not available, you
may use an SAE 10W-30 or 10W-40
viscosity motor oil with the API
Certif ication seal that says ‘‘FOR
GASOLINE ENGINES’’ as a
temporary replacement. However,
motor oil does not contain the proper
additives, and continued use can
cause stiffer shifting. Replace as
soon as it is convenient.
If you are not sure how to check and
add f luid, contact your dealer.Check the f luid level in the
reservoirs monthly. There are up to
two reservoirs, depending on the
model. They are:
Brake f luid reservoir (all models)
Clutch f luid reservoir
(manual transmission only)
Check the brake f luid level in the
reservoir monthly.
Replace the brake f luid according to
the time recommendation in the
maintenance minder schedule.
Pour the f luid to the f iller hole slowly
and caref ully so you do not spill.
Clean up any spills immediately; it
could damage components in the
engine compartment.
Brake and Clutch Fluid
Transmission Fluid, Brake and Clutch Fluid
Maint enance
243
FILLER BOLT
WASHER
——y
y
(#yy
