HONDA ACCORD COUPE 2009 8.G Owners Manual

Remove the oil f ilter and let the
remaining oil drain. A special
wrench (available from your
dealer) is required.
Open the hood, and remove the
engine oil f ill cap. Remove the oil
drain bolt and washer f rom the
bottom of the engine. Drain the oil
into an appropriate container.
Always change the oil and f ilter
according to the maintenance
messages shown on the inf ormation
display. The oil and f ilter collect
contaminants that can damage your
engine if they are not removed
regularly.
Run the engine until it reaches
normal operating temperature,
then shut it off. Make sure the oil f ilter gasket is
not stuck to the engine block. If it
is, remove it bef ore installing a
new oil f ilter.
Changing the oil and f ilter requires
special tools and access f rom
underneath the vehicle. The vehicle
should be raised on a service station-
type hydraulic lif t f or this service.
Unless you have the knowledge and
proper equipment, you should have
this maintenance done by a skilled
technician.
3.
2.
1.
Changing the Engine Oil and Filter
318
OIL DRAIN BOLT
WASHER
OIL DRAIN BOLT WASHER
V6 models
2.4engine models
\f—\f—\fy
y
)\f
\fy\fy
2009 Accord Sedan

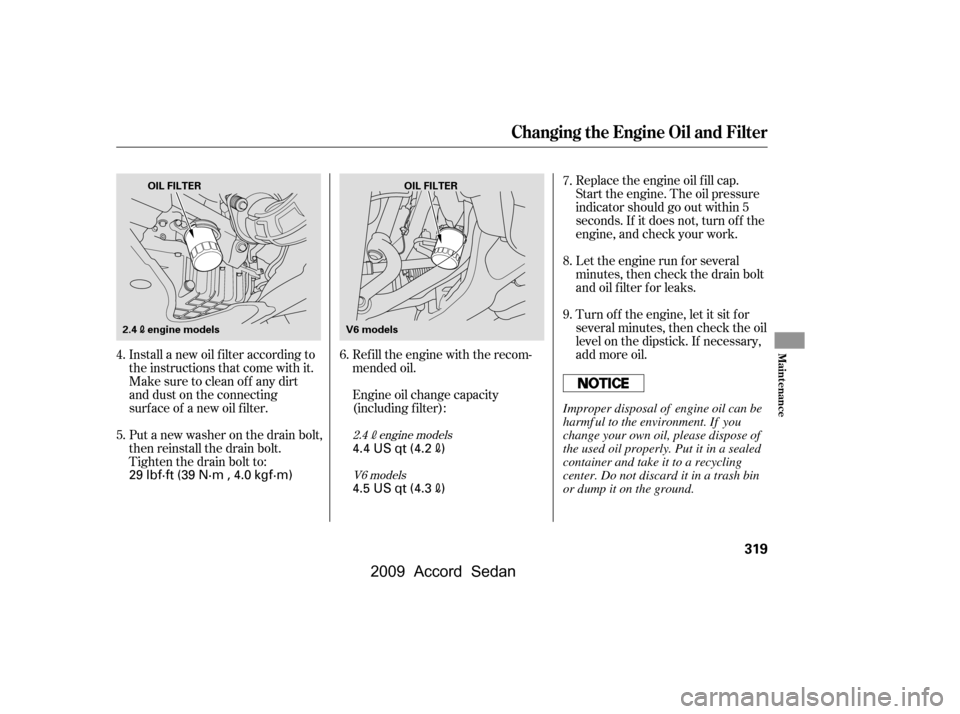

Install a new oil f ilter according to
the instructions that come with it.Refill the engine with the recom-
mended oil.
Engine oil change capacity
(including f ilter):Replace the engine oil f ill cap.
Start the engine. The oil pressure
indicator should go out within 5
seconds. If it does not, turn of f the
engine, and check your work.
Let the engine run f or several
minutes, then check the drain bolt
and oil f ilter f or leaks.
Turn of f the engine, let it sit f or
several minutes, then check the oil
level on the dipstick. If necessary,
add more oil.
Make sure to clean of f any dirt
and dust on the connecting
surf ace of a new oil f ilter.
Put a new washer on the drain bolt,
then reinstall the drain bolt.
Tighten the drain bolt to:
4.
5.
6.7.
8.
9.
V6 models
2.4
engine models
Changing the Engine Oil and Filter
Maint enance
319
V6 models
OIL FILTER
OIL FILTER
2.4engine models
4.4 US qt (4.2)
29 lbf·ft (39 N·m , 4.0 kgf·m) 4.5 US qt (4.3
)Improper disposal of engine oil can be
harmf ul to the environment. If you
change your own oil, please dispose of
the used oil properly. Put it in a sealed
container and take it to a recycling
center. Do not discard it in a trash bin
or dump it on the ground.
\f—\f—\fy

y
)\f
\fy\fy
2009 Accord Sedan

µµ
Always use Honda Long-lif e Anti-
f reeze/Coolant Type 2. This coolant
is pre-mixed with 50 percent
antif reeze and 50 percent water.
Never add straight antifreeze or
plain water.
If the coolant level in the reserve
tank is at or below the MIN line, add
coolant to bring it up to the MAX line.
Inspect the cooling system f or leaks. If Honda antif reeze/coolant is not
available, you may use another
major-brand non-silicate coolant as a
temporaryreplacement.Makesureit
is a high-quality coolant
recommended f or aluminum engines.
Continued use of any non-Honda
coolant can result in corrosion,
causing the cooling system to
malf unction or f ail. Have the cooling
system f lushed and ref illed with
Honda antif reeze/coolant as soon as
possible.
2.4engine models only
A dding Engine Coolant
Engine Coolant
320
V6 models
RESERVE TANK RESERVE TANK
2.4engine models
If you regularly drive your vehicle
under severe conditions in very low
temperature (under 31°F, 35°C), a
higher concentration of coolant should
be used. Consult your Honda dealer
f or more inf ormation of the proper
coolant.
\f—\f—\fy
y
)\f
\fy\fy
2009 Accord Sedan

The coolant level should be up to
the base of the f iller neck. Add
coolant if it is low.
Pourthecoolantslowlyand
caref ully so you do not spill any.
Clean up any spill immediately; it
could damage components in the
engine compartment.
Put the radiator cap back on, and
tighten it fully.Pour coolant into the reserve tank.
Fill it to half way between the MAX
and MIN marks. Put the cap back
on the reserve tank.
Do not add any rust inhibitors or
other additives to your vehicle’s
cooling system. They may not be
compatible with the coolant or
engine components.
If the reserve tank is completely
empty, you should also check the
coolant level in the radiator.

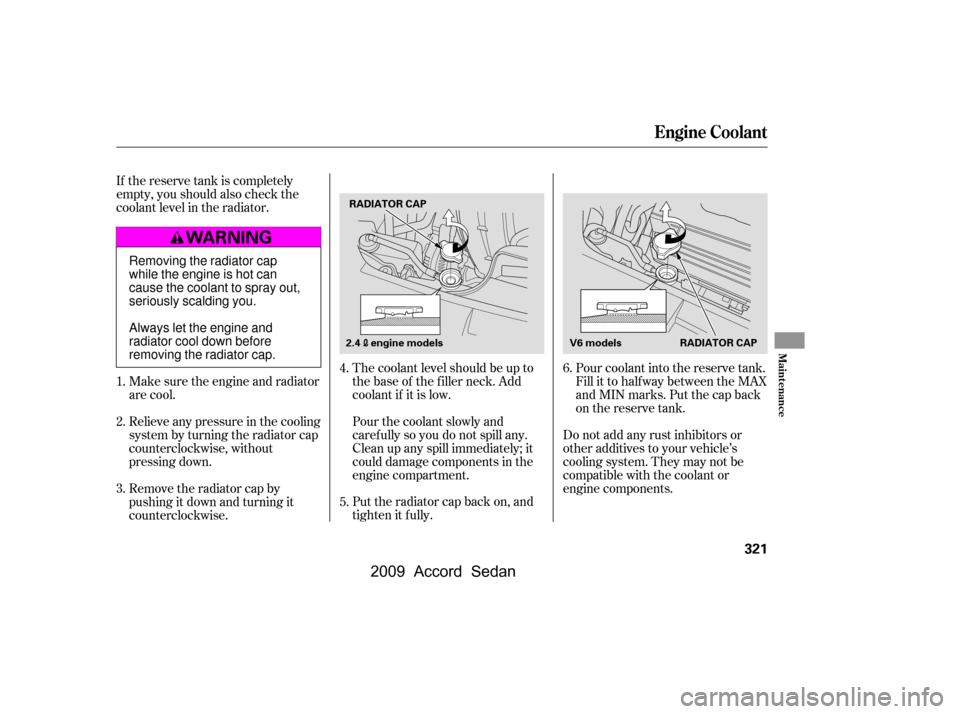

Remove the radiator cap by
pushingitdownandturningit
counterclockwise.
Relieve any pressure in the cooling
system by turning the radiator cap
counterclockwise, without
pressing down.
Make sure the engine and radiator
are cool. 4.
1.
2.
3. 5.6.
Engine Coolant
Maint enance
321
RADIATOR CAP
RADIATOR CAP
V6 models
2.4engine models
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.
\f—\f—\fy
y
)\f
\fy\fy
2009 Accord Sedan

Fill the reservoir with a good-quality
windshield washer f luid. This
increases the cleaning capability and
prevents f reezing in cold weather.
When you ref ill the reservoir, clean
the edges of the windshield wiper
blades with windshield washer f luid
on a clean cloth. This will help to
condition the blade edges.
Check the level in the windshield
washer reservoir at least monthly
during normal use.

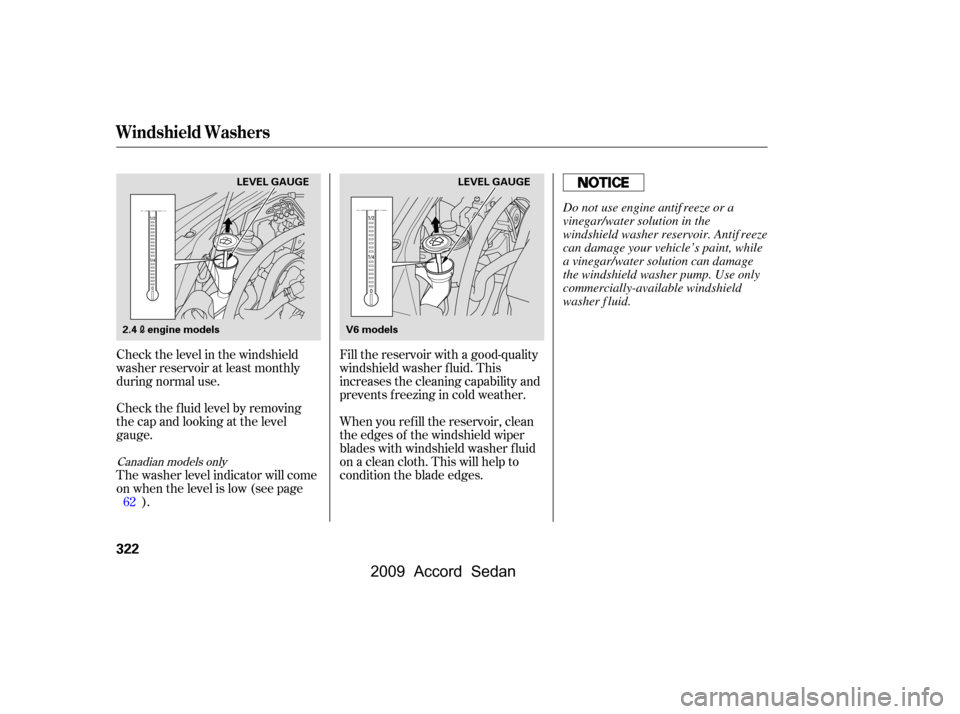

Check the f luid level by removing
the cap and looking at the level
gauge.
The washer level indicator will come
on when the level is low (see page
).
62
Canadian models only
Windshield Washers
322
LEVEL GAUGE
V6 models LEVEL GAUGE
2.4
engine models
Do not use engine antif reeze or a
vinegar/water solution in the
windshield washer reservoir. Antif reeze
can damage your vehicle’s paint, while
a vinegar/water solution can damage
the windshield washer pump. Use only
commercially-available windshield
washer f luid.
\f—\f—\fy
\fy
)\f
\fy\fy
2009 Accord Sedan

Check the f luid level with the engine
at normal operating temperature.Park the vehicle on level ground.
Start the engine, let it run until the
radiator f an comes on, then shut
of f the engine. For accurate
results, wait about 60 seconds (but
no longer than 90 seconds) bef ore

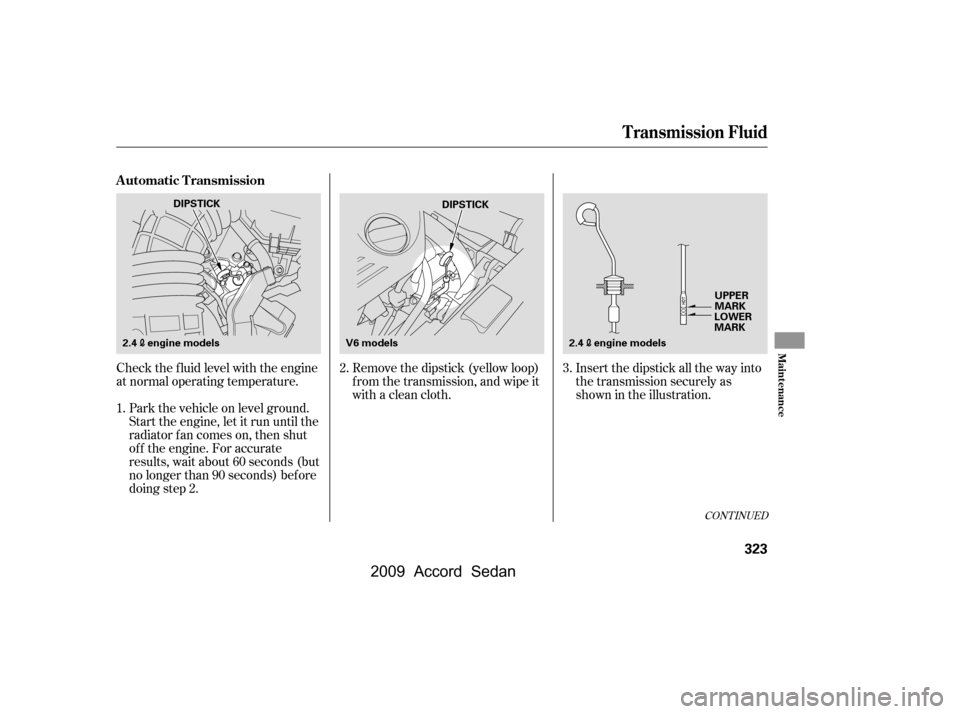

doing step 2. Remove the dipstick (yellow loop)
f rom the transmission, and wipe it
with a clean cloth.
Insert the dipstick all the way into
the transmission securely as
shown in the illustration.
1. 2.
3.
CONT INUED
Automatic Transmission
T ransmission Fluid
Maint enance
323
V6 models
DIPSTICK
DIPSTICK
UPPER
MARK
LOWER
MARK
2.4engine models 2.4engine models
\f—\f—\fy

y
)\f
\fy\fy
2009 Accord Sedan

Pour the f luid slowly and caref ully
so you do not spill any. Clean up
any spill immediately; it could
damage components in the engine
compartment.

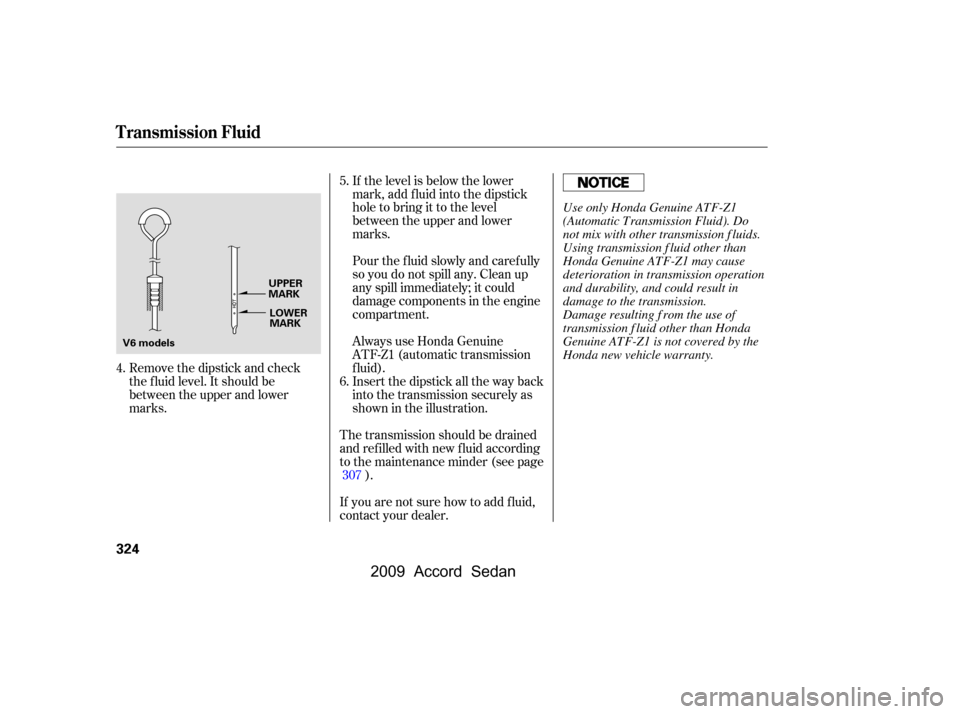

Remove the dipstick and check
the f luid level. It should be
between the upper and lower
marks. If the level is below the lower
mark, add f luid into the dipstick
hole to bring it to the level
between the upper and lower
marks.
Always use Honda Genuine
ATF-Z1 (automatic transmission
f luid).
Insert the dipstick all the way back
into the transmission securely as
shown in the illustration.
The transmission should be drained
and ref illed with new f luid according
to the maintenance minder (see page ).
If you are not sure how to add f luid,
contact your dealer.
5.
4. 6.
307
T ransmission Fluid
324
V6 models LOWER
MARK
UPPER
MARK
Using transmission f luid other than
Honda Genuine ATF-Z1 may cause
deterioration in transmission operation
and durability, and could result in
damage to the transmission.
Use only Honda Genuine ATF-Z1
(Automatic Transmission Fluid). Do
not mix with other transmission f luids.
Damage resulting f rom the use of
transmission f luid other than Honda
Genuine ATF-Z1 is not covered by the
Honda new vehicle warranty.
\f—\f—\fy
y
)\f
\fy\fy
2009 Accord Sedan

Check the f luid level with the
transmission at normal operating
temperature and the vehicle sitting
on level ground.Reinstall the under cover and put the
holding clips back in place. Make
sure the under cover is installed
under the edge of the f ront bumper.
If Honda MTF is not available, you
may use an SAE 10W-30 or 10W-40
viscosity motor oil with the API
Certif ication seal that says ‘‘FOR
GASOLINE ENGINES’’ as a
temporary replacement. However,
motor oil does not contain the proper
additives, and continued use can
cause stif f er shif ting. Replace as
soon as it is convenient.
The transmission should be drained
and ref illed with new f luid according
to the maintenance minder (see page
).
If you are not sure how to check and
add f luid, contact your dealer.

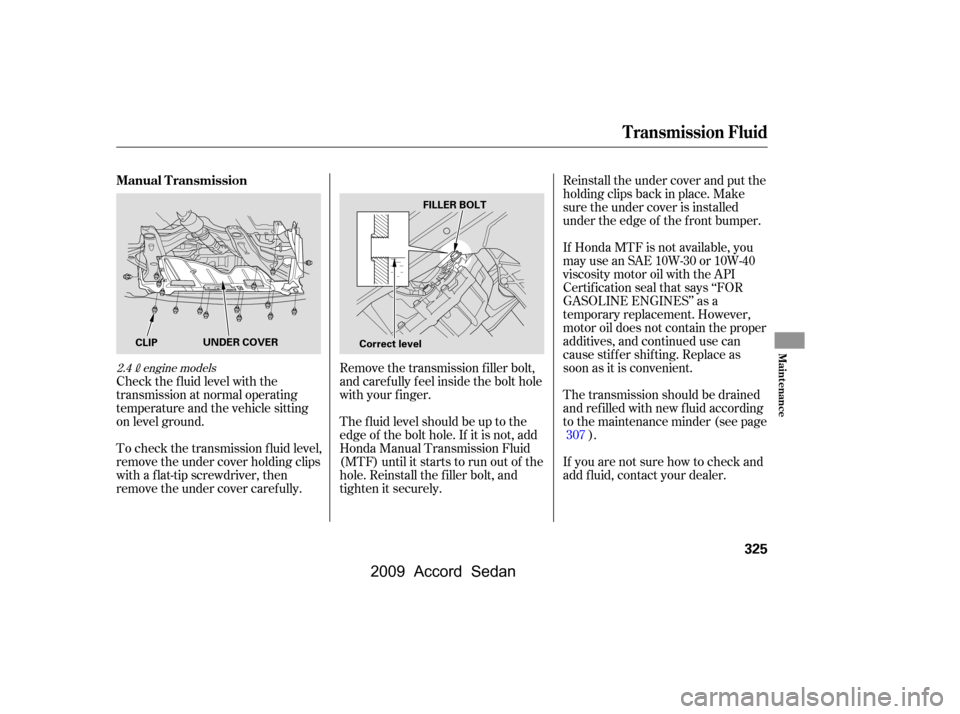

Remove the transmission f iller bolt,
and caref ully f eel inside the bolt hole
with your f inger.
The f luid level should be up to the
edge of the bolt hole. If it is not, add
Honda Manual Transmission Fluid
(MTF) until it starts to run out of the
hole. Reinstall the f iller bolt, and
tighten it securely.
To check the transmission f luid level,
remove the under cover holding clips
with a flat-tip screwdriver, then
remove the under cover caref ully. 307
2.4engine models
T ransmission Fluid
Manual Transmission
Maint enance
325
Correct levelFILLER BOLT
CLIP UNDER COVER
\f—\f—\fy
y
)\f
\fy\f\fy
2009 Accord Sedan

Check the f luid level in the
reservoirs monthly. There are up to
two reservoirs, depending on the
model. They are:
Replace the brake f luid according to
the maintenance minder (see page). Always use Honda Heavy Duty
Brake Fluid DOT 3. If it is not
available, you should use only DOT 3
or DOT 4 f luid, f rom a sealed
container, as a temporary
replacement.
Using any non-Honda brake f luid can
cause corrosion and decrease the lif e
of the system. Have the brake
system f lushed and ref illed with
Honda Heavy Duty Brake Fluid
DOT 3 as soon as possible.
Brake f luid marked DOT 5 is not
compatible with your vehicle’s
braking system and can cause
extensive damage.

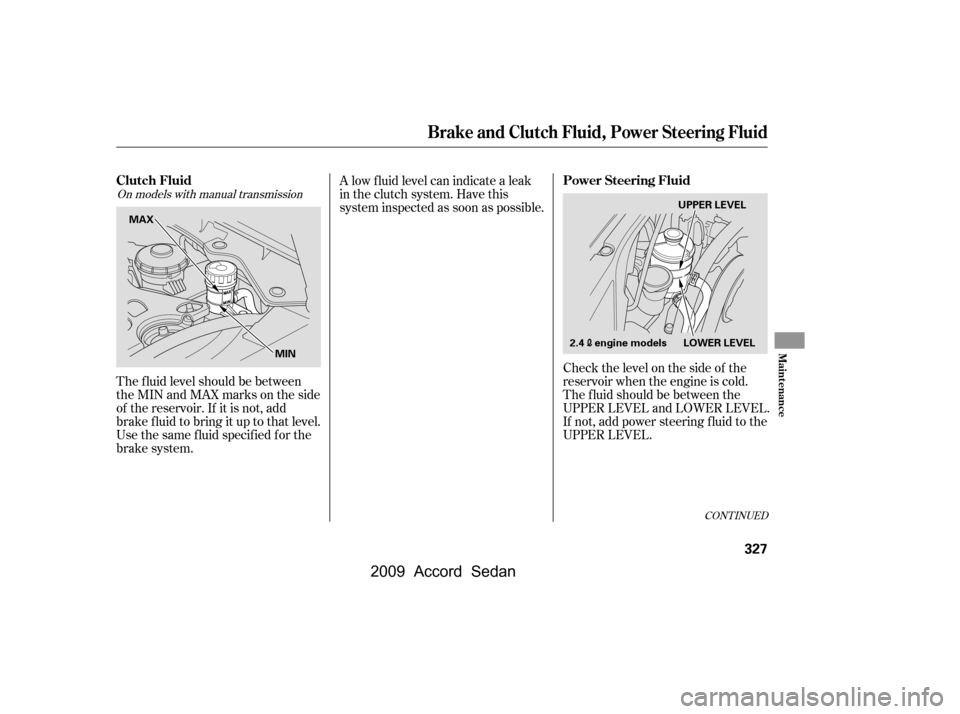

The f luid level should be between
theMINandMAXmarksontheside
of the reservoir. If the level is at or
below the MIN mark, your brake
system needs attention. Have the
brake system inspected f or leaks or
worn brake pads.
Brake f luid reservoir (all models)
Clutch f luid reservoir
(manual transmission only)
307
Brake and Clutch Fluid
Brake Fluid
326
MAX
MIN
\f—\f—\fy
\fy
)\f
\fy\f
y
2009 Accord Sedan

Check the level on the side of the
reservoir when the engine is cold.
The f luid should be between the
UPPER LEVEL and LOWER LEVEL.
If not, add power steering f luid to the
UPPER LEVEL.
The f luid level should be between
theMINandMAXmarksontheside
of the reservoir. If it is not, add
brake f luid to bring it up to that level.
Use the same fluid specified for the
brake system. A low f luid level can indicate a leak
in the clutch system. Have this
system inspected as soon as possible.
CONT INUED
On models with manual transmission
Power Steering Fluid
Clutch Fluid
Brake and Clutch Fluid, Power Steering Fluid
Maint enance
327
MAX UPPER LEVEL
LOWER LEVEL
MIN 2.4
engine models
\f—\f—\fy
y
)\f
\fy\fy
2009 Accord Sedan
