Fuse Locations
378
INTERIOR FUSE BOX (Passenger’s Side)
\f—\f—\fy
\fy
)\f
\fy\fy
2009 Accord Sedan

µµ
If your vehicle needs to be towed,
call a prof essional towing service or
organization. Never tow your vehicle
with just a rope or chain. It is very
dangerous.
The operator
loads your vehicle on the back of a
truck.
Therearetwowaystotowyour
vehicle: If , due to damage, your vehicle must
be towed with the f ront wheels on
the ground, do this:
Release the parking brake.
Shif t the transmission to neutral.
Leave the ignition switch in the
ACCESSORY (I) position so the
steering wheel does not lock. With the f ront wheels on the ground,
do not tow the vehicle more than 50
miles (80 km), and keep the speed
below35mph(55km/h).
The tow
truck uses two pivoting arms that go
under the f ront tires and lif t them of f
the ground. The rear tires remain on
the ground.
Leave the ignition switch in the
ACCESSORY (I) position so the
steering wheel does not lock.
Turn of f the engine.
Release the parking brake.
Shif t to D position f or 5 seconds,
then to N.
Start the engine.
Press on the brake pedal. Move
the shif t lever through all its
positions.
Manual transmission:
Automatic transmission:
CONT INUED
Flat -bed EquipmentWheel-lif t Equipment
T his is the best way to
transport your vehicle.
This is an acceptable
way to tow your vehicle.
Emergency Towing
T aking Care of t he Unexpect ed
379
Improper towing preparation will
damage the transmission. Follow the
above procedure exactly. If you cannot
shif t the transmission or start the
engine (automatic transmission), your
vehicle must be transported with the
f ront wheels of f the ground.
\f—\f—\fy
\fy
)\f
\fy\fy
2009 Accord Sedan

Emergency Towing
380
Trying to lif t or tow your vehicle by the
bumpers will cause serious damage.
The bumpers are not designed to
support the vehicle’s weight.The steering system can be damaged if
the steering wheel is locked. Leave the
ignition switch in the ACCESSORY (I)
position, and make sure the steering
wheel turns f reely bef ore you begin
towing.
\f—\f—\fy
\fy
)\f
\fy\fy
2009 Accord Sedan

µ
Thediagramsinthissectiongive
you the dimensions and capacities of
your vehicle and the locations of the
identif ication numbers. It also
includes inf ormation you should
know about your vehicle’s tires and
emissions control systems.
................
Identif ication Numbers .382
Specif ications
...............
(2.4
engine models) .384
Specif ications ...............................
(V6 models) .386
DOT Tire Quality Grading ..........................
(U.S. Vehicles) .388
.................................
Tire Labeling .390
Tire Pressure Monitoring System (TPMS) Required Federal ............................
Explanation .392
.......................
Emissions Controls .394
..
Three Way Catalytic Converter .396
........................
Emissions Testing .397
T echnical Inf ormation
Technical Inf ormation
381
\f—\f—\fy
\fy
)\f
\fy\fy
2009 Accord Sedan

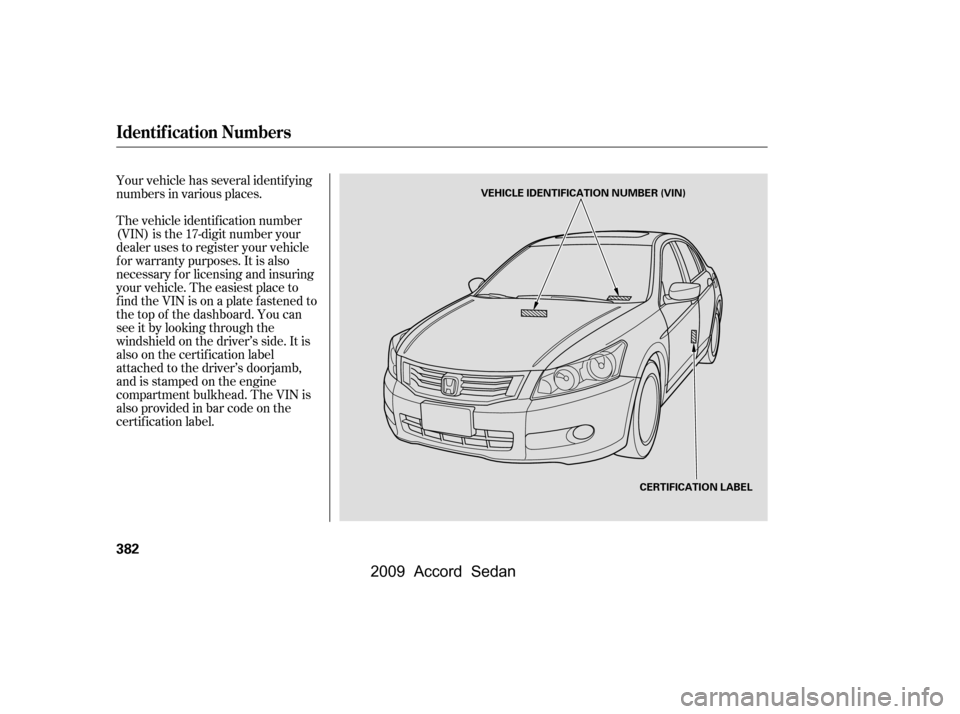

Your vehicle has several identif ying
numbers in various places.
The vehicle identif ication number
(VIN) is the 17-digit number your
dealer uses to register your vehicle
f or warranty purposes. It is also
necessary f or licensing and insuring
your vehicle. The easiest place to
find the VIN is on a plate fastened to
the top of the dashboard. You can
seeitbylookingthroughthe
windshield on the driver’s side. It is
also on the certification label
attached to the driver’s doorjamb,
and is stamped on the engine
compartment bulkhead. The VIN is
also provided in bar code on the
certif ication label.
Identif ication Numbers
382
CERTIFICATION LABEL
VEHICLE IDENTIFICATION NUMBER (VIN)
\f—\f—\fy
\fy
)\f
\fy\fy
2009 Accord Sedan

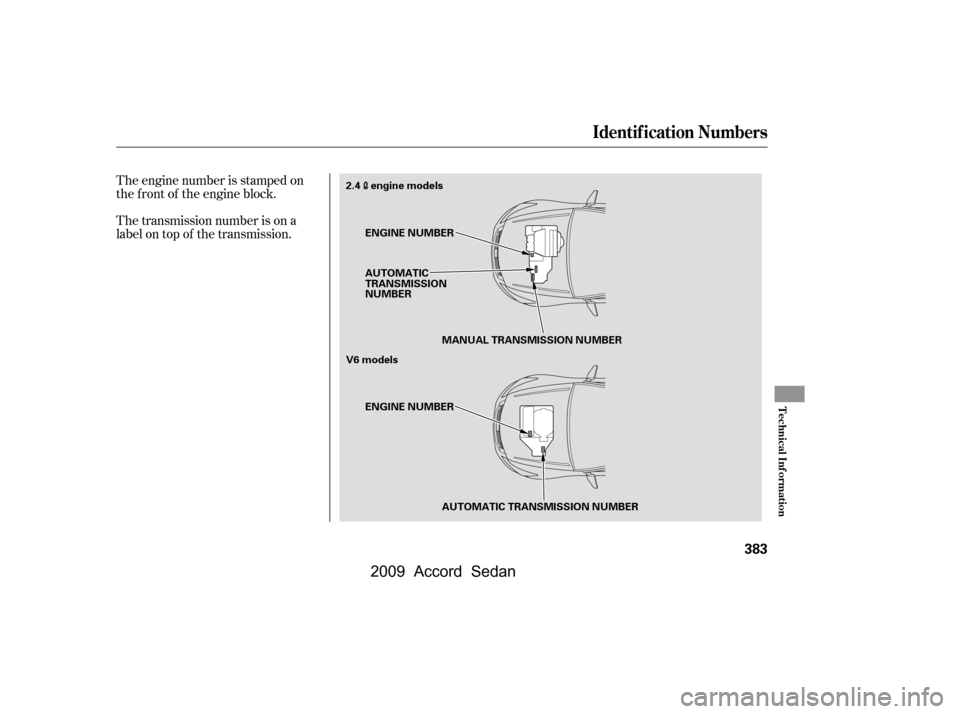

The transmission number is on a
label on top of the transmission.
The engine number is stamped on
the f ront of the engine block.
Identif ication Numbers
Technical Inf ormation
383
ENGINE NUMBER
2.4
engine models
V6 models AUTOMATIC TRANSMISSION NUMBER
ENGINE NUMBER
AUTOMATIC
TRANSMISSION
NUMBER
MANUAL TRANSMISSION NUMBER
\f—\f—\fy
\fy
)\f
\fy\fy
2009 Accord Sedan

µµÎ
ÃŽ
ÃŽÃŽ
ÃŽ
ÃŽ
ÃŽ
ÃŽ
Specif ications (2.4engine models)
384
Dimensions
Seating Capacities
Capacities
Weights
Air Conditioning
Engine 110.2 in (2,800 mm)
62.6 in (1,590 mm)
Length
Width
Height
Wheelbase
Track 194.1 in (4,930 mm)
72.7 in (1,847 mm)
58.1 in (1,475 mm)
4.8 US qt (4.5
)
2.6 US qt (2.5)
6.9 US qt (6.5
)
2.6 US qt (2.5)
2.1 US qt (2.0)
2.0 US qt (1.9)
5.6 US qt (5.3)
4.2 US qt (4.0)
4.4 US qt (4.2)
2.11 US gal (8.0
)
2.14 US gal (8.1)
1.56 US gal (5.9
)
1.59 US gal (6.0)
5
2
3
62.2 in (1,580 mm) Total
Front
Rear
Fuel tank
Engine
coolant
Engine oil
Manual trans-
mission fluid
Automatic
transmission
fluid
Windshield
washer
reservoir
Including the coolant in the reserve tank and that remaining in the
engine
Reserve tank capacity: 0.180 US gal (0.68
)
Excluding the oil remaining in the engine
Gross vehicle weight rating See the certification label attached
to the driver’s doorjamb.
Refrigerant type
Charge quantity
Lubricant type HFC-134a (R-134a)
14.1 15.9 oz (400 450 g) ND-OIL8
Water cooled 4-stroke
DOHC i-VTEC 4-cylinder gasoline engine
3.43 x 3.9 in (87.0 x 99.0 mm) 144 cu-in (2,354 cm
)
10.5 : 1
ILZKR7B11S
SXU22HCR11S
Type
BorexStroke
Displacement
Compression ratio
Spark plugs (U.S.)
Spark plugs (Canada)
SXU22HCR11S ILZKR7B11S
DILZKR7A11GS 18.5 US gal (70.0
)
Approx.
Change Manual
Automatic
Total Manual
Automatic
1:
2:
NGK:
DENSO: Change
Including filter
Without filter
Total
Change
Total
Change
Total
U.S.
Canada
Front/Rear
ULEV
PZEV
1:2: EX,EX-L
NGK:
NGK:
DENSO:
LX, LX-P1
2
1
2
——y

y
)
yy
2009 Accord Sedan

µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
ÃŽ ÃŽ
ÃŽ
ÃŽ
ÃŽ ÃŽ
ÃŽ
ÃŽ
ÃŽ
Specif ications (2.4engine models)
Technical Inf ormation
385
Lights
Battery Fuses
Tires
Alignment
12 V 60 W (HB3)
12 V 51 W (HB4)
12 V 21/5 W
21 W
12 V 21 W
Headlights
Front turn signal/parking lights
Front side marker lights
Rear turn signal lights
Back-up lights
Stop/taillights
License plate lights
High-mount brake light
Ceiling light
Spotlights
Trunk light
Front door courtesy lights
Vanity mirror lights
12 V 2 W
12 V 2 CP
12 V 5 W 12 V 8 W
12 V 8 W
12 V 21 W
12 V 5 W
12 V 21/5 W
12 V 3 CP
12 V
Capacity 12 V
12 V
12 V
12 V
12 V
12 V 36 AH/5 HR
38 AH/5HR
45 AH/20 HR
47 AH/20 HR
52 AH/5 HR
65 AH/20 HR Interior
Under-hood
Size
Pressure
P215/60R16 94H
P225/50R17 93V
T135/80D16 101M
32 psi (220 kPa , 2.2 kgf/cm
)
30 psi (210 kPa , 2.1 kgf/cm)
60 psi (420 kPa , 4.2 kgf/cm
)
Toe-in
Camber
Caster 0.00 in (0.0 mm)
0.08 in (2.0 mm)
0°1°
3°48’
See page377or the fuse label
attached on the side panel.
See page378or the fuse label
attached to the inside of the fuse
box door.
See page376or the fuse box
cover.
High
Low
: Passenger’s side
Driver’s side
Front/Rear
Spare
Front/Rear
Spare
1:
2:
Front
Rear
Front
Rear
Front
(Amber)
LX, LX-P
EX, EX-L
PZEV engine model, and Canadian models
2
1
2
1
\f—\f—\fy
