height adjustment HONDA ACCORD COUPE 2009 8.G Quick Guide

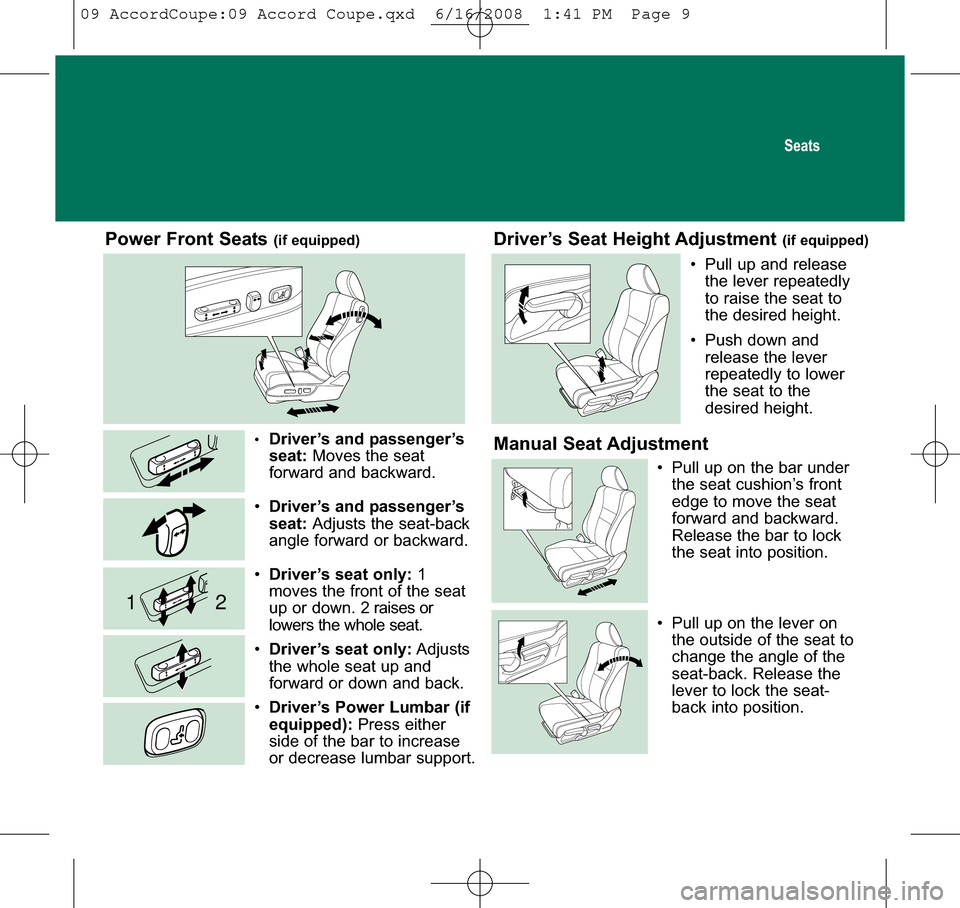

Seats
Power Front Seats (if equipped)Driver’s Seat Height Adjustment (if equipped)
12
• Pull up and releasethe lever repeatedly
to raise the seat to
the desired height.
• Push down and release the lever
repeatedly to lower
the seat to the
desired height.
•Driver’s and passenger’s
seat: Moves the seat
forward and backward.
• Driver’s and passenger’s
seat: Adjusts the seat-back
angle forward or backward.
• Driver’s seat only: 1
moves the front of the seat
up or down. 2 raises or
lowers the whole seat.
• Driver’s seat only: Adjusts
the whole seat up and
forward or down and back.
• Driver’s Power Lumbar (if
equipped): Press either
side of the bar to increase
or decrease lumbar support.
• Pull up on the bar under the seat cushion’s front
edge to move the seat
forward and backward.
Release the bar to lock
the seat into position.
• Pull up on the lever on the outside of the seat to
change the angle of the
seat-back. Release the
lever to lock the seat-
back into position.
Manual Seat Adjustment
