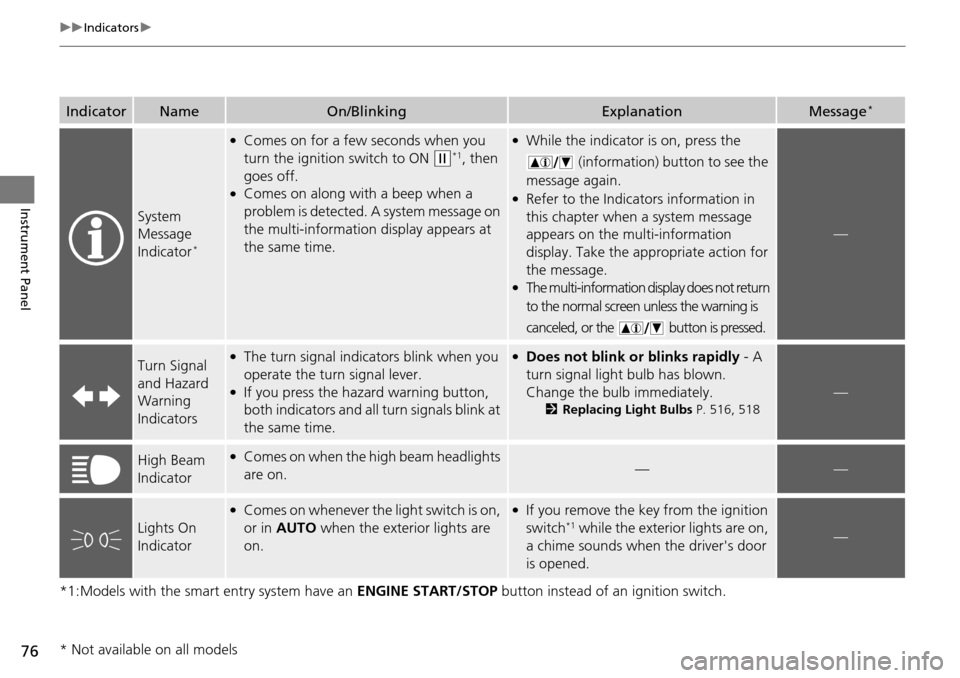

76
uuIndicators u
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
System
Message
Indicator
*
●Comes on for a few seconds when you
turn the ignition switch to ON
(w*1, then
goes off.
●Comes on along with a beep when a
problem is detected. A system message on
the multi-information display appears at
the same time.
●While the indicator is on, press the
(information) button to see the
message again.
●Refer to the Indicators information in
this chapter when a system message
appears on the multi-information
display. Take the appropriate action for
the message.
●The multi-information display does not return
to the normal screen unless the warning is
canceled, or the button is pressed.
—
Turn Signal
and Hazard
Warning
Indicators●The turn signal indica tors blink when you
operate the turn signal lever.
●If you press the hazard warning button,
both indicators and all turn signals blink at
the same time.
●Does not blink or blinks rapidly - A
turn signal light bulb has blown.
Change the bulb immediately.
2 Replacing Light Bulbs P. 516, 518
—
High Beam
Indicator●Comes on when the high beam headlights
are on.——
Lights On
Indicator
●Comes on whenever the light switch is on,
or in AUTO when the exterior lights are
on.●If you remove the key from the ignition
switch*1 while the exterior lights are on,
a chime sounds when the driver's door
is opened.—
* Not available on all models

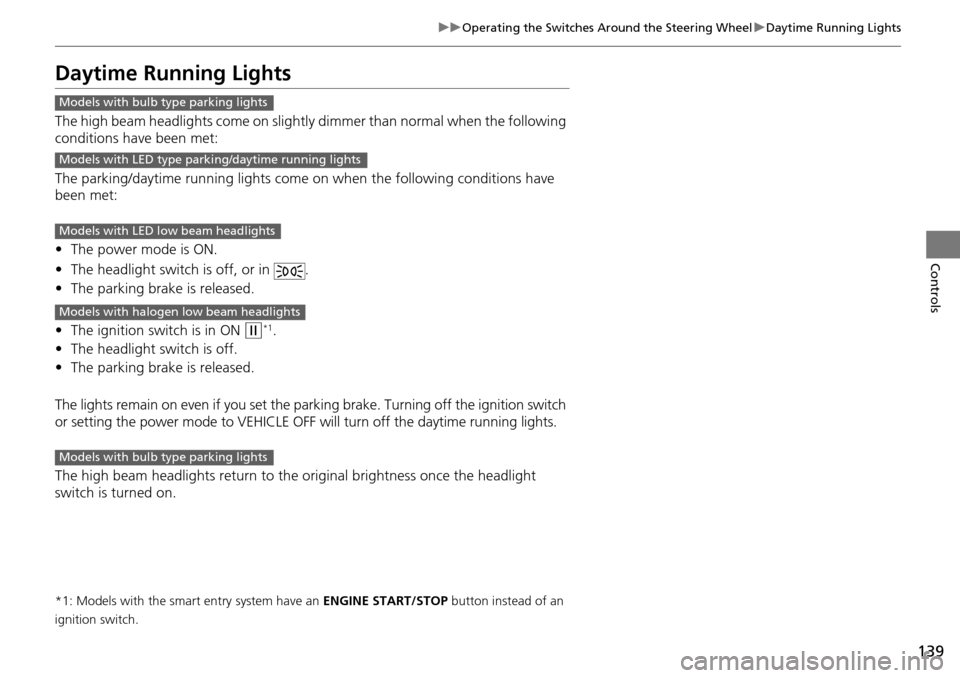

139
uuOperating the Switches Around the Steering Wheel uDaytime Running Lights
Controls
Daytime Running Lights
The high beam headlights come on slightly dimmer than normal when the following
conditions have been met:
The parking/daytime running lights come on when the following conditions have
been met:
• The power mode is ON.
• The headlight switch is off, or in .
• The parking brake is released.
• The ignition switch is in ON
(w*1.
• The headlight switch is off.
• The parking brake is released.
The lights remain on even if you set the parking brake. Turning off the ignition switch
or setting the power mode to VEHICLE OFF will turn off the daytime running lights.
The high beam headlights return to the original brightness once the headlight
switch is turned on.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
Models with bulb type parking lights
Models with LED type parking/daytime running lights
Models with LED low beam headlights
Models with halogen low beam headlights
Models with bulb type parking lights

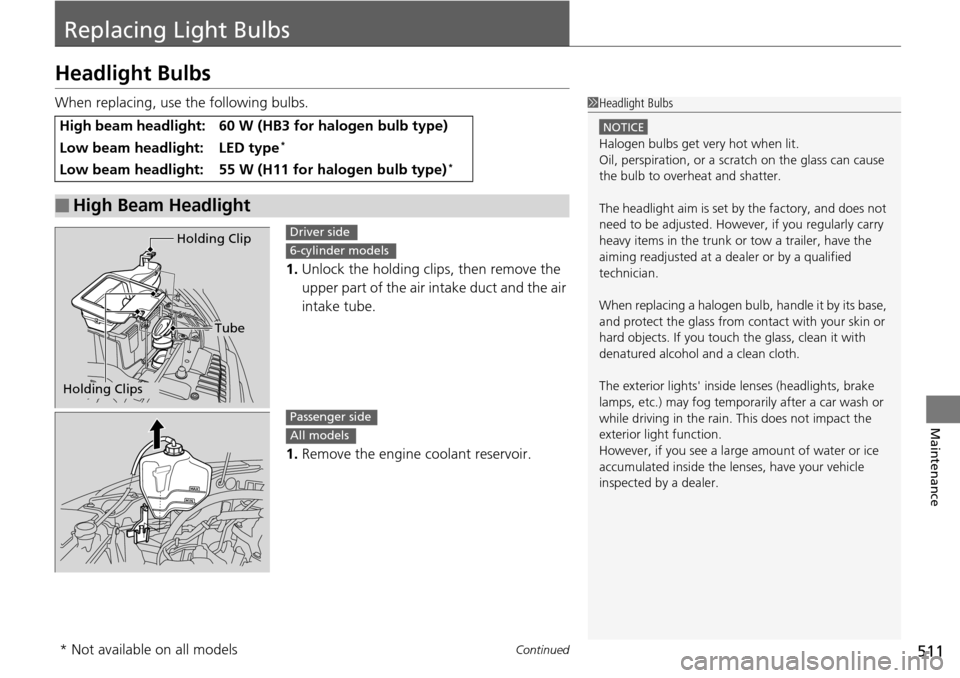

511Continued
Maintenance
Replacing Light Bulbs
Headlight Bulbs
When replacing, use the following bulbs.1.Unlock the holding clips, then remove the
upper part of the air intake duct and the air
intake tube.
1. Remove the engine coolant reservoir.
High beam headlight: 60 W (HB3 for halogen bulb type)
Low beam headlight: LED type*
Low beam headlight: 55 W (H11 for halogen bulb type)*
■High Beam Headlight
1Headlight Bulbs
NOTICE
Halogen bulbs get very hot when lit.
Oil, perspiration, or a scratch on the glass can cause
the bulb to overhe at and shatter.
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the trunk or tow a trailer, have the
aiming readjusted at a de aler or by a qualified
technician.
When replacing a halogen bu lb, handle it by its base,
and protect the glass from c ontact with your skin or
hard objects. If you touch the glass, clean it with
denatured alcohol and a clean cloth.
The exterior lights' inside lenses (headlights, brake
lamps, etc.) may fog temporarily after a car wash or
while driving in the rain. This does not impact the
exterior light function.
However, if you see a larg e amount of water or ice
accumulated inside the le nses, have your vehicle
inspected by a dealer.
Tube
Holding Clip
Holding Clips
Driver side
6-cylinder models
Passenger side
All models
* Not available on all models

uuReplacing Light Bulbs uHeadlight Bulbs

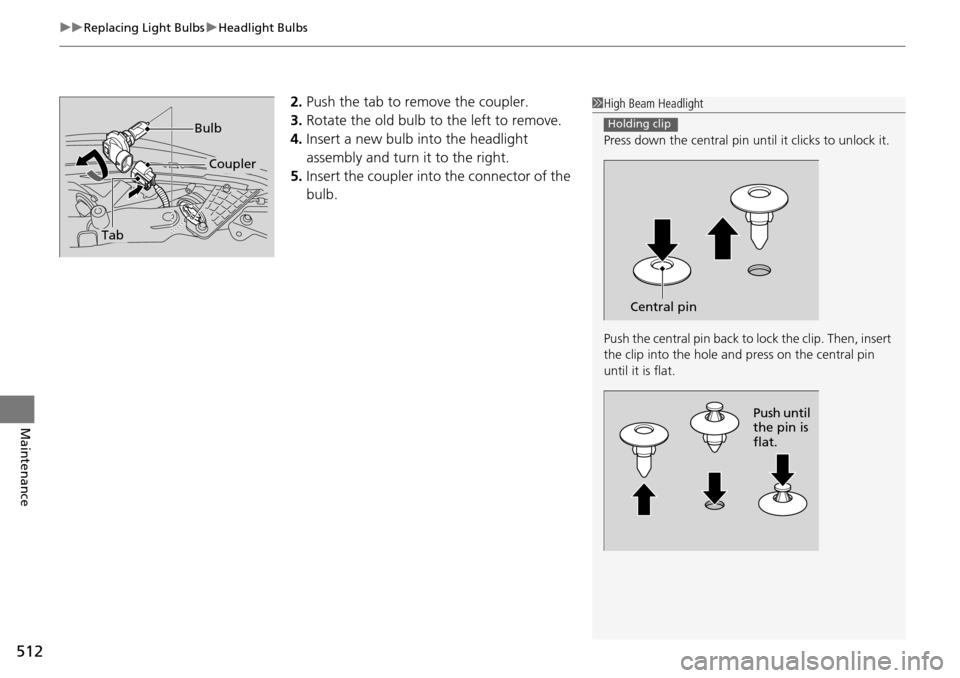

512
Maintenance
2. Push the tab to remove the coupler.
3. Rotate the old bulb to the left to remove.
4. Insert a new bulb into the headlight
assembly and turn it to the right.
5. Insert the coupler into the connector of the
bulb.1High Beam Headlight
Press down the centra l pin until it clicks to unlock it.
Push the central pin back to lock the clip. Then, insert
the clip into the hole a nd press on the central pin
until it is flat.
Holding clip
Central pin
Push until
the pin is
flat.
Tab
Coupler
Bulb

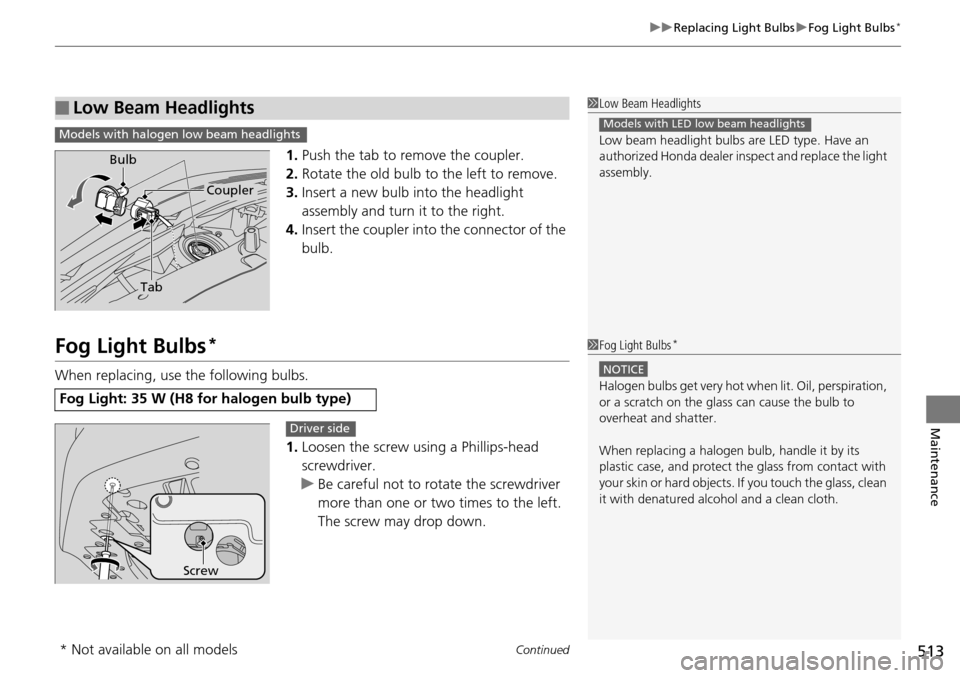

Continued513
uuReplacing Light Bulbs uFog Light Bulbs*
Maintenance
1. Push the tab to remove the coupler.
2. Rotate the old bulb to the left to remove.
3. Insert a new bulb into the headlight
assembly and turn it to the right.
4. Insert the coupler into the connector of the
bulb.
Fog Light Bulbs*
When replacing, use the following bulbs.
1.Loosen the screw using a Phillips-head
screwdriver.
u Be careful not to rotate the screwdriver
more than one or two times to the left.
The screw may drop down.
■Low Beam Headlights1Low Beam Headlights
Low beam headlight bulbs are LED type. Have an
authorized Honda dealer in spect and replace the light
assembly.
Models with LED low beam headlightsModels with halogen low beam headlights
Tab
Coupler
Bulb
Fog Light: 35 W (H8 for halogen bulb type)
1
Fog Light Bulbs*
NOTICE
Halogen bulbs get very hot wh en lit. Oil, perspiration,
or a scratch on the glass can cause the bulb to
overheat and shatter.
When replacing a halogen bulb, handle it by its
plastic case, and protect th e glass from contact with
your skin or hard objects. If you touch the glass, clean
it with denatured alc ohol and a clean cloth.
Screw
Driver side
* Not available on all models

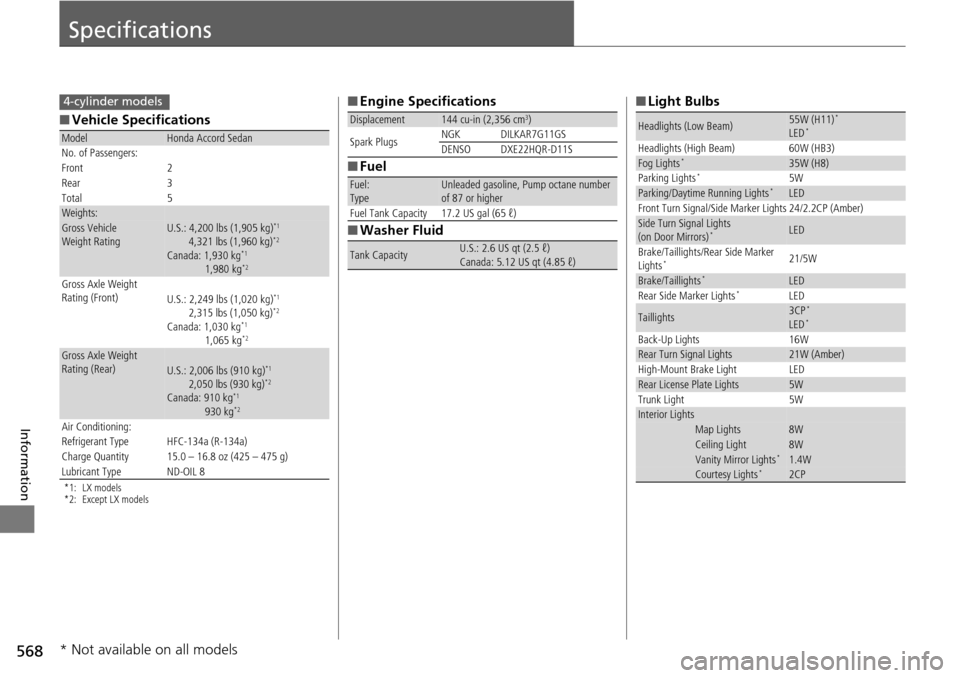

568
Information
Specifications
■Vehicle Specifications
*1: LX models
*2: Except LX models
ModelHonda Accord Sedan
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating U.S.: 4,200 lbs (1,905 kg)*1
4,321 lbs (1,960 kg)*2
Canada: 1,930 kg*1
1,980 kg*2
Gross Axle Weight
Rating (Front)U.S.: 2,249 lbs (1,020 kg)*1
2,315 lbs (1,050 kg)*2
Canada: 1,030 kg*1
1,065 kg*2
Gross Axle Weight
Rating (Rear)U.S.: 2,006 lbs (910 kg)*1
2,050 lbs (930 kg)*2
Canada: 910 kg*1
930 kg*2
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 15.0 – 16.8 oz (425 – 475 g)
Lubricant Type ND-OIL 8
4-cylinder models■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement144 cu-in (2,356 cm3)
Spark Plugs NGK DILKAR7G11GS
DENSO DXE22HQR-D11S
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 17.2 US gal (65 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 5.12 US qt (4.85 ℓ)
■ Light Bulbs
Headlights (Low Beam)55W (H11)*
LED*
Headlights (High Beam) 60W (HB3)Fog Lights*35W (H8)
Parking Lights*5WParking/Daytime Running Lights*LED
Front Turn Signal/Side Marker Lights 24/2.2CP (Amber)
Side Turn Signal Lights
(on Door Mirrors)*LED
Brake/Taillights/Rear Side Marker
Lights
*21/5W
Brake/Taillights*LED
Rear Side Marker Lights*LED
Taillights3CP*
LED*
Back-Up Lights 16WRear Turn Signal Lights21W (Amber)
High-Mount Brake Light LED
Rear License Plate Lights5W
Trunk Light 5W
Interior LightsMap Lights8WCeiling Light8WVanity Mirror Lights*1.4WCourtesy Lights*2CP
* Not available on all models

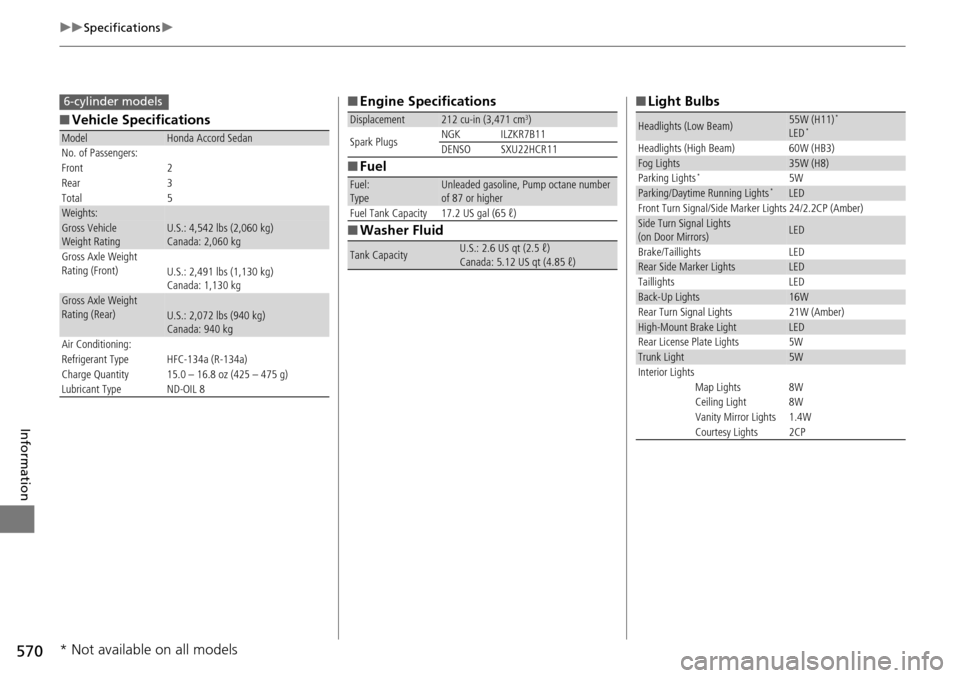

570
uuSpecifications u
Information
■Vehicle Specifications
ModelHonda Accord Sedan
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating U.S.: 4,542 lbs (2,060 kg)
Canada: 2,060 kg
Gross Axle Weight
Rating (Front)U.S.: 2,491 lbs (1,130 kg)
Canada: 1,130 kg
Gross Axle Weight
Rating (Rear)U.S.: 2,072 lbs (940 kg)
Canada: 940 kg
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 15.0 – 16.8 oz (425 – 475 g)
Lubricant Type ND-OIL 8
6-cylinder models■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement212 cu-in (3,471 cm3)
Spark Plugs NGK ILZKR7B11
DENSO SXU22HCR11
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 17.2 US gal (65 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 5.12 US qt (4.85 ℓ)
■ Light Bulbs
Headlights (Low Beam)55W (H11)*
LED*
Headlights (High Beam) 60W (HB3)Fog Lights35W (H8)
Parking Lights*5WParking/Daytime Running Lights*LED
Front Turn Signal/Side Marker Lights 24/2.2CP (Amber)
Side Turn Signal Lights
(on Door Mirrors)LED
Brake/Taillights LED
Rear Side Marker LightsLED
Taillights LED
Back-Up Lights16W
Rear Turn Signal Lights 21W (Amber)
High-Mount Brake LightLED
Rear License Plate Lights 5W
Trunk Light5WInterior LightsMap Lights8WCeiling Light8WVanity Mirror Lights1.4WCourtesy Lights2CP
* Not available on all models

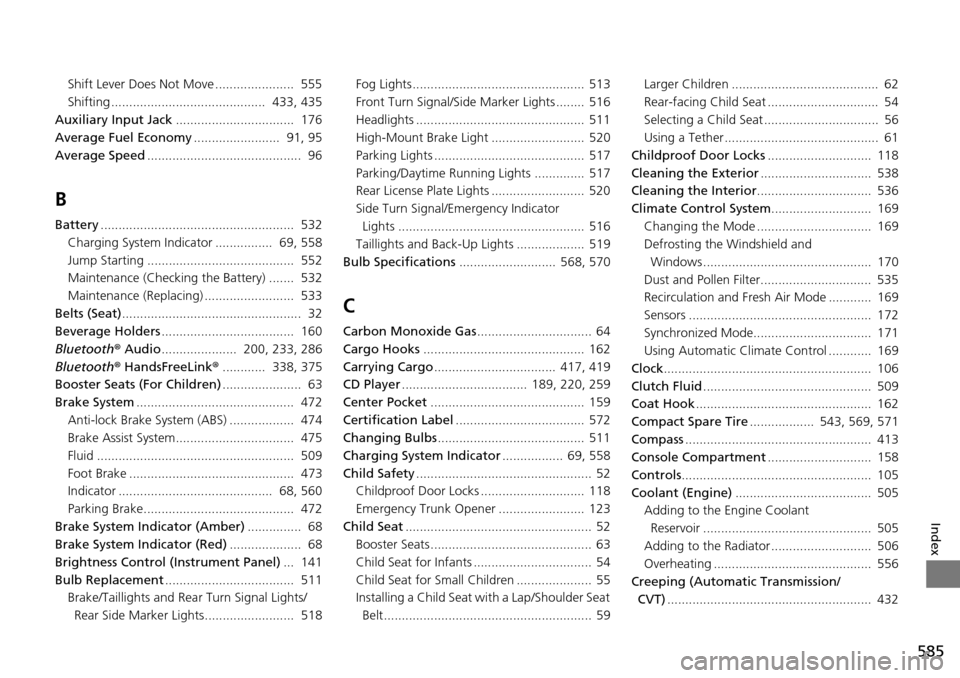

585
Index
Shift Lever Does Not Move ...................... 555
Shifting ........................................... 433, 435
Auxiliary Input Jack ................................. 176
Average Fuel Economy ........................ 91, 95
Average Speed ........................................... 96
B
Battery...................................................... 532
Charging System Indicator ................ 69, 558
Jump Starting ......................................... 552
Maintenance (Checking the Battery) ....... 532
Maintenance (Replacing) ......................... 533
Belts (Seat) .................................................. 32
Beverage Holders ..................................... 160
Bluetooth ® Audio ..................... 200, 233, 286
Bluetooth ® HandsFreeLink ®............ 338, 375
Booster Seats (For Children) ...................... 63
Brake System ............................................ 472
Anti-lock Brake System (ABS) .................. 474
Brake Assist System................................. 475
Fluid ....................................................... 509
Foot Brake .............................................. 473
Indicator ........................................... 68, 560
Parking Brake.......................................... 472
Brake System Indicator (Amber) ............... 68
Brake System Indicator (Red) .................... 68
Brightness Control (Instrument Panel) ... 141
Bulb Replacement .................................... 511
Brake/Taillights and R ear Turn Signal Lights/
Rear Side Marker Lights......................... 518 Fog Lights ................................................ 513
Front Turn Signal/Side
Marker Lights ........ 516
Headlights ............................................... 511
High-Mount Brake Light .......................... 520
Parking Lights .......................................... 517
Parking/Daytime Running Lights .............. 517
Rear License Plate Lights .......................... 520
Side Turn Signal/Em ergency Indicator
Lights .................................................... 516
Taillights and Back-Up Lights ................... 519
Bulb Specifications ........................... 568, 570
C
Carbon Monoxide Gas ................................ 64
Cargo Hooks ............................................. 162
Carrying Cargo .................................. 417, 419
CD Player ................................... 189, 220, 259
Center Pocket ........................................... 159
Certification Label .................................... 572
Changing Bulbs ......................................... 511
Charging System Indicator ................. 69, 558
Child Safety ................................................. 52
Childproof Door Locks ............................. 118
Emergency Trunk Opener ........................ 123
Child Seat .................................................... 52
Booster Seats ............................................. 63
Child Seat for Infants ................................. 54
Child Seat for Small Children ..................... 55
Installing a Child Seat with a Lap/Shoulder Seat
Belt.......................................................... 59 Larger Children ......................................... 62
Rear-facing Child Seat ............................... 54
Selecting a Child Seat ................................ 56
Using a Tether ........................................... 61
Childproof Door Locks ............................. 118
Cleaning the Exterior ............................... 538
Cleaning the Interior ................................ 536
Climate Control System ............................ 169
Changing the Mode ................................ 169
Defrosting the Windshield and Windows ............................................... 170
Dust and Pollen Filter............................... 535
Recirculation and Fresh Air Mode ............ 169
Sensors ................................................... 172
Synchronized Mode................................. 171
Using Automatic Climate Control ............ 169
Clock .......................................................... 106
Clutch Fluid ............................................... 509
Coat Hook ................................................. 162
Compact Spare Tire .................. 543, 569, 571
Compass .................................................... 413
Console Compartment ............................. 158
Controls ..................................................... 105
Coolant (Engine) ...................................... 505
Adding to the Engine Coolant
Reservoir ............................................... 505
Adding to the Radiator ............................ 506
Overheating ............................................ 556
Creeping (Automatic Transmission/ CVT) ......................................................... 432

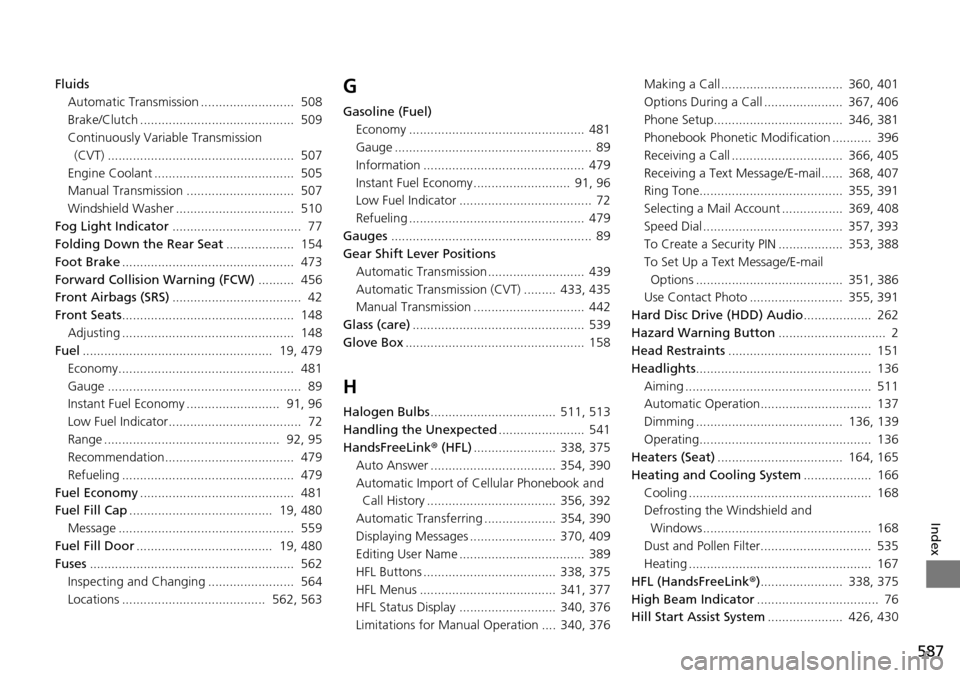

587
Index
FluidsAutomatic Transmission .......................... 508
Brake/Clutch ........................................... 509
Continuously Variable Transmission (CVT) .................................................... 507
Engine Coolant ....................................... 505
Manual Transmission .............................. 507
Windshield Washer ................................. 510
Fog Light Indicator .................................... 77
Folding Down the Rear Seat ................... 154
Foot Brake ................................................ 473
Forward Collision Warning (FCW) .......... 456
Front Airbags (SRS) .................................... 42
Front Seats ................................................ 148
Adjusting ................................................ 148
Fuel ..................................................... 19, 479
Economy................................................. 481
Gauge ...................................................... 89
Instant Fuel Economy .......................... 91, 96
Low Fuel Indicator..................................... 72
Range ................................................. 92, 95
Recommendation.................................... 479
Refueling ................................................ 479
Fuel Economy ........................................... 481
Fuel Fill Cap ........................................ 19, 480
Message ................................................. 559
Fuel Fill Door ...................................... 19, 480
Fuses ......................................................... 562
Inspecting and Changing ........................ 564
Locations ........................................ 562, 563G
Gasoline (Fuel) Economy ................................................. 481
Gauge ....................................................... 89
Information ............................................. 479
Instant Fuel Economy ........................... 91, 96
Low Fuel Indicator ..................................... 72
Refueling ................................................. 479
Gauges ........................................................ 89
Gear Shift Lever Positions Automatic Transmission ........................... 439
Automatic Transmission (CVT) ......... 433, 435
Manual Transmission ............................... 442
Glass (care) ................................................ 539
Glove Box .................................................. 158
H
Halogen Bulbs ................................... 511, 513
Handling the Unexpected ........................ 541
HandsFreeLink ® (HFL) ....................... 338, 375
Auto Answer ................................... 354, 390
Automatic Import of Cellular Phonebook and
Call History .................................... 356, 392
Automatic Transferring .................... 354, 390
Displaying Messages ........................ 370, 409
Editing User Name ................................... 389
HFL Buttons ..................................... 338, 375
HFL Menus ...................................... 341, 377
HFL Status Display ........................... 340, 376
Limitations for Manual Operation .... 340, 376 Making a Call .................................. 360, 401
Options During a Call ...................... 367, 406
Phone Setup.................................... 346, 381
Phonebook Phonetic Modification ........... 396
Receiving a Call ............................... 366, 405
Receiving a Text Mess
age/E-mail...... 368, 407
Ring Tone........................................ 355, 391
Selecting a Mail Account ................. 369, 408
Speed Dial ....................................... 357, 393
To Create a Securi ty PIN .................. 353, 388
To Set Up a Text Message/E-mail
Options ......................................... 351, 386
Use Contact Photo .......................... 355, 391
Hard Disc Drive (HDD) Audio ................... 262
Hazard Warning Button .............................. 2
Head Restraints ........................................ 151
Headlights ................................................. 136
Aiming .................................................... 511
Automatic Operation............................... 137
Dimming ......................................... 136, 139
Operating................................................ 136
Heaters (Seat) ................................... 164, 165
Heating and Cooling System ................... 166
Cooling ................................................... 168
Defrosting the Windshield and
Windows ............................................... 168
Dust and Pollen Filter............................... 535
Heating ................................................... 167
HFL (HandsFreeLink ®)....................... 338, 375
High Beam Indicator .................................. 76
Hill Start Assist System ..................... 426, 430
