HONDA ACCORD COUPE 2015 9.G Owners Manual

530Information
Specifications■Vehicle Specifications*1: LX-S models
*2: Except LX-S models
*3: LX models
*4: Except LX modelsModel
Honda Accord Coupe
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating
U.S.: 4,189 lbs (1,900 kg)
*1
4,255 lbs (1,930 kg)
*2
Canada: 1,900 kg
*3
1,930 kg
*4
Gross Axle Weight
Rating (Front)
U.S.: 2,271 lbs (1,030 kg)
*1
2,315 lbs (1,050 kg)
*2
Canada: 1,040 kg
*3
1,055 kg
*4
Gross Axle Weight
Rating (Rear)
U.S.: 1,962 lbs (890 kg)
*1
2,006 lbs (910 kg)
*2
Canada: 890 kg
*3
910 kg
*4
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 15.0 – 16.8 oz (425 – 475 g)
Lubricant Type ND-OIL 84-cylinder models
■ Engine Specifications
■ Fuel
■ Washer FluidDisplacement
144 cu-in (2,356 cm
3)
Spark Plugs NGK
DILKAR7G11GS
DILKAR7H11GS
DENSO DXE22HQR-D11S
Fuel:
Type
Unleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 17.2 US gal (65 ℓ)
Tank Capacity
U.S.: 2.6 US qt (2.5 ℓ)
Canada: 5.12 US qt (4.85 ℓ)
■ Light BulbsHeadlights (Low Beam)
55W (H11)
Headlights (High Beam) 60W (HB3)
Fog Lights
*
35W (H8)
Parking Lights 5W
Front Turn Signal/Side Marker Lights
28/8W (Amber)
Side Turn Signal Lights
(on Door Mirrors)
*
LED
Brake/Taillights
21/5W
Rear Side Marker Lights 3CP
Back-Up Lights
16W
Rear Turn Signal Lights 21W (Amber)
High-Mount Brake Light
LED
Rear License Plate Lights 5W
Trunk Light
5W
Interior Lights Map Lights 8W
Ceiling Light 8W
Vanity Mirror Lights 1.4W
* Not available on all models

531
uuSpecifications u
Continued
Information

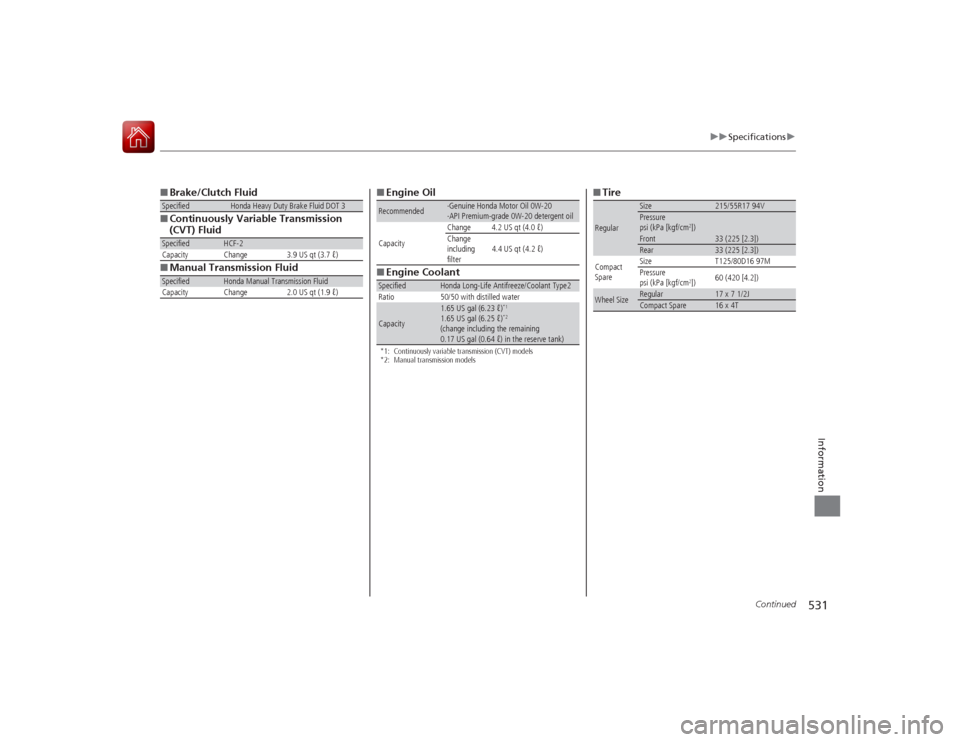

■Brake/Clutch Fluid
■ Continuously Variable Transmission
(CVT) Fluid
■ Manual Transmission FluidSpecified
Honda Heavy Duty Brake Fluid DOT 3
Specified
HCF-2
Capacity Change 3.9 US qt (3.7 ℓ)
Specified
Honda Manual Transmission Fluid
Capacity Change 2.0 US qt (1.9 ℓ)
■ Engine Oil
■ Engine Coolant*1: Continuously variable transmission (CVT) models
*2: Manual transmission modelsRecommended
·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.2 US qt (4.0 ℓ)
Change
including
filter
4.4 US qt (4.2 ℓ)
Specified
Honda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.65 US gal (6.23 ℓ)
*1
1.65 US gal (6.25 ℓ)
*2
(change including the remaining
0.17 US gal (0.64 ℓ) in the reserve tank)
■ TireRegular
Size
215/55R17 94V
Pressure
psi (kPa [kgf/cm
2])
Front
33 (225 [2.3])
Rear
33 (225 [2.3])
Compact
Spare Size
T125/80D16 97M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel Size
Regular
17 x 7 1/2J
Compact Spare
16 x 4T

532
uuSpecifications u
Information
■Vehicle Specifications*1: Manual transmission models
*2: Automatic transmission modelsModel
Honda Accord Coupe
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating
U.S.: 4,387 lbs (1,990 kg)
*1
4,475 lbs (2,030 kg)
*2
Canada: 1,990 kg
*1
2,030 kg
*2
Gross Axle Weight
Rating (Front)
U.S.: 2,403 lbs (1,090 kg)
*1
2,513 lbs (1,140 kg)
*2
Canada: 1,090 kg
*1
1,145 kg
*2
Gross Axle Weight
Rating (Rear)
U.S.: 2,006 lbs (910 kg)
Canada: 910 kg
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 15.0 – 16.8 oz (425 – 475 g)
Lubricant Type ND-OIL 8
6-cylinder models
■ Engine Specifications
■ Fuel
■ Washer FluidDisplacement
212 cu-in (3,471 cm
3)
Spark Plugs NGK ILZKR7B11
DENSO SXU22HCR11
Fuel:
Type
Unleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 17.2 US gal (65 ℓ)
Tank Capacity
U.S.: 2.6 US qt (2.5 ℓ)
Canada: 5.12 US qt (4.85 ℓ)
■ Light BulbsHeadlights (Low Beam)
55W (H11)
*
LED
*
Headlights (High Beam) 60W (HB3)Fog Lights
35W (H8)
Parking/Daytime Running Lights LED
Front Turn Signal/Side Marker Lights
28/8W (Amber)
Side Turn Signal Lights
(on Door Mirrors) LED
Brake/Taillights
21/5W
Rear Side Marker Lights 3CP
Back-Up Lights
16W
Rear Turn Signal Lights 21W (Amber)
High-Mount Brake Light
LED
Rear License Plate Lights 5W
Trunk Light
5W
Interior Lights
Map Lights
8W
Ceiling Light
8W
Vanity Mirror Lights
1.4W
Courtesy Lights
2CP
* Not available on all models

533
uuSpecifications u
Information

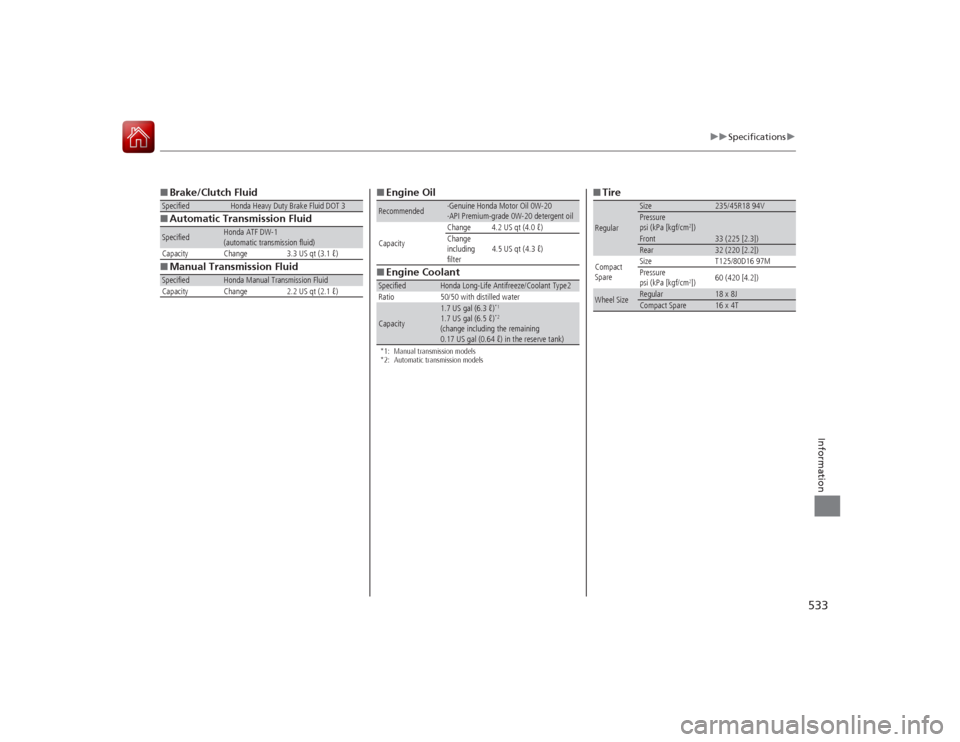

■Brake/Clutch Fluid
■ Automatic Transmission Fluid
■ Manual Transmission FluidSpecified
Honda Heavy Duty Brake Fluid DOT 3
Specified
Honda ATF DW-1
(automatic transmission fluid)
Capacity Change 3.3 US qt (3.1 ℓ)
Specified
Honda Manual Transmission Fluid
Capacity Change 2.2 US qt (2.1 ℓ)
■ Engine Oil
■ Engine Coolant*1: Manual transmission models
*2: Automatic transmission modelsRecommended
·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.2 US qt (4.0 ℓ)
Change
including
filter
4.5 US qt (4.3 ℓ)
Specified
Honda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.7 US gal (6.3 ℓ)
*1
1.7 US gal (6.5 ℓ)
*2
(change including the remaining
0.17 US gal (0.64 ℓ) in the reserve tank)
■ TireRegular
Size
235/45R18 94V
Pressure
psi (kPa [kgf/cm
2])
33 (225 [2.3])
FrontRear
32 (220 [2.2])
Compact
Spare Size
T125/80D16 97M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel Size
Regular
18 x 8J
Compact Spare
16 x 4T

534Information

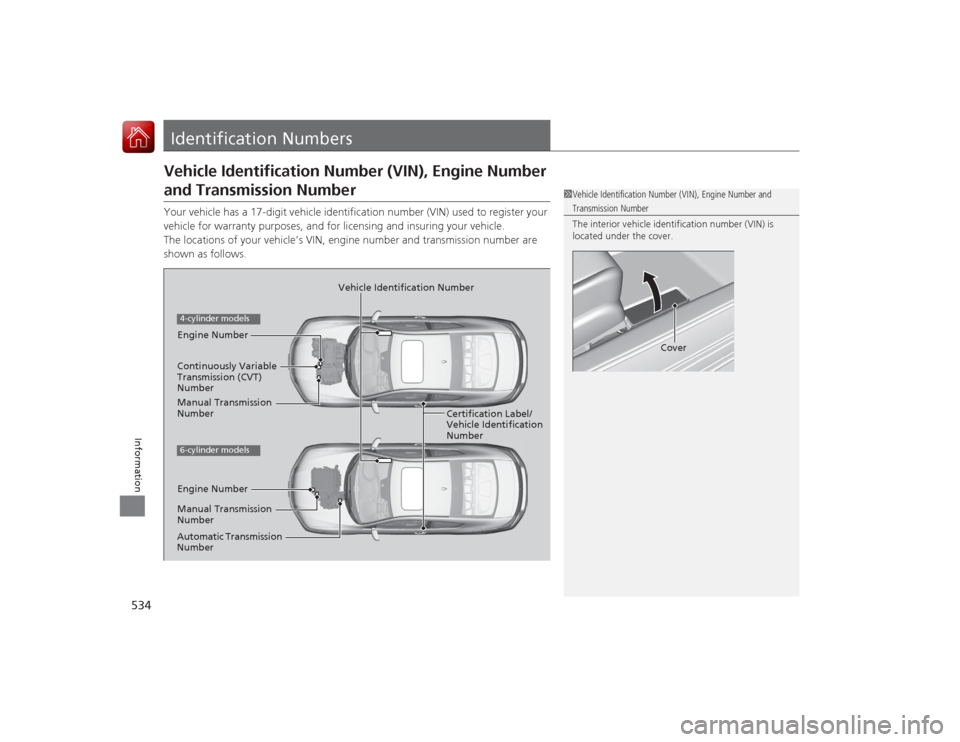

Identification NumbersVehicle Identification Number (VIN), Engine Number and Transmission NumberYour vehicle has a 17-digit vehicle identification number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, engine number and transmission number are
shown as follows.
1 Vehicle Identification Number (VIN), Engine Number and Transmission Number
The interior vehicle iden tification number (VIN) is
located under the cover.
Cover
Vehicle Identification Number
Engine Number
Certification Label/
Vehicle Identification
Number
Manual Transmission
Number Continuously Variable
Transmission (CVT)
Number
6-cylinder models4-cylinder modelsEngine Number
Automatic Transmission
NumberManual Transmission
Number

535Information

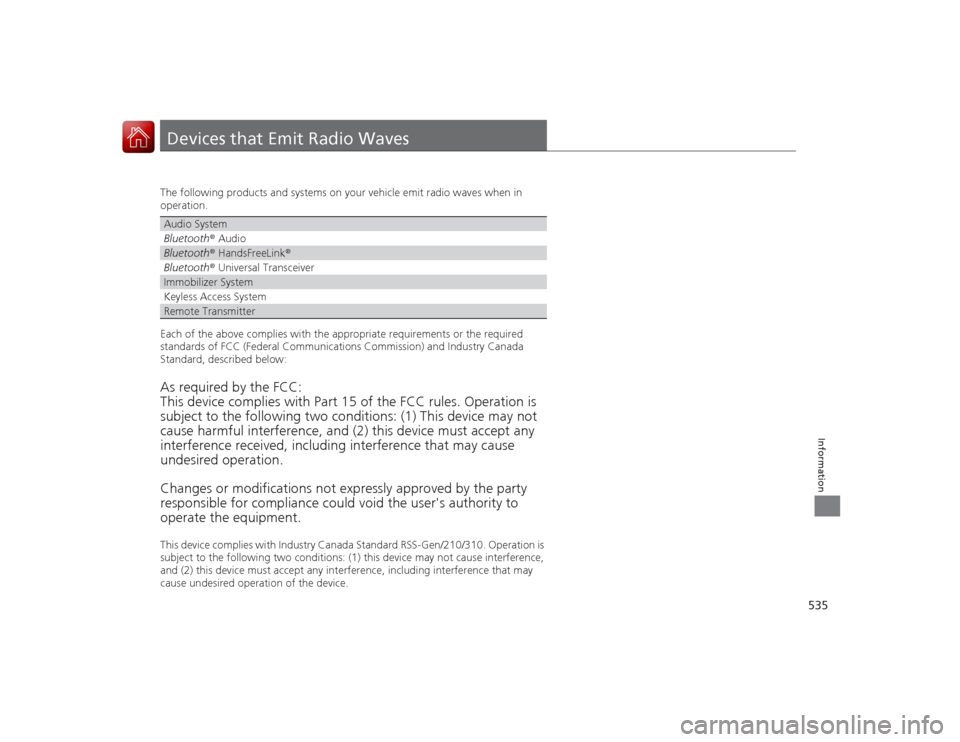

Devices that Emit Radio WavesThe following products and systems on your vehicle emit radio waves when in
operation.
Each of the above complies with the appropriate requirements or the required
standards of FCC (Federal Communications Commission) and Industry Canada
Standard, described below:As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, i ncluding interference that may cause
undesired operation.
Changes or mo difications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.This device complies with Industry Canada Standard RSS-Gen/210/310. Operation is
subject to the following two conditions: (1) this de vice may not cause interference,
and (2) this device must accept any interference, including interference that may
cause undesired operation of the device.Audio SystemBluetooth ® AudioBluetooth® HandsFreeLink ®Bluetooth® Universal TransceiverImmobilizer SystemKeyless Access SystemRemote Transmitter

536Information

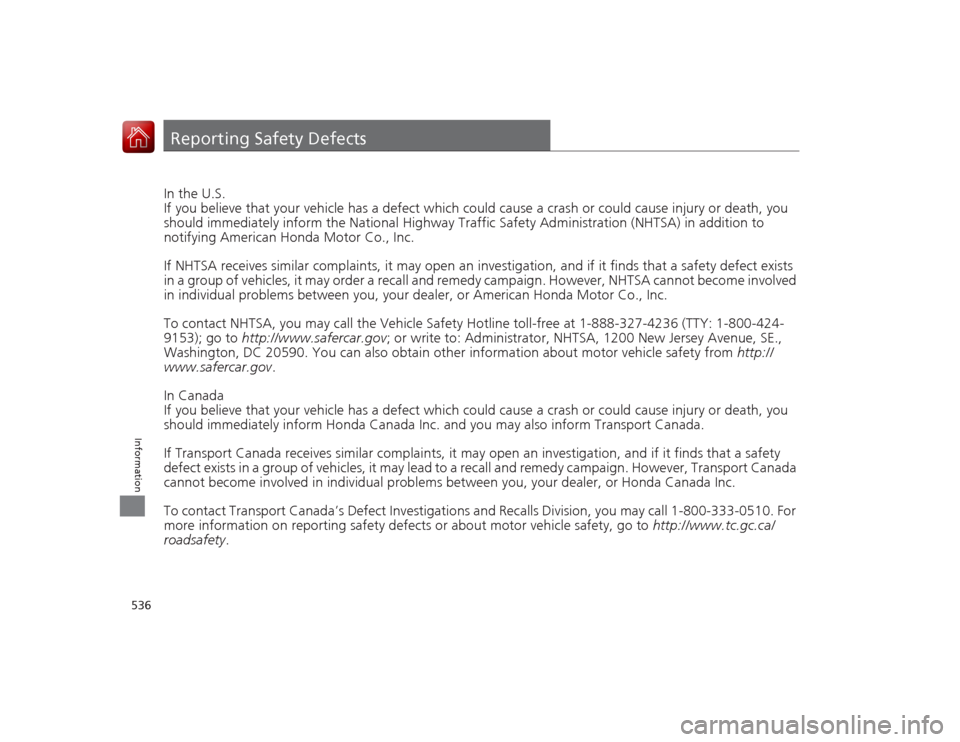

Reporting Safety DefectsIn the U.S.
If you believe that your vehicle has a defect which could cause a crash \
or could cause injury or death, you
should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it ma y open an investigation, and if it finds that a safety defect exists
in a group of vehicles, it may or der a recall and remedy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov ; or write to: Administrator, NHTSA, 1200 New Jersey Avenue, SE.,
Washington, DC 20590. You can also obtain other information about motor vehicle safety from http://
www.safercar.gov .
In Canada
If you believe that your vehicle has a defect which could cause a crash \
or could cause injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.
If Transport Canada receives simi lar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may lead to a reca ll and remedy campaign. However, Transport Canada
cannot become involved in individ ual problems between you, your dealer, or Honda Canada Inc.
To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. For
more information on reporting safety defects or about motor vehicle safety, go to http://www.tc.gc.ca/
roadsafety .

537
Continued
Information

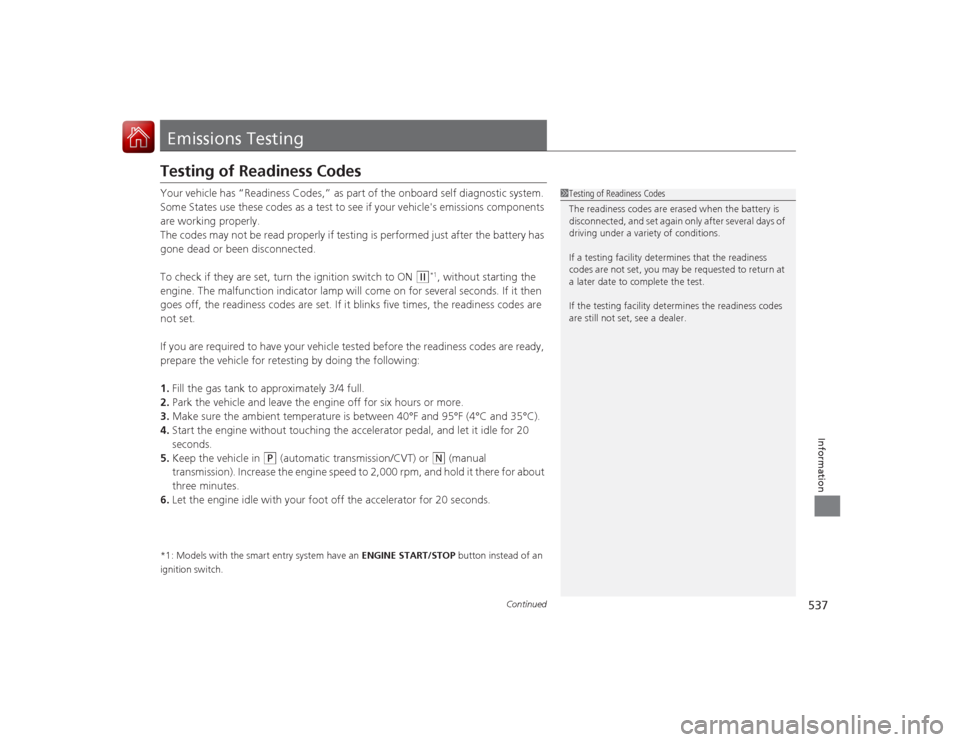

Emissions TestingTesting of Readiness CodesYour vehicle has “Readiness Codes,” as part of the onboard self diagnostic system.
Some States use these codes as a test to see if your vehicle's emissions components
are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, turn the ignition switch to ON
(w
*1, without starting the
engine. The malfunction indicator lamp will come on for several seconds. If it then
goes off, the readiness codes are set. If it blinks five times, the readiness codes are
not set.
If you are required to have your vehicle tested before the readiness codes are ready,
prepare the vehicle for retesting by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for six hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the accelerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P
(automatic transmission/CVT) or
(N
(manual
transmission). Increase the engine speed to 2,000 rpm, and hold it there for about
three minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.
If a testing facility dete rmines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing faci lity determines the readiness codes
are still not set, see a dealer.

538
uuEmissions Testing uTesting of Readiness Codes
Information

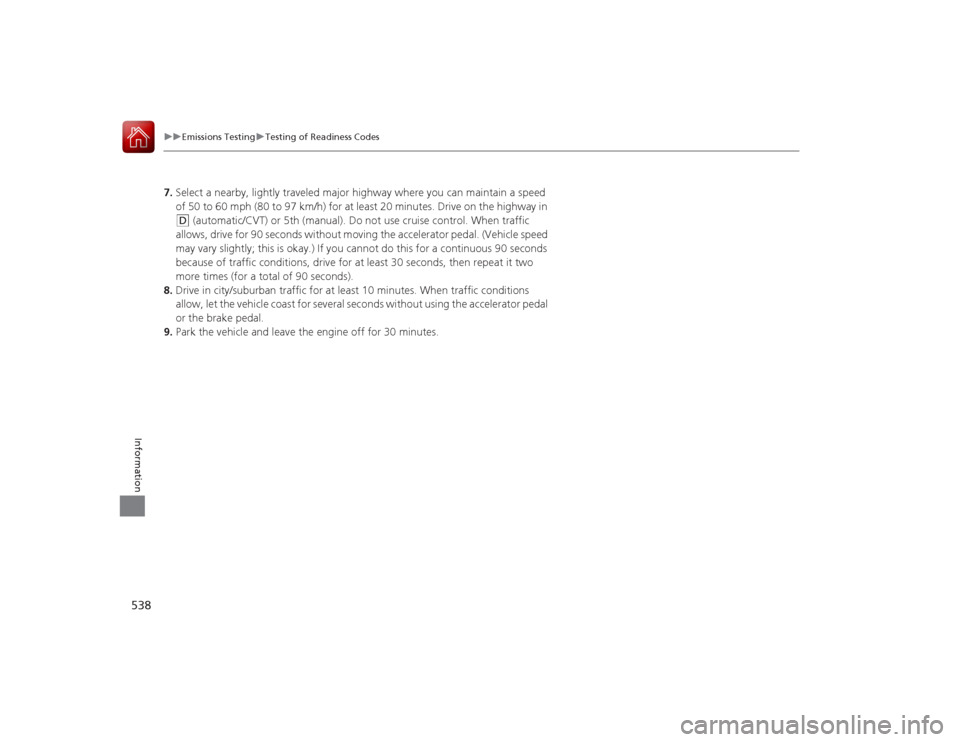

7. Select a nearby, lightly traveled major highway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D
(automatic/CVT) or 5th (manual). Do not use cruise control. When traffic
allows, drive for 90 seconds without moving the accelerator pedal. (Vehicle speed
may vary slightly; this is okay.) If you cannot do this for a continuous 90 seconds
because of traffic conditions, drive for at least 30 seconds, then repeat it two
more times (for a total of 90 seconds).
8. Drive in city/suburban traffic for at least 10 minutes. When traffic conditions
allow, let the vehicle coast for several seconds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.

539
Continued
Information

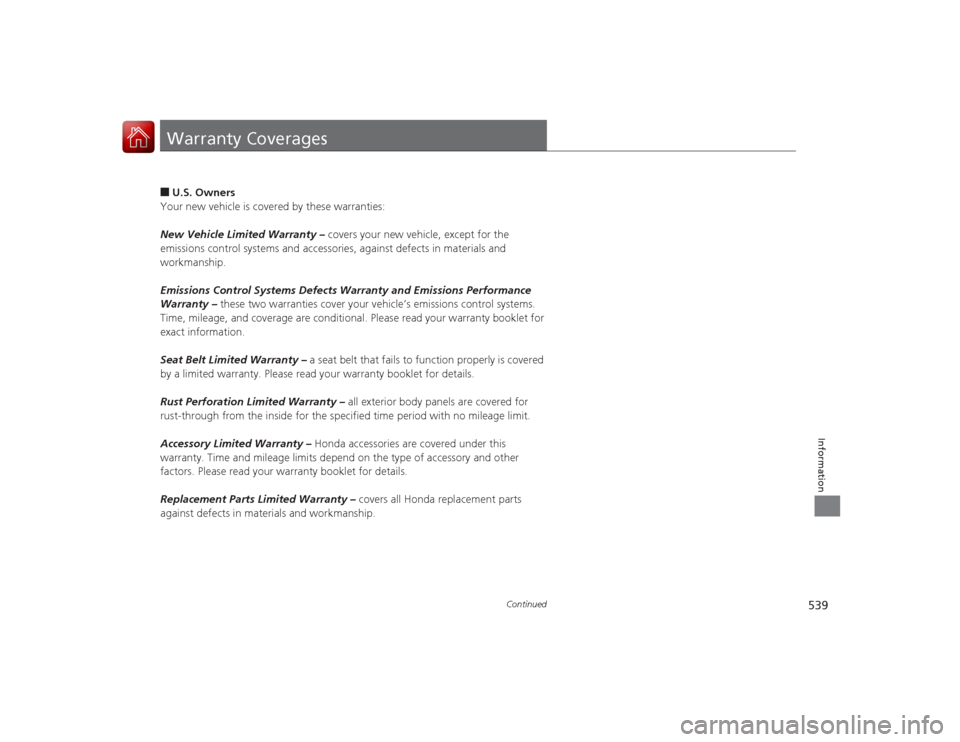

Warranty Coverages■U.S. Owners
Your new vehicle is covered by these warranties:
New Vehicle Limited Warranty – covers your new vehicle, except for the
emissions control systems and accessories, against defects in materials and
workmanship.
Emissions Control Systems Defects Warranty and Emissions Performance
Warranty – these two warranties cover your vehicle’s emissions control systems.
Time, mileage, and coverage are conditional. Please read your warranty booklet for
exact information.
Seat Belt Limited Warranty – a seat belt that fails to function properly is covered
by a limited warranty. Please read your warranty booklet for details.
Rust Perforation Limited Warranty – all exterior body panels are covered for
rust-through from the inside for the specified time period with no mileage limit.
Accessory Limited Warranty – Honda accessories are covered under this
warranty. Time and mileage limits depend on the type of accessory and other
factors. Please read your warranty booklet for details.
Replacement Parts Limited Warranty – covers all Honda replacement parts
against defects in materials and workmanship.
