HONDA ACCORD COUPE 2015 9.G Manual PDF

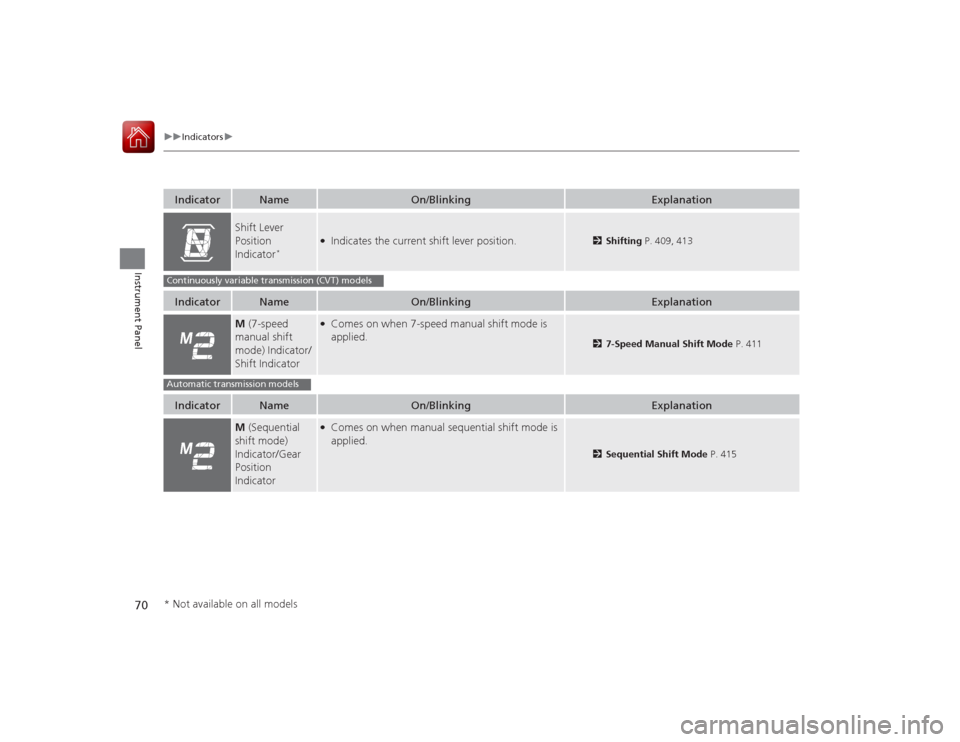

70
uuIndicators u
Instrument Panel
Indicator
Name
On/Blinking
Explanation
Shift Lever
Position
Indicator
*
●Indicates the current shift lever position.
2Shifting P. 409, 413
Indicator
Name
On/Blinking
Explanation
M (7-speed
manual shift
mode) Indicator/
Shift Indicator
●Comes on when 7-speed manual shift mode is
applied.
2 7-Speed Manual Shift Mode P. 411
Indicator
Name
On/Blinking
Explanation
M (Sequential
shift mode)
Indicator/Gear
Position
Indicator
●Comes on when manual sequential shift mode is
applied.
2 Sequential Shift Mode P. 415
Continuously variable transmission (CVT) modelsAutomatic transmission models* Not available on all models

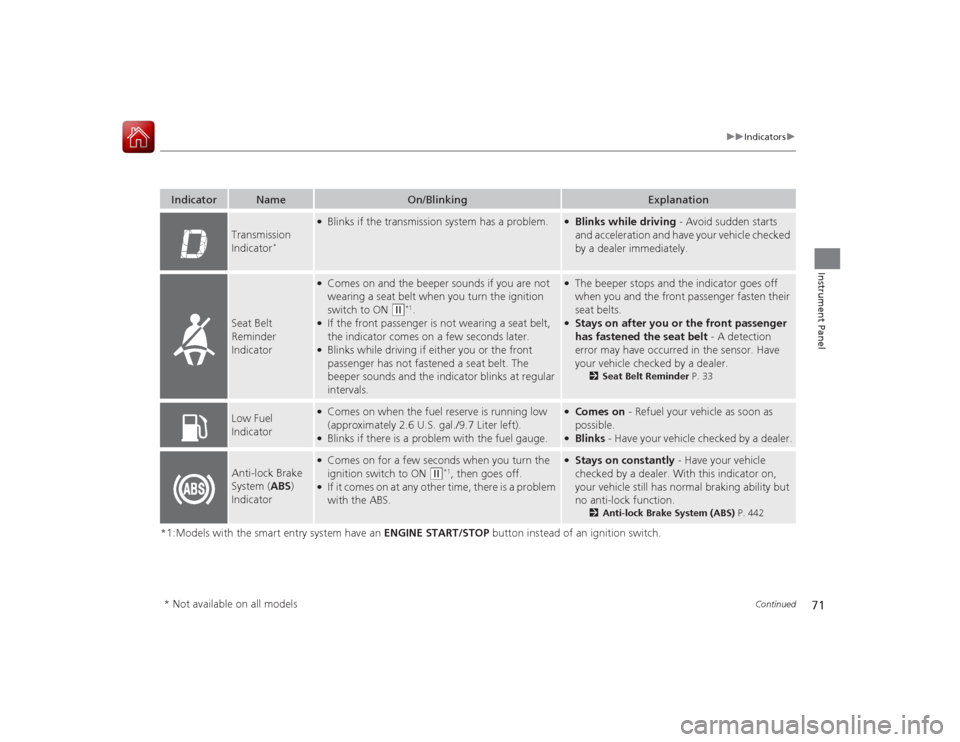

71
uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.Indicator
Name
On/Blinking
Explanation
Transmission
Indicator
*
●Blinks if the transmission system has a problem.
●Blinks while driving - Avoid sudden starts
and acceleration and have your vehicle checked
by a dealer immediately.
Seat Belt
Reminder
Indicator
●Comes on and the beeper sounds if you are not
wearing a seat belt when you turn the ignition
switch to ON
(w
*1.
●If the front passenger is not wearing a seat belt,
the indicator comes on a few seconds later.●Blinks while driving if either you or the front
passenger has not fastened a seat belt. The
beeper sounds and the indicator blinks at regular
intervals.
●The beeper stops and the indicator goes off
when you and the front passenger fasten their
seat belts.●Stays on after you or the front passenger
has fastened the seat belt - A detection
error may have occurred in the sensor. Have
your vehicle checked by a dealer.
2 Seat Belt Reminder P. 33
Low Fuel
Indicator
●Comes on when the fuel reserve is running low
(approximately 2.6 U.S. gal./9.7 Liter left).●Blinks if there is a problem with the fuel gauge.
●Comes on - Refuel your vehicle as soon as
possible.●Blinks - Have your vehicle checked by a dealer.
Anti-lock Brake
System ( ABS)
Indicator
●Comes on for a few seconds when you turn the
ignition switch to ON
(w
*1, then goes off.
●If it comes on at any other time, there is a problem
with the ABS.
●Stays on constantly - Have your vehicle
checked by a dealer. With this indicator on,
your vehicle still has normal braking ability but
no anti-lock function.
2 Anti-lock Brake System (ABS) P. 442
* Not available on all models

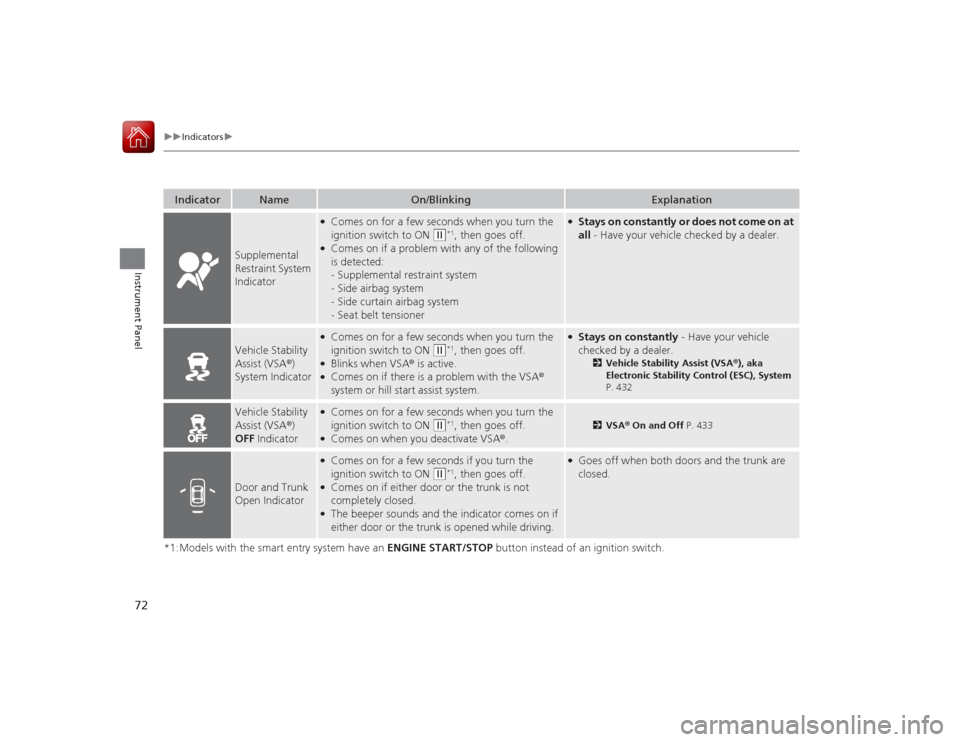

72
uuIndicators u
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.Indicator
Name
On/Blinking
Explanation
Supplemental
Restraint System
Indicator
●Comes on for a few seconds when you turn the
ignition switch to ON
(w
*1, then goes off.
●Comes on if a problem with any of the following
is detected:
-Supplemental restraint system
- Side airbag system
- Side curtain airbag system
- Seat belt tensioner
●Stays on constantly or does not come on at
all - Have your vehicle checked by a dealer.
Vehicle Stability
Assist (VSA ®)
System Indicator
●Comes on for a few seconds when you turn the
ignition switch to ON
(w
*1, then goes off.
●Blinks when VSA ® is active.●Comes on if there is a problem with the VSA®
system or hill start assist system.
●Stays on constantly - Have your vehicle
checked by a dealer.
2 Vehicle Stability Assist (VSA® ), aka
Electronic Stability Control (ESC), System
P. 432
Vehicle Stability
Assist (VSA ®)
OFF Indicator
●Comes on for a few seconds when you turn the
ignition switch to ON
(w
*1, then goes off.
●Comes on when you deactivate VSA ®.
2VSA ® On and Off P. 433
Door and Trunk
Open Indicator
●Comes on for a few seconds if you turn the
ignition switch to ON
(w
*1, then goes off.
●Comes on if either door or the trunk is not
completely closed.●The beeper sounds and the indicator comes on if
either door or the trunk is opened while driving.
●Goes off when both doors and the trunk are
closed.

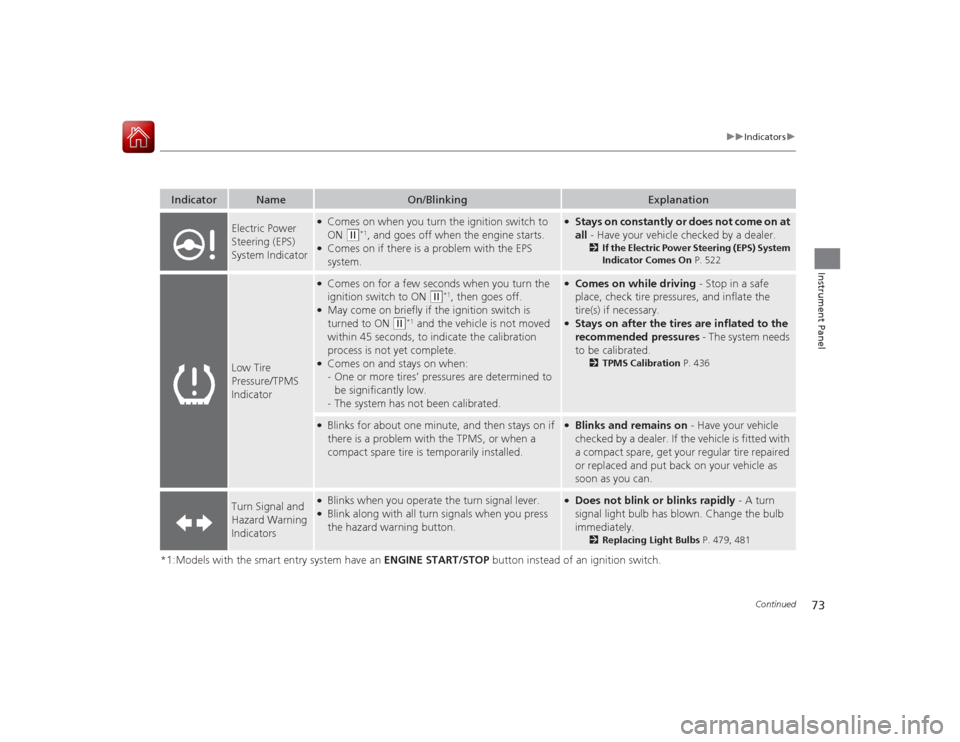

73
uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.Indicator
Name
On/Blinking
Explanation
Electric Power
Steering (EPS)
System Indicator
●Comes on when you turn the ignition switch to
ON
(w
*1, and goes off when the engine starts.
●Comes on if there is a problem with the EPS
system.
●Stays on constantly or does not come on at
all - Have your vehicle checked by a dealer.
2 If the Electric Power Steering (EPS) System
Indicator Comes On P. 522
Low Tire
Pressure/TPMS
Indicator
●Comes on for a few seconds when you turn the
ignition switch to ON
(w
*1, then goes off.
●May come on briefly if the ignition switch is
turned to ON
(w
*1 and the vehicle is not moved
within 45 seconds, to indicate the calibration
process is not yet complete.
●Comes on and stays on when:
- One or more tires’ pressures are determined to
be significantly low.
- The system has not been calibrated.
●Comes on while driving - Stop in a safe
place, check tire pressures, and inflate the
tire(s) if necessary.●Stays on after the tires are inflated to the
recommended pressures - The system needs
to be calibrated.
2 TPMS Calibration P. 436
●Blinks for about one minute, and then stays on if
there is a problem with the TPMS, or when a
compact spare tire is temporarily installed.
●Blinks and remains on - Have your vehicle
checked by a dealer. If the vehicle is fitted with
a compact spare, get your regular tire repaired
or replaced and put back on your vehicle as
soon as you can.
Turn Signal and
Hazard Warning
Indicators
●Blinks when you operate the turn signal lever.●Blink along with all turn signals when you press
the hazard warning button.
●Does not blink or blinks rapidly - A turn
signal light bulb has blown. Change the bulb
immediately.
2 Replacing Light Bulbs P. 479, 481

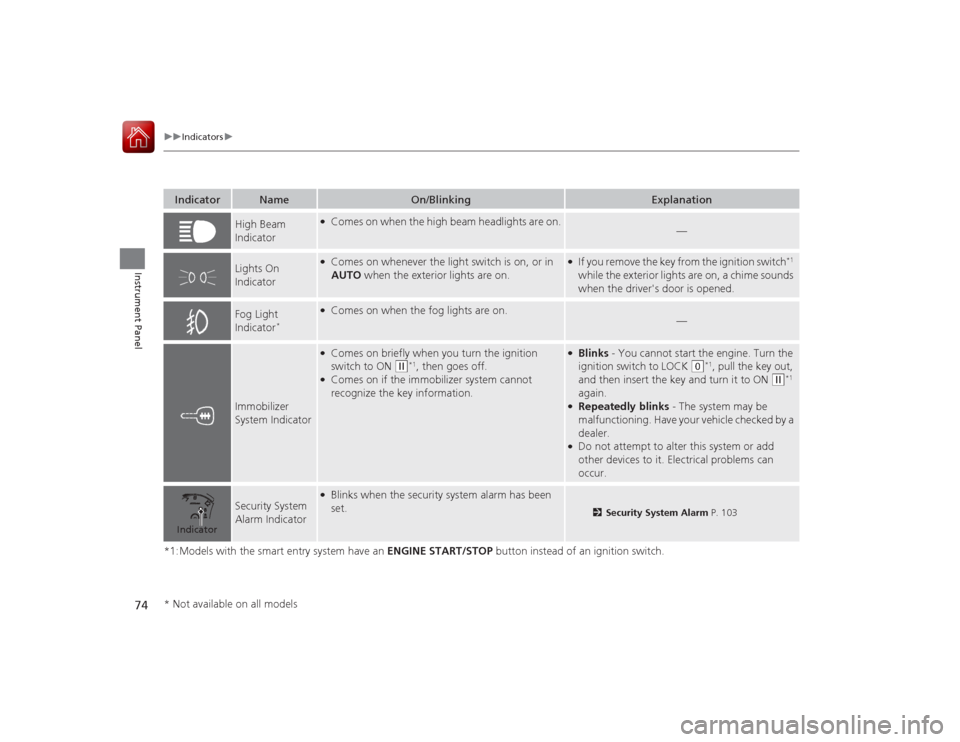

74
uuIndicators u
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.Indicator
Name
On/Blinking
Explanation
High Beam
Indicator
●Comes on when the high beam headlights are on.
—
Lights On
Indicator
●Comes on whenever the light switch is on, or in
AUTO when the exterior lights are on.
●If you remove the key from the ignition switch
*1
while the exterior lights are on, a chime sounds
when the driver's door is opened.
Fog Light
Indicator
*
●Comes on when the fog lights are on.
—
Immobilizer
System Indicator
●Comes on briefly when you turn the ignition
switch to ON
(w
*1, then goes off.
●Comes on if the immobilizer system cannot
recognize the key information.
●Blinks - You cannot start the engine. Turn the
ignition switch to LOCK
(0
*1, pull the key out,
and then insert the key and turn it to ON
(w
*1
again.
●Repeatedly blinks - The system may be
malfunctioning. Have your vehicle checked by a
dealer.●Do not attempt to alter this system or add
other devices to it. Electrical problems can
occur.
Security System
Alarm Indicator
●Blinks when the security system alarm has been
set.
2 Security System Alarm P. 103
Indicator
* Not available on all models

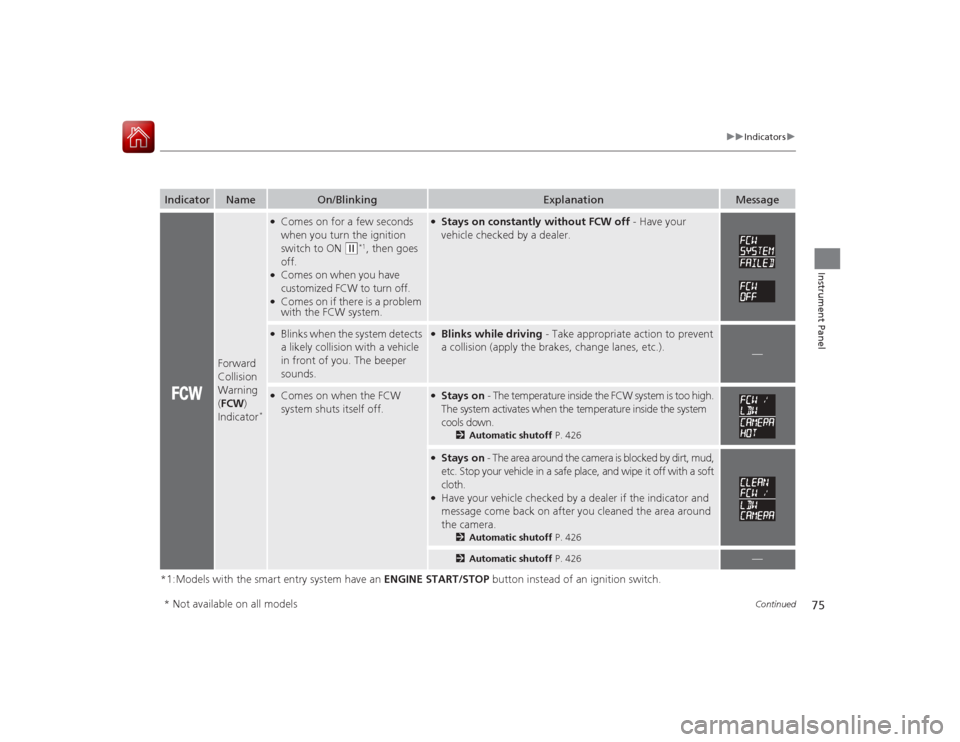

75
uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.Indicator
Name
On/Blinking
Explanation
Message
Forward
Collision
Warning
(FCW )
Indicator
*●Comes on for a few seconds
when you turn the ignition
switch to ON
(w
*1, then goes
off.
●Comes on when you have
customized FCW to turn off.●Comes on if there is a problem
with the FCW system.
●Stays on constantly without FCW off - Have your
vehicle checked by a dealer.
●Blinks when the system detects
a likely collision with a vehicle
in front of you. The beeper
sounds.
●Blinks while driving - Take appropriate action to prevent
a collision (apply the brakes, change lanes, etc.).
—
●Comes on when the FCW
system shuts itself off.
●Stays on - The temperature inside the FCW system is too high.
The system activates when the tem perature inside the system
cools down.
2 Automatic shutoff P. 426
●Stays on - The area around the camera is blocked by dirt, mud,
etc. Stop your vehicle in a safe place, and wipe it off with a soft
cloth.●Have your vehicle checked by a dealer if the indicator and
message come back on after you cleaned the area around
the camera.
2 Automatic shutoff P. 4262Automatic shutoff P. 426
—
* Not available on all models

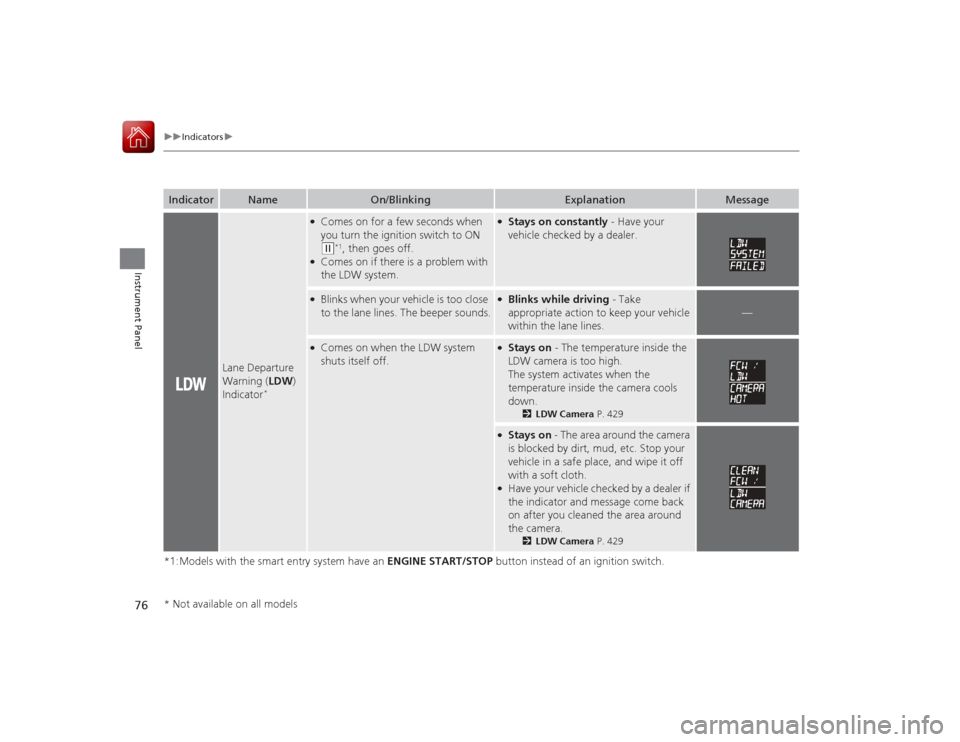

76
uuIndicators u
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.Indicator
Name
On/Blinking
Explanation
Message
Lane Departure
Warning (LDW)
Indicator
*
●Comes on for a few seconds when
you turn the ignition switch to ON (w
*1, then goes off.
●Comes on if there is a problem with
the LDW system.
●Stays on constantly - Have your
vehicle checked by a dealer.
●Blinks when your vehicle is too close
to the lane lines. The beeper sounds.
●Blinks while driving - Take
appropriate action to keep your vehicle
within the lane lines.
—
●Comes on when the LDW system
shuts itself off.
●Stays on - The temperature inside the
LDW camera is too high.
The system activates when the
temperature inside the camera cools
down.
2 LDW Camera P. 429
●Stays on - The area around the camera
is blocked by dirt, mud, etc. Stop your
vehicle in a safe place, and wipe it off
with a soft cloth.●Have your vehicle checked by a dealer if
the indicator and message come back
on after you cleaned the area around
the camera.
2 LDW Camera P. 429
* Not available on all models

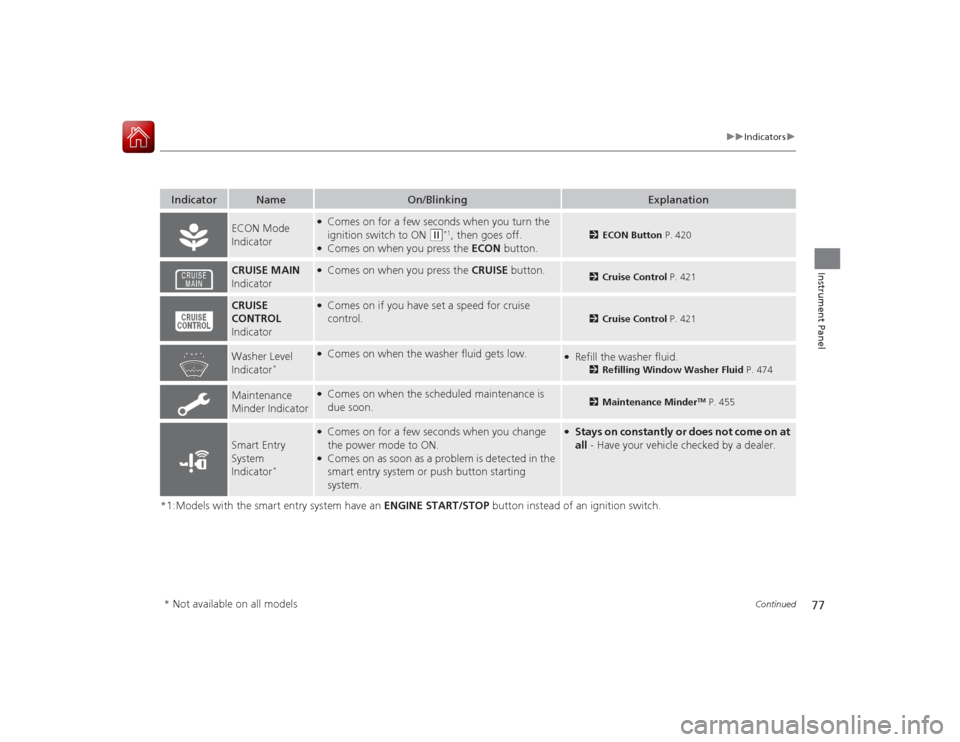

77
uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.Indicator
Name
On/Blinking
Explanation
ECON Mode
Indicator
●Comes on for a few seconds when you turn the
ignition switch to ON
(w
*1, then goes off.
●Comes on when you press the ECON button.
2ECON Button P. 420
CRUISE MAIN
Indicator
●Comes on when you press the CRUISE button.
2Cruise Control P. 421
CRUISE
CONTROL
Indicator
●Comes on if you have set a speed for cruise
control.
2 Cruise Control P. 421
Washer Level
Indicator
*
●Comes on when the washer fluid gets low.
●Refill the washer fluid.
2Refilling Window Washer Fluid P. 474
Maintenance
Minder Indicator
●Comes on when the scheduled maintenance is
due soon.
2Maintenance Minder
TM P. 455
Smart Entry
System
Indicator
*
●Comes on for a few seconds when you change
the power mode to ON.●Comes on as soon as a problem is detected in the
smart entry system or push button starting
system.
●Stays on constantly or does not come on at
all - Have your vehicle checked by a dealer.
* Not available on all models

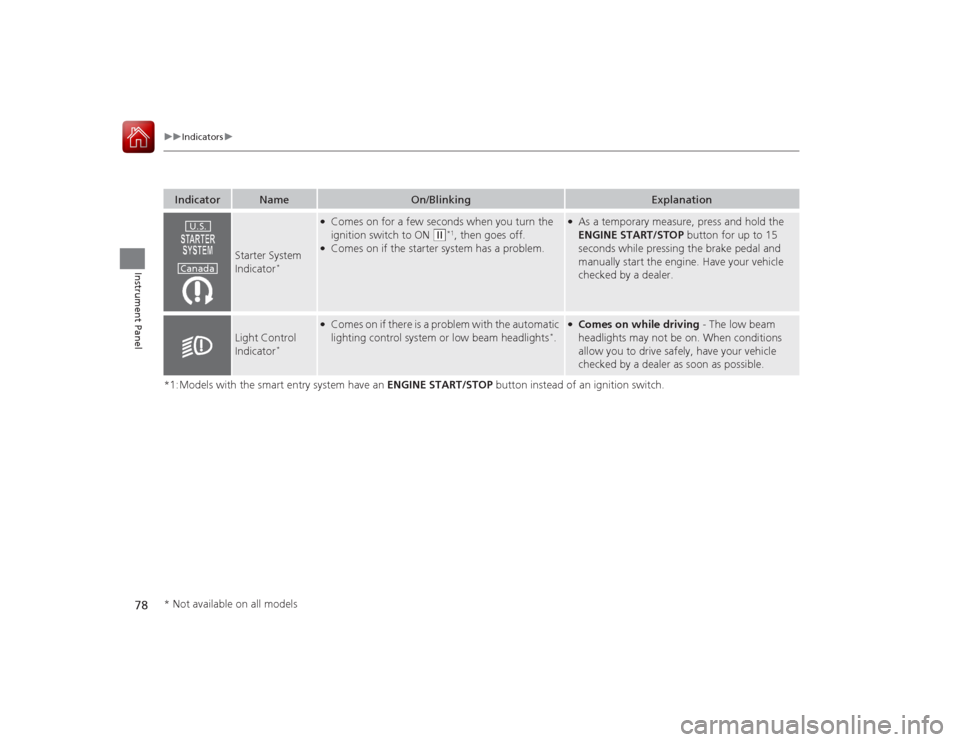

78
uuIndicators u
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.Indicator
Name
On/Blinking
Explanation
Starter System
Indicator
*
●Comes on for a few seconds when you turn the
ignition switch to ON
(w
*1, then goes off.
●Comes on if the starter system has a problem.
●As a temporary measure, press and hold the
ENGINE START/STOP button for up to 15
seconds while pressing the brake pedal and
manually start the engine. Have your vehicle
checked by a dealer.
Light Control
Indicator
*
●Comes on if there is a problem with the automatic
lighting control system or low beam headlights
*.
●Comes on while driving - The low beam
headlights may not be on. When conditions
allow you to drive safely, have your vehicle
checked by a dealer as soon as possible.
U.S.
Canada
* Not available on all models

79
uuIndicators uInformation Display Warning and Information Messages
Continued
Instrument Panel

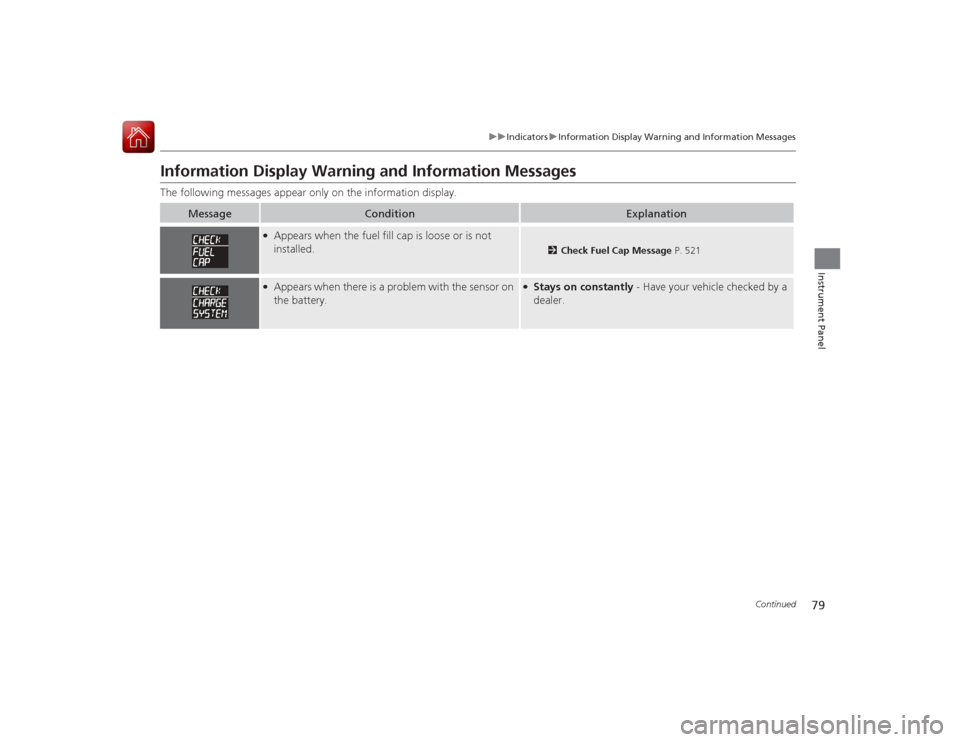

Information Display Warning and Information MessagesThe following messages appear only on the information display.
Message
Condition
Explanation
●Appears when the fuel fill cap is loose or is not
installed.
2 Check Fuel Cap Message P. 521
●Appears when there is a problem with the sensor on
the battery.
●Stays on constantly - Have your vehicle checked by a
dealer.
