HONDA ACCORD COUPE 2016 9.G Owners Manual

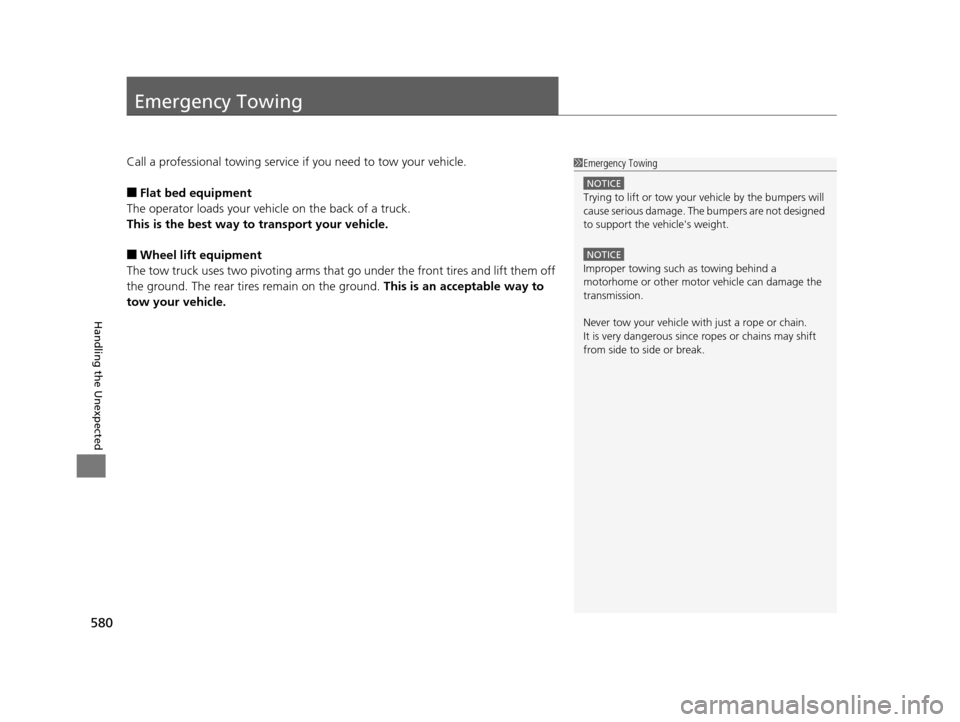

580
Handling the Unexpected
Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■Wheel lift equipment
The tow truck uses two pivoti ng arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1 Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.
NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 580 ページ ２０１５年７月２３日　木曜日　午後４時１１分

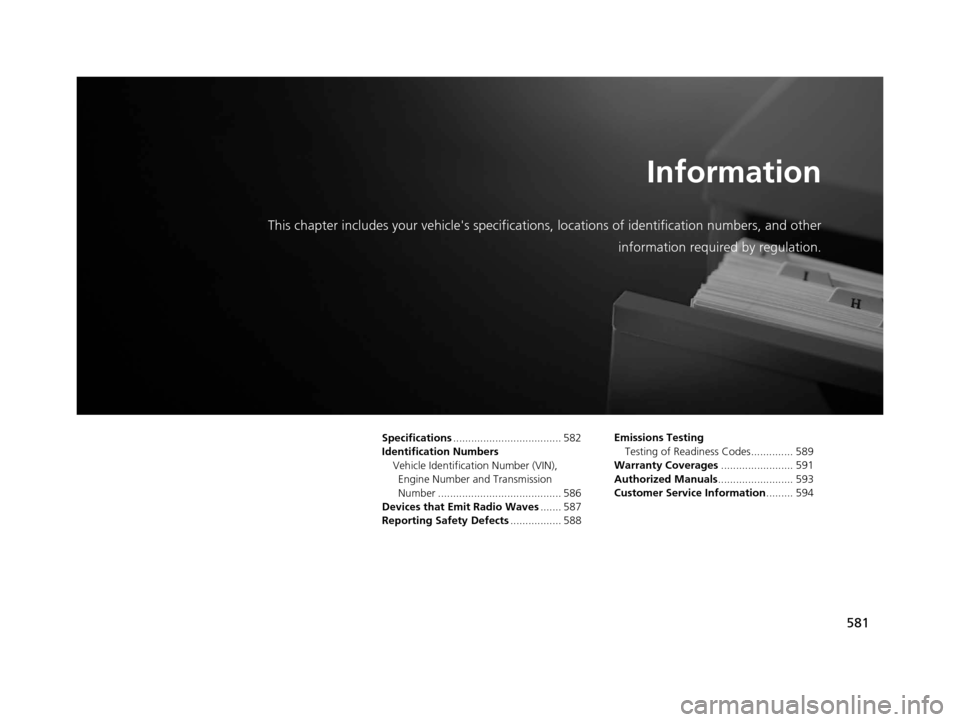

581
Information
This chapter includes your vehicle's specifications, locations of identification numbers, and other
information required by regulation.
Specifications .................................... 582
Identification Numbers Vehicle Identification Number (VIN), Engine Number and Transmission
Number ......................................... 586
Devices that Emit Radio Waves ....... 587
Reporting Safety Defects ................. 588Emissions Testing
Testing of Readiness Codes.............. 589
Warranty Coverages ........................ 591
Authorized Manuals ......................... 593
Customer Service Information ......... 594
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 581 ページ ２０１５年７月２３日　木曜日　午後４時１１分

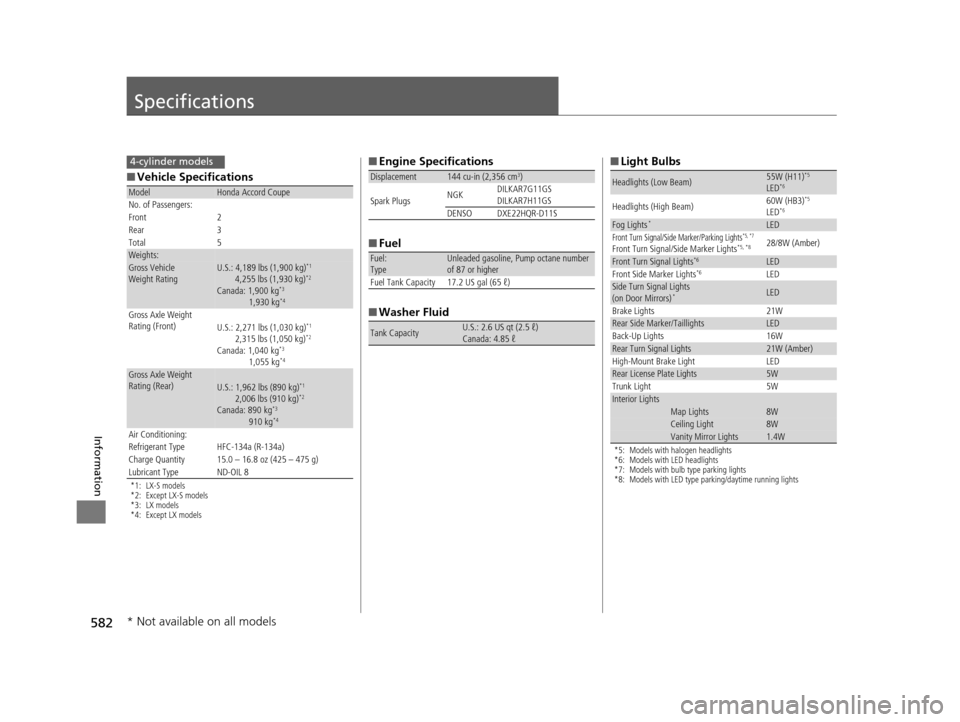

582
Information
Specifications
■Vehicle Specifications
*1: LX-S models
*2: Except LX-S models
*3: LX models
*4: Except LX models
ModelHonda Accord Coupe
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating U.S.: 4,189 lbs (1,900 kg)*1
4,255 lbs (1,930 kg)*2
Canada: 1,900 kg*3
1,930 kg*4
Gross Axle Weight
Rating (Front)U.S.: 2,271 lbs (1,030 kg)*1
2,315 lbs (1,050 kg)*2
Canada: 1,040 kg*3
1,055 kg*4
Gross Axle Weight
Rating (Rear)U.S.: 1,962 lbs (890 kg)*1
2,006 lbs (910 kg)*2
Canada: 890 kg*3
910 kg*4
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 15.0 – 16.8 oz (425 – 475 g)
Lubricant Type ND-OIL 8
4-cylinder models■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement144 cu-in (2,356 cm3)
Spark Plugs NGK
DILKAR7G11GS
DILKAR7H11GS
DENSO DXE22HQR-D11S
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 17.2 US gal (65 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.85 ℓ
■ Light Bulbs
*5: Models with halogen headlights
*6: Models with LED headlights
*7: Models with bulb type parking lights
*8: Models with LED type parking/daytime running lights
Headlights (Low Beam)55W (H11)*5
LED*6
Headlights (High Beam) 60W (HB3)*5
LED*6
Fog Lights*LEDFront Turn Signal/Side Marker/Parking Lights*5, *7
Front Turn Signal/Side Marker Lights*5, *828/8W (Amber)
Front Turn Signal Lights*6LED
Front Side Marker Lights*6LEDSide Turn Signal Lights
(on Door Mirrors)*LED
Brake Lights 21W
Rear Side Marker/TaillightsLED
Back-Up Lights 16W
Rear Turn Signal Lights21W (Amber)
High-Mount Brake Light LED
Rear License Plate Lights5W
Trunk Light 5W
Interior LightsMap Lights8WCeiling Light8WVanity Mirror Lights1.4W
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 582 ページ ２０１５年７月２３日　木曜日　午後４時１１分

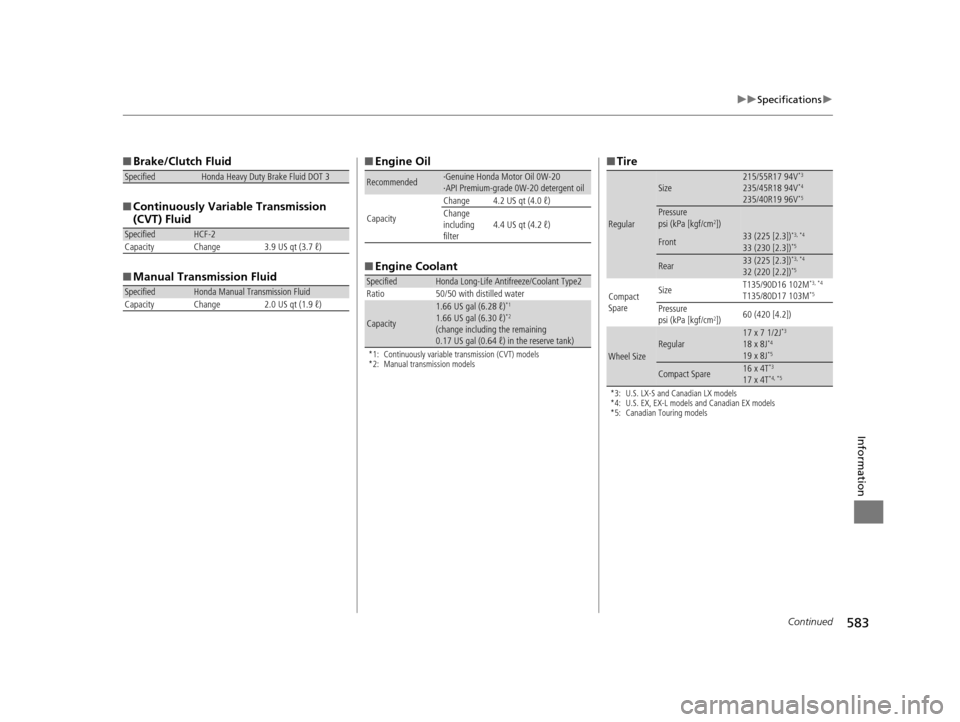

583
uuSpecifications u
Continued
Information
■Brake/Clutch Fluid
■ Continuously Variable Transmission
(CVT) Fluid
■ Manual Transmission Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHCF-2
Capacity Change 3.9 US qt (3.7 ℓ)
SpecifiedHonda Manual Transmission Fluid
Capacity Change 2.0 US qt (1.9 ℓ)
■ Engine Oil
■ Engine Coolant
*1: Continuously variable transmission (CVT) models
*2: Manual transmission models
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.2 US qt (4.0 ℓ)
Change
including
filter
4.4 US qt (4.2 ℓ)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.66 US gal (6.28 ℓ)*1
1.66 US gal (6.30 ℓ)*2
(change including the remaining
0.17 US gal (0.64 ℓ) in the reserve tank)
■ Tire
*3: U.S. LX-S and Canadian LX models
*4: U.S. EX, EX-L models and Canadian EX models
*5: Canadian Touring models
Regular
Size215/55R17 94V*3
235/45R18 94V*4
235/40R19 96V*5
Pressure
psi (kPa [kgf/cm2])
Front33 (225 [2.3])*3, *4
33 (230 [2.3])*5
Rear33 (225 [2.3])*3, *4
32 (220 [2.2])*5
Compact
Spare Size
T135/90D16 102M
*3, *4
T135/80D17 103M*5
Pressure
psi (kPa [kgf/cm2])60 (420 [4.2])
Wheel SizeRegular17 x 7 1/2J*3
18 x 8J*4
19 x 8J*5
Compact Spare16 x 4T*3
17 x 4T*4, *5
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 583 ページ ２０１５年７月２３日　木曜日　午後４時１１分

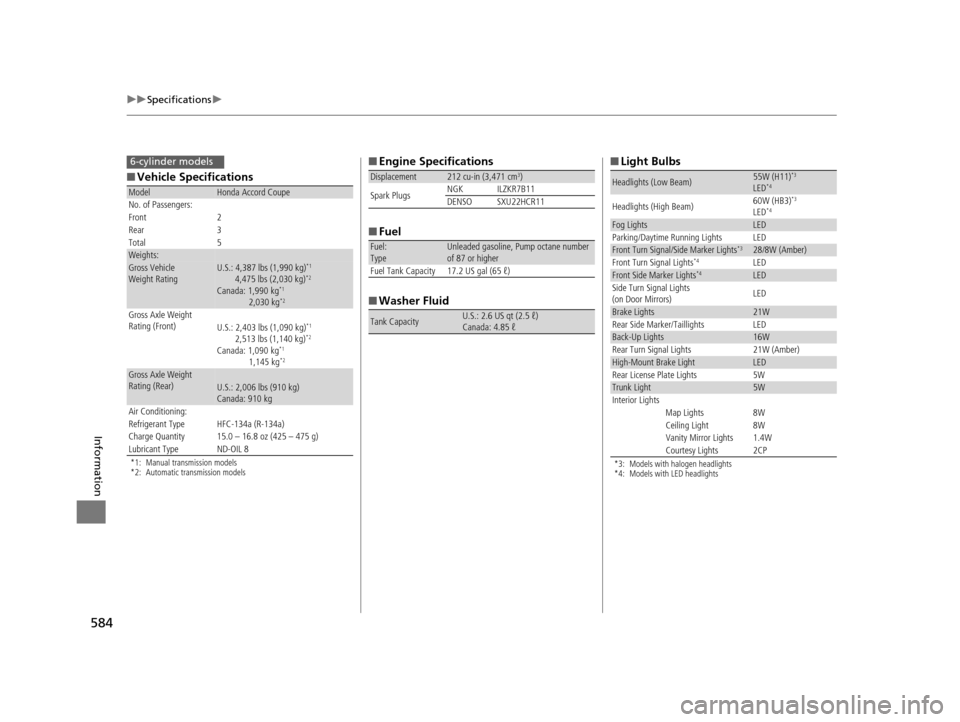

584
uuSpecifications u
Information
■Vehicle Specifications
*1: Manual transmission models
*2: Automatic transmission models
ModelHonda Accord Coupe
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating U.S.: 4,387 lbs (1,990 kg)*1
4,475 lbs (2,030 kg)*2
Canada: 1,990 kg*1
2,030 kg*2
Gross Axle Weight
Rating (Front)U.S.: 2,403 lbs (1,090 kg)*1
2,513 lbs (1,140 kg)*2
Canada: 1,090 kg*1
1,145 kg*2
Gross Axle Weight
Rating (Rear)U.S.: 2,006 lbs (910 kg)
Canada: 910 kg
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 15.0 – 16.8 oz (425 – 475 g)
Lubricant Type ND-OIL 8
6-cylinder models■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement212 cu-in (3,471 cm3)
Spark Plugs NGK ILZKR7B11
DENSO SXU22HCR11
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 17.2 US gal (65 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.85 ℓ
■ Light Bulbs
*3: Models with halogen headlights
*4: Models with LED headlights
Headlights (Low Beam)55W (H11)*3
LED*4
Headlights (High Beam) 60W (HB3)*3
LED*4
Fog LightsLED
Parking/Daytime Running Lights LED
Front Turn Signal/Side Marker Lights*328/8W (Amber)
Front Turn Signal Lights*4LEDFront Side Marker Lights*4LED
Side Turn Signal Lights
(on Door Mirrors) LED
Brake Lights21W
Rear Side Marker/Taillights LED
Back-Up Lights16W
Rear Turn Signal Lights 21W (Amber)
High-Mount Brake LightLED
Rear License Plate Lights 5W
Trunk Light5WInterior LightsMap Lights8WCeiling Light8WVanity Mirror Lights1.4WCourtesy Lights2CP
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 584 ページ ２０１５年７月２３日　木曜日　午後４時１１分

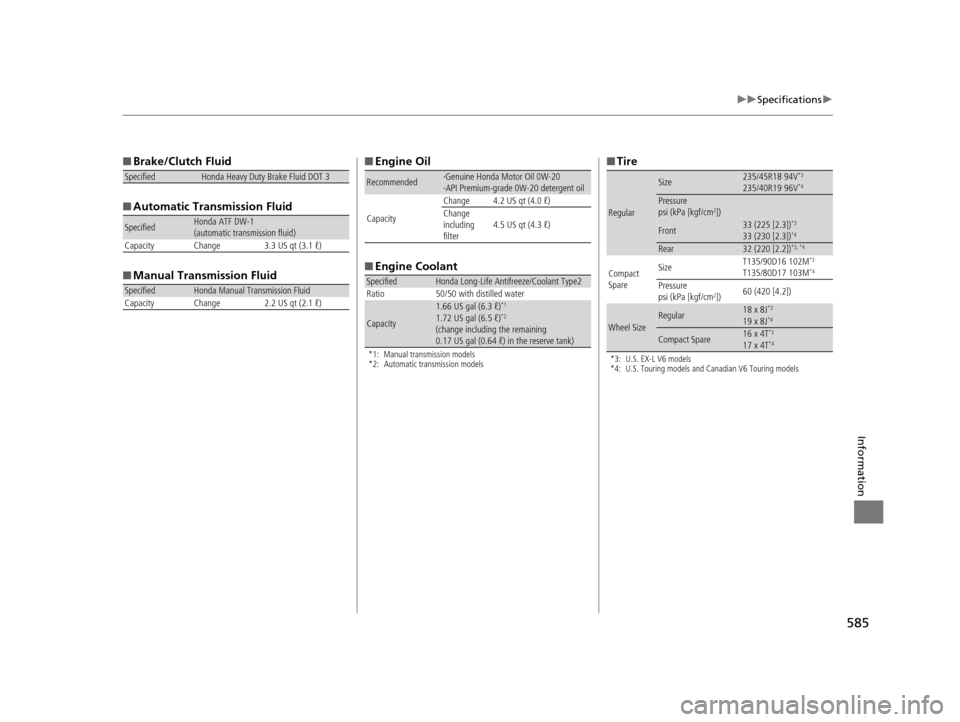

585
uuSpecifications u
Information
■Brake/Clutch Fluid
■ Automatic Transmission Fluid
■ Manual Transmission Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda ATF DW-1
(automatic transmission fluid)
Capacity Change 3.3 US qt (3.1 ℓ)
SpecifiedHonda Manual Transmission Fluid
Capacity Change 2.2 US qt (2.1 ℓ)
■ Engine Oil
■ Engine Coolant
*1: Manual transmission models
*2: Automatic transmission models
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.2 US qt (4.0 ℓ)
Change
including
filter
4.5 US qt (4.3 ℓ)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.66 US gal (6.3 ℓ)*1
1.72 US gal (6.5 ℓ)*2
(change including the remaining
0.17 US gal (0.64 ℓ) in the reserve tank)
■ Tire
*3: U.S. EX-L V6 models
*4: U.S. Touring models and Canadian V6 Touring models
Regular
Size235/45R18 94V*3
235/40R19 96V*4
Pressure
psi (kPa [kgf/cm2])
Front33 (225 [2.3])*3
33 (230 [2.3])*4
Rear32 (220 [2.2])*3, *4
Compact
Spare Size
T135/90D16 102M
*3
T135/80D17 103M*4
Pressure
psi (kPa [kgf/cm2])
60 (420 [4.2])
Wheel SizeRegular18 x 8J*3
19 x 8J*4
Compact Spare16 x 4T*3
17 x 4T*4
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 585 ページ ２０１５年７月２３日　木曜日　午後４時１１分

586
Information

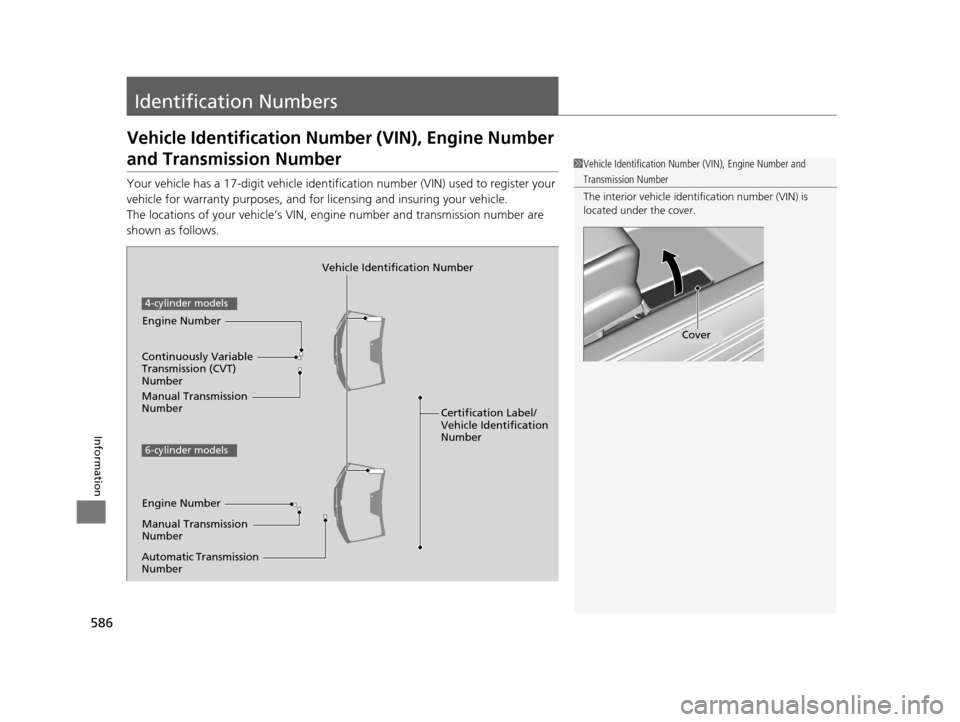

Identification Numbers
Vehicle Identification Number (VIN), Engine Number
and Transmission Number
Your vehicle has a 17-digit vehicle identifi cation number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, engine number and transmission number are
shown as follows.
1 Vehicle Identification Number (VIN), Engine Number and
Transmission Number
The interior vehicle identification number (VIN) is
located under the cover.
Cover
Vehicle Identification Number
Engine Number
Certification Label/
Vehicle Identification
Number
Manual Transmission
Number Continuously Variable
Transmission (CVT)
Number
6-cylinder models
4-cylinder models
Engine Number
Automatic Transmission
Number
Manual Transmission
Number
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 586 ページ ２０１５年７月２３日　木曜日　午後４時１１分

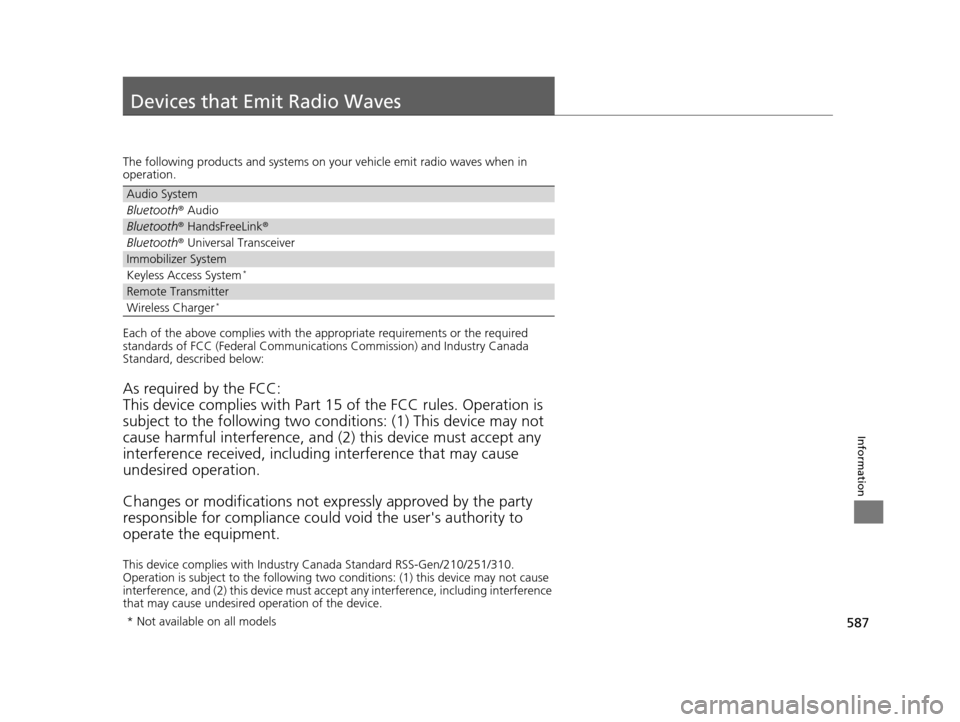

587
Information
Devices that Emit Radio Waves
The following products and systems on your vehicle emit radio waves when in
operation.
Each of the above complies with the appropriate requirements or the required
standards of FCC (Federal Communications Commission) and Industry Canada
Standard, described below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interferenc e, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
This device complies with Industry Canada Standard RSS-Gen/210/251/310.
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
Audio System
Bluetooth ® Audio
Bluetooth® HandsFreeLink ®
Bluetooth® Universal Transceiver
Immobilizer System
Keyless Access System*
Remote Transmitter
Wireless Charger*
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 587 ページ ２０１５年７月２３日　木曜日　午後４時１１分

588
Information
Reporting Safety Defects
In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform the Nati onal Highway Traffic Safety Administration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it may open an inve stigation, and if it finds that a safety defect exists
in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.
To contact NHTSA, you may call the Vehicle Safety Ho tline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov ; or write to: Administrator, NHTSA , 1200 New Jersey Avenue, SE.,
Washington, DC 20590. You can also obtain othe r information about motor vehicle safety from http://
www.safercar.gov .
In Canada
If you believe that your vehicle has a defect which c ould cause a crash or could cause injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.
If Transport Canada receives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may lead to a recall and remedy campaign. However, Transport Canada
cannot become involved in individual problems between you, your dealer, or Honda Canada Inc.
To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. For
more information on reporting safety defects or about motor vehicle safety, go to http://www.tc.gc.ca/
roadsafety .
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 588 ページ ２０１５年７月２３日　木曜日　午後４時１１分

589Continued
Information
Emissions Testing
Testing of Readiness Codes
Your vehicle has “Readiness Codes,” as part of the onboard self diagnostic system.
Some States use these codes as a test to see if your vehicle's emissions components
are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, turn the ignition switch to ON
(w*1, without starting the
engine. The malfunction indicator lamp will co me on for several seconds. If it then
goes off, the readiness codes are set. If it blinks five times, the readiness codes are
not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engi ne off for six hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P (automatic transmission/CVT) or (N (manual
transmission). Increase the engine speed to 2,000 rpm, and hold it there for about
three minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 589 ページ ２０１５年７月２３日　木曜日　午後４時１１分
