interior lights HONDA ACCORD COUPE 2016 9.G Owners Manual

Contents
Child Safety P. 54Exhaust Gas Hazard P. 66Safety Labels P. 67
Opening and Closing the Trunk P. 129 Security System P. 133 Opening and Closing the Windows P. 136
Operating the Switches Around the Steering Wheel P. 140 Adjusting the Mirrors P. 159
Interior Lights/Interior Convenience Items P. 169 Climate Control System P. 180
Audio Error Messages P. 286General Information on the Audio System P. 291
Bluetooth® HandsFreeLink ® P. 343, 374 Compass* P. 409
When Driving P. 421 Braking P. 479Parking Your Vehicle P. 491
Accessories and Modifications P. 500
Maintenance Under the Hood P. 513 Replacing Light Bulbs P. 529
Checking and Maintaining Tires P. 537 Battery P. 546 Remote Transmitter Care P. 547
Cleaning P. 550
Engine Does Not Start P. 563 Jump Starting P. 566 Shift Lever Does Not Move P. 569
Fuses P. 576 Emergency Towing P. 580
Devices that Emit Radio Waves P. 587 Reporting Safety Defects P. 588
Authorized Manuals P. 593 Customer Service Information P. 594
Quick Reference GuideP. 4
Safe DrivingP. 29
Instrument PanelP. 69
ControlsP. 115
FeaturesP. 185
DrivingP. 411
MaintenanceP. 501
Handling the UnexpectedP. 555
InformationP. 581
IndexP. 598
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 3 ページ ２０１５年７月２３日　木曜日　午後４時１１分

111

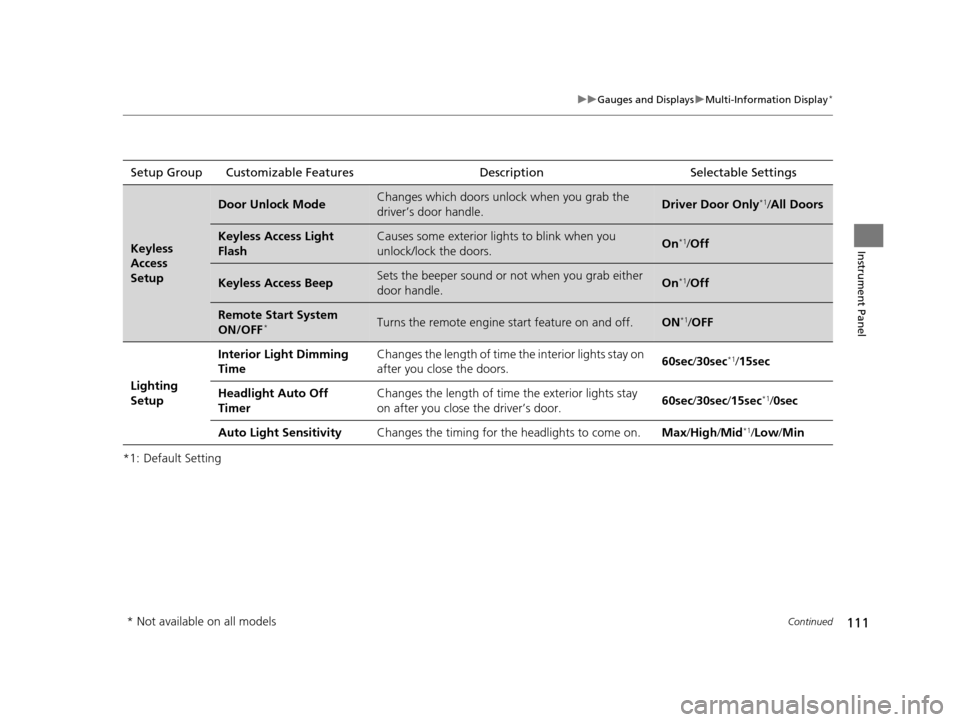

uuGauges and Displays uMulti-Information Display*
Continued
Instrument Panel
*1: Default SettingSetup Group Customizable Features
Description Selectable Settings
Keyless
Access
Setup
Door Unlock ModeChanges which doors unlock when you grab the
driver’s door handle.Driver Door Only*1/All Doors
Keyless Access Light
FlashCauses some exterior lights to blink when you
unlock/lock the doors.On*1/ Off
Keyless Access BeepSets the beeper sound or not when you grab either
door handle.On*1/Off
Remote Start System
ON/OFF*Turns the remote engine start feature on and off.ON*1/OFF
Lighting
Setup Interior Light Dimming
Time
Changes the length of time the interior lights stay on
after you close the doors.
60sec
/30sec
*1/15sec
Headlight Auto Off
Timer Changes the length of time
the exterior lights stay
on after you close the driver’s door. 60sec
/30sec /15sec
*1/ 0sec
Auto Light Sensitivity Changes the timing for the headlights to come on. Max/High /Mid
*1/Low /Min
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 111 ページ ２０１５年７月２３日　木曜日　午後４時１１分

115
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 116
Locking and Unlocking the Doors
Key Types and Functions .................. 118
Low Smart Entry Remote Signal Strength*... 120Locking/Unlocking the Doors from the Outside .......................................... 121
Locking/Unlocking the Doors from the
Inside ............................................. 126
Auto Door Locking/Unlocking .......... 128
Opening and Closing the Trunk ....... 129
Security System Immobilizer System .......................... 133
Security System Alarm ...................... 133
Opening and Closing the Windows ... 136
Opening and Closing the Moonroof*...139
Operating the Switches Around the
Steering Wheel
Ignition Switch
*............................... 140
ENGINE START/STOP Button*........... 141
Ignition Switch and Power Mode
Comparison ................................... 144
Turn Signals ..................................... 145
Light Switches.................................. 145
Fog Lights
*...................................... 147
Auto High-Beam (H igh Beam Support
System)
*........................................ 148
Daytime Running Lights ................... 151
Wipers and Washers ........................ 152
Brightness Control ........................... 154 Rear Defogger/Heated Door Mirror
*
Button ........................................... 155
Driving Position Memory System
*.... 156
Adjusting the Steering Wheel .......... 158
Adjusting the Mirrors
Interior Rearview Mirror ................... 159
Power Door Mirrors ......................... 160
Adjusting the Seats .......................... 161
Interior Lights/Interior Convenience Items ................................................ 169
Climate Control System
Using Automatic Climate Control .... 180
Synchronized Mode ......................... 182
Automatic Climate Control Sensors ... 183
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 115 ページ ２０１５年７月２３日　木曜日　午後４時１１分

Continued123

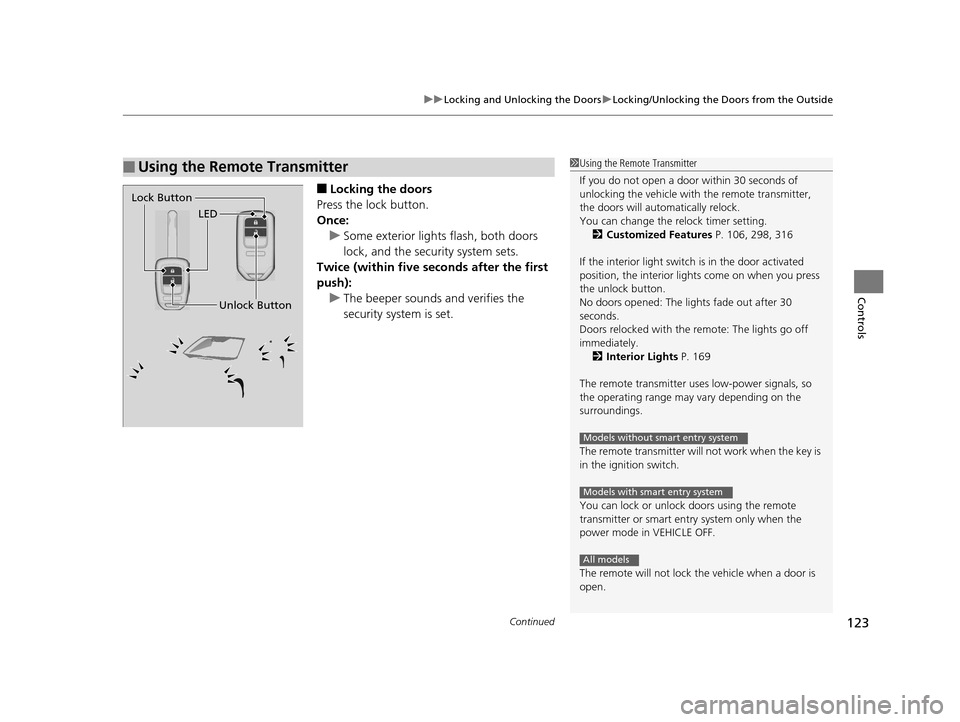

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
■Locking the doors
Press the lock button.
Once: u Some exterior lights flash, both doors
lock, and the security system sets.
Twice (within five se conds after the first
push): u The beeper sounds and verifies the
security system is set.
■Using the Remote Transmitter1Using the Remote Transmitter
If you do not open a door within 30 seconds of
unlocking the vehicle with the remote transmitter,
the doors will automatically relock.
You can change the relock timer setting. 2 Customized Features P. 106, 298, 316
If the interior light switch is in the door activated
position, the interior light s come on when you press
the unlock button.
No doors opened: The li ghts fade out after 30
seconds.
Doors relocked with the remote: The lights go off
immediately. 2 Interior Lights P. 169
The remote transmitter us es low-power signals, so
the operating range may vary depending on the
surroundings.
The remote transmitter will not work when the key is
in the ignition switch.
You can lock or unlock doors using the remote
transmitter or smart entry system only when the
power mode in VEHICLE OFF.
The remote will not lock the vehicle when a door is
open.
Models without smart entry system
Models with smart entry system
All models
LED
Unlock Button
Lock Button
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 123 ページ ２０１５年７月２３日　木曜日　午後４時１１分

159
Controls

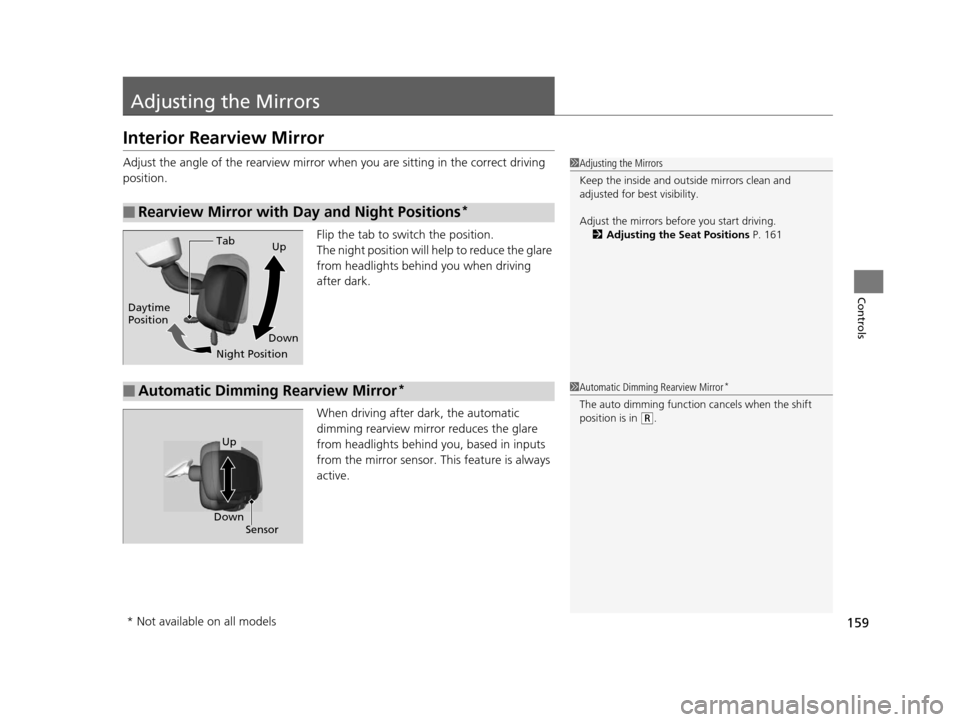

Adjusting the Mirrors
Interior Rearview Mirror
Adjust the angle of the rearview mirror when you are sitting in the correct driving
position.
Flip the tab to switch the position.
The night position will help to reduce the glare
from headlights behind you when driving
after dark.
When driving after dark, the automatic
dimming rearview mirror reduces the glare
from headlights behind you, based in inputs
from the mirror sensor. This feature is always
active.
■Rearview Mirror with Day and Night Positions*
1Adjusting the Mirrors
Keep the inside and out side mirrors clean and
adjusted for best visibility.
Adjust the mirrors before you start driving. 2 Adjusting the Seat Positions P. 161
Tab
Daytime
Position
Night PositionUp
Down
■Automatic Dimming Rearview Mirror*1 Automatic Dimming Rearview Mirror*
The auto dimming function cancels when the shift
position is in
(R.
Sensor
Up
Down
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 159 ページ ２０１５年７月２３日　木曜日　午後４時１１分

169Continued
Controls

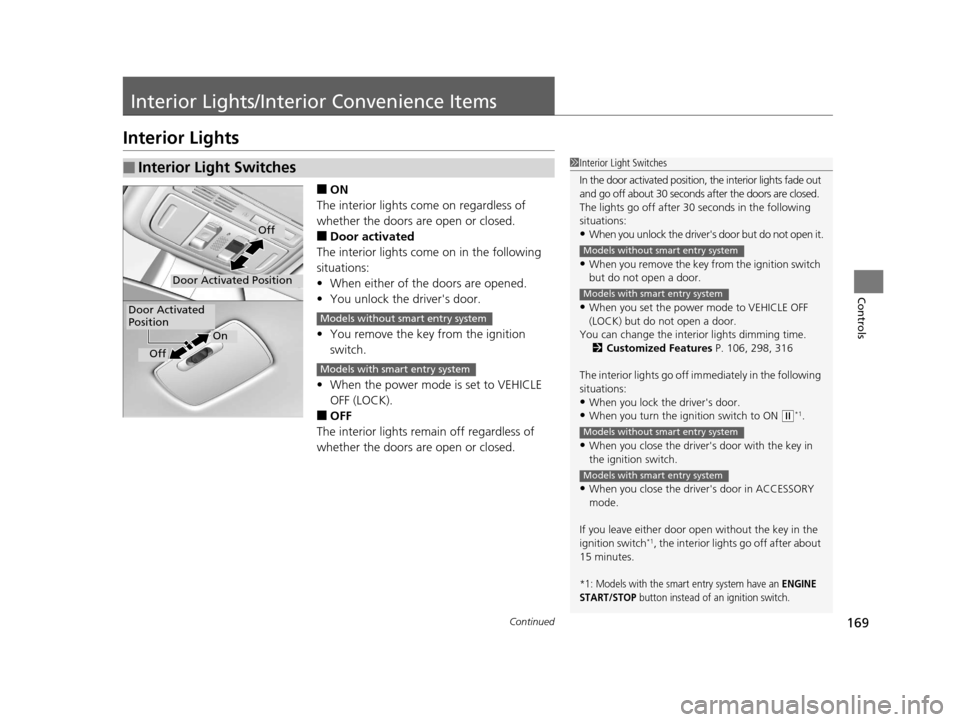

Interior Lights/Interior Convenience Items
Interior Lights
■ON
The interior lights come on regardless of
whether the doors are open or closed.
■Door activated
The interior lights come on in the following
situations:
• When either of the doors are opened.
• You unlock the driver's door.
• You remove the key from the ignition
switch.
• When the power mode is set to VEHICLE
OFF (LOCK).
■OFF
The interior lights remain off regardless of
whether the doors are open or closed.
■Interior Light Switches1 Interior Light Switches
In the door activated position, the interior lights fade out
and go off about 30 seconds after the doors are closed.
The lights go off after 30 seconds in the following
situations:
•When you unlock the driver's door but do not open it.
•When you remove the key from the ignition switch
but do not open a door.
•When you set the power mode to VEHICLE OFF
(LOCK) but do not open a door.
You can change the interi or lights dimming time.
2 Customized Features P. 106, 298, 316
The interior lights go off i mmediately in the following
situations:
•When you lock the driver's door.•When you turn the ignition switch to ON ( w*1.
•When you close the driver's door with the key in
the ignition switch.
•When you close the driver's door in ACCESSORY
mode.
If you leave either door open without the key in the
ignition switch
*1, the interior light s go off after about
15 minutes.
*1: Models with the smart entry system have an ENGINE
START/STOP
button instead of an ignition switch.
Models without smart entry system
Models with smart entry system
Models without smart entry system
Models with smart entry system
Door Activated Position
Off
Door Activated
Position
On
Off
Models without smart entry system
Models with smart entry system
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 169 ページ ２０１５年７月２３日　木曜日　午後４時１１分

uuInterior Lights/Interior Convenience Items uInterior Lights
170
Controls

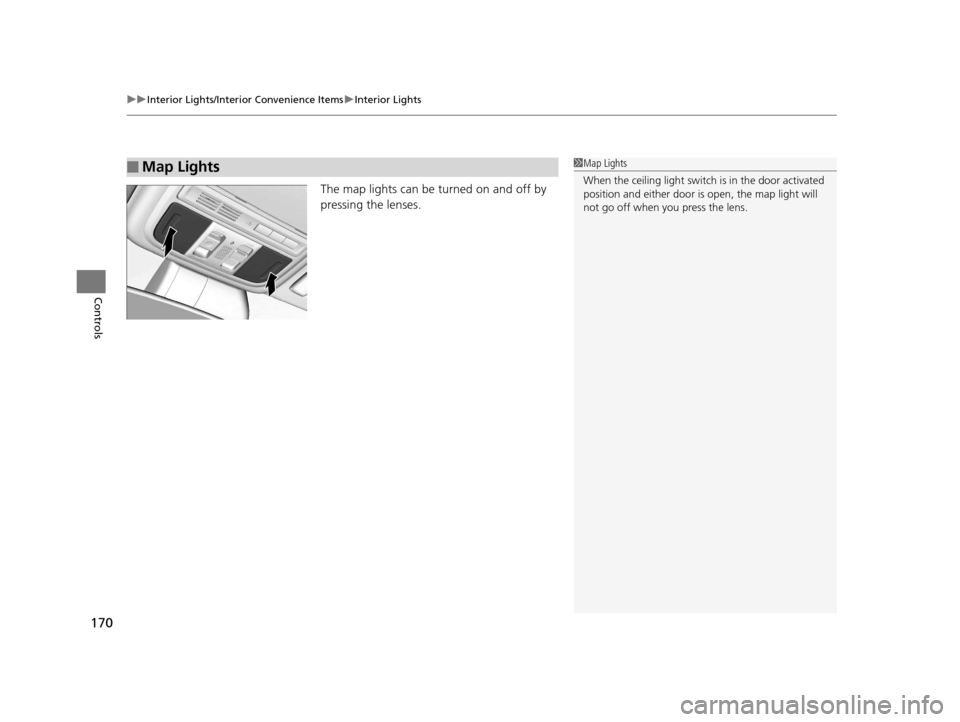

The map lights can be turned on and off by
pressing the lenses.
■Map Lights1Map Lights
When the ceiling light switch is in the door activated
position and either door is open, the map light will
not go off when you press the lens.
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 170 ページ ２０１５年７月２３日　木曜日　午後４時１１分

171
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Continued
Controls

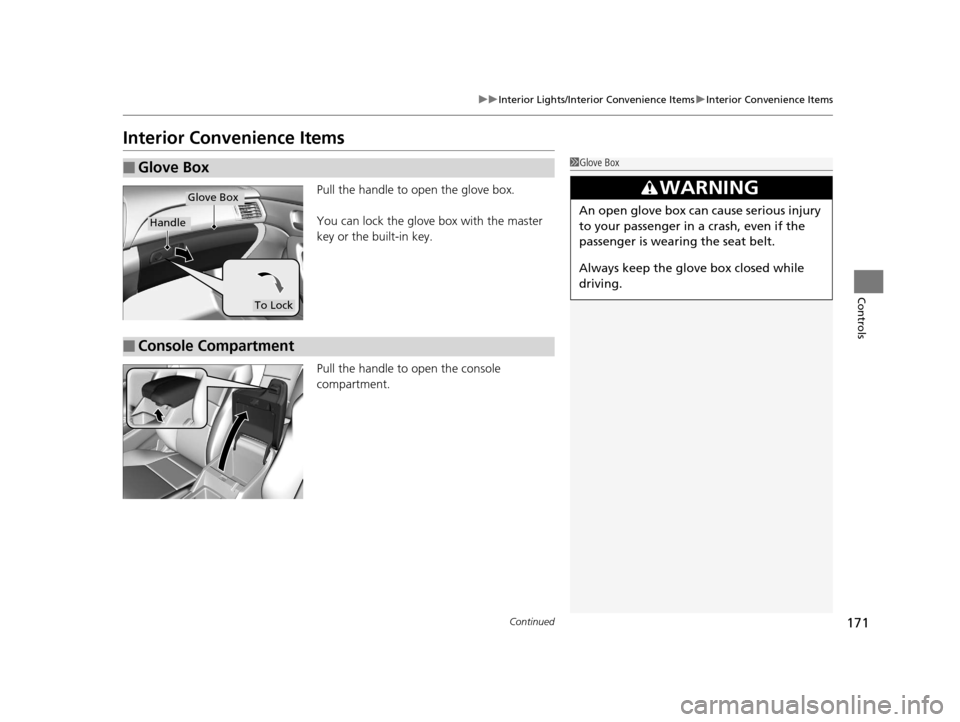

Interior Convenience Items
Pull the handle to open the glove box.
You can lock the glove box with the master
key or the built-in key.
Pull the handle to open the console
compartment.
■Glove Box1Glove Box
3WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.Glove Box
Handle
To Lock
■Console Compartment
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 171 ページ ２０１５年７月２３日　木曜日　午後４時１１分

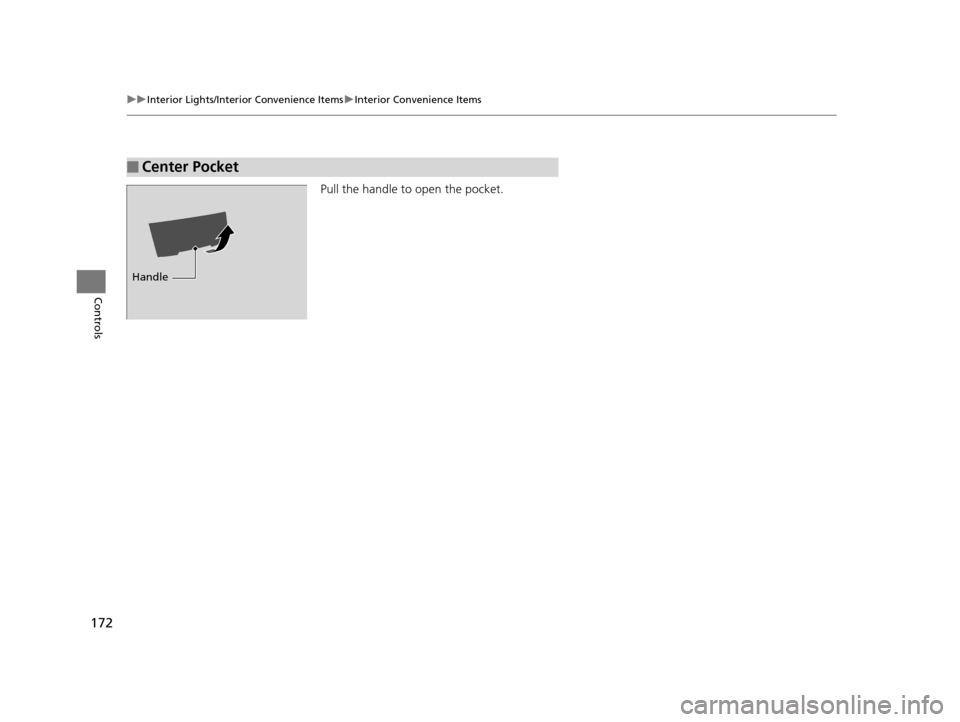

172
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
Pull the handle to open the pocket.
■Center Pocket
Handle
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 172 ページ ２０１５年７月２３日　木曜日　午後４時１１分

Continued173
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

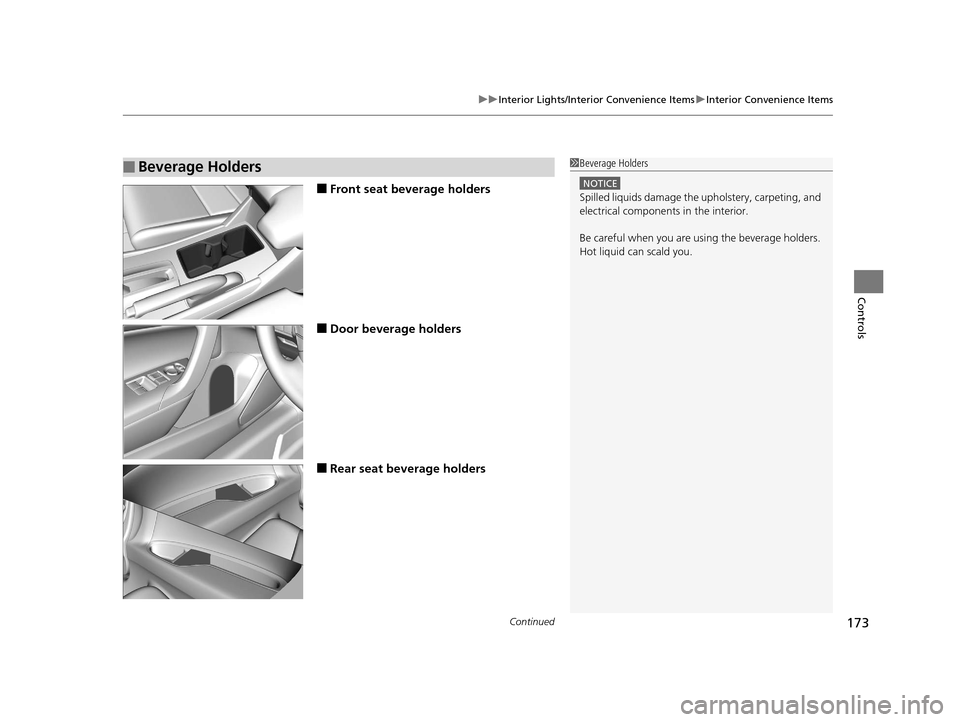

■Front seat beverage holders
■Door beverage holders
■Rear seat beverage holders
■Beverage Holders1Beverage Holders
NOTICE
Spilled liquids damage the upholstery, carpeting, and
electrical components in the interior.
Be careful when you are us ing the beverage holders.
Hot liquid can scald you.
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 173 ページ ２０１５年７月２３日　木曜日　午後４時１１分
