8 || 9
SAFETYSAFETY
Airbags
Your vehicle is equipped with three types of airbags: front airbags, side airbags, and 
side curtain airbags.
Front Airbags (SRS)
The front SRS airbags inflate in a moderate-to-severe frontal collision to help 
protect the head and chest of the driver and/or front passenger. They are housed 
in the center of the steering wheel for the driver, and in the dashboard for the front 
passenger. Both airbags are marked SRS AIRBAG.
SRS (Supplemental Restraint System) indicates that the airbags are designed to 
supplement seat belts, not replace them. Seat belts are the occupant’s primary 
restraint system.
Advanced Airbags
Your front airbags have advanced features to help reduce the likelihood of airbag-
related injuries to smaller occupants.
The driver’s advanced front airbag system includes 
a seat position sensor. If the seat is too far forward, 
the airbag inflates with less force, regardless of the 
severity of the impact.
If there is a problem with the driver’s seat position 
sensor, the SrS indicator will come on and the
airbag will inflate with full (normal) force, regardless 
of the driver’s seating position.
The passenger’s advanced front airbag system 
has weight sensors. Although Honda recommends
against carrying an infant or small child in front, if
the sensors detect the weight of a child (up to 65 lbs 
or 29 kg), the system will automatically turn off the
passenger’s front airbag.
For both advanced front airbags to work properly: 
• Do not spill any liquid on or under the seats.
• Do not put any object under the passenger’s seat.
• Make sure any objects are positioned properly on the floor. Improperly 
positioned objects can interfere with the advanced airbag sensors.
• All occupants should sit upright and wear their seat belts properly.
• Do not place any cover over any part of the passenger side dashboard.
Side Airbags
The side airbags help protect the upper torso and pelvis of the driver or a front 
passenger during a moderate-to-severe side impact. They are housed in th\
e
outside edge of the driver’s and front passenger’s seat-backs. Both are marked 
SIDE AIRBAG.
Side Curtain Airbags
Side curtain airbags help protect the head of the driver and passengers in outer 
seating positions during a moderate-to-severe side impact. The side curt\
ain
airbags equipped in this vehicle are also designed to help reduce the likelihood 
of partial and complete ejection of vehicle occupants through side windo\
ws in
crashes, particularly rollover crashes.
The side curtain airbags are located in the ceiling 
above the side windows on both sides of the 
vehicle.
The side curtain airbags are designed to deploy 
in a rollover or moderate-to-severe side impact.
If the SRS control unit senses that your vehicle is 
about to roll over, it immediately deploys both side 
curtain airbags and activates both front seat belt 
tensioners. If the impact is on the passenger’s side, 
the passenger’s side curtain airbag deploys even if 
there is no passenger in the passenger’s seat.
To get the best protection from the side curtain airbags, occupants should wear 
their seat belts properly and sit upright and well back in their seats.
Do not attach any objects to the side windows or roof pillars, as they can interfere 
with the proper operation of the side curtain airbags.
When side curtain airbags deploy in a frontal collision
One or both side curtain airbags may inflate in a moderate-to-severe angled 
frontal collision. In this case, the side curtain airbags will deploy slightly after the 
front airbags.
Driver’sseat positionsensor
Passenger’s seatweightsensors
Side curtain airbag storage
Deployed side curtain airbag

12 || 13
SAFETYSAFETY
1 Two SRS (Supplemental Restraint System) front airbags. The driver’s airbag 
is stored in the center of the steering wheel; the front passenger’s airbag is 
stored in the dashboard. Both are marked SRS AIRBAG.
2  Two side airbags, one for the driver and one for the front passenger. The 
airbags are stored in the outer edges of the seat-backs. Both are marked 
SIDE AIRBAG.
3  Two side curtain airbags, one for each side of the vehicle. The airbags are 
stored in the ceiling, above the side windows. The front and rear pillars are 
marked SIDE CURTAIN AIRBAG.
4 An electronic control unit that continually monitors and can record
information about the sensors,  the airbag  activators,  the seat  belt tensioners, 
and driver and front passenger seat belt use when the vehicle is on.
5  Automatic front seat belt tensioners. The driver’s and front passenger’s seat 
belts incorporate sensors that detect whether or not they are fastened.
6  A driver’s seat position sensor. If the seat is too far forward, the airbag will 
inflate with less force.
7  Weight sensors in the front passenger’s seat. The front passenger’s airbag 
will be turned off if the weight on the seat is 65 lbs (29 kg) or less (the weight  
of an infant or small child).
8  Impact sensors that can detect a moderate-to-severe front or side impact.
9  An indicator on the dashboard that alerts you that the front passenger’s front 
airbag has been turned off.
10  An indicator on the instrument panel that alerts you to a possible problem 
with the airbag system or seat belt tensioners.
11 Safing sensor
Airbag System Components
Airbag Care
You do not need to, and should not, perform any maintenance on or replace\
any
airbag system components yourself. However, you should have your vehicle 
inspected by a dealer in the following situations:
When the airbags have deployed
If an airbag has inflated, the control unit and other related parts must be replaced. 
Similarly, once an automatic seat belt tensioner has been activated, it must be 
replaced.
When the vehicle has been in a moderate-to-severe collision
Even if the airbags did not inflate, have your dealer inspect the following: the 
driver’s seat position sensor, weight sensors in the passenger’s seat, front seat
belt tensioners, and each seat belt that was worn during the crash.
Do not remove or modify a front seat without first consulting a dealer
This would likely disable the driver’s seat position sensor or the weight sensors 
in the passenger’s seat. If it is necessary to remove or modify a front seat to 
accommodate a person with disabilities, contact a Honda dealer. For U.S. 
vehicles, call Honda Automobile Customer Service at (800) 999-1009. For Canadian 
vehicles, call Honda Canada Customer relations at (888) 946-6329.
6
7
8
9
8
8
8
8810
11
12
12  A rollover sensor that detects whether the vehicle is about to roll over and signal 
the control unit to deploy both side curtain airbag.

20 || 21
SAFETYSAFETY
Protecting Larger Children
When a child is too big for a child seat, secure the child in a rear seat using the 
lap/shoulder seat belt.
Have the child sit upright and all the way back, then ensure the following:
• The child’s knees bend comfortably over the edge 
of the seat.
• The shoulder belt crosses between the child’s 
neck and arm.
• The lap part of the seat belt is as low as possible, 
touching the child’s thighs.
• The child can stay seated for the whole trip.
If a lap/shoulder belt cannot be used properly, position the child in a booster seat 
in a rear seating position. For the child’s safety, check that the child meets the
booster seat manufacturer’s recommendations.
Some U.S. states and Canadian provinces/territories require children to use a 
booster seat until they reach  a given  age or weight  (e.g., 6 years  or 60  lbs).  Be sure 
to check current laws in the state or province/territory where you intend to drive.
Safety Label Locations
Safety labels are in the locations shown. They warn you of potential hazards that 
can cause serious injury or death. Read these labels carefully.
Sun visor
U.S. models Canadian models
Radiator cap
U.S. models only
Dashboard
Allowing a child age 12 or under to sit in the front can result in injur\
y or death
if the passenger’s front airbag inflates.
If a larger child must ride in front, move the vehicle seat as far to the rear as 
possible, then have the child sit up properly and wear the seat belt properly, 
using a booster seat if needed.
WARNING

24 || 25
INSTRUMENT PANELINSTRUMENT PANEL
Malfunction indicator lamp (check engine light)
• The emissions control system may have a problem, or the fuel cap is loose  
or missing.
• (Blinks) A misfire in the engine’s cylinders is detected. Stop in a safe place, 
and wait for the engine to cool down.
Anti-lock Brake System (ABS)
There is a problem with the anti-lock brake system. Your vehicle still has 
normal braking ability, but no anti-lock function. 
Tire Pressure Monitoring System (TPMS)*
There is a problem with the tire pressure monitoring system, or the vehicle is  
fitted with the compact spare tire.
Light control*
There is a problem with the automatic lighting control system or low beam 
headlights.
Parking sensor system*
There is a problem with the system, or the sensor(s) are blocked.
Collision Mitigation Braking System™ (CMBS™)*
There is a problem with the system, the temperature is too high, or the 
camera is blocked.
Vehicle Stability Assist (VSA®)
There is a problem with the VSA system.
Brake system
There is a problem with the brake system.
Electric Power Steering (EPS)
There is a problem with the EPS system.
Auto High-Beam System*
There is a problem with the system, or the camera is blocked.
Starter system*
There is a problem with the starter system. If you cannot start the vehicle, 
press the brake pedal, then press and hold the ENGINE START/STOP button 
(see page 100) for 15 seconds.
Adaptive Cruise Control (ACC)*
There is a problem with the system, the temperature is too high, or the radar 
sensor is blocked.
Canada
U.S.
*if equipped
Condition Indicators
These indicators may require you to perform an action.
Parking brake
Release the parking brake before driving. You will hear a beep if you drive 
with it not fully released.
Seat belt reminder
Make sure seat belts are fastened for you and all passengers. The indicator 
blinks and beeps sound continuously if you or your front passenger has  not 
fastened your seat belts when you begin driving. If the indicator remains  on 
after seat belts are fastened, see your dealer.
Door open
A door is not closed. A beep sounds if a door is open while driving.
Low fuel
Refuel as soon as possible. If the indicator blinks, there is a problem with the 
fuel gauge. See your dealer.
Low tire pressure*
Stop in a safe place, check tire pressures, and inflate tire(s) if n\
ecessary.
The indicator also appears if your vehicle is fitted with the compact \
spare
tire. Have your regular tire repaired or replaced as soon as possible.
Washer fluid level (Canadian models)
The washer fluid is low. refill the washer fluid (see page 140).
System message*
When a condition or malfunction indicator comes on, a message also 
appears on the multi-information display. Check the display for more
information.
Maintenance Minder™*
Scheduled maintenance for your vehicle is due (see page 132).
*if equipped
Lane Keeping Assist System (LKAS)*
There is a problem with the system, the temperature is too high, or the 
camera is blocked.
Road Departure Mitigation (RDM)*
There is a problem with the system, the temperature is too high, or the 
camera is blocked.
Canada
U.S.
Canada
U.S.

26 || 27
INSTRUMENT PANELINSTRUMENT PANEL
Immobilizer
Your key or remote transmitter cannot be recognized by the vehicle. If the 
indicator blinks, you may not be able to start the engine. Turn the vehicle off, 
and then on again. If it continues to blink, there may be a problem with the 
system. See your dealer.
On/Off Indicators
These indicators remind you when an item is on or off.
*if equipped
vSA off
VSA engaged (blinking)
CRUISE MAIN on
CRUISE CONTROL on
ACC* on
LKAS* on
CMBS™* off
Turn signals/hazards on
Fog lights* on
High beams on
exterior lights on
Auto High-Beam System* on
ECON mode* on
Information Display*
Consists of several displays that provide you with useful information.
Press the select/reset knob to cycle through the displays shown below.
Select/reset
knob
Instant fuel economy odometerTrip meter Aoutside temperature
Instant fuel economyAverage fuel economy BTrip meter Boutside temperature
Instant fuel economyAverage fuel economy ATrip meter Aoutside temperature
Instant fuel economyrangeTrip meter Aoutside temperature
engine oil life
*if equipped

58 || 59
AUDIO AND CONNECTIVITYAUDIO AND CONNECTIVITY
Models with one display
Bluetooth® Audio
Play streaming or stored audio from your compatible phone through the vehicle’s 
audio system. Connect your phone to Bluetooth® HandsFreeLink® (see page
74). visit handsfreelink.com (U.S.) or handsfreelink.ca (Canada) to check phone
compatibility. Standard data rates apply.
State or local laws may prohibit the operation of handheld electronic devices while operating a vehicle. Only launch streaming audio on your phone when it is safe to do so.
Notes:
• Make sure the volume on your phone is properly adjusted.
• You may need to enable additional settings on your phone for playback.
• The resume/pause function and remote audio controls are not supported on all phones.
Bluetooth Audio display
Preset button 1: resume playing.
AUX button: Play Bluetooth® Audio.
Seek/Skip buttons: Press to change tracks.
Preset button 2: Pause playing.
Models with one display
Pandora®
Play and operate Pandora from your phone through the vehicle’s audio system. visit
handsfreelink.com to check phone compatibility. Standard data rates apply.
Available in the U.S. only.
Connect your phone when the vehicle is stopped.
For iPhone:
• Connect via Bluetooth® HandsFreeLink® (see page 74) or USB port (see page 49).
• A pop-up may appear on your phone requesting you to allow access for Pandora to be launched.
• If you cannot operate Pandora through the audio system, it may be streaming through Bluetooth® Audio. Make sure Pandora is selected on the audio system.
• If Pandora still does not operate, try rebooting the phone and reconnecting the cable if necessary. 
For Android or BlackBerry:
• Connect via Bluetooth® HandsFreeLink® (see page 74).
State or local laws may prohibit the operation of handheld electronic devices while operating a vehicle. Only launch streaming audio on your phone when it is safe to do so.
Selector knob: rotate to change the station.
USB display
AUX button: Play Pandora.
Skip button: Go to the next song.
Preset buttons: Press the button for each function.
(1) Pause/resume(2) Dislike song(3) Like song(4) Bookmark track(5) Bookmark artist

62 || 63
AUDIO AND CONNECTIVITYAUDIO AND CONNECTIVITY
Models with touchscreen
HondaLink®
Provides you with useful information about your vehicle directly from Honda. 
To check phone compatibility, visit handsfreelink.com (U.S.) or handsfreelink.ca
(Canada). Standard data rates may apply with your phone service provid\
er.
To get more information on HondaLink, visit www.hondalink.com (U.S.) or honda.ca/
hondalink (Canada).
If there is an active connection to Apple CarPlay or Android Auto, HondaLink can 
only be connected through Wi-Fi.
HondaLink Connection
Follow the steps below to connect to HondaLink and use its features.
1. Download the HondaLink Connect app to your compatible smartphone.
2. Pair your phone to Bluetooth® HandsFreeLink® (see page 80).
3. From the HoMe screen, select HondaLink.
4. Certain features require you to send vehicle information to Honda. Select Enable Once, Always Enable, or Cancel.
HondaLink Menu
Select a menu option.
Places*: Display restaurants, gas stations, and other locations. You can send a location to the navigation system and set a route.
Vehicle: Get instructional messages when your vehicle needs service.
Messages from Honda: Display helpful and important information from Honda.
Help & Support: Display tips for vehicle usage, get roadside assistance, or contact customer service.
Weather: Display a weekly five-day weather forecast for any zip code.
*if equipped
Models with touchscreen
Wi-Fi Connection
You can connect the audio system to the internet using Wi-Fi and use online 
services through the touchscreen.  If your  compatible  phone has hotspot  capabilities, 
the system can be tethered to the phone. Follow the steps below to set up Wi-Fi 
when the vehicle is stopped. Standard data rates apply with your phone s\
ervice
provider.
1. From the HoMe screen, select Settings.
2. Select Bluetooth/Wi-Fi. Select the Wi-Fi tab.
3. Select Wi-Fi On/Off Status, and select On.
4. Select Wi-Fi Network List. Make sure your phone’s 
Wi-Fi setting is in access point (tethering) mode.
5. Select the phone you want to connect to the
system. If the phone you want to connect does not 
appear, select Scan.
6. Select Connect.
7. enter a password for your phone. Select Done.
The Wi-Fi symbol is displayed on the list when 
connection is successful.
Aha™ Radio
Access music and information programming, location-based services, and social 
media through your vehicle’s audio system.
visit handsfreelink.honda.com (U.S.) or handsfreelink.ca (Canada) to check phone
compatibility.  Standard data rates  apply.  Make sure you have  an active  Aha account.
If there is an active connection to Apple CarPlay or Android Auto, Aha can only  be 
connected through Wi-Fi.
Bluetooth connection
Connect your compatible smartphone via Bluetooth® HandsFreeLink® (see page
80). Make sure the HondaLink Connect app is downloaded to your phone (\
see
page 62). Follow steps 1 and 2 below.
Wi-Fi connection
You can also connect via Wi-Fi (see page 63) or Wi-Fi tethering with your enabled 
smartphone. Follow steps 1 and 2 below.
1. From the HoMe screen, select Aha (swipe to the second screen if necessary).
2. Enter your Aha account email and password to begin using Aha.

| 7372 |
AUDIO AND CONNECTIVITY
Models with touchscreen
Pandora®
Play and operate Pandora from your compatible phone through the vehicle’s audio 
system. visit handsfreelink.com to check phone compatibility. Standard data rates 
apply with your phone service provider. Available in the U.S. only.
Connect your phone when the vehicle is stopped.
For iPhone:
• Connect via Bluetooth® HandsFreeLink® (see page 80) or USB port (see page 49).
• A pop-up may appear on your phone requesting you to allow access for Pandora to be launched.
• If you cannot operate Pandora through the audio system, it may be streaming through Bluetooth® Audio. Make sure Pandora is selected on the audio system.
• If a phone is connected via Apple CarPlay, Pandora can only be used within Apple CarPlay.
• If Pandora still does not operate, try rebooting the phone and reconnecting the cable if necessary. 
For other compatible smartphones:
• Connect via Bluetooth® HandsFreeLink® (see page 80).
State, provincial, or local laws may prohibit the operation of handheld electronic devices while operating a vehicle. Only launch streaming audio on your phone when it is safe to do so.
Pandora display
Artist Radio
Song Title
Artist Phone
ABC
Source: Select the Pandora icon.
Station: Change the station.Skip: Go to the next song.
MENU: Display menu options, including the Station List.
Like/dislike song
Play/Pause
BLUETOOTH® HANDSFREELINK® (HFL)
Learn how to operate the vehicle’s hands-free calling system.
Models with one display
Basic HFL Operation
Make and receive phone calls using the vehicle’s audio system, without handling
your phone. visit handsfreelink.com (U.S.) or handsfreelink.ca (Canada) to check
phone compatibility.
To reduce the potential for driver distraction, certain manual functions \
may be
inoperable or grayed out while the vehicle is moving. Stop or pull over \
to perform
the function.
HFL Controls
Use the controls to enter information and make selections.
Pick-Up button: Answer an incoming call.
Hang-Up/Back button: end or decline a call, or cancel an operation.
Talk button: Make a call using a stored voice tag.
HFL display
Selector knob: rotate and press to make selections.
BACK button: Go back to the previous display.
PHONE button: Display the phone screen.
BLUETOOTH® HANDSFreeLINK®
BLUETOOTH® HANDSFreeLINK®

84 || 85

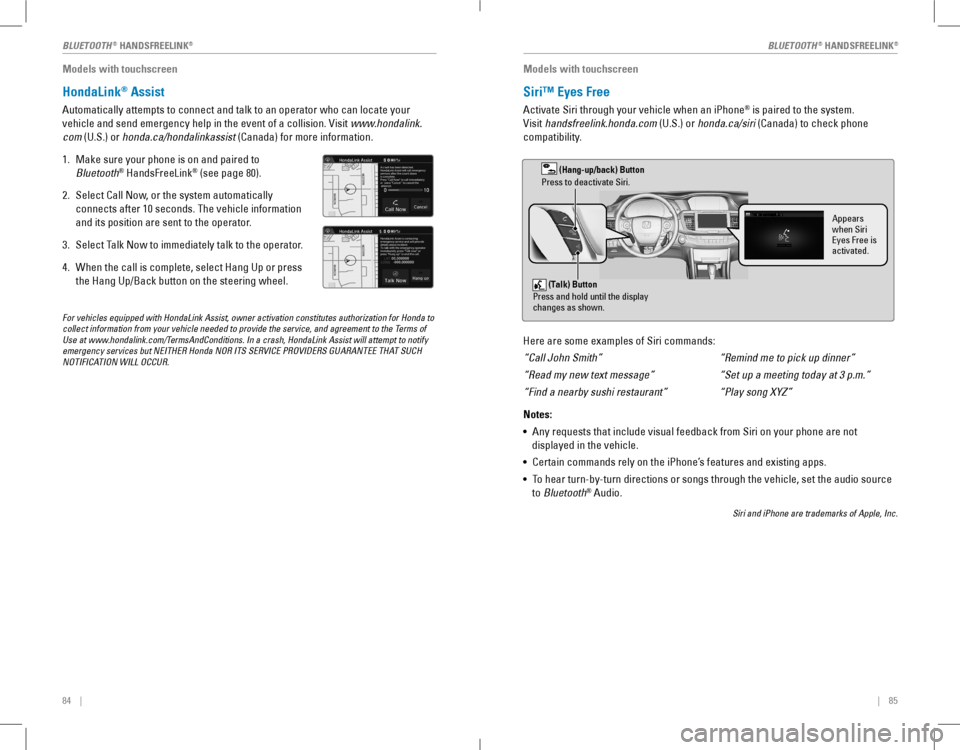

Models with touchscreen
HondaLink® Assist
Automatically attempts to connect and talk to an operator who can locate\
your
vehicle and send emergency help in the event of a collision. visit www.hondalink.
com (U.S.) or honda.ca/hondalinkassist (Canada) for more information.
1. Make sure your phone is on and paired to
Bluetooth® HandsFreeLink® (see page 80).
2. Select Call Now, or the system automatically
connects after 10 seconds. The vehicle information
and its position are sent to the operator.
3. Select Talk Now to immediately talk to the operator.
4. When the call is complete, select Hang Up or press 
the Hang Up/Back button on the steering wheel.
Models with touchscreen
Siri™ Eyes Free
Activate Siri through your vehicle when an iPhone® is paired to the system.
visit handsfreelink.honda.com (U.S.) or honda.ca/siri (Canada) to check phone
compatibility.
(Talk) Button
Press and hold until the display
changes as shown .
(Hang-up/back) Button
Press to deactivate Siri.
Appears
when Siri
Eyes Free is
activated.
Here are some examples of Siri commands:
“Call John Smith”
“Read my new text message”
“Find a nearby sushi restaurant”
Notes:
• Any requests that include visual feedback from Siri on your phone are not 
displayed in the vehicle.
• Certain commands rely on the iPhone’s features and existing apps.
• To hear turn-by-turn directions or songs through the vehicle, set the audio source 
to Bluetooth® Audio.
Siri and iPhone are trademarks of Apple, Inc.
“Remind
For vehicles equipped with HondaLink Assist, owner activation constitutes authorization for Honda to collect information from your vehicle needed to provide the service, and agreement to the Terms of Use at www.hondalink.com/TermsAndConditions. In a crash, HondaLink Assist will attempt to notify emergency services but NEITHER Honda NOR ITS SERVICE PROVIDERS GUARANTEE THAT SUCH NOTIFICATION WILL OCCUR.
BLUETOOTH® HANDSFreeLINK®BLUETOOTH® HANDSFreeLINK®

98 || 99
DRIVINGDRIVING
Remote Engine Start*
Start your vehicle’s  engine using the remote  transmitter  before you enter  the vehicle.
Make sure the vehicle is in a safe location when using remote engine start (i.e., a
well-ventilated area, away from any flammable materials).
Starting the Engine
Press the Lock button, then press and hold the Engine button within 5 seconds to 
remotely start the engine.
The engine runs for up to 10 minutes. To extend the run time for another 10
minutes, repeat the procedure during the initial 10 minutes.
While the engine is running, the climate control system adjusts the cabin 
temperature, the security system remains on, and lights and accessories remain
off.
Stopping the Engine
Press and hold the Engine button.
The engine will also stop if it has been running for more than 10 minutes, or if any 
door is opened without using the remote or smart entry.
Engine exhaust contains toxic carbon monoxide gas.
Breathing carbon monoxide can kill you or cause unconsciousness.
Never use the remote engine starter when the vehicle is parked in a gara\
ge or
other area with limited ventilation.
WARNING
Lock button
Engine button
*if equipped
Starting to Drive
Turn on the vehicle and start the engine to begin driving.
Before Starting the Engine
Continuously Variable Transmission (CVT)
Check that the shift lever is in Park (P), then press
the brake pedal. Keep your foot firmly on the brake 
pedal when starting the engine.
Manual transmission
Check that the shift lever is in Neutral (N), then
press the brake pedal with your right foot and the 
clutch pedal with your left foot. The clutch must be 
fully pressed to start the engine.
The engine is harder to start in cold weather and in thinner air found a\
t altitudes
above 8,000 feet (2,400 m). When starting the engine in cold weather, turn off 
all electrical accessories such as the lights, climate control system, a\
nd rear
defogger in order to reduce battery drain.
Starting the Ignition*
Insert the key into the ignition and turn to turn on the vehicle or start the engine.
0 LOCK: Insert and remove the key in this position.
I ACCESSORY: operate the audio system and other
accessories in this position.
II ON: operate other electrical items, such as
wipers and power windows. This is also the position
when driving.
III START: This position is for starting the engine. The switch returns to oN when
you release the key.
Manual transmission models
*if equipped
Brake peda l
Brake pedal
Clutch pedal
removing the key from the ignition switch while driving locks the steerin\
g.
This can cause you to lose control of the vehicle.
remove the key from the ignition switch only when parked.
WARNING
