ESP HONDA ACCORD COUPE 2016 9.G Quick Guide

Devices That Emit Radio Waves
The following products and systems on your vehicle emit radio waves when\
in
operation:
• Audio system • Immobilizer system
• Bluetooth® Audio • Remote transmitter
• Bluetooth® HandsFreeLink® • Smart entry system*
• HomeLink® Universal Transceiver • Wireless charger*
Each of the above complies with the appropriate requirements or the required 
standards of the FCC (Federal Communications Commission) and Industry Canada, 
described below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is subject to the 
following two conditions: (1) This device may not cause harmful interference, and 
(2) this device must accept any interference received, including interference that 
may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for 
compliance could void the user’s authority to operate the equipment.
As required by Industry Canada: 
This device complies with Industry Canada Standard RSS-Gen/210/251/310. 
Operation is subject to the following two conditions: (1) this device may not  
cause interference, and (2) this device must accept any interference, including 
interference that may cause undesired operation of the device.
California Perchlorate Contamination Prevention Act
The airbags, seat belt tensioners, and CR-type batteries in this vehicle may 
contain perchlorate materials—special handling may apply. See www.dtsc.
ca.gov/hazardouswaste/perchlorate/ for more information.
California Proposition 65 Warning
WARNING: This product contains or emits chemicals known to the state of
California to cause cancer and birth defects or other reproductive harm.
DISCLOSURES
Event Data Recorders
This vehicle is equipped with an event data recorder (EDR). The main purpose of
an eDr is to record, in certain crash or near crash-like situations, such as an air
bag deployment or hitting a road obstacle, data that will assist in understanding 
how a vehicle’s systems performed. The EDR is designed to record data related to
vehicle dynamics and safety systems for a short period of time, typicall\
y
30 seconds or less. The EDR in this vehicle is designed to record such d\
ata as:
• How various systems in your vehicle were operating;
• Whether or not the driver and passenger safety belts were buckled/fasten\
ed;
• How far (if at all) the driver was depressing the accelerator and/or b\
rake
pedal; and,
• How fast the vehicle was traveling.
These data can help provide a better understanding of the circumstances in 
which crashes and injuries occur. NOTE: EDR data are recorded by your vehicle 
only if a non-trivial crash situation occurs; no data are recorded by the EDR under 
normal driving conditions and no personal data (e.g., name, gender, age, and
crash location) are recorded. However, other parties, such as law enforcement,
could combine the EDR data with the type of personally identifying data routinely 
acquired during a crash investigation.
To read data recorded by an EDR, special equipment is required, and access to 
the vehicle or the EDR is needed. In addition to the vehicle manufacturer, other 
parties such as law enforcement that have the special equipment can read the 
information if they have access to the vehicle or the eDr.
The data belong to the vehicle owner and may not be accessed by anyone else 
except as legally required or with the permission of the vehicle owner.
Service Diagnostic Recorders
This vehicle is equipped with service-related devices that record information 
about powertrain performance. The data can be used to verify emissions law 
requirements and/or help technicians  diagnose and solve  service  problems.  It may 
also be combined with data from other sources for research purposes, but 
it remains confidential.
*if equipped

2 || 3

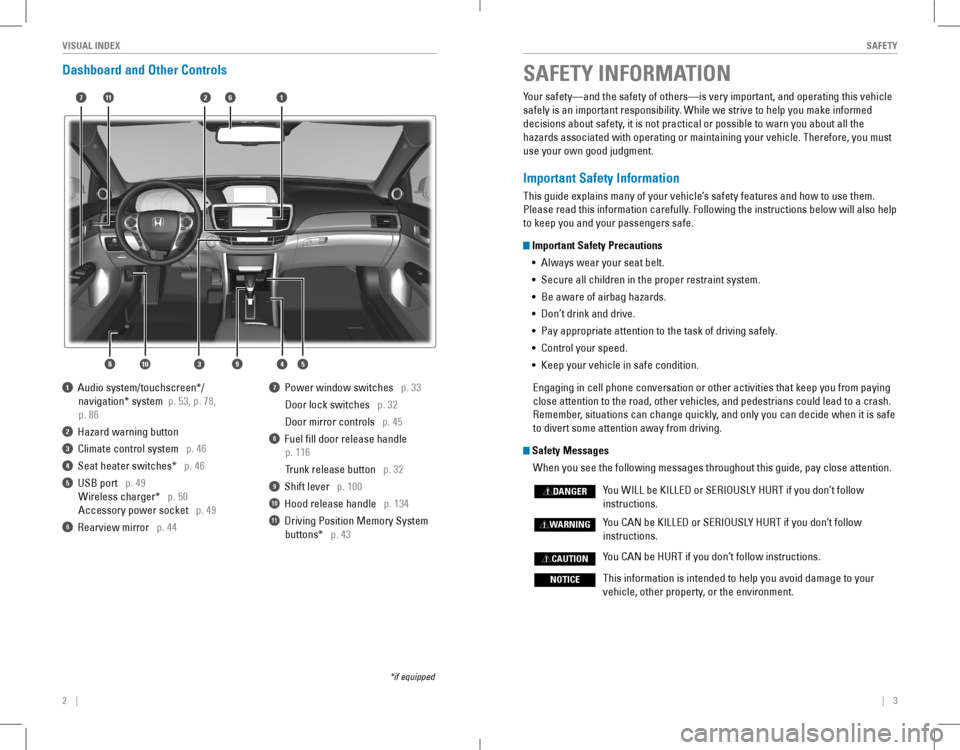

SAFETYVISUAL INDEX
Dashboard and Other Controls
1  Audio system/touchscreen*/   
 navigation* system  p. 53, p. 78,
p. 86
2  Hazard warning button
3 Climate control system p. 46
4  Seat heater switches*   p. 46
5 USB port p. 49
Wireless charger*   p. 50
Accessory power socket p. 49
6 rearview mirror p. 44
7 Power window switches p. 33
Door lock switches p. 32
Door mirror controls p. 45
8 Fuel fill door release handle
p. 116
Trunk release button   p. 32
9 Shift lever p. 100
10 Hood release handle p. 134
11 Driving Position Memory System
 buttons*   p. 43
*if equipped
SAFETY INFORMATION
2
4
71
8
6
3
Your safety—and the safety of others—is very important, and operati\
ng this vehicle
safely is an important responsibility. While we strive to help you make informed 
decisions about safety, it is not practical or possible to warn you about all the 
hazards associated with operating or maintaining your vehicle. Therefore, you must 
use your own good judgment.
Important Safety Information
This guide explains many of your vehicle’s safety features and how to use them.
Please read this information carefully. Following the instructions below will also help 
to keep you and your passengers safe.
Important Safety Precautions
• Always wear your seat belt.
• Secure all children in the proper restraint system.
• Be aware of airbag hazards.
• Don’t drink and drive.
• Pay appropriate attention to the task of driving safely.
• Control your speed.
• Keep your vehicle in safe condition.
engaging in cell phone conversation or other activities that keep you fro\
m paying
close attention to the road, other vehicles, and pedestrians could lead \
to a crash.
Remember, situations can change quickly, and only you can decide when it is safe 
to divert some attention away from driving.
Safety Messages
When you see the following messages throughout this guide, pay close attention.
You WILL be KILLED or SERIOUSLY HURT if you don’t follow    
instructions.
You CAN be KILLED or SERIOUSLY HURT if you don’t follow    
instructions.
You CAN be HURT if you don’t follow instructions.
This information is intended to help you avoid damage to your
vehicle, other property, or the environment.
DANGER
WARNING
CAUTION
NOTICE
5910
11

14 || 15
SAFETYSAFETY

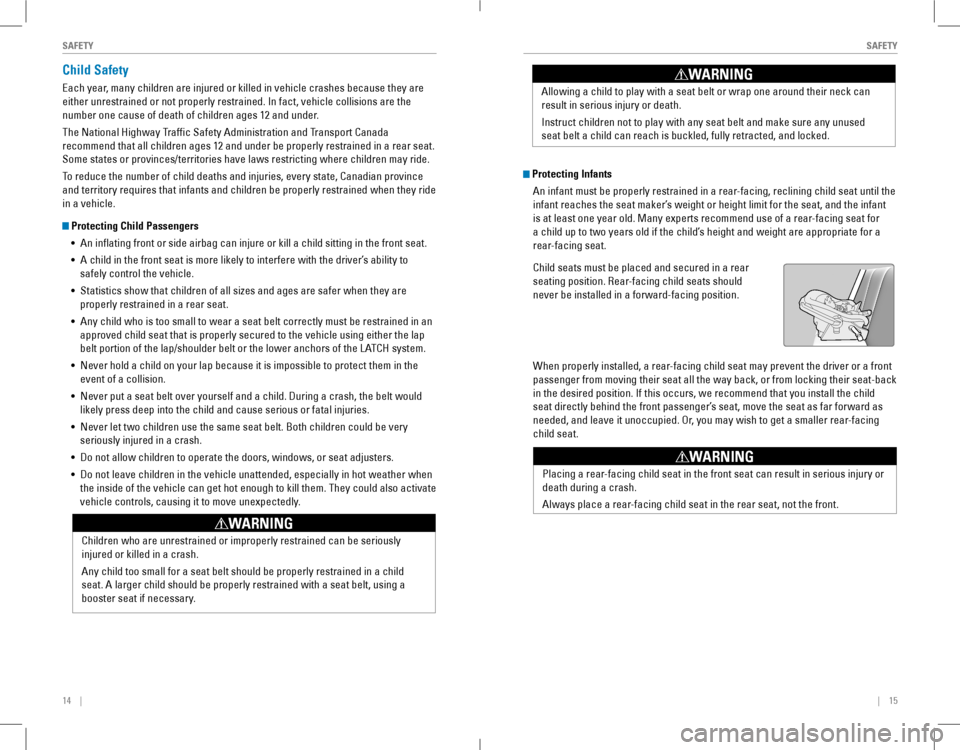

Child Safety
Each year, many children are injured or killed in vehicle crashes because they are 
either unrestrained or not properly restrained. In fact, vehicle collisions are the 
number one cause of death of children ages 12 and under.
The National Highway Traffic Safety Administration and Transport Canada
recommend that all children ages 12 and under be properly restrained in a rear seat. 
Some states or provinces/territories have laws restricting where children may  ride. 
To reduce the number of child deaths and injuries, every state, Canadian province 
and territory requires that infants and children be properly restrained when they ride 
in a vehicle.
Protecting Child Passengers
• An inflating front or side airbag can injure or kill a child sitting in the front seat.
• A child in the front seat is more likely to interfere with the driver’s ability to 
safely control the vehicle.
• Statistics show that children of all sizes and ages are safer when they are 
properly restrained in a rear seat.
• Any child who is too small to wear a seat belt correctly must be restrained in an 
approved child seat that is properly secured to the vehicle using either\
the lap
belt portion of the lap/shoulder belt or the lower anchors of the LATCH system.
• Never hold a child on your lap because it is impossible to protect them in the 
event of a collision.
• Never put a seat belt over yourself and a child. During a crash, the belt would 
likely press deep into the child and cause serious or fatal injuries.
• Never let two children use the same seat belt. Both children could be very 
seriously injured in a crash.
• Do not allow children to operate the doors, windows, or seat adjusters.
• Do not leave children in the vehicle unattended, especially in hot weath\
er when
the inside of the vehicle can get hot enough to kill them. They could al\
so activate
vehicle controls, causing it to move unexpectedly.
Protecting Infants
An infant must be properly restrained in a rear-facing, reclining child seat until the 
infant reaches the seat maker’s weight or height limit for the seat, and the infant
is at least one year old. Many experts recommend use of a rear-facing seat for
a child up to two years old if the child’s height and weight are appropriate for a
rear-facing seat.
Child seats must be placed and secured in a rear 
seating position. rear-facing child seats should
never be installed in a forward-facing position.
When properly installed, a rear-facing child seat may prevent the driver or a front 
passenger from moving their seat all the way back, or from locking their seat-back 
in the desired position. If this occurs, we recommend that you install the child 
seat directly behind the front passenger’s seat, move the seat as far forward as 
needed, and leave it unoccupied. or, you may wish to get a smaller rear-facing
child seat.
Allowing a child to play with a seat belt or wrap one around their neck can 
result in serious injury or death.
Instruct children not to play with any seat belt and make sure any unused 
seat belt a child can reach is buckled, fully retracted, and locked.
WARNING
Children who are unrestrained or improperly restrained can be seriously 
injured or killed in a crash.
Any child too small for a seat belt should be properly restrained in a child 
seat. A larger child should be properly restrained with a seat belt, using a 
booster seat if necessary.
WARNING
Placing a rear-facing child seat in the front seat can result in serious injury or
death during a crash.
Always place a rear-facing child seat in the rear seat, not the front.
WARNING

60 || 61

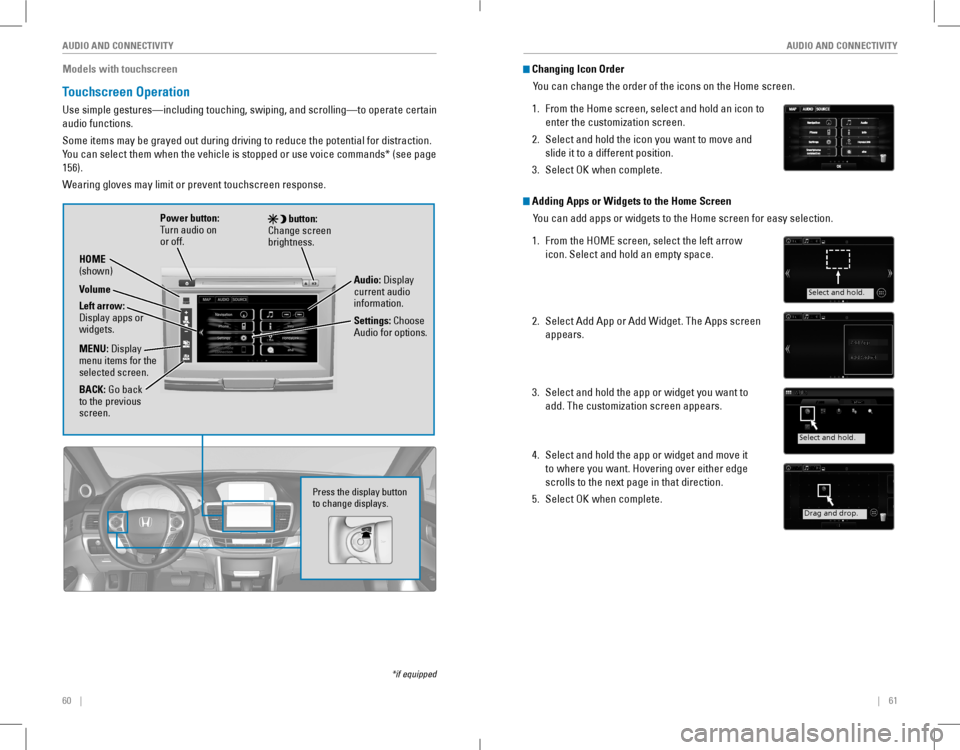

AUDIO AND CONNECTIVITYAUDIO AND CONNECTIVITY
Models with touchscreen
Touchscreen Operation
Use simple gestures—including touching, swiping, and scrolling—to \
operate certain
audio functions.
Some items may be grayed out during driving to reduce the potential for distraction. 
You can select them when the vehicle is stopped or use voice commands* (see page 
156).
Wearing gloves may limit or prevent touchscreen response.
*if equipped
Press the display button to change displays.
Power button: Turn audio on or off.
HOME(shown)
MENU: Display menu items for the selected screen.
BACK: Go back to the previous screen.
button: Change screen brightness.
Settings: Choose Audio for options.
Audio: Display current audio information.
Volume
Left arrow: Display apps or widgets.
Changing Icon Order
You can change the order of the icons on the Home screen.
1. From the Home screen, select and hold an icon to
enter the customization screen.
2. Select and hold the icon you want to move and
slide it to a different position.
3. Select oK when complete.
Adding Apps or Widgets to the Home Screen
You can add apps or widgets to the Home screen for easy selection.
1. From the HoMe screen, select the left arrow
icon. Select and hold an empty space.
2. Select Add App or Add Widget. The Apps screen 
appears.
3. Select and hold the app or widget you want to
add. The customization screen appears.
4. Select and hold the app or widget and move it
to where you want. Hovering over either edge
scrolls to the next page in that direction.
5. Select oK when complete.
Select and hold.
Select and hold.
Drag and drop.

76 || 77

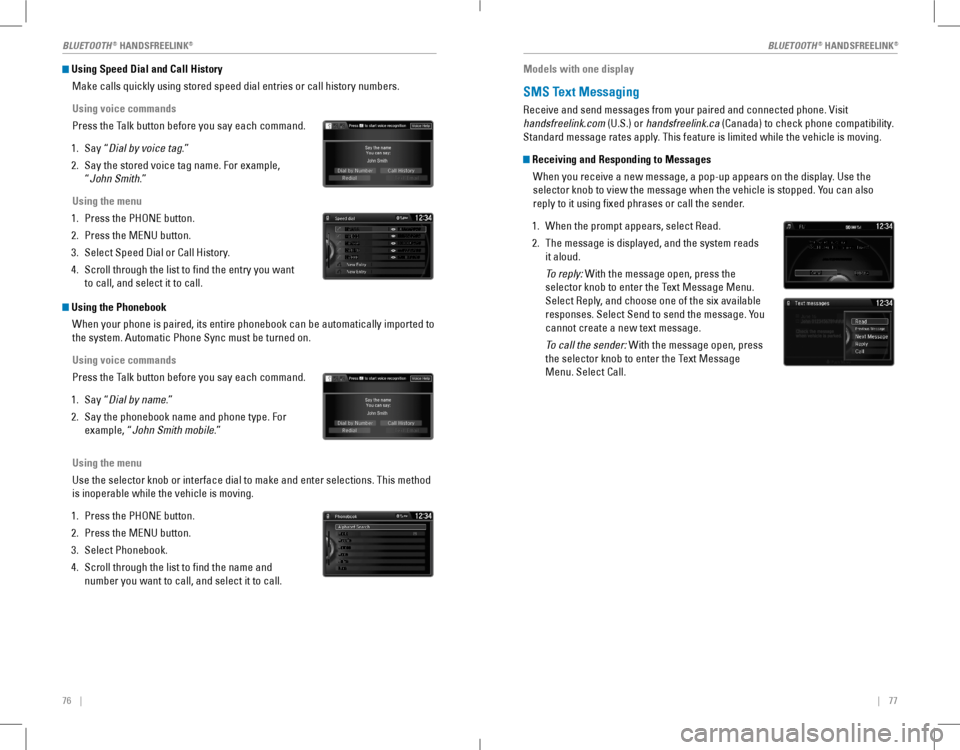

Using Speed Dial and Call History
Make calls quickly using stored speed dial entries or call history numbers.
Using voice commands
Press the Talk button before you say each command.
1. Say “Dial by voice tag.”
2. Say the stored voice tag name. For example,
“John Smith.”
Using the menu
1. Press the PHONE button.
2. Press the MENU button.
3. Select Speed Dial or Call History.
4. Scroll through the list to find the entry you want
to call, and select it to call.
Mr.AAA111AAA####
555EEE#### 444DDD#### 333CCC#### 222BBB####
Mr.EEE Mr.DDD Mr.CCC Mr.BBB
Using the Phonebook
When your phone is paired, its entire phonebook can be automatically imported to 
the system. Automatic Phone Sync must be turned on.
Using voice commands
Press the Talk button before you say each command.
1. Say “Dial by name.”
2. Say the phonebook name and phone type. For 
example, “John Smith mobile.”
Using the menu
Use the selector knob or interface dial to make and enter selections. This method 
is inoperable while the vehicle is moving.
1. Press the PHONE button.
2. Press the MENU button.
3. Select Phonebook.
4. Scroll through the list to find the name and
number you want to call, and select it to call.
Models with one display
SMS Text Messaging
receive and send messages from your paired and connected phone. visit
handsfreelink.com (U.S.) or handsfreelink.ca (Canada) to check phone compatibility. 
Standard message rates apply. This feature is limited while the vehicle is moving.
Receiving and Responding to Messages
When you receive a new message, a pop-up appears on the display. Use the 
selector knob to view the message when the vehicle is stopped. You can also 
reply to it using fixed phrases or call the sender.
1. When the prompt appears, select Read.
2. The message is displayed, and the system reads
it aloud.
 To reply: With the message open, press the 
selector knob to enter the Text Message Menu. 
Select Reply, and choose one of the six available 
responses. Select Send to send the message. You
cannot create a new text message. 
 To call the sender: With the message open, press 
the selector knob to enter the Text Message 
Menu. Select Call.
BLUETOOTH® HANDSFreeLINK®BLUETOOTH® HANDSFreeLINK®

82 || 83

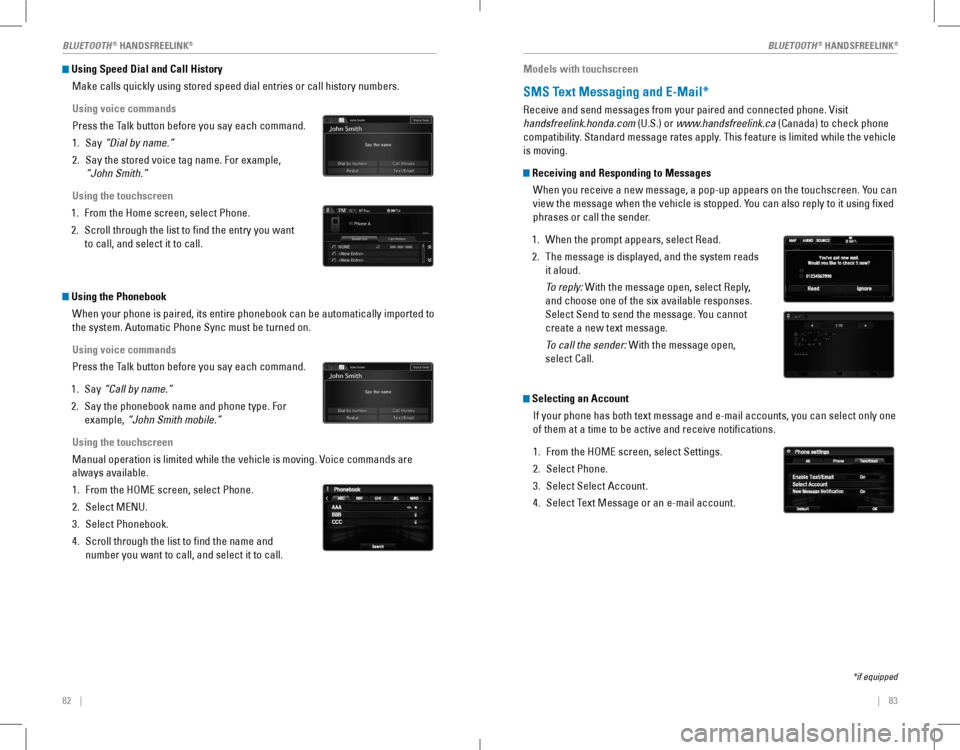

Using Speed Dial and Call History
Make calls quickly using stored speed dial entries or call history numbers.
Using voice commands
Press the Talk button before you say each command.
1. Say “Dial by name.”
2. Say the stored voice tag name. For example,
“John Smith.”
Using the touchscreen
1. From the Home screen, select Phone.
2. Scroll through the list to find the entry you want
to call, and select it to call.
Using the Phonebook
When your phone is paired, its entire phonebook can be automatically imported to 
the system. Automatic Phone Sync must be turned on.
Using voice commands
Press the Talk button before you say each command.
1. Say “Call by name.”
2. Say the phonebook name and phone type. For 
example, “John Smith mobile.”
Using the touchscreen
Manual operation is limited while the vehicle is moving. voice commands are
always available.
1. From the HoMe screen, select Phone.
2. Select MeNU.
3. Select Phonebook.
4. Scroll through the list to find the name and
number you want to call, and select it to call.
Models with touchscreen
SMS Text Messaging and E-Mail*
receive and send messages from your paired and connected phone. visit
handsfreelink.honda.com (U.S.) or www.handsfreelink.ca (Canada) to check phone
compatibility. Standard message rates apply. This feature is limited while the vehicle 
is moving.
Receiving and Responding to Messages
When you receive a new message, a pop-up appears on the touchscreen. You can 
view the message when the vehicle is stopped. You can also reply to it using fixed
phrases or call the sender.
1. When the prompt appears, select Read.
2. The message is displayed, and the system reads
it aloud.
To reply: With the message open, select Reply, 
and choose one of the six available responses. 
Select Send to send the message. You cannot
create a new text message.
To call the sender: With the message open, 
select Call.
Selecting an Account
If your phone has both text message and e-mail accounts, you can select only one 
of them at a time to be active and receive notifications.
1. From the HoMe screen, select Settings.
2. Select Phone.
3. Select Select Account.
4. Select Text Message or an e-mail account.
*if equipped
BLUETOOTH® HANDSFreeLINK®BLUETOOTH® HANDSFreeLINK®

110 || 111
DRIVINGDRIVING

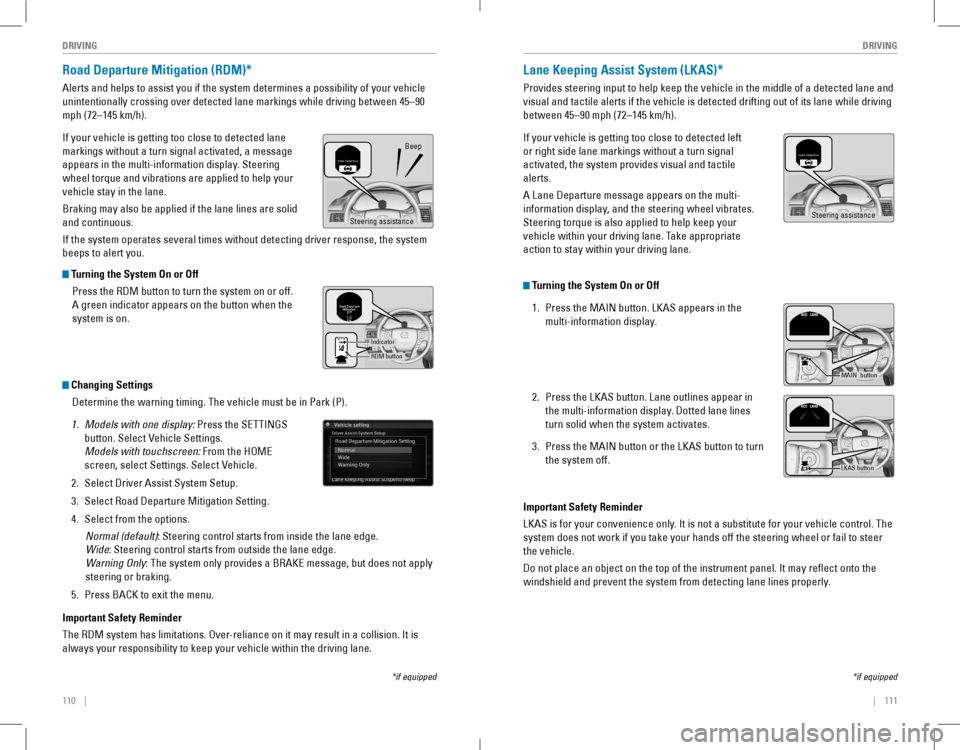

Road Departure Mitigation (RDM)*
Alerts and helps to assist you if the system determines a possibility of your vehicle 
unintentionally crossing over detected lane markings while driving between 45–90 
mph (72–145 km/h).
If your vehicle is getting too close to detected lane 
markings without a turn signal activated, a message
appears in the multi-information display. Steering
wheel torque and vibrations are applied to help your 
vehicle stay in the lane.
Braking may also be applied if the lane lines are solid 
and continuous.
If the system operates several times without detecting driver response, the system 
beeps to alert you.
Changing Settings
Determine the warning timing. The vehicle must be in Park (P).
1. Models with one display: Press the SETTINGS 
button. Select Vehicle Settings.
Models with touchscreen: From the HoMe
screen, select Settings. Select vehicle.
2. Select Driver Assist System Setup.
3. Select road Departure Mitigation Setting.
4. Select from the options.
Normal (default): Steering control starts from inside the lane edge.
Wide: Steering control starts from outside the lane edge.
Warning Only: The system only provides a BRAKE message, but does not apply 
steering or braking.
5. Press BACK to exit the menu.
Important Safety Reminder
The RDM system has limitations. Over-reliance on it may result in a collision. It is 
always your responsibility to keep your vehicle within the driving lane.
*if equipped
Beep
Turning the System On or Off
Press the RDM button to turn the system on or off. 
A green indicator appears on the button when the 
system is on.
RDM button
Indicator
Steering assistance
Lane Keeping Assist System (LKAS)*
Provides steering input to help keep the vehicle in the middle of a dete\
cted lane and
visual and tactile alerts if the vehicle is detected drifting out of its\
lane while driving
between 45–90 mph (72–145 km/h).
If your vehicle is getting too close to detected left 
or right side lane markings without a turn signal
activated, the system provides visual and tactile
alerts.
A Lane Departure message appears on the multi-
information display, and the steering wheel vibrates. 
Steering torque is also applied to help keep your 
vehicle within your driving lane. Take appropriate
action to stay within your driving lane.
Turning the System On or Off
1. Press the MAIN button. LKAS appears in the 
multi-information display.
2. Press the LKAS button. Lane outlines appear in 
the multi-information display. Dotted lane lines
turn solid when the system activates.
3. Press the MAIN button or the LKAS button to turn 
the system off.
Important Safety Reminder
LKAS is for your convenience only. It is not a substitute for your vehicle control. The 
system does not work if you take your hands off the steering wheel or fa\
il to steer
the vehicle.
Do not place an object on the top of the instrument panel. It may reflect onto the 
windshield and prevent the system from detecting lane lines properly.
MAIN button
*if equipped
Steering assistance
LKAS button

112 || 113
DRIVINGDRIVING

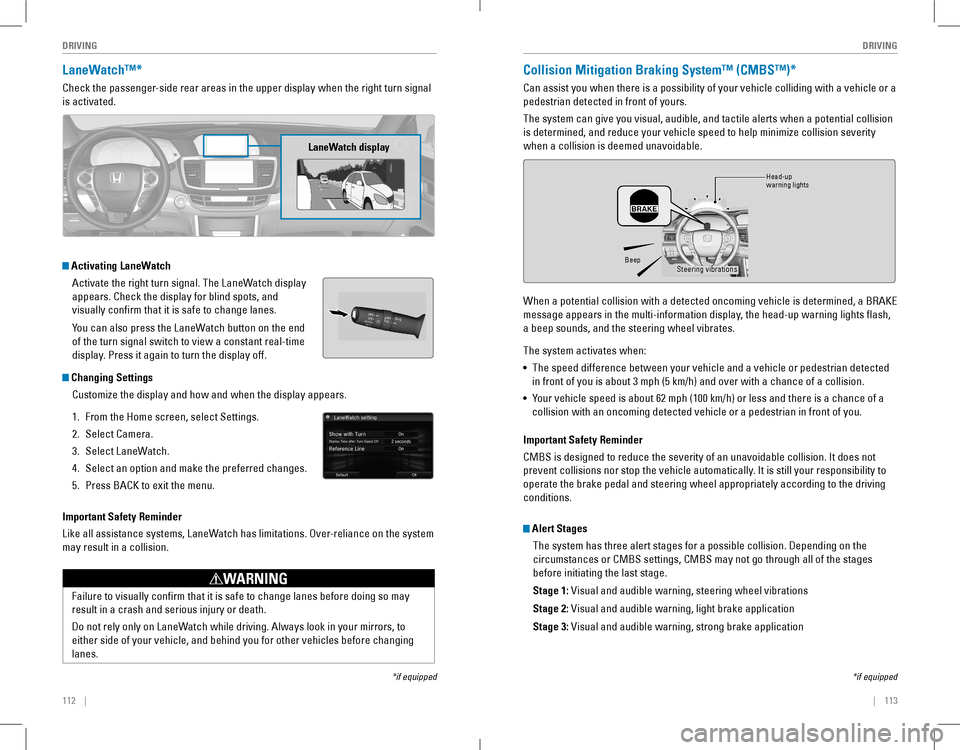

LaneWatch™*
Check the passenger-side rear areas in the upper display when the right turn signal
is activated.
Activating LaneWatch
Activate the right turn signal. The LaneWatch display 
appears. Check the display for blind spots, and 
visually confirm that it is safe to change lanes.
You can also press the LaneWatch button on the end 
of the turn signal switch to view a constant real-time
display. Press it again to turn the display off.
Changing Settings
Customize the display and how and when the display appears.
1. From the Home screen, select Settings.
2. Select Camera.
3. Select LaneWatch.
4. Select an option and make the preferred changes.
5. Press BACK to exit the menu.
Important Safety Reminder
Like all assistance systems, LaneWatch has limitations. Over-reliance on the system 
may result in a collision.
*if equipped
LaneWatch display
Failure to visually confirm that it is safe to change lanes before doing so may 
result in a crash and serious injury or death.
Do not rely only on LaneWatch while driving. Always look in your mirrors, to 
either side of your vehicle, and behind you for other vehicles before changing 
lanes.
WARNING
Collision Mitigation Braking System™ (CMBS™)*
Can assist you when there is a possibility of your vehicle colliding with a vehicle or a 
pedestrian detected in front of yours.
The system can give you visual, audible, and tactile alerts when a potential collision 
is determined, and reduce your vehicle speed to help minimize collision severity 
when a collision is deemed unavoidable.
When a potential collision with a detected oncoming vehicle is determined, a BRAKE 
message appears in the multi-information display, the head-up warning lights flash,
a beep sounds, and the steering wheel vibrates.
The system activates when:
• The speed difference between your vehicle and a vehicle or pedestrian detected 
in front of you is about 3 mph (5 km/h) and over with a chance of a collision.
• Your vehicle speed is about 62 mph (100 km/h) or less and there is a chance of a 
collision with an oncoming detected vehicle or a pedestrian in front of \
you.
*if equipped
Alert Stages
The system has three alert stages for a possible collision. Depending on  the 
circumstances or CMBS settings, CMBS may not go through all of the stage\
s
before initiating the last stage.
Stage 1: Visual and audible warning, steering wheel vibrations
Stage 2: Visual and audible warning, light brake application
Stage 3: Visual and audible warning, strong brake application
BeepHead-up

warning lights Steering vibrations
Important Safety Reminder
CMBS is designed to reduce the severity of an unavoidable collision. It does  not 
prevent collisions nor stop the vehicle automatically. It is still your responsibility to 
operate the brake pedal and steering wheel appropriately according to the driving 
conditions.

122 || 123
HANDLING THE UNEXPECTEDHANDLING THE UNEXPECTED
Tire Pressure Monitoring System (TPMS)
Monitors the tire pressure while you are driving.
If your vehicle’s tire pressure becomes significantly 
low, the low tire pressure indicator comes on and a
message appears on the multi-information display*.
What to Do
Stop your vehicle in a safe place. Check the tire
pressure and adjust the pressure to the specified
level on the label on the driver’s doorjamb.
*if equipped
TPMS Calibration
Any time you inflate, change, or rotate one or more of the tires, you \
need to
recalibrate the system. The calibration process requires approximately 30 minutes 
of cumulative driving at speeds between 30–60 mph (48–97 km/h). The vehicle 
must be stopped to begin calibration, and the process finishes automatically.
Using the TPMS button*
Press and hold the TPMS button near the steering 
wheel. The TPMS indicator blinks twice, and 
calibration begins.
Using the Settings menu*
Use the selector knob or touchscreen to make and enter selections.
1. Models with one display: Press the SETTINGS 
button. Select Vehicle Settings.
Models with touchscreen: From the HoMe
screen, select Settings. Select vehicle.
2. Select TPMS Calibration.
3. Select Calibrate, and calibration begins.
Using the multi-information display*
Use the Info (p/q) and SEL/RESET buttons on the steering wheel to make and 
enter selections.
1. Scroll to the vehicle Settings screen, and select it.
2. Select TPMS Calibration.
3. Select Calibrate, and calibration begins.
Tire Pressure Monitoring System (TPMS) - Required Federal Explanation
U.S. models
Each tire, including the spare (if provided), should be checked monthly 
when cold and inflated to the inflation pressure recommended by the 
vehicle manufacturer on the vehicle placard or tire inflation pressure\

label.
(If your vehicle has tires of a different size than the size indicated on the 
vehicle placard or tire inflation pressure label, you should determine the 
proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped 
with a tire pressure monitoring system (TPMS) that illuminates
a low tire pressure telltale when one or more of your tires is
significantly underinflated.
Accordingly, when the low tire pressure telltale illuminates, you should
stop and check your tires as soon as possible, and inflate them to the 
proper pressure.
Driving on a significantly underinflated tire causes the tire to ove\
rheat and
can lead to tire failure. Underinflation also reduces fuel efficienc\
y and tire
tread life, and may affect the vehicle’s handling and stopping ability.
Please note that the TPMS is not a substitute for proper tire maintenance, 
and it is the driver’s responsibility to maintain correct tire pressure, even 
if underinflation has not reached the level to trigger illumination of\
the
TPMS low tire pressure telltale.
Your vehicle has also been equipped with a TPMS malfunction indicator 
to indicate when the system is not operating properly. The TPMS
malfunction indicator is combined with the low tire pressure telltale. 
When the system detects a malfunction, the telltale will flash for 
approximately one minute and then remain continuously illuminated. This \
sequence will continue upon subsequent vehicle start-ups as long as the 
malfunction exists.
When the malfunction indicator is illuminated, the system may not be able 
to detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of reasons, including the
installation of replacement or alternate tires or wheels on the vehicle \
that
prevent the TPMS from functioning properly.
Always check the TPMS malfunction telltale after replacing one or more
tires or wheels on your vehicle to ensure that the replacement or altern\
ate
tires and wheels allow the TPMS to continue to function properly.
Driving on an extremely underinflated tire can cause it to overheat. A\
n overheated
tire can fail. Always inflate your tires to the specified pressure.
NOTICE

146 || 147
MAINTENANCEMAINTENANCE
DOT Tire Quality Grading
The tires on your vehicle meet all U.S. Federal Safety Requirements. All tires are 
also graded for treadwear, traction, and temperature performance according
to Department of Transportation (DoT) standards. The following explains these
gradings.
Uniform Tire Quality Grading
Quality grades can be found where applicable on the tire sidewall between tread 
shoulder and maximum section width.
For example:
Treadwear 200
Traction AA
Temperature A
All passenger car tires must conform to Federal Safety Requirements in 
addition to these grades.
Treadwear
The treadwear grade is a comparative rating based on the wear rate of the tire 
when tested under controlled conditions on a specified government test\
course.
For example, a tire graded 150 would wear one and one-half (1 1/2) times as well 
on the government course as a tire graded 100. The relative performance \
of
tires depends upon the actual conditions of their use, however, and may depart
significantly from the norm due to variations in driving habits, service practices, 
and differences in road characteristics and climate.
Traction
The traction grades, from highest to lowest, are AA, A, B, and C. Those \
grades
represent the tire’s ability to stop on wet pavement as measured under controlled 
conditions on specified government test surfaces of asphalt and concre\
te. A tire
marked C may have poor traction performance.
WARNING: The traction grade assigned to this tire is based on straight-ahead 
braking traction tests, and does not include acceleration, cornering, hydroplaning, 
or peak traction characteristics.
Temperature
The temperature grades are A (the highest), B, and C, representing the\
tire’s
resistance to the generation of heat and its ability to dissipate heat when tested 
under controlled conditions on a specified indoor laboratory test wheel. Sustained 
high temperature can cause the material of the tire to degenerate and re\
duce
tire life, and excessive temperature can lead to sudden tire failure. Th\
e grade
C corresponds to a level of performance which all passenger car tires must
meet under the Federal Motor vehicle Safety Standard No. 109. Grades B and
A represent higher levels of performance on the laboratory test wheel than the 
minimum required by law.
WARNING: The temperature grade for this tire is established for a tire that 
is properly inflated and not overloaded. excessive speed, underinflation, or
excessive loading, either separately or in combination, can cause heat buildup 
and possible tire failure.
