This Owner’s Guide is intended to help you quickly get acquainted with your
2016 Honda Accord Coupe. It provides basic information and instructions on 
technology and convenience features, as well as emergency procedures and\
how to
get assistance.
This guide is for vehicles sold in the United States and Canada. It covers all Accord 
Coupe models, so you may find descriptions of features and equipment that are not 
in your vehicle. Images throughout this guide are from U.S. vehicles and represent 
features and equipment that are available on some, but not all, models.
This guide is not intended to be a substitute for the Owner’s Manual. The Owner 
Information CD enclosed in your glove box kit includes the Owner’s Manual, 
Navigation Manual, and vehicle and tire warranties in electronic format.\
This
information can be viewed on a computer (PC or Mac platform) and saved or printed 
for your reference. You can also visit owners.honda.com (U.S.) or myhonda.ca
(Canada) to view the complete and most current information.
If you are the first registered owner of your vehicle, you may request a complimentary 
printed copy of the Owner’s Manual, Navigation Manual, or Vehicle Warranty within 
the first six months of vehicle purchase. To request a copy, visit owners.honda.com
(U.S.) and create or log in to your account. In Canada, please request a copy from 
your Honda dealer.
American Honda Motor Company strives to be proactive in protecting our 
environment and natural resources. By using electronic delivery for a considerable 
portion of the information typically found in a vehicle owner’s manual, we are further
reducing our impact on the environment.
Honda Automobile Customer Service
Your authorized Honda dealer should be able to answer any questions you have 
about your vehicle. However, if you are dissatisfied with the information you receive, 
you can call Honda Automobile Customer Service (see page 153).
Call (800) 999-1009 (U.S.) or (888) 946-6329 (Canada)
Honda Roadside Assistance
24-hour emergency road service is available to you in the United States and Canada 
throughout your 3-year/36,000-mile warranty term. Services include jump starting, 
flat tire and lockout assistance, towing, and more (limitations apply\
).
Call (866) 864-5211 (U.S.) or (800) 465-7587 (Canada)
*if equipped
VISUAL INDEX .......................................1
Steering Wheel and Nearby Controls...1
Dashboard and Other Controls ...........2
SAFETY INFORMATION ........................3
Important Safety Information ..............3
Seat Belts ...............................................5
Airbags ....................................................8
Child Safety ..........................................14
Safety Label Locations .......................21
Reporting Safety Defects ...................22
INSTRUMENT PANEL .........................23
Malfunction Indicators ......................23
Condition Indicators ...........................25
On/Off Indicators .................................26
Information Display* ..........................27
Multi-Information Display (MID)* ....28
VEHICLE CONTROLS ...........................30
Using the Key or Remote
Transmitter* .........................................30
Smart Entry System* ...........................31
Door Operation ....................................32
Power Window Operation ................33
Power Moonroof Operation* ...........34
Interior and Exterior Lights ...............35
Auto High-Beam System* ..................36
Wiper Operation ..................................37
One-Touch Turn Signal .......................38
Adjusting the Seats ............................39
Adjusting the Steering Wheel ..........43
Driving Position Memory System* ...43
Adjusting the Mirrors .........................44
HomeLink® Garage Opener* .............45
Climate Control System ....................46
Seat Heaters* ......................................46
Customized Features ..........................47
Setting the Clock .................................48
AUDIO AND CONNECTIVITY .............49
Basic Audio Operation .......................49
Models with one display
One Display Audio Operation ...........53
FM/AM Radio .......................................54
Compact Disc (CD) ..............................55
iPod®......................................................56
USB Flash Drive ..................................57
Bluetooth® Audio ................................58
Pandora® ..............................................59
Models with touchscreen
Touchscreen Operation .....................60
HondaLink® ..........................................62
Wi-Fi Connection ................................63
Ahaâ„¢ Radio .........................................63
Apple CarPlay ......................................64
Android Auto ........................................65
FM/AM Radio ......................................66
SiriusXM® Radio* ...............................67
Compact Disc (CD) .............................68
iPod®......................................................69
USB Flash Drive ..................................70
Bluetooth® Audio ................................71
Pandora® ..............................................72
BLUETOOTH® HANDSFREELINK® ....73
Models with one display
Basic HFL Operation ...........................73
Pairing a Phone ...................................74
Making a Call ......................................75
SMS Text Messaging .........................77
Models with touchscreen
Basic HFL Operation ...........................78
Pairing a Phone ...................................80

2 || 3
SAFETYVISUAL INDEX
Dashboard and Other Controls
1  Audio system/touchscreen*/   
 navigation* system  p. 53, p. 78,
p. 86
2  Hazard warning button
3 Climate control system p. 46
4  Seat heater switches*   p. 46
5 USB port p. 49
Wireless charger*   p. 50
Accessory power socket p. 49
6 rearview mirror p. 44
7 Power window switches p. 33
Door lock switches p. 32
Door mirror controls p. 45
8 Fuel fill door release handle
p. 116
Trunk release button   p. 32
9 Shift lever p. 100
10 Hood release handle p. 134
11 Driving Position Memory System
 buttons*   p. 43
*if equipped
SAFETY INFORMATION
2
4
71
8
6
3
Your safety—and the safety of others—is very important, and operati\
ng this vehicle
safely is an important responsibility. While we strive to help you make informed 
decisions about safety, it is not practical or possible to warn you about all the 
hazards associated with operating or maintaining your vehicle. Therefore, you must 
use your own good judgment.
Important Safety Information
This guide explains many of your vehicle’s safety features and how to use them.
Please read this information carefully. Following the instructions below will also help 
to keep you and your passengers safe.
Important Safety Precautions
• Always wear your seat belt.
• Secure all children in the proper restraint system.
• Be aware of airbag hazards.
• Don’t drink and drive.
• Pay appropriate attention to the task of driving safely.
• Control your speed.
• Keep your vehicle in safe condition.
engaging in cell phone conversation or other activities that keep you fro\
m paying
close attention to the road, other vehicles, and pedestrians could lead \
to a crash.
Remember, situations can change quickly, and only you can decide when it is safe 
to divert some attention away from driving.
Safety Messages
When you see the following messages throughout this guide, pay close attention.
You WILL be KILLED or SERIOUSLY HURT if you don’t follow    
instructions.
You CAN be KILLED or SERIOUSLY HURT if you don’t follow    
instructions.
You CAN be HURT if you don’t follow instructions.
This information is intended to help you avoid damage to your
vehicle, other property, or the environment.
DANGER
WARNING
CAUTION
NOTICE
5910
11

8 || 9
SAFETYSAFETY

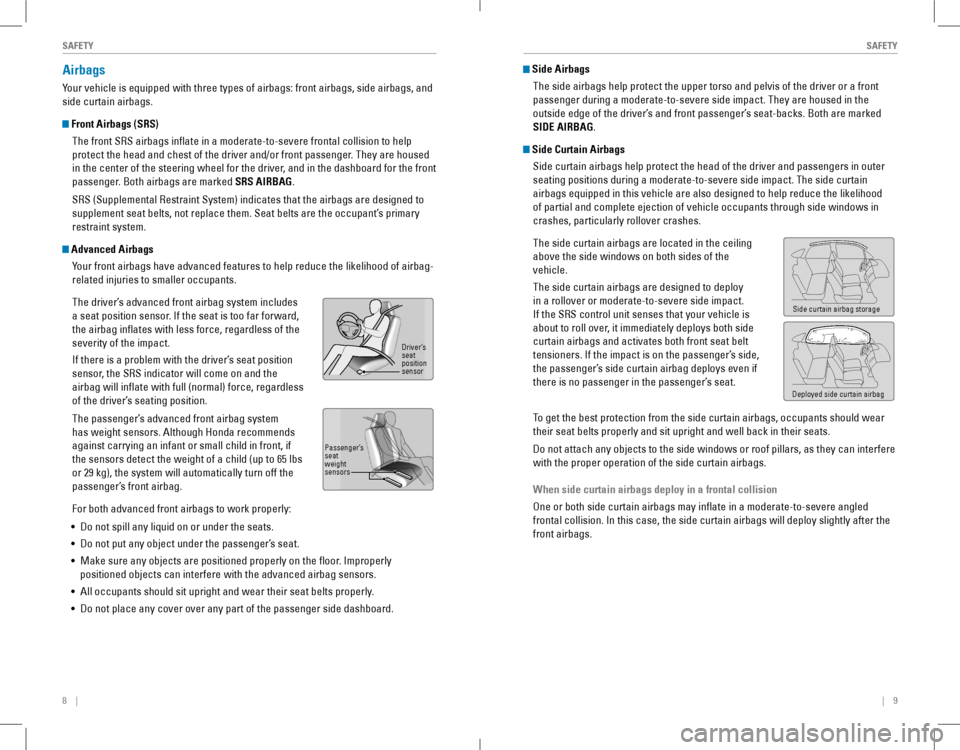

Airbags
Your vehicle is equipped with three types of airbags: front airbags, side airbags, and 
side curtain airbags.
Front Airbags (SRS)
The front SRS airbags inflate in a moderate-to-severe frontal collision to help 
protect the head and chest of the driver and/or front passenger. They are housed 
in the center of the steering wheel for the driver, and in the dashboard for the front 
passenger. Both airbags are marked SRS AIRBAG.
SRS (Supplemental Restraint System) indicates that the airbags are designed to 
supplement seat belts, not replace them. Seat belts are the occupant’s primary 
restraint system.
Advanced Airbags
Your front airbags have advanced features to help reduce the likelihood of airbag-
related injuries to smaller occupants.
The driver’s advanced front airbag system includes 
a seat position sensor. If the seat is too far forward, 
the airbag inflates with less force, regardless of the 
severity of the impact.
If there is a problem with the driver’s seat position 
sensor, the SrS indicator will come on and the
airbag will inflate with full (normal) force, regardless 
of the driver’s seating position.
The passenger’s advanced front airbag system 
has weight sensors. Although Honda recommends
against carrying an infant or small child in front, if
the sensors detect the weight of a child (up to 65 lbs 
or 29 kg), the system will automatically turn off the
passenger’s front airbag.
For both advanced front airbags to work properly: 
• Do not spill any liquid on or under the seats.
• Do not put any object under the passenger’s seat.
• Make sure any objects are positioned properly on the floor. Improperly 
positioned objects can interfere with the advanced airbag sensors.
• All occupants should sit upright and wear their seat belts properly.
• Do not place any cover over any part of the passenger side dashboard.
Side Airbags
The side airbags help protect the upper torso and pelvis of the driver or a front 
passenger during a moderate-to-severe side impact. They are housed in th\
e
outside edge of the driver’s and front passenger’s seat-backs. Both are marked 
SIDE AIRBAG.
Side Curtain Airbags
Side curtain airbags help protect the head of the driver and passengers in outer 
seating positions during a moderate-to-severe side impact. The side curt\
ain
airbags equipped in this vehicle are also designed to help reduce the likelihood 
of partial and complete ejection of vehicle occupants through side windo\
ws in
crashes, particularly rollover crashes.
The side curtain airbags are located in the ceiling 
above the side windows on both sides of the 
vehicle.
The side curtain airbags are designed to deploy 
in a rollover or moderate-to-severe side impact.
If the SRS control unit senses that your vehicle is 
about to roll over, it immediately deploys both side 
curtain airbags and activates both front seat belt 
tensioners. If the impact is on the passenger’s side, 
the passenger’s side curtain airbag deploys even if 
there is no passenger in the passenger’s seat.
To get the best protection from the side curtain airbags, occupants should wear 
their seat belts properly and sit upright and well back in their seats.
Do not attach any objects to the side windows or roof pillars, as they can interfere 
with the proper operation of the side curtain airbags.
When side curtain airbags deploy in a frontal collision
One or both side curtain airbags may inflate in a moderate-to-severe angled 
frontal collision. In this case, the side curtain airbags will deploy slightly after the 
front airbags.
Driver’sseat positionsensor
Passenger’s seatweightsensors
Side curtain airbag storage
Deployed side curtain airbag

10 || 11
SAFETYSAFETY

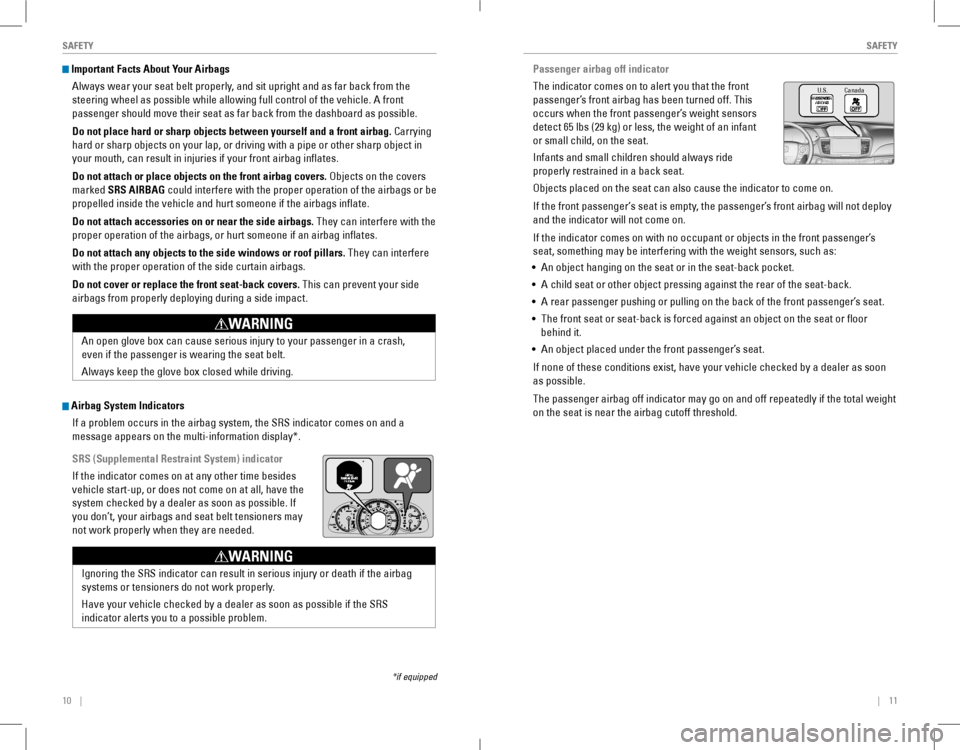

Important Facts About Your Airbags
Always wear your seat belt properly, and sit upright and as far back from the 
steering wheel as possible while allowing full control of the vehicle. A front 
passenger should move their seat as far back from the dashboard as possible. 
Do not place hard or sharp objects between yourself and a front airbag. Carrying
hard or sharp objects on your lap, or driving with a pipe or other sharp object in 
your mouth, can result in injuries if your front airbag inflates.
Do not attach or place objects on the front airbag covers. Objects on the covers 
marked SRS AIRBAG could interfere with the proper operation of the airbags or be 
propelled inside the vehicle and hurt someone if the airbags inflate.
Do not attach accessories on or near the side airbags. They can interfere with the
proper operation of the airbags, or hurt someone if an airbag inflates.
Do not attach any objects to the side windows or roof pillars. They can interfere
with the proper operation of the side curtain airbags.
Do not cover or replace the front seat-back covers. This can prevent your side
airbags from properly deploying during a side impact.
Airbag System Indicators
If a problem occurs in the airbag system, the SRS indicator comes on and a 
message appears on the multi-information display*.
SRS (Supplemental Restraint System) indicator
If the indicator comes on at any other time besides 
vehicle start-up, or does not come on at all, have the
system checked by a dealer as soon as possible. If 
you don’t, your airbags and seat belt tensioners may 
not work properly when they are needed.
Passenger airbag off indicator
The indicator comes on to alert you that the front
passenger’s front airbag has been turned off. This 
occurs when the front passenger’s weight sensors
detect 65 lbs (29 kg) or less, the weight of an infant 
or small child, on the seat.
Infants and small children should always ride 
properly restrained in a back seat.
Objects placed on the seat can also cause the indicator to come on.
If the front passenger‘s seat is empty, the passenger’s front airbag will not deploy 
and the indicator will not come on.
If the indicator comes on with no occupant or objects in the front passenger’s 
seat, something may be interfering with the weight sensors, such as: 
• An object hanging on the seat or in the seat-back pocket.
• A child seat or other object pressing against the rear of the seat-back.
• A rear passenger pushing or pulling on the back of the front passenger’s seat.
• The front seat or seat-back is forced against an object on the seat or floor 
behind it.
• An object placed under the front passenger’s seat.
If none of these conditions exist, have your vehicle checked by a dealer as soon 
as possible.
The passenger airbag off indicator may go on and off repeatedly if the total weight 
on the seat is near the airbag cutoff threshold.
An open glove box can cause serious injury to your passenger in a crash, 
even if the passenger is wearing the seat belt.
Always keep the glove box closed while driving.
WARNING
*
Ignoring the SRS indicator can result in serious injury or death if the airbag 
systems or tensioners do not work properly.
Have your vehicle checked by a dealer as soon as possible if the SRS 
indicator alerts you to a possible problem.
WARNING
U.S.Canada
*if equipped

12 || 13
SAFETYSAFETY
1 Two SRS (Supplemental Restraint System) front airbags. The driver’s airbag 
is stored in the center of the steering wheel; the front passenger’s airbag is 
stored in the dashboard. Both are marked SRS AIRBAG.
2  Two side airbags, one for the driver and one for the front passenger. The 
airbags are stored in the outer edges of the seat-backs. Both are marked 
SIDE AIRBAG.
3  Two side curtain airbags, one for each side of the vehicle. The airbags are 
stored in the ceiling, above the side windows. The front and rear pillars are 
marked SIDE CURTAIN AIRBAG.
4 An electronic control unit that continually monitors and can record
information about the sensors,  the airbag  activators,  the seat  belt tensioners, 
and driver and front passenger seat belt use when the vehicle is on.
5  Automatic front seat belt tensioners. The driver’s and front passenger’s seat 
belts incorporate sensors that detect whether or not they are fastened.
6  A driver’s seat position sensor. If the seat is too far forward, the airbag will 
inflate with less force.
7  Weight sensors in the front passenger’s seat. The front passenger’s airbag 
will be turned off if the weight on the seat is 65 lbs (29 kg) or less (the weight  
of an infant or small child).
8  Impact sensors that can detect a moderate-to-severe front or side impact.
9  An indicator on the dashboard that alerts you that the front passenger’s front 
airbag has been turned off.
10  An indicator on the instrument panel that alerts you to a possible problem 
with the airbag system or seat belt tensioners.
11 Safing sensor
Airbag System Components
Airbag Care
You do not need to, and should not, perform any maintenance on or replace\
any
airbag system components yourself. However, you should have your vehicle 
inspected by a dealer in the following situations:
When the airbags have deployed
If an airbag has inflated, the control unit and other related parts must be replaced. 
Similarly, once an automatic seat belt tensioner has been activated, it must be 
replaced.
When the vehicle has been in a moderate-to-severe collision
Even if the airbags did not inflate, have your dealer inspect the following: the 
driver’s seat position sensor, weight sensors in the passenger’s seat, front seat
belt tensioners, and each seat belt that was worn during the crash.
Do not remove or modify a front seat without first consulting a dealer
This would likely disable the driver’s seat position sensor or the weight sensors 
in the passenger’s seat. If it is necessary to remove or modify a front seat to 
accommodate a person with disabilities, contact a Honda dealer. For U.S. 
vehicles, call Honda Automobile Customer Service at (800) 999-1009. For Canadian 
vehicles, call Honda Canada Customer relations at (888) 946-6329.
6
7
8
9
8
8
8
8810
11
12
12  A rollover sensor that detects whether the vehicle is about to roll over and signal 
the control unit to deploy both side curtain airbag.

20 || 21
SAFETYSAFETY

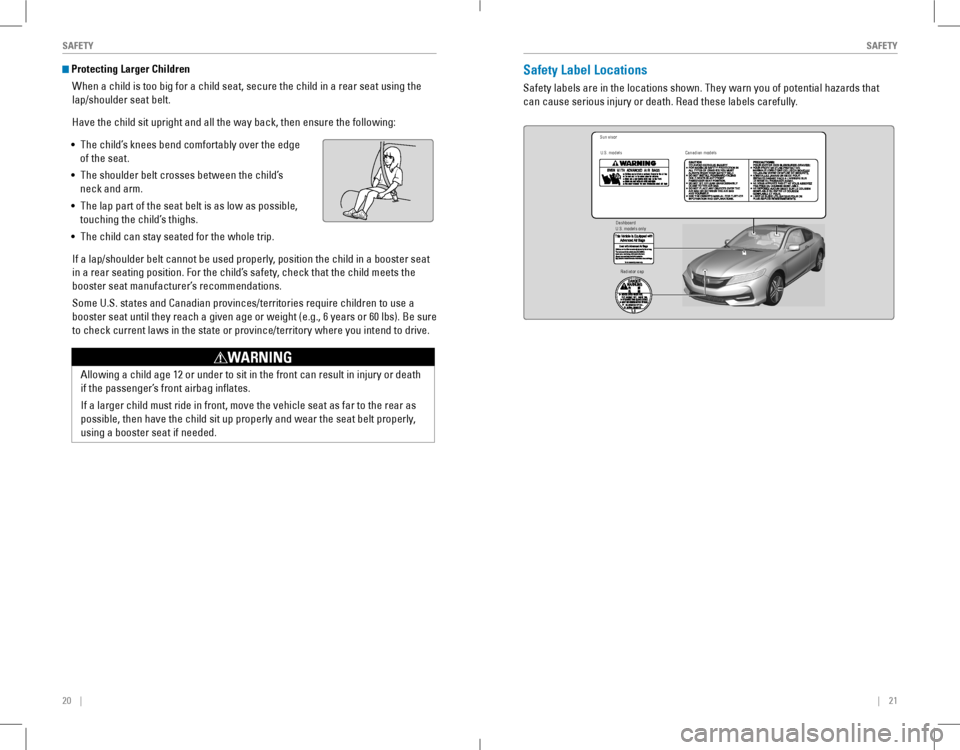

Protecting Larger Children
When a child is too big for a child seat, secure the child in a rear seat using the 
lap/shoulder seat belt.
Have the child sit upright and all the way back, then ensure the following:
• The child’s knees bend comfortably over the edge 
of the seat.
• The shoulder belt crosses between the child’s 
neck and arm.
• The lap part of the seat belt is as low as possible, 
touching the child’s thighs.
• The child can stay seated for the whole trip.
If a lap/shoulder belt cannot be used properly, position the child in a booster seat 
in a rear seating position. For the child’s safety, check that the child meets the
booster seat manufacturer’s recommendations.
Some U.S. states and Canadian provinces/territories require children to use a 
booster seat until they reach  a given  age or weight  (e.g., 6 years  or 60  lbs).  Be sure 
to check current laws in the state or province/territory where you intend to drive.
Safety Label Locations
Safety labels are in the locations shown. They warn you of potential hazards that 
can cause serious injury or death. Read these labels carefully.
Sun visor
U.S. models Canadian models
Radiator cap
U.S. models only
Dashboard
Allowing a child age 12 or under to sit in the front can result in injur\
y or death
if the passenger’s front airbag inflates.
If a larger child must ride in front, move the vehicle seat as far to the rear as 
possible, then have the child sit up properly and wear the seat belt properly, 
using a booster seat if needed.
WARNING

38 || 39
VEHICLE CONTROLSVEHICLE CONTROLS
Always ensure the wiper lever is in the OFF position before entering a car wash to 
prevent severe damage to the windshield wiper system.
NOTICE
Do not use the wipers when the windshield is dry. The windshield will get
scratched, or the rubber blades will get damaged.
In cold weather, the blades may freeze to the windshield, becoming stuck. 
operating the wipers in this condition may damage the wipers. Use the def\
roster
to warm the windshield, or manually clear the windshield of ice and snow before 
turning on the wipers.
NOTICE

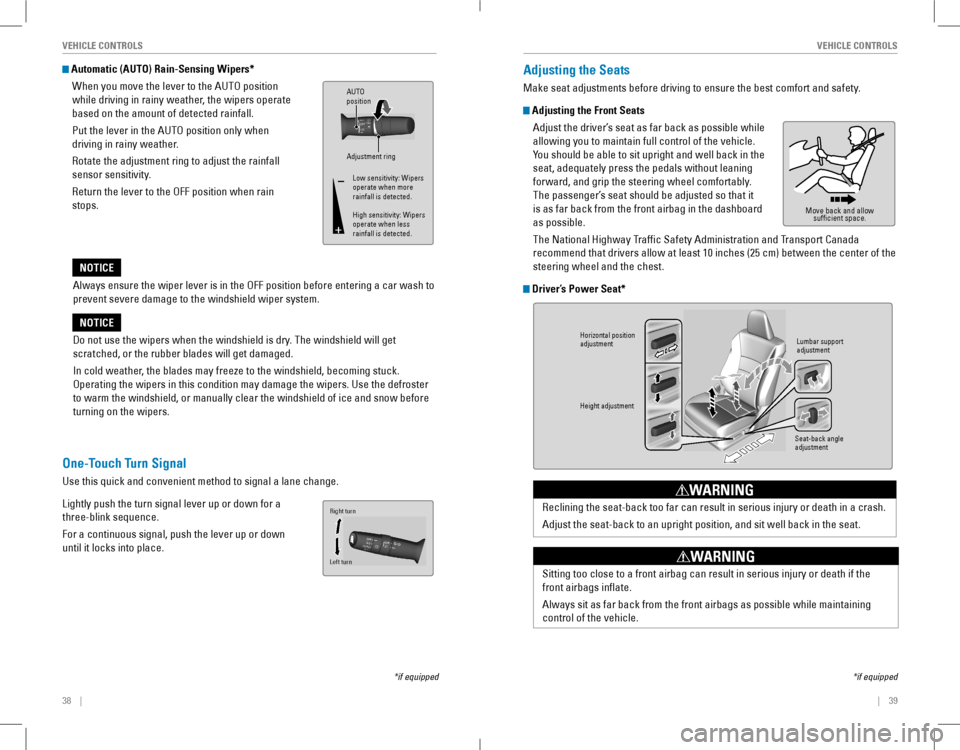

Automatic (AUTO) Rain-Sensing Wipers*
When you move the lever to the AUTO position 
while driving in rainy weather, the wipers operate
based on the amount of detected rainfall.
Put the lever in the AUTo position only when
driving in rainy weather.
rotate the adjustment ring to adjust the rainfall
sensor sensitivity.
return the lever to the oFF position when rain
stops.
Adjustment ring
AUTO
position
Low sensitivity: Wipers
operate when more
rainfall is detected.
High sensitivity: Wipers
operate when less
rainfall is detected.
*if equipped
One-Touch Turn Signal
Use this quick and convenient method to signal a lane change.
Lightly push the turn signal lever up or down for a
three-blink sequence.
For a continuous signal, push the lever up or down
until it locks into place.
Right turn
Left turn
Adjusting the Seats
Make seat adjustments before driving to ensure the best comfort and safety.
Adjusting the Front Seats
Adjust the driver’s seat as far back as possible while 
allowing you to maintain full control of the vehicle.
You should  be able to sit  upright and well  back in the 
seat, adequately press the pedals without leaning 
forward, and grip the steering wheel comfortably. 
The passenger’s seat should be adjusted so that it 
is as far back from the front airbag in the dashboard 
as possible.
The National Highway Traffic Safety Administration and Transport Canada
recommend that drivers allow at least 10 inches (25 cm) between the center of the 
steering wheel and the chest.
Driver’s Power Seat*
Move back and allow 
sufficient space.
*if equipped
Horizontal position
adjustment
Height adjustmen t
Seat-back angle
adjustmentLumbar support
adjustmen
t
Reclining the seat-back too far can result in serious injury or death in a crash.
Adjust the seat-back to an upright position, and sit well back in the seat.
WARNING
Sitting too close to a front airbag can result in serious injury or death if the 
front airbags inflate.
Always sit as far back from the front airbags as possible while maintaining 
control of the vehicle.
WARNING

46 || 47
VEHICLE CONTROLSVEHICLE CONTROLS
Climate Control System
The automatic climate control system can maintain your preferred interio\
r
temperature by selecting the proper mix of heated or cooled air and fan speed. Use 
the buttons on the dashboard to control the system.
AUTO button: Press, then use the temperature control buttons to set your preferred temperature.
Driver’s side temperature control buttons
A/C buttonFan control buttons
Recirculation button: Recirculation mode (indicator on): recirculates air from the vehicle’s interior. Fresh air mode (indicator off): Maintains outside ventilation.
Rear defogger/heated door mirrors button*
Windshield defroster button
ON/OFF buttonMode button: Change airflow location.
Passenger’s side temperature control buttons
SYNC button: Press to set the passenger’s side temperature to the same as the driver’s side.
Seat Heaters*
Quickly warm the seats when the vehicle is on.
Press the seat heater switch in the front console to
the LO or HI position. An indicator appears for the 
selected setting. return the switch to the middle
position to turn off.
Heat-induced burns are possible when using seat heaters.
Persons with a diminished ability to sense temperature (e.g., persons with 
diabetes, lower-limb nerve damage, or paralysis) or with sensitive skin should 
not use the seat heaters.
WARNING
*if equipped
Customized Features
Use the Settings menu to customize certain features when the vehicle is stopped.
Using the SETTINGS Button*
Use the selector knob to make and enter selections.
SETTINGS button
*if equipped
Using the Touchscreen*
Select items on the touchscreen to make selections.
1. Press the SETTINGS button.
2. Select an option, and make your preferred changes.
3. Press the BACK button to exit the menus.
1. From the HoMe screen, select Settings.
2. Select an option, and make your preferred changes.
3. Press BACK to exit the menus.

52 || 53
AUDIO AND CONNECTIVITYAUDIO AND CONNECTIVITY
Adjusting the Sound
Adjust various sound settings.
Using the SETTINGS button*
Use the selector knob to make and enter selections.
1. Press the SETTINGS button.
2. Select Audio Settings.
3. Select Sound.
4. Select a sound mode to change, and adjust it
using the selector knob.
5. Press the BACK button to exit the menu.
Using the touchscreen*
Touch items on the screen to make and enter selections.
1. From the HoMe screen, select Settings.
2. Select Audio.
3. Select Sound.
4. Select the tabs to change the sound mode and 
adjust the setting.
5. Select oK when complete.
*if equipped
Models with one display
One Display Audio Operation
Control audio operation using the dashboard buttons.
Main display
Selector knob: rotate and press to make and enter selections.
MENU button: Display menu items for the selected audio mode.
Power/volume knob: Press to turn the audio system on or off. rotate to adjust volume.
button: Adjust display brightness.
SETTINGS button: Display settings options.
BACK button: return to the previous screen.
Press the display button to change displays.

128 || 129
HANDLING THE UNEXPECTEDHANDLING THE UNEXPECTED
Interior Fuse Box
Located under the dashboard on the driver’s side.
*if equipped
Circuit ProtectedAmps1A/C7.5A2DRL7.5A345Meter7.5A6SRS7.5A7Optio n(7.5A)8MISS SOL10A9Fuel Pump20A10ABS/VSA7.5A1112Front Wipe r7.5A13ACG15 A
14Rear Accessory Power Socket
(Console Compartment)(2 0A )
15Driver’s Power Seat
Reclining*(2 0A )
16Moonroof*(20A )17Front Seat Heaters*(20A )18
19Passenger Side Door
Unlock10A
20 Driver Side Rear Door
Unlock 10
A
21 Driver’s Door Lock 10A
22 Passenger Side Door Lock 10A
23 Driver’s Door Unlock 10A
24 SRS 10A
25 Illumination 10A
26 Key Lock 7.5A
27 Parking Lights 10A
28 Lumbar Suppor t
*(10A )
29 Right Headlight High Beam 10A
30 Washer 15A
31 SMART
*(10A )
32 Driver’s Power Window 20A
33 Front Passenger’s Power
Window 20
A
34 Rear Driver Side Power
Window 20
A
35 Rear
Passenger Side Power
Windo w 20
A
36 Driver’s Power Seat Sliding
*(20A)
37 ACCESSORY 7.5A
38
39 Left Headlight High Beam 10A
40
Front Accessory Power Socket
(Con sole Panel)20A
41 Driver Side Rear Door Lock 10A
42 Door Lock 20A
a Audio
*(7.5A)
b ACM*(20 A)
c Rear Seat Heaters*(15A)
d Premium Am p*(20A)
e
f
g Passenger’s Power Seat
Reclining
*(20A)
h Passenger’s Power Seat
Sliding
*(20A)
Circuit Protected Amps
*
*
* * *
Fuse label
Circuit Protected Amps
1 A/C 7.5A
2 DRL 7.5A
3
4
5 Meter 7.5A
6 SRS 7.5A
7 Option (7.5A)
8 MISS SOL 10A
9 Fuel Pump 20A
10 ABS/VSA 7.5A
11
12 Front Wiper 7.5A
13 ACG 15A
14
Rear Accessory Power Socket
(Console Compartment)(2 0A )
15 Driver’s Power Seat

Reclining
*(2 0A )
16 Moonroof
*(20A )
17 Front Seat Heaters*(20A )
18
19 Passenger Side Door
Unlock 10
A
20 Driver Side Rear Door
Unlock 10
A
21Driver’s Door Lock10A22Passenger Side Door Lock10A23Driver’s Door Unlock10A24SRS10A25Illumination10A26Key Lock7.5A27Parking Lights10 A28Lumbar Suppor t*(10A )29Right Headlight High Beam10A30Washe r15A31SMART*(10A )32Driver’s Power Window20A
33Front Passenger’s Power
Window20A
34Rear Driver Side Power
Window20A
35Rear Passenger Side Power
Windo w20A
36Driver’s Power Seat Sliding*(20A)37ACCESSORY7.5A3839Left Headlight High Beam10A
40Front Accessory Power Socket
(Con sole Panel)20A
41Driver Side Rear Door Lock10A42Door Lock20AaAudio*(7.5 A)bACM*(20 A)cRear Seat Heaters*(15A)dPremium Am p*(20A)ef
gPassenger’s Power Seat
Reclining*(20A)
hPassenger’s Power Seat
Sliding*(20A)
Circuit ProtectedAmps
*
*
* * *
Inspecting and Changing Fuses
1. Turn the vehicle off, including all lights and
accessories.
2. Remove the fuse box cover.
3. Check the large fuse in the engine compartment.
 If the fuse is blown, use a Phillips-head 
screwdriver to remove the screws and replace
the fuse with a new one. reinstall the screws.
4. Inspect the small fuses in the engine 
compartment and the vehicle interior.
 If there is a burned out fuse, remove it with the 
fuse puller and replace it with a new one.
Combined
fuse Blown fuse
Fuse puller
replacing a fuse with one that has a higher rating greatly increases the \
chances of
damaging the electrical system.
NOTICE
