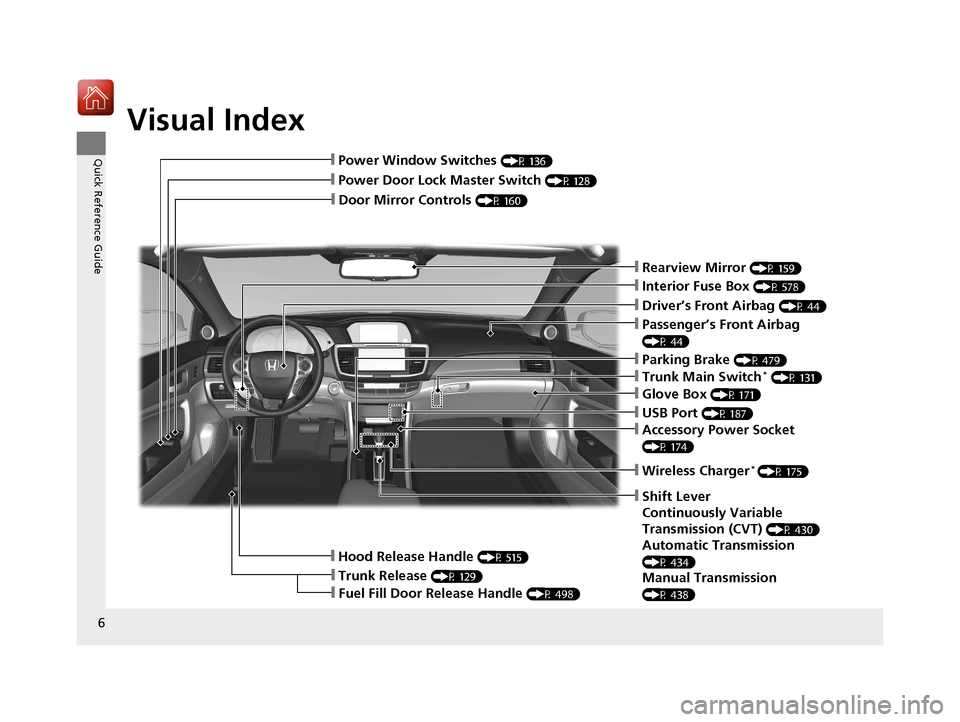

Visual Index
6
Quick Reference Guide
❙Door Mirror Controls (P 160)
❙Passenger’s Front Airbag
(P 44)
❙Parking Brake (P 479)
❙Glove Box (P 171)
❙Rearview Mirror (P 159)
❙Hood Release Handle (P 515)
❙Power Door Lock Master Switch (P 128)
❙Power Window Switches (P 136)
❙Interior Fuse Box (P 578)
❙Driver’s Front Airbag (P 44)
❙Trunk Main Switch* (P 131)
❙Fuel Fill Door Release Handle (P 498)
❙Trunk Release (P 129)
❙Shift Lever
Continuously Variable
Transmission (CVT)
(P 430)
Automatic Transmission
(P 434)
Manual Transmission
(P 438)
❙USB Port (P 187)
❙Accessory Power Socket
(P 174)
❙Wireless Charger* (P 175)
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 6 ページ ２０１５年９月２５日 金曜日 午前１１時３９分
22
Quick Reference Guide

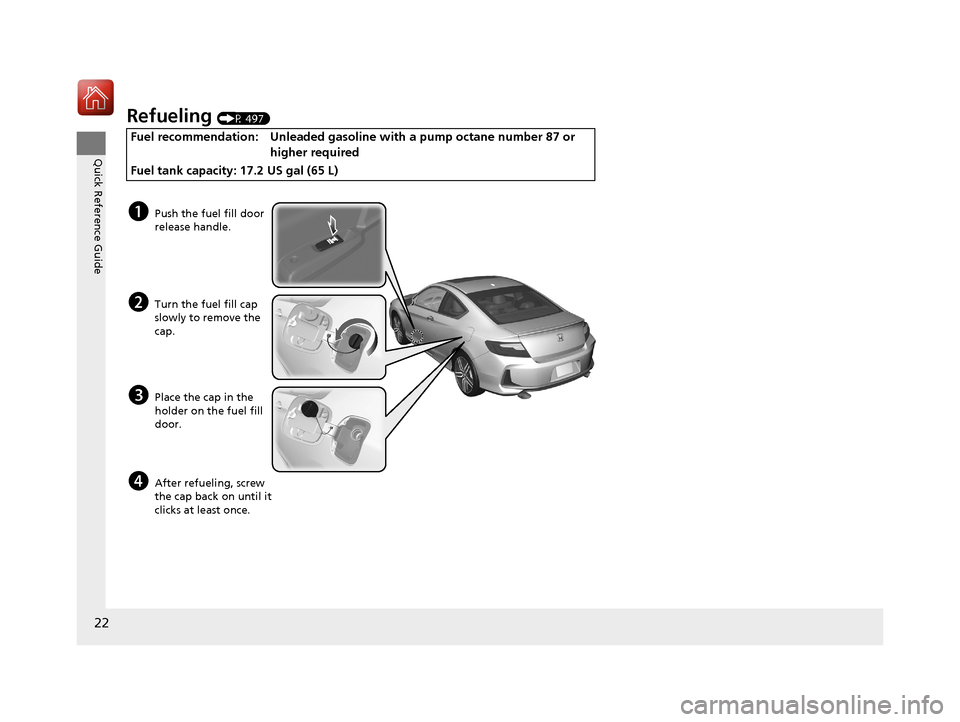

Refueling (P 497)
Fuel recommendation: Unleaded gasoline with a pump octane number 87 or
higher required
Fuel tank capacity: 17.2 US gal (65 L)
aPush the fuel fill door
release handle.
bTurn the fuel fill cap
slowly to remove the
cap.
cPlace the cap in the
holder on the fuel fill
door.
dAfter refueling, screw
the cap back on until it
clicks at least once.
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 22 ページ ２０１５年９月２５日 金曜日 午前１１時３９分
498
uuRefueling uHow to Refuel
Driving

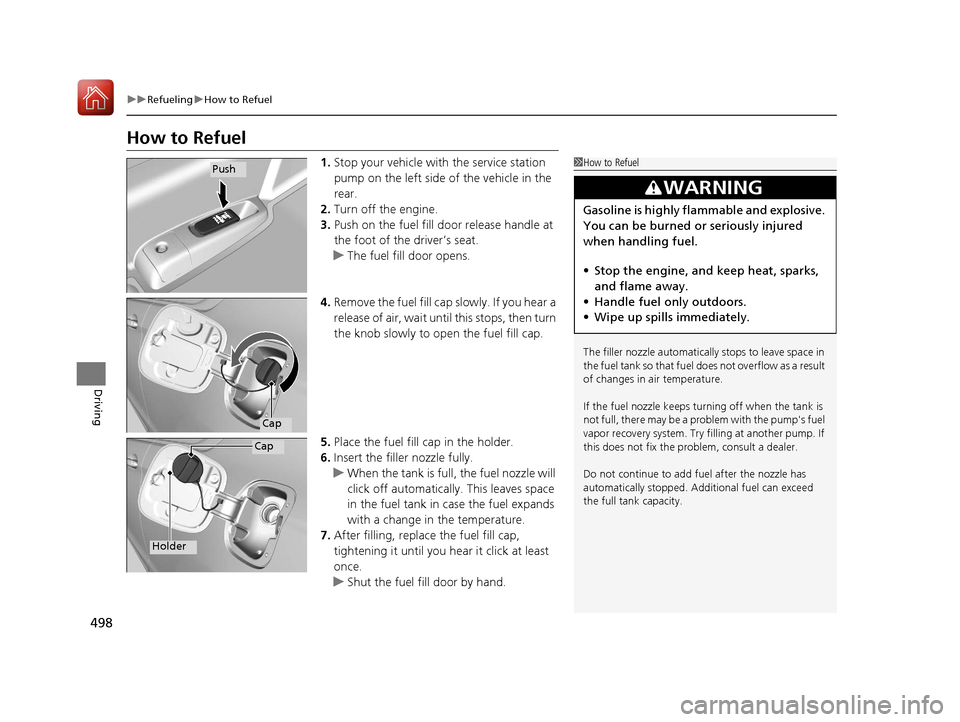

How to Refuel
1. Stop your vehicle with the service station
pump on the left side of the vehicle in the
rear.
2. Turn off the engine.
3. Push on the fuel fill door release handle at
the foot of the driver’s seat.
u The fuel fill door opens.
4. Remove the fuel fill cap slowly. If you hear a
release of air, wait unt il this stops, then turn
the knob slowly to open the fuel fill cap.
5. Place the fuel fill cap in the holder.
6. Insert the filler nozzle fully.
u When the tank is full, the fuel nozzle will
click off automatically . This leaves space
in the fuel tank in case the fuel expands
with a change in the temperature.
7. After filling, replace the fuel fill cap,
tightening it until you hear it click at least
once.
u Shut the fuel fill door by hand.1How to Refuel
The filler nozzle automatically stops to leave space in
the fuel tank so that fuel does not overflow as a result
of changes in air temperature.
If the fuel nozzle keeps turning off when the tank is
not full, there may be a problem with the pump's fuel
vapor recovery system. Try fi lling at another pump. If
this does not fix the problem, consult a dealer.
Do not continue to add fuel after the nozzle has
automatically stopped. Addi tional fuel can exceed
the full tank capacity.
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine, and keep heat, sparks,
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Push
Cap
Cap
Holder
