language HONDA ACCORD COUPE 2017 9.G Owners Manual

107
uuGauges and Displays uMulti-Information Display*
Continued
Instrument Panel
■Customization flow
Press the button.
SEL/RESETVehicle Settings
“Trip A” Reset Timing
Language Selection
Adjust Outside Temp. Display
Memory Position Link
Door Unlock Mode
Keyless Access Light Flash
4
4
4
4
TPMS Calibration
Driver Assist System Setup
Meter Setup
Position Setup
Keyless Access Setup
SEL/RESET
SEL/RESET
SEL/RESET
SEL/RESET
“Trip B” Reset Timing
Fuel Efficiency Backlight
4
ACC Pre-Running Car Detect Beep
ACC Display Speed Unit
4Keyless Start Guidance Screens
SEL/RESET
Keyless Access Beep
Forward Collision Warning Distance
4
4
4
Lane Keep Assist Suspend Beep
Road Departure Mi tigation Setting
Remote Start System ON/OFF*
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 107 ページ ２０１５年９月２５日　金曜日　午前１１時３９分

110
uuGauges and Displays uMulti-Information Display*
Instrument Panel

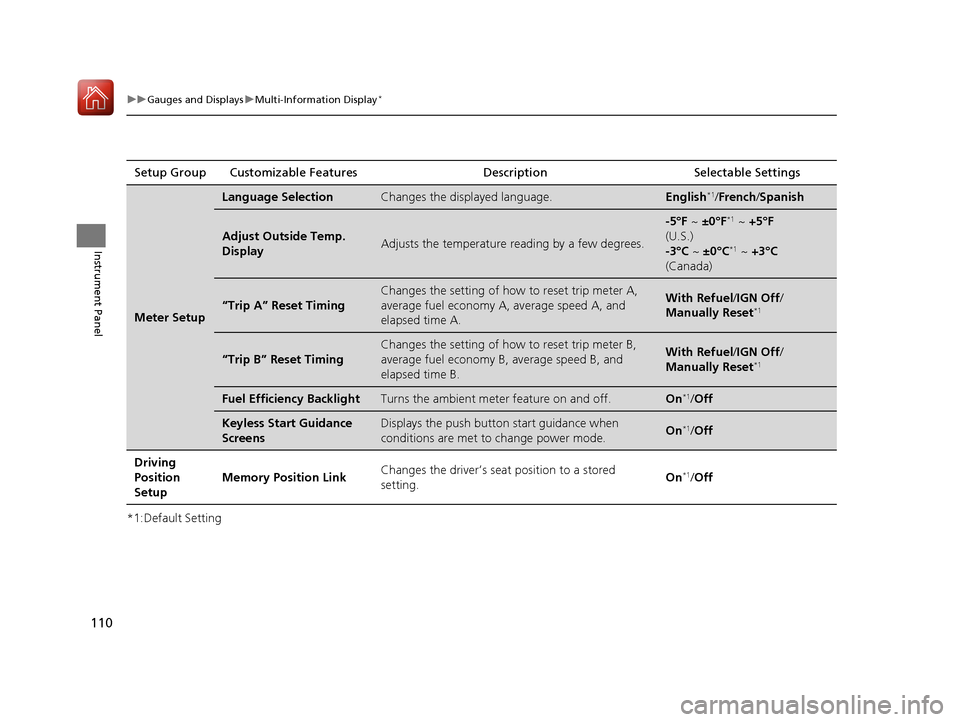

*1:Default SettingSetup Group Customizable Features Description Selectable Settings
Meter Setup
Language SelectionChanges the displayed language.English*1/
French /Spanish
Adjust Outside Temp.
DisplayAdjusts the temperature reading by a few degrees.
-5°F ~ ±0°F*1 ~ +5°F
(U.S.)
-3°C ~ ±0°C
*1 ~ +3°C
(Canada)
“Trip A” Reset Timing
Changes the setting of how to reset trip meter A,
average fuel economy A, average speed A, and
elapsed time A.With Refuel /IGN Off /
Manually Reset*1
“Trip B” Reset Timing
Changes the setting of how to reset trip meter B,
average fuel economy B, average speed B, and
elapsed time B.With Refuel /IGN Off /
Manually Reset*1
Fuel Efficien cy BacklightTurns the ambient meter feature on and off.On*1/Off
Keyless Start Guidance
ScreensDisplays the push button start guidance when
conditions are met to change power mode.On*1/ Off
Driving
Position
Setup Memory Position Link
Changes the driver’s seat position to a stored
setting. On
*1/
Off
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 110 ページ ２０１５年９月２５日　金曜日　午前１１時３９分

113
uuGauges and Displays uMulti-Information Display*
Continued
Instrument Panel

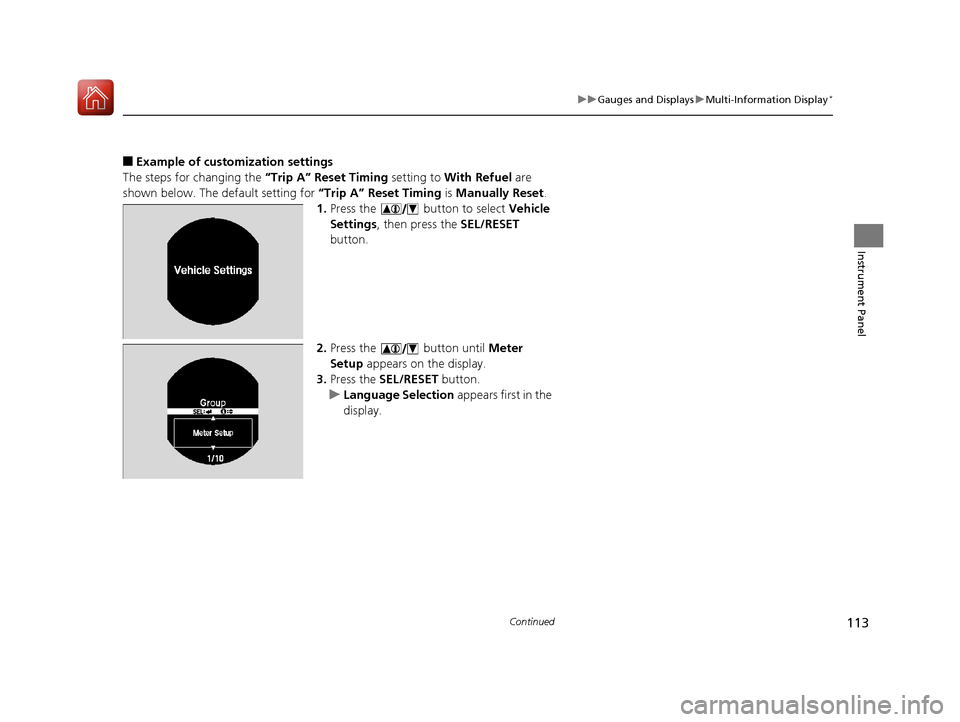

■Example of customization settings
The steps for changing the “Trip A” Reset Timing setting to With Refuel are
shown below. The default setting for “Trip A” Reset Timing is Manually Reset.
1. Press the button to select Vehicle
Settings , then press the SEL/RESET
button.
2. Press the button until Meter
Setup appears on the display.
3. Press the SEL/RESET button.
u Language Selection appears first in the
display.
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 113 ページ ２０１５年９月２５日　金曜日　午前１１時３９分

299
uuCustomized Features u
Continued
Features
■Customization flow
Clock Format
Background Color
Header Clock Display
Factory Data Reset
Clock Adjustment
Press the SETTINGS button.




Language


Default
Edit Pairing Code
Bluetooth On/Off
Bluetooth Device List
Voice Prompt
Brightness
Contrast
Black Level
Beep
Clock/
Wallpaper TypeClock Type
Wallpaper
System
SettingsVoice
Recog
Bluetooth
Display
Clock
Others
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 299 ページ ２０１５年９月２５日　金曜日　午前１１時３９分

305
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
System
Settings
Clock
Clock/
Wallpaper
Type
Clock TypeChanges the clock display type.Analog
/Digital*1/
Small Digital/ Off
Wallpaper
●Changes the wallpaper type.●Imports an image file for a new wallpaper.●Deletes an image file for a wallpaper.
2Wallpaper Setup P. 195
Blank/Galaxy*1/
Metallic/ Add New
Clock AdjustmentAdjusts Clock.
2Clock P. 116—
Clock FormatSelects the digital clock display from 12H to 24H.12H*1/24H
Others
LanguageChanges the display language.English*1/ French /
Spanish
Background ColorChanges the background color of the audio/
information screen.Blue*1/ Amber /Red /
Green
Header Clock DisplaySelects whether the cl ock display comes on.On*1/Off
Factory Data ResetResets all the settings to their factory default.
2 Defaulting All the Settings P. 315Yes /No
DefaultCancels/Resets all customized items in the
System Settings group as default.Yes/No
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 305 ページ ２０１５年９月２５日　金曜日　午前１１時３９分

318
uuCustomized Features u
Features
Language
Default
System
Others
Clock/Wallpaper Type
Clock Adjustment*
ClockClock
Wallpaper
Manual Time Zone*
Auto Daylight
Clock Display
Touch Panel Sensitivity
Clock Format
Auto Time Zone*
Detail Information
Factory Data Reset
Clock Reset
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 318 ページ ２０１５年９月２５日　金曜日　午前１１時３９分

319
uuCustomized Features u
Continued
Features
Vehicle
Driver Assist
System Setup*Forward Collision Warning Distance*
ACC Forward Vehicle Detect Beep*
Road Departure Mitigation Setting*
Lane Keeping Assi st Suspend Beep*
Meter SetupLanguage Selection
Adjust Outside Temp Display
“Trip A” Reset Timing
“Trip B” Reset Timing
Fuel Efficiency Backlight
Keyless Start Guidance Screens*
Driving Position
Setup*Memory Position Link
TPMS Calibration
ACC Display Speed Unit*
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 319 ページ ２０１５年９月２５日　金曜日　午前１１時３９分

328
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features
DescriptionSelectable Settings
System
Others
LanguageChanges the display language.English*1/French /
Spanish
Touch Panel SensitivitySets the sensitivity of the touch panel screen.High/Low*1
Detail InformationDisplays the Android setting items.—
Factory Data ResetResets all the settings to their factory default.
2Defaulting All the Settings P. 339Yes/No
DefaultCancels/Resets all cust omized items in the System
settings group as default.Yes /No
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 328 ページ ２０１５年９月２５日　金曜日　午前１１時３９分

330
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Featur
es Description Selectable Settings
Vehicle Meter
SetupLanguage Selection
Changes the displayed language on the multi-
information display. English
*1/
French /
Spanish
Adjust Outside Temp.
Display Adjusts the temperature r
eading by a few degrees. -5°F ~ ±0°F
*1
~ +5°F
(U.S.)
-3°C ~ ±0°C
*1 ~ +3°C
(Canada)
“Trip A” Reset Timing Changes the setting of how to reset trip meter A and
average fuel economy A. With Refuel
/IGN
Off /Manually
Reset
*1
“Trip B” Reset Timing Changes the setting of how to reset trip meter B and
average fuel economy B. With Refuel
/IGN
Off /Manually
Reset*1
Fuel Efficiency Backlight Turns the ambient meter feature on and off. On*1/Off
Keyless Start Guidance
Screens
*Displays the push button start guidance when
conditions are met to change power mode. On*1/
Off
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 330 ページ ２０１５年９月２５日　金曜日　午前１１時３９分

uuBluetooth ® HandsFreeLink ®u Using HFL
344
Features
The audio/information screen notifies you when there is an incoming call.
Certain manual functions are disabled or
inoperable while the vehicle is in motion.
You cannot select a grayed-out option until
the vehicle is stopped.
Only previously stored speed dial entries with
voice tags, phonebook names, or numbers
can be called using voice commands while the
vehicle is in motion.
2 Speed Dial P. 361
■HFL Status Display1Bluetooth ® HandsFreeLink ®
Bluetooth ® Wireless Technology
The Bluetooth ® word mark and logos are registered
trademarks owned by Blue tooth SIG, Inc., and any
use of such marks by Honda Motor Co., Ltd., is under
license. Other trademarks and trade names are those
of their respective owners.
HFL Limitations
An incoming call on HFL will interrupt the audio
system when it is playing. It will resume when the call
is ended.
Place your phone where y ou can get good reception.
1HFL Status Display
The information that appears on the audio/
information screen vari es between phone models.
You can change the system language to English,
French, or Spanish. 2 Customized Features P. 298
■Limitations for Manual Operation
Bluetooth IndicatorComes on when your
phone is connected to HFL.
Signal Strength
HFL Mode Battery Level
Status
Roam Status
Caller’s Name
Caller’s Number
Disabled Option
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 344 ページ ２０１５年９月２５日　金曜日　午前１１時３９分
