mirror HONDA ACCORD SEDAN 2001 Owner's Manual (in English)

Your Car at a Glance
DOOR LOCK
SWITCH
(P.75)

POWER WINDOW
SWITCHES
(P.97)
MIRROR
CONTROLS (P.100)
HEATING/COOLING

CONTROL (P.110)

AUDIO SYSTEM
(P.125)
TRUNK RELEASE
HANDLE/

FUEL FILL DOOR
(P.80, 178) HOOD RELEASE
HANDLE
(P.
180)

DIGITAL CLOCK
(P.102)

Instruments and Controls

This section gives information about
the controls and displays thatcontribute to the daily operation of

your Honda. All the essential
controls are within easy reach.

Control Locations............................ 52

Indicator Lights................................ 53

Gauges.............................................. 58
Speedometer................................ 58

Tachometer.................................. 58

Odometer...................................... 58

Trip Meter.................................... 59
Temperature Gauge.................... 59
Fuel Gauge................................... 59

Maintenance Required
Indicator.................................... 60

Controls Near the Steering Wheel........................................ 61
Headlights.................................... 62
Automatic Lighting Off Feature...................................... 63
Daytime Running Lights............. 63 Instrument Panel Brightness..... 63
Turn Signals................................. 64
Windshield Wipers...................... 64
Windshield Washers................... 66
Hazard Warning........................... 66
Rear Window Defogger.............. 66

Steering Wheel Adjustment....... 67

Steering Wheel Controls ................ 68 Cruise Control.............................. 68
Remote Audio Controls .............. 70
Keys and Locks................................ 71
Keys...............................................71

Immobilizer System..................... 72
Ignition Switch............................. 73
Door Locks................................... 74
Power Door Locks....................... 75
Remote Transmitter.................... 76Childproof Door Locks............... 80
Trunk............................................ 80 Inside Trunk Opener................... 82
Glove Box..................................... 82

HomeLink Universal Transmitter......... 83

Seat Adjustments............................. 88
Front Seat Adjustments.............. 88

Driver's Seat Manual Height
Adjustment............................... 89
Driver's Seat Power Height

Adjustment............................... 89

Driver's Seat Full Power
Adjustments............................. 90

Driver's Lumbar Support............ 91
Front Passenger's Seat
Adjustments............................. 92

Head Restraints........................... 92

Folding Rear Seat........................ 93
Rear Seat Armrest....................... 94
Trunk Pass-through Cover......... 95

Seat Heaters..................................... 96

Power Windows............................... 97

Moonroof.......................................... 98

Mirrors.............................................. 99
Adjusting the Power Mirrors... 100

Parking Brake................................ 101

Digital Clock................................... 102
Console Compartment.................. 103

Coin Box......................................... 103

Beverage Holder............................ 104

Sun Visor......................................... 105

Vanity Mirror................................. 105
Sunglasses Holder......................... 106

Accessory Power Socket.............. 106
Interior Lights................................ 107

Instruments and Controls

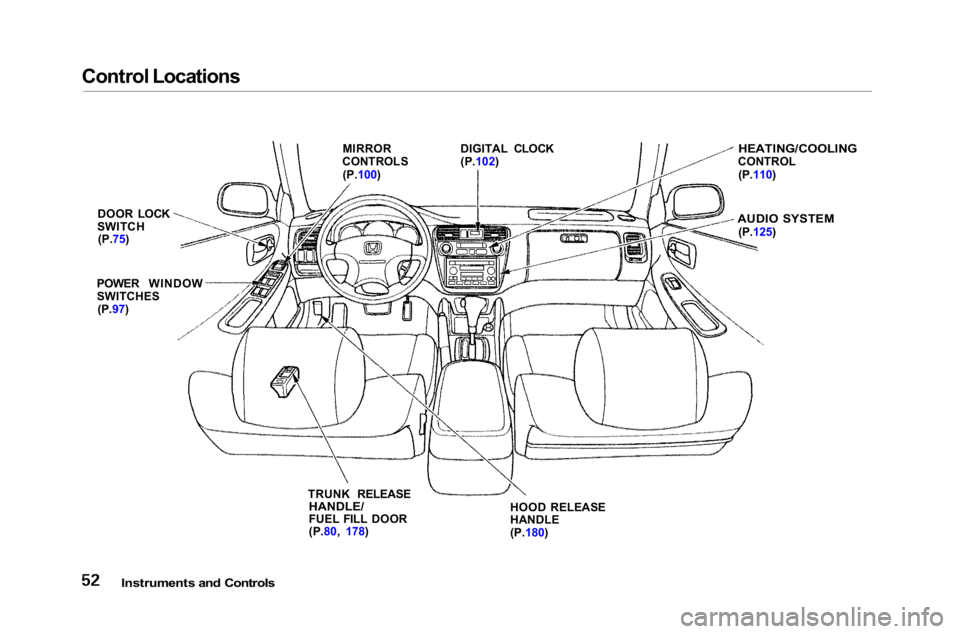

Control Locations

Instruments and Controls
MIRROR
CONTROLS
(P.100) DIGITAL CLOCK
(P.102)

HEATING/COOLING

CONTROL
(P.110)

AUDIO SYSTEM
(P.125)
HOOD RELEASE
HANDLE
(P.180)
TRUNK RELEASE

HANDLE/

FUEL FILL DOOR
(P.80, 178)
DOOR LOCK
SWITCH (P.75)
POWER WINDOW
SWITCHES (P.97)

Moonroof, Mirrors
To tilt up the back of the moonroof, press and hold the center button ( ). To close the moonroof,
press and hold the top of the switch ( ). To open the moonroof,
press and hold the bottom of the switch ( ).Release the switch
when the moonroof gets to the desired position. Make sure
everyone's hands are away from the
moonroof before opening or closing

it.
The moonroof has a key-off delay.
You can still open and close the
moonroof for up to ten minutes after
you turn off the ignition. The key-off delay cancels as soon as you open
either front door. You must then
turn the ignition ON (II) for the
moonroof to operate.
If you try to open the moonroof in
below-freezing temperatures, or when it is covered with snow or ice, you can

damage the moonroof panel or motor.
Mirrors

Keep the inside and outside mirrors
clean and adjusted for best visibility.
Be sure to adjust the mirrors before
you start driving.
The inside mirror has day and night positions. The night position reduces
glare from headlights behind you. Flip the tab on the bottom edge of
the mirror to select the day or night

position.

Instruments and Controls

Opening or closing the
moonroof on someone's hands
or fingers can cause serious injury.

Make sure all hands and fingers

are clear of the moonroof before opening or closing it.
TAB

NOTICE

CONTINUED

Mirrors

Adjusting the Power Mirrors

On all models except DX

Adjust the outside mirrors with the
adjustment switch on the driver's

door armrest:
1. Turn the ignition switch ON (II).
2. Move the selector switch to L (driver's side) or R (passenger's
side).

3. Push the appropriate edge of theadjustment switch to move the
mirror right, left, up or down.
4. When you finish, move the selector switch to the center (off)
position. This turns off the
adjustment switch so you can't
move a mirror out of position by
accidentally bumping the switch.
Instruments and Controls
SELECTOR SWITCH

ADJUSTMENT SWITCH

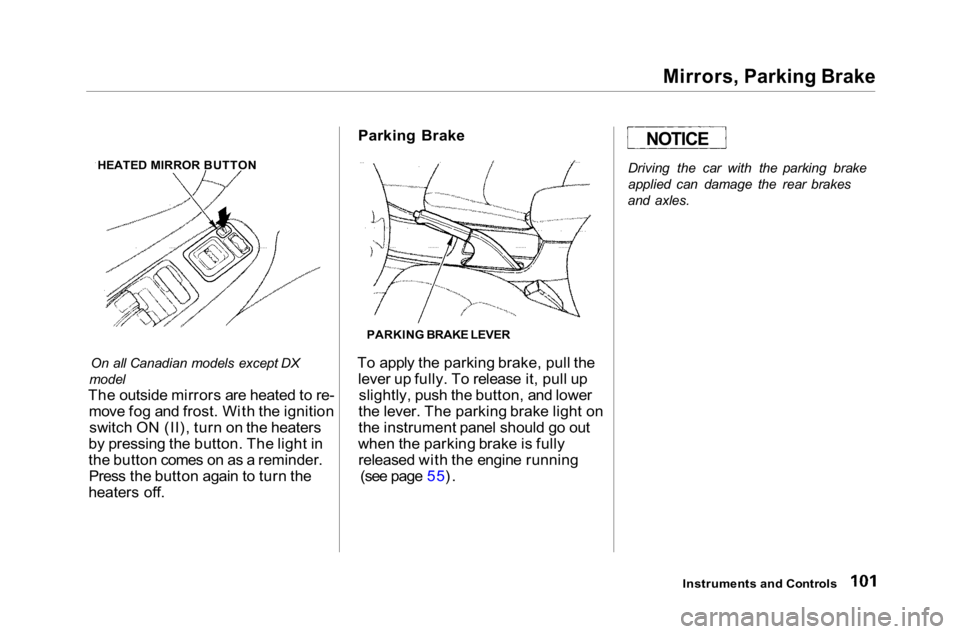

Mirrors, Parking Brake

On all Canadian models except DX
model
The outside mirrors are heated to re- move fog and frost. With the ignitionswitch ON (II), turn on the heaters
by pressing the button. The light in
the button comes on as a reminder. Press the button again to turn the
heaters off. Parking Brake
To apply the parking brake, pull the lever up fully. To release it, pull upslightly, push the button, and lower
the lever. The parking brake light on
the instrument panel should go out
when the parking brake is fully released with the engine running (see page 55). Driving the car with the parking brake
applied can damage the rear brakes
and axles.

Instruments and Controls

HEATED MIRROR BUTTON
PARKING BRAKE LEVER
NOTICE

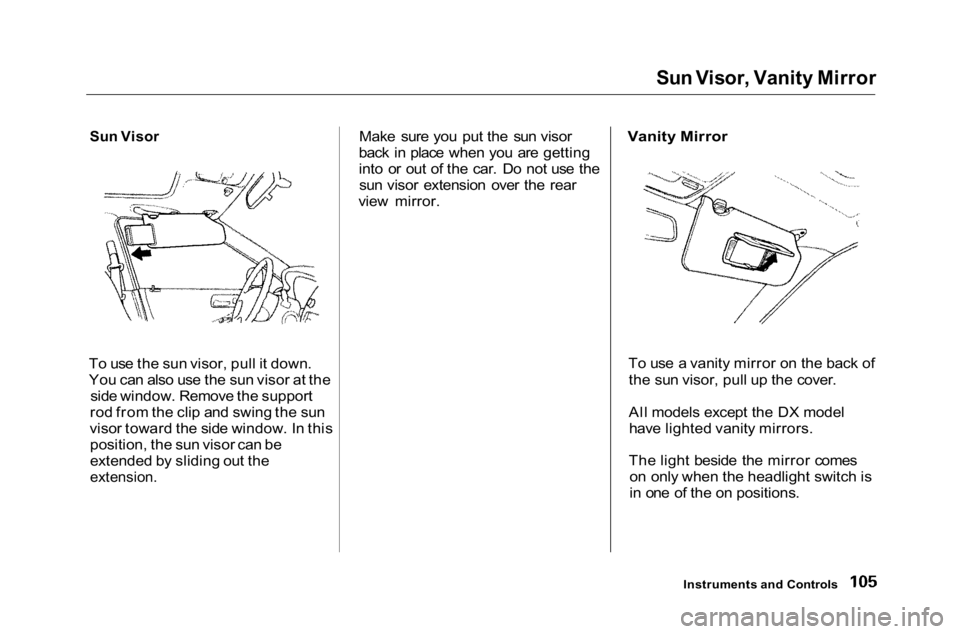

Sun Visor, Vanity Mirror

Sun Visor

To use the sun visor, pull it down.
You can also use the sun visor at the side window. Remove the support
rod from the clip and swing the sun
visor toward the side window. In this position, the sun visor can be
extended by sliding out the

extension.
Make sure you put the sun visor
back in place when you are getting
into or out of the car. Do not use the sun visor extension over the rear
view mirror.
Vanity Mirror

To use a vanity mirror on the back ofthe sun visor, pull up the cover.
All models except the DX modelhave lighted vanity mirrors.
The light beside the mirror comes on only when the headlight switch is
in one of the on positions.
Instruments and Controls

Preparing to Drive

You should do the following checks and adjustments every day before
you drive your car.
1. Make sure all windows, mirrors, and outside lights are clean and
unobstructed. Remove frost, snow,
or ice.
2. Check that the hood and trunk are fully closed.
3. Visually check the tires. If a tire looks low, use a gauge to check its
pressure.
4. Check that any items you may be carrying with you inside are stored
properly or fastened down
securely. 5. Check the adjustment of the seat
(see page 88).
6. Check the adjustment of the inside and outside mirrors (see
page 99).
7. Check the adjustment of the steering wheel (see page 67).
8. Make sure the doors are securely
closed and locked.

9. Fasten your seat belt. Check that your passengers have fastened
their seat belts (see page 14 ). 10.Turn the ignition switch ON (II).
Check the indicator lights in the
instrument panel.
11.Start the engine (see page 193).
12. Check the gauges and indicator lights in the instrument panel (see
page 53).

Driving

Towing a Trailer

Additional Trailer Equipment Many states and Canadian provinces
require special outside mirrors when
towing a trailer. Even if they don't,
you should install special mirrors if
you cannot clearly see behind you, or if the trailer creates a blind spot.
Ask your trailer sales or rental agency if any other items are
recommended or required for your
towing situation. Pre-Tow Checklist
When preparing to tow, and before driving away, be sure to check the
following: The vehicle has been properly
serviced, and the tires, brakes,
suspension, and cooling system
are in good operating condition. All weights and loads are within
limits (see pages 211 and 212). The hitch, safety chain, and any
other attachments are secure. All items on and in the trailer are
properly secured and cannot shift
while you drive. The lights and brakes on your
vehicle and the trailer are workingproperly. Your vehicle tires and spare are
properly inflated (see page 269),and the trailer tires and spare are
inflated as recommended by the
trailer maker.
Driving

Lights

3. Pull the bulb straight out of its socket. Push the new bulb in until
it bottoms in the socket.
4. Turn on the parking lights and check that the new bulb is

working.

5. Put the lens back on the bulb holder and push it until it latches.
6. Slide the left side of the light assembly into the hole. Push on
the right side to latch the assembly into place.

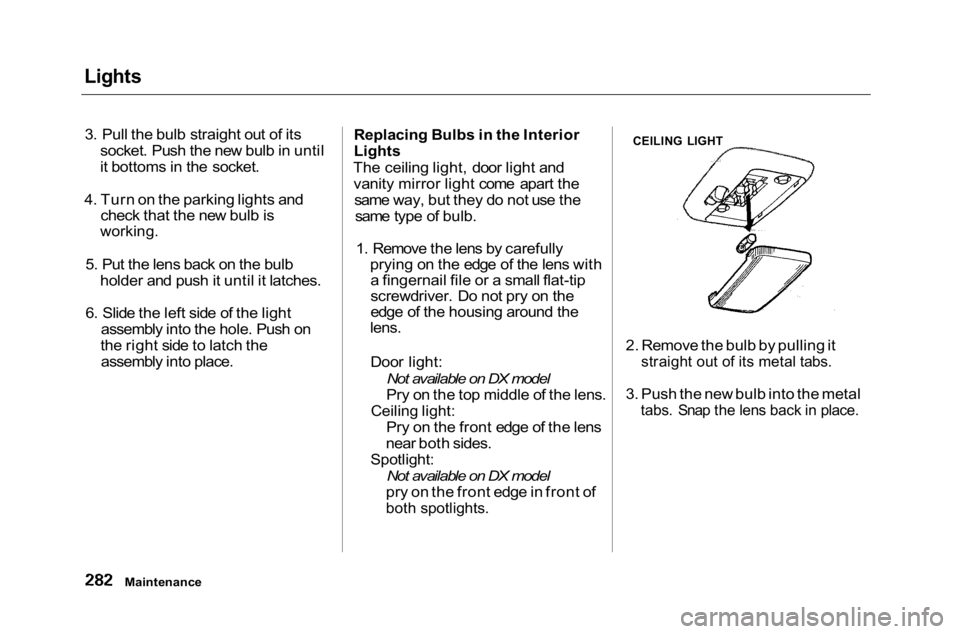

Replacing Bulbs in the Interior
Lights

The ceiling light, door light and vanity mirror light come apart the same way, but they do not use thesame type of bulb.
1. Remove the lens by carefully prying on the edge of the lens witha fingernail file or a small flat-tip
screwdriver. Do not pry on the
edge of the housing around the

lens.

Door light:
Not available on DX model

Pry on the top middle of the lens.

Ceiling light:
Pry on the front edge of the lens
near both sides.

Spotlight:

Not available on DX model

pry on the front edge in front of

both spotlights.
2. Remove the bulb by pulling it

straight out of its metal tabs.

3. Push the new bulb into the metal
tabs. Snap the lens back in place.

Maintenance
CEILING LIGHT
