To achieve a proper tongue load,
start by loading 60 percent of the
load toward the front of the trailer
and 40 percent toward the rear, then
re-adjust the load as needed.The total weight of the car, all
occupants, all cargo, and the
tongue load must not exceed: The total weight of the car, all
occupants, all cargo, and the
tongue load must not exceed:
(DX, LX) (EX, EX-L) (DX, LX)
on the f ront axle
on the rear axle
(EX, EX-L)
on the f ront axle
on the rear axle
on the f ront axle
on the rear axle
4-cylinder models:
6-cylinder models: 4-cylinder models:
6-cylinder models:
Towing a Trailer
Driving
Gross Axle Weight Rating
(GA WR):
Gross Vehicle Weight Rating
(GVWR):
238
4,080 lbs (1,850 kg)
4,125 lbs (1,870 kg)
4,300 lbs (1,950 kg) 2,195 lbs (995 kg)
1,960 lbs (890 kg)
2,225 lbs (1,010 kg)
1,985 lbs (900 kg)
2,360 lbs (1,070 kg)
2,005 lbs (910 kg)Exceeding load limits or
improperly loading your car and
trailer can cause a crash in
which you can be seriously
injured or killed.
Check the loading of your car
and trailer carefully before
starting to drive.

Always use saf ety chains. Make sure
they are secured to both the trailer
and hitch, and that they cross under
the tongue so they can catch the
trailer if it becomes unhitched.
Leave enough slack to allow the
trailer to turn corners easily, but do
not let the chains drag on the ground.
Honda recommends that any trailer
having a total weight of 1,000 lbs
(450 kg) or more be equipped with
its own electric or surge-type brakes.
Discuss your needs with your trailer
sales or rental agency, and f ollow the
guidelines in the rest of this section.
Also make sure that all equipment is
properly installed and that it meets
f ederal, state, province, and local
regulations. Towing can require a variety of
equipment, depending on the size of
your trailer, how it will be used, and
how much load you are towing.
The best way to confirm that car and
trailer weights are within limits is to
have them checked at a public scale.
Using a suitable scale or a special
tongue load gauge, check the tongue
load the f irst time you set up a
towing combination (a f ully-loaded
car and trailer), then recheck the
tongue load whenever the conditions
change.
Any hitch used on your car must be
properly bolted to the underbody.If you choose electric brakes, be
sure they are electronically actuated.
Do not attempt to tap into your car’s
hydraulic system. No matter how
successf ul it may seem, any attempt
to attach trailer brakes to your car’s
hydraulic system will lower braking
ef f ectiveness and create a potential
hazard.
CONT INUED
Towing a Trailer
Driving
Saf et y Chains
Trailer Brakes
HitchesT owing Equipment and
A ccessories
Checking L oads
239

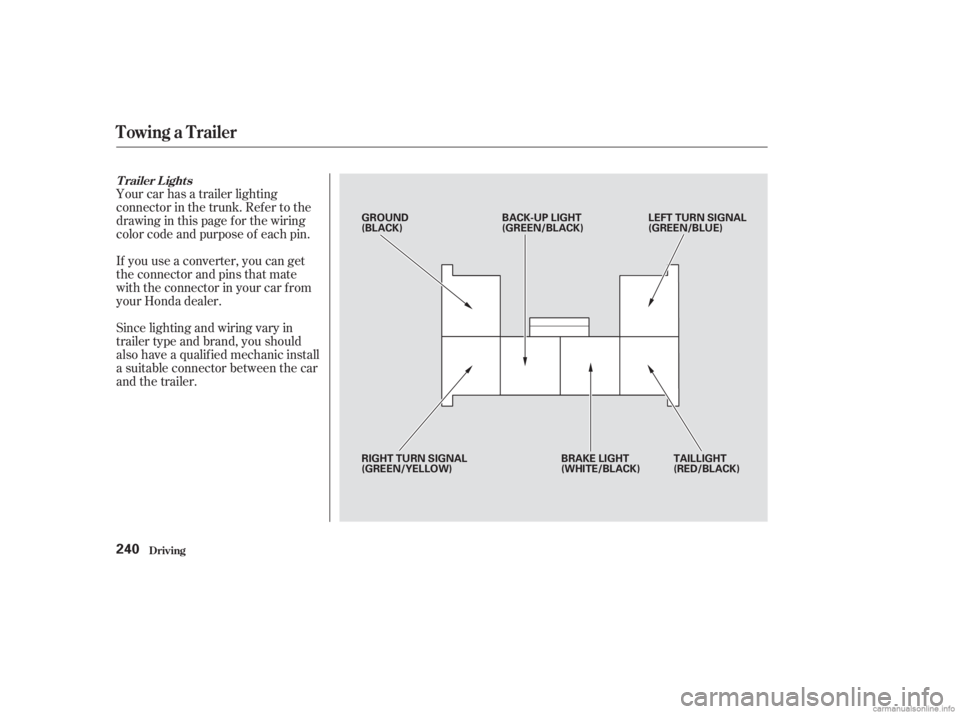

Your car has a trailer lighting
connector in the trunk. Ref er to the
drawing in this page f or the wiring
color code and purpose of each pin.
If you use a converter, you can get
the connector and pins that mate
with the connector in your car f rom
your Honda dealer.
Since lighting and wiring vary in
trailer type and brand, you should
also have a qualif ied mechanic install
a suitable connector between the car
and the trailer.
T railer L ights
Towing a Trailer
Driving240
GROUND
(BLACK)BACK-UP LIGHT
(GREEN/BLACK) LEFT TURN SIGNAL
(GREEN/BLUE)
RIGHT TURN SIGNAL
(GREEN/YELLOW) BRAKE LIGHT
(WHITE/BLACK)TAILLIGHT
(RED/BLACK)

Many states and Canadian provinces
require special outside mirrors when
towing a trailer. Even if they don’t,
you should install special mirrors if
you cannot clearly see behind you, or
if the trailer creates a blind spot.
Askyourtrailersalesorrental
agency if any other items are
recommended or required f or your
towing situation.When preparing to tow, and bef ore
driving away, be sure to check the
f ollowing:
All weights and loads are within
limits (see pages and ).
Thehitch,safetychains,andany
other attachments are secure.
Allitemsonandinthetrailerare
properly secured and cannot shif t
while you drive. The car has been properly
serviced, and the tires, brakes,
suspension, and cooling system
are in good operating condition.
The lights and brakes on your car
and the trailer are working
properly. Your car tires and spare are
properly inf lated (see page ),
and the trailer tires and spare are
inflated as recommended by the
trailer maker.
237 238 303
Additional Trailer EquipmentPre-T ow Checklist
Towing a Trailer
Driving241

When driving down hills, reduce
your speed and shif t down to 2nd
gear. Do not ‘‘ride’’ the brakes, and
remember it will take longer to slow
downandstopwhentowingatrailer.
When climbing hills, closely watch
your temperature gauge. If it nears
the red (Hot) mark, turn the air
conditioning of f , reduce speed and, if
necessary, pull to the side of the
road to let the engine cool.
The added weight, length, and
height of a trailer will af f ect your car’s
handling and perf ormance, so
driving with a trailer requires some
special driving skills and techniques.
Foryoursafetyandthesafetyof
others,taketimetopracticedriving
maneuvers bef ore heading f or the
open road, and f ollow the guidelines
discussed below.
Make turns more slowly and wider
than normal. The trailer tracks a
smaller arc than your car, and it can
hit or run over something the car
misses. Allow more time and
distance f or braking. Do not brake or
turn suddenly as this could cause the
trailer to jackknif e or turn over.
If youmuststopwhenfacinguphill,
use the f oot brake or parking brake.
Do not try to hold the car in place by
pressing on the accelerator, as this
can cause the automatic
transmission to overheat.
Drive slower than normal in all
driving situations, and obey posted
speed limits f or cars with trailers. If
you have an automatic transmission,
use D position when towing a trailer
on level roads. D is the proper shif t
lever position to use when towing a
trailer in hilly terrain. (See ‘‘ ’’ in the next column f or
additional gear information.) If the automatic transmission shif ts
f requently while going up a hill, shif t
to D .
3
3
Driving Saf ely With a T railerMaking T urns and Braking
Driving on Hills
T owing Speeds and Gears
Driving
on Hills
Towing a Trailer
Driving242

Always drive slowly and have
someone guide you when backing up.
Grip the of the steering
wheel; then turn the wheel to the lef t
to get the trailer to move to the lef t,
andturnthewheelrighttomovethe
trailer to the right.Follow all normal precautions when
parking, including f irmly setting the
parking brake and putting the
transmission in Park (automatic) or
in 1st or Reverse (manual). Also,
place wheel chocks at each of the
trailer’s tires.
Crosswinds and air turbulence
caused by passing trucks can disrupt
your steering and cause trailer
swaying. When being passed by a
large car, keep a constant speed and
steer straight ahead. Do not try to
make quick steering or braking
corrections.
bottom
Handling Crosswinds and Buf f et ing
Backing Up Parking
Towing a Trailer
Driving243

244

This section also includes
Maintenance Schedules f or normal
driving and severe driving conditions,
a Maintenance Record, and instruc-
tions f or simple maintenance tasks
you may want to take care of
yourself .
If you have the skills and tools to per-
f orm more complex maintenance
tasks on your Honda, you may want
to purchase the Service Manual. See
page f or inf ormation on how to
obtain a copy, or see your Honda
dealer. This section explains why it is
important to keep your car well
maintained and how to f ollow basic
maintenance saf ety precautions.......................
Maintenance Saf ety .246
.
Important Safety Precautions . 247
.................
Maintenance Schedule . 248
...
Required Maintenance Record . 260
.......
Owner Maintenance Checks . 265
..............................
Fluid Locations .266
......................................
Engine Oil .268
..................................
Adding Oil .268
....................
Recommended Oil .268
..............................
Synthetic Oil .269
....................................
Additives .270
.....
Changing the Oil and Filter . 270
.............................
Cooling System .272
............
Adding Engine Coolant . 272
.......
Replacing Engine Coolant . 275
....................
Windshield Washers .279
.......................
Transmission Fluid .280
Automatic .........................
Transmission .280
5-speed Manual .........................
Transmission .283
................
Brake and Clutch Fluid . 284
............................
Brake System .284
...........................
Clutch System .285
..............................
Power Steering .285
.....................
Air Cleaner Element .286 ....................................
Hood Latch .289
....................................
Spark Plugs .289
..............................
Replacement .289
............................
Specif ications .291
...........................................
Battery .294
.................................
Wiper Blades .297
..............
Air Conditioning System . 299
..................
Dust and Pollen Filter . 300
.......................................
Drive Belt .302
....................................
Timing Belt .302
...............................................
Tires .303
......................................
Inf lation .303
..................................
Inspection .305
..............................
Maintenance .305
.............................
Tire Rotation .306
...
Replacing Tires and Wheels . 306
......................
Wheels and Tires .307
..........................
Winter Driving .308
.............................
Snow Tires .308
............................
Tire Chains .308
.............................................
Lights .310
........................
Replacing Bulbs .312
...........................
Storing Your Car .323
381
Maintenance
Maint enance245

This section includes instructions f or
simple maintenance tasks, such as
checking and adding oil. Any service
items not detailed in this section
should be perf ormed by a Honda
technician or other qualif ied
mechanic.Some of the most important saf ety
precautions are given here. However,
we cannot warn you of every
conceivable hazard that can arise in
perf orming maintenance. Only you
can decide whether or not you
should perf orm a given task.
Regularly maintaining your car is the
best way to protect your investment.
Proper maintenance is essential to
your saf ety and the saf ety of your
passengers. It will also reward you
with more economical, trouble-f ree
driving and help reduce air pollution.
Maintenance Saf ety
Maint enance246
Failure to properly follow
maintenance instructions and
precautions can cause you to
be seriously hurt or killed.
Always follow the procedures
and precautions in this owner’s
manual.
Improperly maintaining this car
or failing to correct a problem
before driving can cause a
crash in which you can be
seriously hurt or killed.
Always follow the inspection
and maintenance
recommendations and
schedules in this owner’s
manual.

Be sure
there is adequate ventilation
whenever you operate the engine.
Let the
engine and exhaust system cool
bef ore touching any parts.
Do
not run the engine unless in-
structed to do so. Read the instructions before you
begin, and make sure you have the
tools and skills required.
Bef ore you begin any maintenance,
make sure your car is parked on
level ground and that the parking
brake is set. Also, be sure the engine
is of f . This will help to eliminate
several potential hazards:
You should wear eye protection and
protective clothing when working
near the battery or when using
compressed air. To reduce the possibility of f ire or
explosion, be caref ul when working
around gasoline or batteries. Use a
commercially available degreaser or
parts cleaner, not gasoline, to clean
parts. Keep cigarettes, sparks, and
flames away from the battery and all
f uel-related parts.
Maintenance Saf ety
Maint enance
Important Saf ety Precautions
Carbon monoxide poisoning
f rom engine exhaust.
Burns f rom hot parts.
Injury f rom moving parts.
247
