HONDA ACCORD SEDAN 2009 Navigation Manual (in English)

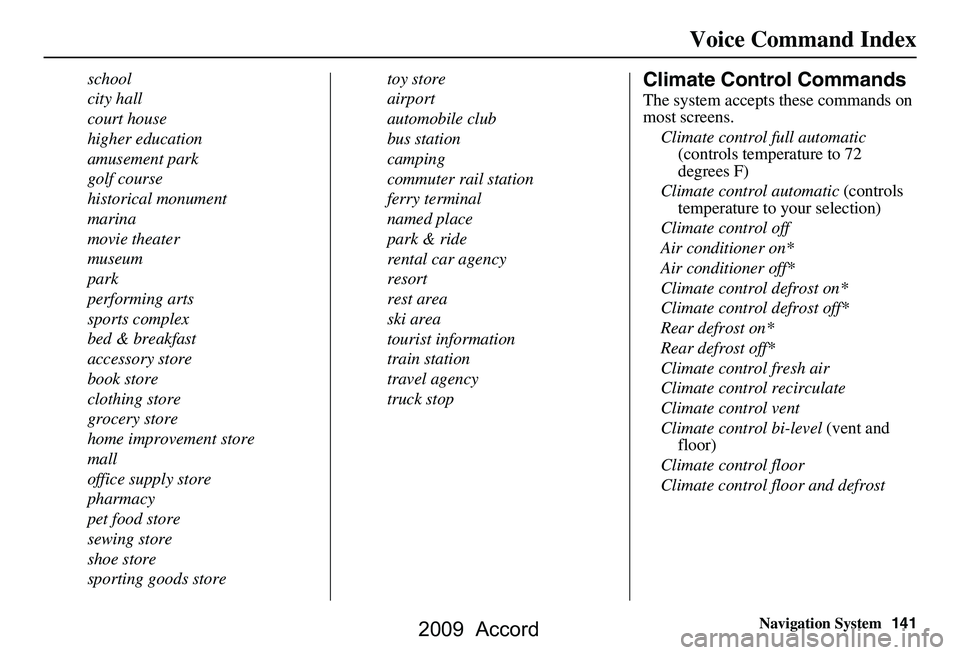

Navigation System141
Voice Command Index
school
city hall
court house
higher education
amusement park
golf course
historical monument
marina
movie theater
museum
park
performing arts
sports complex
bed & breakfast
accessory store
book store
clothing store
grocery store
home improvement store
mall
office supply store
pharmacy
pet food store
sewing store
shoe store
sporting goods store toy store
airport
automobile club
bus station
camping
commuter rail station
ferry terminal
named place
park & ride
rental car agency
resort
rest area
ski area
tourist information
train station
travel agency
truck stopClimate Control Commands
The system accepts these commands on
most screens.
Climate control full automatic (controls temperature to 72
degrees F)
Climate control automatic (controls
temperature to your selection)
Climate control off
Air conditioner on*
Air conditioner off*
Climate control defrost on*
Climate control defrost off*
Rear defrost on*
Rear defrost off*
Climate control fresh air
Climate control recirculate
Climate control vent
Climate control bi-level (vent and
floor)
Climate control floor
Climate control floor and defrost
2009 Accord

142Navigation System
Voice Command Index
Fan speed up
Fan speed down
Fan speed # (#: 1-7) (for best voice
control, lower the fan speed)
* Repeating these commands switches (toggles) the function between On
and Off, so the action that occurs
may not match the command you
speak.Temperature Voice
Commands
The system accepts these commands on
most screens.
Temperature # degrees (#: 57-87
degrees F)
Temperature up
Temperature down
Temperature max hot (displays HI)
Temperature max cold (displays LO)
Temperature balance
Temperature dual mode on*
Temperature dual mode off*
Driver temperature # degrees (#: 57-87 degrees F)
Passenger temperature # degrees (#: 57-87 degrees F)
* Repeating these commands switches (toggles) the function between On
and Off, so the action that occurs
may not match the command you
speak.
Radio Voice Commands
The system accepts these commands on
most screens.
Audio on*
Audio off*
Radio on* (or Radio play )
Radio off*
Radio select FM1
Radio select FM2
Radio select AM
Radio tune to # FM (#: frequency.
Example Radio 95.5 FM )
Radio tune to # AM (#: frequency.
Example Radio 1020 AM )
Radio seek up
Radio seek down
Radio next station (same as Radio
seek )
Radio preset # (#: 1-6)
Radio FM preset # (#: 1-6)
Radio FM1 preset # (#: 1-6)
Radio FM2 preset # (#: 1-6)
Radio AM preset # (#: 1-6)
Radio auto select*
Radio scan*
Radio select XM1
Radio select XM2
2009 Accord

Navigation System143
Voice Command Index
XM channel # (#: 1-255)
XM channel up
XM channel down
XM category up
XM category down
XM preset # (#: 1-6)
XM1 preset # (#: 1-6)
XM2 preset # (#: 1-6)
XM scan*
XM category scan*
XM channel scan*
XM category mode
XM channel mode
* Repeating these commands switches (toggles) the function between On
and Off, so the action that occurs
may not match the command you
speak.
NOTE:
Radio volume levels cannot be
controlled using voice control. Use the
buttons on your steering wheel. See your
vehicle Owner’s manual for more
information.CD Voice Commands
The system accepts these commands on
most screens. CD play
CD play disc # (#: 1-6)
CD play track # (#: 1-30)
CD play disc #1 track #2 (#1: 1-6,
#2: 1-30)
CD skip forward
CD skip back
CD play next disc
CD play previous disc
CD track random*
CD track repeat*
CD disc repeat*
CD track scan*
CD disc scan*
CD normal play
CD track list CD folder random*
CD folder repeat*
CD folder scan*
CD folder list
* Repeating these commands switches (toggles) the function between On
and Off, so the action that occurs
may not match the command you
speak.
2009 Accord

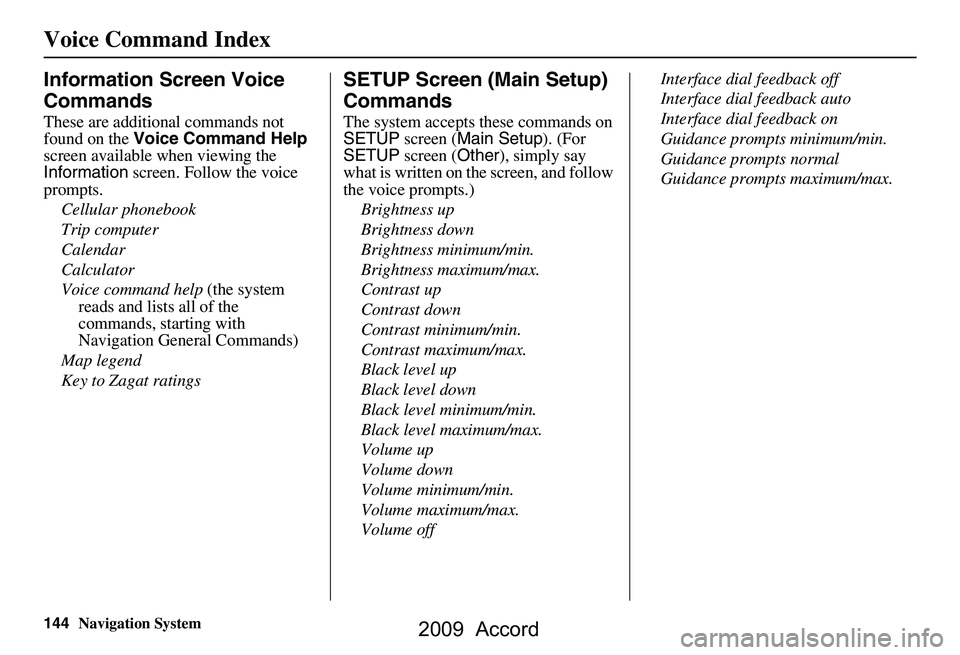

144Navigation System
Voice Command Index
Information Screen Voice
Commands
These are additional commands not
found on the Voice Command Help
screen available when viewing the
Information screen. Follow the voice
prompts.
Cellular phonebook
Trip computer
Calendar
Calculator
Voice command help (the system
reads and lists all of the
commands, starting with
Navigation General Commands)
Map legend
Key to Zagat ratings
SETUP Screen (Main Setup)
Commands
The system accepts these commands on
SETUP screen ( Main Setup ). (For
SETUP screen ( Other), simply say
what is written on the screen, and follow
the voice prompts.)
Brightness up
Brightness down
Brightness minimum/min.
Brightness maximum/max.
Contrast up
Contrast down
Contrast minimum/min.
Contrast maximum/max.
Black level up
Black level down
Black level minimum/min.
Black level maximum/max.
Volume up
Volume down
Volume minimum/min.
Volume maximum/max.
Volume off Interface dial feedback off
Interface dial feedback auto
Interface dial feedback on
Guidance prompts minimum/min.
Guidance prompts normal
Guidance prompts maximum/max.
2009 Accord

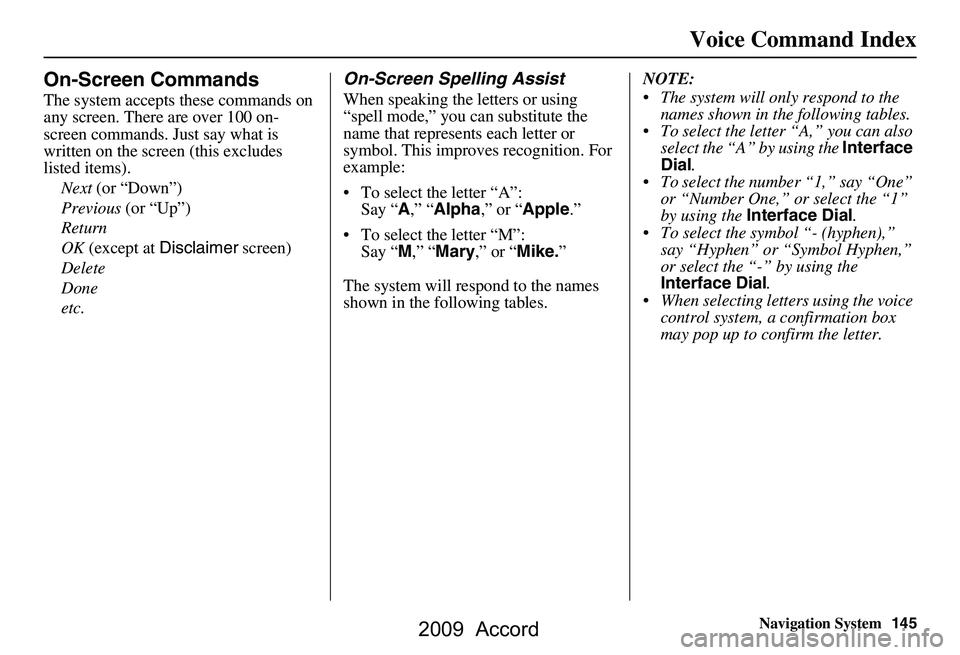

Navigation System145
Voice Command Index
On-Screen Commands
The system accepts these commands on
any screen. There are over 100 on-
screen commands. Just say what is
written on the screen (this excludes
listed items).
Next (or “Down”)
Previous (or “Up”)
Return
OK (except at Disclaimer screen)
Delete
Done
etc.
On-Screen Spelling Assist
When speaking the letters or using
“spell mode,” you can substitute the
name that represents each letter or
symbol. This improves recognition. For
example:
 To select the letter “A”: Say “ A,” “ Alpha ,” or “Apple .”
 To select the letter “M”: Say “ M,” “ Mary ,” or “ Mike. ”
The system will respond to the names
shown in the following tables. NOTE:
 The system will only respond to the
names shown in the following tables.
 To select the letter “A,” you can also select the “A” by using the Interface
Dial .
 To select the number “1,” say “One” or “Number One,” or select the “1”
by using the Interface Dial .
 To select the symbol “- (hyphen),” say “Hyphen” or “Symbol Hyphen,”
or select the “-” by using the
Interface Dial .
 When selecting letters using the voice control system, a confirmation box
may pop up to confirm the letter.
2009 Accord

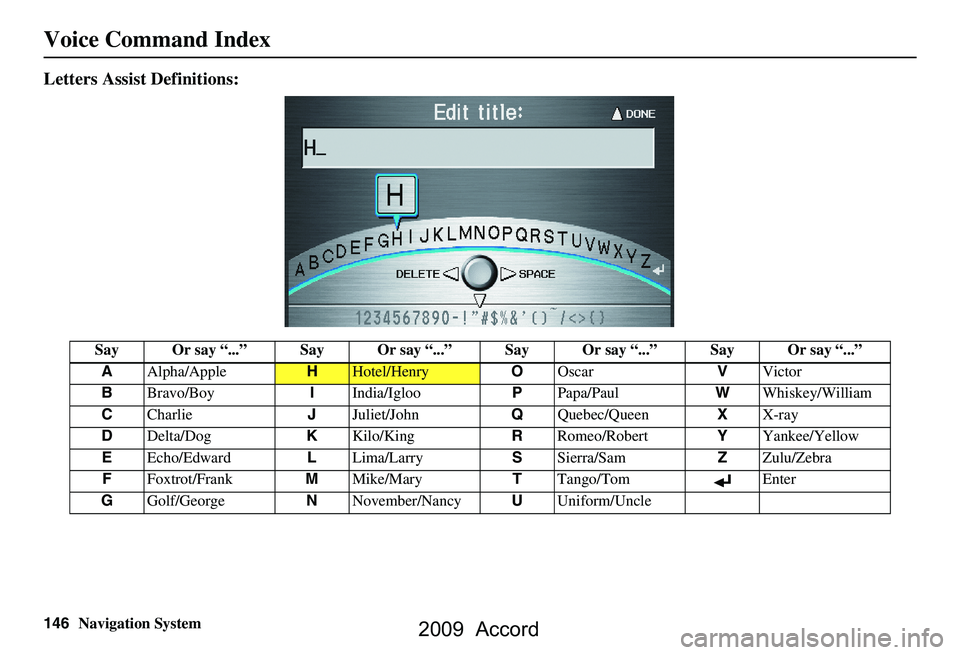

146Navigation System
Voice Command Index
Letters Assist Definitions:
Say Or say “...” Say Or say “...” Say Or say “...” Say Or say “...”
A Alpha/Apple
HHotel/Henry OOscar VVictor
B Bravo/Boy IIndia/Igloo PPapa/Paul WWhiskey/William
C Charlie JJuliet/John QQuebec/Queen XX-ray
D Delta/Dog KKilo/King RRomeo/Robert YYankee/Yellow
E Echo/Edward LLima/Larry SSierra/Sam ZZulu/Zebra
F Foxtrot/Frank MMike/Mary TTango/Tom Enter
G Golf/George NNovember/Nancy UUniform/Uncle
2009 Accord

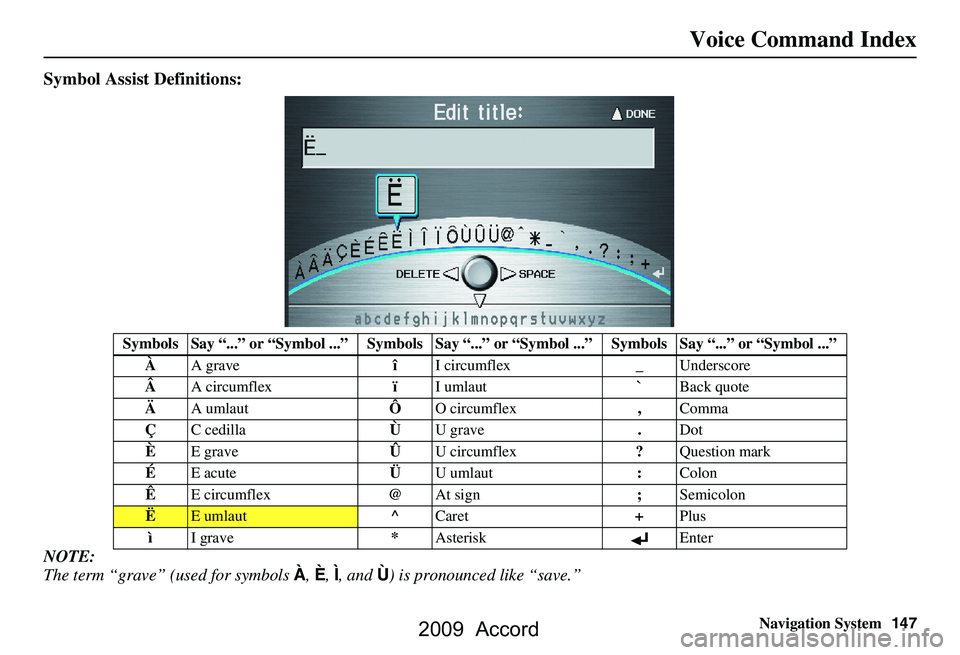

Navigation System147
Voice Command Index
Symbol Assist Definitions:
NOTE:
The term “grave” (used for symbols À, È , Ì, and Ù) is pronounced like “save.”
Symbols Say “...” or “Symbol ...” Symbols Say “...” or “Symbol ...” Symbols Say “...” or “Symbol ...”
À A grave îI circumflex _Underscore
 A circumflex ïI umlaut `Back quote
Ä A umlaut ÔO circumflex ,Comma
Ç C cedilla ÙU grave .Dot
È E grave ÛU circumflex ?Question mark
É E acute ÜU umlaut :Colon
Ê E circumflex @At sign ;Semicolon
ËE umlaut ^Caret +Plus
ì I grave *Asterisk Enter
2009 Accord

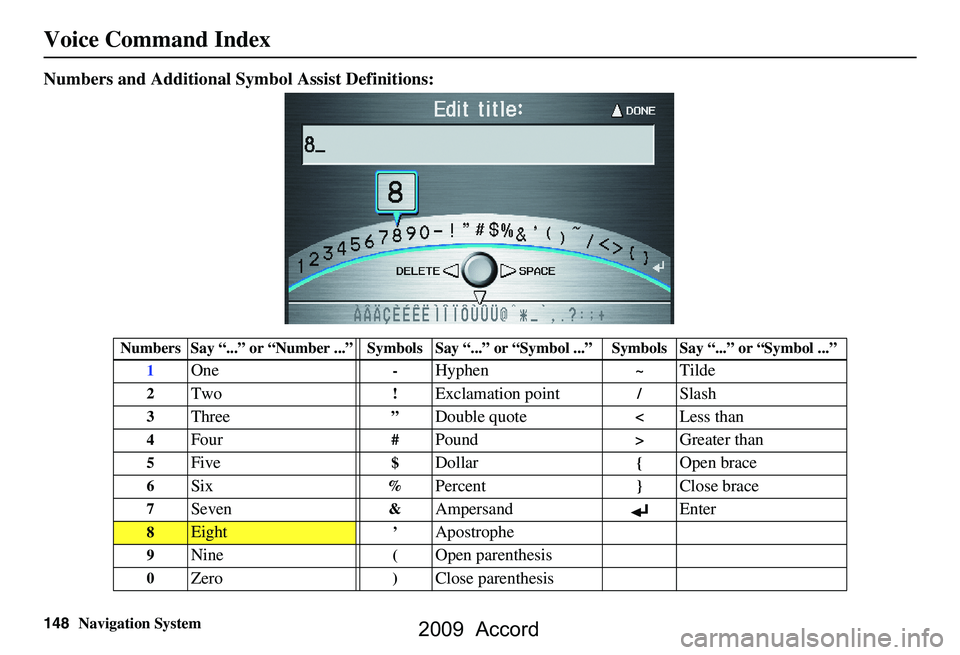

148Navigation System
Voice Command Index
Numbers and Additional Symbol Assist Definitions:
Numbers Say “...” or “Number ...” Symbols Say “...” or “Symbol ...” Symbols Say “...” or “Symbol ...”
1
One-Hyphen~Tilde
2Two!Exclamation point/Slash
3Three”Double quote 4Four#Pound>Greater than
5Five$Dollar{Open brace
6Six%Percent}Close brace
7Seven&Ampersand Enter
8Eight’Apostrophe
9Nine(Open parenthesis
0Zero)Close parenthesis
2009 Accord

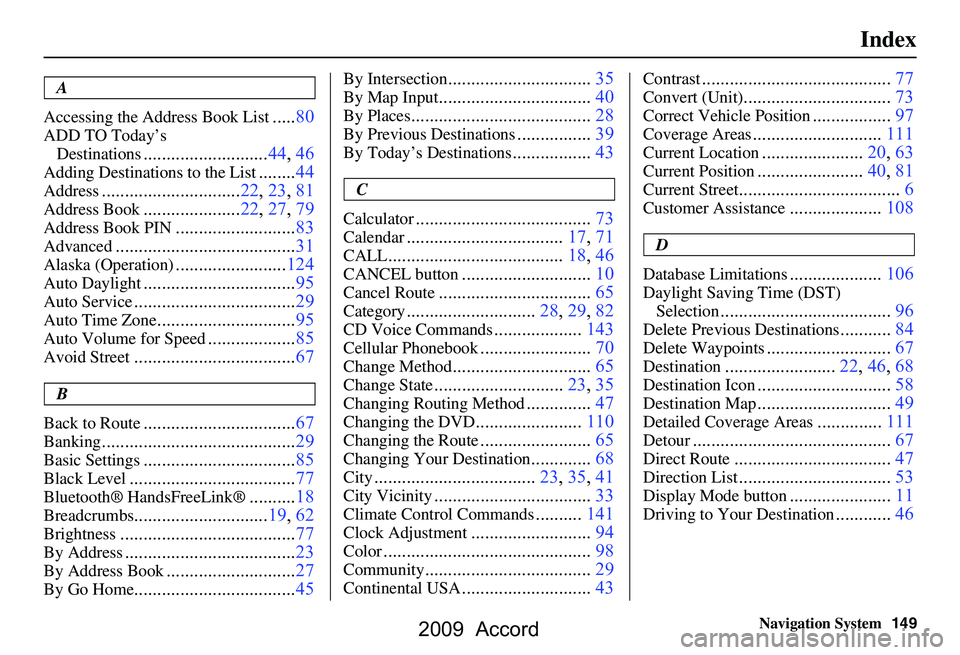

Navigation System149
Index
A
Accessing the Address Book List
..... 80
ADD TO Today’s
Destinations
........................... 44, 46
Adding Destinations to the List........44
Address..............................22, 23, 81
Address Book..................... 22, 27, 79
Address Book PIN.......................... 83
Advanced............................ ...........31
Alaska (Operation)........................ 124
Auto Daylight................................. 95
Auto Service................................... 29
Auto Time Zone..............................95
Auto Volume for Speed...................85
Avoid Street................................... 67
B
Back to Route
................................. 67
Banking.......................................... 29
Basic Settings.................................85
Black Level.................................... 77
Bluetooth® HandsFreeLink®..........18
Breadcrumbs.............................19, 62
Brightness...................................... 77
By Address.....................................23
By Address Book............................27
By Go Home................................... 45
By Intersection...............................35
By Map Input................................. 40
By Places....................................... 28
By Previous Destinations................39
By Today’s Destinations................. 43
C
Calculator
.... .................................. 73
Calendar..................................17, 71
CALL...................................... 18, 46
CANCEL button............................10
Cancel Route.................................65
Category............................28, 29, 82
CD Voice Commands...................143
Cellular Phonebook........................ 70
Change Method..............................65
Change State............................ 23, 35
Changing Routing Method..............47
Changing the DVD.......................110
Changing the Route........................ 65
Changing Your Destination.............68
City................................... 23, 35, 41
City Vicinity..................................33
Climate Control Commands..........141
Clock Adjustment.......................... 94
Color............................................. 98
Community....................................29
Continental USA............................43
Contrast......................................... 77
Convert (Unit)................................73
Correct Vehicle Position................. 97
Coverage Areas............................ 111
Current Location...................... 20, 63
Current Position....................... 40, 81
Current Street................................... 6
Customer Assistance.................... 108
D
Database Limitations
.................... 106
Daylight Saving Time (DST)
Selection
..................................... 96
Delete Previous Destinations...........84
Delete Waypoints........................... 67
Destination........................ 22, 46, 68
Destination Icon............................. 58
Destination Map............................. 49
Detailed Coverage Areas..............111
Detour........................................... 67
Direct Route..................................47
Direction List.................................53
Display Mode button......................11
Driving to Your Destination............46
2009 Accord

150Navigation System

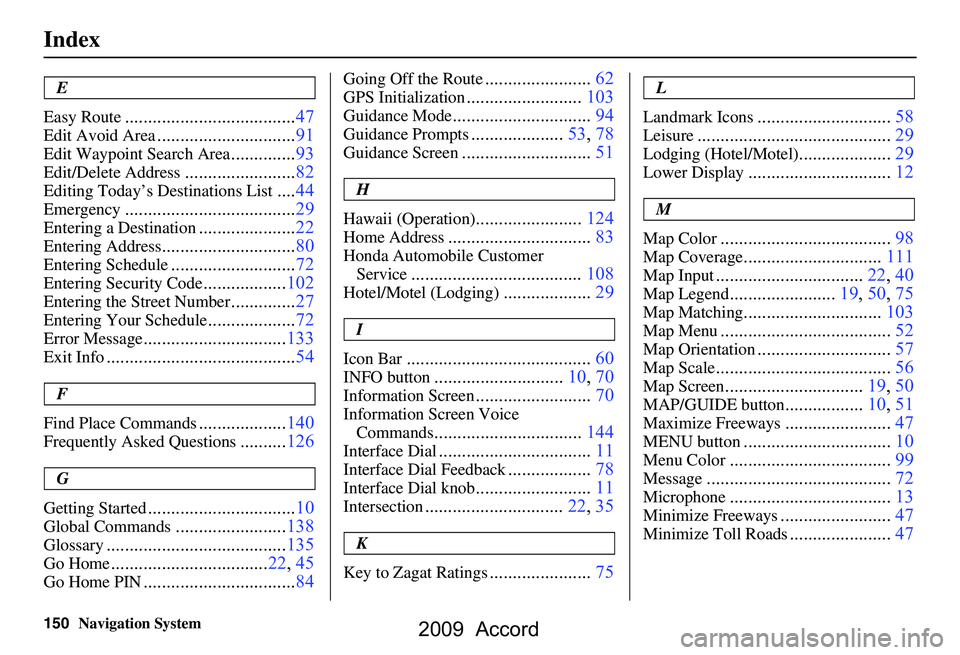

Index
E
Easy Route
.....................................47
Edit Avoid Area..............................91
Edit Waypoint Search Area..............93
Edit/Delete Address........................82
Editing Today’s De stinations List....44
Emergency.....................................29
Entering a Destination.....................22
Entering Address.............................80
Entering Schedule...........................72
Entering Security Code..................102
Entering the Street Number..............27
Entering Your Schedule...................72
Error Message...............................133
Exit Info.........................................54
F
Find Place Commands
...................140
Frequently Asked Questions..........126
G
Getting Started
................................10
Global Commands........................138
Glossary.......................................135
Go Home..................................22, 45
Go Home PIN.................................84
Going Off the Route.......................62
GPS Initialization.........................103
Guidance Mode..............................94
Guidance Prompts....................53, 78
Guidance Screen............................51
H
Hawaii (Operation)
.......................124
Home Address...............................83
Honda Automobile Customer Service
.....................................108
Hotel/Motel (Lodging)...................29
I
Icon Bar
........................................60
INFO button............................10, 70
Information Screen.........................70
Information Screen Voice Commands
................................144
Interface Dial.................................11
Interface Dial Feedback..................78
Interface Dial knob.........................11
Intersection..............................22, 35
K
Key to Zagat Ratings
......................75
L
Landmark Icons
.............................58
Leisure..........................................29
Lodging (Hotel/Motel)....................29
Lower Display...............................12
M
Map Color
.....................................98
Map Coverage..............................111
Map Input................................22, 40
Map Legend.......................19, 50, 75
Map Matching..............................103
Map Menu.....................................52
Map Orientation.............................57
Map Scale......................................56
Map Screen..............................19, 50
MAP/GUIDE button.................10, 51
Maximize Freeways.......................47
MENU button................................10
Menu Color...................................99
Message........................................72
Microphone...................................13
Minimize Freeways........................47
Minimize Toll Roads......................47
2009 Accord
