HONDA ACCORD SEDAN 2009 Owner's Manual (in English)

Û
ÝWhen the indicator in the button is
on, air f rom the vehicle’s interior is
sent through the system again.
When the indicator is off, air is
brought in f rom the outside of the
vehicle (fresh air mode).
Switch to recirculation mode when
driving through dusty or smoky
conditions, then return to fresh air
mode.
Thesystemshouldbeleftinfresh
air mode under almost all conditions.
Keeping the system in recirculation
mode, particularly with the A/C of f ,
can cause the windows to fog up.
The outside air intakes f or the
climate control system are at the
base of the windshield. Keep this
area clear of leaves and other debris.
You can manually select various
f unctions of the climate control
system when it is in f ully automatic
mode. All other f eatures remain
automatically controlled. Making any
manual selection causes the word
AUTO in the display to go out.
Push the switch up to increase the
fanspeedandairflow.Pushthe
switch down to decrease them. This button turns the air
conditioningonandoff.Youwillsee
A/C ON or A/C OFF in the display.
When you turn the A/C of f , the
system cannot regulate the inside
temperature if you set the
temperature control below the
outside temperature.
Press the side of the bar to
increase the f an speed and airf low.
Press the side of the bar to
decrease them.
On models without navigation system On models with navigation system Recirculat ion But t on
A ir Condit ioning (A /C) But t on
Semi-automatic Operation
Fan Control
Climate Control System
128
\f—\f—\fy
y
)\f
\fy\f
y
2009 Accord Sedan

This button turns the rear window
def ogger of f and on (see page ).
Pushing this button also turns the
power mirror heaters on and of f .
Use the mode control button to
select the vents the air flows from.
Some air will flow from the
dashboard vents in all modes.To remove f og f rom the inside of the
windows, set as follows:
Airf low is divided between
the f loor and corner vents and the
defroster vents at the base of the
windshield. Air flows from the center
and corner vents in the dashboard.
Air f lows f rom the f loor
vents.
Airf low is divided between
the vents in the dashboard and the
f loor vents. This button directs the main airflow
to the windshield for faster
def rosting. It also overrides any
mode selection you may have made.
When you select , the system
automatically switches to f resh air
mode and turns on the A/C. For
f aster def rosting, manually set the
fanspeedtohigh.Youcanalso
increase airf low to the windshield by
closing the corner vents on the
dashboard. To close the vents, rotate
the wheel under each corner vent.
When you turn of f by
pressing the button again, the
system returns to its former settings.
Select . The system
automatically switches to f resh air
mode and turns on the A/C.
Adjust the temperature with the
driver’s side temperature control
so the airf low f eels warm.
Select to help clear the
rear window.
To increase airf low to the
windshield, close the corner vents.
For f aster def ogging, manually set
the fan speed to high.
For your saf ety, make sure you have
a clear view through all the windows
bef ore driving.
When the indicator in the button is
on, the f ront passenger’s
temperature cannot be set separately
f rom the driver’s. 1.
2.
3.
4.
74
Rear Window Def ogger But t on
Mode Cont rol Windshield Def rost er But t on
Climate Control System
Features
129
——y
y
)
y
y
2009 Accord Sedan

Your vehicle has two temperature
control switches, one f or the driver,
and one f or the f ront passenger.
Thedriver’ssideandthepassenger’s
side temperature can be controlled
independently by adjusting these
switches when the green indicator in
the DUAL button is on.
Push AUTO or . The selected
temperatures appear in the display
(in the center display on models with
navigation system). When the
indicator in the DUAL button is of f ,
you can adjust both sides to the
same temperature by pushing the
driver’s side temperature control
switch up or down.
EX-L and EX-L V6
Dual Temperature Control
T emperat ure Cont rolWithout navigation system
With navigation system
130
DUAL BUTTON DUAL BUTTON
PASSENGER’S SIDE
TEMPERATURE
CONTROL SWITCH
DRIVER’S SIDE
TEMPERATURE
CONTROL SWITCH PASSENGER’S SIDE
TEMPERATURE
CONTROL SWITCH
DRIVER’S SIDE
TEMPERATURE
CONTROL SWITCH
\f—\f—\fy


y
)\f
\fy\f
y
2009 Accord Sedan

To set the driver’s side temperature
to a different value than the
passenger’s, press the DUAL button,
then push the switch up or down on
the driver’s side. To set the
passenger’s side to a dif f erent value
than the driver’s, push the switch up
or down on the passenger’s side. You
can adjust the passenger’s side
without pressing the DUAL button
first.
When you set the temperature to its
lower or upper limit, it is displayed asor .
Dual Temperature Control
Features
131
DRIVER’S SIDE PASSENGER’S SIDE
\f—\f—\fy

y
)\f
\fy\f
y
2009 Accord Sedan

Theclimatecontrolsystemhastwo
sensors. A sunlight sensor is in the
top of the dashboard, and a
temperature sensor is next to the
steering column. Do not cover the
sensors or spill any liquid on them.
On models with climate control system
Sunlight Sensor/T emperature
Sensor
Climat e Cont rol Sensors
132
SUNLIGHT SENSORTEMPERATURE SENSOR
\f—\f—\fy

y
)\f
\fy\f
y
2009 Accord Sedan

An audio system is standard on all
models. Read the appropriate pages
(as shown below) to use your
vehicle’s audio system.
On models with navigation system,
see pages through .
On EX and EX V6 models, and EX-L
and EX-L V6 models without
navigation system, see pagesthrough .
On LX model (including LX-P), see
pages through .
149173 174205148
134
Audio System
Features
133
With navigation system
U.S. models are shown. LX and LX-P
EX and EX V6
EX-L and EX-L V6 without navigation
system
\f—\f—\fy
y
)\f
\fy\f
y
2009 Accord Sedan

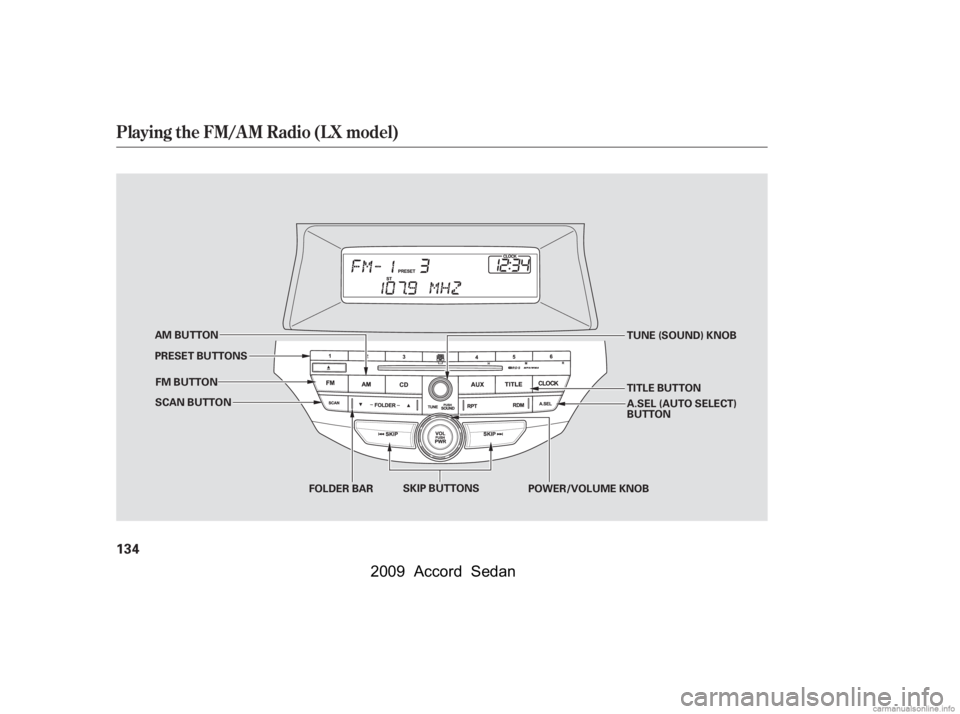

Playing the FM/AM Radio (LX model)
134
SCAN BUTTONFOLDER BAR POWER/VOLUME KNOB
FM BUTTON
AM BUTTON
TUNE (SOUND) KNOB
SKIP BUTTONS
PRESET BUTTONS
TITLE BUTTON
A.SEL (AUTO SELECT)
BUTTON
\f—\f—\fy
y
)\f
\fy\f
y
2009 Accord Sedan

µ
µ µ
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Turn the system on by pushing the
power/volume knob or the AM or
FM button. Adjust the volume by
turning the power/volume knob.
The band and f requency that the
radio was last tuned to is displayed.
To change bands, press the AM or
FM button. On the FM band, ST will
be displayed if the station is broad-
castinginstereo.Stereo
reproduction on AM is not available.
On the AM band, AM noise
reduction turns on automatically. You can use any of f ive methods to
f ind radio stations on the selected
band: tune, skip, scan, the preset
buttons, and auto select.
On the FM band, you can also use
the f eatures provided by the radio
data system (RDS). For more
inf ormation on the RDS, see page
.
Use the TUNE knob to
tune the radio to a desired f requency.
Turn the knob to the right to tune to
a higher f requency, and turn it to the
lef t to tune to a lower f requency.
The skip f unction searches
up and down f rom the current
f requency to f ind a station with a
strong signal. To activate it, press
either of the SKIP buttons ( or ), then release it. The scan f unction samples
all stations with strong signals on the
selected band. To activate it, press
the SCAN button, then release it.
You will see SCAN in the display.
The system will scan f or a station
with a strong signal. When it f inds
one, it will stop and play that station
f or about 10 seconds.
If you do nothing, the system will
then scan f or the next strong station
and play it f or 10 seconds. When it
plays a station you want to listen to,
press the SCAN button again.
137
CONT INUED
To Select a Station
To Play the FM/AM Radio
TUNE
SK IPSCAN
Playing the FM/AM Radio (LX model)
Features
135
\f—\f—\fy
y
)\f
\fy\f
\fy
2009 Accord Sedan

µ
µ
µ If you are
traveling far from home and can no
longer receive your preset stations,
you can use the auto select feature to
find stations in the local area. If you do not like the stations auto
select has stored, you can store
other f requencies on the preset
buttons as previously described.
Each preset button can
store one f requency on AM and two
f requencies on FM.
Select the desired band, AM or
FM. FM1 and FM2 let you store
two f requencies with each preset
button.
Repeat steps 1 through 3 to store a
total of six stations on AM and
twelve stations on FM.
Pick a preset button (1 6), and
hold it until you hear a beep.
Usethetune,skip,scan,orRDS
function to tune the radio to a
desired station. Press the A. SEL button. You will see
A. SEL f lashing in the display, and
the system goes into scan mode f or
several seconds. It stores the
f requencies of six AM, and twelve
FM stations in the preset buttons.
You will see a ‘‘0’’ displayed af ter
pressing a preset button if auto
select cannot f ind a strong station f or
every preset button. ,pressthe
A. SEL (auto select) button. This
restores the presets you originally
set.
For inf ormation on FM/AM radio
f requencies and reception, see page .
1.
2.
3.
4.
209
To turn of f auto select
AUTO SELECT
Preset
Playing the FM/AM Radio (LX model)
136
\f—\f—\fy
y
)\f
\fy\f

y
2009 Accord Sedan

On the FM band, you can select a
favorite station and display the
program service name according to
the inf ormation provided by the
radio data system (RDS).
Theprogramservicenamedisplay
f unction shows the name of the
station you are listening to. With the
audio system on and the FM band
selected, you can turn this f unction
on or of f .If the station you are listening to is
not an RDS station, the display
continues to show the f requency
with the PS name display function on.
To switch the function between on
and off, press and release the TITLE
button. With the system on, you will
see the ‘‘PS ON’’ message on the
display. If the station you are
listening to is an RDS station, the
displayed f requency switches to the
station name. When you turn of f this f unction by
pressing the TITLE button, the
display shows ‘‘PS OFF.’’
CONT INUED
Playing the FM/AM Radio (LX model)
Radio Data System (RDS)
Program Service (PS) Name DisplayFeatures
137
\f—\f—\fy
\f\fy
)\f
\fy\f
y
2009 Accord Sedan
