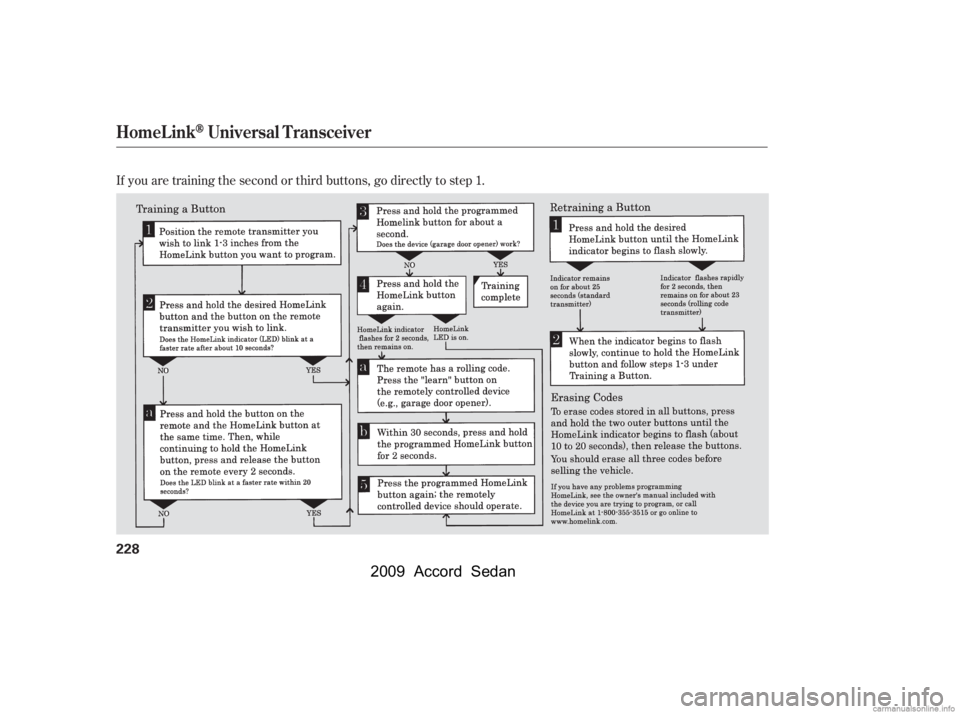

If you are training the second or third buttons, go directly to step 1.
HomeL inkUniversal Transceiver
228
\f—\f—\fy
y
)\f
\fy\fy
2009 Accord Sedan

HomeLinkis a registered
trademark of Johnson Controls, Inc.As required by the FCC:
This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.
HomeL inkUniversal Transceiver
Features
229
\f—\f—\fy
y
)\f
\fy\fy
2009 Accord Sedan

HFL recognizes simple voice
commands, such as phone numbers
and names. It uses these commands
to automatically dial, receive, and
store numbers. For more
inf ormation on voice control, see
UsingVoiceControlonpage .
Your vehicle is equipped with the
Bluetooth
HandsFreeLink(HFL).
HFL uses Bluetooth
technology to
link your cell phone to your vehicle.
With HFL, you can place and receive
calls through your vehicle’s audio
system, without the distraction of
handling your cell phone. To use this
f eature, you need a Bluetooth-
compatible cell phone with the
Hands Free Prof ile. For more
inf ormation, and a list of compatible
cell phones, visit , or call (888) 528-7876. In
Canada, visit , or call
(888) 9-HONDA-9.
The HFL is available in both English
and French (Canadian models only).
To change the language, see page .
Here are the main features of the
HFL. Instructions f or using the HFL
begin on page . Bluetooth
is a registered trademark
of Bluetooth SIG, Inc.
Bluetooth is the wireless technology
that links your phone to the HFL.
TheHFLusesaClass2Bluetooth,
which means the maximum range
between your phone and vehicle is
30 f eet (10 meters).
234
241
256
handsf reelink.honda.
com www.honda.ca
EX-L and EX-L V6 with navigation
system
Voice Control BluetoothWireless Technology
BluetoothHandsFreeL ink
230
\f—\f—\fy
y
)\f
\fy\fy
2009 Accord Sedan

To use the HFL, your phone must
have approved Bluetooth capability
along with the Hands Free Prof ile.
This type of phone is available
through many phone makers and
cellular carriers. You can also find an
approved phone by visiting, or by calling
the Hands Free Link
consumer
support at (888) 528-7876. In Canada,
visit , or call (888) 9-
HONDA-9. The Bluetooth
word mark and
logos are registered trademarks
owned by Bluetooth SIG, Inc. and
any use of such marks by Honda
Motor Co., Ltd. is under license.
Other trademarks and trade names
are those of their respective owners. With a linked phone, the HFL allows
you to send and receive calls in your
vehicle without holding the phone.
handsf reelink.honda.com
www.honda.ca
BluetoothHandsFreeL ink
Incoming/Outgoing Calls
Features
231
\f—\f—\fy
y
)\f
\fy\fy
2009 Accord Sedan

To operate the HFL, use the HFL
Talk and Back buttons on the left
side of the steering wheel.
The HFL buttons are used as
f ollows:
HFLTalk:Thisbuttonisusedbefore
you give a command, to answer
incoming calls, and to conf irm
system inf ormation.
The HFL microphone is on the
ceiling, between the f ront spotlights.
The microphone is shared with the
navigation system.
When the HFL is in use, the sound
comes through the vehicle’s f ront
audio system speakers. If the audio
system is in use while operating
either of the HFL buttons or making
a call, the HFL over-rides the audio
system. To change the volume level,
use the audio system volume knob,
or the steering wheel volume
controls.
You can also store the desired
number to the HFL directly f rom
your cell phone using the receive
contact f unction in the HFL.
Your vehicle’s HFL system has the
cellular phonebook import f unction.
This allows you to import your
cellular phonebook to the HFL.
Using the navigation system, you can
makeacalldirectlyandstorea
desired number in the HFL f rom the
list shown on the navigation display.
For more inf ormation on how to
import the phonebook or to make a
call, see page .
The HFL can store up to 50 names
and phone numbers in its phonebook.
Withalinkedphone,youcanthen
automatically dial any name or
number in the phonebook.
241 HFL Buttons
Microphone
Audio System
Phonebook
BluetoothHandsFreeL ink
232
HFL TALK BUTTON
HFL BACK BUTTON
\f—\f—\fy
\f\fy
)\f
\fy\fy
2009 Accord Sedan

You will also see ‘‘HANDS FREE
LINK’’ on the center display.
HFLBack:Thisbuttonisusedto
end a call, go back to the previous
voice control command, and to
cancel an operation.
Press and release the button, then
wait f or a beep bef ore giving a
command.
When you are operating the HFL,
dialing or receiving calls with the
audio system in use, you will see the
above screen on the navigation
display.‘‘ ’’ indicator will be displayed on
the center display if your phone is
linked to the Bluetooth
compatible
cell phone.
Inf ormation Display
BluetoothHandsFreeL ink
Features
233
BLUETOOTH INDICATOR
U.S. model is shown.
\f—\f—\fy
\fy
)\f
\fy\fy
2009 Accord Sedan

Here are some guidelines f or using
voice control:
TheHFLisoperatedbytheHFL
Talk and Back buttons on the left
side of the steering wheel. The next
f ew pages provide instructions f or all
basic f eatures of the HFL. Adjust the airflow from both the
dashboard and side vents so they
do not blow against the
microphone on the ceiling.
Close the windows and the
moonroof .
To enter a command, press and
release the Talk button. Then,
af ter the beep, say your command
in a clear, natural tone.
Lower the A/C f an speed during
voice recognition operation.Give a voice command in a clear
natural speaking voice without
pausing between words or
numbers. If the system cannot
recognize your command because
of the background noise, speak
louder.
If the microphone picks up voices
other than yours, the system may
not interpret your voice
commands correctly.
If the HFL does not recognize a
command, its response is, ‘‘Pardon.’’
If it doesn’t recognize the
command a second time, its
response is, ‘‘Please repeat.’’ If it
doesn’t recognize the command a
third time, it plays the Help
prompt.
Using Voice Control
How to Use the HFL
A ll phones may not
operate identically, and some
may cause inconsistent
operation of the HFL .
BluetoothHandsFreeL ink
234
NOTE:
\f—\f—\fy

y
)\f
\fy\fy
2009 Accord Sedan

Many commands can be spoken
together. For example, you can
say, ‘‘Dial 123-456-7891.’’
To enter a string of numbers in a
Call or Dial command, you can say
them all at once, or you can
separate them in blocks of 3, 4, 7,
10, and 11.
To skip a voice prompt, press the
Talk button while the HFL is
speaking. The HFL will then begin
listening f or your next command.To go back one step in a command
process, say, ‘‘Go back,’’ or press
the Back button.
If nothing is said while the HFL is
listening f or a command, the HFL
will time out and stop its voice
recognition. The next time you
press the Talk button, the HFL
begins listening f rom the point at
which it timed out.
To end a command sequence at
any time, press and hold the Back
button, or press and release the
Talk button, wait f or the beep, and
say, ‘‘Cancel.’’ The next time you
press the Talk button, the HFL
begins f rom its main menu.
When you f inish a command
sequence, the HFL goes back to
its main menu. For example, when
you store the name, ‘‘Eric,’’ the
HFL response is, ‘‘Eric has been
stored.’’ The next time you press
the Talk button, you will be at the
main menu.
To hear a list of available options
at any time, press the Talk button,
wait f or the beep, and say, ‘‘Hands
f ree help.’’
BluetoothHandsFreeL ink
Features
235
\f—\f—\fy
y
)\f
\fy\f\fy
2009 Accord Sedan

Thevoiceof theHFLcanbesetto
male or f emale (U.S. models only).
Also, the incoming notif ication can
be set to a ring tone, a prompt, or no
notification.Press and release the Talk button.
Af ter the beep, say ‘‘System.’’ The
HFL response is, ‘‘System options
are setup and clear.’’
Press and release the Talk button.
Af ter the beep, say ‘‘Setup.’’ The
HFL response is ‘‘Would you like
male or f emale prompts?’’ Press and release the Talk button.
Af ter the beep, say ‘‘Male’’ or
‘‘Female,’’ depending on the
system voice you want. The HFL
response is, ‘‘Male (Female)
prompts have been selected.
Would you like an audible
notif ication of an incoming call?’’
Press and release the Talk button.
If you say ‘‘Yes’’ af ter the beep, the
HFL response is, ‘‘Would you like
the notif ication to be a ring tone or
prompt?’’ If you say ‘‘No’’ af ter the
beep, the HFL returns to its main
menu. Saying ‘‘No’’ will result in no
ring tone or prompt playback
during an incoming call. The audio
system will still mute, and a
message will be displayed.Press and release the Talk button.
Af ter the beep, say ‘‘Ring tone’’ or
‘‘Prompt.’’ The HFL response is ‘‘A
ring tone will be used’’ or ‘‘An
incoming call prompt will be used.’’
If you choose ‘‘Ring tone,’’ you will
hear a ring tone through the audio
speakers to announce an incoming
call. If you choose ‘‘Prompt,’’ you
will hear this message to
announce an incoming call: ‘‘You
have an incoming call.’’
The HFL response continues ‘‘A
security option is available to lock
the HFL system. Each time the
vehicle is turned on, a passcode
would be required to use this
system. Would you like this
security option turned on?’’ If you
say ‘‘Yes,’’ you can set your
passcode. Ref er to the setting
procedure in the next column.
4.
5.
3.
2.
1. 6.
To set up the system, do this:
Setting Up the System
BluetoothHandsFreeL ink
236
\f—\f—\fy
y
)\f
\fy\f
y
2009 Accord Sedan

The HFL will accept a numeric, f our-
digit passcode that you can use f or
security purposes.Follow the system setup
procedure as described previously.
Press and release the Talk button.
Af ter the beep, say ‘‘Yes.’’
The HFL response is ‘‘What is the
f our-digit number you would like
to set as your passcode?’’
Press and release the Talk button.
Af ter the beep, say the f our-digit
passcode you want to use. For
example,say‘‘1,2,3,4.’’TheHFL
responseis‘‘1,2,3,4.Isthis
correct?’’ Press and release the Talk button.
If you say ‘‘No.’’ af ter the beep, the
HFL response is ‘‘Security will not
be used. The system setup is
complete.’’
Once a passcode is set, you can lock
the HFL so it only operates after the
passcode is entered. The HFL will prompt you f or your
passcode each time the ignition
switch is turned to the ON (II)
position and you press the Talk
button. You will only be asked f or
thepasscodeonceperignition cycle. If the passcode is set, its
response is ‘‘The system is locked.
What is the f our-digit passcode?’’
Press and release the Talk button.
Af ter the beep, say your f our-digit
passcode.Forexample,say‘‘1,2,3,
4.’’
If the passcode is correct, the HFL
response is ‘‘Main menu.’’ If the
passcode is not correct, the HFL
responseis‘‘1,2,3,4isincorrect.
Pleasetryagain.’’Gobacktothe
step 2.
If you f orget your passcode and you
cannot activate the HFL, consult
your dealer to cancel the passcode.
Press and release the Talk button.
Af ter the beep, say ‘‘Yes.’’ The
HFL response is ‘‘Security is on.
Each time the vehicle is turned on,
the passcode will be required to
use the system. The system setup
is complete. Returning to the main
menu.’’
1.
4. 5.
6.
2.
3.
1.2.
3.
To set your passcode, do this:
To enter your passcode, do this;
Setting Your Passcode
BluetoothHandsFreeL ink
Features
237
\f—\f—\fy
y
)\f
\fy\fy
2009 Accord Sedan
