To listen to XM Radio, turn the
ignition switch to the ACCESSORY
(I) or ON (II) position, and press the
button. The last channel you
listened to will show in the display.
Adjust the volume by turning the
power/volume knob.
To switch between
channel mode and category mode,
press and hold the TITLE button
until the mode changes.
In the channel mode, you can select
all of the available channels. In the
category mode, such as Jazz, Rock,
Classical, etc., you can select all of
the channels within that category.
Each time you press and release the
TITLE button, the display changes in
the f ollowing sequence: name, title,
and category.
You can also change the mode from
the menu items. Press the MENU
button to display the menu items,
then turn the selector knob to select
MODE/CATEGORY and press the
selector knob (ENTER). Each time
you press and release the selector
knob (ENTER), the display changes
between CHANNEL and
CATEGORY. To enter the setting,
press the TITLE button.
You may experience periods when
XM Radio does not transmit the
artist’s name and song title
inf ormation. If this happens, there is
nothing wrong with your system.
Your vehicle is capable of receiving
XMRadio anywhere in the United
States and Canada, except Hawaii,
Alaska,andPuertoRico.XMisa
registered trademark of Sirius XM
Radio,Inc.andXMCANADAis a
registered business name of
Canadian Satellite Radio Inc.
XM Radio receives signals f rom two
satellites to produce clear, high-
quality digital reception. It of f ers
many channels in several categories.
Along with a large selection of
dif f erent types of music, XM Radio
allows you to view channel and
category selections in the display.
Playing the XMRadio (EX-L and EX-L V6 models without navigation system)
MODE
Operating the XM Radio
158
——
y
y
)y
y
2010 Accord Sedan

µ
ÝÛµµ
CONT INUED
The SCAN f unction gives
you a sampling of all channels while
in the channel mode. In the category
mode, only the stations within that
category are scanned. To activate
scan, press the SCAN button. The
system plays each channel in
numerical order f or a f ew seconds,
then selects the next channel. When
you hear a channel you want to
continue listening to, press the
button again.
Press
either side of the CATEGORY bar to
select another category.
You can also select a channel or
category from the list by using the
selector knob. Push the selector
knob (ENTER) to switch the display
to the list displayed with three
segments, then turn the knob to
select a channel or category. Press
the selector knob (ENTER) to set
your selection.
Turn the selector knob to
change channel selections. Turn the
knob right f or higher numbered
channels and lef t f or lower
numbered channels. In the category
mode, you can only select channels
within that category.
Playing the XMRadio (EX-L and EX-L V6 models without navigation system)
SCAN
CATEGORY ( or )TUNE
Features
159
Channel list is shown.
——
y
y
)y
y
2010 Accord Sedan

µµ
µ
µ
µ
µ
µ
µ
Youcanstoreupto12
preset channels using the six preset
buttons. Each button stores one
channel f rom the XM1 band and one
channel f rom the XM2 band.
To store a channel:
Press the button. Either
XM1 or XM2 will show in the
display.
Use the selector knob, or the
CATEGORYbarorSCANbutton
to tune to a desired channel.
In category mode, only channels
within that category can be selected.
In channel mode, all channels can be
selected.
Pick the preset button you want
f or that channel. Press and hold
the button until you hear a beep.
Repeat steps 2 and 3 to store the
f irst six channels.
Press the XM button again. The
other XM band will show. Store
the next six channels using steps 2
and 3.
Once a channel is stored, simply
press and release the proper preset
button to tune to it.
The encryption
code is being updated. Wait until the
encryption code is f ully updated.
Channels 0 and 1 should still work
normally.
The signal is
currently too weak. Move the vehicle
to an area away from tall buildings,
and with an unobstructed view of the
southern horizon.
The selected channel
number does not exist, or is not part
of your subscription, or this channel
has no artist or title inf ormation at
this time.
There is a problem
with the XM antenna. Please consult
your dealer.
The selected
channel has no artist or title
inf ormation at this time.
XM is loading the
audio or program inf ormation.
The channel
currently selected is no longer
broadcasting.
3.
4.
5.
2.
1.
Playing the XMRadio (EX-L and EX-L V6 models without navigation system)
Preset
XM Radio Display Messages
‘‘UPDA T ING’’
‘‘NO SIGNA L ’’
‘‘----’’
‘‘A NT ENNA ’’
‘‘NO INFO’’
‘‘L OA DING’’
‘‘OFF A IR’’
160
——
y
y
)y
y
2010 Accord Sedan

The XM satellites are in orbit over
the equator; therefore, objects south
of the vehicle may cause satellite
reception interruptions. To help
compensate f or this, ground-based
repeaters are placed in major
metropolitan areas.
Satellite signals are more likely to be
blocked by tall buildings and
mountains the f arther north you
travel f rom the equator. Carrying
large items on a roof rack can also
block the signal.
Depending on where you drive, you
may experience reception problems.
Interf erence can be caused by any of
these conditions:
Driving on the north side of an
east/west mountain road.
Driving on the north side of a
large commercial truck on an
east/west road.
Driving in tunnels.
Driving on a road beside a vertical
wall, steep clif f , or hill to the south
of you.
Driving on the lower level of a
multi-tiered road.
Driving on a single lane road
alongside dense trees taller than
50 ft. (15 m) to the south of you.
Large items carried on a roof rack.
CONT INUED
Playing the XMRadio (EX-L and EX-L V6 models without navigation system)
Features
161
Signal may be blocked by mountains or large obstacles tothe south.
Signal weaker inthese areas.
SATELLITE
GROUND REPEATER
——
y
y
)y
y
2010 Accord Sedan

There may be other geographic
situations that could af f ect XM Radio
reception.
After you’ve registered with XM
Radio, keep your audio system in the
XM Radio mode while you wait f or
activation. This should take about 30
minutes.
If your XM Radio service has expired
or you purchased your vehicle f rom
a previous owner, you can listen to a
sampling of the broadcasts available
on XM Radio. With the ignition
switch in the ACCESSORY (I) or the
ON (II) position, press the
button. A variety of music
types and styles will play.
If you decide to purchase XM radio
service, contact XM Radio at
,orat
1-800-852-9696. In Canada, contact
XM CANADAat, or
at 1-877-209-0079. You will need to
give them your radio I.D. number
and your credit card number. To get
your radio I.D. number, press the
button, then turn the
selector knob until ‘‘CH 000’’ appears
in the display. Your I.D. will appear
in the display.
While waiting f or activation, make
sure your vehicle remains in an open
area with good reception. Once your
audio system is activated,
‘‘CATEGORY’’ or ‘‘CHANNEL’’ will
appear in the display, and you’ll be
able to listen to XM radio broadcasts.
XM Radio will continue to send an
activation signal to your vehicle f or
at least 12 hours from the activation
request. If the service has not been
activated after 36 hours, contact
XMRadio. In Canada, contact XM
CANADA.
As required by the FCC:
Changes or modif ications not expressly
approved by the party responsible f or
compliance could void the user’s
authority to operate the equipment.
www.xmradio.com
www.xmradio.ca
Playing the XMRadio (EX-L and EX-L V6 models without navigation system)
Receiving XM Radio Service
162
——
y
y
)y
y
2010 Accord Sedan

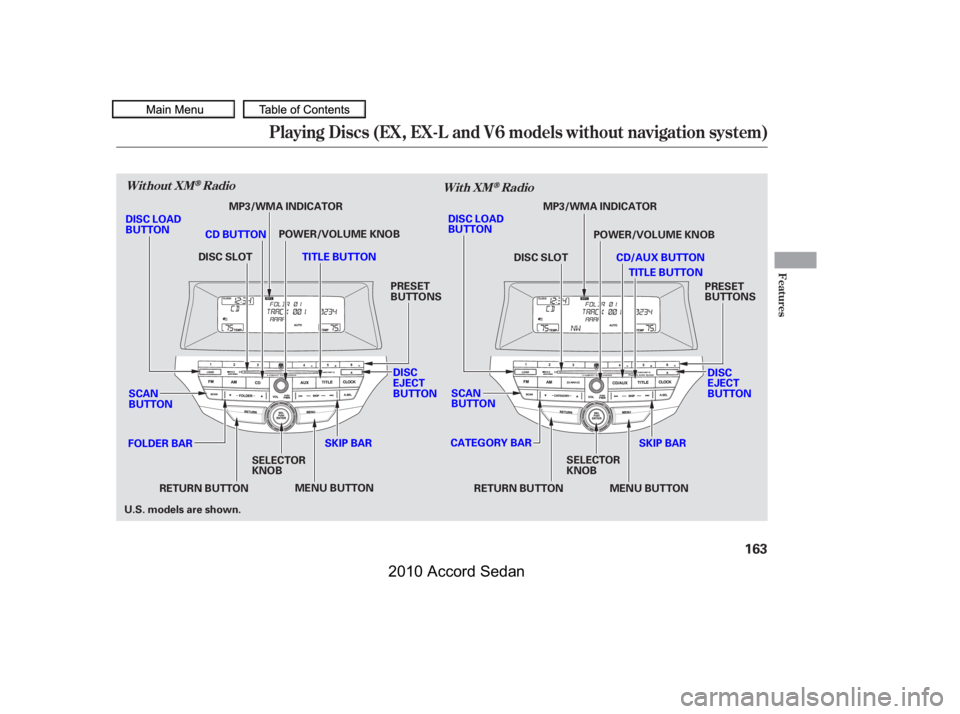

Playing Discs (EX, EX-L and V6 models without navigation system)
Features
Without XMRadioWith XMRadio
163
SCAN BUTTON
MENU BUTTON
SKIP BAR
POWER/VOLUME KNOB
TITLE BUTTON
FOLDER BAR
SELECTORKNOB
PRESETBUTTONS
RETURN BUTTON
MP3/WMA INDICATORDISC LOADBUTTON
DISC SLOT
CD BUTTON
DISCEJECTBUTTONSCANBUTTON
MENU BUTTON
SKIP BAR
POWER/VOLUME KNOB
TITLE BUTTON
SELECTORKNOB
PRESETBUTTONS
RETURN BUTTON
MP3/WMA INDICATORDISC LOADBUTTON
DISCEJECTBUTTON
DISC SLOTCD/AUX BUTTON
CATEGORY BAR
U.S. models are shown.
——
y
y
)y
y
2010 Accord Sedan

µ
µ
µ
To load or play discs, the ignition
switch must be in the ACCESSORY
(I) or ON (II) position.
You operate the disc changer with
the same controls used f or the radio.
To select the disc changer, press the
CD/AUX or CD button. You will see
‘‘CD’’ in the display. The disc and
track numbers, and the elapsed time
areshowninthedisplay.Youcan
also select the displayed inf ormation
with the TITLE button (see page
). The system will continuously
play a disc until you change modes.
This audio system can also play
CD-Rs and CD-RWs compressed in
MP3 or WMA f ormats. When
playing a disc in MP3, you will see
‘‘MP3’’ in the display. In WMA
f ormat, ‘‘WMA’’ will appear in the
display. You can select up to 99
f olders, or up to 255 tracks/f iles.
Video CDs and DVDs do not work in
this unit.
The specif ications f or compatible
MP3 f iles are:
Sampling f requency:
32/44.1/48 kHz (MPEG1)
16/22.05/24 kHz (MPEG2)
Bitrate:
32/40/48/56/64/80/96/112/128/
160/192/224/256/320 kbps
(MPEG1)
8/16/24/32/40/48/56/64/80/96/
112/128/160 kbps (MPEG2)
Compatible with variable bitrate
and multi-session
Maximum layers
(including ROOT): 8 layers166
To Play a Disc
Playing Discs (EX, EX-L and V6 models without navigation system)
164
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.
——
y

y
)y
y
2010 Accord Sedan

µ
µ
µ
Your vehicle’s in-dash disc changer
holdsuptosixdiscs.
You cannot load and play 3-inch
(8-cm) discs in this unit.
When the disc load indicator turns
green and ‘‘LOAD’’ appears in the
display again, insert the next disc
in the slot. Do not try to insert a
disc until ‘‘LOAD’’ appears. You
could damage the audio unit.
Repeat this until all six positions
are loaded. If you are not loading
all six positions, the system begins
playing the last disc loaded.
You can also load a disc into an
empty position while a disc is playing
by pressing the appropriate preset
button. The system stops playing the
current disc and starts the loading
sequence. It then plays the disc just
loaded.
Press the LOAD button until you
hear a beep and see ‘‘LOAD’’ in
the display. To load only one disc,
press and release the LOAD
button.
The disc number f or an empty
position begins blinking.
Insert the disc into the disc slot
when the green disc load indicator
comes on. Insert it only about
half way; the drive will pull it in the
rest of the way. You will see
‘‘BUSY’’ in the display while the
disc load indicator turns red and
blinks as the disc is loaded.
The specif ications f or compatible
WMA f iles are:
Compatible with variable bitrate
and multi-session
Maximum layers
(including ROOT): 8 layers
Sampling f requency:
32/44.1/48 kHz
Bitrate:
48/64/80/96/128/160/192 kbps
If a f ile on a WMA disc is protected
by digital rights management
(DRM), the audio unit displays
UNSUPPORTED, and then skips to
the next f ile.
1.
2.
3.
4.
5.
CONT INUED
L oading Discs
Playing Discs (EX, EX-L and V6 models without navigation system)
Features
165
NOTE:
——
y
y
)y
y
2010 Accord Sedan

With the f older name, you will see
the FOLDER indicator in the display.
The TRACK indicator is shown with
the file or track name.
The display shows up to 16
characters of selected text data (the
f older name, f ile name, etc.).
You can see the album, artist, and
track name in the display. If a disc is
recorded in MP3 or WMA, you can
see the f older and f ile name, and the
artist, album, and track tag.
If the text data has more than 16
characters, you will see the first 16
characters and the indicator in
the display. Press and hold the
TITLE button until the next 16
characters are shown. You can see
up to 32 characters of the text data.
Each time you press the TITLE
button, the display shows you the
text, if the disc was recorded with
text data.
When you press and release the
TITLE button while a disc without
text data is playing, you will see ‘‘NO
INFO’’ on the display.
When you turn on the audio system
next time, the system keeps your
selection with the TITLE button.
When playing a CD-DA with text
data, the album and track name are
showninthedisplay.Withadiscin
MP3 or WMA, the display shows the
f older and f ile name.
When you insert a disc, and the
system begins to play.
When a new f older, f ile, or track is
selected.
You will also see some text data
under these conditions:
When you change the audio mode
to play a disc with text data or in
MP3 or WMA.If youpressandholdtheTITLE
button again, the display shows the
f irst 16 characters again.
If any letter is not available, it is
replaced with ‘‘ . ’’ (dot) in the display.
When the disc has no text data, you
will see ‘‘NO INFO’’ on the display.
T ext Data Display Function
Playing Discs (EX, EX-L and V6 models without navigation system)
166
——
y
y
)y

y
2010 Accord Sedan

µ
Use the SKIP bar while a disc is
playing to select passages and
change tracks (f iles in MP3 or WMA
mode).
In MP3 or WMA mode, use the
FOLDER bar (CATEGORY bar on
models with XM Radio) to select
f olders in the disc and use either
side of the skip bar to change f iles.
Each time you press and
releasethe sideof theSKIPbar,
the player skips forward to the
beginning of the next track (f ile in
MP3 or WMA mode). Press and
releasethe sideof thebarto
skip backward to the beginning of
the current track. Press it again to
skip to the beginning of the previous
track.
To move rapidly within a track or f ile,
press and hold either side ( or
) of the SKIP bar.In MP3 or WMA mode, you can also
select a f older or track/f ile f rom the
list by using the selector knob. Push
the selector knob (ENTER) to
switch the display to the list
displayed with three segments, then
turn the knob to select a f older.
Press the selector knob (ENTER) to
change the display to the track/file
list, then turn the same knob to
select a track/f ile. Press the selector
knob (ENTER) to set your selection.
To select a dif f erent disc, use the
appropriate preset buttons (1
through 6). If you select an empty
position, the system will go into the
loading sequence (see page ).165
CONT INUED
T o Change or Select T racks/Files
Playing Discs (EX, EX-L and V6 models without navigation system)
SK IP
Features
167
Folder Selection
Press ENTERTrack Selection
——
y
y
)y
y
2010 Accord Sedan
