audio HONDA ACCORD SEDAN 2014 9.G Technology Reference Guide

T E C H N O L O G Y R E F E R E N C E G U I D E
This Technology Reference Guide is designed to help you
get acquainted with your 2014 Honda Accord Coupe EXL
with Navigation and provide basic instructions on some of
its technology and convenience features.
This guide is not intended to be a substitute for the
Owner’s Manual. For more detailed information on vehicle
controls and operation, please refer to the respective
sections in the Owner’s Manual or Navigation Manual.
*if equipped
NAVIGATION
p.24
BLUETOOTH®
HANDSFREELINK®p.27
ECO
ASSIST TMp. 8
INSTRUMENT
PANELp. 4
Voice Recognition ...................................................................................................20
Navigation.................................................................................................................24
Bluetooth®HandsFreeLink®(HFL)........................................................................27
SMS Text Messaging and EMail ...........................................................................31

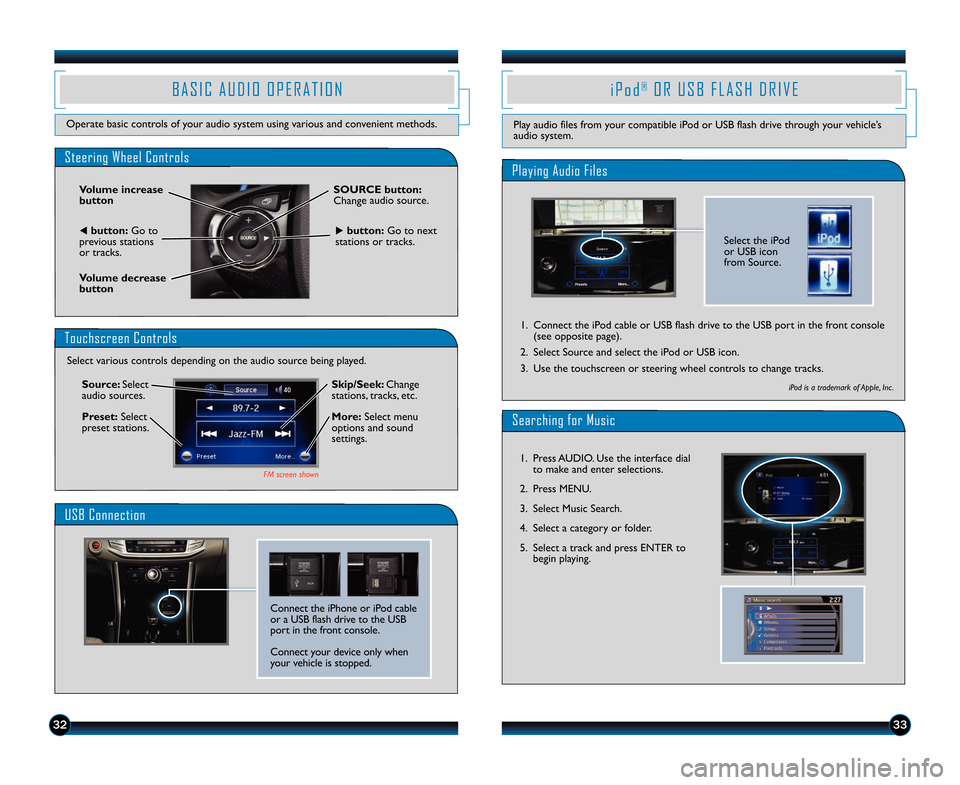

Basic Audio Operation ..........................................................................................32
iPod®or USB Flash Drive .....................................................................................33
Hard Disc Drive (HDD) Audio ...........................................................................34
Song By Voice™ ......................................................................................................35

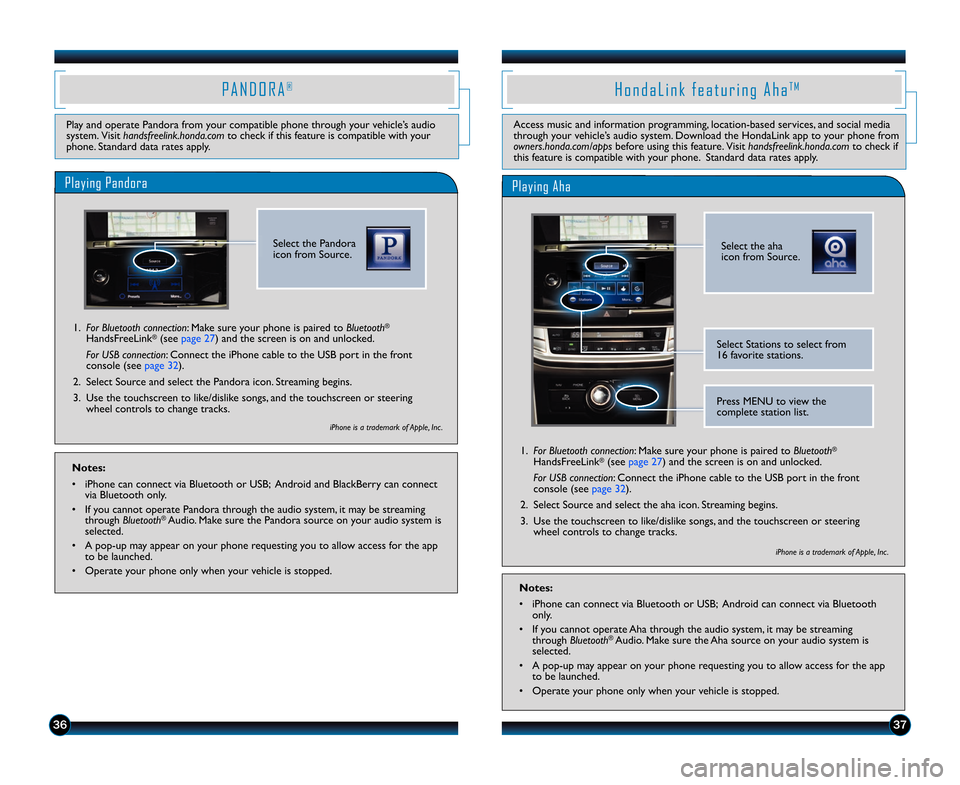

Pandora®...................................................................................................................36
HondaLink featuring AhaTM...................................................................................37
Bluetooth®Audio ......................................................................................................38
HomeLink®*.............................................................................................................39
Honda Owners .......................................................................................................40
Safety Reminder ......................................................................................................40
Fuel Recommendation...........................................................................................41
Smart Entry with Push Button Start.....................................................................2
Instrument Panel Indicators ...................................................................................4
Information Display ..................................................................................................6
Eco AssistTM................................................................................................................8
Tire Pressure Monitoring System (TPMS)...........................................................9
Settings for Your Vehicle ........................................................................................10
Auto Door Locks ...................................................................................................11
Driving Position Memory System (DPMS)........................................................12
OneTouch Turn Signal...........................................................................................13
Auto Headlights with Wiper Integration...........................................................13
MultiView Rear Camera ......................................................................................14
LaneWatchTM...........................................................................................................15
Lane Departure Warning (LDW) ........................................................................16
Forward Collision Warning (FCW) ....................................................................17
Intelligent MultiInformation Display (iMID) ...................................................18
Using the Touchscreen...........................................................................................19
iMID p.18
14 Accord 2D TRG_EXL NAVI_ATG_NEW STYLE 7/18/2013 9:06 AM Page 2

1011
Door Locks
D e f a u l t L o c k S e t t i n g
The doors are preset to lock
when your vehicle reaches
about \f0 mph.
D e f a u l t U n l o c k S e t t i n g
All doors are set to unlock
when the driver’s door is
opened.
S E T T I N G S F O R Y O U R V E H I C L E
Change different settings for many features in your vehicle. See your Owner’s Manual
for detailed information on settings and options.
Adjusting Vehicle Settings
Press SETTINGS to select the
settings menu. Use the
interface dial to make and
enter selections.
Choose from the available options:
Navi Settings
Change various settings for
navigation system routing.
Camera Settings
Change camera modes.
Vehicle Settings*
TPMS calibration, meter setup,
door setup, and more.
System Settings
Adjust the display, system
language, and more. Phone Settings
Pair a phone, change call and
text/e\bmail options, and more.
Info Settings
Import wallpaper and select
clock type.
\budio Settings
Change sound options and
various settings for audio modes.
*The vehicle must be in Park (P) to access this menu.
Note: The driver’s and front passenger’s doors can be opened by pulling the inner
front door handle, regardless of the setting.
Changing Settings
Follow the steps below to change your door settings. Make sure you are using the
key you want to change the settings for (Driver \f or Driver 2) and the vehicle is in
ON mode. See your Owner’s Manual for complete setting options.
\f. Press SETTINGS. Use the interface dial to make and
enter selections.
2. Select Vehicle Settings.
3. Select Auto Door Lock or Auto Door Unlock.
4. Select from the options.
5. Press BACK to exit the menu.
A U T O D O O R L O C K S
Program how and when the vehicle doors automatically lock and unlock.
14 Accord 2D TRG_EXL \ANAVI_ATG_NEW STYLE \A 7/18/2013 9\f07 AM \APage 7

1819
Display Options
I N T E L L I G E N T M U L T I I N F O R M A T I O N D I S P L A Y ( i M I D )
Choose what to display in the upper screen.
Press the Display button tochange the main displays.
Changing the Display
PhoneShows phonescreen.
InfoShowsinformationscreen andoptions.
NavigationShows map ornavigationinformation.
AudioShows currentaudio information.
U S I N G T H E T O U C H S C R E E N
Interactive touchscreen display includes audio and Bluetooth®HandsFreeLink®
functionality.
Audio Options
Bluetooth®HandsFreeLink®Options*
Sound/Screen Options
FM screen shown
Source: Selectaudio sources.
Preset:Selectpreset stationsor channels.
Skip/Seek: Changestations, channels,tracks, etc.
More:Select menuoptions and soundsettings.
When you enter the Dial screenfrom the Phone Menu, you can use the touchscreen to enterthe number.
*Manual operation is disabled while the vehicle is moving.
Select Sound Settings toadjust the audio system.Select Screen Settings toadjust various screen features.
Select More from the main screen.
When you enter the Phonebookscreen from the Phone Menu,you can use the touchscreen tosearch for names.
14 Accord 2D TRG_EXL NAVI_ATG_NEW STYLE 7/18/2013 9:08 AM Page 11

2021
V O I C E R E C O G N I T I O N
How It Works
The voice control system uses the steering wheel buttons and th\2e ceiling
microphone.
To reduce the potential for driver distraction, certain manual functions
may be inoperable or grayed out while the vehicle is moving. Voice
commands are always available.
Voice Command Portal
PickUp button:Answer an
incoming call or go to a phone\b
specific voice portal screen.
HangUp/Back button: End a
call, decline an incoming call, or
cancel an operation.
Talk button: Say phone,
navigation, audio, or climate
control commands.
The system recognizes
your command. The system confirms the
command.
Voice Command Tips
• When the Talk button is pressed, all available voice commands are highlighted
in yellow. To bypass the system prompts, press and release the Talk button
again to say a command.
• To hear a list of available commands at any time, press and release the Talk button, then say “Voice Help.”
• Speak in a clear, natural voice.
• Reduce all background noise.
• Adjust the dashboard and side vents away from the microphone in the ceiling.
• Close the windows.
To keep your eyes on the road and hands on the wheel, use the Talk button to
say voice commands to operate certain vehicle features.
When you press the Talk button from any of the main screens (NAV, PHONE,
INFO, AUDIO), the voice portal screen appears and the system gives you examples
of voice commands that can be used. For more examples, see page 22.
Press the Talk button
again, and the system waits
for you to say a command.
14 Accord 2D TRG_EXL \ANAVI_ATG_NEW STYLE \A 7/18/2013 9\f08 AM \APage 12

2223
Commonly Used Voice Commands
Here are some examples of commonly used voice commands. Try some of these
to familiarize yourself with the voice command system.
G e n e r a l C o m m a n d s(Accepted on most screens to change
displays)
• Display map
• Display menu
• Display phone
• Information
• Display audio screen
• What time is it?
F i n d P l a c e C o m m a n d s(Accepted on Map screen)
• Find nearest: \b ATM \b Honda dealer
\b gas station \b airport
\b Mexican \b hospital restaurant \b bank
\b post office
N a v i g a t i o n C o m m a n d s(Accepted on Map screen)
• How long/far to the destination?
• Display destination map
• Display entire route
D i s p l a y C o m m a n d s(Accepted on Map screen)
• Display (or hide): \b ATM
\b gas station
\b restaurant
\b post office
• Display north up/heading up
• Zoom in/out
• Go home
• Display current location
A u d i o C o m m a n d s(Accepted on most screens)
• Radio on
• Radio # FM/AM
• Radio preset \f/2/3/4/5/6
• XM channel #
• XM preset \f/2/3/4/5/6
• DISC play
• DISC play track #
• DISC skip forward/back
• iPod/USB/HDD play
P h o n e C o m m a n d s(Accepted on most screens)
• Call by name
• Call by number
C l i m a t e C o n t r o l C o m m a n d s(Accepted on most screens)
• Air conditioner on/off
• Rear defrost on/off
• Climate control recirculate/ fresh air
• Fan speed up/down
• Temperature # degrees (# = 57–87)
• Temperature max hot/cold
H e l p C o m m a n d s(Accepted on most screens)
• Voice help (list of all available commands by category)
Press and release the Talk button before you say a command.Press and release the Talk button before you say a command.
14 Accord 2D TRG_EXL \ANAVI_ATG_NEW STYLE \A 7/18/2013 9\f08 AM \APage 13

2627
Using HFL
PickUp button:Answer anincoming call or go to a phone specific voice portal screen.
HangUp/Back button:End acall, decline an incoming call, or cancel an operation.
Talk button: Make a call using a stored voice tag, phonebookname, or phone number.
B L U E T O O T H® H A N D S F R E E L I N K®( H F L )
Make and receive phone calls through your vehicle’s audio system. Visithandsfreelink.honda.comto check if this feature is compatible with your phone.
To reduce the potential for driver distraction, certain functions may beinoperable or grayed out while the vehicle is moving. Stop or pull over toperform the function.
Use these buttons to navigate through the HFL menus.
PHONE button: Go to the phone screen.
BACK button: Cancel an operationor return to theprevious screen.
SETTINGS button: Go to Phone Settingsto pair a phone andset up text/emailoptions.
Interface Dial:Rotate to scrollthrough selectionsand press to make aselection.
MENU button: From the Phonescreen, access SpeedDial, Redial, CallHistory, Phonebook,Dial, and Text/EMailoptions.
FM Traffic
Displaying Traffic Information
Say “Display traffic”to view traffic flow and incident icons.
Note:Traffic flow and incident icons aredisplayed on map scales of 5 miles or less.
Heavy traffic
Moderate trafficIncident
I n c i d e n t I c o n s
Congestion
Construction
Road closed
Weather
1. Say “Display traffic on my route”toview a list of incidents on your route.
2. Say the number of the incident youwant to avoid.
3. Say “Avoid”and the incident listreturns.
4. Say “Recalculate route”to set thenew route.
Traffic ReroutingTM
The system can automatically provide detours around traffic or incidentswhen a destination is set and Traffic Rerouting is turned on in Navi Settings(see page 10), or you can manually reroute.
Provides continuously updated information, including traffic speed, incidents, andconstruction in major metro areas.
IncidenticonIncidenticon
TrafficFlowdata
TrafficFlowdata
Press and release the Talk button before you say a command.
14 Accord 2D TRG_EXL NAVI_ATG_NEW STYLE 7/18/2013 9:08 AM Page 15

2\b29
Use the interface dial to make and enter selections.
Pairing Your Phone
Pair your phone when the vehicle is stopped to begin using hands\bfree phone and
related audio functions.
\f. Press SETTINGS.
2. Select Phone Settings.
3. Select Bluetooth Device List (if no phone has been paired) or Connect
Phone (if pairing an additional phone).
4. Select Add Bluetooth Device.
5. Make sure your phone is in discovery mode and select OK.
6. HFL searches for your phone. Select your phone when it appears on the
list.
If your phone does not appear:
Select Phone Not Found and search
for HandsFreeLink from your phone.
7. HFL gives you a six\bdigit code. Compare it to the code that appears
on your phone. Connect to HFL from
your phone.
8. The system asks if you want to enable Phone Synchronization. Select On to
automatically import contacts and call
history.
Receiving a Call
A notification is heard and the incoming call information appears on the display.
Press the Hang\b
Up button to
end or decline
the call.
Press the Pick\b
Up button to
answer the call.You can also select the icons
on the touchscreen.
Using Voice Commands
Use the interface dial to make and enter selections.
Dialing a Number
Enter a \f0\bdigit phone number to call.
Using the Menu*
*Manual operation is limited while the vehicle is moving. Voice commands are always available.
\f. Press PHONE.
2. Press MENU.
3. Select Dial.
4. From the navigation screen or the touchscreen, enter the phone number.
Select the green phone icon to call.
\f. Say “Dial by number.”
2. Say the phone number. For example, “31\b555123\f.”
3. The system begins to dial.
Use the interface dial to make and enter selections.
Using Speed Dial and Call History
Store 20 speed dial entries for quick calling, or view the last 20 calls.
\f. Press PHONE.
2. From the Speed Dial tab, scroll through the list to find the entry you
want to call, and select it to call.
For Call History, move the interface
dial to the right and scroll through
the list.
Press and release the Talk button before you say a command.
14 Accord 2D TRG_EXL \ANAVI_ATG_NEW STYLE \A 7/18/2013 9\f08 AM \APage 1\b

3233
B A S I C A U D I O O P E R A T I O N
Operate basic controls of your audio system using various and convenient methods.
Steering Wheel Controls
Volume increase button
Volume decreasebutton
SOURCE button:Change audio source.
tbutton:Go toprevious stationsor tracks.
ubutton:Go to nextstations or tracks.
Touchscreen Controls
Select various controls depending on the audio source being played.
FM screen shown
Source: Selectaudio sources.
Preset:Selectpreset stations.
Skip/Seek: Changestations, tracks, etc.
More:Select menuoptions and soundsettings.
USB Connection
Playing Audio Files
i P o d®O R U S B F L A S H D R I V E
Play audio files from your compatible iPod or USB flash drive through your vehicle’saudio system.
1. Connect the iPod cable or USB flash drive to the USB port in the front console(see opposite page).
2. Select Source and select the iPod or USB icon.
3. Use the touchscreen or steering wheel controls to change tracks.
iPod is a trademark of Apple, Inc .
Searching for Music
1. Press AUDIO. Use the interface dialto make and enter selections.
2. Press MENU.
3. Select Music Search.
4. Select a category or folder.
5. Select a track and press ENTER tobegin playing.
Connect the iPhone or iPod cableor a USB flash drive to the USBport in the front console.
Connect your device only when your vehicle is stopped.
Select the iPodor USB iconfrom Source.
14 Accord 2D TRG_EXL NAVI_ATG_NEW STYLE 7/18/2013 9:09 AM Page 18

3435
SONG BY VOICETM(SBV)
Play songs from your iPod and HDD from most screens by using simple voice
commands.
HARD DISC DRIVE (HDD) AUDIO
Record CDs onto your vehicle’s hard disc drive. Songs are automatically recorded once a
CD is inserted into the disc slot.
Select the HDD
icon from Source.
Playing HDD Audio
\f. Select Source and select the HDD icon. The last recorded album begins playing.
2. Use the touchscreen or steering wheel controls to change tracks.
Searching for Music
\f. Press AUDIO. Use the interface dial to make and enter selections.
2. Press MENU.
3. Select Music Search.
4. Select one of the categories.
5. Select a track and press ENTER to begin playing.
Using the “Play” Command
\f. Say “Music search.”
2. Say “Play” and a search option. For example,“Play artist XYZ” or “Play song XYZ.”
3. The system plays the first song by the artist or the specified song and returns to your
original screen.
Using the “List” Command
\f. Say “Music search.”
2. Say “List” and a search option. For example, “List artist XYZ” or “List album XYZ.”
3. A list of tracks by the artist or album is displayed. Say the number of your selection.
For example, “One.”
4. The system plays the selected song and returns to your original screen.
Press and release the Talk button before you say a command.
Press and release the Talk button before you say a command.
14 Accord 2D TRG_EXL \ANAVI_ATG_NEW STYLE \A 7/18/2013 9\f09 AM \A Page 19

3637
Play and operate Pandora from your compatible phone through your vehicle’s audio system. Visit handsfreelink.honda.comto check if this feature is compatible with yourphone. Standard data rates apply.
P A N D O R A®
Access music and information programming, locationbased services, and social mediathrough your vehicle’s audio system. Download the HondaLink app to your phone fromowners.honda.com/appsbefore using this feature. Visit handsfreelink.honda.comto check ifthis feature is compatible with your phone. Standard data rates apply.
H o n d a L i n k f e a t u r i n g A h aT M
Playing PandoraPlaying Aha
1.For Bluetooth connection: Make sure your phone is paired to Bluetooth®
HandsFreeLink®(see page 27) and the screen is on and unlocked.
For USB connection: Connect the iPhone cable to the USB port in the frontconsole (see page 32).
2. Select Source and select the aha icon. Streaming begins.
3. Use the touchscreen to like/dislike songs, and the touchscreen or steeringwheel controls to change tracks.
iPhone is a trademark of Apple, Inc .
1.For Bluetooth connection: Make sure your phone is paired to Bluetooth®
HandsFreeLink®(see page27) and the screen is on and unlocked.
For USB connection: Connect the iPhone cable to the USB port in the front console (see page 32).
2. Select Source and select the Pandora icon. Streaming begins.
3. Use the touchscreen to like/dislike songs, and the touchscreen or steeringwheel controls to change tracks.
iPhone is a trademark of Apple, Inc .
Notes:
• iPhone can connect via Bluetooth or USB; Android and BlackBerry can connectvia Bluetooth only.
• If you cannot operate Pandora through the audio system, it may be streamingthrough Bluetooth®Audio. Make sure the Pandora source on your audio system isselected.
• A popup may appear on your phone requesting you to allow access for the appto be launched.
• Operate your phone only when your vehicle is stopped.
Notes:
• iPhone can connect via Bluetooth or USB; Android can connect via Bluetoothonly.
• If you cannot operate Aha through the audio system, it may be streamingthrough Bluetooth®Audio. Make sure the Aha source on your audio system isselected.
• A popup may appear on your phone requesting you to allow access for the appto be launched.
• Operate your phone only when your vehicle is stopped.
Select the Pandora icon from Source. Select the ahaicon from Source.
Select Stations to select from16 favorite stations.
Press MENU to view thecomplete station list.
14 Accord 2D TRG_EXL NAVI_ATG_NEW STYLE 7/18/2013 9:09 AM Page 20
