HONDA ACCORD SEDAN 2016 (in English) Owner's Guide

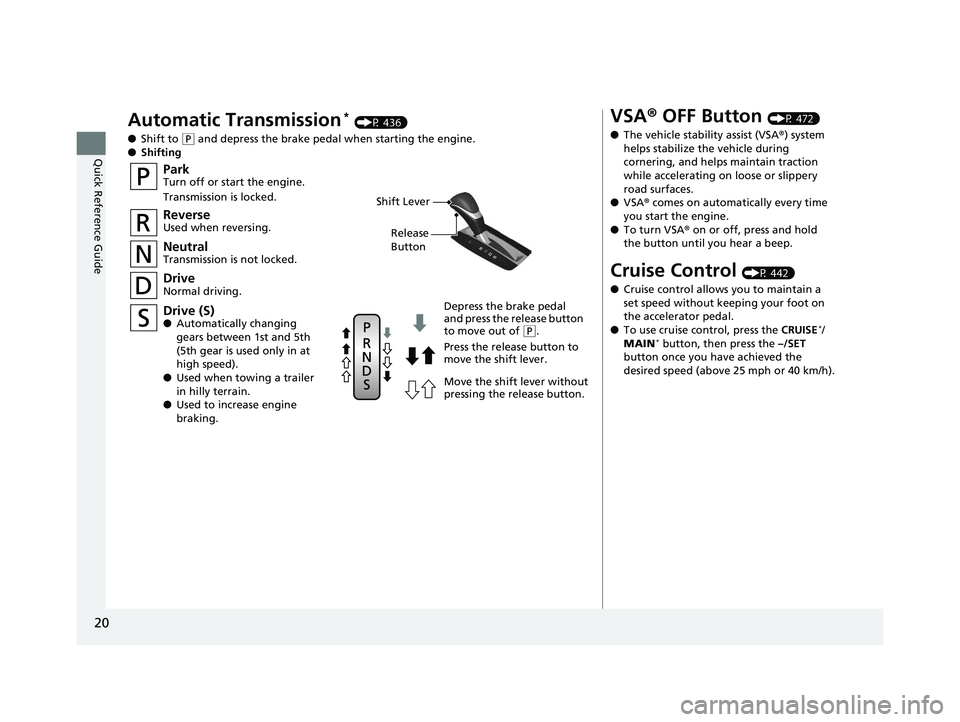

20
Quick Reference Guide
Automatic Transmission* (P 436)
● Shift to
(P and depress the brake pedal when starting the engine.
● Shifting
ParkTurn off or start the engine.
Transmission is locked.
NeutralTransmission is not locked.
Drive (S)● Automatically changing
gears between 1st and 5th
(5th gear is used only in at
high speed).
● Used when towing a trailer
in hilly terrain.
● Used to increase engine
braking.
Depress the brake pedal
and press the release button
to move out of
(P.
Press the release button to
move the shift lever.
Move the shift lever without
pressing the release button.
ReverseUsed when reversing.
DriveNormal driving.
Shift Lever
Release
Button
VSA ® OFF Button (P 472)
● The vehicle stability assist (VSA® ) system
helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery
road surfaces.
● VSA ® comes on automatically every time
you start the engine.
● To turn VSA ® on or off, press and hold
the button until you hear a beep.
Cruise Control (P 442)
● Cruise control allows you to maintain a
set speed without keeping your foot on
the accelerator pedal.
● To use cruise control, press the CRUISE
*/
MAIN* button, then press the –/SET
button once you have achieved the
desired speed (above 25 mph or 40 km/h).
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 20 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

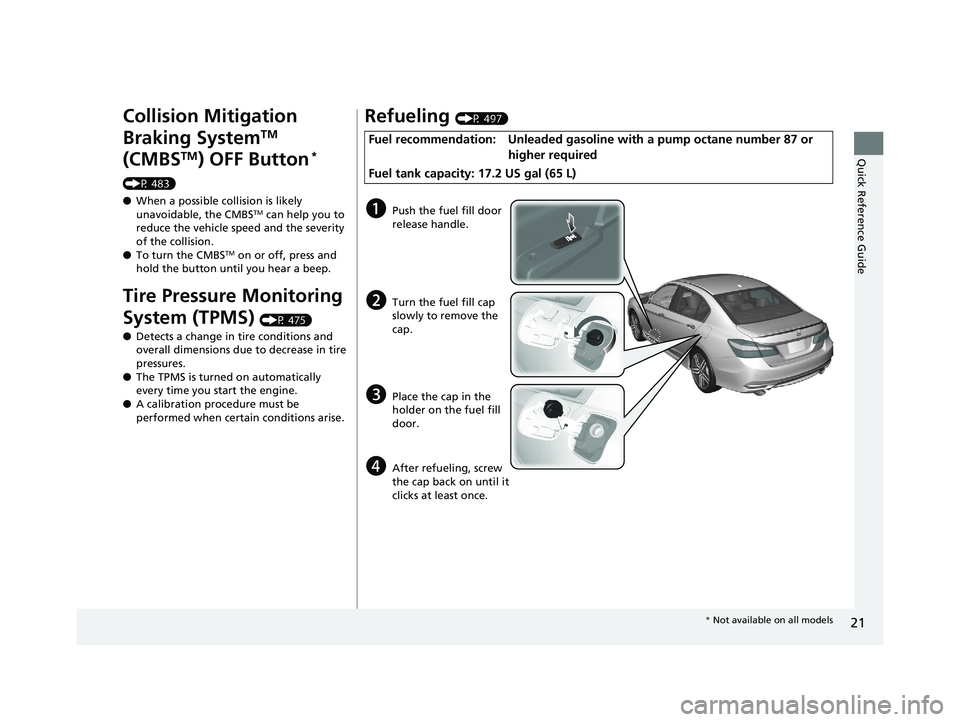

21
Quick Reference Guide
Collision Mitigation
Braking System
TM
(CMBS
TM) OFF Button*
(P 483)
● When a possible collision is likely
unavoidable, the CMBS
TM can help you to
reduce the vehicle speed and the severity
of the collision.
● To turn the CMBS
TM on or off, press and
hold the button until you hear a beep.
Tire Pressure Monitoring
System (TPMS)
(P 475)
● Detects a change in tire conditions and
overall dimensions due to decrease in tire
pressures.
● The TPMS is turned on automatically
every time you start the engine.
● A calibration procedure must be
performed when certain conditions arise.
Refueling (P 497)
Fuel recommendation: Unleaded gasoline with a pump octane number 87 or
higher required
Fuel tank capacity: 17.2 US gal (65 L)
aPush the fuel fill door
release handle.
bTurn the fuel fill cap
slowly to remove the
cap.
cPlace the cap in the
holder on the fuel fill
door.
dAfter refueling, screw
the cap back on until it
clicks at least once.
* Not available on all models
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 21 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

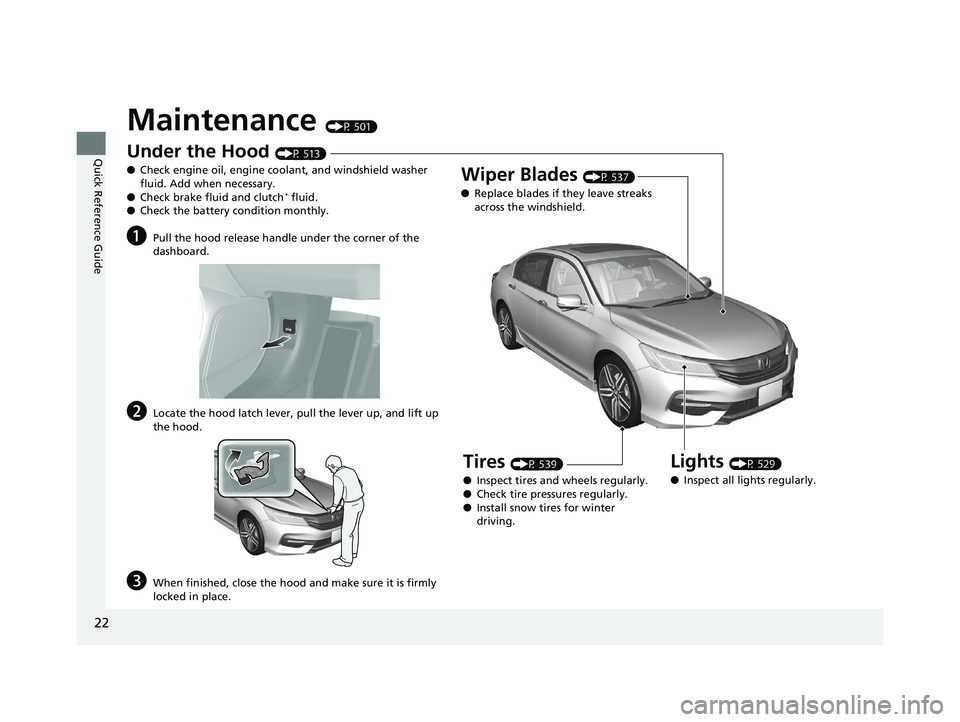

22
Quick Reference Guide
Maintenance (P 501)
Under the Hood (P 513)
● Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
● Check brake fluid and clutch
* fluid.
● Check the battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, pull the lever up, and lift up
the hood.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P 529)
● Inspect all lights regularly.
Wiper Blades (P 537)
● Replace blades if they leave streaks
across the windshield.
Tires (P 539)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter
driving.
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 22 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

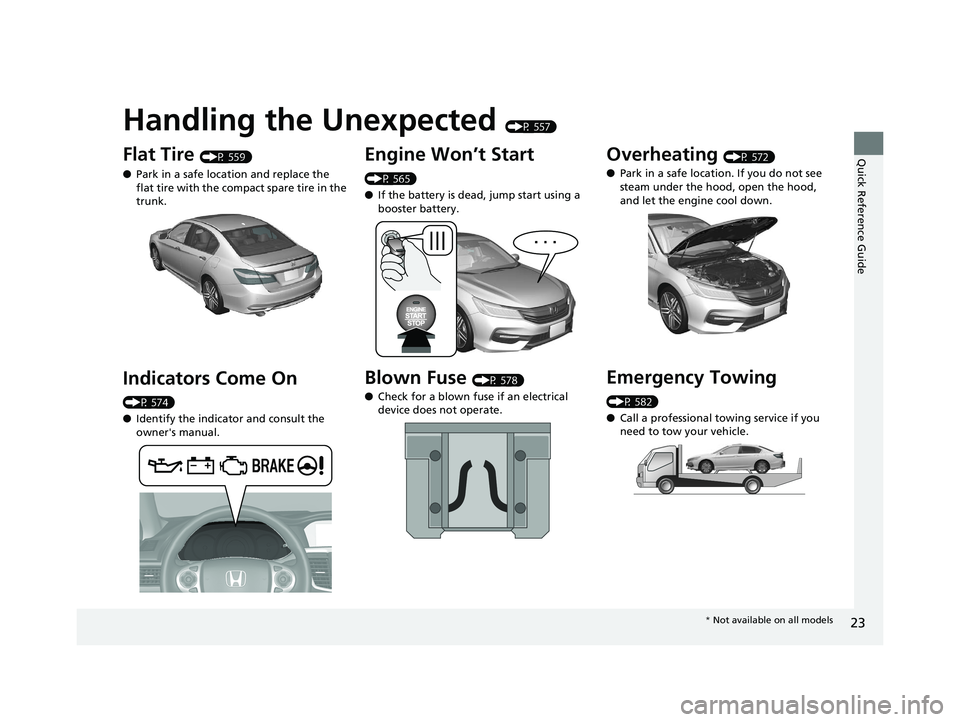

Quick Reference Guide
23
Handling the Unexpected (P 557)
Flat Tire (P 559)
● Park in a safe location and replace the
flat tire with the comp act spare tire in the
trunk.
Indicators Come On
(P 574)
● Identify the indica tor and consult the
owner's manual.
Engine Won’t Start
(P 565)
● If the battery is dead, jump start using a
booster battery.
Blown Fuse (P 578)
● Check for a blown fuse if an electrical
device does not operate.
Overheating (P 572)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing
(P 582)
●Call a professional towing service if you
need to tow your vehicle.
* Not available on all models
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 23 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

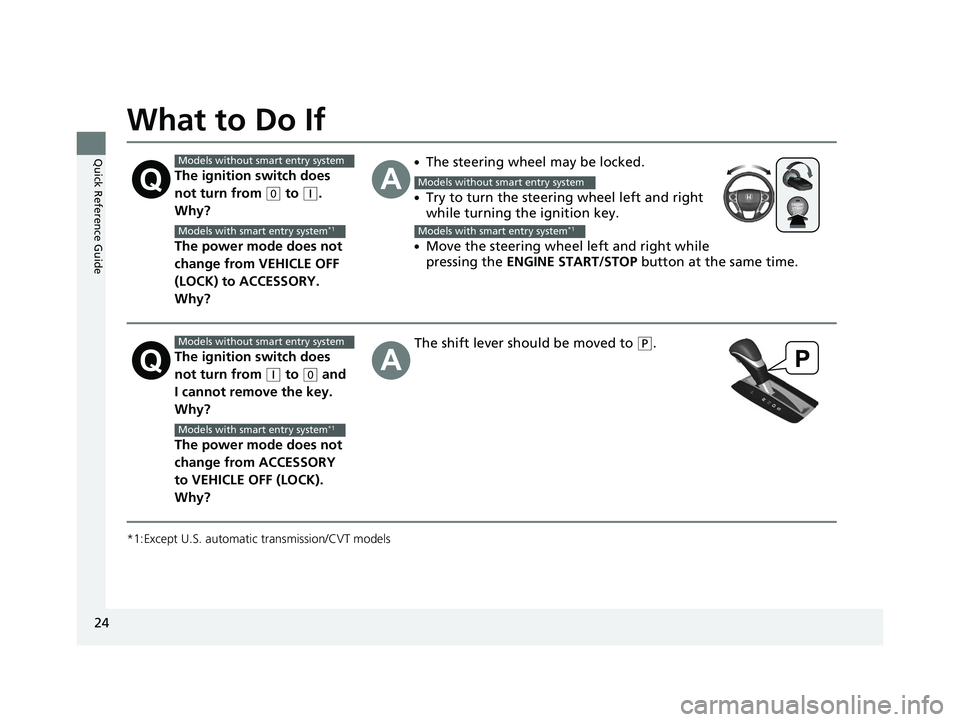

24
Quick Reference Guide
What to Do If
*1:Except U.S. automatic transmission/CVT models
The ignition switch does
not turn from
(0 to (q.
Why?
The power mode does not
change from VEHICLE OFF
(LOCK) to ACCESSORY.
Why?
●The steering wheel may be locked.
●Try to turn the steering wheel left and right
while turning the ignition key.
●Move the steering wheel left and right while
pressing the ENGINE START/STOP button at the same time.
The ignition switch does
not turn from
(q to (0 and
I cannot remove the key.
Why?
The power mode does not
change from ACCESSORY
to VEHICLE OFF (LOCK).
Why?
The shift lever should be moved to (P.
Models without smart entry system
Models with smart entry system*1
Models without smart entry system
Models with smart entry system*1
Models without smart entry system
Models with smart entry system*1
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 24 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

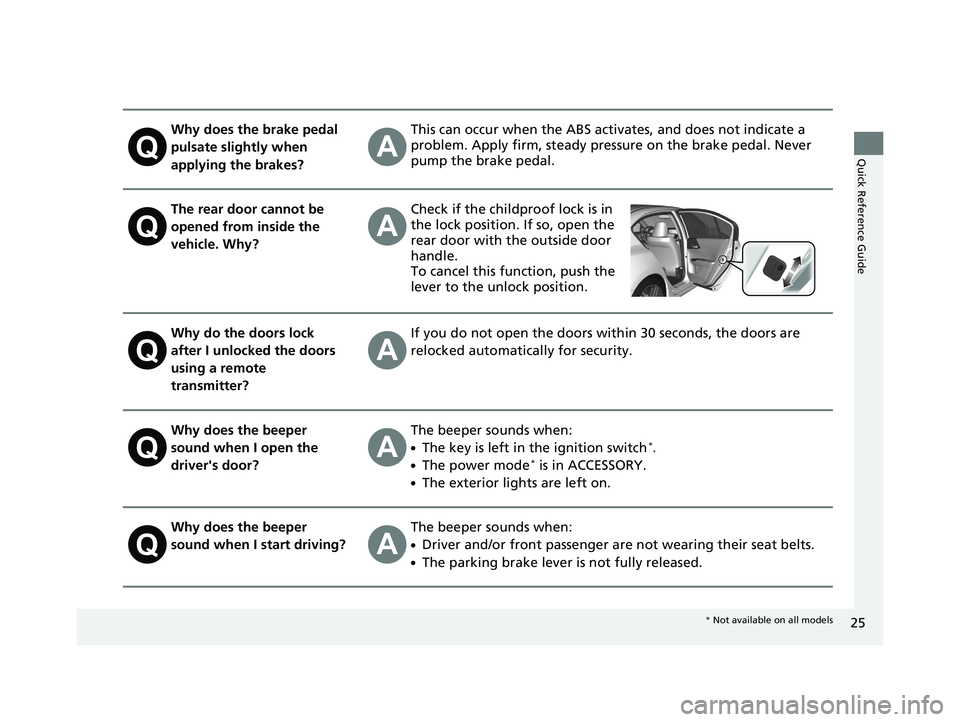

25
Quick Reference Guide
Why does the brake pedal
pulsate slightly when
applying the brakes?This can occur when the ABS activates, and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.
The rear door cannot be
opened from inside the
vehicle. Why?Check if the childproof lock is in
the lock position. If so, open the
rear door with the outside door
handle.
To cancel this function, push the
lever to the unlock position.
Why do the doors lock
after I unlocked the doors
using a remote
transmitter?If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.
Why does the beeper
sound when I open the
driver's door?The beeper sounds when:
●The key is left in the ignition switch*.
●The power mode* is in ACCESSORY.
●The exterior lights are left on.
Why does the beeper
sound when I start driving?The beeper sounds when:
●Driver and/or front passenger are not wearing their seat belts.
●The parking brake lever is not fully released.
* Not available on all models
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 25 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

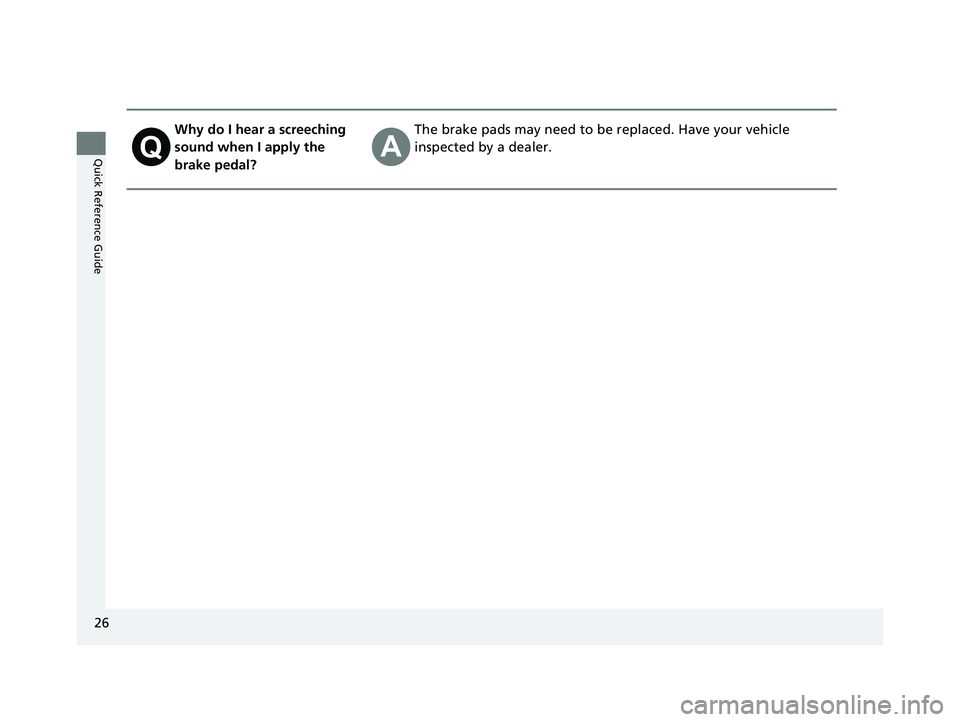

26
Quick Reference Guide
Why do I hear a screeching
sound when I apply the
brake pedal?The brake pads may need to be replaced. Have your vehicle
inspected by a dealer.
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 26 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

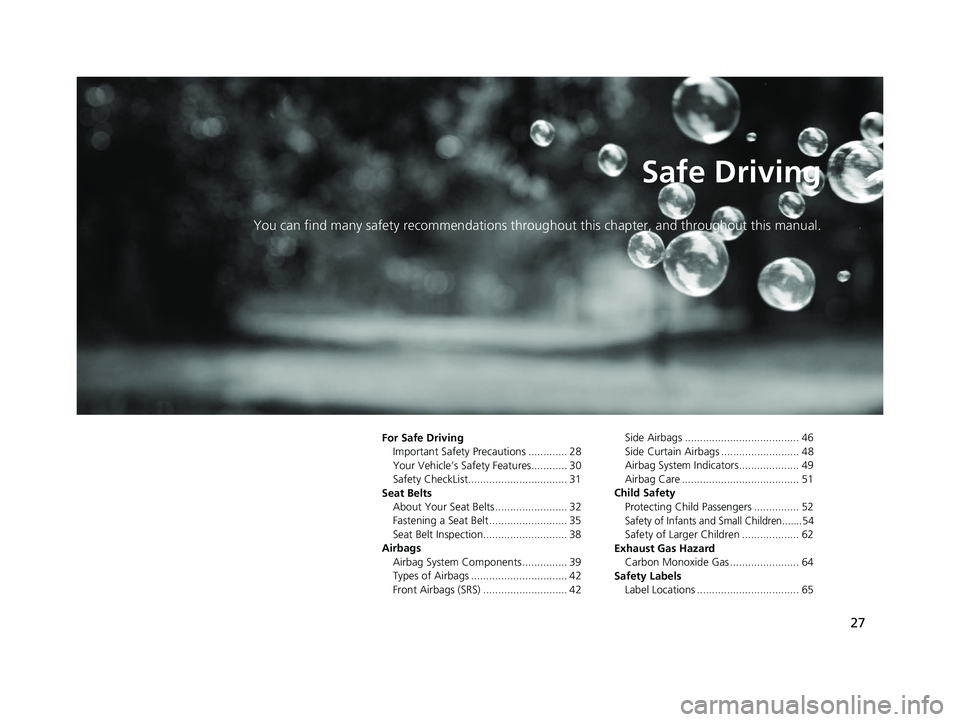

27
Safe Driving
You can find many safety recommendations throughout this chapter, and throughout this manual.
For Safe DrivingImportant Safety Precautions ............. 28
Your Vehicle’s Safety Features............ 30
Safety CheckList................................. 31
Seat Belts About Your Seat Belts ........................ 32
Fastening a Seat Belt .......................... 35
Seat Belt Inspection............................ 38
Airbags Airbag System Components ............... 39
Types of Airbags ................................ 42
Front Airbags (SRS) ............................ 42 Side Airbags ...................................... 46
Side Curtain Airbags .......................... 48
Airbag System Indicators.................... 49
Airbag Care ....................................... 51
Child Safety Protecting Child Passengers ............... 52
Safety of Infants and Small Children.......54
Safety of Larger Children ................... 62
Exhaust Gas Hazard Carbon Monoxide Gas ....................... 64
Safety Labels Label Locations .................................. 65
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 27 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

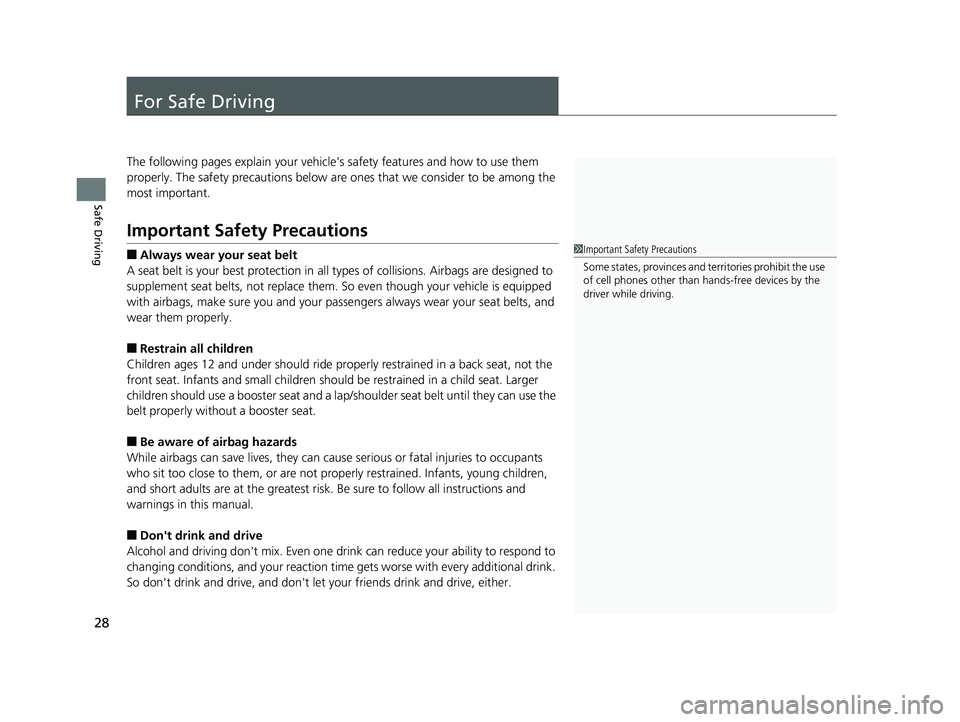

28
Safe Driving
For Safe Driving
The following pages explain your vehicle's safety features and how to use them
properly. The safety precauti ons below are ones that we consider to be among the
most important.
Important Safety Precautions
■Always wear your seat belt
A seat belt is your best protection in all types of collisions. Airbags are designed to
supplement seat belts, not replace them. So even though your vehicle is equipped
with airbags, make sure you and your passe ngers always wear your seat belts, and
wear them properly.
■Restrain all children
Children ages 12 and under should ride properly restrained in a back seat, not the
front seat. Infants and small children shoul d be restrained in a child seat. Larger
children should use a booster seat and a lap/shoulder seat belt until they can use the
belt properly without a booster seat.
■Be aware of airbag hazards
While airbags can save lives, they can cause serious or fatal injuries to occupants
who sit too close to them, or are not prop erly restrained. Infants, young children,
and short adults are at the greatest risk. Be sure to follow all instructions and
warnings in this manual.
■Don't drink and drive
Alcohol and driving don't mix. Even one dr ink can reduce your ability to respond to
changing conditions, and your reaction time gets worse with every additional drink.
So don't drink and drive, and don't let your friends drink and drive, either.
1Important Safety Precautions
Some states, provinces and territories prohibit the use
of cell phones other than hands-free devices by the
driver while driving.
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 28 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

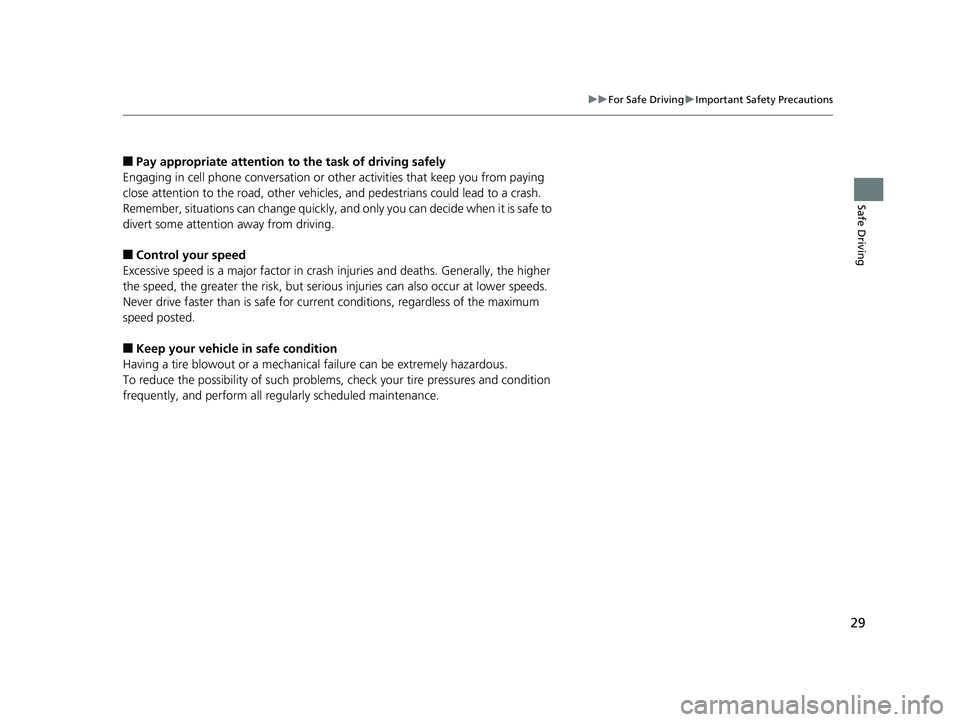

29
uuFor Safe Driving uImportant Safety Precautions
Safe Driving
■Pay appropriate attention to the task of driving safely
Engaging in cell phone conversation or other activities that keep you from paying
close attention to the road, other vehicles, and pedestrians could lead to a crash.
Remember, situations can change quickly, and only you can decide when it is safe to
divert some attention away from driving.
■Control your speed
Excessive speed is a major factor in crash injuries and deaths. Generally, the higher
the speed, the greater the risk, but serious injuries can also occur at lower speeds.
Never drive faster than is safe for current conditions, regardless of the maximum
speed posted.
■Keep your vehicle in safe condition
Having a tire blowout or a mechanical failure can be extremely hazardous.
To reduce the possibility of such problems, check your tire pressures and condition
frequently, and perform all regul arly scheduled maintenance.
