HONDA ACCORD SEDAN 2016 Owner's Manual (in English)

uuWhen Driving uAdaptive Cruise Control (ACC)*
450
Driving

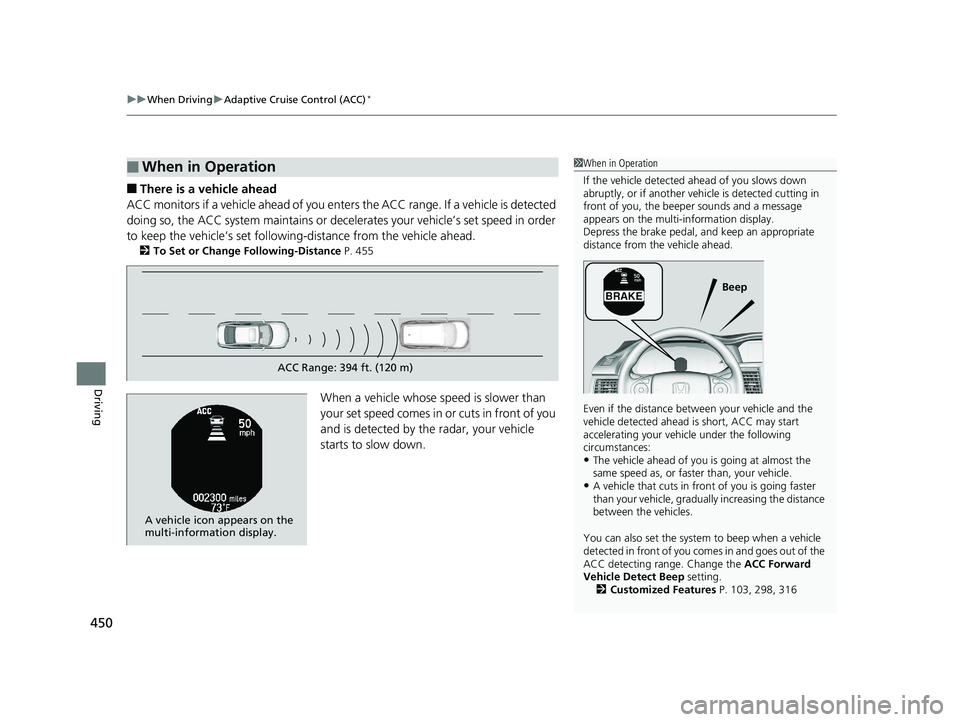

■There is a vehicle ahead
ACC monitors if a vehicle ahead of you enters the ACC range. If a vehicle is detected
doing so, the ACC system maintains or decele rates your vehicle’s set speed in order
to keep the vehicle’s se t following-distance from the vehicle ahead.
2To Set or Change Following-Distance P. 455
When a vehicle whose speed is slower than
your set speed comes in or cuts in front of you
and is detected by the radar, your vehicle
starts to slow down.
■When in Operation1 When in Operation
If the vehicle detected ahead of you slows down
abruptly, or if another vehi cle is detected cutting in
front of you, the beep er sounds and a message
appears on the multi- information display.
Depress the brake pedal, and keep an appropriate
distance from the vehicle ahead.
Even if the distance betw een your vehicle and the
vehicle detected ahead is short, ACC may start
accelerating your vehicle under the following
circumstances:
•The vehicle ahead of you is going at almost the
same speed as, or faster than, your vehicle.
•A vehicle that cuts in front of you is going faster
than your vehicle, gradually increasing the distance
between the vehicles.
You can also set the system to beep when a vehicle
detected in front of you co mes in and goes out of the
ACC detecting range. Change the ACC Forward
Vehicle Detect Beep setting.
2 Customized Features P. 103, 298, 316
Beep
ACC Range: 394 ft. (120 m)
A vehicle icon appears on the
multi-information display.
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 450 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

Continued451
uuWhen Driving uAdaptive Cruise Control (ACC)*
Driving

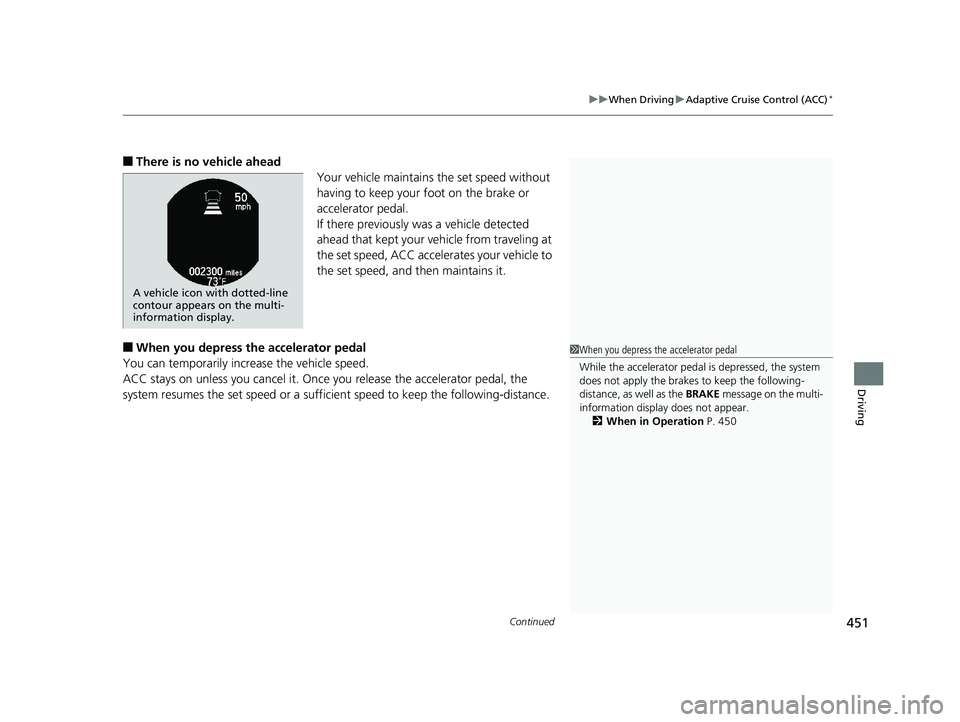

■There is no vehicle ahead
Your vehicle maintains the set speed without
having to keep your foot on the brake or
accelerator pedal.
If there previously was a vehicle detected
ahead that kept your ve hicle from traveling at
the set speed, ACC accelerates your vehicle to
the set speed, and then maintains it.
■When you depress the accelerator pedal
You can temporarily increase the vehicle speed.
ACC stays on unless you cancel it. Once you release the accelerator pedal, the
system resumes the set speed or a suffici ent speed to keep the following-distance.
A vehicle icon with dotted-line
contour appears on the multi-
information display.
1When you depress the accelerator pedal
While the accelerator pedal is depressed, the system
does not apply the brakes to keep the following-
distance, as well as the BRAKE message on the multi-
information display does not appear. 2 When in Operation P. 450
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 451 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

uuWhen Driving uAdaptive Cruise Control (ACC)*
452
Driving

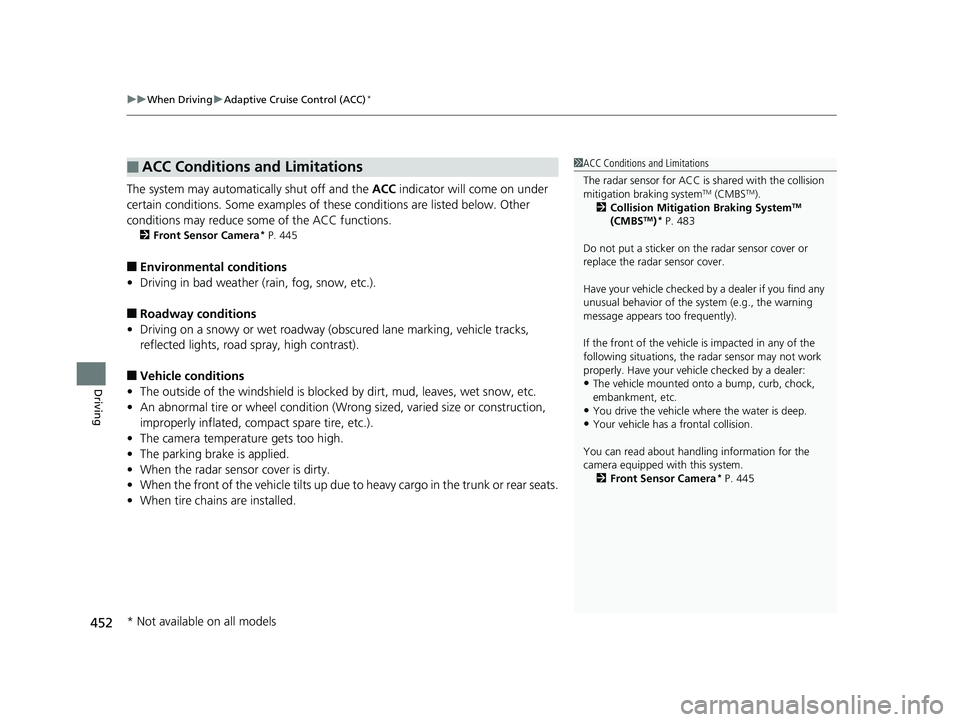

The system may automatically shut off and the ACC indicator will come on under
certain conditions. Some examples of th ese conditions are listed below. Other
conditions may reduce some of the ACC functions.
2 Front Sensor Camera* P. 445
■Environmental conditions
• Driving in bad weather (rain, fog, snow, etc.).
■Roadway conditions
• Driving on a snowy or wet roadway (obs cured lane marking, vehicle tracks,
reflected lights, road spray, high contrast).
■Vehicle conditions
• The outside of the windshie ld is blocked by dirt, mud, leaves, wet snow, etc.
• An abnormal tire or wheel condition (Wrong sized, varied size or construction,
improperly inflated, comp act spare tire, etc.).
• The camera temperature gets too high.
• The parking brake is applied.
• When the radar sensor cover is dirty.
• When the front of the vehicle tilts up due to heavy cargo in the trunk or rear seats.
• When tire chains are installed.
■ACC Conditions and Limitations1ACC Conditions and Limitations
The radar sensor for ACC is shared with the collision
mitigation braking system
TM (CMBSTM).
2 Collision Mitigation Braking SystemTM
(CMBSTM)* P. 483
Do not put a sticker on the radar sensor cover or
replace the radar sensor cover.
Have your vehicle checked by a dealer if you find any
unusual behavior of the system (e.g., the warning
message appears too frequently).
If the front of the vehicle is impacted in any of the
following situations, the ra dar sensor may not work
properly. Have your vehi cle checked by a dealer:
•The vehicle mounted onto a bump, curb, chock,
embankment, etc.
•You drive the vehicle where the water is deep.•Your vehicle has a frontal collision.
You can read about handling information for the
camera equipped with this system. 2 Front Sensor Camera
* P. 445
* Not available on all models
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 452 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

453
uuWhen Driving uAdaptive Cruise Control (ACC)*
Continued
Driving

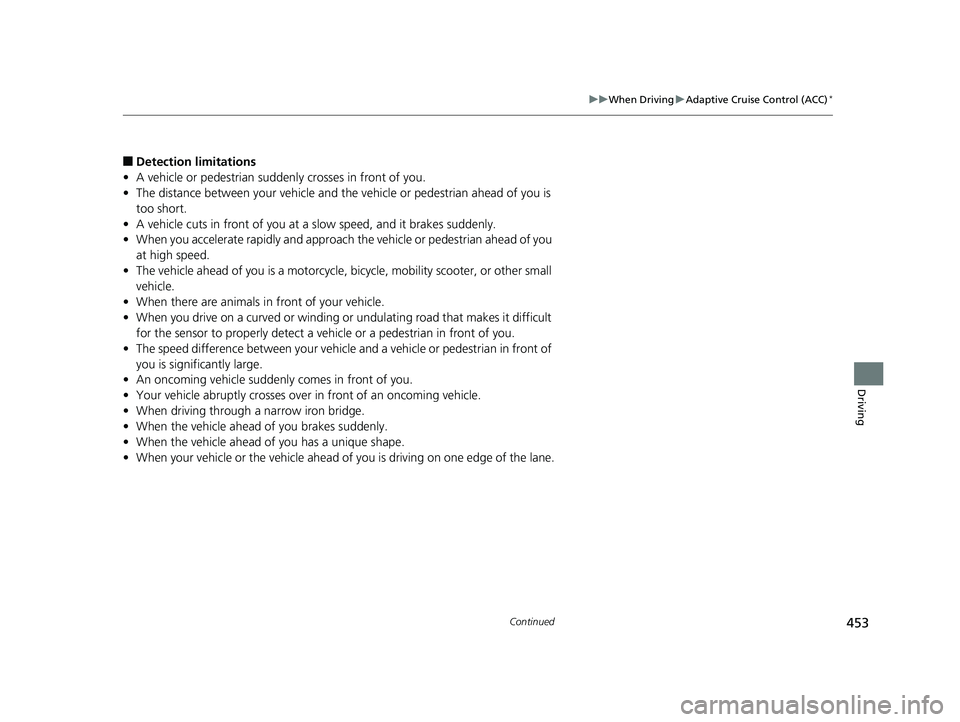

■Detection limitations
• A vehicle or pedestrian suddenly crosses in front of you.
• The distance between your vehicle and the vehicle or pedestrian ahead of you is
too short.
• A vehicle cuts in front of you at a slow speed, and it brakes suddenly.
• When you accelerate rapidly and approach the vehicle or pedestrian ahead of you
at high speed.
• The vehicle ahead of you is a motorcycle, bicycle, mobility scooter, or other small
vehicle.
• When there are animals in front of your vehicle.
• When you drive on a curved or winding or undulating road that makes it difficult
for the sensor to properly detect a vehicle or a pedestrian in front of you.
• The speed difference between your vehicle an d a vehicle or pedestrian in front of
you is significantly large.
• An oncoming vehicle suddenly comes in front of you.
• Your vehicle abruptly crosses over in front of an oncoming vehicle.
• When driving through a narrow iron bridge.
• When the vehicle ahead of you brakes suddenly.
• When the vehicle ahead of you has a unique shape.
• When your vehicle or the vehicle ahead of you is driving on one edge of the lane.
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 453 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

uuWhen Driving uAdaptive Cruise Control (ACC)*
454
Driving

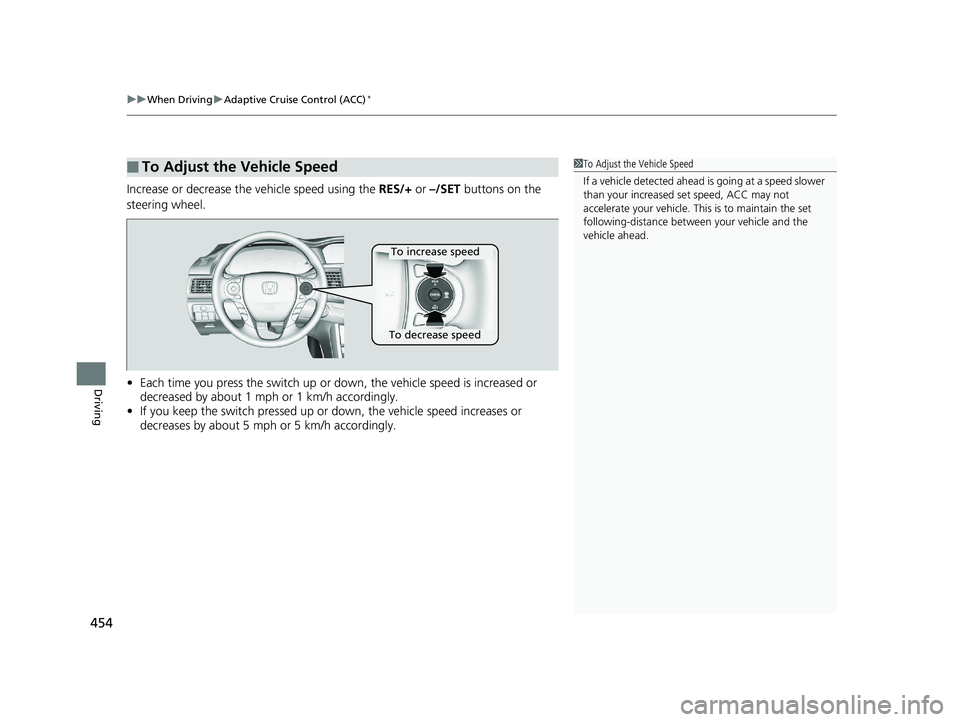

Increase or decrease the vehicle speed using the RES/+ or –/SET buttons on the
steering wheel.
• Each time you press the switch up or do wn, the vehicle speed is increased or
decreased by about 1 mph or 1 km/h accordingly.
• If you keep the switch pressed up or down, the vehicle speed increases or
decreases by about 5 mph or 5 km/h accordingly.
■To Adjust the Vehicle Speed1 To Adjust the Vehicle Speed
If a vehicle detected ahead is going at a speed slower
than your increased set speed, ACC may not
accelerate your ve hicle. This is to maintain the set
following-distance betwee n your vehicle and the
vehicle ahead.
To increase speed
To decrease speed
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 454 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

455
uuWhen Driving uAdaptive Cruise Control (ACC)*
Continued
Driving

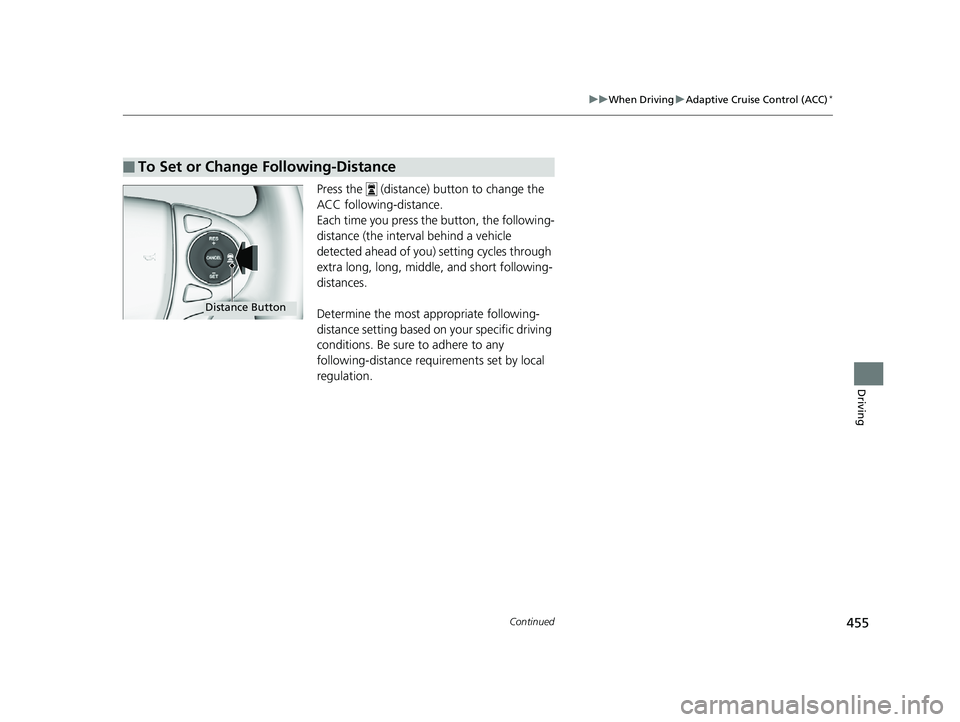

Press the (distance) button to change the
ACC following-distance.
Each time you press th e button, the following-
distance (the interval behind a vehicle
detected ahead of you) setting cycles through
extra long, long, middle, and short following-
distances.
Determine the most appropriate following-
distance setting based on your specific driving
conditions. Be sure to adhere to any
following-distance requirements set by local
regulation.
■To Set or Change Following-Distance
Distance Button
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 455 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

456
uuWhen Driving uAdaptive Cruise Control (ACC)*
Driving

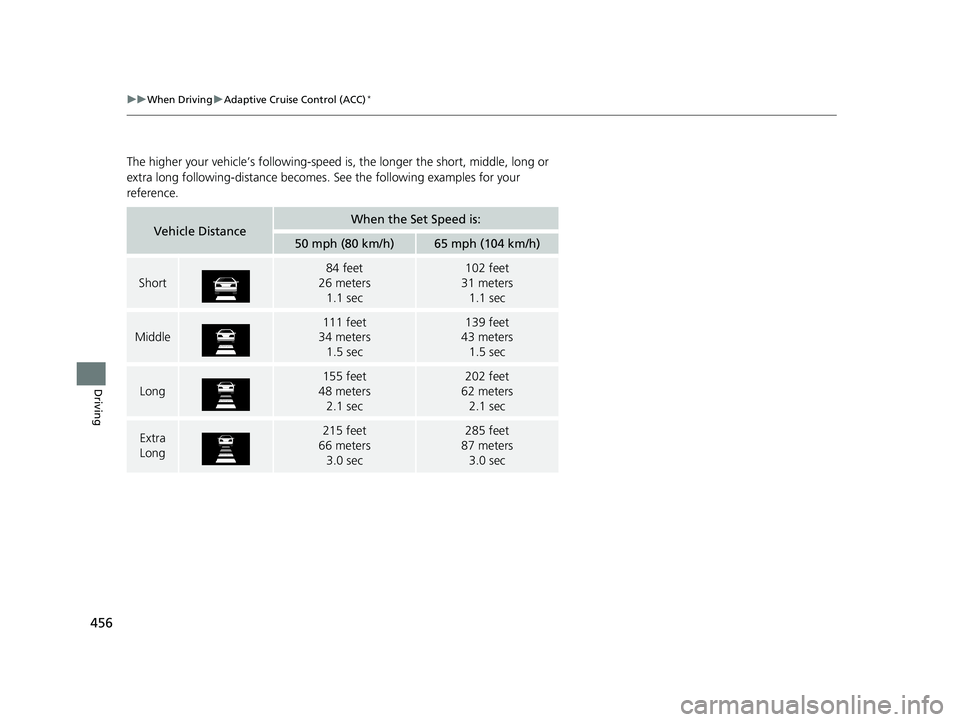

The higher your vehicle’s following-speed is, the longer the short, middle, long or
extra long following-distance becomes. See the following examples for your
reference.
Vehicle DistanceWhen the Set Speed is:
50 mph (80 km/h)65 mph (104 km/h)
Short
84 feet
26 meters 1.1 sec102 feet
31 meters 1.1 sec
Middle
111 feet
34 meters
1.5 sec139 feet
43 meters
1.5 sec
Long
155 feet
48 meters 2.1 sec202 feet
62 meters 2.1 sec
Extra
Long215 feet
66 meters 3.0 sec285 feet
87 meters 3.0 sec
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 456 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

Continued457
uuWhen Driving uAdaptive Cruise Control (ACC)*
Driving

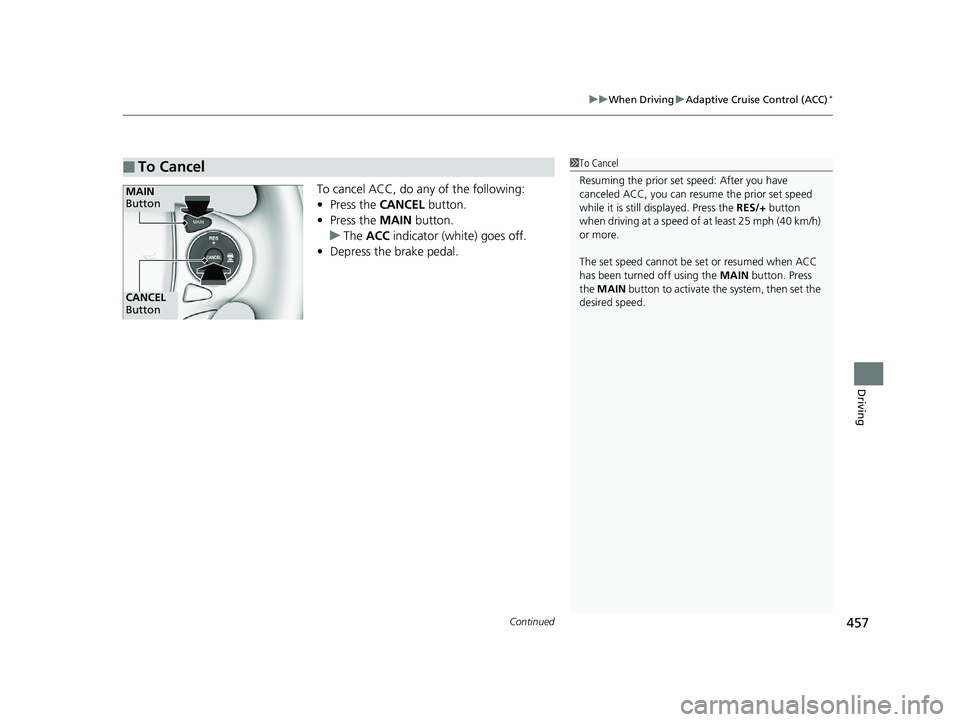

To cancel ACC, do any of the following:
• Press the CANCEL button.
• Press the MAIN button.
u The ACC indicator (white) goes off.
• Depress the brake pedal.
■To Cancel1To Cancel
Resuming the prior set sp eed: After you have
canceled ACC, you can resume the prior set speed
while it is still displayed. Press the RES/+ button
when driving at a speed of at least 25 mph (40 km/h)
or more.
The set speed cannot be set or resumed when ACC
has been turned off using the MAIN button. Press
the MAIN button to activate the system, then set the
desired speed.
CANCEL
Button
MAIN
Button
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 457 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

uuWhen Driving uAdaptive Cruise Control (ACC)*
458
Driving

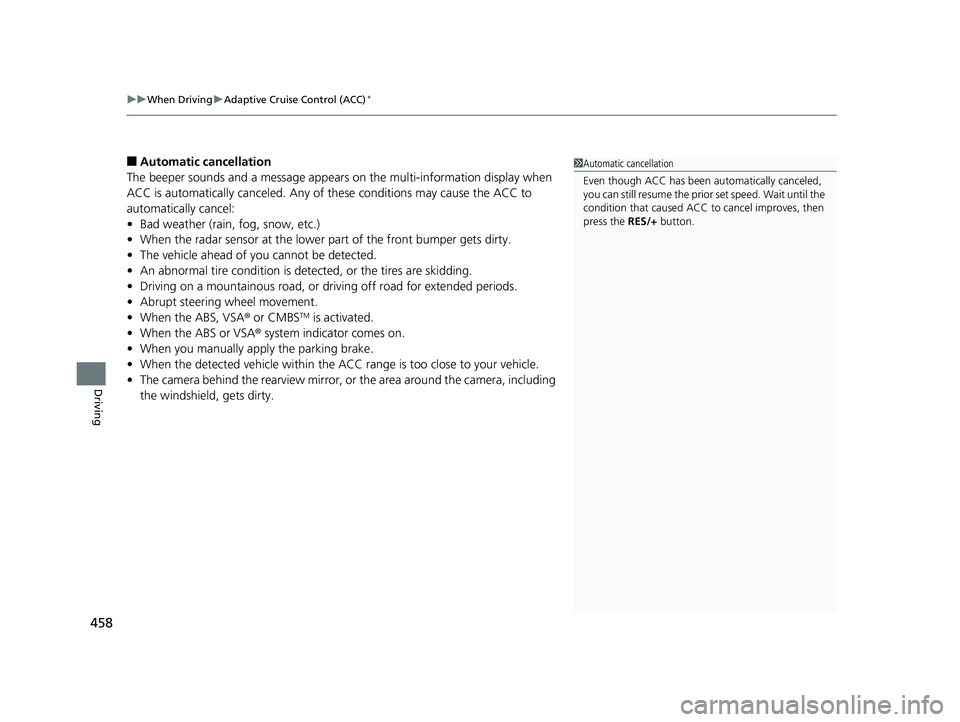

■Automatic cancellation
The beeper sounds and a me ssage appears on the multi-information display when
ACC is automatically canceled. Any of these conditions may cause the ACC to
automatically cancel:
• Bad weather (rain, fog, snow, etc.)
• When the radar sensor at the lower part of the front bumper gets dirty.
• The vehicle ahead of you cannot be detected.
• An abnormal tire condition is detected, or the tires are skidding.
• Driving on a mountainous road, or driving off road for extended periods.
• Abrupt steering wheel movement.
• When the ABS, VSA ® or CMBS
TM is activated.
• When the ABS or VSA ® system indicator comes on.
• When you manually apply the parking brake.
• When the detected vehicle within the ACC range is too close to your vehicle.
• The camera behind the rearview mirror, or the area around the camera, including
the windshield, gets dirty.
1Automatic cancellation
Even though ACC has been automatically canceled,
you can still resume the prio r set speed. Wait until the
condition that caused ACC to cancel improves, then
press the RES/+ button.
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 458 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

459
uuWhen Driving uAdaptive Cruise Control (ACC)*
Driving

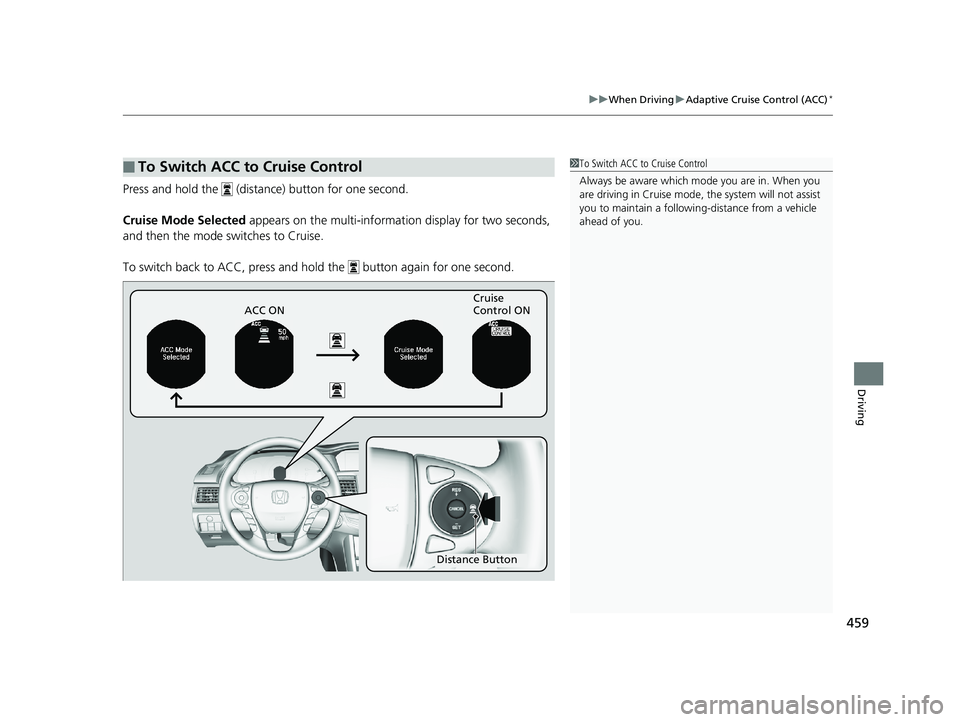

Press and hold the (distance) button for one second.
Cruise Mode Selected appears on the multi-informa tion display for two seconds,
and then the mode switches to Cruise.
To switch back to ACC, press and hold the butt on again for one second.
■To Switch ACC to Cruise Control1To Switch ACC to Cruise Control
Always be aware which mode you are in. When you
are driving in Cruise mode, the system will not assist
you to maintain a followi ng-distance from a vehicle
ahead of you.
ACC ON Cruise
Control ON
Distance Button
