HONDA ACCORD SEDAN 2016 Owner's Manual (in English)

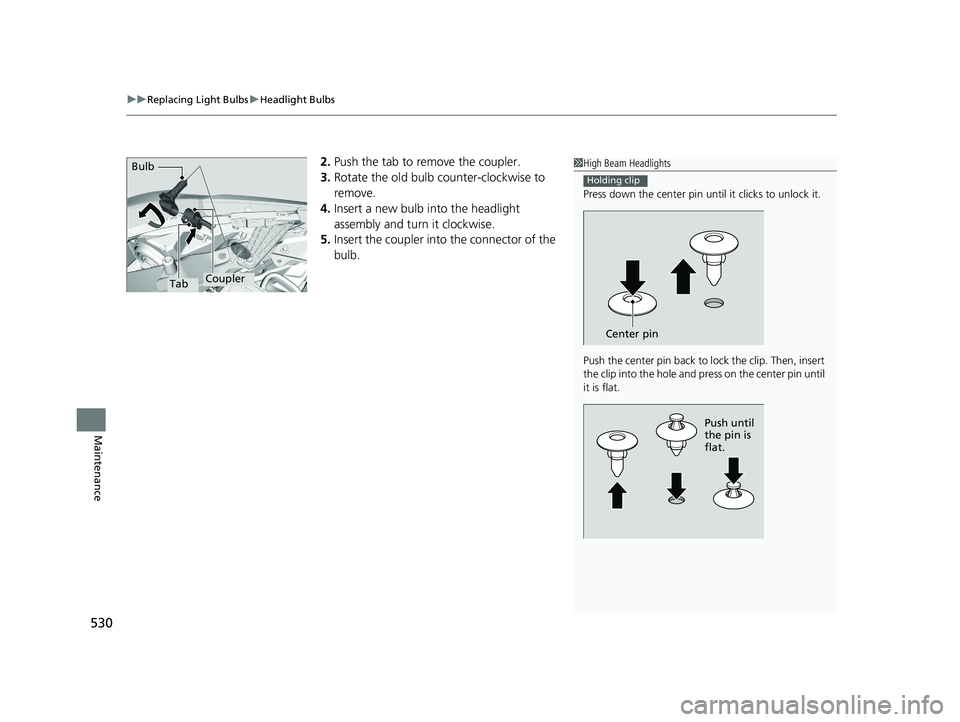

uuReplacing Light Bulbs uHeadlight Bulbs
530
Maintenance
2. Push the tab to remove the coupler.
3. Rotate the old bulb counter-clockwise to
remove.
4. Insert a new bulb into the headlight
assembly and turn it clockwise.
5. Insert the coupler into the connector of the
bulb.1High Beam Headlights
Press down the center pin until it clicks to unlock it.
Push the center pin back to lock the clip. Then, insert
the clip into the hole and press on the center pin until
it is flat.
Holding clip
Center pin
Push until
the pin is
flat.
TabCoupler
Bulb
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 530 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

531

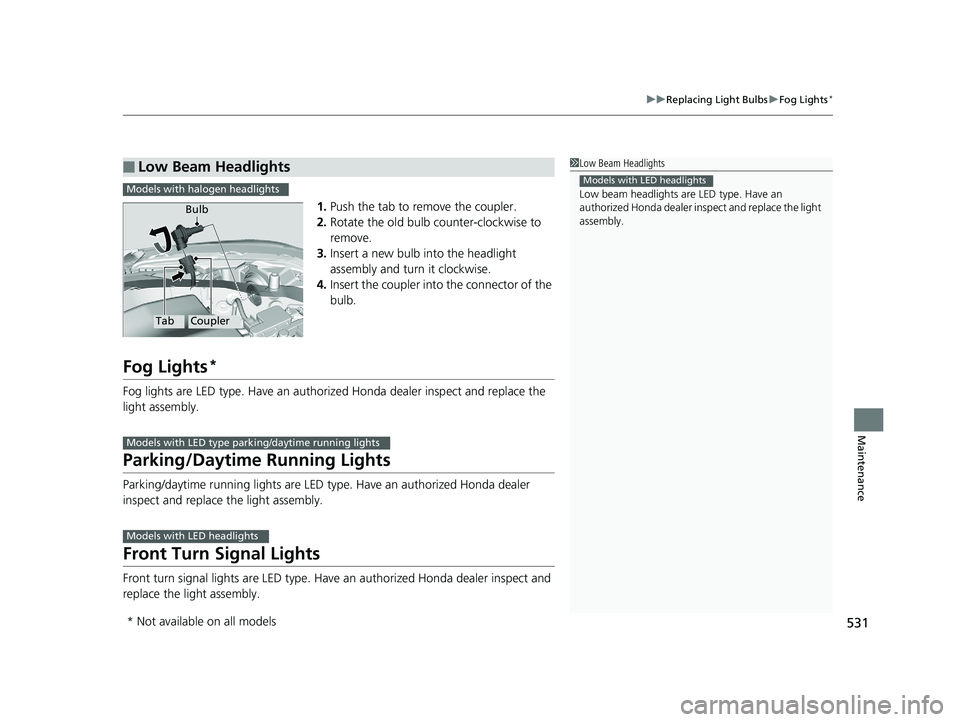

uuReplacing Light Bulbs uFog Lights*
Maintenance
1. Push the tab to remove the coupler.
2. Rotate the old bulb counter-clockwise to
remove.
3. Insert a new bulb into the headlight
assembly and turn it clockwise.
4. Insert the coupler into the connector of the
bulb.
Fog Lights*
Fog lights are LED type. Have an authoriz ed Honda dealer inspect and replace the
light assembly.
Parking/Daytime Running Lights
Parking/daytime running lights are LED type. Have an authorized Honda dealer
inspect and replace the light assembly.
Front Turn Signal Lights
Front turn signal lights are LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
■Low Beam Headlights1 Low Beam Headlights
Low beam headlights are LED type. Have an
authorized Honda dealer in spect and replace the light
assembly.
Models with LED headlightsModels with halogen headlights
TabCoupler
Bulb
Models with LED type parking/daytime running lights
Models with LED headlights
* Not available on all models
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 531 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

532

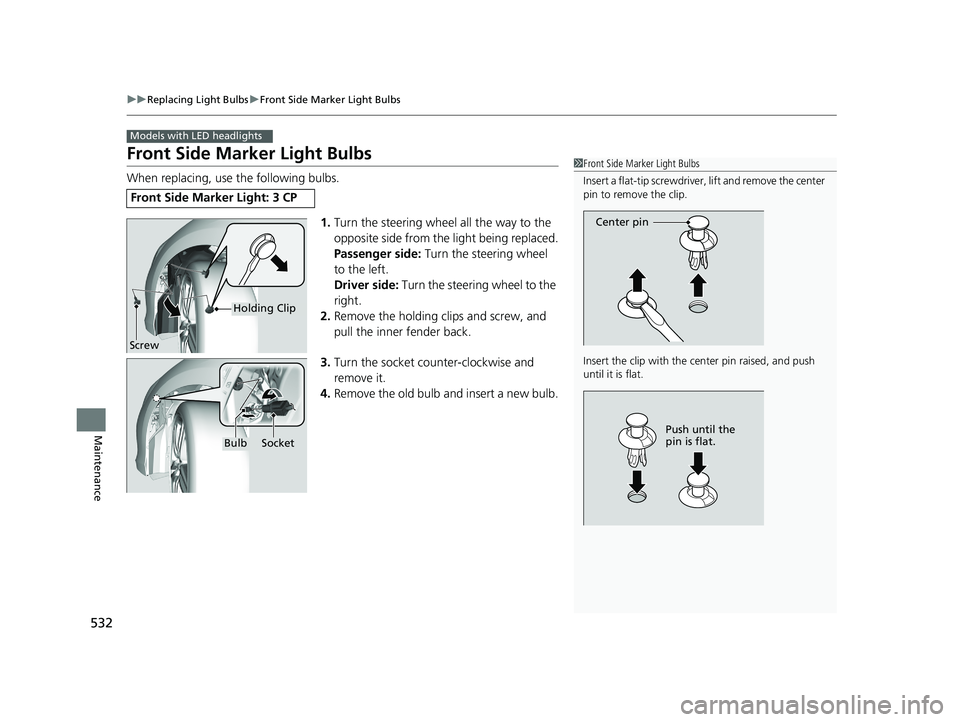

uuReplacing Light Bulbs uFront Side Marker Light Bulbs
Maintenance
Front Side Marker Light Bulbs
When replacing, use the following bulbs.
1.Turn the steering wheel all the way to the
opposite side from the light being replaced.
Passenger side: Turn the steering wheel
to the left.
Driver side: Turn the steering wheel to the
right.
2. Remove the holding clips and screw, and
pull the inner fender back.
3. Turn the socket counter-clockwise and
remove it.
4. Remove the old bulb and insert a new bulb.
Front Side Marker Light: 3 CP
Models with LED headlights
1Front Side Marker Light Bulbs
Insert a flat-tip screwdriver, lift and remove the center
pin to remove the clip.
Insert the clip with the center pin raised, and push
until it is flat.
Center pin
Push until the
pin is flat.
Screw
Holding Clip
Bulb Socket
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 532 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

533
uuReplacing Light Bulbs uFront Turn Signal/Side Marker Light Bulbs
Maintenance

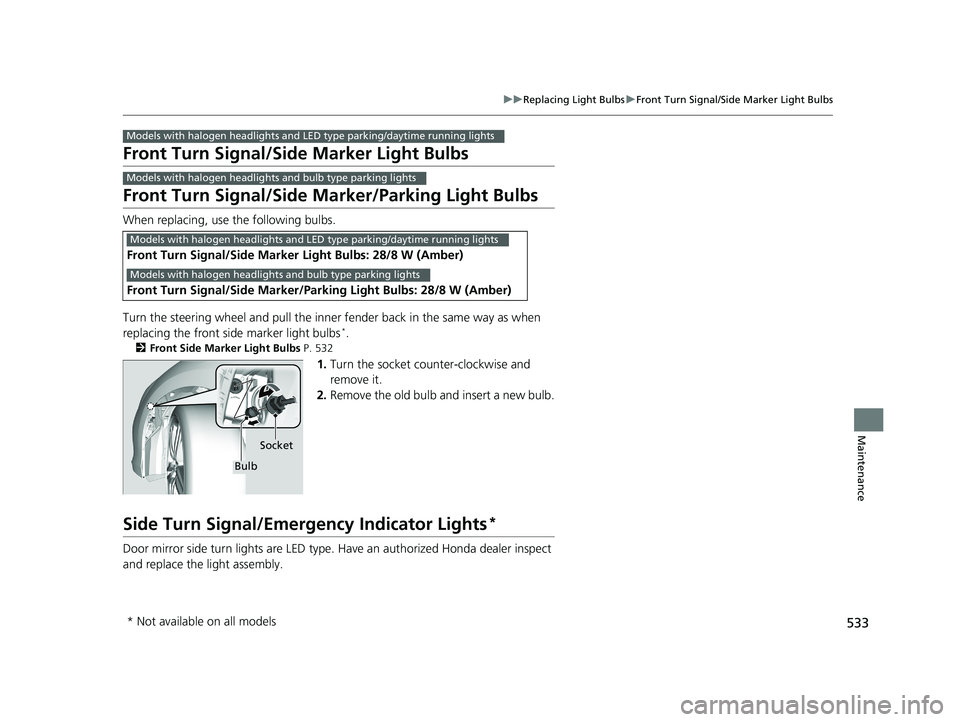

Front Turn Signal/Side Marker Light Bulbs
Front Turn Signal/Side Ma rker/Parking Light Bulbs
When replacing, use the following bulbs.
Turn the steering wheel and pull the inner fender back in the same way as when
replacing the front side marker light bulbs
*.
2 Front Side Marker Light Bulbs P. 532
1.Turn the socket counter-clockwise and
remove it.
2. Remove the old bulb and insert a new bulb.
Side Turn Signal/Emer gency Indicator Lights*
Door mirror side turn lights are LED type. Have an authorized Honda dealer inspect
and replace the light assembly.
Front Turn Signal/Side Marker Light Bulbs: 28/8 W (Amber)
Front Turn Signal/Side Marker/Parki ng Light Bulbs: 28/8 W (Amber)
Models with halogen headlights and LED type parking/daytime running lights
Models with halogen headlights and bulb type parking lights
Models with halogen headlights and LED type parking/daytime running lights
Models with halogen headlights and bulb type parking lights
BulbSocket
* Not available on all models
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 533 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

534

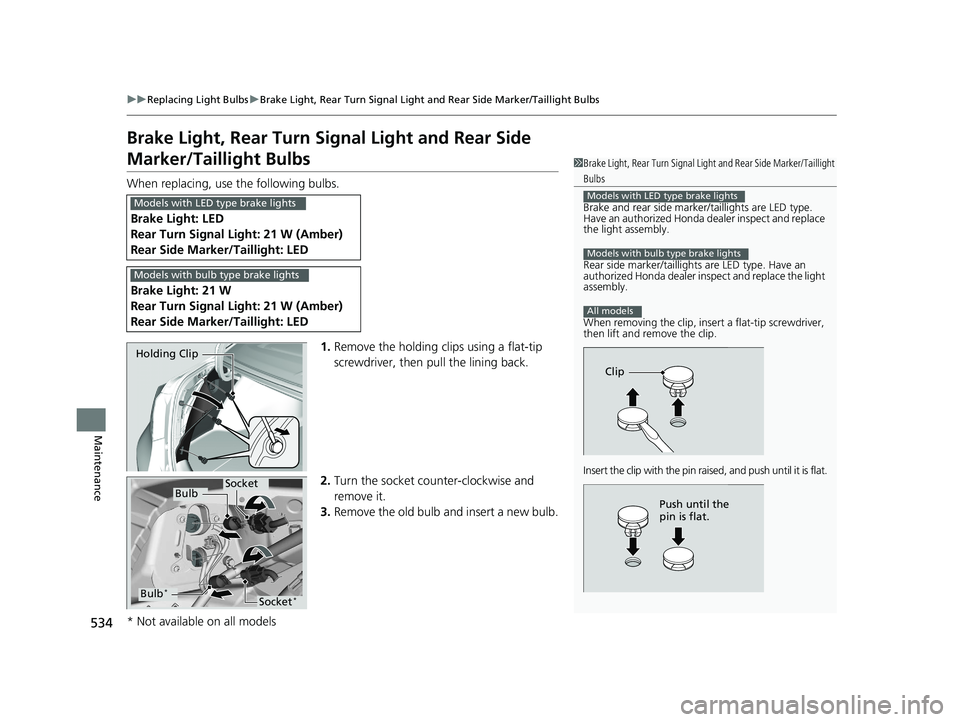

uuReplacing Light Bulbs uBrake Light, Rear Turn Signal Light and Rear Side Marker/Taillight Bulbs
Maintenance
Brake Light, Rear Turn Signal Light and Rear Side
Marker/Taillight Bulbs
When replacing, use the following bulbs.
1.Remove the holding clips using a flat-tip
screwdriver, then pull the lining back.
2. Turn the socket counter-clockwise and
remove it.
3. Remove the old bulb and insert a new bulb.
Brake Light: LED
Rear Turn Signal Light: 21 W (Amber)
Rear Side Marker/Taillight: LED
Brake Light: 21 W
Rear Turn Signal Light: 21 W (Amber)
Rear Side Marker/Taillight: LED
1 Brake Light, Rear Turn Signal Ligh t and Rear Side Marker/Taillight
Bulbs
Brake and rear side marker/taillights are LED type.
Have an authorized Honda dealer inspect and replace
the light assembly.
Rear side marker /taillights are LED type. Have an
authorized Honda dealer in spect and replace the light
assembly.
When removing the clip, insert a flat-tip screwdriver,
then lift and remove the clip.
Insert the clip with the pin raised, and push until it is flat.
Models with LED type brake lights
Models with bulb type brake lights
All models
Clip
Push until the
pin is flat.
Models with LED type brake lights
Models with bulb type brake lights
Holding Clip
BulbSocket
Bulb*Socket*
* Not available on all models
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 534 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

535

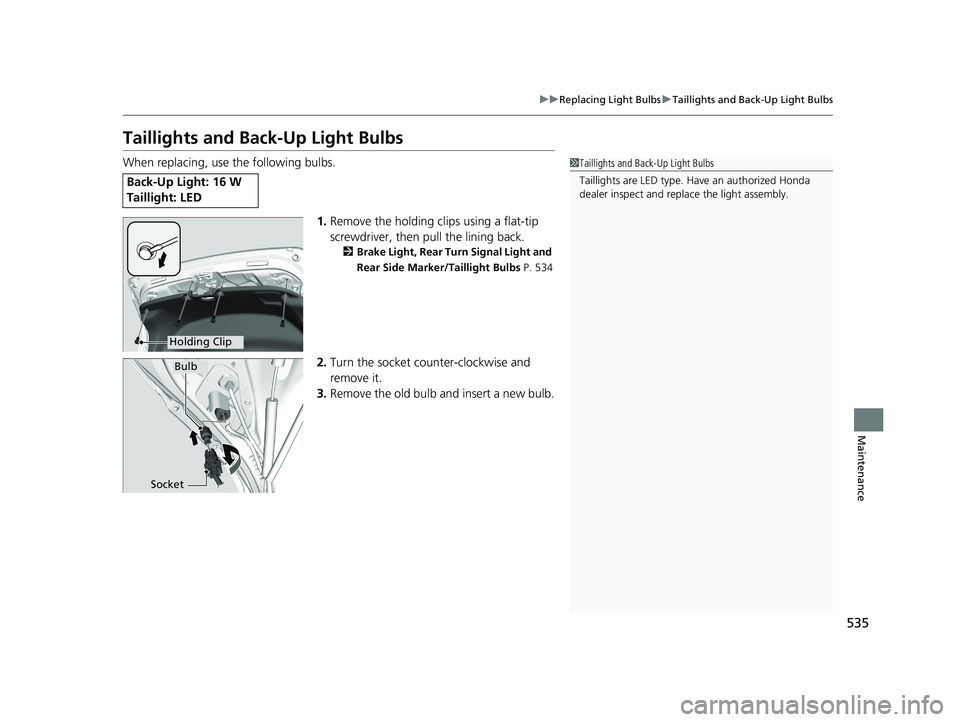

uuReplacing Light Bulbs uTaillights and Back-Up Light Bulbs
Maintenance
Taillights and Back-Up Light Bulbs
When replacing, use the following bulbs.
1.Remove the holding cl ips using a flat-tip
screwdriver, then pull the lining back.
2Brake Light, Rear Turn Signal Light and
Rear Side Marker/Taillight Bulbs P. 534
2.Turn the socket counter-clockwise and
remove it.
3. Remove the old bulb and insert a new bulb.
Back-Up Light: 16 W
Taillight: LED
1Taillights and Back-Up Light Bulbs
Taillights are LE D type. Have an authorized Honda
dealer inspect and replace the light assembly.
Holding Clip
Bulb
Socket
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 535 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

536
uuReplacing Light Bulbs uRear License Plate Light Bulbs
Maintenance

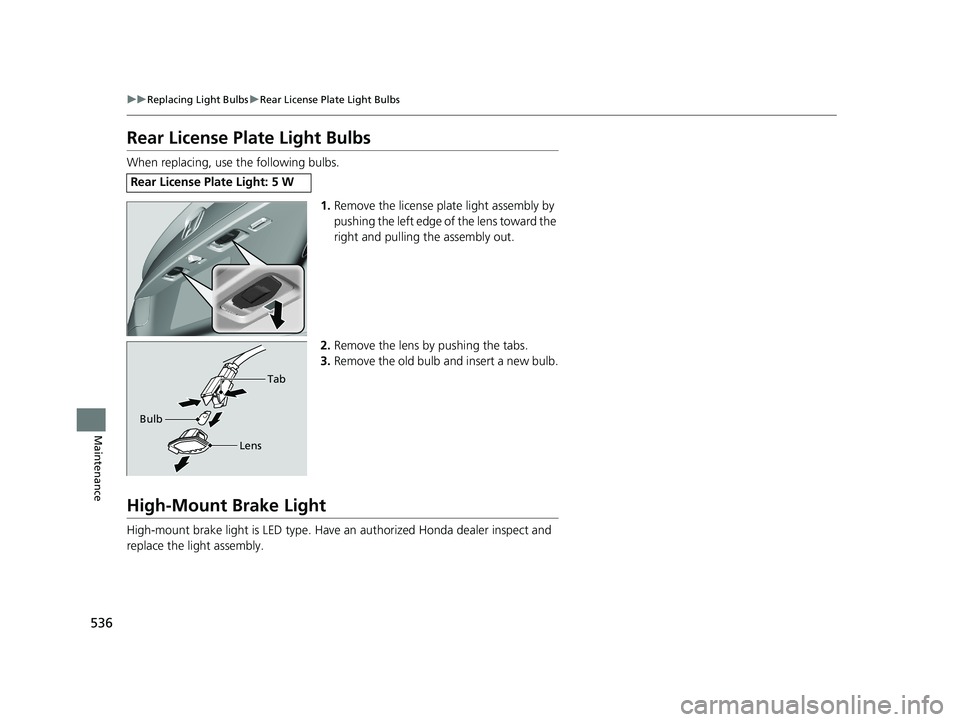

Rear License Plate Light Bulbs
When replacing, use the following bulbs.
1.Remove the license plate light assembly by
pushing the left edge of the lens toward the
right and pulling the assembly out.
2. Remove the lens by pushing the tabs.
3. Remove the old bulb and insert a new bulb.
High-Mount Brake Light
High-mount brake light is LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
Rear License Plate Light: 5 W
Bulb
Tab
Lens
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 536 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

537Continued
Maintenance

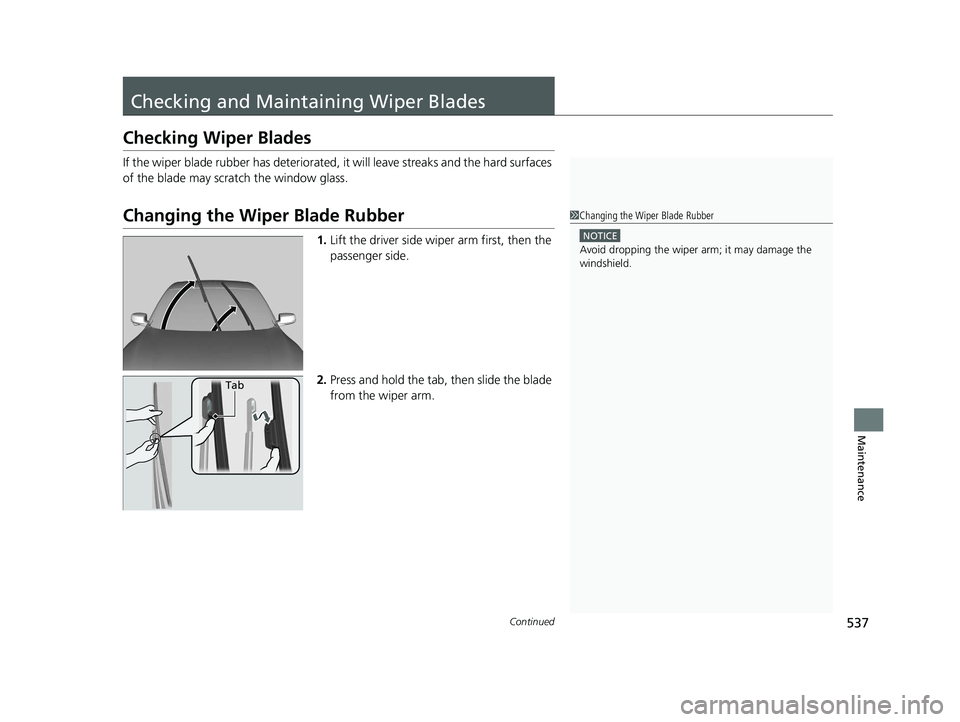

Checking and Maintaining Wiper Blades
Checking Wiper Blades
If the wiper blade rubber has deteriorated, it will leave streaks and the hard surfaces
of the blade may scratch the window glass.
Changing the Wiper Blade Rubber
1. Lift the driver side wiper arm first, then the
passenger side.
2. Press and hold the tab, then slide the blade
from the wiper arm.
1Changing the Wiper Blade Rubber
NOTICE
Avoid dropping the wiper ar m; it may damage the
windshield.
Tab
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 537 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

538

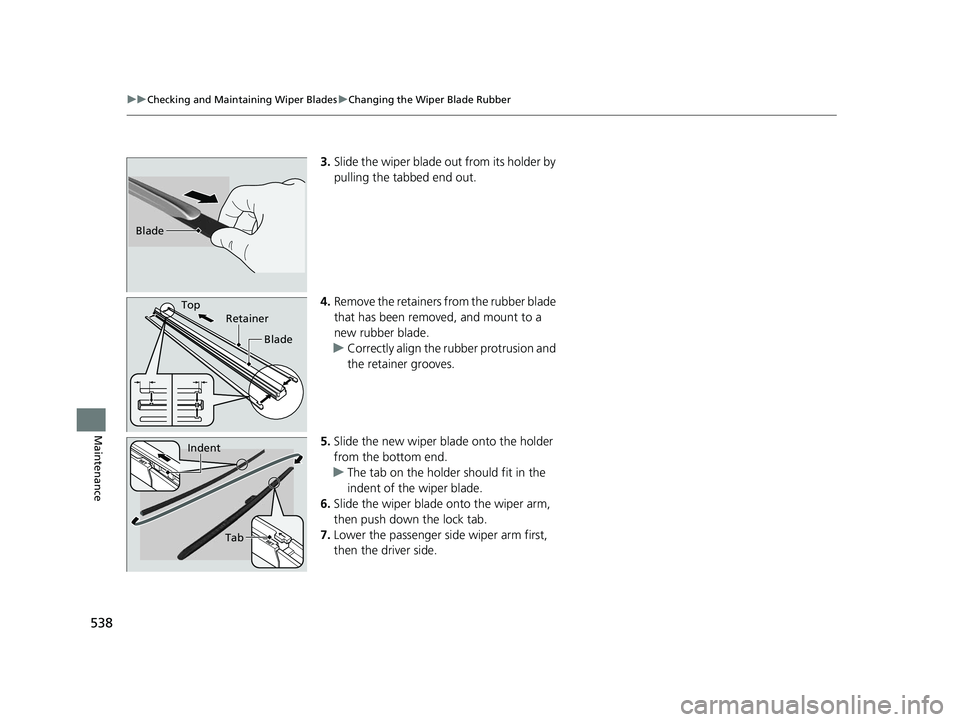

uuChecking and Maintaining Wiper Blades uChanging the Wiper Blade Rubber
Maintenance
3. Slide the wiper blade out from its holder by
pulling the tabbed end out.
4. Remove the retainers from the rubber blade
that has been removed, and mount to a
new rubber blade.
u Correctly align the rubber protrusion and
the retainer grooves.
5. Slide the new wiper blade onto the holder
from the bottom end.
u The tab on the holder should fit in the
indent of the wiper blade.
6. Slide the wiper blade onto the wiper arm,
then push down the lock tab.
7. Lower the passenger side wiper arm first,
then the driver side.
Blade
Top
Retainer
Blade
Tab
Indent
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 538 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

539
Maintenance

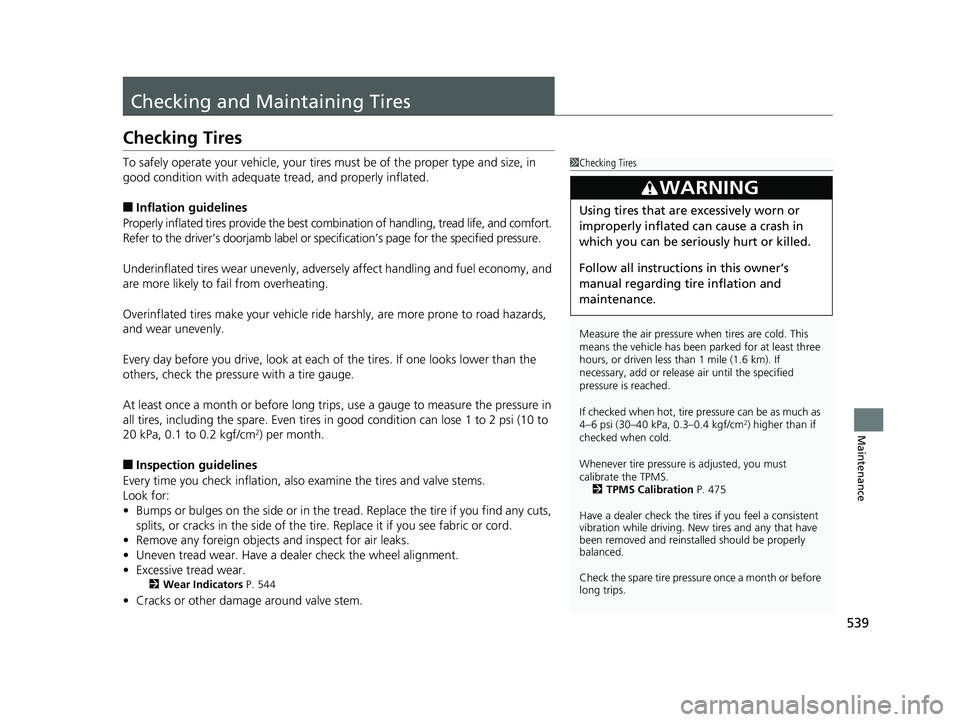

Checking and Maintaining Tires
Checking Tires
To safely operate your vehicle, your tires must be of the proper type and size, in
good condition with adequate tread, and properly inflated.
■Inflation guidelines
Properly inflated tires provid e the best combination of hand ling, tread life, and comfort.
Refer to the driver’s doorjamb label or spec ification’s page for the specified pressure.
Underinflated tires wear unev enly, adversely affect handling and fuel economy, and
are more likely to fail from overheating.
Overinflated tires make your vehicle ride ha rshly, are more prone to road hazards,
and wear unevenly.
Every day before you drive, look at each of the tires. If one looks lower than the
others, check the pressure with a tire gauge.
At least once a month or before long trips , use a gauge to measure the pressure in
all tires, including the spare. Even tires in good condition can lose 1 to 2 psi (10 to
20 kPa, 0.1 to 0.2 kgf/cm
2) per month.
■Inspection guidelines
Every time you check inflation, also examine the tires and valve stems.
Look for:
• Bumps or bulges on the side or in the tread. Replace the tire if you find any cuts,
splits, or cracks in the side of the tire . Replace it if you see fabric or cord.
• Remove any foreign objects and inspect for air leaks.
• Uneven tread wear. Have a deal er check the wheel alignment.
• Excessive tread wear.
2 Wear Indicators P. 544
•Cracks or other damage around valve stem.
1Checking Tires
Measure the air pressure when tires are cold. This
means the vehicle has been parked for at least three
hours, or driven less than 1 mile (1.6 km). If
necessary, add or releas e air until the specified
pressure is reached.
If checked when hot, tire pressure can be as much as
4–6 psi (30–40 kPa, 0.3–0.4 kgf/cm
2) higher than if
checked when cold.
Whenever tire pressure is adjusted, you must
calibrate the TPMS. 2 TPMS Calibration P. 475
Have a dealer check the tires if you feel a consistent
vibration while driving. Ne w tires and any that have
been removed and reinst alled should be properly
balanced.
Check the spare tire pressu re once a month or before
long trips.
3WARNING
Using tires that are excessively worn or
improperly inflated can cause a crash in
which you can be seriously hurt or killed.
Follow all instruction s in this owner’s
manual regarding ti re inflation and
maintenance.
