Continued279
uuAudio System Basic Operation uAudio/Information Screen
Features

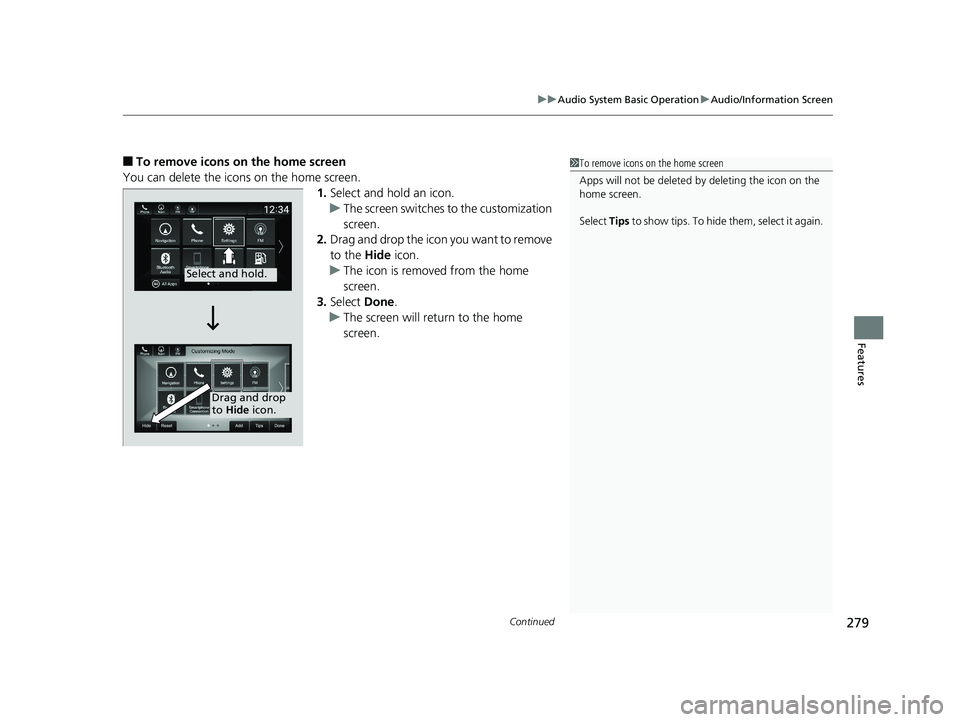

■To remove icons on the home screen
You can delete the icons on the home screen. 1.Select and hold an icon.
u The screen switches to the customization
screen.
2. Drag and drop the icon you want to remove
to the Hide icon.
u The icon is removed from the home
screen.
3. Select Done.
u The screen will return to the home
screen.1To remove icons on the home screen
Apps will not be deleted by deleting the icon on the
home screen.
Select Tips to show tips. To hide them, select it again.
Select and hold.
Drag and drop
to Hide icon.
18 ACCORD HYBRID-31TWA6000.book 279 ページ ２０１８年１月３０日　火曜日　午後７時３８分

uuAudio System Basic Operation uAudio/Information Screen
280
Features

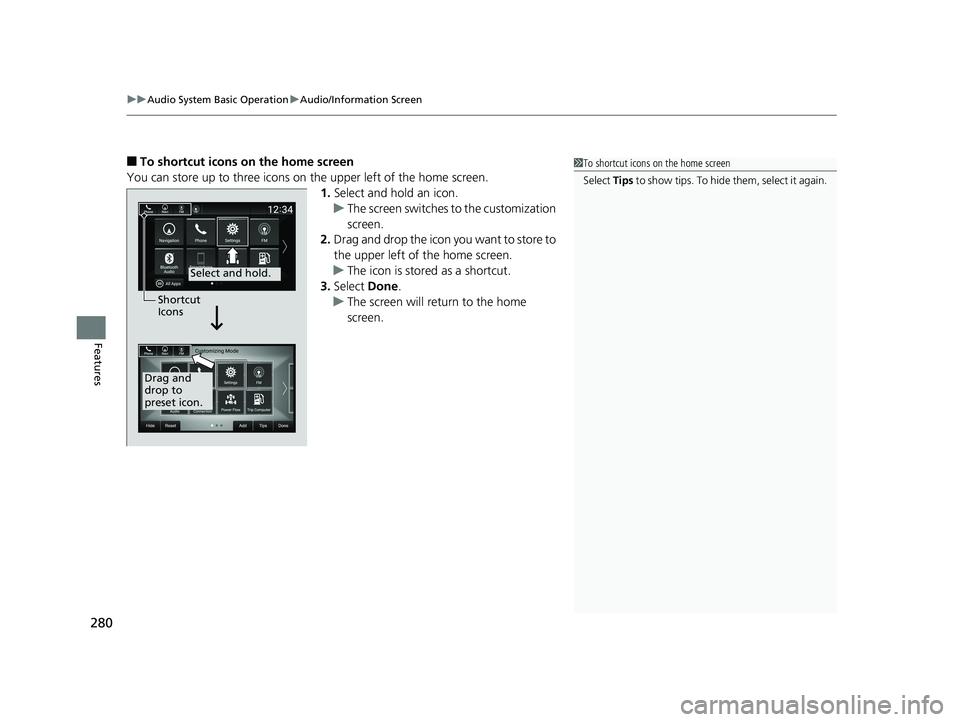

■To shortcut icons on the home screen
You can store up to three icons on the upper left of the home screen. 1.Select and hold an icon.
u The screen switches to the customization
screen.
2. Drag and drop the icon you want to store to
the upper left of the home screen.
u The icon is stored as a shortcut.
3. Select Done.
u The screen will return to the home
screen.1To shortcut icons on the home screen
Select Tips to show tips. To hide them, select it again.
Select and hold.
Drag and
drop to
preset icon.Shortcut
Icons
18 ACCORD HYBRID-31TWA6000.book 280 ページ ２０１８年１月３０日　火曜日　午後７時３８分

281
uuAudio System Basic Operation uAudio/Information Screen
Continued
Features

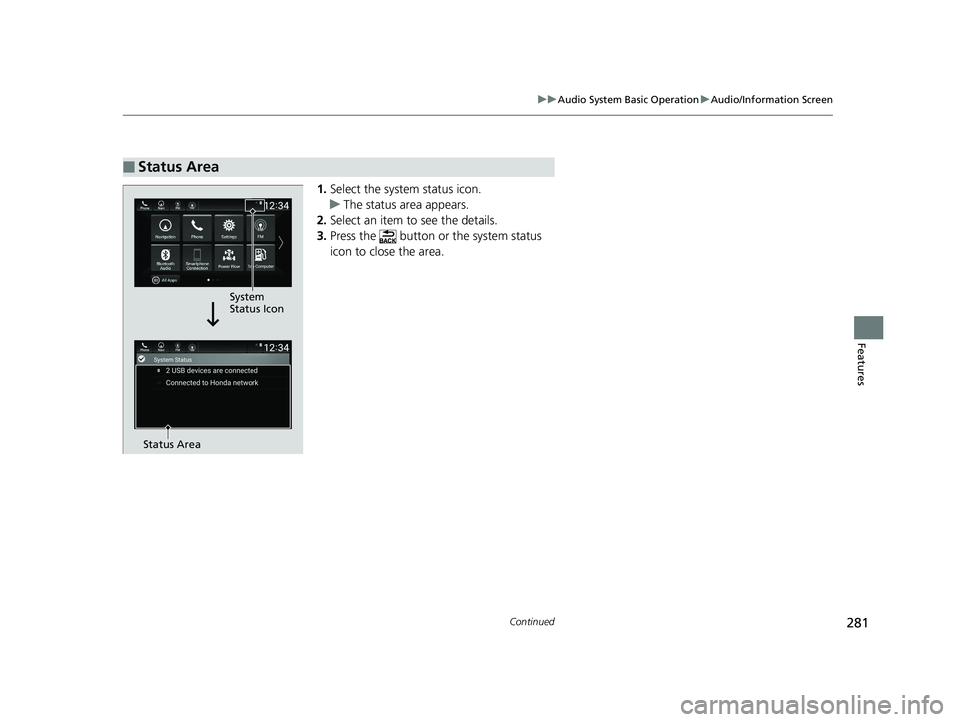

1. Select the system status icon.
u The status area appears.
2. Select an item to see the details.
3. Press the button or the system status
icon to close the area.
■Status Area
System
Status Icon
Status Area
18 ACCORD HYBRID-31TWA6000.book 281 ページ ２０１８年１月３０日　火曜日　午後７時３８分

uuAudio System Basic Operation uAudio/Information Screen
282
Features

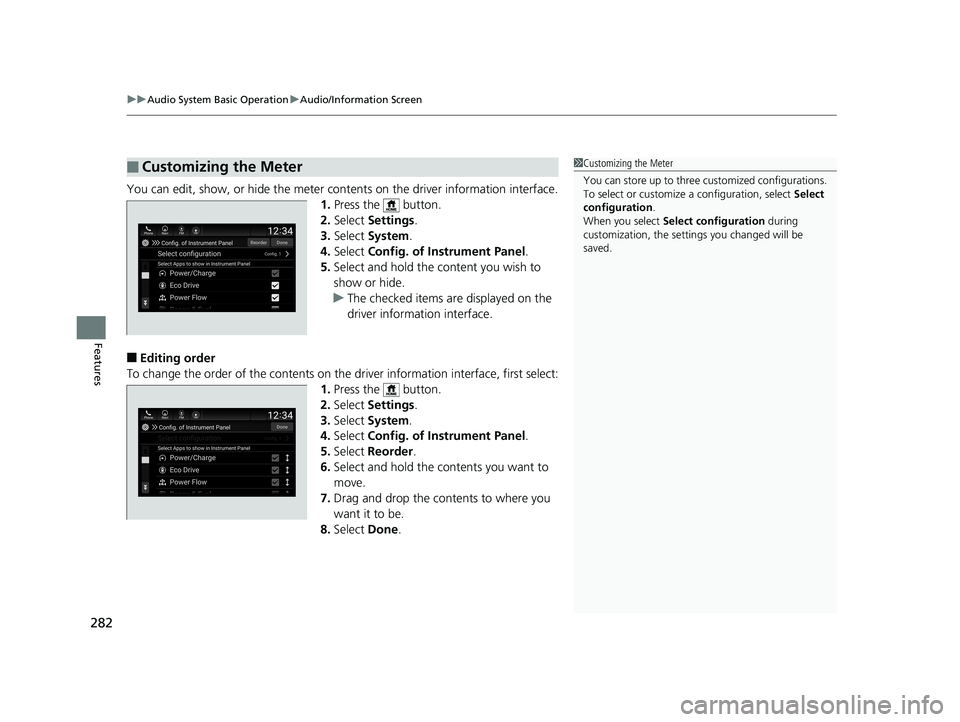

You can edit, show, or hide the meter cont ents on the driver information interface.
1. Press the button.
2. Select Settings .
3. Select System .
4. Select Config. of Instrument Panel .
5. Select and hold the content you wish to
show or hide.
u The checked items are displayed on the
driver information interface.
■Editing order
To change the order of the contents on th e driver information interface, first select:
1. Press the button.
2. Select Settings .
3. Select System .
4. Select Config. of Instrument Panel .
5. Select Reorder .
6. Select and hold the contents you want to
move.
7. Drag and drop the contents to where you
want it to be.
8. Select Done.
■Customizing the Meter1Customizing the Meter
You can store up to three customized configurations.
To select or customize a configuration, select Select
configuration .
When you select Select configuration during
customization, the settings you changed will be
saved.
18 ACCORD HYBRID-31TWA6000.book 282 ページ ２０１８年１月３０日　火曜日　午後７時３８分

283
uuAudio System Basic Operation uSystem Updates
Continued
Features

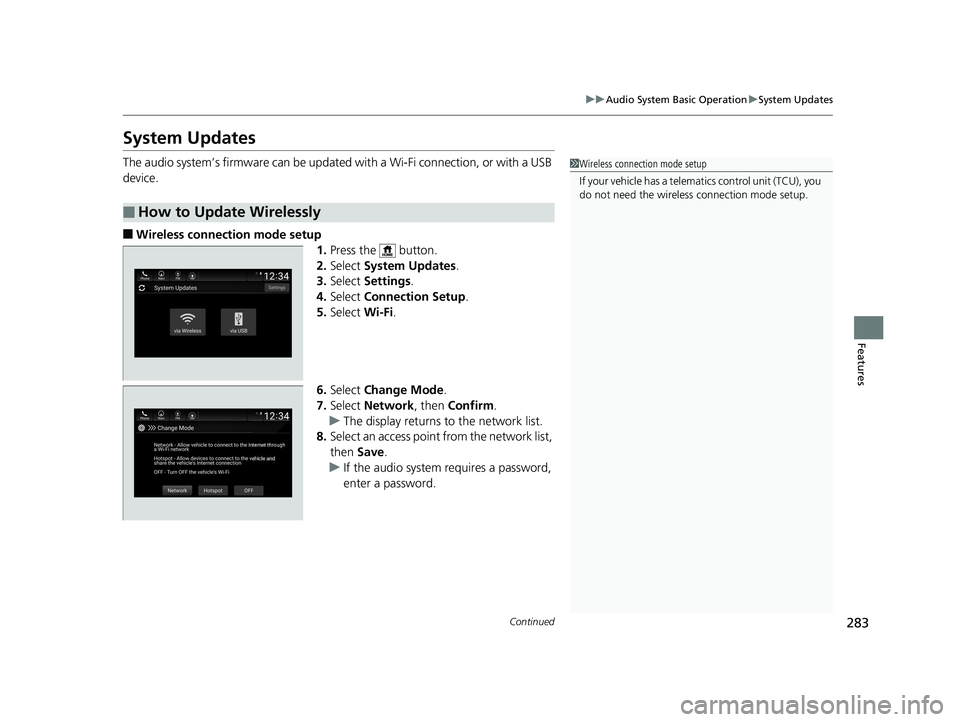

System Updates
The audio system’s firmware can be updated with a Wi-Fi connection, or with a USB
device.
■Wireless connec tion mode setup
1.Press the button.
2. Select System Updates .
3. Select Settings .
4. Select Connection Setup.
5. Select Wi-Fi.
6. Select Change Mode .
7. Select Network , then Confirm .
u The display returns to the network list.
8. Select an access point from the network list,
then Save.
u If the audio system requires a password,
enter a password.
■How to Update Wirelessly
1Wireless connection mode setup
If your vehicle has a telema tics control unit (TCU), you
do not need the wireless connection mode setup.
18 ACCORD HYBRID-31TWA6000.book 283 ページ ２０１８年１月３０日　火曜日　午後７時３８分

uuAudio System Basic Operation uSystem Updates
284
Features

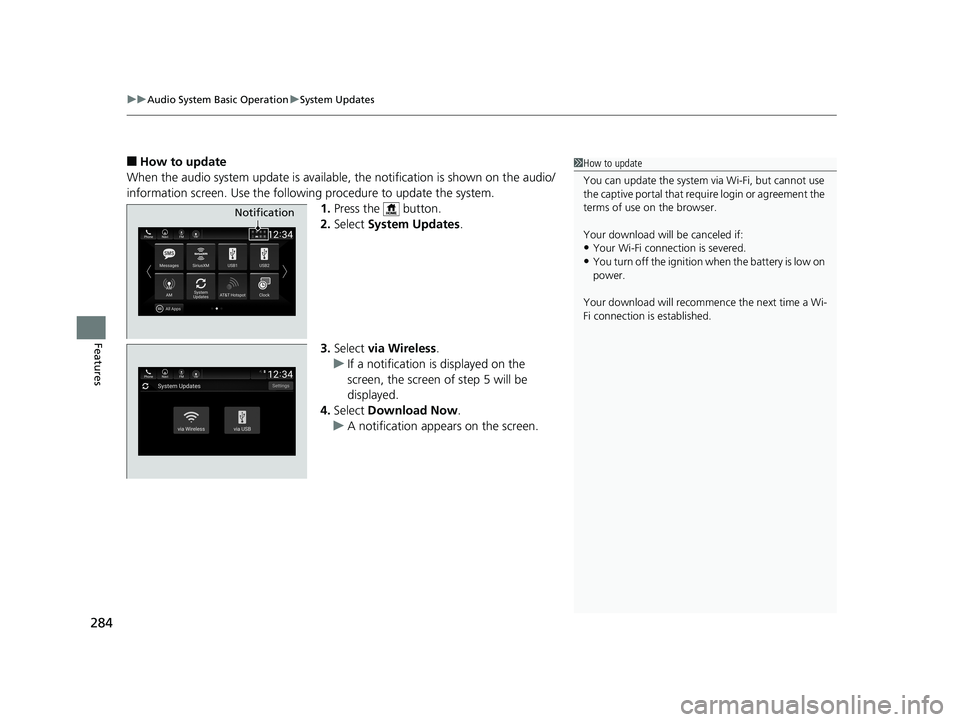

■How to update
When the audio system update is available, the notification is shown on the audio/
information screen. Use the following procedure to update the system. 1.Press the button.
2. Select System Updates .
3. Select via Wireless .
u If a notification is displayed on the
screen, the screen of step 5 will be
displayed.
4. Select Download Now .
u A notification appears on the screen.1How to update
You can update the system vi a Wi-Fi, but cannot use
the captive portal that requi re login or agreement the
terms of use on the browser.
Your download will be canceled if:
•Your Wi-Fi connection is severed.
•You turn off the ignition when the battery is low on
power.
Your download will recomme nce the next time a Wi-
Fi connection is established.
Notification
18 ACCORD HYBRID-31TWA6000.book 284 ページ ２０１８年１月３０日　火曜日　午後７時３８分

Continued285
uuAudio System Basic Operation uSystem Updates
Features

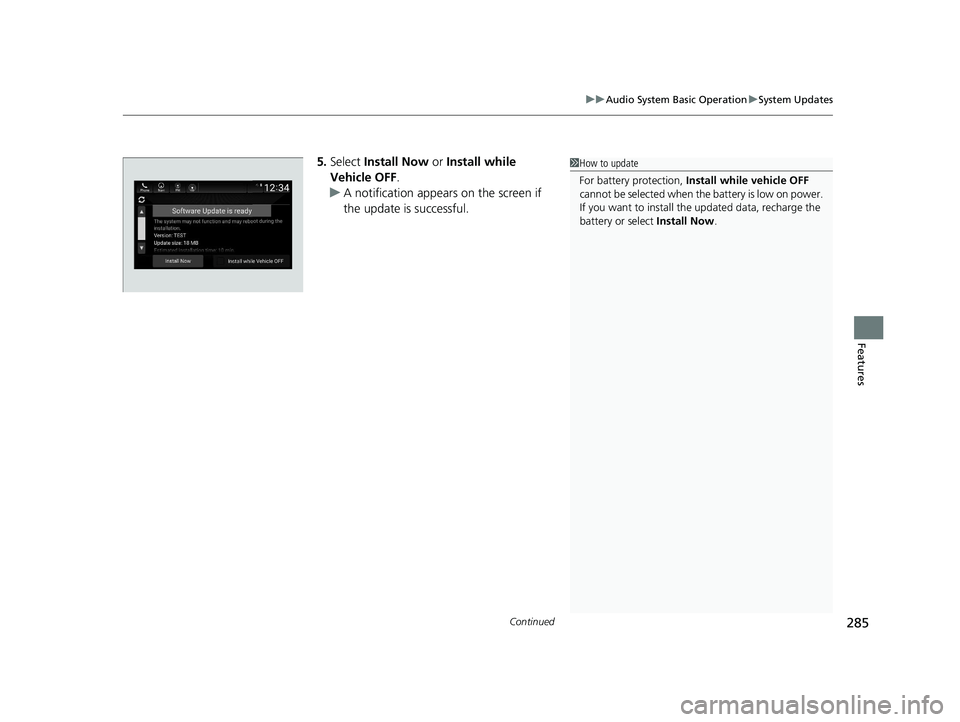

5. Select Install Now or Install while
Vehicle OFF .
u A notification appears on the screen if
the update is successful.1How to update
For battery protection, Install while vehicle OFF
cannot be selected when the battery is low on power.
If you want to install the updated data, recharge the
battery or select Install Now.
18 ACCORD HYBRID-31TWA6000.book 285 ページ ２０１８年１月３０日　火曜日　午後７時３８分

286
uuAudio System Basic Operation uSystem Updates
Features

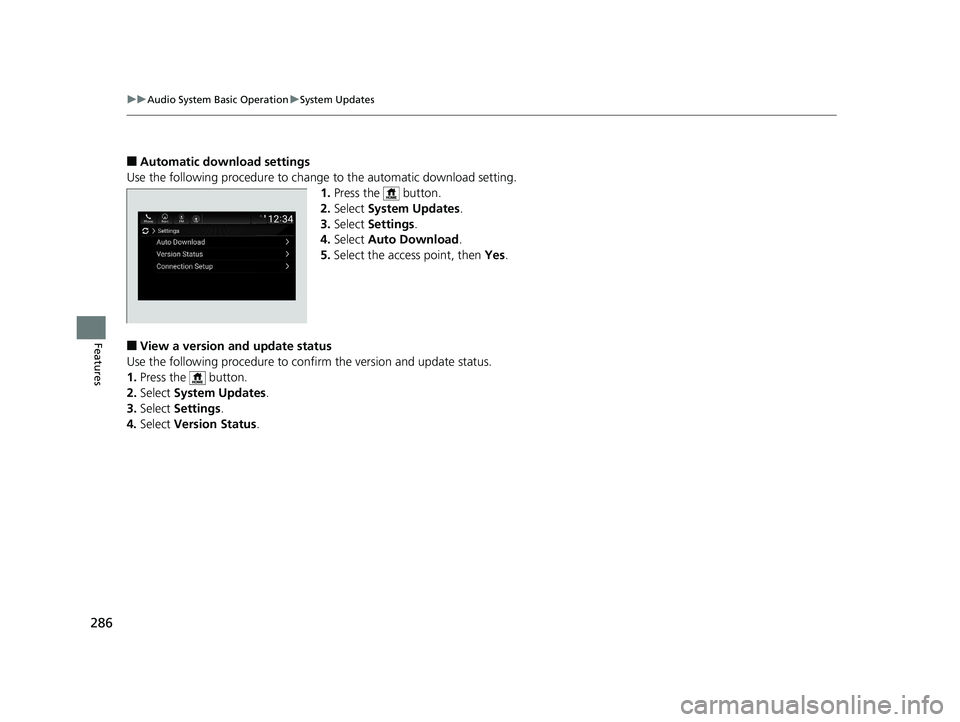

■Automatic download settings
Use the following procedure to change to the automatic download setting.
1. Press the button.
2. Select System Updates .
3. Select Settings .
4. Select Auto Download .
5. Select the access point, then Yes.
■View a version and update status
Use the following procedure to conf irm the version and update status.
1. Press the button.
2. Select System Updates .
3. Select Settings .
4. Select Version Status .
18 ACCORD HYBRID-31TWA6000.book 286 ページ ２０１８年１月３０日　火曜日　午後７時３８分

Continued287
uuAudio System Basic Operation uSystem Updates
Features

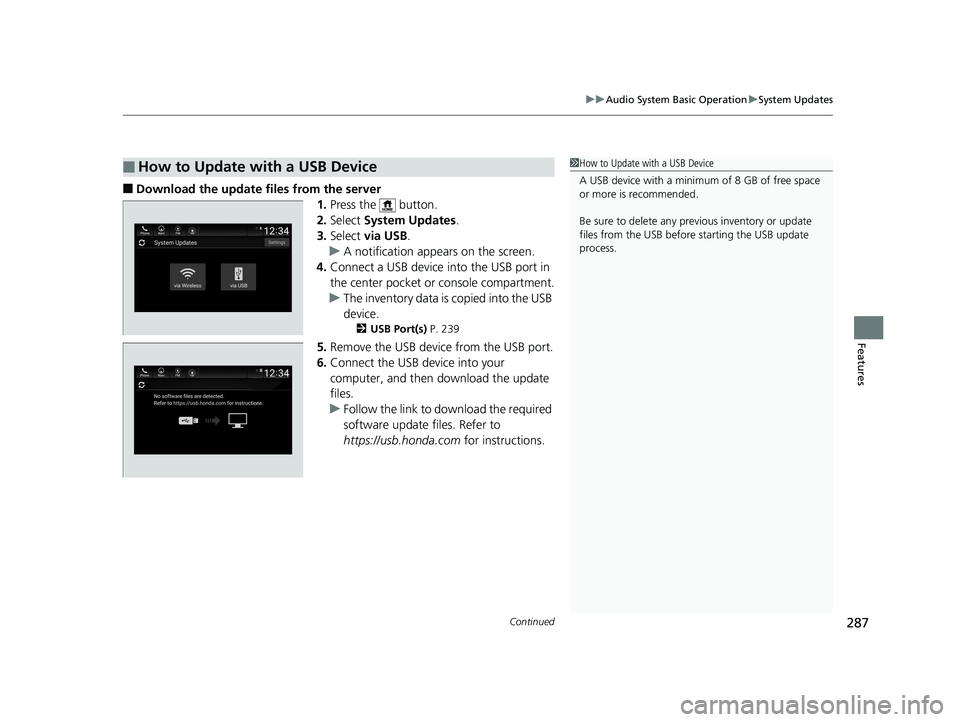

■Download the update files from the server
1.Press the button.
2. Select System Updates .
3. Select via USB .
u A notification appears on the screen.
4. Connect a USB device into the USB port in
the center pocket or console compartment.
u The inventory data is copied into the USB
device.
2 USB Port(s) P. 239
5.Remove the USB device from the USB port.
6. Connect the USB device into your
computer, and then download the update
files.
u Follow the link to do wnload the required
software update files. Refer to
https://usb.honda.com for instructions.
■How to Update with a USB Device1How to Update with a USB Device
A USB device with a minimum of 8 GB of free space
or more is recommended.
Be sure to delete any pr evious inventory or update
files from the USB before starting the USB update
process.
18 ACCORD HYBRID-31TWA6000.book 287 ページ ２０１８年１月３０日　火曜日　午後７時３８分

288
uuAudio System Basic Operation uSystem Updates
Features

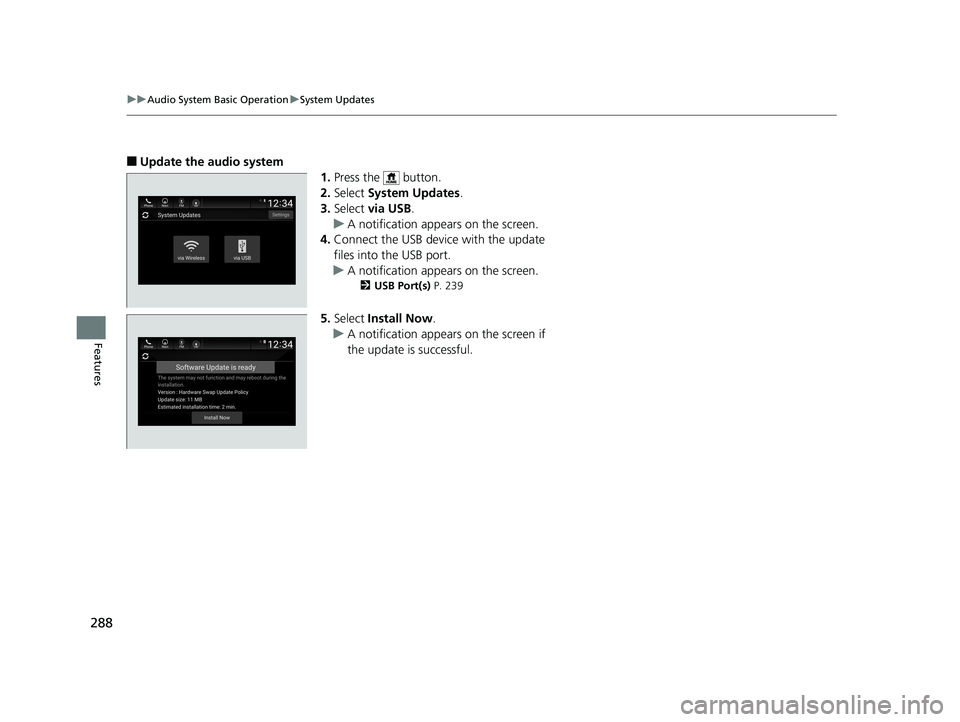

■Update the audio system
1.Press the button.
2. Select System Updates .
3. Select via USB .
u A notification appears on the screen.
4. Connect the USB device with the update
files into the USB port.
u A notification appears on the screen.
2 USB Port(s) P. 239
5.Select Install Now .
u A notification appears on the screen if
the update is successful.
