Page 21 of 683
19
Quick Reference Guide

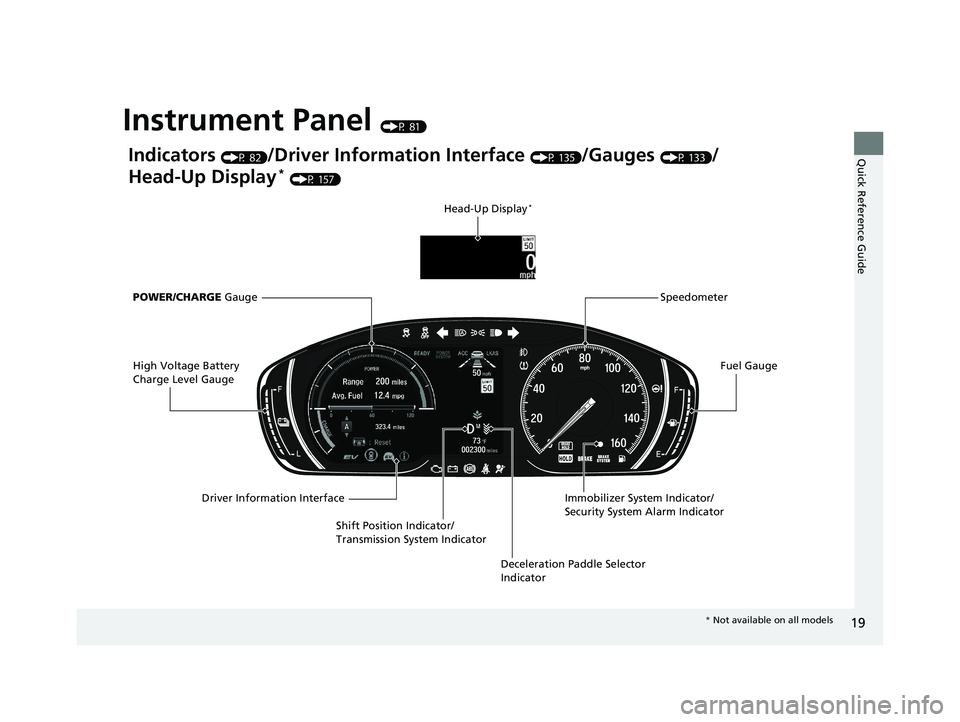

Instrument Panel (P 81)
Indicators (P 82)/Driver Information Interface (P 135)/Gauges (P 133)/
Head-Up Display
* (P 157)
Speedometer
Fuel Gauge
Driver Information Interface
High Voltage Battery
Charge Level Gauge POWER/CHARGE
Gauge Head-Up Display
*
Immobilizer System Indicator/
Security System Alarm Indicator
Shift Position Indicator/
Transmission System Indicator
Deceleration Paddle Selector
Indicator
* Not available on all models
18 ACCORD HYBRID-31TWA6000.book 19 ページ 2018年1月30日 火曜日 午後7時38分
Page 22 of 683
20
Quick Reference Guide

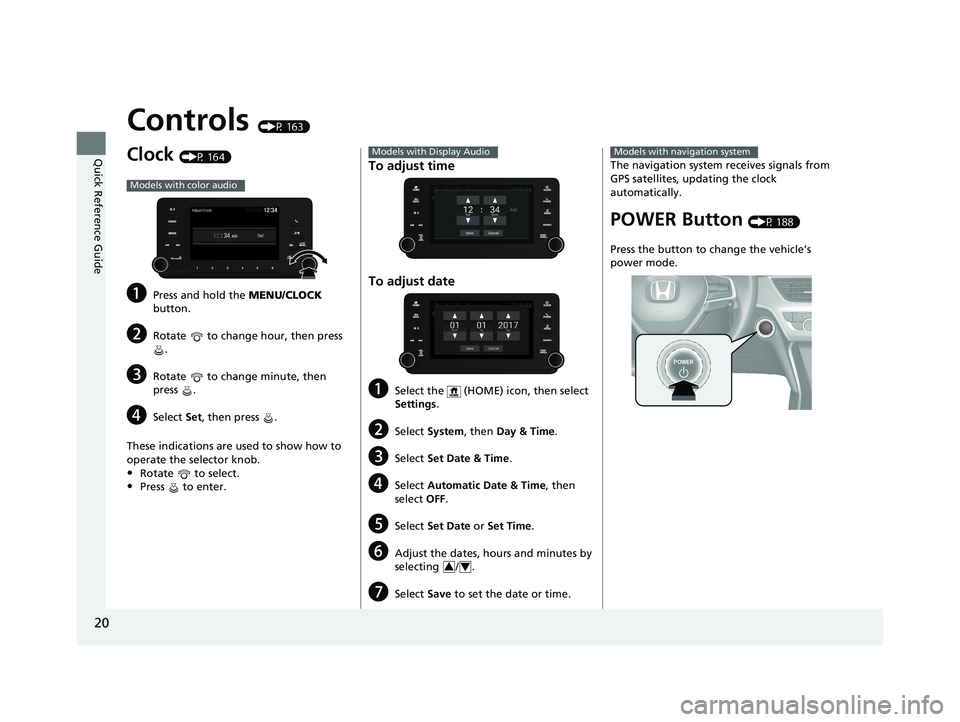

Controls (P 163)
Clock (P 164)
aPress and hold the MENU/CLOCK
button.
bRotate to change hour, then press .
cRotate to change minute, then
press .
dSelect Set, then press .
These indications are used to show how to
operate the selector knob.
•Rotate to select.
•Press to enter.
Models with color audio
To adjust time
To adjust date
aSelect the (HOME) icon, then select
Settings.
bSelect System , then Day & Time .
cSelect Set Date & Time .
dSelect Automatic Date & Time , then
select OFF.
eSelect Set Date or Set Time.
fAdjust the dates, hours and minutes by
selecting / .
gSelect Save to set the date or time.
Models with Display Audio
34
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
POWER Button (P 188)
Press the button to change the vehicle’s
power mode.
Models with navigation system
18 ACCORD HYBRID-31TWA6000.book 20 ページ 2018年1月30日 火曜日 午後7時38分
Page 23 of 683
21
Quick Reference Guide
Turn Signals (P 191)
Lights (P 191)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
Wipers and Washers
(P 198)
*1:Models with automatic intermittent wipers
*2:Models without au tomatic intermittent
wipers
Wiper/Washer Control Lever
Adjustment Ring
(-: Low Sensitivity*1
(- : Lower speed, fewer sweeps*2
(+: High Sensitivity*1
(+ : Higher speed, more sweeps*2
MIST
OFF
AUTO
*1: Wiper speed varies automatically
INT*2: Low speed with intermittent
LO: Low speed wipe
HI : High speed wipe Pull toward
you to spray
washer fluid.
AUTO
should always be turned OFF before
the following situations in order to prevent
severe damage to the wiper system:
● Cleaning the windshield
● Driving through a car wash
● No rain
Steering Wheel (P 205)
● To adjust, push the adjustment lever
down, adjust to the de sired position, then
lock the lever back in place.
Models with automatic intermittent wipers
To lock
To adjust
18 ACCORD HYBRID-31TWA6000.book 21 ページ 2018年1月30日 火曜日 午後7時38分
Page 24 of 683
22
Quick Reference Guide

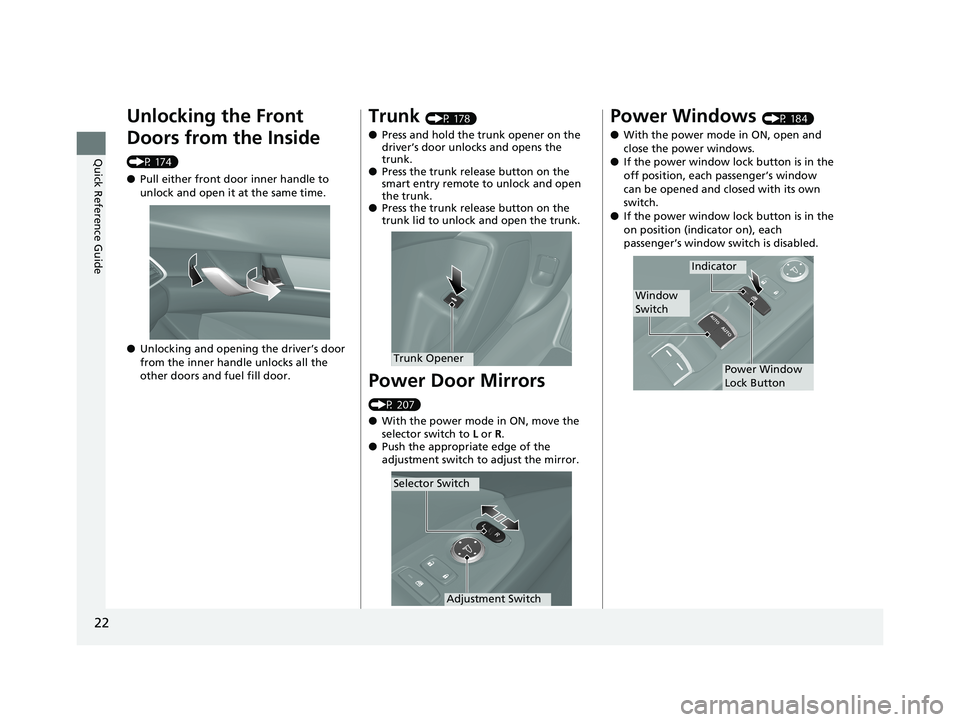

Unlocking the Front
Doors from the Inside
(P 174)
●Pull either front door inner handle to
unlock and open it at the same time.
● Unlocking and opening the driver’s door
from the inner handle unlocks all the
other doors and fuel fill door.
Trunk (P 178)
● Press and hold the trunk opener on the
driver’s door unlocks and opens the
trunk.
● Press the trunk release button on the
smart entry remote to unlock and open
the trunk.
● Press the trunk release button on the
trunk lid to unlock and open the trunk.
Power Door Mirrors
(P 207)
●With the power mode in ON, move the
selector switch to L or R.
● Push the appropriate edge of the
adjustment switch to adjust the mirror.
Trunk Opener
Selector Switch
Adjustment Switch
Power Windows (P 184)
● With the power mode in ON, open and
close the power windows.
● If the power window lock button is in the
off position, each passenger’s window
can be opened and closed with its own
switch.
● If the power window lock button is in the
on position (indicator on), each
passenger’s window switch is disabled.
Power Window
Lock Button
Window
Switch
Indicator
18 ACCORD HYBRID-31TWA6000.book 22 ページ 2018年1月30日 火曜日 午後7時38分
Page 25 of 683
23
Quick Reference Guide

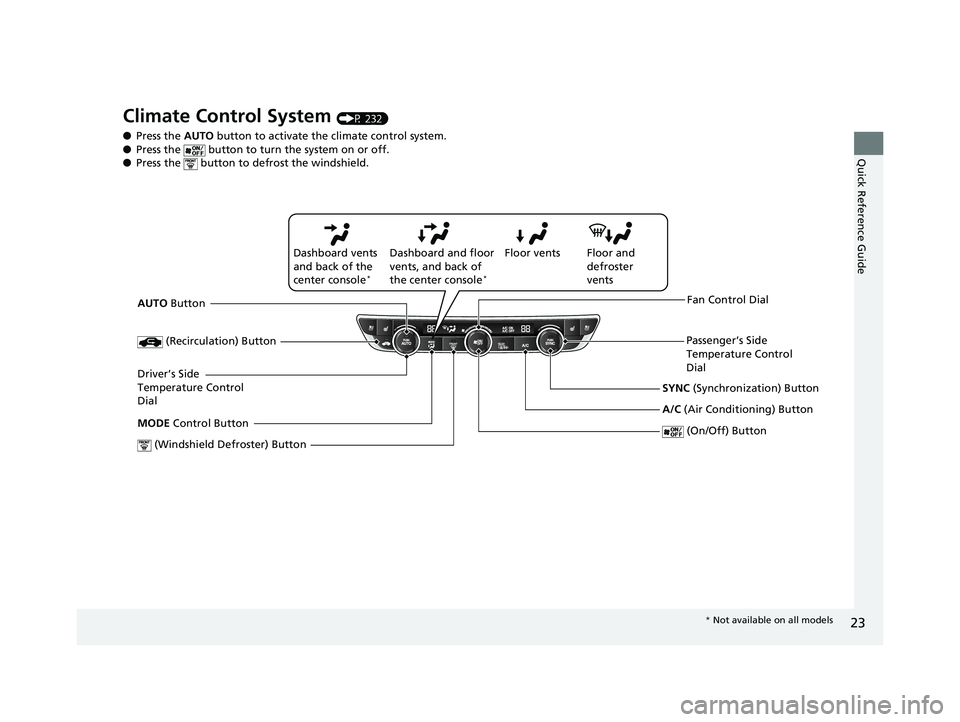

Climate Control System (P 232)
● Press the AUTO button to activate th e climate control system.
● Press the button to turn the system on or off.
● Press the button to de frost the windshield.
Driver’s Side
Temperature Control
Dial
(Windshield Defroster) Button
SYNC (Synchronization) Button
Floor and
defroster
vents
Floor vents
Dashboard and floor
vents, and back of
the center console
*
Dashboard vents
and back of the
center console
*
AUTO Button
(On/Off) Button
(Recirculation) Button
MODE Control Button Fan Control Dial
A/C (Air Conditioning) Button
Passenger’s Side
Temperature Control
Dial
* Not available on all models
18 ACCORD HYBRID-31TWA6000.book 23 ページ 2018年1月30日 火曜日 午後7時38分
Page 26 of 683
24
Quick Reference Guide

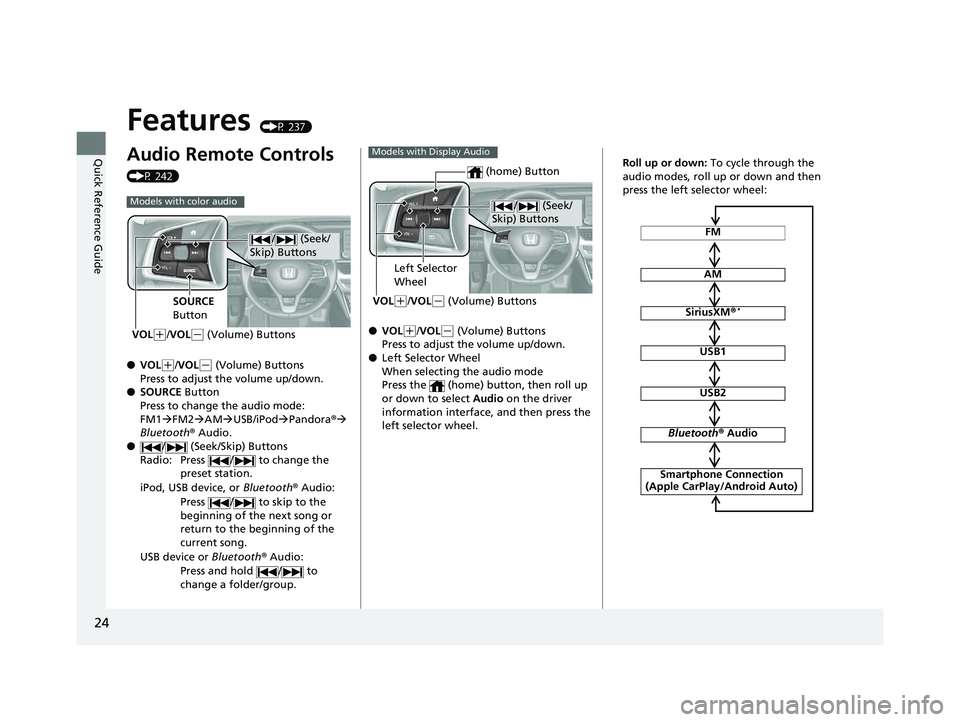

Features (P 237)
Audio Remote Controls
(P 242)
●VOL
(+/VOL(- (Volume) Buttons
Press to adjust the volume up/down.
● SOURCE Button
Press to change the audio mode:
FM1 FM2 AM USB/iPod Pandora ®
Bluetooth ® Audio.
● / (Seek/Skip) Buttons
Radio: Press / to change the
preset station.
iPod, USB device, or Bluetooth ® Audio:
Press / to skip to the
beginning of the next song or
return to the beginning of the
current song.
USB device or Bluetooth® Audio:
Press and hold / to
change a folder/group.
Models with color audio
/ (Seek/
Skip) Buttons
SOURCE
Button
VOL
( +/VOL(- (Volume) Buttons● VOL(+/VOL(- (Volume) Buttons
Press to adjust the volume up/down.
● Left Selector Wheel
When selecting the audio mode
Press the (home) button, then roll up
or down to select Audio on the driver
information interface, and then press the
left selector wheel.
Models with Display Audio
/ (Seek/
Skip) Buttons
Left Selector
Wheel
VOL
( +/VOL(- (Volume) Buttons
(home) Button
FM
AM
SiriusXM ®*
USB1
USB2
Bluetooth® Audio
Smartphone Connection
(Apple CarPlay/Android Auto)
Roll up or down: To cycle through the
audio modes, roll up or down and then
press the left selector wheel:
18 ACCORD HYBRID-31TWA6000.book 24 ページ 2018年1月30日 火曜日 午後7時38分
Page 27 of 683
25
Quick Reference Guide

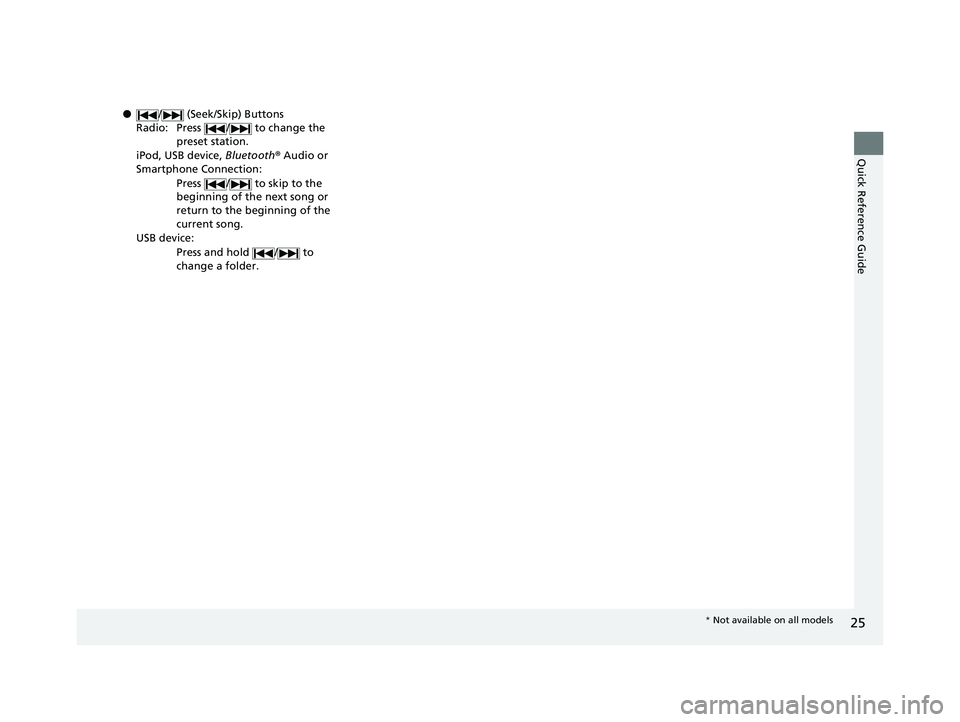

●/ (Seek/Skip) Buttons
Radio: Press / to change the preset station.
iPod, USB device, Bluetooth® Audio or
Smartphone Connection:
Press / to skip to the
beginning of the next song or
return to the beginning of the
current song.
USB device: Press and hold / to
change a folder.
* Not available on all models
18 ACCORD HYBRID-31TWA6000.book 25 ページ 2018年1月30日 火曜日 午後7時38分
Page 28 of 683
26
Quick Reference Guide

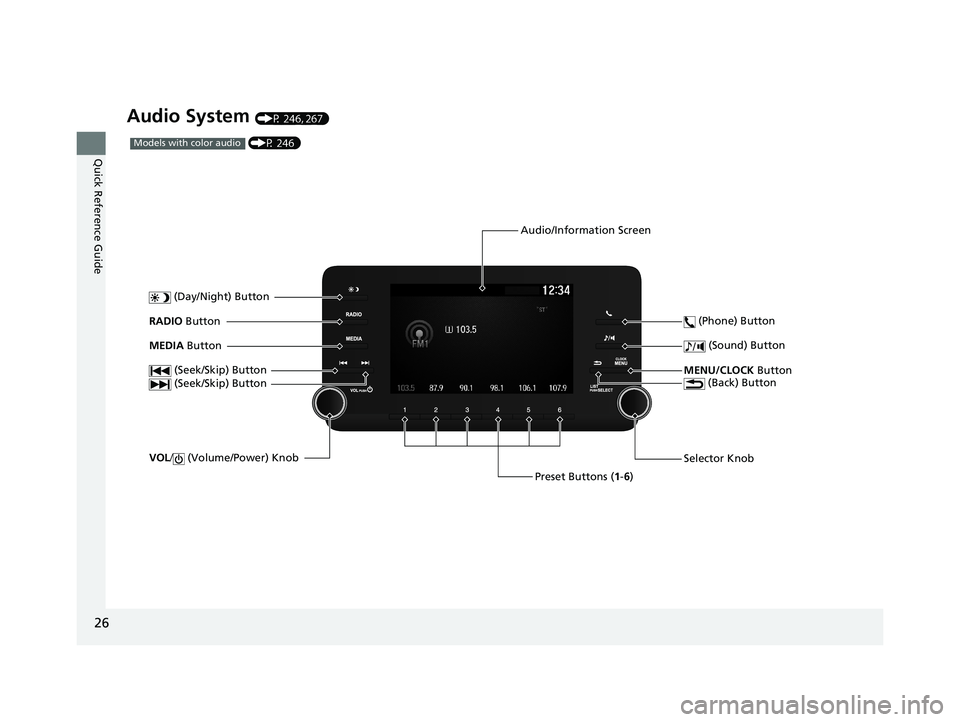

Audio System (P 246, 267)
(P 246)Models with color audio
(Seek/Skip) Button
Selector Knob
(Day/Night) ButtonVOL
/ (Volume/Power) Knob
RADIO Button
(Sound) Button
Preset Buttons (1-6)
(Seek/Skip) Button
MEDIA
Button
MENU/CLOCK Button
(Phone) Button
(Back) Button
Audio/Information Screen
18 ACCORD HYBRID-31TWA6000.book 26 ページ 2018年1月30日 火曜日 午後7時38分
Page 29 of 683

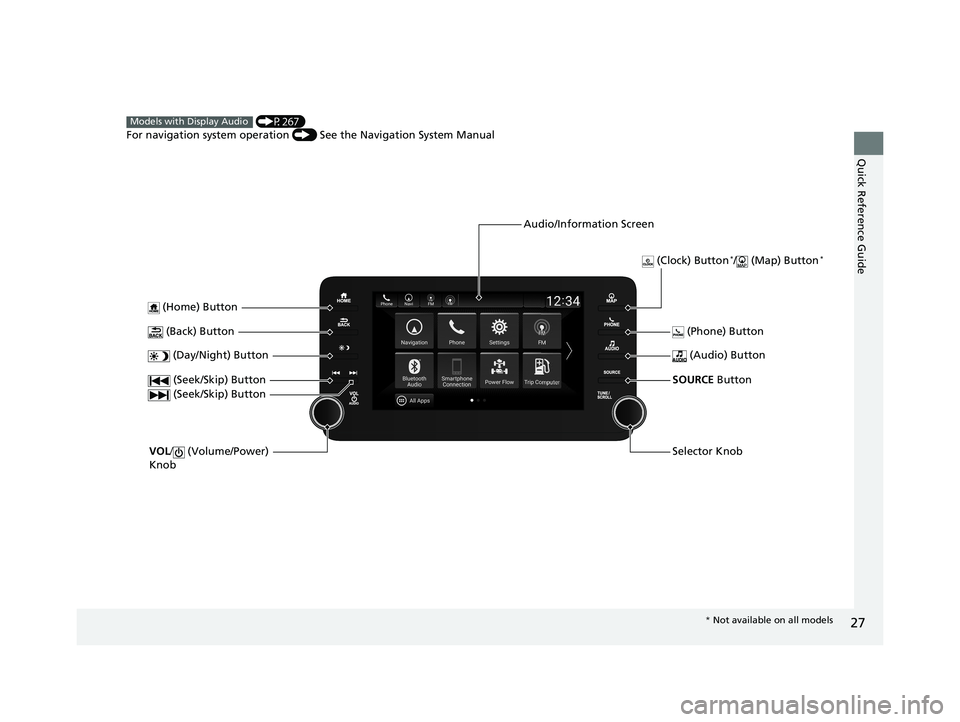

27
Quick Reference Guide
(Home) Button
(Audio) Button
(Back) Button
Audio/Information Screen
(P267)
For navigation system operation () See the Navigation System Manual
Models with Display Audio
(Phone) Button
(Day/Night) Button
(Seek/Skip) Button
(Seek/Skip) Button
VOL/ (Volume/Power)
KnobSelector Knob SOURCE Button
(Clock) Button*/ (Map) Button*
* Not available on all models
18 ACCORD HYBRID-31TWA6000.book 27 ページ 2018年1月30日 火曜日 午後7時38分
Page 30 of 683
28
Quick Reference Guide

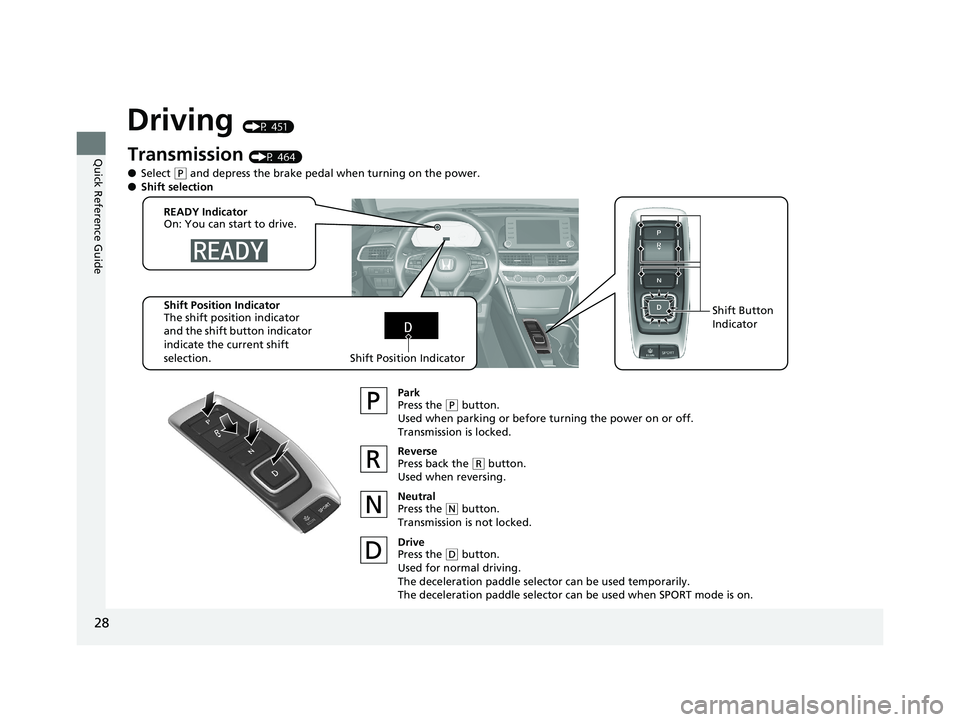

Driving (P 451)
Transmission (P 464)
● Select
(P and depress the brake pedal when turning on the power.
● Shift selection
Park
Press the (P button.
Used when parking or before turning the power on or off.
Transmission is locked.
Reverse
Press back the
( R button.
Used when reversing.
Neutral
Press the
( N button.
Transmission is not locked.
Drive
Press the
( D button.
Used for normal driving.
The deceleration paddle selector can be used temporarily.
The deceleration paddle selector can be used when SPORT mode is on.
Shift Position Indicator
The shift position indicator
and the shift button indicator
indicate the current shift
selection.
Shift Position Indicator Shift Button
Indicator
READY Indicator
On: You can start to drive.
