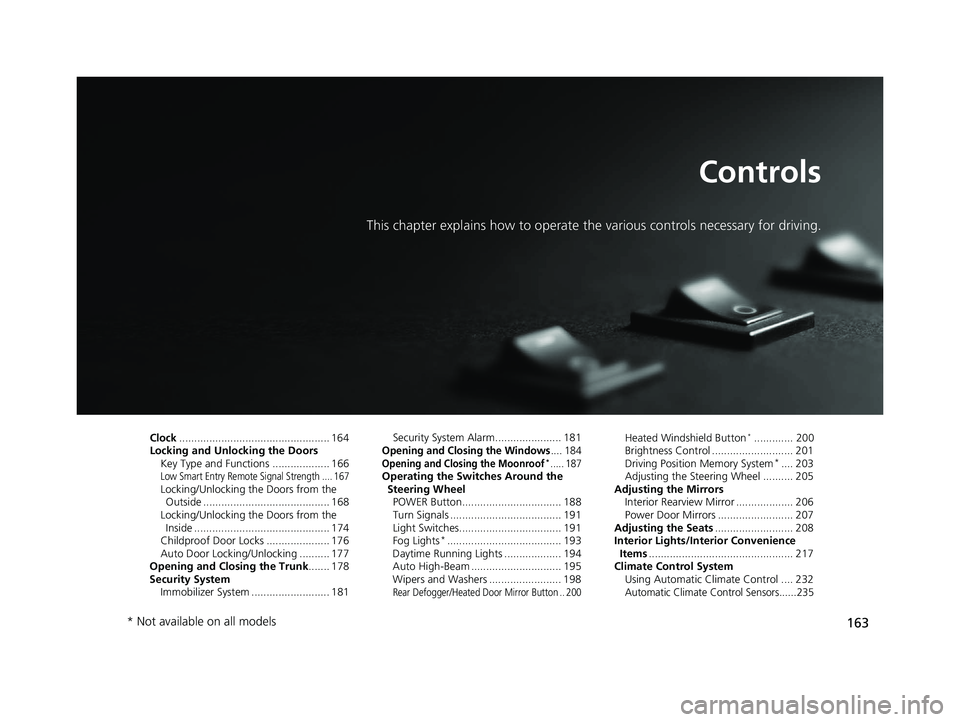

sensor HONDA ACCORD SEDAN 2018 (in English) Owner's Guide

163
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 164
Locking and Unlocking the Doors Key Type and Functions ................... 166
Low Smart Entry Remote Signal Strength .... 167Locking/Unlocking the Doors from the Outside .......................................... 168
Locking/Unlocking the Doors from the Inside ............................................. 174
Childproof Door Locks ..................... 176
Auto Door Locking/Unlocking .......... 177
Opening and Closing the Trunk ....... 178
Security System
Immobilizer System .......................... 181 Security System Alarm...................... 181
Opening and Closing the Windows.... 184Opening and Closing the Moonroof*..... 187Operating the Switches Around the
Steering Wheel POWER Button................................. 188
Turn Signals ..................................... 191
Light Switches.................................. 191
Fog Lights
*...................................... 193
Daytime Running Lights ................... 194
Auto High-Beam .............................. 195
Wipers and Washers ........................ 198
Rear Defogger/Heated Door Mirror Button .. 200
Heated Windshield Button* ............. 200
Brightness Control ........................... 201
Driving Position Memory System
*.... 203
Adjusting the Steering Wheel .......... 205
Adjusting the Mirrors Interior Rearview Mirror ................... 206
Power Door Mirrors ......................... 207
Adjusting the Seats .......................... 208
Interior Lights/Interior Convenience
Items ................................................ 217
Climate Control System Using Automatic Climate Control .... 232
Automatic Climate Control Sensors......235
* Not available on all models
18 ACCORD HYBRID-31TWA6000.book 163 ページ ２０１８年１月３０日　火曜日　午後７時３８分

168
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
Locking/Unlocking the Doors from the Outside
When you carry the smart entry remote, you
can lock/unlock the doors, fuel fill door and
open the trunk.
You can lock/unlock the doors and fuel fill
door within a radius of about 32 inches (80
cm) of the outside door handle. You can open
the trunk within about 32 inches (80 cm)
radius from the trunk release button.
■Locking the doors and the trunk
Touch the door lock sensor on the front door.u Some exterior lights flash; the beeper
sounds; all the doors and trunk lock; and
the security system sets.
■Using the Smart Entry with Push Button Start System1Locking/Unlocking the Doors from the Outside
If the interior light switch is in the door activated
position, the interior lights come on when you unlock
the doors.
No doors opened: The light fades out after 30
seconds.
Doors relocked: The light goes off immediately.
2 Interior Lights P. 217
1Using the Smart Entry with Push Button Start System
If you do not open a door within 30 seconds of
unlocking the vehicle with the smart entry system,
the doors and trunk will automatically relock.
You can lock or unlock doors using the smart entry
system only when the power mode is in VEHICLE OFF.
•Do not leave the smart entry remote in the vehicle
when you get out. Carry it with you.
•Even if you are not carrying the smart entry remote,
you can lock/unlock the doors while someone else
with the remote is within range.
•The door may be locked or unlocked if the door
handle is covered with wate r in heavy rain or in a
car wash if the smart entry remote is within range.
•If you grip a front door ha ndle or touch a door lock
sensor wearing gloves, the door sensor may be
slow to respond or may no t respond by locking or
unlocking the doors.
•After locking the door, you have up to two seconds
during which you can pull the door handle to
confirm whether the door is locked. If you need to
unlock the door immediately after locking it, wait
at least two seconds befo re gripping the handle,
otherwise the door will not unlock.
Door Lock
Sensor
18 ACCORD HYBRID-31TWA6000.book 168 ページ ２０１８年１月３０日　火曜日　午後７時３８分

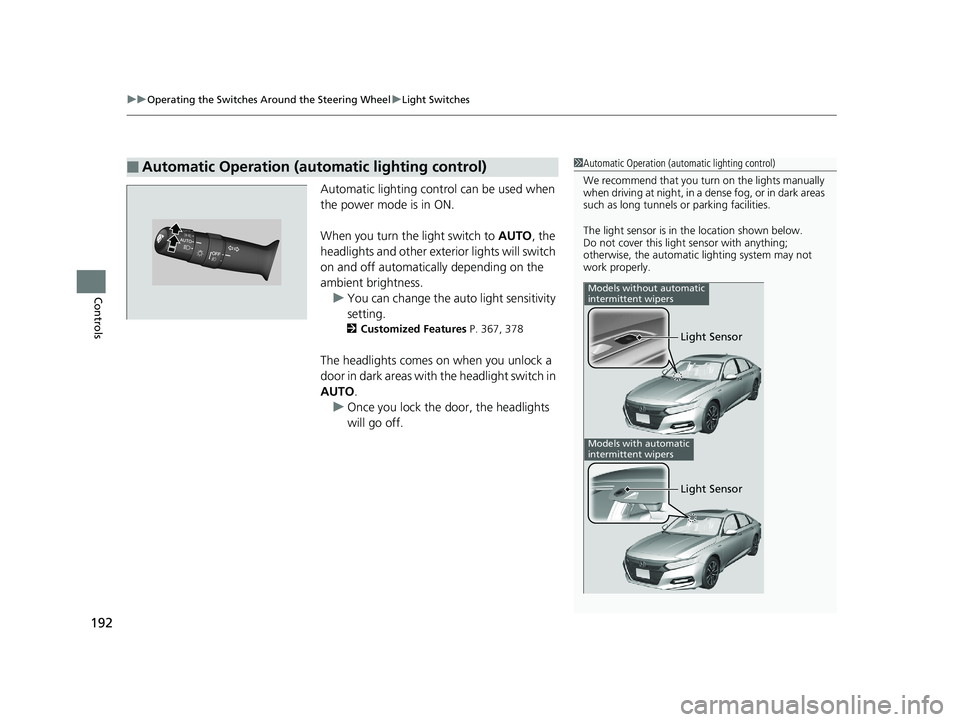

uuOperating the Switches Around the Steering Wheel uLight Switches
192
Controls
Automatic lighting control can be used when
the power mode is in ON.
When you turn the light switch to AUTO, the
headlights and other exterior lights will switch
on and off automatically depending on the
ambient brightness. u You can change the au to light sensitivity
setting.
2 Customized Features P. 367, 378
The headlights comes on when you unlock a
door in dark areas with the headlight switch in
AUTO.
u Once you lock the door, the headlights
will go off.
■Automatic Operation (automatic lighting control)1Automatic Operation (aut omatic lighting control)
We recommend that you tu rn on the lights manually
when driving at night, in a dense fog, or in dark areas
such as long tunnels or parking facilities.
The light sensor is in the location shown below.
Do not cover this light sensor with anything;
otherwise, the automatic lighting system may not
work properly.
Light Sensor
Light Sensor
Models without automatic
intermittent wipers
Models with automatic
intermittent wipers
18 ACCORD HYBRID-31TWA6000.book 192 ページ ２０１８年１月３０日　火曜日　午後７時３８分

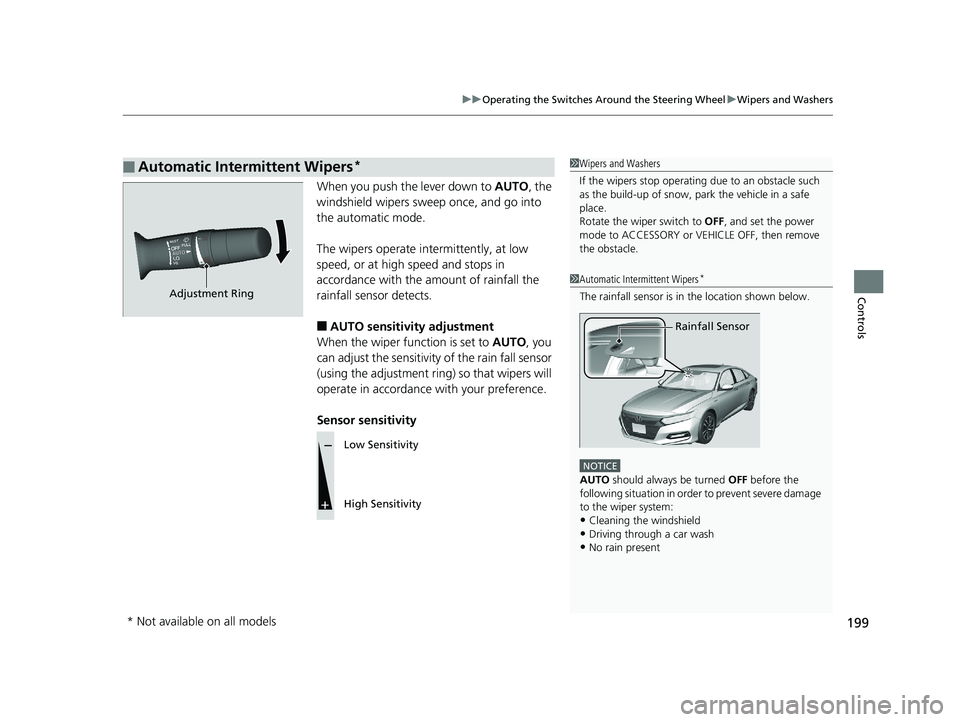

199
uuOperating the Switches Around the Steering Wheel uWipers and Washers
Controls
When you push the lever down to AUTO, the
windshield wipers sweep once, and go into
the automatic mode.
The wipers operate intermittently, at low
speed, or at high speed and stops in
accordance with the amount of rainfall the
rainfall sensor detects.
■AUTO sensitivity adjustment
When the wiper function is set to AUTO, you
can adjust the sensitivity of the rain fall sensor
(using the adjustment ring) so that wipers will
operate in accordance with your preference.
Sensor sensitivity
■Automatic Intermittent Wipers*1 Wipers and Washers
If the wipers st op operating due to an obstacle such
as the build-up of snow, park the vehicle in a safe
place.
Rotate the wiper switch to OFF, and set the power
mode to ACCESSORY or VEHICLE OFF, then remove
the obstacle.
1 Automatic Intermittent Wipers*
The rainfall sensor is in the location shown below.
NOTICE
AUTO should always be turned OFF before the
following situation in order to prevent severe damage
to the wiper system:
•Cleaning the windshield
•Driving through a car wash•No rain present
Rainfall Sensor
Adjustment Ring
Low Sensitivity
High Sensitivity
* Not available on all models
18 ACCORD HYBRID-31TWA6000.book 199 ページ ２０１８年１月３０日　火曜日　午後７時３８分

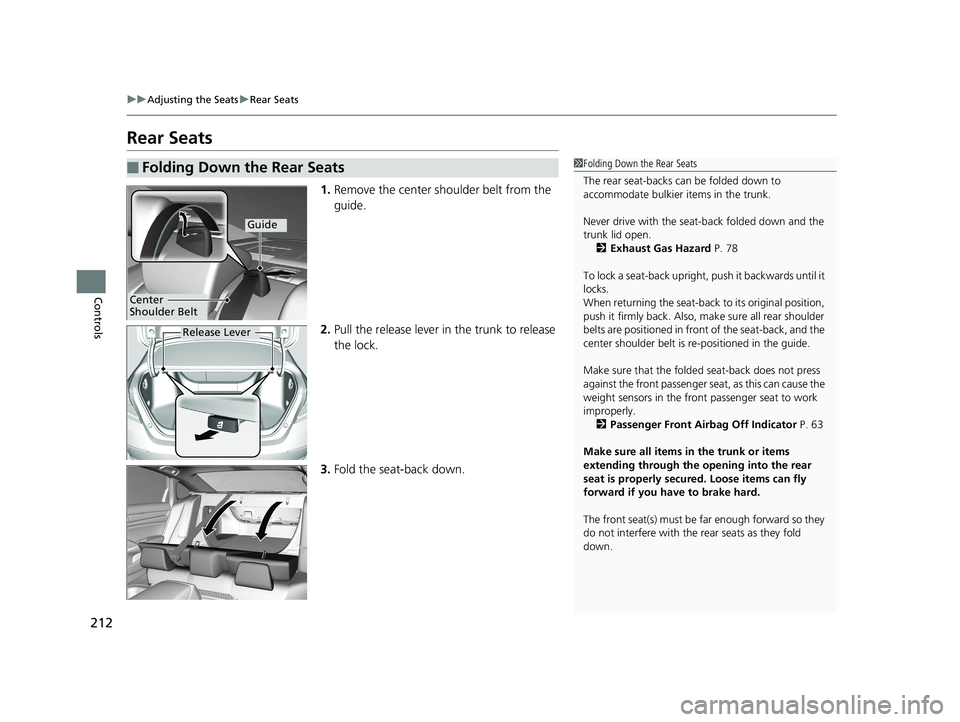

212
uuAdjusting the Seats uRear Seats
Controls
Rear Seats
1. Remove the center shoulder belt from the
guide.
2. Pull the release lever in the trunk to release
the lock.
3. Fold the seat-back down.
■Folding Down the Rear Seats1Folding Down the Rear Seats
The rear seat-backs can be folded down to
accommodate bulkier items in the trunk.
Never drive with the seat-back folded down and the
trunk lid open. 2 Exhaust Gas Hazard P. 78
To lock a seat-back upright, push it backwards until it
locks.
When returning the seat-back to its original position,
push it firmly back. Also, m ake sure all rear shoulder
belts are positioned in front of the seat-back, and the
center shoulder belt is re -positioned in the guide.
Make sure that the folded seat-back does not press
against the front passenger se at, as this can cause the
weight sensors in the front passenger seat to work
improperly.
2 Passenger Front Airbag Off Indicator P. 63
Make sure all items in the trunk or items
extending through the opening into the rear
seat is properly secured. Loose items can fly
forward if you have to brake hard.
The front seat(s) must be far enough forward so they
do not interfere with the rear seats as they fold
down.
Guide
Center
Shoulder Belt
Release Lever
18 ACCORD HYBRID-31TWA6000.book 212 ページ ２０１８年１月３０日　火曜日　午後７時３８分

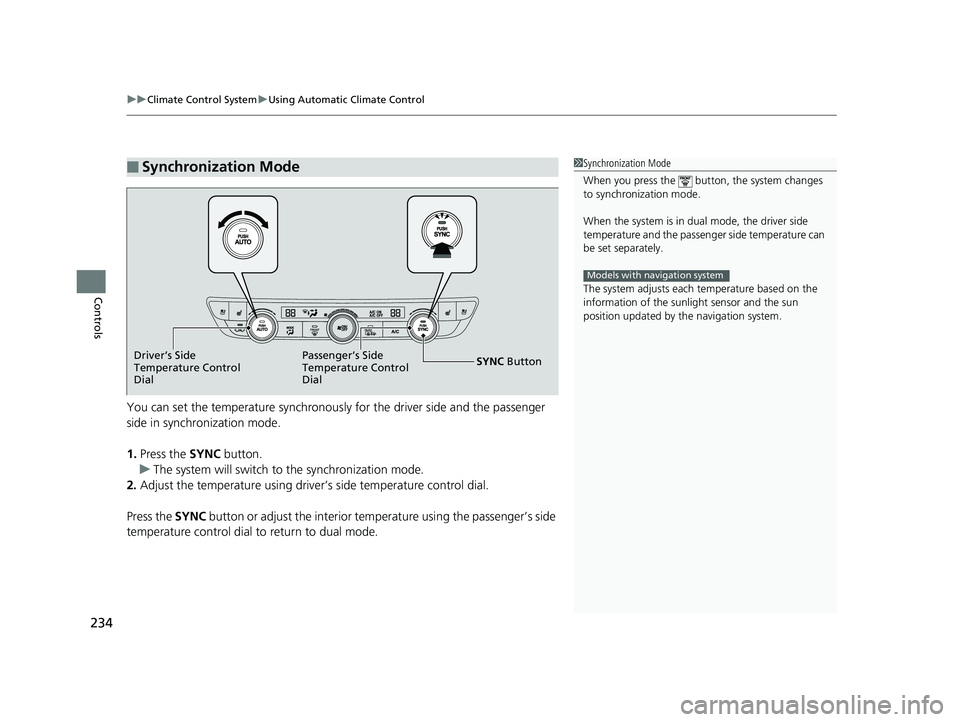

uuClimate Control System uUsing Automatic Climate Control
234
Controls
You can set the temperature synchronously for the driver side and the passenger
side in synchronization mode.
1. Press the SYNC button.
u The system will switch to the synchronization mode.
2. Adjust the temperature using driver ’s side temperature control dial.
Press the SYNC button or adjust the interior temperature using the passenger’s side
temperature control dial to return to dual mode.
■Synchronization Mode1Synchronization Mode
When you press the button, the system changes
to synchronization mode.
When the system is in dua l mode, the driver side
temperature and the passenger side temperature can
be set separately.
The system adjusts each temperature based on the
information of the sunli ght sensor and the sun
position updated by the navigation system.
Models with navigation system
Driver’s Side
Temperature Control
Dial Passenger’s Side
Temperature Control
Dial
SYNC
Button
18 ACCORD HYBRID-31TWA6000.book 234 ページ ２０１８年１月３０日　火曜日　午後７時３８分

235
uuClimate Control System uAutomatic Climate Control Sensors
Controls

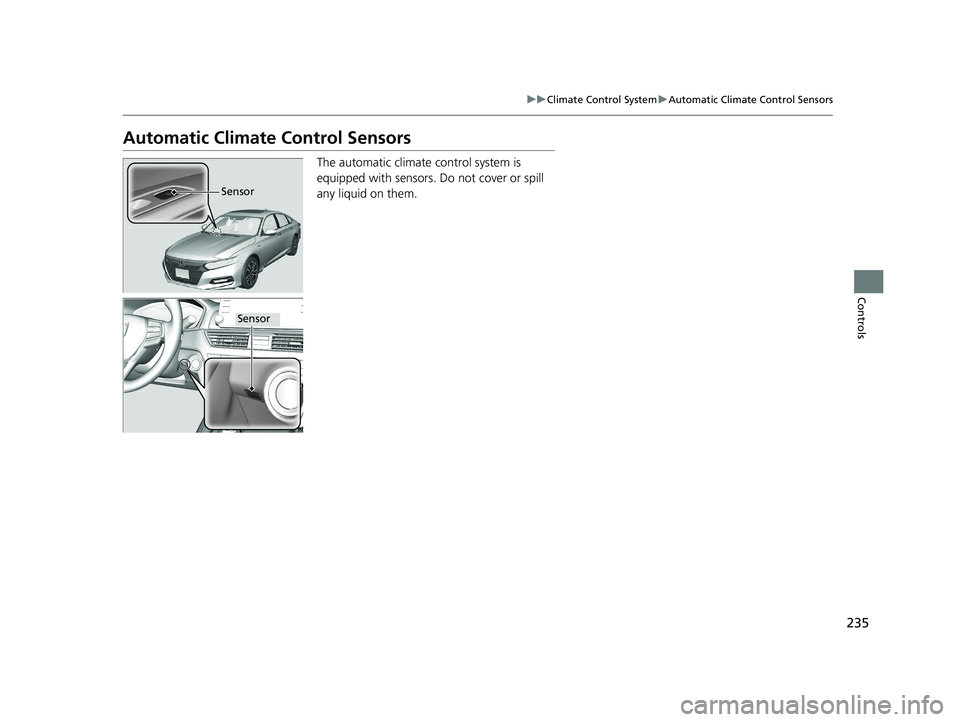

Automatic Climate Control Sensors
The automatic climate control system is
equipped with sensors. Do not cover or spill
any liquid on them.
Sensor
Sensor
18 ACCORD HYBRID-31TWA6000.book 235 ページ ２０１８年１月３０日　火曜日　午後７時３８分

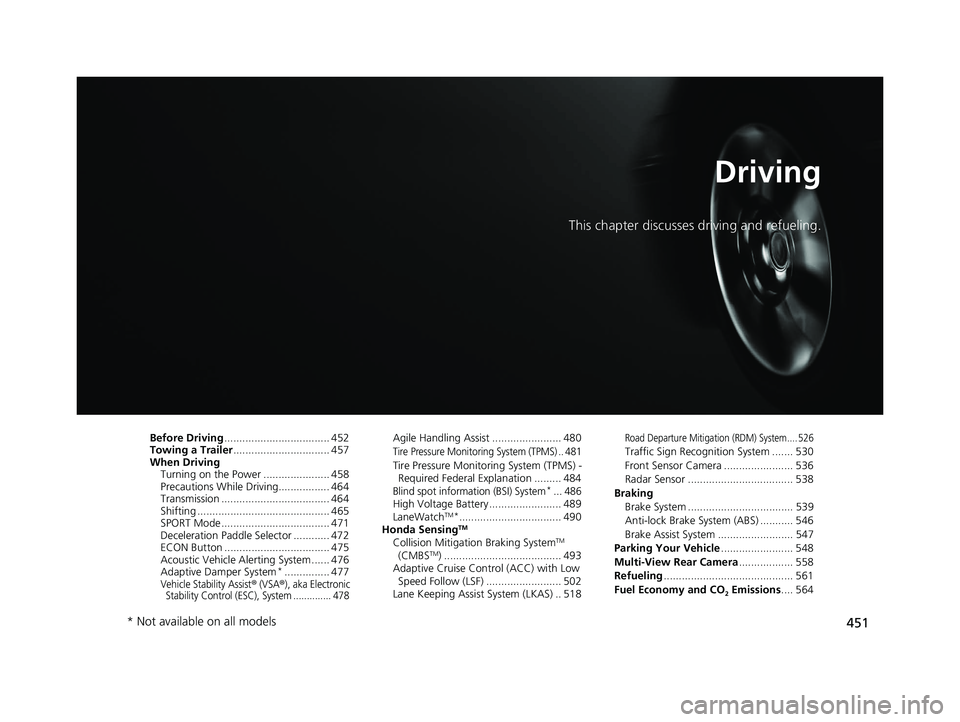

451
Driving
This chapter discusses driving and refueling.
Before Driving................................... 452
Towing a Trailer ................................ 457
When Driving Turning on the Power ...................... 458
Precautions While Driving................. 464
Transmission .................................... 464
Shifting ............................................ 465
SPORT Mode.................................... 471
Deceleration Paddle Selector ............ 472
ECON Button ................................... 475
Acoustic Vehicle Al erting System ...... 476
Adaptive Damper System
*............... 477Vehicle Stability Assist® (VSA®), aka Electronic
Stability Control (ESC), System .............. 478
Agile Handling Assist ....................... 480
Tire Pressure Monitoring System (TPMS) .. 481
Tire Pressure Monitoring System (TPMS) -
Required Federal Explanation ......... 484
Blind spot information (BSI) System*... 486High Voltage Battery ........................ 489
LaneWatchTM*.................................. 490
Honda SensingTM
Collision Mitigati on Braking SystemTM
(CMBSTM) ....................................... 493
Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF) ......................... 502
Lane Keeping Assist System (LKAS) .. 518
Road Departure Mitigation (RDM) System.... 526
Traffic Sign Recognition System ....... 530
Front Sensor Camera ....................... 536
Radar Sensor ................................... 538
Braking Brake System ................................... 539
Anti-lock Brake System (ABS) ........... 546
Brake Assist System ......................... 547
Parking Your Vehicle ........................ 548
Multi-View Rear Camera .................. 558
Refueling ........................................... 561
Fuel Economy and CO
2 Emissions .... 564
* Not available on all models
18 ACCORD HYBRID-31TWA6000.book 451 ページ ２０１８年１月３０日　火曜日　午後７時３８分

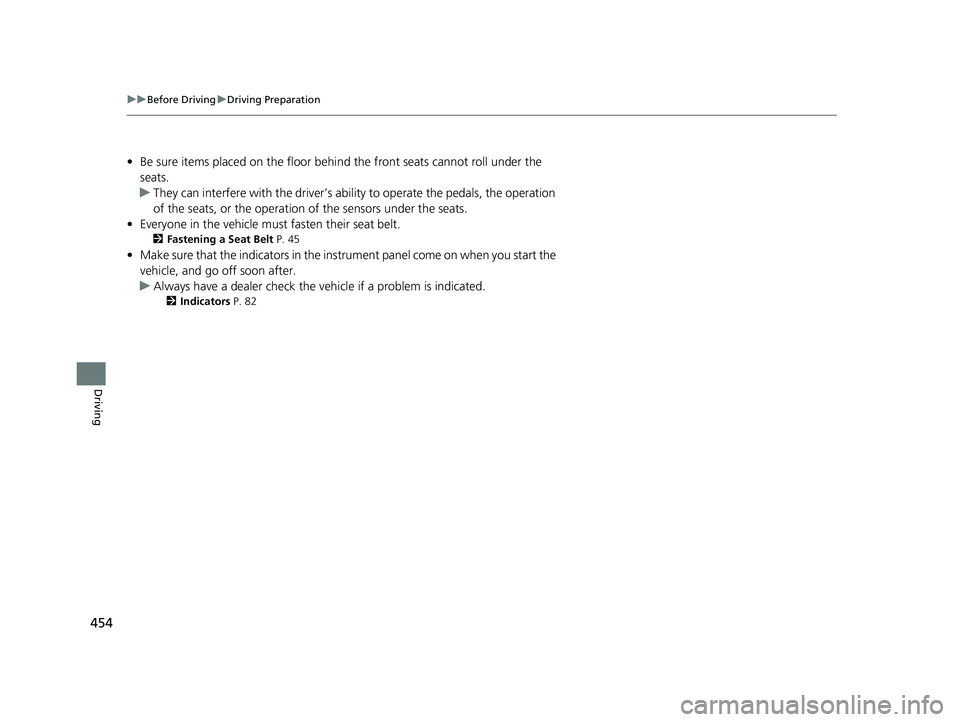

454
uuBefore Driving uDriving Preparation
Driving
• Be sure items placed on the floor behind the front seats cannot roll under the
seats.
u They can interfere with the driver’s ability to operate the pedals, the operation
of the seats, or the operation of the sensors under the seats.
• Everyone in the vehicle must fasten their seat belt.
2Fastening a Seat Belt P. 45
•Make sure that the indicators in the ins trument panel come on when you start the
vehicle, and go off soon after.
u Always have a dealer check the vehicle if a problem is indicated.
2 Indicators P. 82
18 ACCORD HYBRID-31TWA6000.book 454 ページ ２０１８年１月３０日　火曜日　午後７時３８分

486
uuWhen Driving uBlind spot information (BSI) System*
Driving
Blind spot information (BSI) System*
Is designed to detect vehicles in specified alert zones adjacent to your vehicle,
particularly in harder to see areas commonly known as “blind spots.”
When the system detects vehi cles approaching from behind in adjacent lanes, the
appropriate indicator comes on for a few se conds, providing assistance when you
change lanes.
■How the system works
1 Blind spot inform ation (BSI) System*
Important Safety Reminder
Like all assistance systems, BSI has limitations. Over
reliance on BSI may result in a collision.
The BSI alert indicator may not come on under the
following conditions:
•A vehicle does not stay in the alert zone for more
than two seconds.
•A vehicle is parked in a side lane.
•The speed difference betw een your vehicle and the
vehicle you are passing is greater than 6 mph (10
km/h).
•An object not detected by the radar sensors
approaches or passes your vehicle.
•A vehicle running in th e adjacent lane is a
motorcycle or other small vehicle.
3WARNING
Failure to visually confirm that it is safe to
change lanes before doing so may result in
a crash and serious injury or death.
Do not rely only on the blind spot
information system wh en changing lanes.
Always look in your mi rrors, to either side
of your vehicle, and behind you for other
vehicles before changing lanes.
Alert zone range
A: Approx. 1.6 ft. (0.5 m)
B: Approx. 10 ft. (3 m)
C: Approx. 10 ft. (3 m) Radar Sensors:
underneath
the rear
bumper
corners
Alert Zone
A
B
C
●The transmission is in (D.●Your vehicle speed is
between 20 mph (32 km/h)
and 100 mph (160 km/h)
* Not available on all models
18 ACCORD HYBRID-31TWA6000.book 486 ページ ２０１８年１月３０日　火曜日　午後７時３８分
