HONDA ACCORD SEDAN 2018 Owner's Manual (in English)

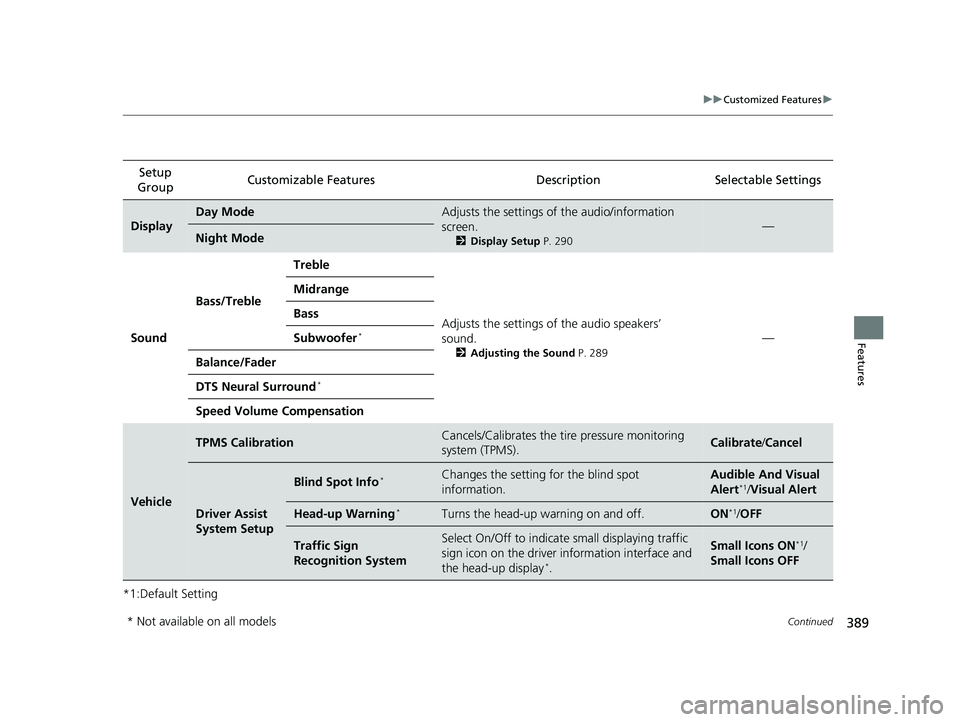

389
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Display
Day ModeAdjusts the settings of the audio/information
screen.
2Display Setup P. 290
—Night Mode
Sound Bass/Treble Treble
Adjusts the settings of the audio speakers’
sound.
2Adjusting the Sound P. 289
—
Midrange
Bass
Subwoofer*
Balance/Fader
DTS Neural Surround
*
Speed Volume Compensation
Vehicle
TPMS CalibrationCancels/Calibrates the tire pressure monitoring
system (TPMS).Calibrate
/Cancel
Driver Assist
System Setup
Blind Spot Info*Changes the setting for the blind spot
information.Audible And Visual
Alert*1/Visual Alert
Head-up Warning*Turns the head-up wa rning on and off.ON*1/OFF
Traffic Sign
Recognition SystemSelect On/Off to indicate small displaying traffic
sign icon on the driver information interface and
the head-up display
*.
Small Icons ON*1/
Small Icons OFF
* Not available on all models
18 ACCORD HYBRID-31TWA6000.book 389 ページ ２０１８年１月３０日　火曜日　午後７時３８分

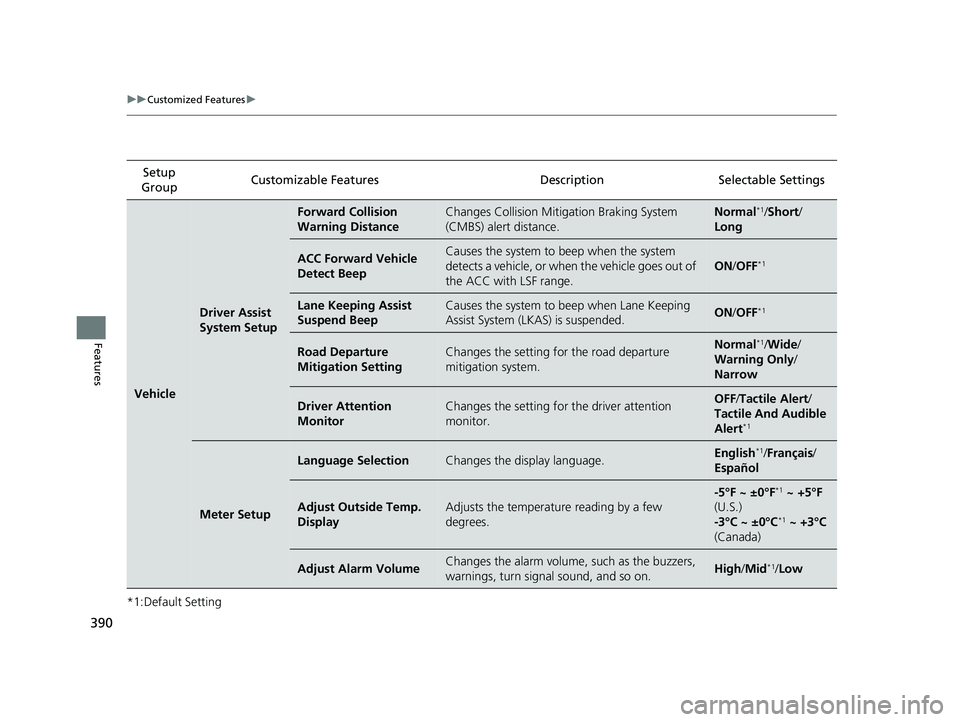

390
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
Vehicle
Driver Assist
System Setup
Forward Collision
Warning DistanceChanges Collision Mitigation Braking System
(CMBS) alert distance.Normal*1/
Short /
Long
ACC Forward Vehicle
Detect BeepCauses the system to beep when the system
detects a vehicle, or when the vehicle goes out of
the ACC with LSF range.
ON /OFF*1
Lane Keeping Assist
Suspend BeepCauses the system to b eep when Lane Keeping
Assist System (LKAS) is suspended.ON /OFF*1
Road Departure
Mitigation SettingChanges the setting for the road departure
mitigation system.Normal*1/Wide /
Warning Only /
Narrow
Driver Attention
MonitorChanges the setting for the driver attention
monitor.OFF /Tactile Alert /
Tactile And Audible
Alert
*1
Meter Setup
Language SelectionChanges the display language.English*1/ Français /
Español
Adjust Outside Temp.
DisplayAdjusts the temperature reading by a few
degrees.
-5°F ~ ±0°F*1 ~ +5°F
(U.S.)
-3°C ~ ±0°C
*1 ~ +3°C
(Canada)
Adjust Alarm VolumeChanges the alarm volume, such as the buzzers,
warnings, turn signal sound, and so on.High /Mid*1/Low
18 ACCORD HYBRID-31TWA6000.book 390 ページ ２０１８年１月３０日　火曜日　午後７時３８分

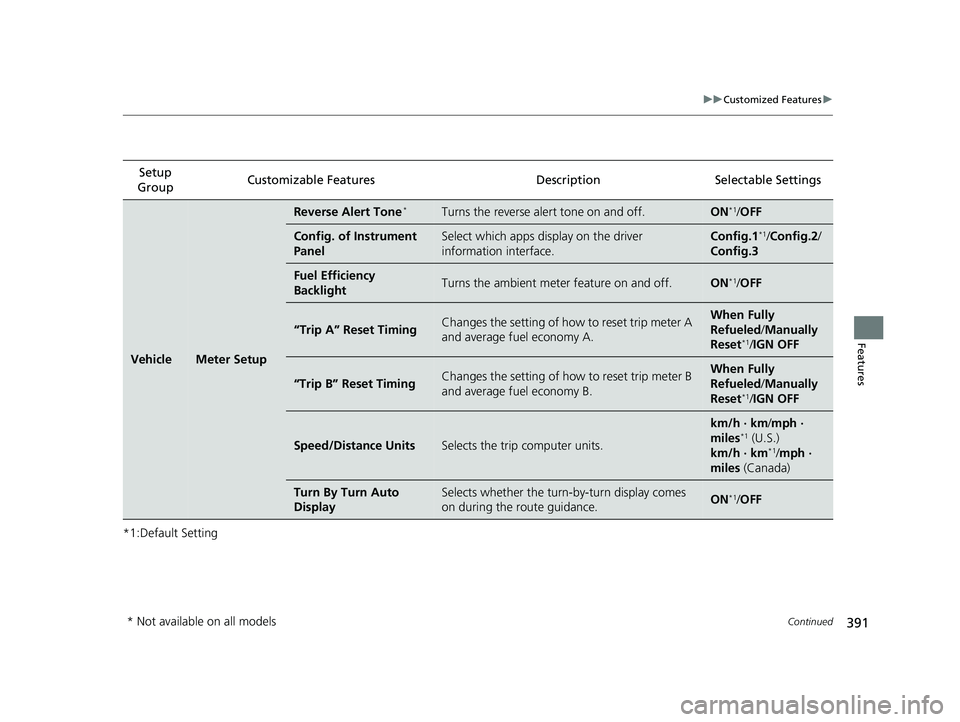

391
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
VehicleMeter Setup
Reverse Alert Tone*Turns the reverse alert tone on and off.ON*1/OFF
Config. of Instrument
PanelSelect which apps display on the driver
information interface.Config.1*1/ Config.2 /
Config.3
Fuel Efficiency
BacklightTurns the ambient meter feature on and off.ON*1/ OFF
“Trip A” Reset TimingChanges the setting of how to reset trip meter A
and average fuel economy A.When Fully
Refueled /Manually
Reset
*1/ IGN OFF
“Trip B” Reset TimingChanges the setting of how to reset trip meter B
and average fuel economy B.When Fully
Refueled /Manually
Reset
*1/ IGN OFF
Speed/Distance UnitsSelects the trip computer units.
km/h · km /mph ·
miles*1 (U.S.)
km/h · km*1/ mph ·
miles (Canada)
Turn By Turn Auto
DisplaySelects whether the turn -by-turn display comes
on during the route guidance.ON*1/ OFF
* Not available on all models
18 ACCORD HYBRID-31TWA6000.book 391 ページ ２０１８年１月３０日　火曜日　午後７時３８分

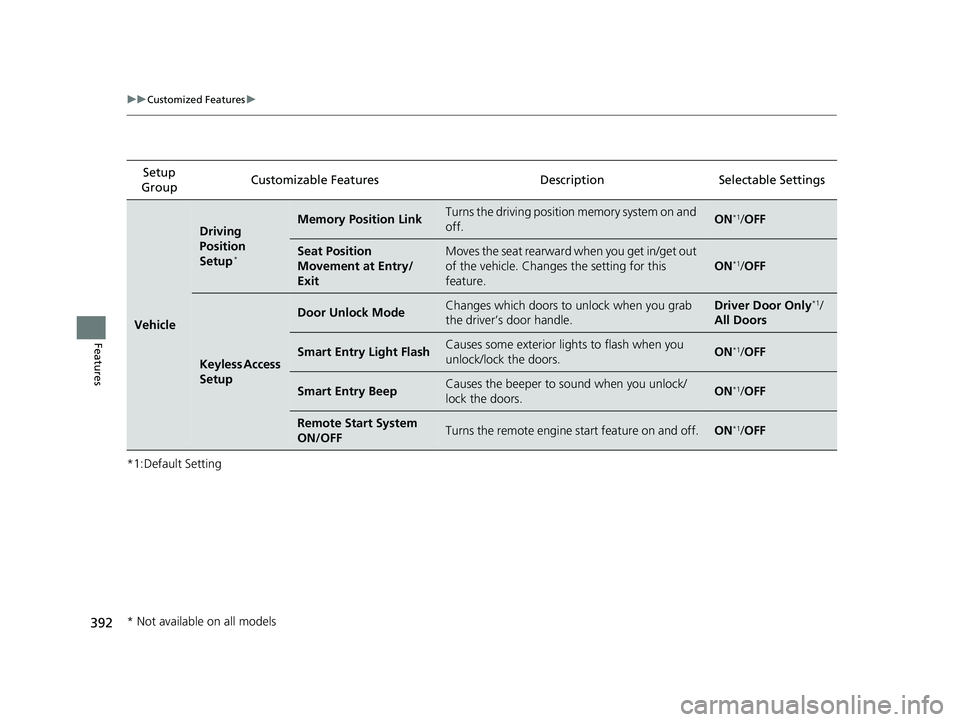

392
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Descri
ption Selectable Settings
Vehicle
Driving
Position
Setup
*
Memory Position LinkTurns the driving position memory system on and
off.ON*1/OFF
Seat Position
Movement at Entry/
ExitMoves the seat rearward when you get in/get out
of the vehicle. Change s the setting for this
feature.
ON*1/ OFF
Keyless Access
Setup
Door Unlock ModeChanges which doors to unlock when you grab
the driver’s door handle.Driver Door Only*1/
All Doors
Smart Entry Light FlashCauses some exterior lights to flash when you
unlock/lock the doors.ON*1/ OFF
Smart Entry BeepCauses the beeper to sound when you unlock/
lock the doors.ON*1/OFF
Remote Start System
ON/OFFTurns the remote engine start feature on and off.ON*1/OFF
* Not available on all models
18 ACCORD HYBRID-31TWA6000.book 392 ページ ２０１８年１月３０日　火曜日　午後７時３８分

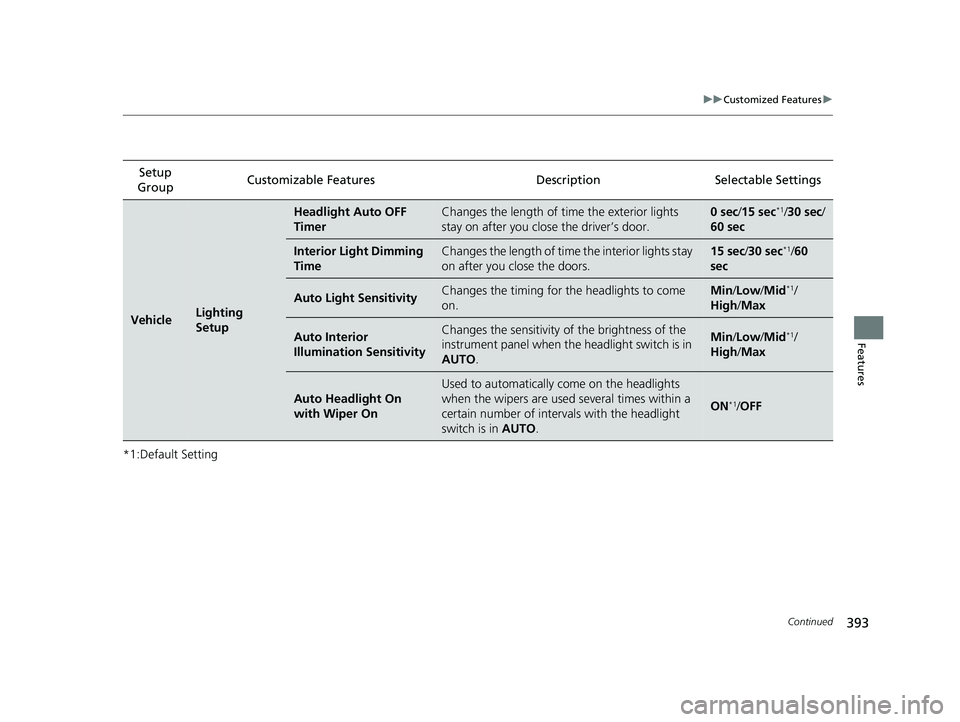

393
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Descri
ption Selectable Settings
VehicleLighting
Setup
Headlight Auto OFF
TimerChanges the length of time the exterior lights
stay on after you close the driver’s door.0 sec/15 sec*1/30 sec /
60 sec
Interior Light Dimming
TimeChanges the length of time the interior lights stay
on after you close the doors.15 sec /30 sec*1/60
sec
Auto Light SensitivityChanges the timing for the headlights to come
on.Min/Low/Mid*1/
High /Max
Auto Interior
Illumination SensitivityChanges the sensitivity of the brightness of the
instrument panel when the headlight switch is in
AUTO .Min/Low/Mid*1/
High /Max
Auto Headlight On
with Wiper On
Used to automatically co me on the headlights
when the wipers are used several times within a
certain number of intervals with the headlight
switch is in AUTO.
ON*1/OFF
18 ACCORD HYBRID-31TWA6000.book 393 ページ ２０１８年１月３０日　火曜日　午後７時３８分

394
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
Vehicle
Door/Window
Setup
Auto Door LockChanges the setting for
the automatic locking
feature.OFF /With Vehicle
Speed*1/ Shift From P
Key and Remote
Unlock ModeSets up either the driver’s door or all doors to
unlock on the first push of the remote or built-in
key.Driver Door Only*1/
All Doors
Keyless Lock Answer
BackLOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds.ON*1/ OFF
Security Relock Timer
Changes the time it takes for the doors to relock
and the security system to set after you unlock
the vehicle withou t opening any door.30 sec*1/60 sec/ 90
sec
Auto Door UnlockChanges the setting for when the doors unlock
automatically.
OFF /All Doors When
Driver’s Door
Opens
*1/ All Doors
When Shifted to
Park /All Doors with
IGN OFF
Walk Away Auto LockChanges the settings for the auto lock function
when you walk away from the vehicle.ON /OFF*1
Maintenance
Info.Select Reset ItemsResets the engine oil life display when you have
performed the maintenance service.—
18 ACCORD HYBRID-31TWA6000.book 394 ページ ２０１８年１月３０日　火曜日　午後７時３８分

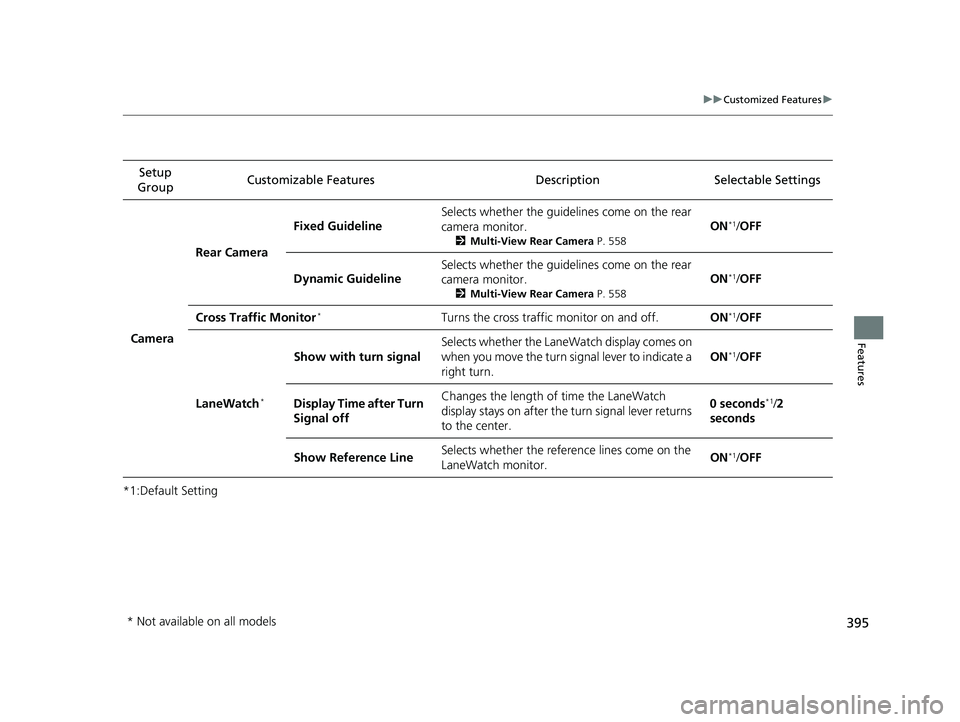

395
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
Camera Rear Camera
Fixed Guideline
Selects whether the guidelines come on the rear
camera monitor.
2
Multi-View Rear Camera P. 558
ON*1/OFF
Dynamic Guideline Selects whether the guidelines come on the rear
camera monitor.
2
Multi-View Rear Camera P. 558
ON*1/OFF
Cross Traffic Monitor
*Turns the cross traffic monitor on and off. ON*1/OFF
LaneWatch
*
Show with turn signal Selects whether the LaneWatch display comes on
when you move the turn signal lever to indicate a
right turn. ON*1/
OFF
Display Time after Turn
Signal off Changes the length of time the LaneWatch
display stays on after the turn signal lever returns
to the center. 0 seconds
*1/
2
seconds
Show Reference Line Selects whether the reference lines come on the
LaneWatch monitor.
ON
*1/
OFF
* Not available on all models
18 ACCORD HYBRID-31TWA6000.book 395 ページ ２０１８年１月３０日　火曜日　午後７時３８分

396
uuCustomized Features uDefaulting All the Settings
Features

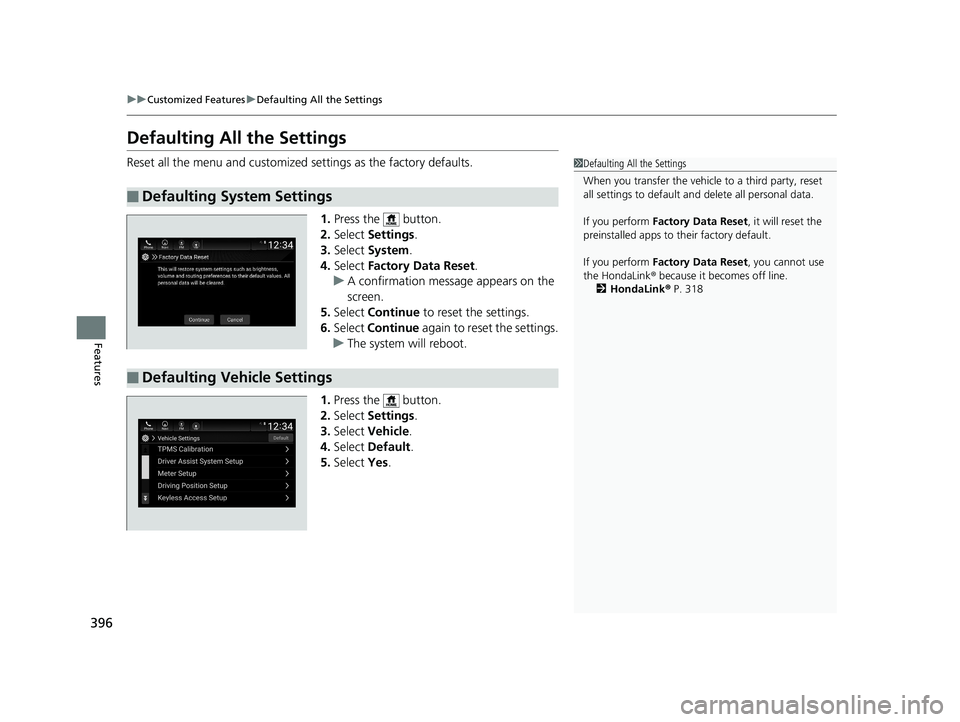

Defaulting All the Settings
Reset all the menu and customized settings as the factory defaults.
1. Press the button.
2. Select Settings .
3. Select System .
4. Select Factory Data Reset .
u A confirmation message appears on the
screen.
5. Select Continue to reset the settings.
6. Select Continue again to reset the settings.
u The system will reboot.
1. Press the button.
2. Select Settings .
3. Select Vehicle .
4. Select Default .
5. Select Yes.
■Defaulting System Settings
1Defaulting All the Settings
When you transfer the vehicle to a third party, reset
all settings to default a nd delete all personal data.
If you perform Factory Data Reset , it will reset the
preinstalled apps to their factory default.
If you perform Factory Data Reset , you cannot use
the HondaLink ® because it becomes off line.
2 HondaLink ® P. 318
■Defaulting Vehicle Settings
18 ACCORD HYBRID-31TWA6000.book 396 ページ ２０１８年１月３０日　火曜日　午後７時３８分

397
Features

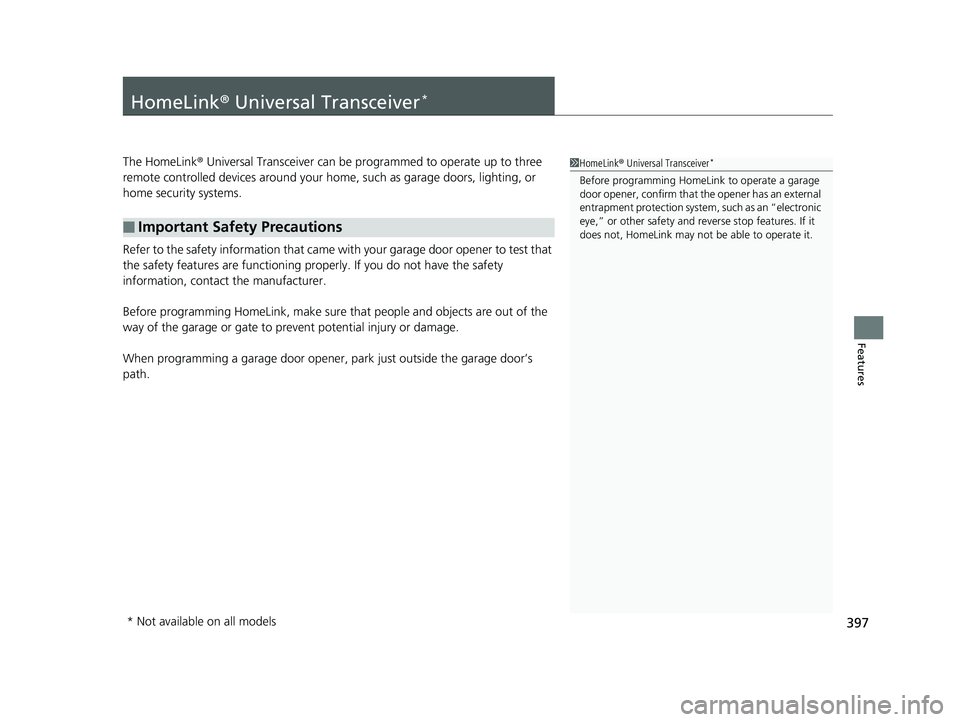

HomeLink® Universal Transceiver*
The HomeLink ® Universal Transceiver can be pr ogrammed to operate up to three
remote controlled devices around your hom e, such as garage doors, lighting, or
home security systems.
Refer to the safety information that came wi th your garage door opener to test that
the safety features are functioning prope rly. If you do not have the safety
information, contact the manufacturer.
Before programming HomeLink, make sure th at people and objects are out of the
way of the garage or gate to prevent potential injury or damage.
When programming a garage door opener, park just outside the garage door’s
path.
■Important Safety Precautions
1 HomeLink ® Universal Transceiver*
Before programming HomeLi nk to operate a garage
door opener, confirm that the opener has an external
entrapment protection system, such as an “electronic
eye,” or other safety and re verse stop features. If it
does not, HomeLink may not be able to operate it.
* Not available on all models
18 ACCORD HYBRID-31TWA6000.book 397 ページ ２０１８年１月３０日　火曜日　午後７時３８分

398
uuHomeLink ® Universal Transceiver*u Training HomeLink
Features

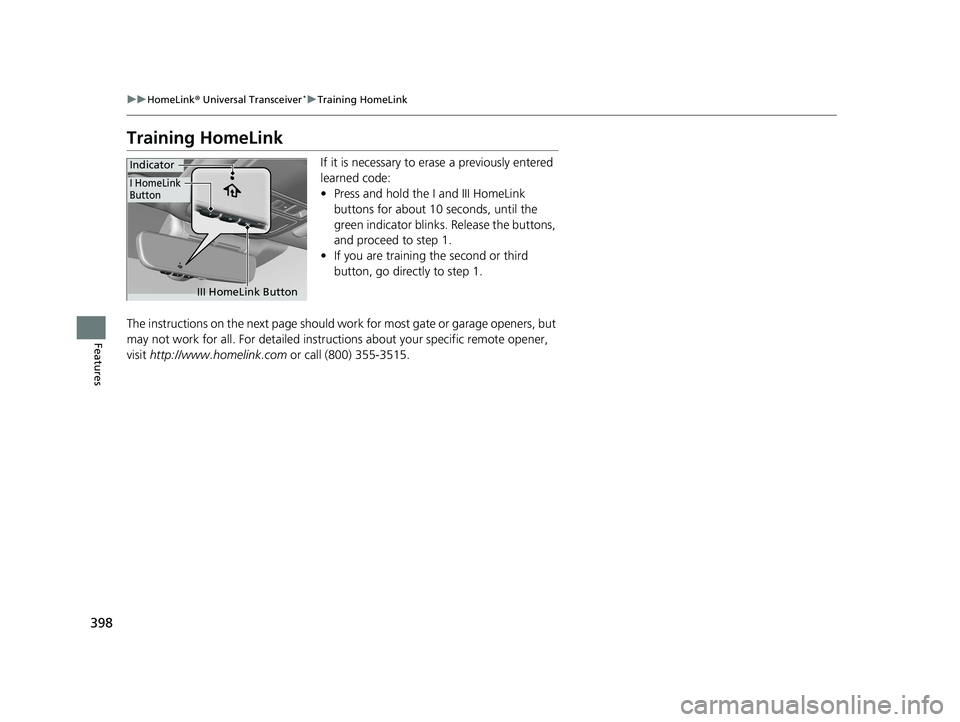

Training HomeLink
If it is necessary to erase a previously entered
learned code:
• Press and hold the I and III HomeLink
buttons for about 10 seconds, until the
green indicator blinks. Release the buttons,
and proceed to step 1.
• If you are training the second or third
button, go directly to step 1.
The instructions on the next page should wo rk for most gate or garage openers, but
may not work for all. For detailed instruct ions about your specific remote opener,
visit http://www.homelink.com or call (800) 355-3515.Indicator
I HomeLink
Button
III HomeLink Button
18 ACCORD HYBRID-31TWA6000.book 398 ページ ２０１８年１月３０日　火曜日　午後７時３８分
