573
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
Maintenance Minder Message
System Message
Indicator
Sub Items
Main Item
U.S. models
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A •Replace engine oil*1
B•Replace engine oil*1 and oil filter
• Inspect front and rear brakes
• Check expiry date for tire repair kit bottle
• Inspect tie rod ends, steering gearbox, and boots
• Inspect suspension components
• Inspect driveshaft boots
• Inspect brake hoses and li nes (Including ABS/VSA®)
• Inspect all fluid levels and condition of fluids
• Inspect exhaust system
#
•Inspect fuel lines and connections#
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures. This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 47,500 miles (76,000 kilometers) or 3 years.
*5: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
CODEMaintenance Sub Items
1 •Rotate tires
2•Replace air cleaner element*2
•Replace dust and pollen filter*3
3 •Replace transmission fluid*4
4•Replace spark plugs
• Inspect valve clearance
5 •Replace engine coolant
7•Replace brake fluid*5
18 ACCORD HYBRID-31TWA6000.book 573 ページ ２０１８年１月３０日　火曜日　午後７時３８分

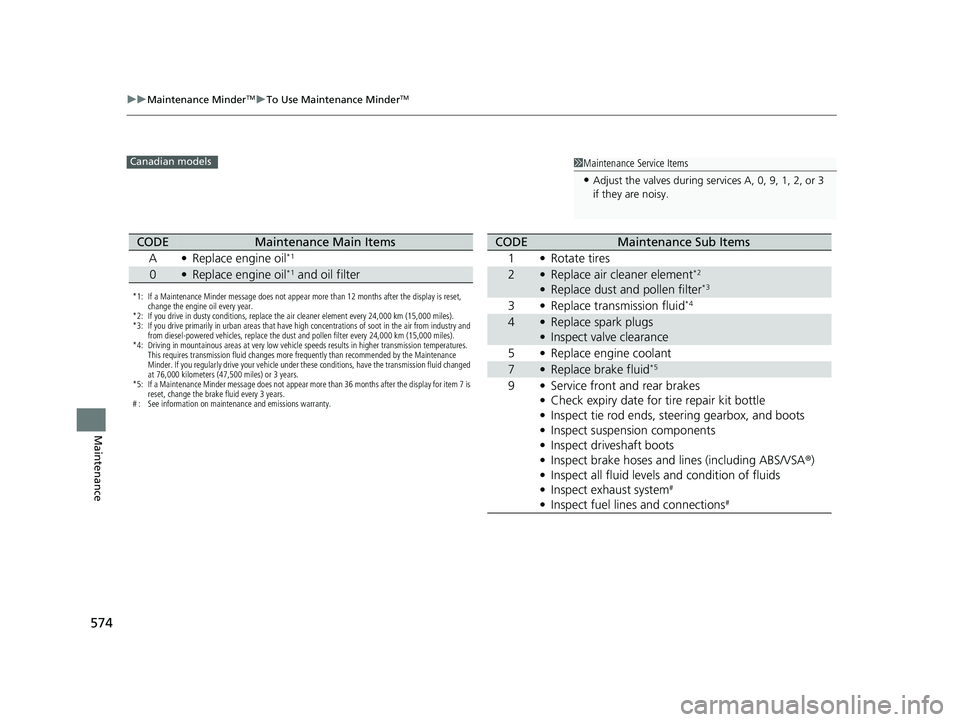

574
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
1Maintenance Service Items
•Adjust the valves during services A, 0, 9, 1, 2, or 3
if they are noisy.
Canadian models
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
*2: If you drive in dusty conditions, replace the air cleaner element every 24,000 km (15,000 miles).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel-powered vehicles, replace the dust and pollen filter every 24,000 km (15,000 miles).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures. This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
at 76,000 kilometers (47,500 miles) or 3 years.
*5: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A •Replace engine oil*1
0•Replace engine oil*1 and oil filter
CODEMaintenance Sub Items
1 •Rotate tires
2•Replace air cleaner element*2
•Replace dust and pollen filter*3
3 •Replace transmission fluid*4
4•Replace spark plugs
• Inspect valve clearance
5 •Replace engine coolant
7•Replace brake fluid*5
9 •Service front and rear brakes
• Check expiry date for tire repair kit bottle
• Inspect tie rod ends, steering gearbox, and boots
• Inspect suspension components
• Inspect driveshaft boots
• Inspect brake hoses and lines (including ABS/VSA ®)
• Inspect all fluid levels and condition of fluids
• Inspect exhaust system
#
•Inspect fuel lines and connections#
18 ACCORD HYBRID-31TWA6000.book 574 ページ ２０１８年１月３０日　火曜日　午後７時３８分

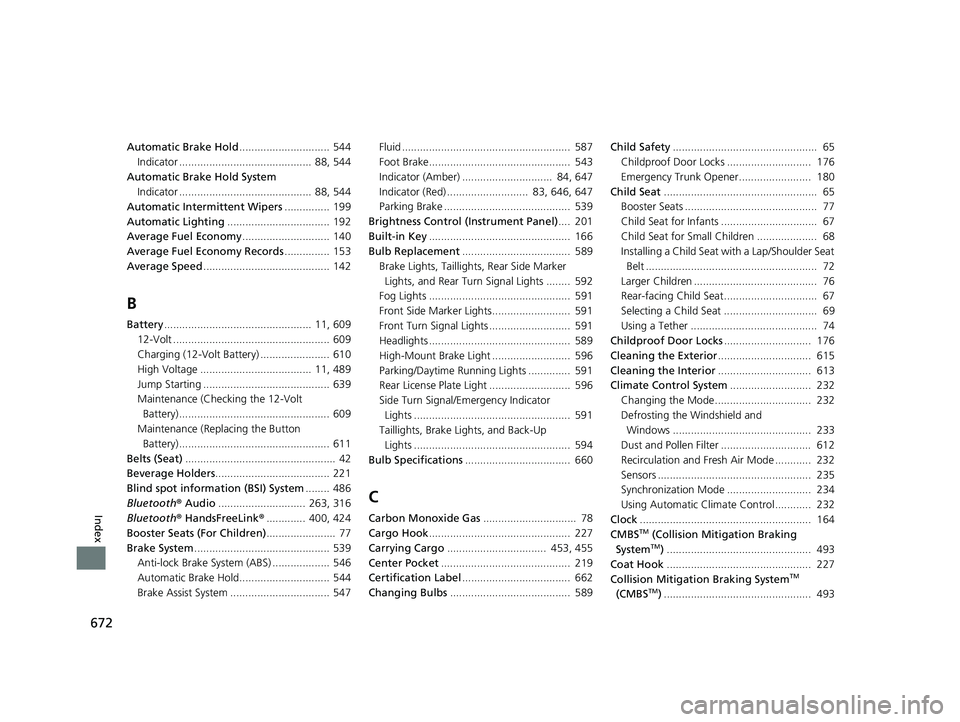

672
Index
Automatic Brake Hold.............................. 544
Indicator ............................................ 88, 544
Automatic Brake Hold System Indicator ............................................ 88, 544
Automatic Intermittent Wipers ............... 199
Automatic Lighting .................................. 192
Average Fuel Economy ............................. 140
Average Fuel Economy Records ............... 153
Average Speed .......................................... 142
B
Battery................................................. 11, 609
12-Volt .................................................... 609
Charging (12-Volt Battery) ....................... 610
High Voltage ..................................... 11, 489
Jump Starting .......................................... 639
Maintenance (Checking the 12-Volt Battery) .................................................. 609
Maintenance (Replacing the Button Battery) .................................................. 611
Belts (Seat) .................................................. 42
Beverage Holders ...................................... 221
Blind spot information (BSI) System ........ 486
Bluetooth ® Audio ............................. 263, 316
Bluetooth ® HandsFreeLink ®............. 400, 424
Booster Seats (For Children) ....................... 77
Brake System ............................................. 539
Anti-lock Brake System (ABS) ................... 546
Automatic Brake Hold.............................. 544
Brake Assist System ................................. 547 Fluid ........................................................ 587
Foot Brake............................................... 543
Indicator (Amber) .............................. 84, 647
Indicator (Red) ........................... 83, 646, 647
Parking Brake .......................................... 539
Brightness Control (Instrument Panel) .... 201
Built-in Key ............................................... 166
Bulb Replacement .................................... 589
Brake Lights, Taillights, Rear Side Marker
Lights, and Rear Turn Signal Lights ........ 592
Fog Lights ............................................... 591
Front Side Marker Lights.......................... 591
Front Turn Signal Lights ........................... 591
Headlights ............................................... 589
High-Mount Brake Light .......................... 596
Parking/Daytime Running Lights .............. 591
Rear License Plate Light ........................... 596
Side Turn Signal/Emergency Indicator Lights .................................................... 591
Taillights, Brake Lights, and Back-Up Lights .................................................... 594
Bulb Specifications ................................... 660
C
Carbon Monoxide Gas ............................... 78
Cargo Hook ............................................... 227
Carrying Cargo ................................. 453, 455
Center Pocket ........................................... 219
Certification Label .................................... 662
Changing Bulbs ........................................ 589 Child Safety
................................................ 65
Childproof Door Locks ............................ 176
Emergency Trunk Opener........................ 180
Child Seat ................................................... 65
Booster Seats ............................................ 77
Child Seat for Infants ................................ 67
Child Seat for Small Children .................... 68
Installing a Child Seat wi th a Lap/Shoulder Seat
Belt ......................................................... 72
Larger Children ......................................... 76
Rear-facing Child Seat............................... 67
Selecting a Child Seat ............................... 69
Using a Tether .......................................... 74
Childproof Door Locks ............................. 176
Cleaning the Exterior ............................... 615
Cleaning the Interior ............................... 613
Climate Control System ........................... 232
Changing the Mode................................ 232
Defrosting the Windshield and Windows .............................................. 233
Dust and Pollen Filter .............................. 612
Recirculation and Fresh Air Mode ............ 232
Sensors ................................................... 235
Synchronization Mode ............................ 234
Using Automatic Climate Control............ 232
Clock ......................................................... 164
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................ 493
Coat Hook ................................................ 227
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 493
18 ACCORD HYBRID-31TWA6000.book 672 ページ ２０１８年１月３０日　火曜日　午後７時３８分

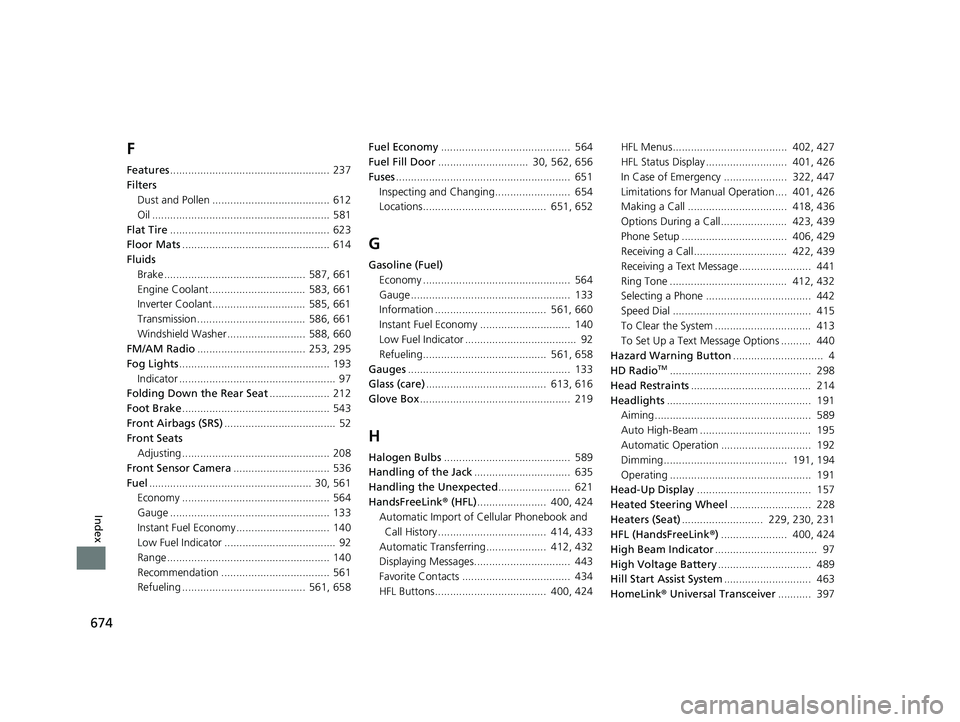

674
Index
F
Features..................................................... 237
Filters Dust and Pollen ....................................... 612
Oil ........................................................... 581
Flat Tire ..................................................... 623
Floor Mats ................................................. 614
Fluids
Brake ............................................... 587, 661
Engine Coolant ................................ 583, 661
Inverter Coolant............................... 585, 661
Transmission .................................... 586, 661
Windshield Washer .......................... 588, 660
FM/AM Radio .................................... 253, 295
Fog Lights .................................................. 193
Indicator .................................................... 97
Folding Down the Rear Seat .................... 212
Foot Brake ................................................. 543
Front Airbags (SRS) ..................................... 52
Front Seats Adjusting ................................................. 208
Front Sensor Camera ................................ 536
Fuel ...................................................... 30, 561
Economy ................................................. 564
Gauge ..................................................... 133
Instant Fuel Economy ............................... 140
Low Fuel Indicator ..................................... 92
Range ...................................................... 140
Recommendation .................................... 561
Refueling ......................................... 561, 658 Fuel Economy
........................................... 564
Fuel Fill Door .............................. 30, 562, 656
Fuses .......................................................... 651
Inspecting and Changing......................... 654
Locations......................................... 651, 652
G
Gasoline (Fuel) Economy ................................................. 564
Gauge ..................................................... 133
Information ..................................... 561, 660
Instant Fuel Economy .............................. 140
Low Fuel Indicator ..................................... 92
Refueling......................................... 561, 658
Gauges ...................................................... 133
Glass (care) ........................................ 613, 616
Glove Box .................................................. 219
H
Halogen Bulbs .......................................... 589
Handling of the Jack ................................ 635
Handling the Unexpected ........................ 621
HandsFreeLink ® (HFL) ....................... 400, 424
Automatic Import of Ce llular Phonebook and
Call History .................................... 414, 433
Automatic Transferring.................... 412, 432
Displaying Messages................................ 443
Favorite Contacts .................................... 434
HFL Buttons..................................... 400, 424 HFL Menus...................................... 402, 427
HFL Status Display ........................... 401, 426
In Case of Emergency ..................... 322, 447
Limitations for Manual Operation .... 401, 426
Making a Call ................................. 418, 436
Options During a Call...................... 423, 439
Phone Setup ................................... 406, 429
Receiving a Call............................... 422, 439
Receiving a Text Message........................ 441
Ring Tone ....................................... 412, 432
Selecting a Phone ................................... 442
Speed Dial .............................................. 415
To Clear the System ................................ 413
To Set Up a Text Message Options .......... 440
Hazard Warning Button .............................. 4
HD Radio
TM............................................... 298
Head Restraints ........................................ 214
Headlights ................................................ 191
Aiming.................................................... 589
Auto High-Beam ..................................... 195
Automatic Operation .............................. 192
Dimming......................................... 191, 194
Operating ............................................... 191
Head-Up Display ...................................... 157
Heated Steering Wheel ........................... 228
Heaters (Seat) ........................... 229, 230, 231
HFL (HandsFreeLink ®) ...................... 400, 424
High Beam Indicator .................................. 97
High Voltage Battery ............................... 489
Hill Start Assist System ............................. 463
HomeLink ® Universal Transceiver ........... 397
18 ACCORD HYBRID-31TWA6000.book 674 ページ ２０１８年１月３０日　火曜日　午後７時３８分
