open hood HONDA ACCORD SEDAN 2018 Owner's Manual (in English)

Contents
Child Safety P. 65Exhaust Gas Hazard P. 78Safety Labels P. 79
Opening and Closing the Trunk P. 178 Security System P. 181 Opening and Closing the Windows P. 184
Operating the Switches Around the Steering Wheel P. 188 Adjusting the Mirrors P. 206
Interior Lights/Interior Convenience Items P. 217 Climate Control System P. 232
Audio Error Messages P. 340General Information on the Audio System P. 345
Bluetooth ® HandsFreeLink ® P. 400, 424 Refuel Recommend P. 449
When Driving P. 458 Honda SensingTM P. 492Braking P. 539
Refueling P. 561 Fuel Economy and CO
2 Emissions P. 564
Maintenance Under the Hood P. 576 Replacing Light Bulbs P. 589
Checking and Maintaining Tires P. 600 12-Volt Battery P. 609 Remote Transmitter Care P. 611
Cleaning P. 613 Accessories and Modifications P. 618
Handling of the Jack P. 635 Power System Won’t Start P. 636
Indicator, Coming On/Blinking P. 644 Fuses P. 651 Emergency Towing P. 655
When You Cannot Open the Trunk P. 657 Refueling P. 658
Devices that Emit Radio Waves P. 663 Reporting Safety Defects P. 664
Authorized Manuals P. 669 Customer Service Information P. 670
Quick Reference GuideP. 4
Safe DrivingP. 37
Instrument PanelP. 81
ControlsP. 163
FeaturesP. 237
DrivingP. 451

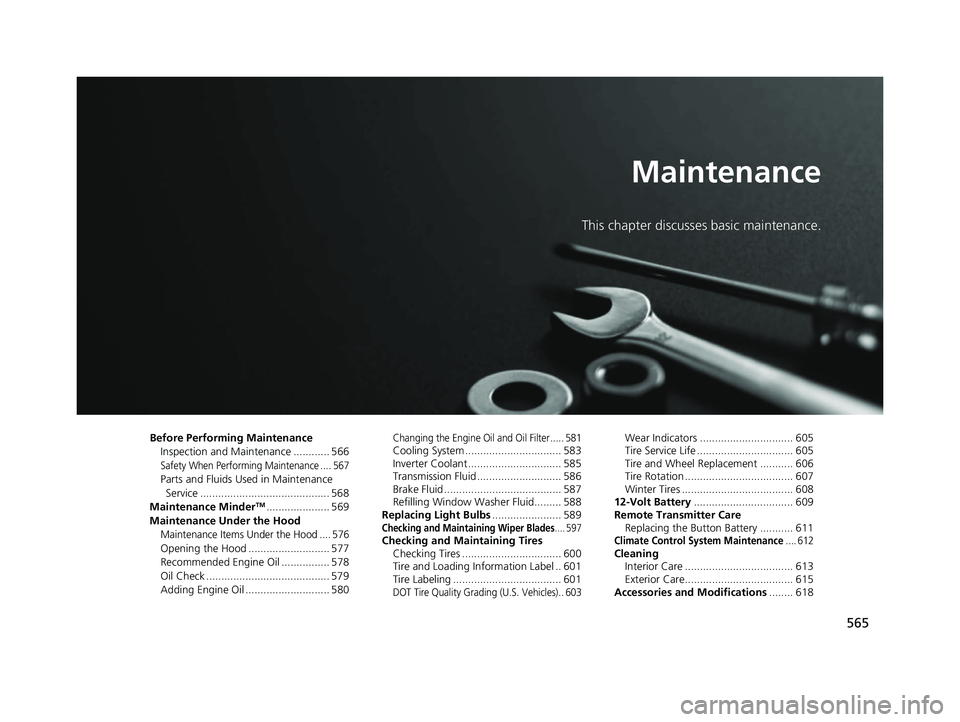

MaintenanceP. 565
Handling the UnexpectedP. 621
InformationP. 659
IndexP. 671
18 ACCORD HYBRID-31TWA6000.book 3 ページ ２０１８年１月３０日　火曜日　午後７時３８分

Visual Index
6
Quick Reference Guide❙Power Window Switches (P 184)
❙Master Door Lock Switch (P 176)
❙Door Mirror Controls (P 207)
❙Trunk Opener (P 178)
❙Interior Fuse Box (P 652)
❙Hood Release Handle (P 577)
❙Driver’s Front Airbag
(P 52)
❙Rearview Mirror (P 206)
❙HomeLink® Buttons* (P 397)
❙Accessory Power Socket
(P 223)
❙Passenger’s Front Airbag
(P 52)
❙Wireless Charger* (P 224)
❙USB Port (P 239)
❙Trunk Main Switch (P 180)
❙Glove Box (P 219)
❙Shift Button
Transmission
(P 465)
❙Memory Buttons* (P 204)
❙SET Button* (P 204)
❙Parking Brake (P 539)
❙ECON Button (P 475)
❙SPORT Button (P 471)
❙EV Button (P 13)
❙Automatic Brake Hold Button
(P 544)
❙Electric Parking Brake Switch
(P 458)
18 ACCORD HYBRID-31TWA6000.book 6 ページ ２０１８年１月３０日　火曜日　午後７時３８分

Quick Reference Guide
33
Handling the Unexpected (P 621)
Flat Tire (P 623)
● Park in a safe location and repair the flat
tire using the tire repair kit in the trunk.
Indicators Come On
(P 644)
●Identify the indica tor and consult the
owner’s manual.
Power System Won’t
Start
(P 636)
● If the 12-volt battery is dead, jump start
using a booster battery.
Blown Fuse (P 651)
● Check for a blown fuse if an electrical
device does not operate.
Overheating (P 641)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the power system cool down.
Emergency Towing
(P 655)
●Call a professional towing service if you
need to tow your vehicle.
18 ACCORD HYBRID-31TWA6000.book 33 ページ ２０１８年１月３０日　火曜日　午後７時３８分

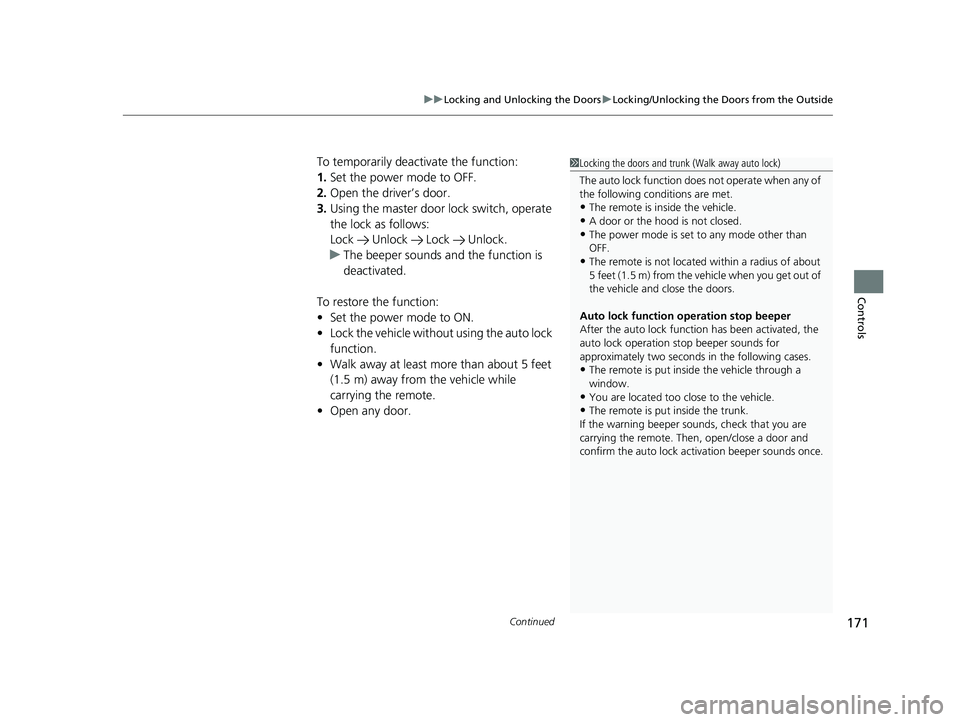

Continued171
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
To temporarily deactivate the function:
1. Set the power mode to OFF.
2. Open the driv er’s door.
3. Using the master door lock switch, operate
the lock as follows:
Lock Unlock Lock Unlock.
u The beeper sounds an d the function is
deactivated.
To restore the function:
• Set the power mode to ON.
• Lock the vehicle without using the auto lock
function.
• Walk away at least more than about 5 feet
(1.5 m) away from the vehicle while
carrying the remote.
• Open any door.1Locking the doors and trunk (Walk away auto lock)
The auto lock function does not operate when any of
the following conditions are met.
•The remote is inside the vehicle.
•A door or the hood is not closed.•The power mode is set to any mode other than
OFF.
•The remote is not located within a radius of about
5 feet (1.5 m) from the ve hicle when you get out of
the vehicle and close the doors.
Auto lock function operation stop beeper
After the auto lock function has been activated, the
auto lock operation stop beeper sounds for
approximately two seconds in the following cases.
•The remote is put inside the vehicle through a
window.
•You are located too close to the vehicle.
•The remote is put inside the trunk.
If the warning beeper sounds, check that you are
carrying the remote. Then, open/close a door and
confirm the auto lock ac tivation beeper sounds once.
18 ACCORD HYBRID-31TWA6000.book 171 ページ ２０１８年１月３０日　火曜日　午後７時３８分

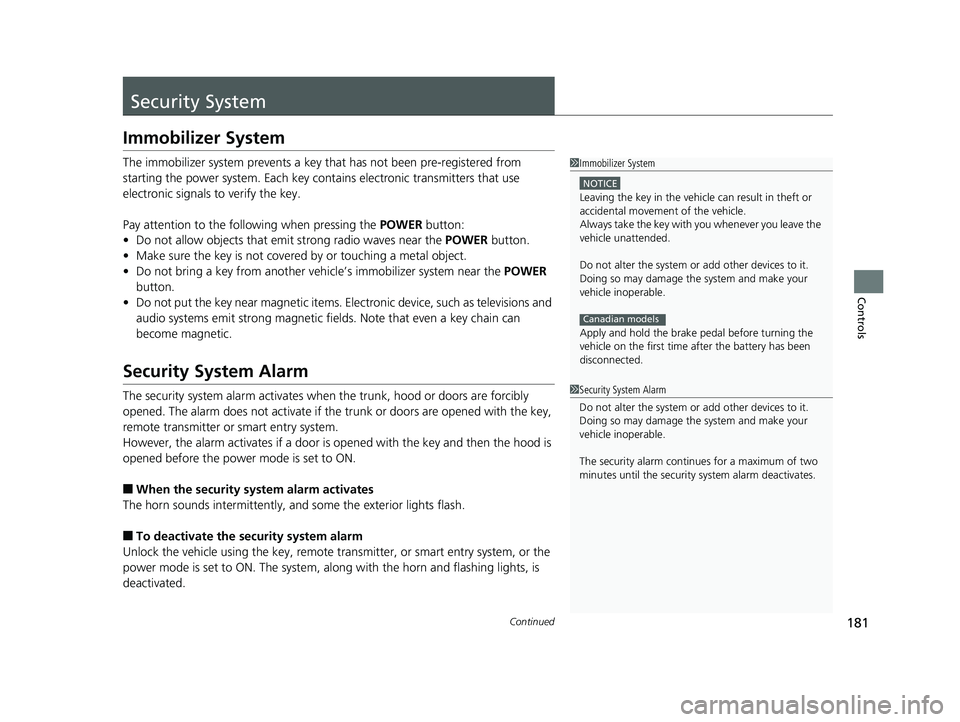

181Continued
Controls
Security System
Immobilizer System
The immobilizer system prevents a key that has not been pre-registered from
starting the power system. Each key cont ains electronic transmitters that use
electronic signals to verify the key.
Pay attention to the follo wing when pressing the POWER button:
• Do not allow objects that emit strong radio waves near the POWER button.
• Make sure the key is not covered by or touching a metal object.
• Do not bring a key from another vehicle’s immobilizer system near the POWER
button.
• Do not put the key near magnetic items. El ectronic device, such as televisions and
audio systems emit strong magnetic fiel ds. Note that even a key chain can
become magnetic.
Security System Alarm
The security system alarm activates when the trunk, hood or doors are forcibly
opened. The alarm does not activate if the trunk or doors are opened with the key,
remote transmitter or smart entry system.
However, the alarm activates if a door is opened with the key and then the hood is
opened before the power mode is set to ON.
■When the security system alarm activates
The horn sounds intermittently, an d some the exterior lights flash.
■To deactivate the security system alarm
Unlock the vehicle using the key, remote tra nsmitter, or smart entry system, or the
power mode is set to ON. The system, along with the horn and flashing lights, is
deactivated.
1 Immobilizer System
NOTICE
Leaving the key in the vehicl e can result in theft or
accidental movement of the vehicle.
Always take the key with you whenever you leave the
vehicle unattended.
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
Apply and hold the brake pedal before turning the
vehicle on the first time after the battery has been
disconnected.
Canadian models
1 Security System Alarm
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
The security alarm conti nues for a maximum of two
minutes until the security system alarm deactivates.
18 ACCORD HYBRID-31TWA6000.book 181 ページ ２０１８年１月３０日　火曜日　午後７時３８分

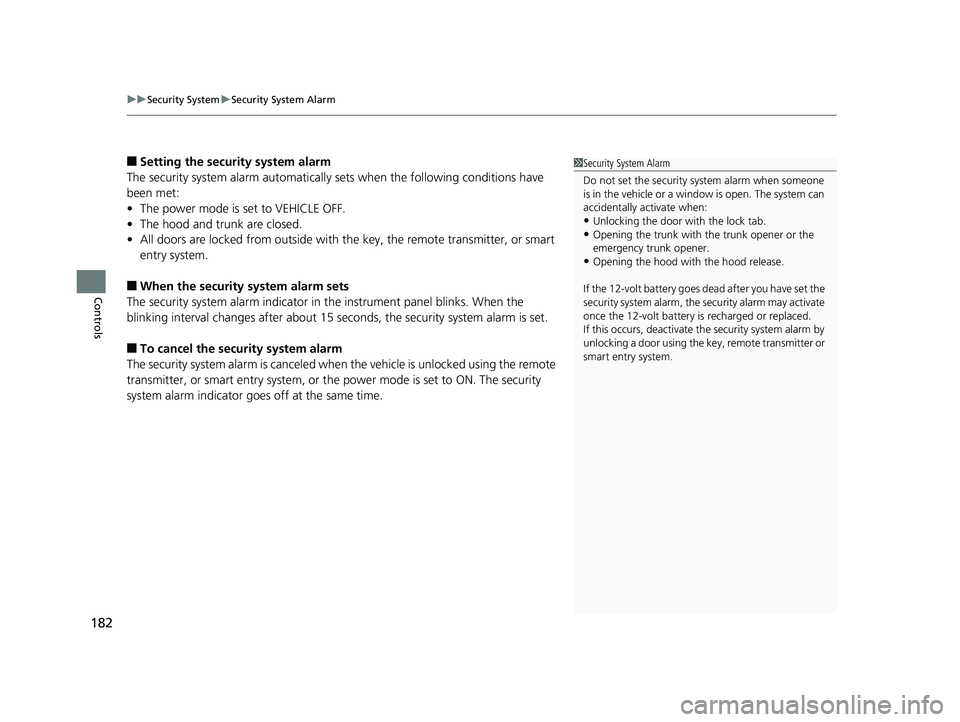

uuSecurity System uSecurity System Alarm
182
Controls
■Setting the security system alarm
The security system alarm automatically sets when the following conditions have
been met:
• The power mode is set to VEHICLE OFF.
• The hood and trunk are closed.
• All doors are locked from outside with th e key, the remote transmitter, or smart
entry system.
■When the security system alarm sets
The security system alarm indicator in the instrument panel blinks. When the
blinking interval changes after about 15 seconds, the security system alarm is set.
■To cancel the security system alarm
The security system alarm is canceled when the vehicle is unlocked using the remote
transmitter, or smart entry system, or the power mode is set to ON. The security
system alarm indicator goe s off at the same time.
1Security System Alarm
Do not set the security system alarm when someone
is in the vehicle or a window is open. The system can
accidentally activate when:
•Unlocking the door with the lock tab.•Opening the trunk with the trunk opener or the
emergency trunk opener.
•Opening the hood with the hood release.
If the 12-volt battery goes dead after you have set the
security system alarm, the security alarm may activate
once the 12-volt battery is recharged or replaced.
If this occurs, deactivate the security system alarm by
unlocking a door using the key, remote transmitter or
smart entry system.
18 ACCORD HYBRID-31TWA6000.book 182 ページ ２０１８年１月３０日　火曜日　午後７時３８分

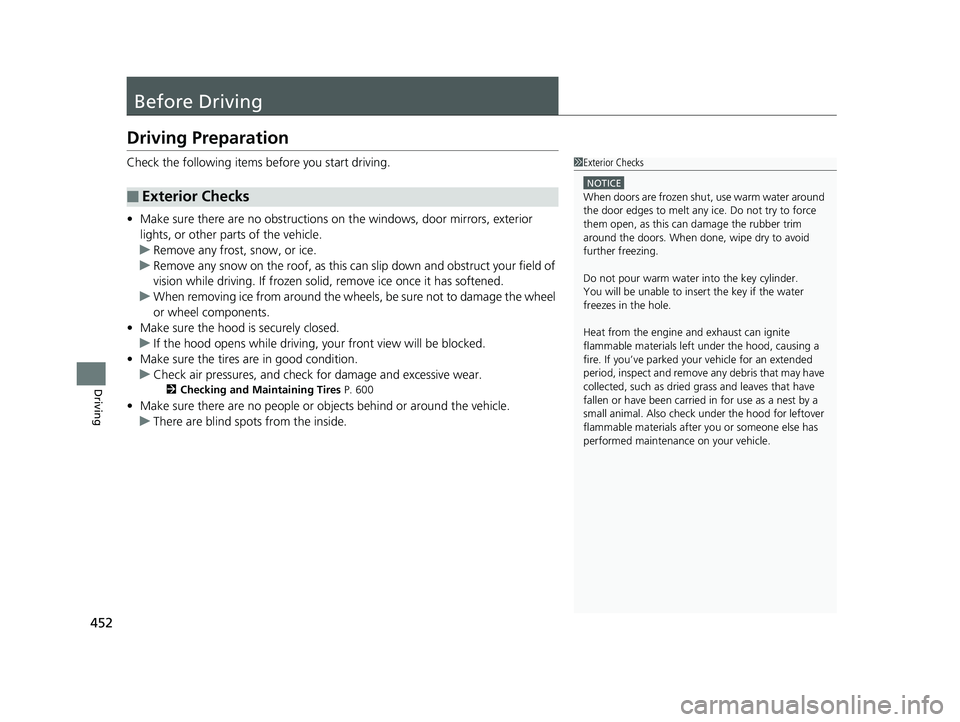

452
Driving
Before Driving
Driving Preparation
Check the following items before you start driving.
• Make sure there are no obstructions on the windows, door mirrors, exterior
lights, or other parts of the vehicle.
u Remove any frost, snow, or ice.
u Remove any snow on the roof, as this can slip down and obstruct your field of
vision while driving. If frozen solid , remove ice once it has softened.
u When removing ice from around the wheels, be sure not to damage the wheel
or wheel components.
• Make sure the hood is securely closed.
u If the hood opens while driving, your front view will be blocked.
• Make sure the tires are in good condition.
u Check air pressures, and check for damage and excessive wear.
2Checking and Maintaining Tires P. 600
•Make sure there are no people or ob jects behind or around the vehicle.
u There are blind spots from the inside.
■Exterior Checks
1Exterior Checks
NOTICE
When doors are frozen s hut, use warm water around
the door edges to melt any ice. Do not try to force
them open, as this can damage the rubber trim
around the doors. When done, wipe dry to avoid
further freezing.
Do not pour warm water into the key cylinder.
You will be unable to insert the key if the water
freezes in the hole.
Heat from the engine and exhaust can ignite
flammable material s left under the hood, causing a
fire. If you’ve parked y our vehicle for an extended
period, inspect and remove any debris that may have
collected, such as dried grass and leaves that have
fallen or have been carried in for use as a nest by a
small animal. Also check under the hood for leftover
flammable materials after you or someone else has
performed maintenance on your vehicle.
18 ACCORD HYBRID-31TWA6000.book 452 ページ ２０１８年１月３０日　火曜日　午後７時３８分

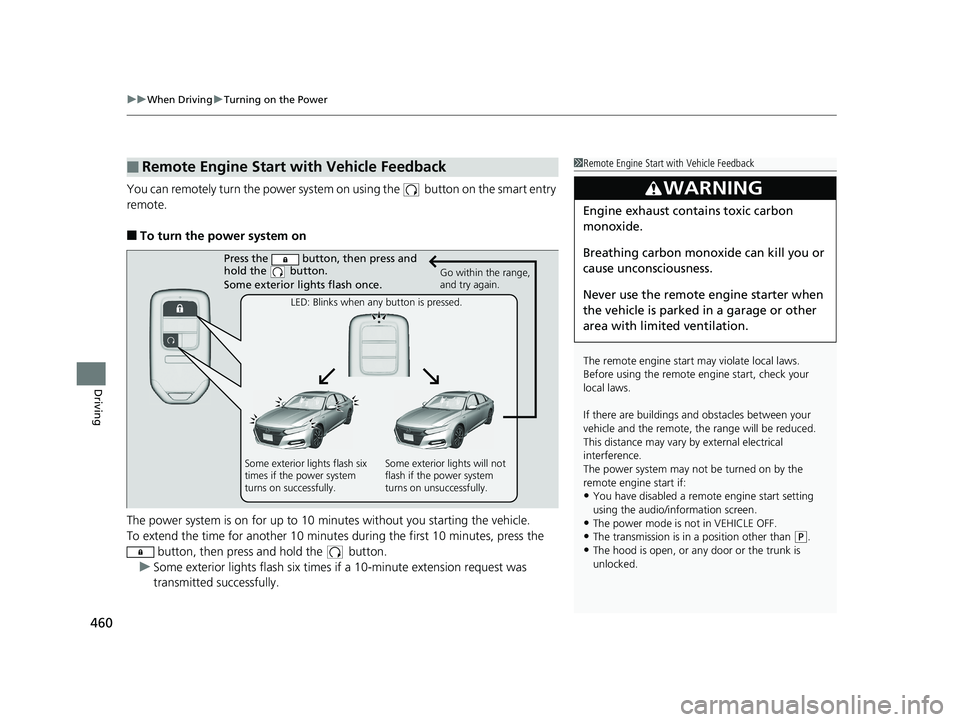

uuWhen Driving uTurning on the Power
460
Driving
You can remotely turn the power system on using the button on the smart entry
remote.
■To turn the power system on
The power system is on for up to 10 minutes without you starting the vehicle.
To extend the time for another 10 minute s during the first 10 minutes, press the
button, then press and hold the button.
u Some exterior lights flash six times if a 10-minute extension request was
transmitted successfully.
■Remote Engine Start with Vehicle Feedback1Remote Engine Start with Vehicle Feedback
The remote engine start may violate local laws.
Before using the remote e ngine start, check your
local laws.
If there are buildings an d obstacles between your
vehicle and the remote, th e range will be reduced.
This distance may vary by external electrical
interference.
The power system may not be turned on by the
remote engine start if:
•You have disabled a remo te engine start setting
using the audio/information screen.
•The power mode is not in VEHICLE OFF.
•The transmission is in a position other than ( P.•The hood is open, or any door or the trunk is
unlocked.
3WARNING
Engine exhaust contains toxic carbon
monoxide.
Breathing carbon monoxide can kill you or
cause unconsciousness.
Never use the remote engine starter when
the vehicle is parked in a garage or other
area with limited ventilation.
Press the button, then press and
hold the button.
Some exterior lights flash once.
Go within the range,
and try again.
LED: Blinks when any button is pressed.
Some exterior lights flash six
times if the power system
turns on successfully. Some exterior lights will not
flash if the power system
turns on unsuccessfully.
18 ACCORD HYBRID-31TWA6000.book 460 ページ ２０１８年１月３０日　火曜日　午後７時３８分

Continued461
uuWhen Driving uTurning on the Power
Driving

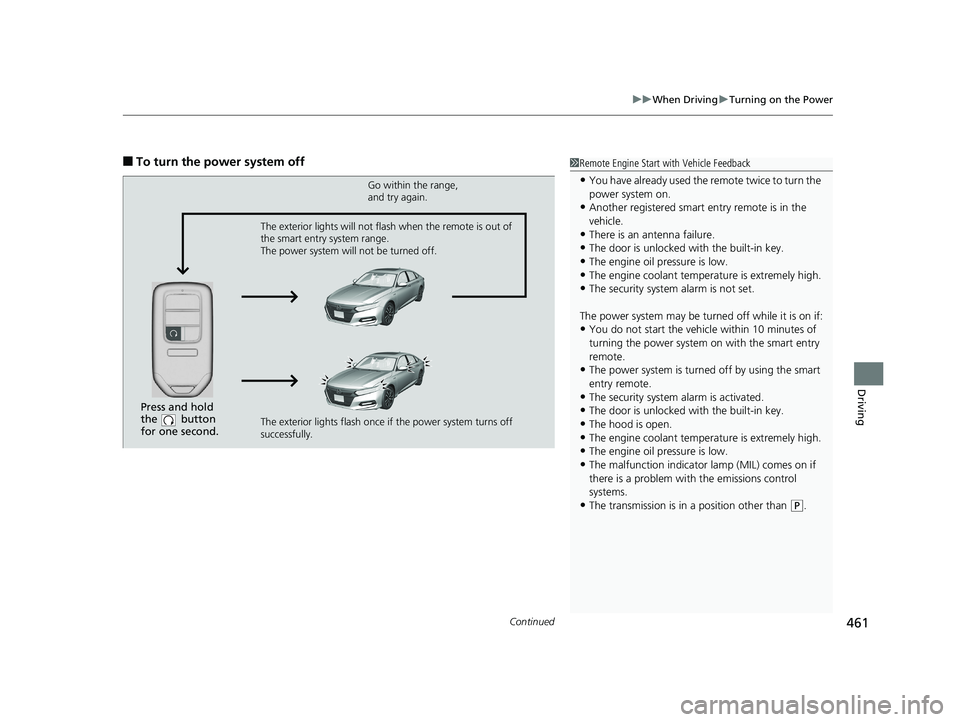

■To turn the power system off1Remote Engine Start with Vehicle Feedback
•You have already used the remote twice to turn the
power system on.
•Another registered smart entry remote is in the
vehicle.
•There is an antenna failure.
•The door is unlocked with the built-in key.
•The engine oil pressure is low.•The engine coolant temper ature is extremely high.
•The security system alarm is not set.
The power system may be turned off while it is on if:
•You do not start the vehicl e within 10 minutes of
turning the power system on with the smart entry
remote.
•The power system is turned off by using the smart
entry remote.
•The security system alarm is activated.
•The door is unlocked with the built-in key.
•The hood is open.
•The engine coolant temper ature is extremely high.•The engine oil pressure is low.
•The malfunction indicator lamp (MIL) comes on if
there is a problem with the emissions control
systems.
•The transmission is in a position other than ( P.
Press and hold
the button
for one second.
Go within the range,
and try again.
The exterior lights flash once if the power system turns off
successfully. The exterior lights will not flash when the remote is out of
the smart entry system range.
The power system will not be turned off.
18 ACCORD HYBRID-31TWA6000.book 461 ページ ２０１８年１月３０日　火曜日　午後７時３８分

565
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 566
Safety When Performing Maintenance .... 567
Parts and Fluids Used in Maintenance Service ........................................... 568
Maintenance Minder
TM..................... 569
Maintenance Under the Hood
Maintenance Items Un der the Hood .... 576
Opening the Hood ........................... 577
Recommended Engine Oil ................ 578
Oil Check ......................................... 579
Adding Engine Oil ............................ 580
Changing the Engine Oil and Oil Filter ..... 581Cooling System ................................ 583
Inverter Coolant ............................... 585
Transmission Fluid ............................ 586
Brake Fluid ....................................... 587
Refilling Window Washer Fluid......... 588
Replacing Light Bulbs ....................... 589
Checking and Maintaining Wiper Blades.... 597Checking and Maintaining Tires
Checking Tires ................................. 600
Tire and Loading Information Label .. 601
Tire Labeling .................................... 601
DOT Tire Quality Grading (U.S. Vehicles).. 603
Wear Indicators ............................... 605
Tire Service Life ................................ 605
Tire and Wheel Replacement ........... 606
Tire Rotation .................................... 607
Winter Tires ..................................... 608
12-Volt Battery ................................. 609
Remote Transmitter Care Replacing the Button Battery ........... 611
Climate Control System Maintenance.... 612CleaningInterior Care .................................... 613
Exterior Care.................................... 615
Accessories and Modifications ........ 618
18 ACCORD HYBRID-31TWA6000.book 565 ページ ２０１８年１月３０日　火曜日　午後７時３８分
