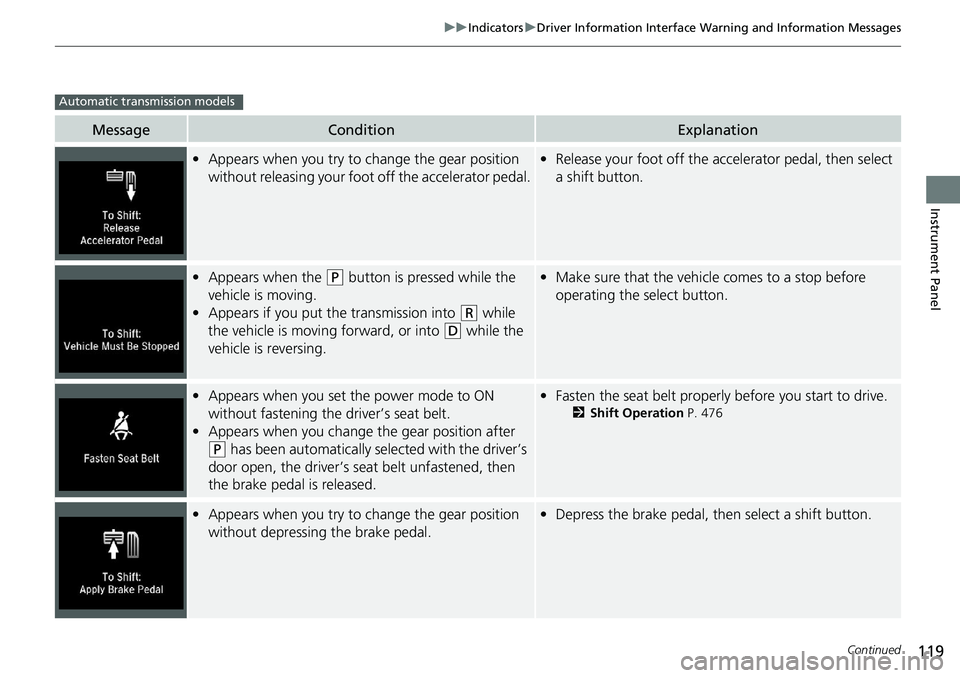

119
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears when you try to ch ange the gear position
without releasing your foot off the accelerator pedal.• Release your foot off the acce lerator pedal, then select
a shift button.
• Appears when the (P button is pressed while the
vehicle is moving.
• Appears if you put the transmission into
(R while
the vehicle is moving forward, or into
(D while the
vehicle is reversing.
• Make sure that the vehicle comes to a stop before
operating the select button.
• Appears when you set the power mode to ON
without fastening the driver’s seat belt.
• Appears when you change the gear position after
(P has been automatically selected with the driver’s
door open, the driver’s seat belt unfastened, then
the brake pedal is released.
• Fasten the seat belt properly before you start to drive.
2 Shift Operation P. 476
•Appears when you try to ch ange the gear position
without depressing the brake pedal.• Depress the brake pedal, then select a shift button.
Automatic transmission models

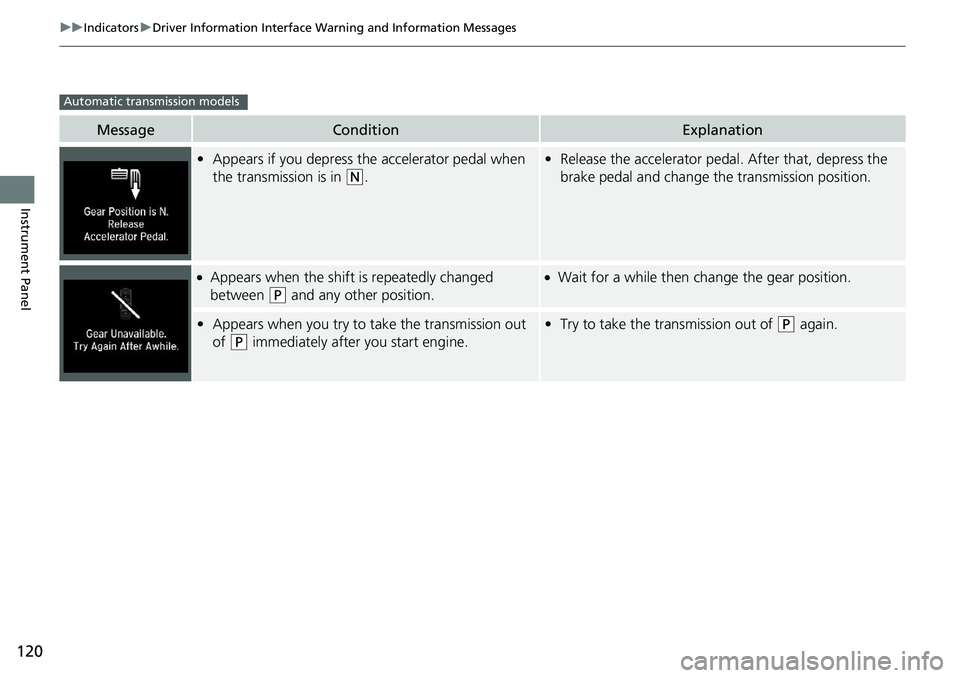

120
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears if you depress the accelerator pedal when
the transmission is in
(N.
•Release the accelerator peda l. After that, depress the
brake pedal and change the transmission position.
●Appears when the shift is repeatedly changed
between
(P and any other position.
●Wait for a while then ch ange the gear position.
•Appears when you try to take the transmission out
of
(P immediately after you start engine.
•Try to take the transmission out of (P again.
Automatic transmission models

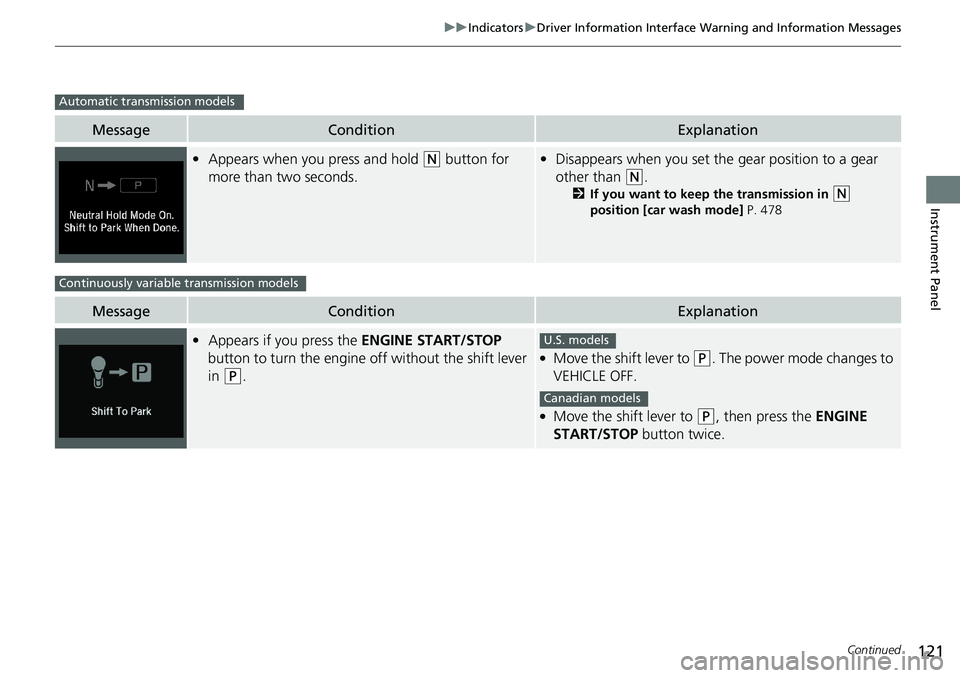

121
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears when you press and hold (N button for
more than two seconds.• Disappears when you set the gear position to a gear
other than
(N.
2 If you want to keep the transmission in (N
position [car wash mode] P. 478
MessageConditionExplanation
•Appears if you press the ENGINE START/STOP
button to turn the engine off without the shift lever
in
(P.
●Move the shift lever to (P. The power mode changes to
VEHICLE OFF.
●Move the shift lever to (P, then press the ENGINE
START/STOP button twice.
Automatic transmission models
Continuously variable transmission models
U.S. models
Canadian models

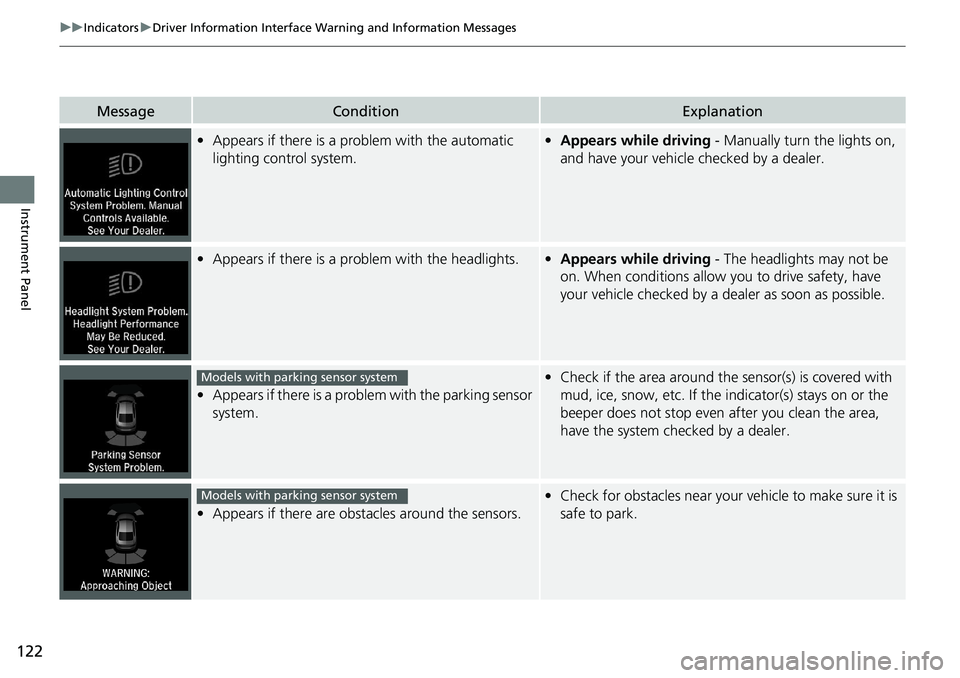

122
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears if there is a problem with the automatic
lighting control system.•Appears while driving - Manually turn the lights on,
and have your vehicle checked by a dealer.
• Appears if there is a prob lem with the headlights.•Appears while driving - The headlights may not be
on. When conditions allow you to drive safety, have
your vehicle checked by a de aler as soon as possible.
•Appears if there is a problem with the parking sensor
system.
•Check if the area around the sensor(s) is covered with
mud, ice, snow, etc. If the indicator(s) stays on or the
beeper does not stop even after you clean the area,
have the system checked by a dealer.
• Appears if there are obstacles around the sensors.
•Check for obstacles near your vehicle to make sure it is
safe to park.
Models with parking sensor system
Models with parking sensor system

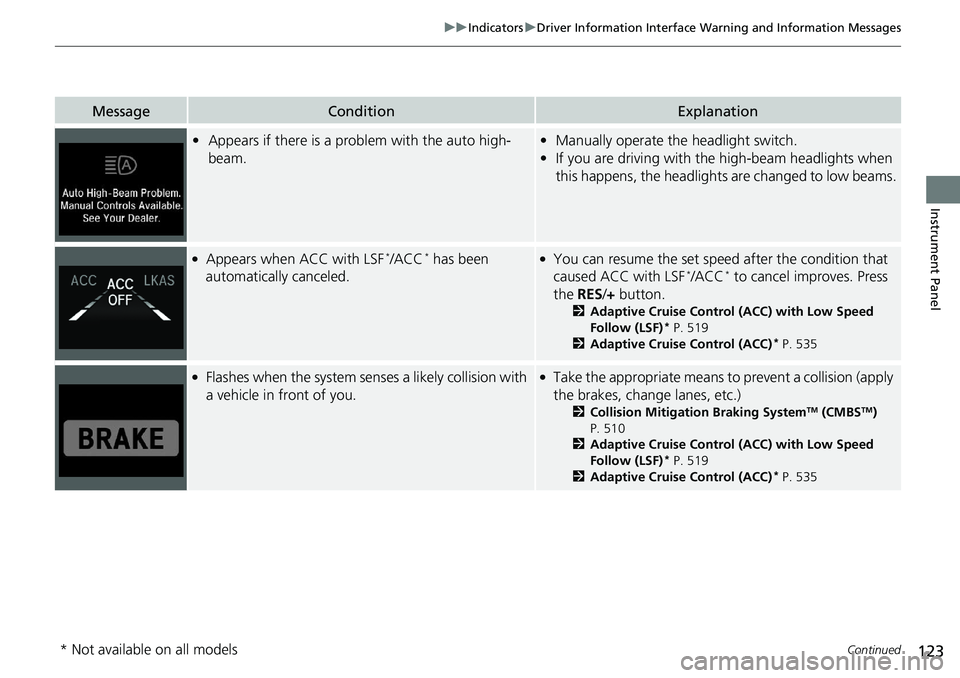

123
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears if there is a prob lem with the auto high-
beam.• Manually operate the headlight switch.
• If you are driving with the high-beam headlights when
this happens, the headlights are changed to low beams.
●Appears when ACC with LSF*/ACC* has been
automatically canceled.●You can resume the set speed after the condition that
caused ACC with LSF*/ACC* to cancel improves. Press
the RES /+ button.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 519
2 Adaptive Cruise Control (ACC)* P. 535
●Flashes when the system senses a likely collision with
a vehicle in front of you.●Take the appropriate means to prevent a collision (apply
the brakes, change lanes, etc.)
2Collision Mitigation Braking SystemTM (CMBSTM)
P. 510
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)
* P. 519
2 Adaptive Cruise Control (ACC)* P. 535
* Not available on all models

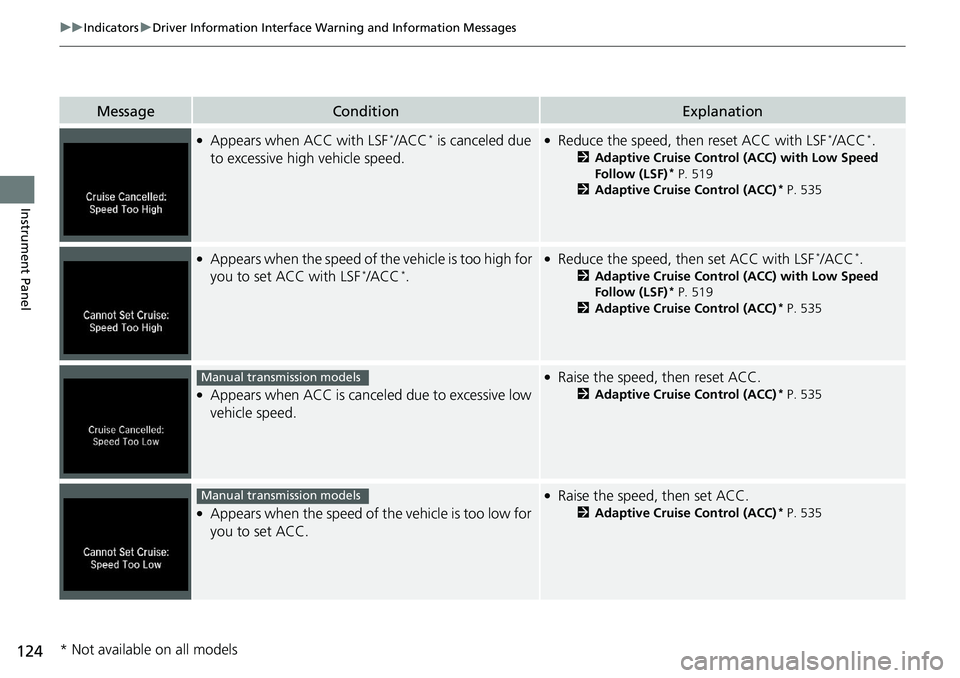

124
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when ACC with LSF*/ACC* is canceled due
to excessive high vehicle speed.●Reduce the speed, then reset ACC with LSF*/ACC*.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 519
2 Adaptive Cruise Control (ACC)* P. 535
●Appears when the speed of th e vehicle is too high for
you to set ACC with LSF*/ACC*.
●Reduce the speed, then set ACC with LSF*/ACC*.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 519
2 Adaptive Cruise Control (ACC)* P. 535
●Appears when ACC is canceled due to excessive low
vehicle speed.
●Raise the speed, then reset ACC.
2Adaptive Cruise Control (ACC)* P. 535
●Appears when the speed of the vehicle is too low for
you to set ACC.
●Raise the speed, then set ACC.
2Adaptive Cruise Control (ACC)* P. 535
Manual transmission models
Manual transmission models
* Not available on all models

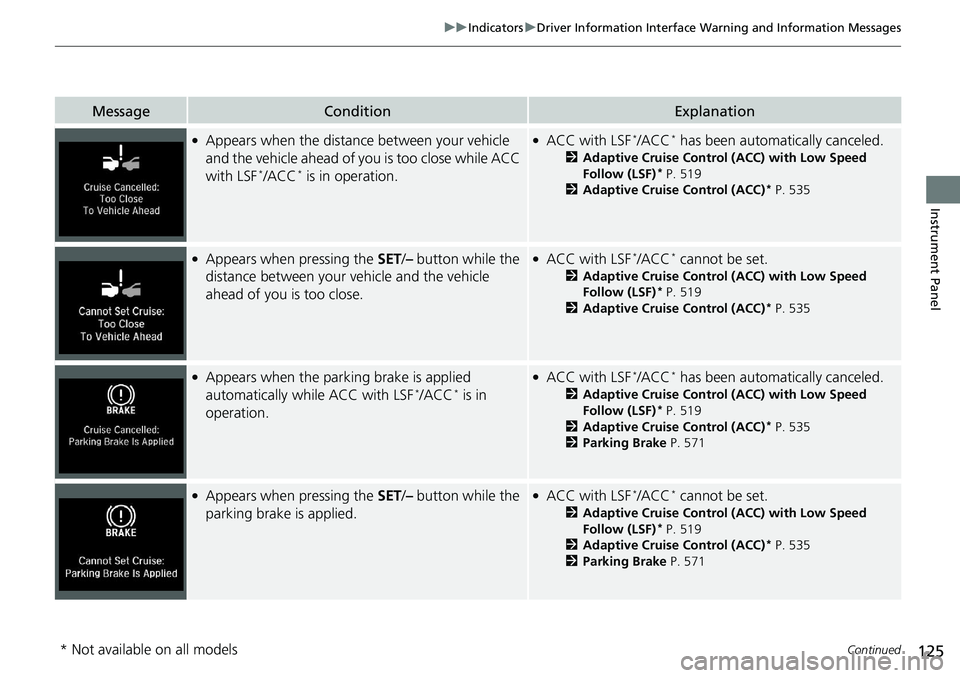

125
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the distance between your vehicle
and the vehicle ahead of you is too close while ACC
with LSF
*/ACC* is in operation.
●ACC with LSF*/ACC* has been automatically canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 519
2 Adaptive Cruise Control (ACC)* P. 535
●Appears when pressing the SET/– button while the
distance between your vehicle and the vehicle
ahead of you is too close.●ACC with LSF*/ACC* cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 519
2 Adaptive Cruise Control (ACC)* P. 535
●Appears when the park ing brake is applied
automatically while ACC with LSF*/ACC* is in
operation.
●ACC with LSF*/ACC* has been automatically canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 519
2 Adaptive Cruise Control (ACC)* P. 535
2 Parking Brake P. 571
●Appears when pressing the SET/– button while the
parking brake is applied.●ACC with LSF*/ACC* cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 519
2 Adaptive Cruise Control (ACC)* P. 535
2 Parking Brake P. 571
* Not available on all models

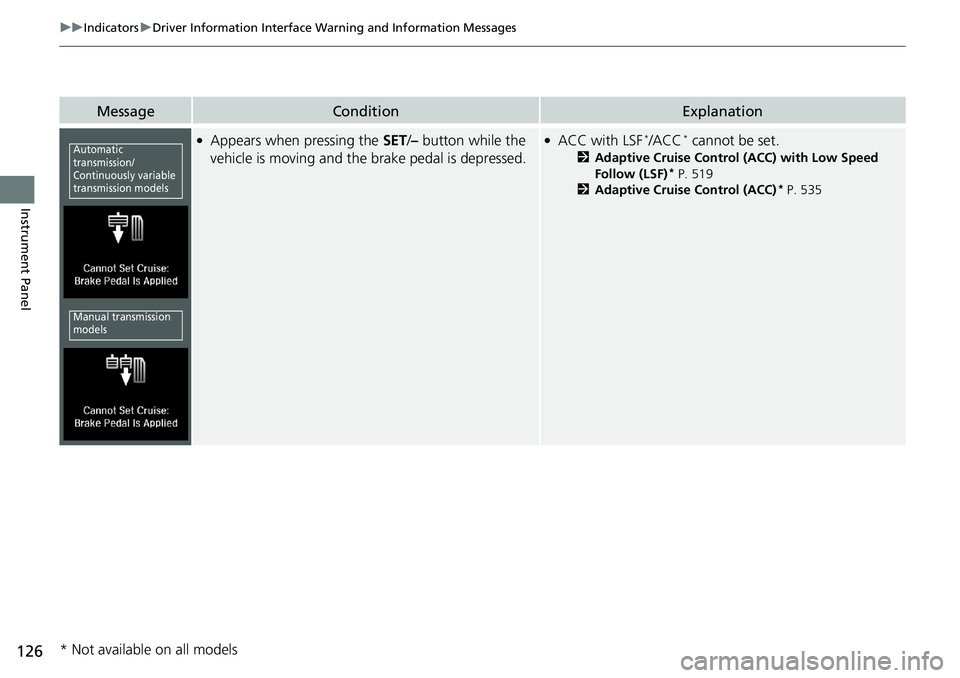

126
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when pressing the SET/– button while the
vehicle is moving and the brake pedal is depressed.●ACC with LSF*/ACC* cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 519
2 Adaptive Cruise Control (ACC)* P. 535
Automatic
transmission/
Continuously variable
transmission models
Manual transmission
models
* Not available on all models

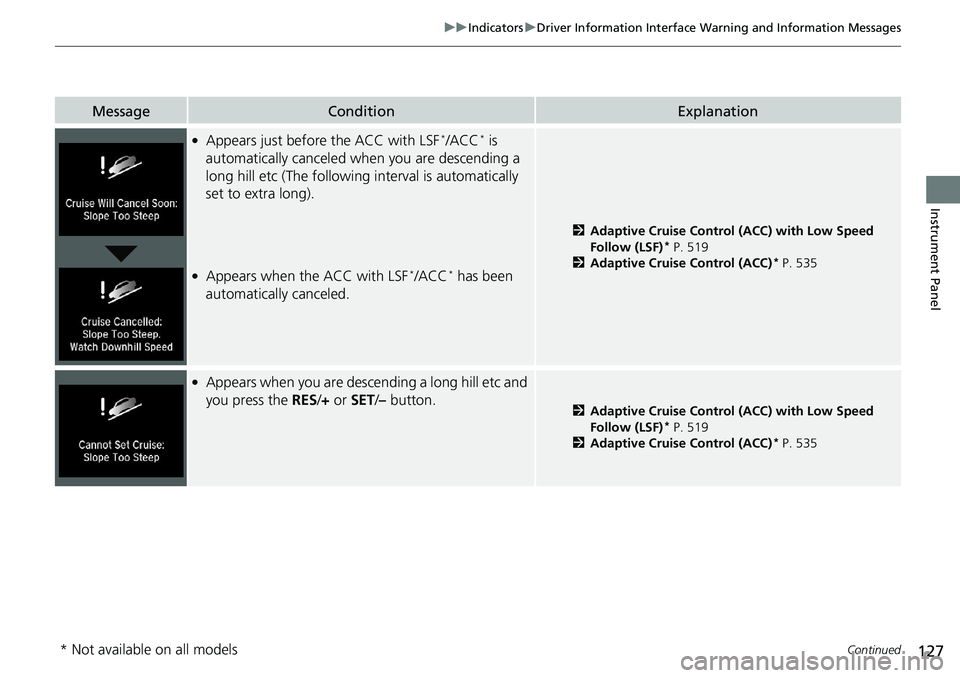

127
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears just before the ACC with LSF*/ACC* is
automatically canceled when you are descending a
long hill etc (The following interval is automatically
set to extra long).
●Appears when the ACC with LSF*/ACC* has been
automatically canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 519
2 Adaptive Cruise Control (ACC)* P. 535
●Appears when you are descending a long hill etc and
you press the RES /+ or SET/– button.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 519
2 Adaptive Cruise Control (ACC)* P. 535
* Not available on all models

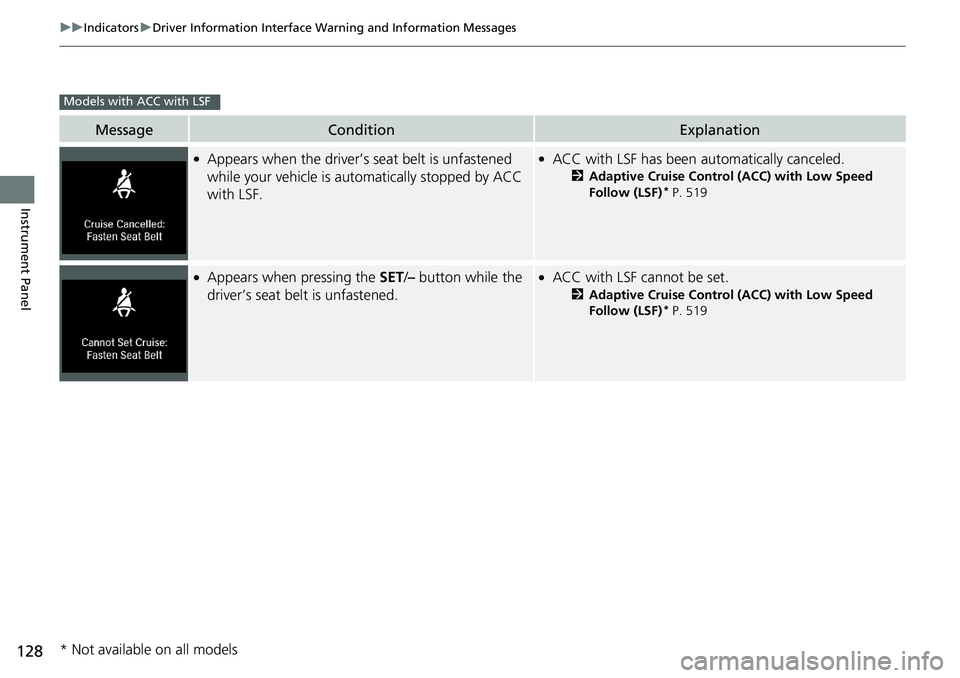

128
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the driver’s seat belt is unfastened
while your vehicle is automatically stopped by ACC
with LSF.●ACC with LSF has been automatically canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 519
●Appears when pressing the SET/– button while the
driver’s seat belt is unfastened.●ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 519
Models with ACC with LSF
* Not available on all models
