HONDA ACCORD SEDAN 2019 (in English) User Guide

9
Quick Reference Guide

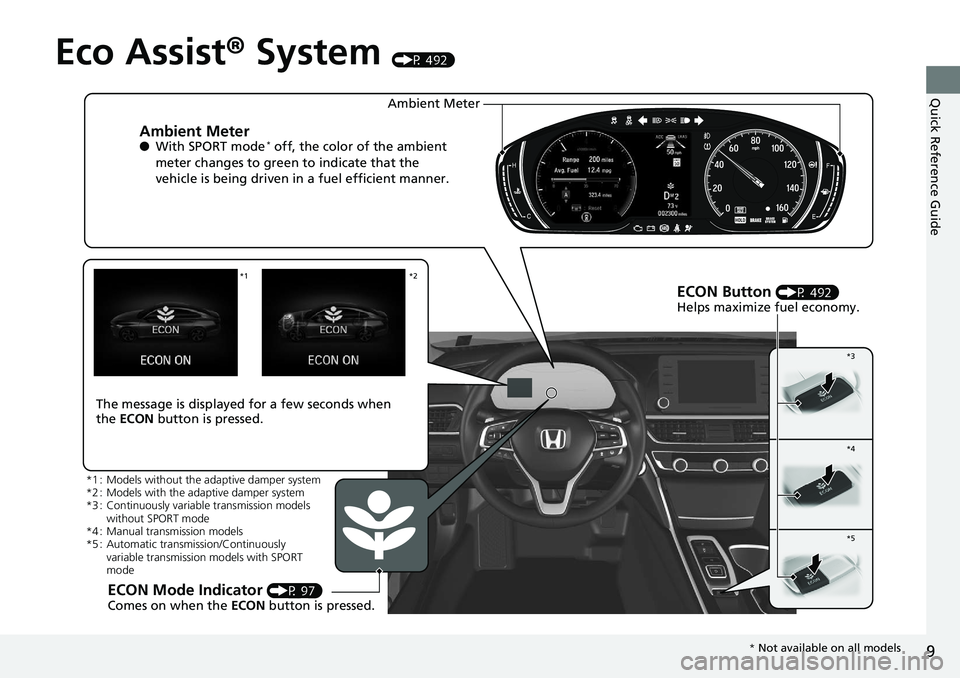

Eco Assist® System (P 492)
Ambient Meter●With SPORT mode* off, the color of the ambient
meter changes to green to indicate that the
vehicle is being driven in a fuel efficient manner.
ECON Button (P 492)
Helps maximize fuel economy.
ECON Mode Indicator (P 97)
Comes on when the ECON button is pressed.
The message is displayed for a few seconds when
the ECON
button is pressed. Ambient Meter
*2
*1
*3
*4
*5
*1 : Models without the adaptive damper system
*2 : Models with the adaptive damper system
*3 : Continuously variable transmission models without SPORT mode
*4 : Manual transmission models
*5 : Automatic transmission/Continuously
variable transmission models with SPORT
mode
* Not available on all models

10
Quick Reference Guide

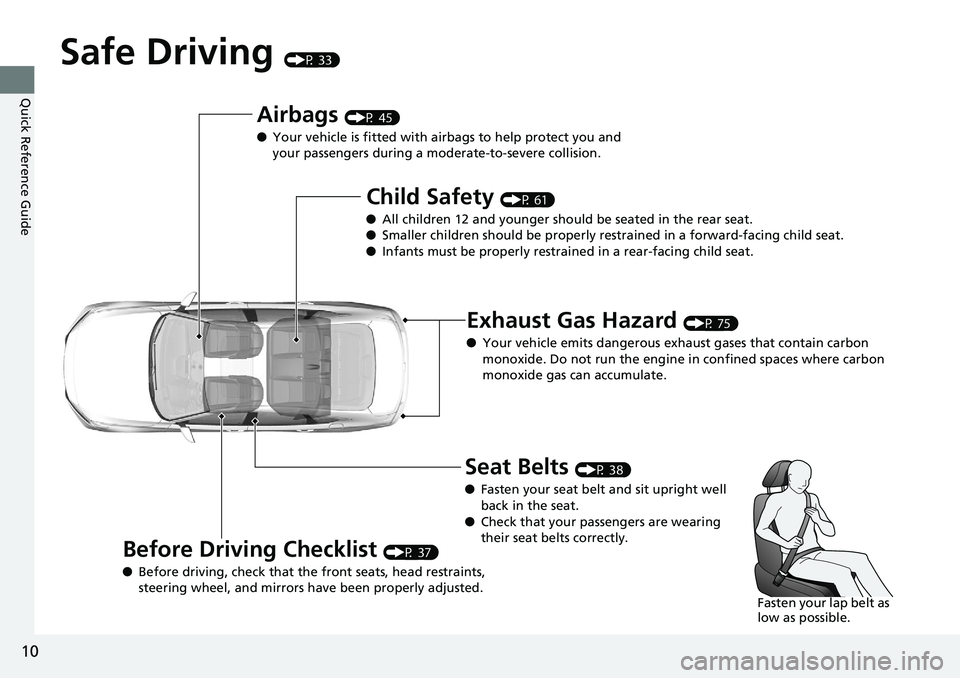

Safe Driving (P 33)
Airbags (P 45)
● Your vehicle is fitted with ai rbags to help protect you and
your passengers during a moderate-to-severe collision.
Child Safety (P 61)
● All children 12 and younger should be seated in the rear seat.
● Smaller children should be properly restra ined in a forward-facing child seat.
● Infants must be properly restraine d in a rear-facing child seat.
Exhaust Gas Hazard (P 75)
● Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist (P 37)
● Before driving, check that the front seats, head restraints,
steering wheel, and mirrors have been properly adjusted.
Seat Belts (P 38)
● Fasten your seat belt and sit upright well
back in the seat.
● Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.

11
Quick Reference Guide

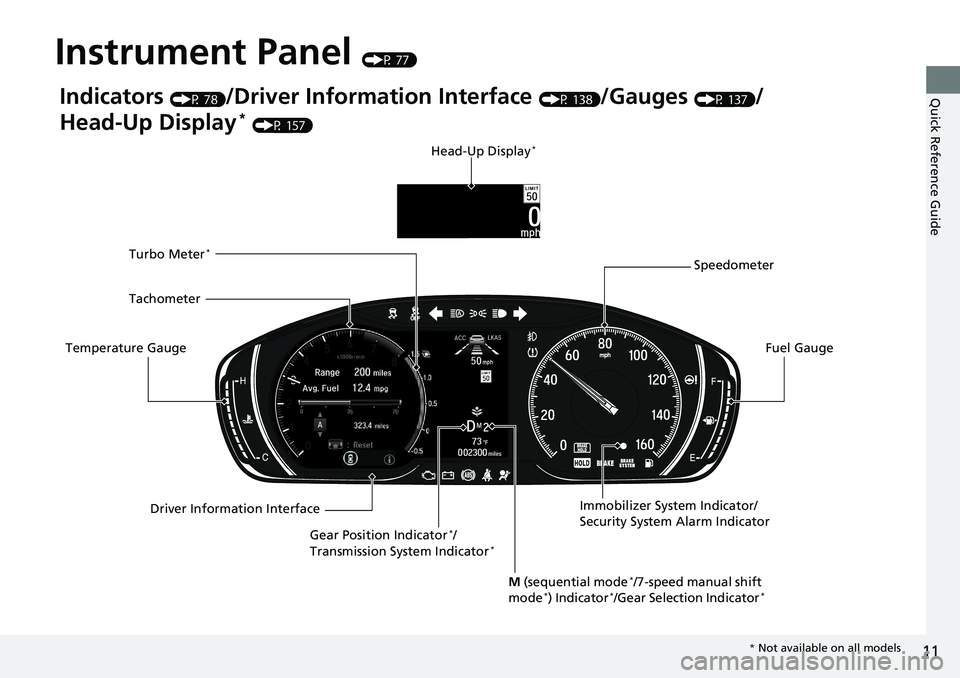

Instrument Panel (P 77)
Indicators (P 78)/Driver Information Interface (P 138)/Gauges (P 137)/
Head-Up Display
* (P 157)
Speedometer
Fuel Gauge
Driver Information Interface
Temperature Gauge
Tachometer Head-Up Display
*
Immobilizer System Indicator/
Security System Alarm Indicator
Gear Position Indicator
*/
Transmission System Indicator*
Turbo Meter*
M (sequential mode*/7-speed manual shift
mode*) Indicator*/Gear Selection Indicator*
* Not available on all models

12
Quick Reference Guide

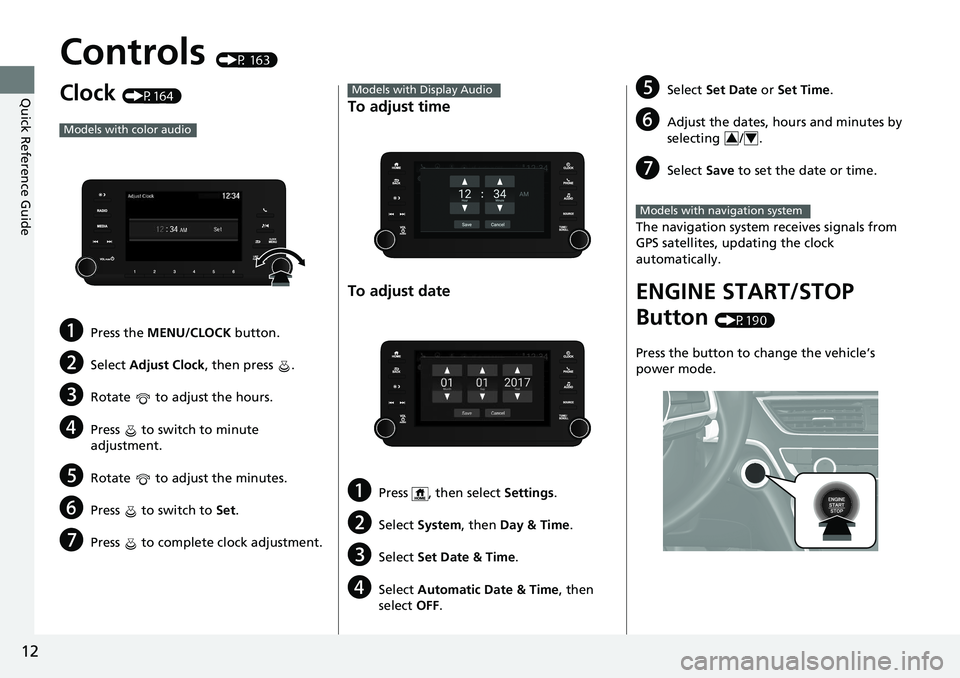

Controls (P 163)
Clock (P164)
aPress the MENU/CLOCK button.
bSelect Adjust Clock, then press .
cRotate to adjust the hours.
dPress to switch to minute
adjustment.
eRotate to adjust the minutes.
fPress to switch to Set.
gPress to complete clock adjustment.
Models with color audio
To adjust time
To adjust date
aPress , then select Settings .
bSelect System , then Day & Time .
cSelect Set Date & Time .
dSelect Automatic Date & Time , then
select OFF.
Models with Display AudioeSelect Set Date or Set Time .
fAdjust the dates, hours and minutes by
selecting / .
gSelect Save to set the date or time.
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
ENGINE START/STOP
Button
(P190)
Press the button to change the vehicle’s
power mode.
34
Models with navigation system

13
Quick Reference Guide

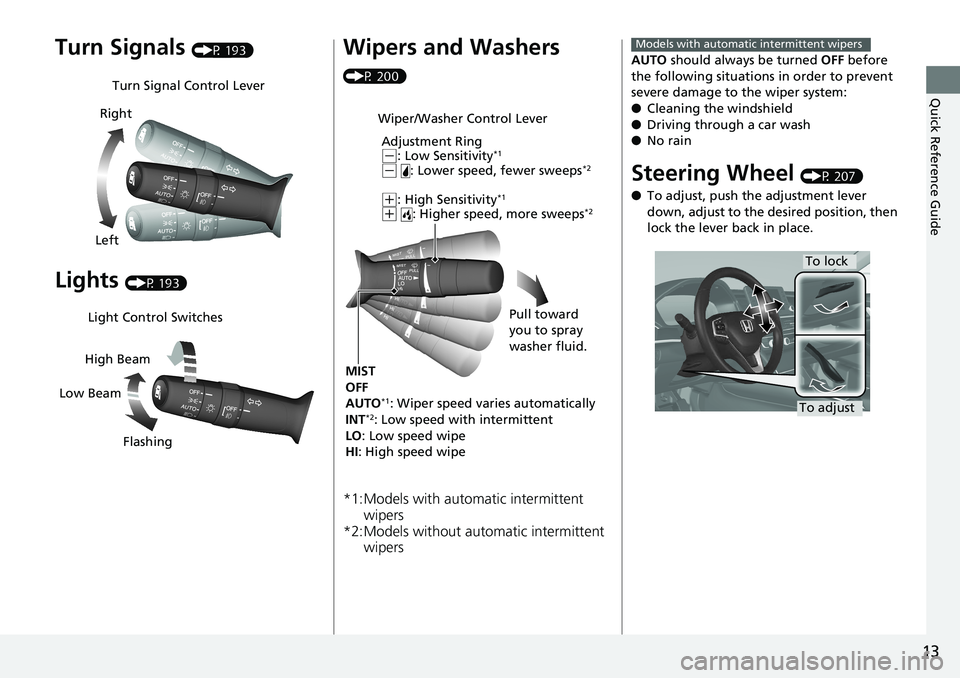

Turn Signals (P 193)
Lights (P 193)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
Wipers and Washers
(P 200)
*1:Models with automatic intermittent wipers
*2:Models without automatic intermittent wipers
Wiper/Washer Control Lever
Adjustment Ring
(-: Low Sensitivity*1
(- : Lower speed, fewer sweeps*2
(+: High Sensitivity*1
(+ : Higher speed, more sweeps*2
MIST
OFF
AUTO
*1: Wiper speed varies automatically
INT*2: Low speed with intermittent
LO : Low speed wipe
HI : High speed wipe Pull toward
you to spray
washer fluid.
AUTO
should always be turned OFF before
the following situations in order to prevent
severe damage to the wiper system:
● Cleaning the windshield
● Driving through a car wash
● No rain
Steering Wheel (P 207)
● To adjust, push the adjustment lever
down, adjust to the de sired position, then
lock the lever back in place.
Models with automatic intermittent wipers
To lock
To adjust

14
Quick Reference Guide

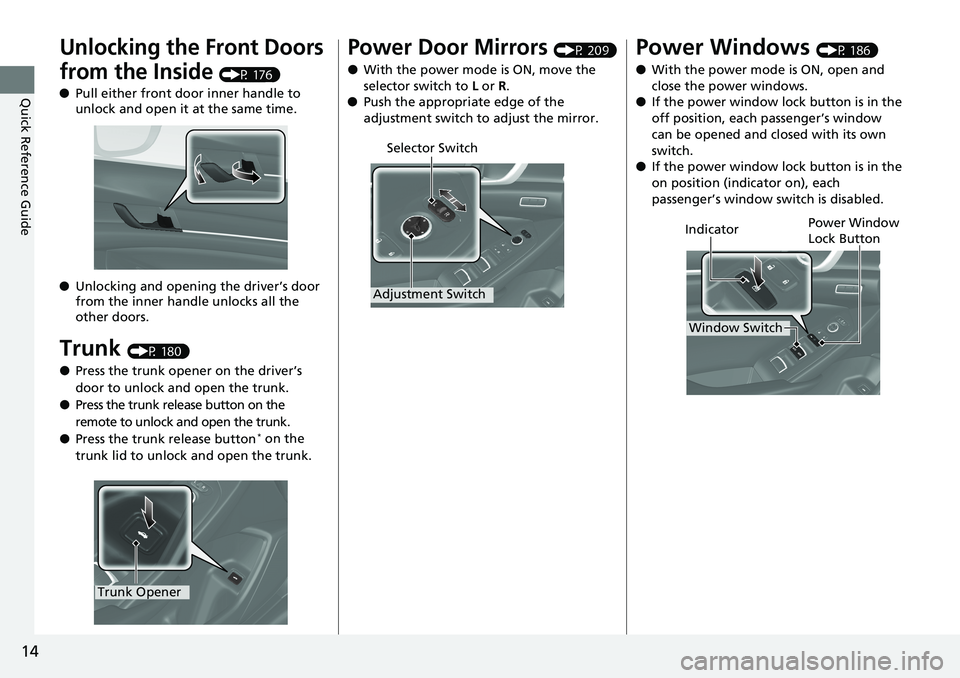

Unlocking the Front Doors
from the Inside
(P 176)
● Pull either front door inner handle to
unlock and open it at the same time.
● Unlocking and opening the driver’s door
from the inner handle unlocks all the
other doors.
Trunk (P 180)
● Press the trunk opener on the driver’s
door to unlock and open the trunk.
● Press the trunk release button on the
remote to unlock and open the trunk.
● Press the trunk release button
* on the
trunk lid to unlock and open the trunk.
Trunk Opener
Power Door Mirrors (P 209)
● With the power mode is ON, move the
selector switch to L or R.
● Push the appropriate edge of the
adjustment switch to adjust the mirror.
Selector Switch
Adjustment Switch
Power Windows (P 186)
● With the power mode is ON, open and
close the power windows.
● If the power window lock button is in the
off position, each passenger’s window
can be opened and closed with its own
switch.
● If the power window lock button is in the
on position (indicator on), each
passenger’s window switch is disabled.
Power Window
Lock Button
Window Switch
Indicator

15
Quick Reference Guide

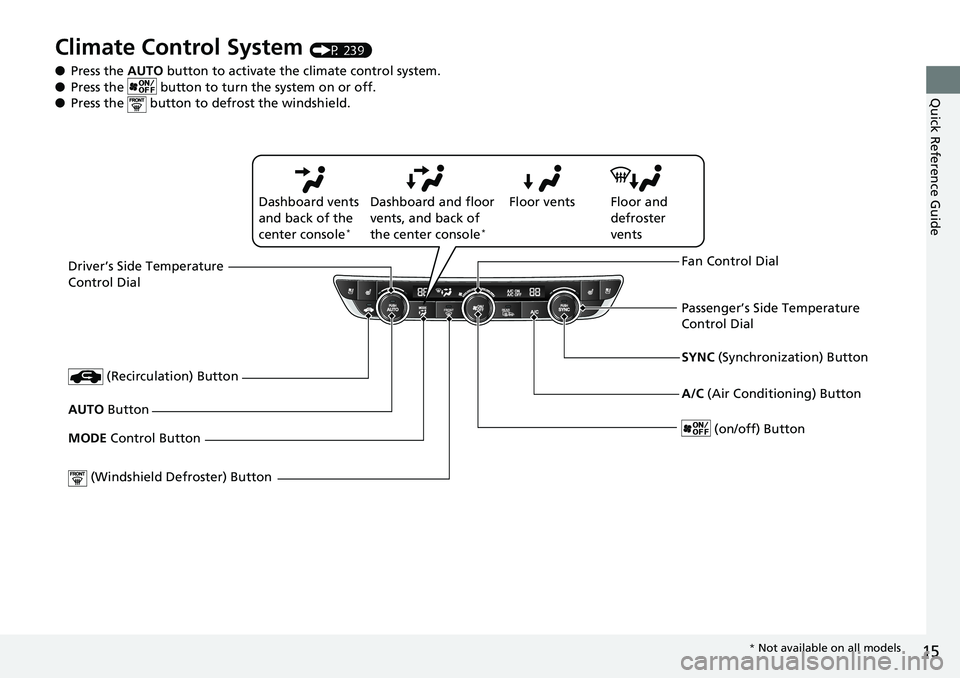

Climate Control System (P 239)
● Press the AUTO button to activate th e climate control system.
● Press the button to tu rn the system on or off.
● Press the button to defrost the windshield.
Driver’s Side Temperature
Control Dial
(Windshield De froster) Button
SYNC (Synchronization) Button
AUTO Button
(on/off) Button
(Recirculation) Button
MODE Control Button Fan Control Dial
A/C
(Air Conditioning) Button
Passenger’s Side Temperature
Control Dial
Floor vents
Dashboard vents
and back of the
center console
*
Dashboard and floor
vents, and back of
the center console
*
Floor and
defroster
vents
* Not available on all models

16
Quick Reference Guide

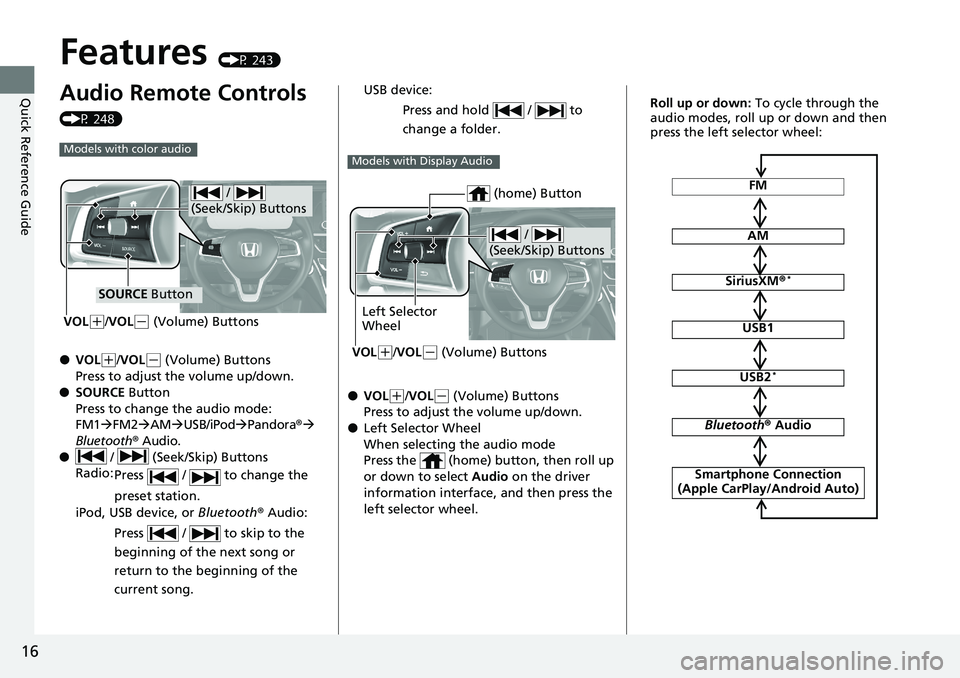

Features (P 243)
Audio Remote Controls
(P 248)
●VOL
(+/VOL(- (Volume) Buttons
Press to adjust the volume up/down.
● SOURCE Button
Press to change the audio mode:
FM1 FM2 AM USB/iPod Pandora ®
Bluetooth® Audio.
● / (Seek/Skip) Buttons
Radio: Press / to change the
preset station.
iPod, USB device, or Bluetooth® Audio:
Press / to skip to the
beginning of the next song or
return to the beginning of the
current song.
Models with color audio
/
(Seek/Skip) Buttons
SOURCE Button
VOL
( +/VOL(- (Volume) Buttons
● VOL(+/VOL(- (Volume) Buttons
Press to adjust the volume up/down.
● Left Selector Wheel
When selecting the audio mode
Press the (home) button, then roll up
or down to select Audio on the driver
information interface, and then press the
left selector wheel. USB device:
Press and hold / to
change a folder.
Models with Display Audio
/
(Seek/Skip) Buttons
Left Selector
Wheel
VOL
( +/VOL(- (Volume) Buttons
(home) ButtonFM
AM
SiriusXM ®*
USB1
USB2*
Bluetooth® Audio
Smartphone Connection
(Apple CarPlay/Android Auto)
Roll up or down: To cycle through the
audio modes, roll up or down and then
press the left selector wheel:

17
Quick Reference Guide

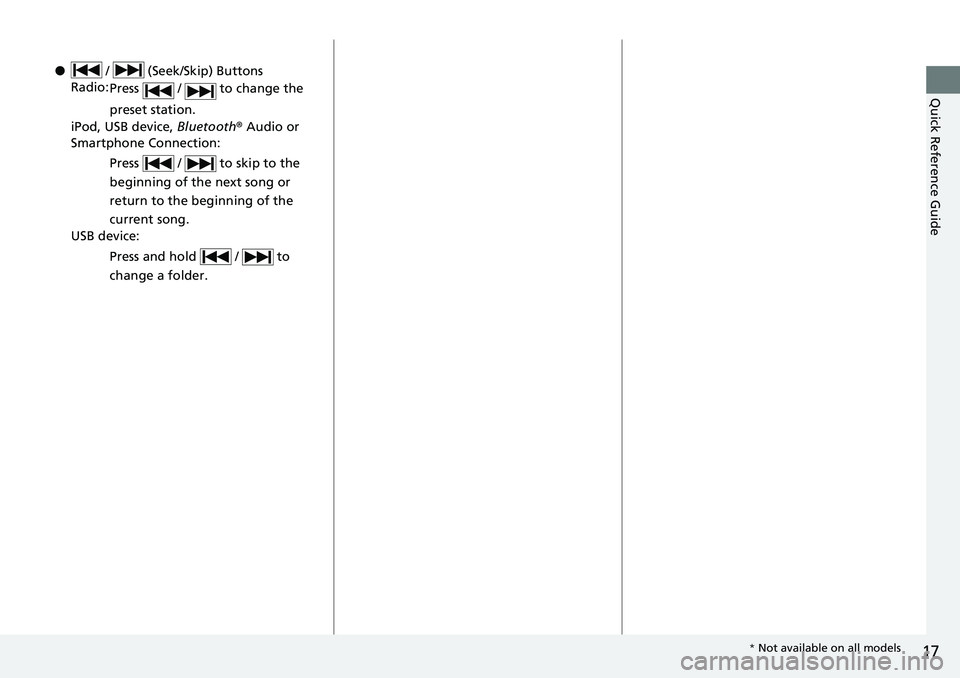

● / (Seek/Skip) Buttons
Radio: Press / to change the
preset station.
iPod, USB device, Bluetooth® Audio or
Smartphone Connection:
Press / to skip to the
beginning of the next song or
return to the beginning of the
current song.
USB device:
Press and hold / to
change a folder.
* Not available on all models

18
Quick Reference Guide

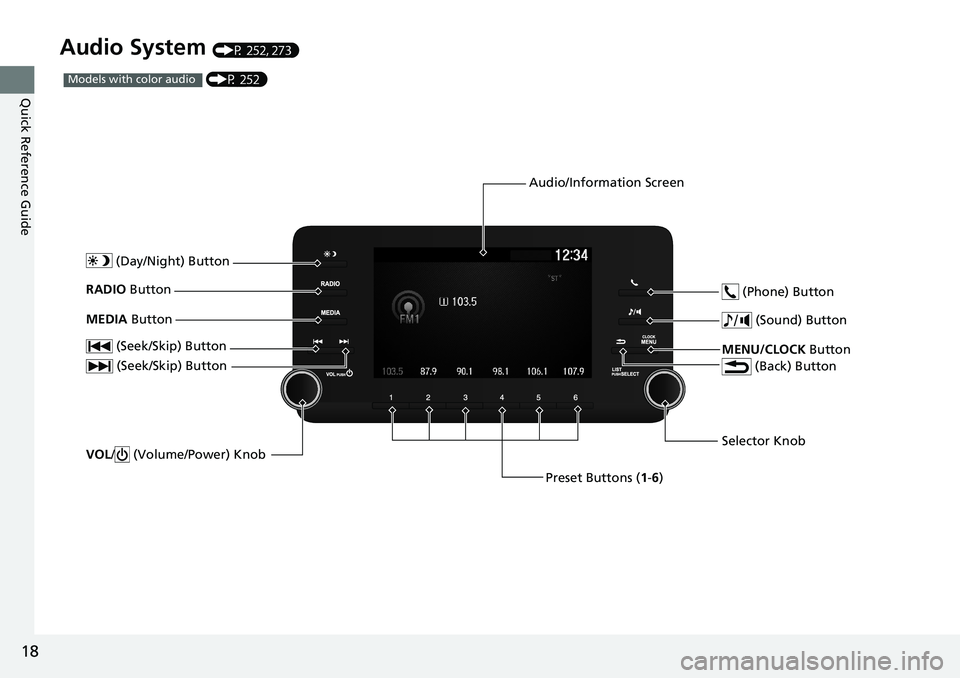

Audio System (P 252, 273)
(P 252)Models with color audio
(Seek/Skip) Button
Selector Knob
(Day/Night) ButtonVOL
/ (Volume/Power) Knob
RADIO Button
(Sound) Button
Preset Buttons (1-6)
(Seek/Skip) Button
MEDIA
Button
MENU/CLOCK Button
(Phone) Button
(Back) Button
Audio/Information Screen
