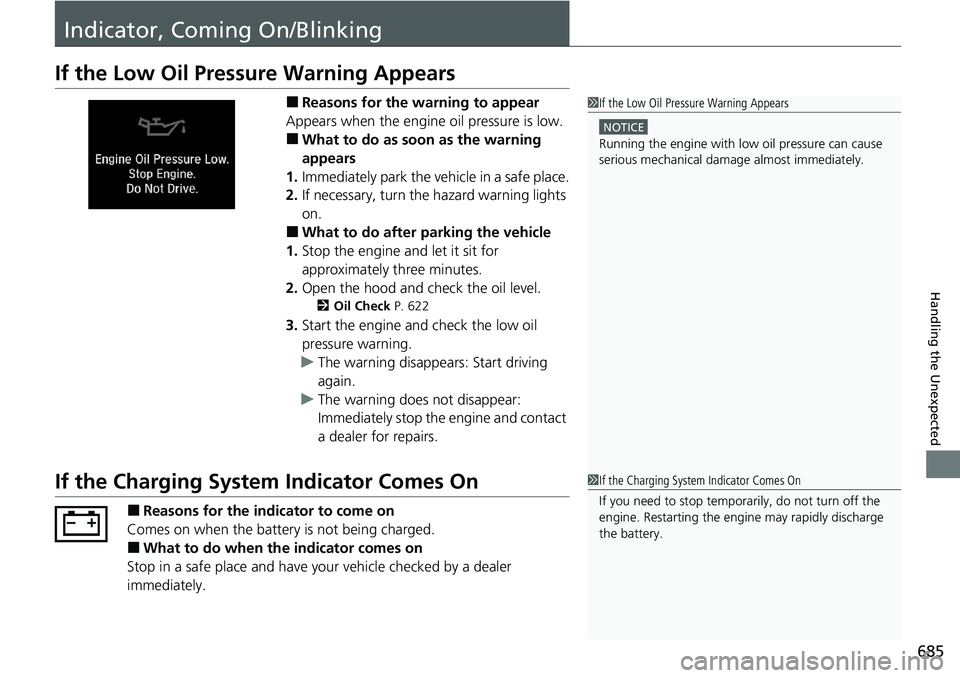

685
Handling the Unexpected
Indicator, Coming On/Blinking
If the Low Oil Pressure Warning Appears
â– Reasons for the warning to appear
Appears when the engine oil pressure is low.
â– What to do as soon as the warning
appears
1. Immediately park the vehicle in a safe place.
2. If necessary, turn the hazard warning lights
on.
â– What to do after parking the vehicle
1. Stop the engine and let it sit for
approximately three minutes.
2. Open the hood and ch eck the oil level.
2Oil Check P. 622
3.Start the engine and check the low oil
pressure warning.
u The warning disappears: Start driving
again.
u The warning does not disappear:
Immediately stop the engine and contact
a dealer for repairs.
If the Charging System Indicator Comes On
â– Reasons for the indicator to come on
Comes on when the battery is not being charged.
â– What to do when th e indicator comes on
Stop in a safe place and have y our vehicle checked by a dealer
immediately.
1 If the Low Oil Pressure Warning Appears
NOTICE
Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.
1If the Charging System Indicator Comes On
If you need to stop temporarily, do not turn off the
engine. Restarting the engi ne may rapidly discharge
the battery.

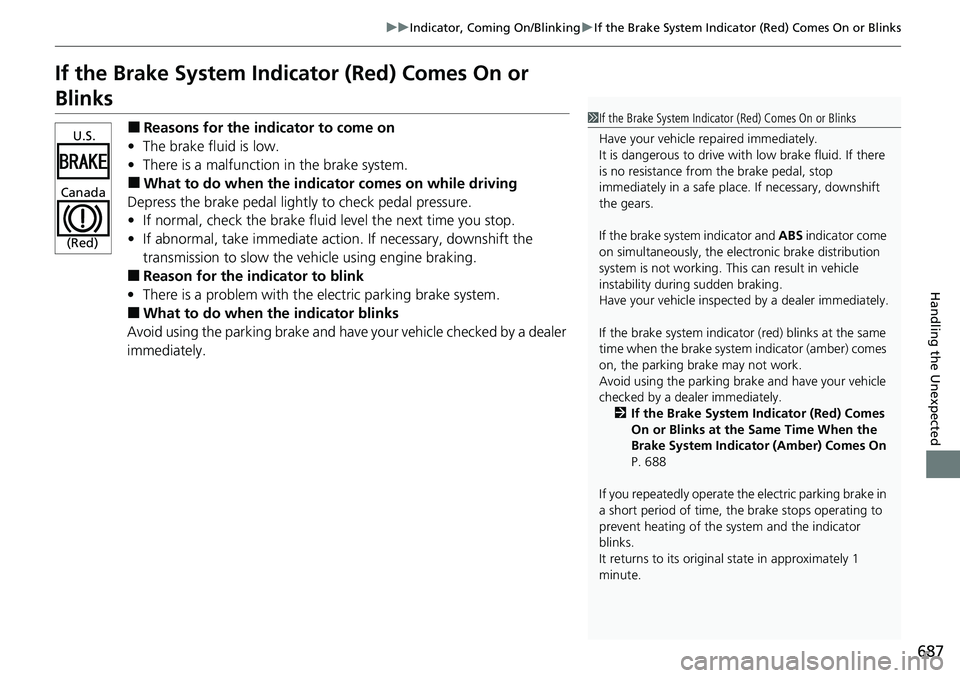

687
uuIndicator, Comi ng On/BlinkinguIf the Brake System Indicator (Red) Comes On or Blinks
Handling the Unexpected
If the Brake System Indicator (Red) Comes On or
Blinks
â– Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
â– What to do when the indica tor comes on while driving
Depress the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate acti on. If necessary, downshift the
transmission to slow the vehicle using engine braking.
â– Reason for the indicator to blink
• There is a problem with the electric parking brake system.
â– What to do when the indicator blinks
Avoid using the parking brake and have your vehicle checked by a dealer
immediately.
1 If the Brake System Indicator (Red) Comes On or Blinks
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary, downshift
the gears.
If the brake system indicator and ABS indicator come
on simultaneously, the elec tronic brake distribution
system is not working. Th is can result in vehicle
instability during sudden braking.
Have your vehicle inspecte d by a dealer immediately.
If the brake system indicator (red) blinks at the same
time when the brake system indicator (amber) comes
on, the parking br ake may not work.
Avoid using the parking brak e and have your vehicle
checked by a dealer immediately. 2 If the Brake System Indicator (Red) Comes
On or Blinks at the Same Time When the
Brake System Indicator (Amber) Comes On
P. 688
If you repeatedly operate the electric parking brake in
a short period of time, the brake stops operating to
prevent heating of the system and the indicator
blinks.
It returns to its original state in approximately 1
minute.
U.S.
Canada (Red)

691
uuIndicator, Coming On/Blinking uIf the Transmission Indicator Blin ks along with the Warning Message
Handling the Unexpected
If the Transmission Indicator Blinks along with the
Warning Message
â– Reasons for the indicator to blink
The transmission is malfunctioning.
â– What to do when the indicator blinks
• Immediately have your vehicle inspected by
a dealer.
• Put the transmission into
(N after starting
the engine.
u Check if the
(N position on the driver
information interface and the indicator
on the
(N button light/blink.
2 Starting the Engine P. 467
Automatic transmission models
1If the Transmission Indicator Blinks along with the Warning
Message
You may not be able to start the engine.
Make sure to set the pa rking brake when parking
your vehicle.
Call a professional towing service if you need to tow
your vehicle. 2 Emergency Towing P. 697

696
uuFusesuInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1.Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.
2. Open the fuse box cover in the engine
compartment.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label. 2 Fuse Locations P. 692
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined
Fuse Blown Fuse
Fuse Puller

719
Index
Continuously Variable TransmissionCreeping................................................. 476
Fluid ....................................................... 631
Kickdown ............................................... 476
Operating the Shift Lever .......... 23, 485, 487
Shift Lever Does Not Move ...................... 681
Shifting ........................................... 484, 486
Controls .................................................... 163
Coolant (Engine) ...................................... 629
Adding to the Engine Coolant Reserve Tank ..................................................... 629
Adding to the Radiator ........................... 630
Overheating ............................................ 683
Creeping (Automatic Transmission/
Continuously Variable Transmission) .... 476
Cross Traffic Monitor ............................... 594
Cup Holders .............................................. 227
Customer Service Information ................ 716
Customized Features ....................... 372, 383
D
Daytime Running Lights .......................... 197
Dead Battery ............................................ 678
Defaulting All the Settings ...................... 401
Defrosting the Windshield and Windows ................................................. 241
Devices that Emit Radio Waves ............... 709
Dimming Headlights .............................................. 194
Rearview Mirror ...................................... 209 Dipstick (Engine Oil)
................................. 622
Directional Signals (Turn Signal) ............. 193
Door Mirrors ............................................. 210
Doors ......................................................... 166
Auto Door Locking .................................. 179
Auto Door Unlocking ............................... 179
Door and Trunk Open Message ................. 37
Keys ........................................................ 166
Locking/Unlocking the Doors from the Inside ...................................... 176
Locking/Unlocking the Doors
from the Outside ................................... 169
Lockout Prevention System ...................... 175
DOT Tire Quality Grading ........................ 649
Driver Attention Monitor ........................ 152
Driver Information Interface ................... 138
Switching the Display .............................. 138
Warning and Information Messages ........ 105
Driving ....................................................... 455
Automatic Transmission/ Continuously Variable Transmission ....... 476
Braking .................................................... 575
Shifting Gear ................................... 477, 490
Shifting Position .............................. 484, 486
Starting the Engine .................................. 467
Driving Position Memory System ............. 206
Driving Support Information ................... 155
Dust and Pollen Filter ............................... 658
E
Eco Assist® System ........................................ 9
ECON Button ............................................ 494
Econ Mode Indicator.................................................... 97
Elapsed Time ............................................. 145
Electric Power Steering (EPS) System Indicator............................................ 92, 689
Electronic Stability Control (ESC) ............. 496
Emergency ................................................ 697
Emergency Engine Stop ........................... 677
Emergency Trunk Opener ........................ 182
Emissions Testing (Readiness Codes) ....... 711
Engine ....................................................... 708
Coolant ................................................... 629
Jump Starting .......................................... 678
Oil ........................................................... 621
Starting ................................................... 467
Engine Coolant ......................................... 629
Adding to the Engine Coolant Reserve Tank ...................................................... 629
Adding to the Radiator ............................ 630
Overheating ............................................ 683
Temperature Gauge ................................ 137
Engine Oil ................................................. 621
Adding .................................................... 624
Checking................................................. 622
Displaying Oil Life .................................... 612
Low Oil Pressure Warning........................ 685
Recommended Engine Oil ....................... 621
ENGINE START/STOP Button .................... 190

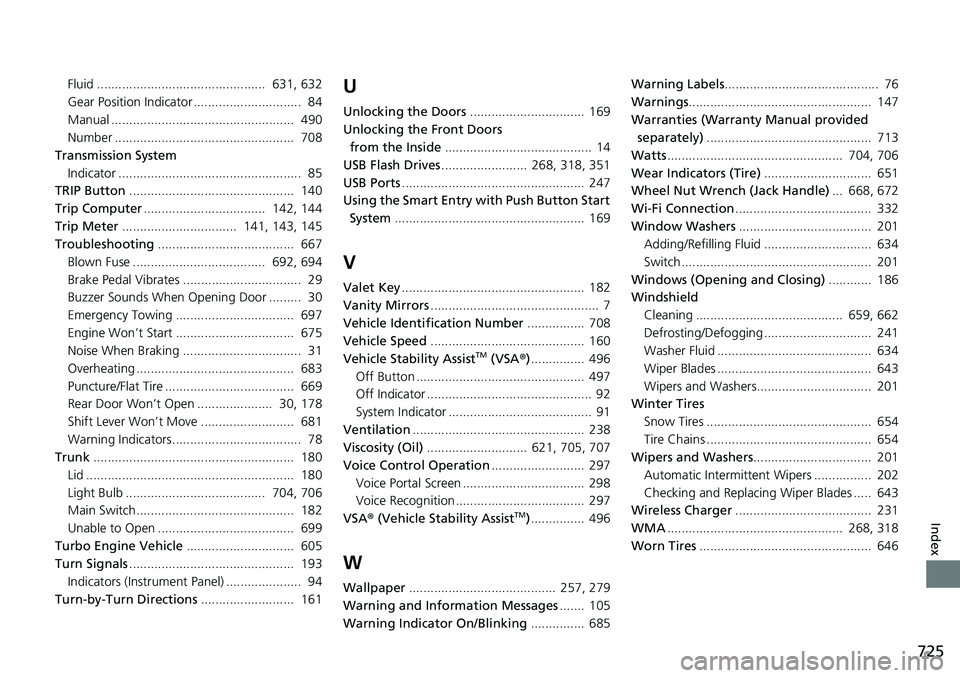

725
Index
Fluid ............................................... 631, 632
Gear Position Indicator .............................. 84
Manual ................................................... 490
Number .................................................. 708
Transmission System
Indicator ................................................... 85
TRIP Button .............................................. 140
Trip Computer .................................. 142, 144
Trip Meter ................................ 141, 143, 145
Troubleshooting ...................................... 667
Blown Fuse ..................................... 692, 694
Brake Pedal Vibrates ................................. 29
Buzzer Sounds When Opening Door ......... 30
Emergency Towing ................................. 697
Engine Won’t Start ................................. 675
Noise When Braking ................................. 31
Overheating ............................................ 683
Puncture/Flat Tire .................................... 669
Rear Door Won’t Open ..................... 30, 178
Shift Lever Won’t Move .......................... 681
Warning Indicators.................................... 78
Trunk ........................................................ 180
Lid .......................................................... 180
Light Bulb ....................................... 704, 706
Main Switch............................................ 182
Unable to Open ...................................... 699
Turbo Engine Vehicle .............................. 605
Turn Signals .............................................. 193
Indicators (Instrume nt Panel) ..................... 94
Turn-by-Turn Directions .......................... 161U
Unlocking the Doors................................ 169
Unlocking the Front Doors from the Inside ......................................... 14
USB Flash Drives ........................ 268, 318, 351
USB Ports ................................................... 247
Using the Smart Entry wi th Push Button Start
System ..................................................... 169
V
Valet Key ................................................... 182
Vanity Mirrors ............................................... 7
Vehicle Identification Number ................ 708
Vehicle Speed ........................................... 160
Vehicle Stability Assist
TM (VSA ®)............... 496
Off Button ............................................... 497
Off Indicator .............................................. 92
System Indicator ........................................ 91
Ventilation ................................................ 238
Viscosity (Oil) ............................ 621, 705, 707
Voice Control Operation .......................... 297
Voice Portal Screen .................................. 298
Voice Recognition .................................... 297
VSA ® (Vehicle Stability Assist
TM)............... 496
W
Wallpaper ......................................... 257, 279
Warning and Information Messages ....... 105
Warning Indicator On/Blinking ............... 685Warning Labels
........................................... 76
Warnings ................................................... 147
Warranties (Warranty Manual provided separately) .............................................. 713
Watts ................................................. 704, 706
Wear Indicators (Tire) .............................. 651
Wheel Nut Wrench (Jack Handle) ... 668, 672
Wi-Fi Connection ...................................... 332
Window Washers ..................................... 201
Adding/Refilling Fluid .............................. 634
Switch ..................................................... 201
Windows (Opening and Closing) ............ 186
Windshield Cleaning ......................................... 659, 662
Defrosting/Defogging .............................. 241
Washer Fluid ........................................... 634
Wiper Blades ........................................... 643
Wipers and Washers................................ 201
Winter Tires
Snow Tires .............................................. 654
Tire Chains .............................................. 654
Wipers and Washers ................................. 201
Automatic Intermittent Wipers ................ 202
Checking and Replacing Wiper Blades ..... 643
Wireless Charger ...................................... 231
WMA ................................................. 268, 318
Worn Tires ................................................ 646
