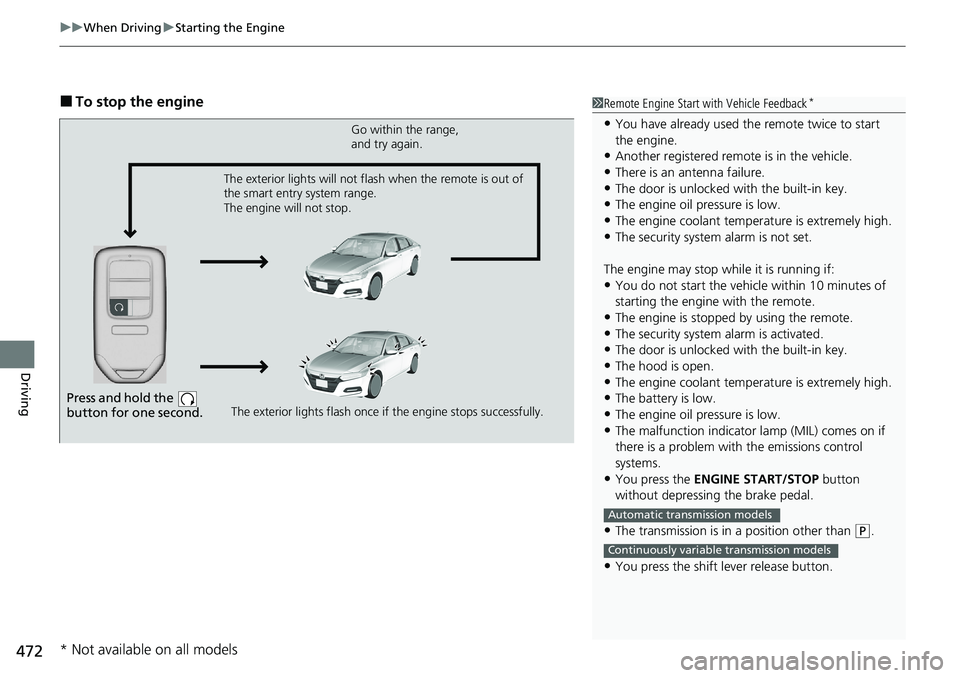

uuWhen Driving uStarting the Engine
472
Driving
■To stop the engine1Remote Engine Start with Vehicle Feedback*
•You have already used the remote twice to start
the engine.
•Another registered remo te is in the vehicle.
•There is an antenna failure.•The door is unlocked with the built-in key.
•The engine oil pressure is low.
•The engine coolant temper ature is extremely high.•The security system alarm is not set.
The engine may stop whil e it is running if:
•You do not start the vehicl e within 10 minutes of
starting the engine with the remote.
•The engine is stopped by using the remote.•The security system alarm is activated.
•The door is unlocked with the built-in key.
•The hood is open.•The engine coolant temper ature is extremely high.
•The battery is low.
•The engine oil pressure is low.
•The malfunction indicator lamp (MIL) comes on if
there is a problem with the emissions control
systems.
•You press the ENGINE START/STOP button
without depressing the brake pedal.
•The transmission is in a position other than ( P.
•You press the shift lever release button.
Automatic transmission models
Continuously variable transmission models
Press and hold the
button for one second.
Go within the range,
and try again.
The exterior lights flash once if the engine stops successfully.
The exterior lights will not flash when the remote is out of
the smart entry system range.
The engine will not stop.
* Not available on all models

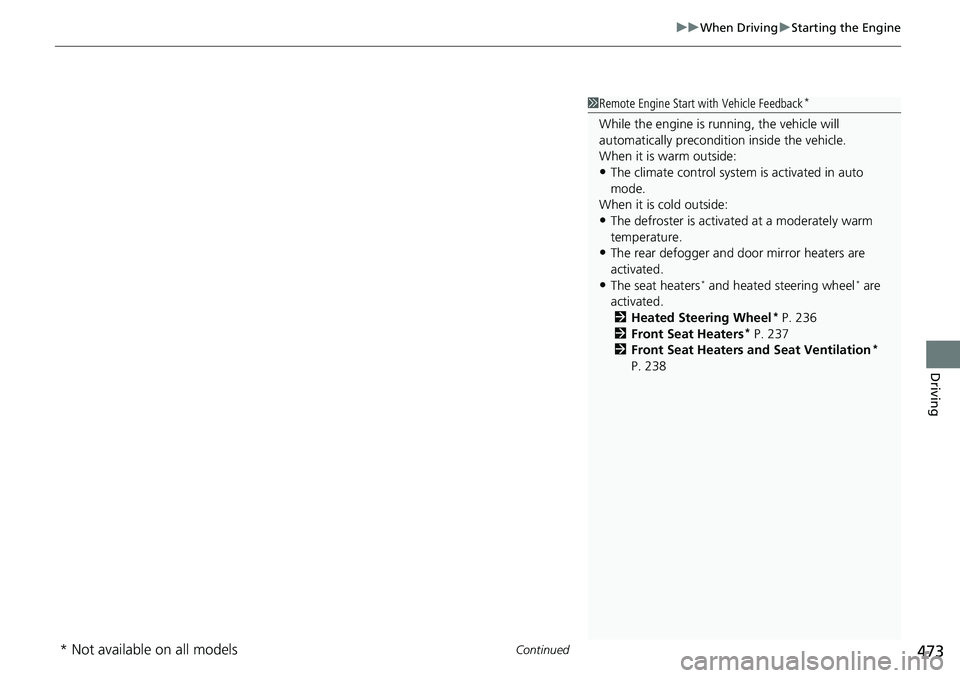

Continued473
uuWhen Driving uStarting the Engine
Driving
1Remote Engine Start with Vehicle Feedback*
While the engine is running, the vehicle will
automatically preconditi on inside the vehicle.
When it is warm outside:
•The climate control system is activated in auto
mode.
When it is cold outside:
•The defroster is activated at a moderately warm
temperature.
•The rear defogger and door mirror heaters are
activated.
•The seat heaters* and heated steering wheel* are
activated. 2 Heated Steering Wheel
* P. 236
2 Front Seat Heaters* P. 237
2 Front Seat Heaters and Seat Ventilation*
P. 238
* Not available on all models

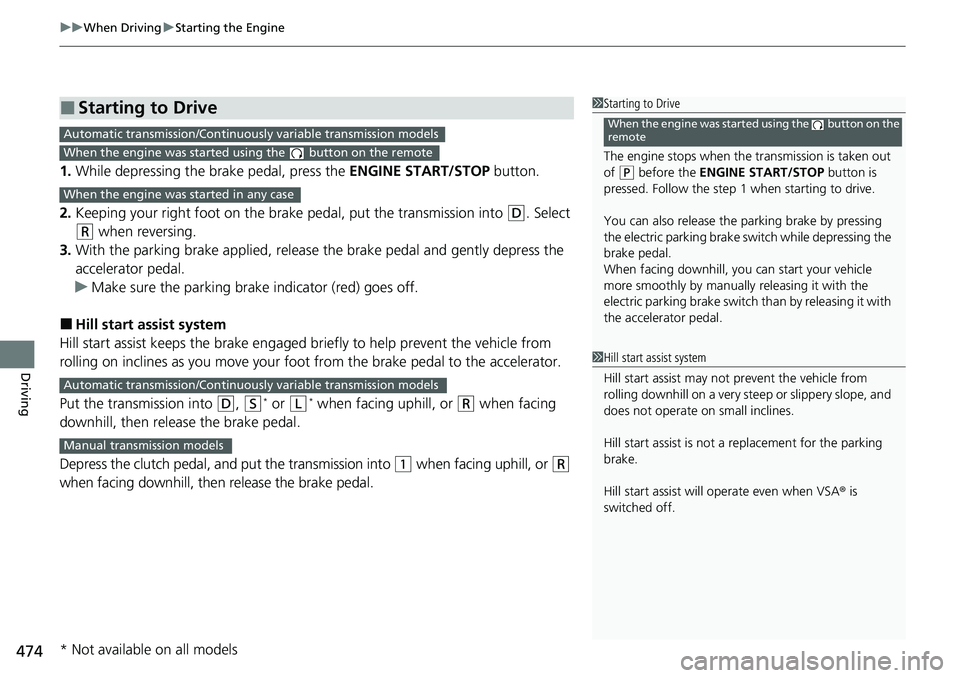

uuWhen Driving uStarting the Engine
474
Driving
1. While depressing the brake pedal, press the ENGINE START/STOP button.
2. Keeping your right foot on the brake pedal, put the transmission into
(D. Select
(R when reversing.
3. With the parking brake applied, release the brake pedal and gently depress the
accelerator pedal.
u Make sure the parking brake indicator (red) goes off.
■Hill start assist system
Hill start assist keeps the brake engaged br iefly to help prevent the vehicle from
rolling on inclines as you move your fo ot from the brake pedal to the accelerator.
Put the transmission into
(D, (S* or (L* when facing uphill, or (R when facing
downhill, then release the brake pedal.
Depress the clutch pedal, a nd put the transmission into
(1 when facing uphill, or (R
when facing downhill, then release the brake pedal.
■Starting to Drive
Automatic transmission/Continuousl y variable transmission models
1Starting to Drive
The engine stops when th e transmission is taken out
of
( P before the ENGINE START/STOP button is
pressed. Follow the step 1 when starting to drive.
You can also release the parking brake by pressing
the electric parking brake sw itch while depressing the
brake pedal.
When facing downhill, you can start your vehicle
more smoothly by manually releasing it with the
electric parking brake switch than by releasing it with
the accelerator pedal.
When the engine was started using the button on the
remote
When the engine was started using the button on the remote
When the engine was started in any case
1 Hill start assist system
Hill start assist may not prevent the vehicle from
rolling downhill on a very st eep or slippery slope, and
does not operate on small inclines.
Hill start assist is not a replacement for the parking
brake.
Hill start assist will operate even when VSA ® is
switched off.
Automatic transmission/Continuousl y variable transmission models
Manual transmission models
* Not available on all models

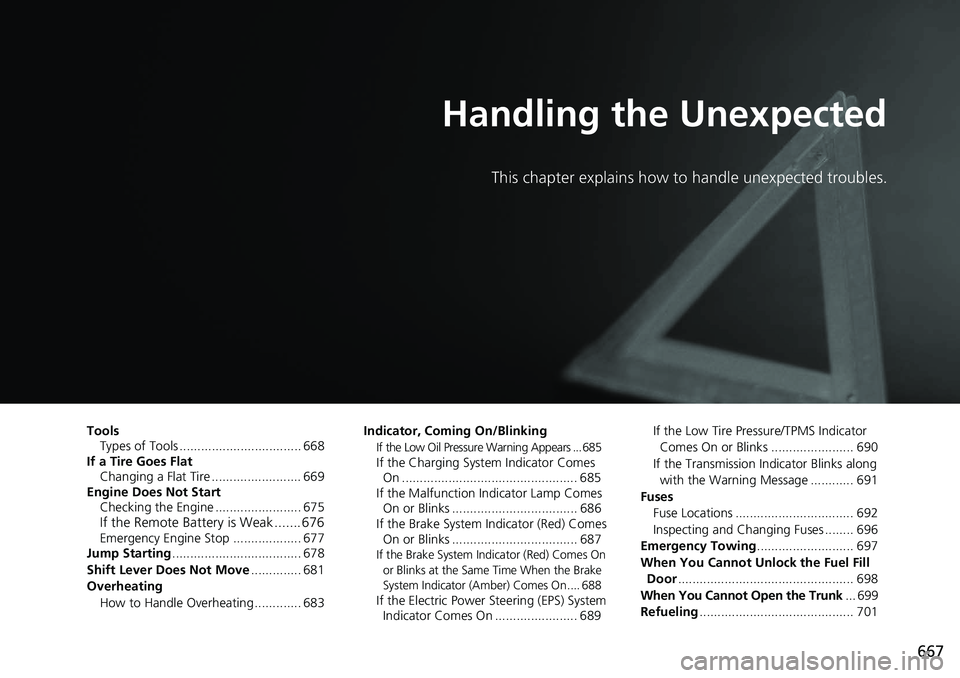

667
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 668
If a Tire Goes Flat
Changing a Flat Tire ......................... 669
Engine Does Not Start Checking the Engine ........................ 675
If the Remote Battery is Weak ....... 676Emergency Engine Stop ................... 677
Jump Starting .................................... 678
Shift Lever Does Not Move .............. 681
Overheating How to Handle Overheating ............. 683 Indicator, Coming On/Blinking
If the Low Oil Pressure Warning Appears ... 685If the Charging System Indicator Comes
On ................................................. 685
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 686
If the Brake System Indicator (Red) Comes
On or Blinks ................................... 687
If the Brake System Indicator (Red) Comes On
or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On.... 688
If the Electric Power Steering (EPS) System Indicator Comes On ....................... 689 If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ....................... 690
If the Transmission I ndicator Blinks along
with the Warning Message ............ 691
Fuses Fuse Locations ................................. 692
Inspecting and Changing Fuses ........ 696
Emergency Towing ........................... 697
When You Cannot Unlock the Fuel Fill Door ................................................. 698
When You Cannot Open the Trunk ... 699
Refueling ........................................... 701

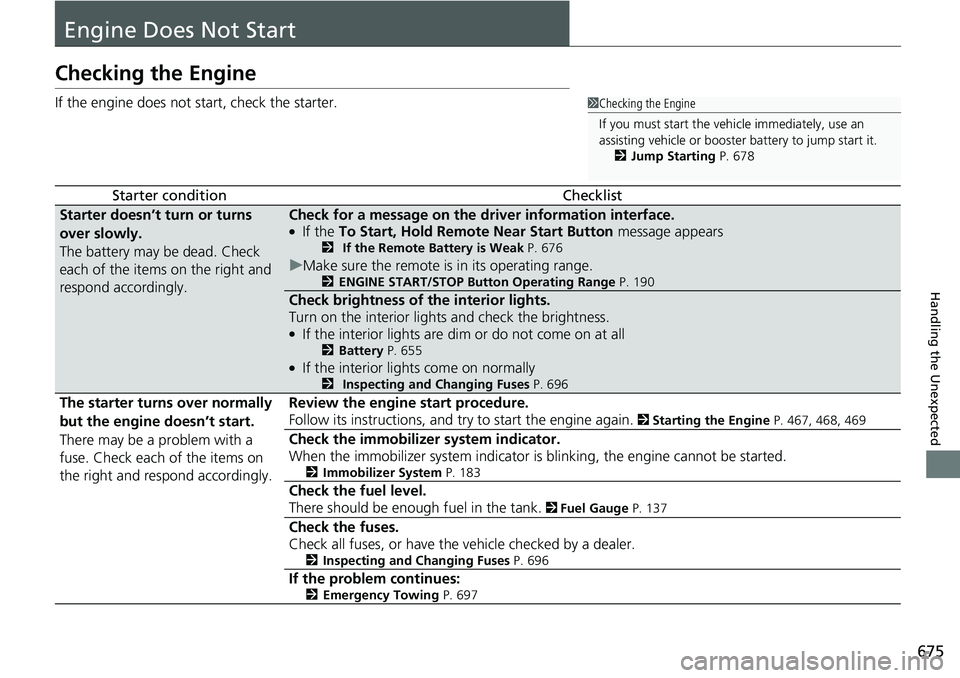

675
Handling the Unexpected
Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.Check for a message on the driver information interface.●If the To Start, Hold Remote Near Start Button message appears2 If the Remote Battery is Weak P. 676
uMake sure the remote is in its operating range.2 ENGINE START/STOP Button Operating Range P. 190
Check brightness of the interior lights.
Turn on the interior lights and check the brightness.
●If the interior lights are dim or do not come on at all2Battery P. 655●If the interior lights come on normally2 Inspecting and Changing Fuses P. 696
The starter turns over normally
but the engine doesn’t start.
There may be a problem with a
fuse. Check each of the items on
the right and respond accordingly. Review the engine start procedure.
Follow its instructions, and try
to start the engine again.
2 Starting the Engine P. 467, 468, 469
Check the immobilize r system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.
2 Immobilizer System P. 183
Check the fuel level.
There should be enough fuel in the tank.
2 Fuel Gauge P. 137
Check the fuses.
Check all fuses, or have the vehicle checked by a dealer.
2 Inspecting and Changing Fuses P. 696
If the problem continues:2Emergency Towing P. 697
1Checking the Engine
If you must start the vehi cle immediately, use an
assisting vehicle or booster battery to jump start it.
2 Jump Starting P. 678

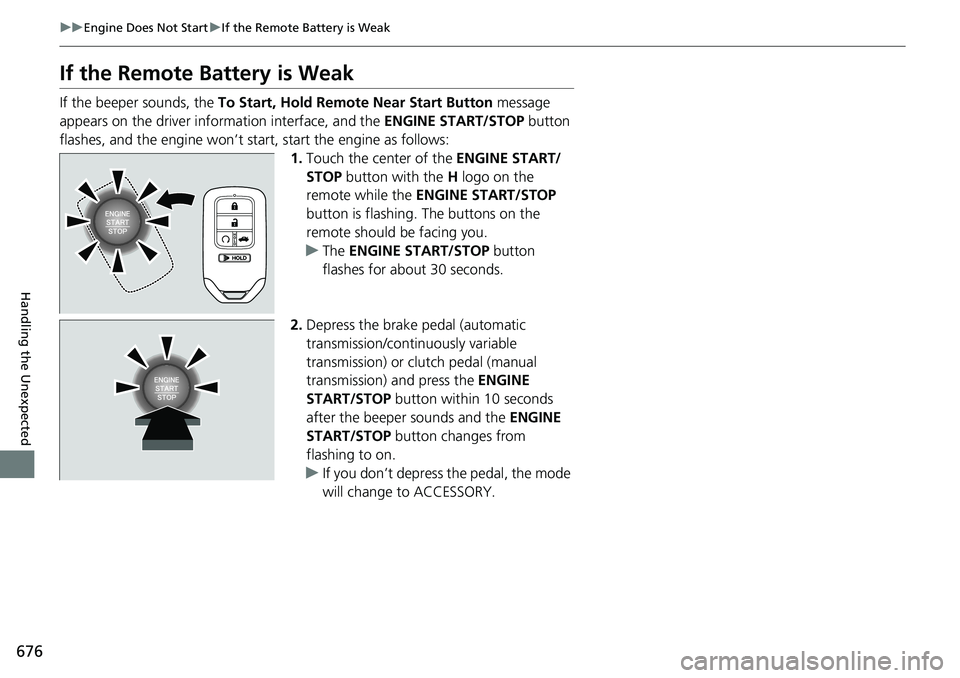

676
uuEngine Does Not Start uIf the Remote Battery is Weak
Handling the Unexpected
If the Remote Battery is Weak
If the beeper sounds, the To Start, Hold Remote Near Start Button message
appears on the driver information interface, and the ENGINE START/STOP button
flashes, and the engine won’t star t, start the engine as follows:
1.Touch the center of the ENGINE START/
STOP button with the H logo on the
remote while the ENGINE START/STOP
button is flashing. The buttons on the
remote should be facing you.
u The ENGINE START/STOP button
flashes for about 30 seconds.
2. Depress the brake pedal (automatic
transmission/continuously variable
transmission) or clutch pedal (manual
transmission) and press the ENGINE
START/STOP button within 10 seconds
after the beeper sounds and the ENGINE
START/STOP button changes from
flashing to on.
u If you don’t depress the pedal, the mode
will change to ACCESSORY.

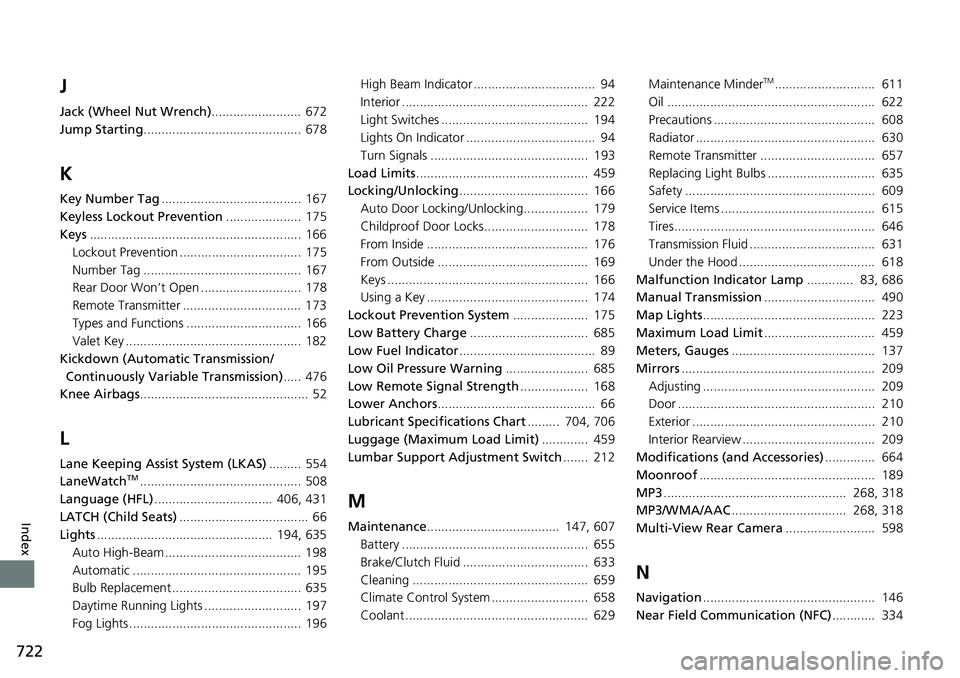

722
Index
J
Jack (Wheel Nut Wrench)......................... 672
Jump Starting ............................................ 678
K
Key Number Tag ....................................... 167
Keyless Lockout Prevention ..................... 175
Keys ........................................................... 166
Lockout Prevention .................................. 175
Number Tag ............................................ 167
Rear Door Won’t Open ............................ 178
Remote Transmitter ................................. 173
Types and Functions ................................ 166
Valet Key ................................................. 182
Kickdown (Automatic Transmission/
Continuously Variable Transmission) ..... 476
Knee Airbags ............................................... 52
L
Lane Keeping Assist System (LKAS) ......... 554
LaneWatchTM............................................. 508
Language (HFL) ................................. 406, 431
LATCH (Child Seats) .................................... 66
Lights ................................................. 194, 635
Auto High-Beam ...................................... 198
Automatic ............................................... 195
Bulb Replacement .................................... 635
Daytime Running Lights ........................... 197
Fog Lights ................................................ 196 High Beam Indicator .................................. 94
Interior .................................................... 222
Light Switches ......................................... 194
Lights On Indicator .................................... 94
Turn Signals ............................................ 193
Load Limits ................................................ 459
Locking/Unlocking .................................... 166
Auto Door Locking/Unlocking.................. 179
Childproof Door Locks............................. 178
From Inside ............................................. 176
From Outside .......................................... 169
Keys ........................................................ 166
Using a Key ............................................. 174
Lockout Prevention System ..................... 175
Low Battery Charge ................................. 685
Low Fuel Indicator ...................................... 89
Low Oil Pressure Warning ....................... 685
Low Remote Signal Strength ................... 168
Lower Anchors ............................................ 66
Lubricant Specifications Chart ......... 704, 706
Luggage (Maximum Load Limit) ............. 459
Lumbar Support Adjustment Switch ....... 212
M
Maintenance..................................... 147, 607
Battery .................................................... 655
Brake/Clutch Fluid ................................... 633
Cleaning ................................................. 659
Climate Control System ........................... 658
Coolant ................................................... 629 Maintenance Minder
TM............................ 611
Oil .......................................................... 622
Precautions ............................................. 608
Radiator .................................................. 630
Remote Transmitter ................................ 657
Replacing Light Bulbs .............................. 635
Safety ..................................................... 609
Service Items ........................................... 615
Tires........................................................ 646
Transmission Fluid ................................... 631
Under the Hood ...................................... 618
Malfunction Indicator Lamp ............. 83, 686
Manual Transmission ............................... 490
Map Lights ................................................ 223
Maximum Load Limit ............................... 459
Meters, Gauges ........................................ 137
Mirrors ...................................................... 209
Adjusting ................................................ 209
Door ....................................................... 210
Exterior ................................................... 210
Interior Rearview ..................................... 209
Modifications (and Accessories) .............. 664
Moonroof ................................................. 189
MP3 ................................................... 268, 318
MP3/WMA/AAC ................................ 268, 318
Multi-View Rear Camera ......................... 598
N
Navigation................................................ 146
Near Field Communication (NFC) ............ 334

723
Index
Numbers (Identification)......................... 708
O
Odometer................................................. 140
Oil (Engine) .............................................. 621
Adding ................................................... 624
Checking ................................................ 622
Displaying Oil Life ................................... 612
Low Oil Pressure Warning ....................... 685
Oil Life .................................................... 147
Recommended Engine Oil ....................... 621
Viscosity.................................................. 621
Open Source Licenses .............................. 366
Opening Trunk ...................................................... 699
Opening/Closing Hood ...................................................... 620
Moonroof ............................................... 189
Power Windows...................................... 186
Trunk ...................................................... 180
Outside Temperature Display ................. 141
Overheating ............................................. 683
P
Paddle Shifters
(7-Speed Manual Shift Mode) ............... 488
Pandora ®................................................. 266
Panic Mode ............................................... 185
Parking ..................................................... 587 Parking Brake
........................................... 575
Parking Brake and Brake System Indicator
(Amber) ..................................................... 80
Parking Brake and Brake System Indicator (Red) .......................................... 79, 687, 688
Parking Sensor System ............................. 589
Passenger Front Airb ag Off Indicator....... 59
Passing Indicators ..................................... 194
Phone ........................................................ 148
Playing Bluetooth ® Audio ................ 271, 321
Power Windows ........................................ 186
Precautions While Driving ....................... 475
Rain ......................................................... 475
Pregnant Women ....................................... 43
Puncture (Tire) .......................................... 669
R
Radiator.................................................... 630
Radio (AM/FM) .................................. 261, 300
Radio (SiriusXM ®) ..................................... 304
Radio Data System (RDS) .................. 262, 302
Range ........................................................ 143
RDS (Radio Data System) .................. 262, 302
Readiness Codes (Emissions Testing) ....... 711
Rear Defogger/Heated Door Mirror Button ..................................................... 203
Rear Seat (Folding Down) ........................ 215
Rear Seat Heaters ..................................... 239
Rearview Mirror ........................................ 209 Refueling
.................................................. 601
Fuel Gauge.............................................. 137
Gasoline .................................. 601, 704, 706
Low Fuel Indicator ..................................... 89
Regulations ............................... 503, 649, 709
Remote Engine Start with Vehicle Feedback ................................................. 471
Remote Transmitter ................................. 173
Replacement Battery .................................................... 657
Bulbs ....................................................... 635
Fuses ............................................... 692, 694
Tires ........................................................ 652
Wiper Blade Rubber ................................ 643
Reporting Safety Defects ......................... 710
Resetting a Trip Meter ..................... 141, 143
Road Departure Mitigation (RDM) ......... 562
On and Off.............................................. 564
S
Safe Driving ................................................ 33
Safety Check ............................................... 37
Safety Labels ............................................... 76
Safety Message ............................................. 1
Safety Support .......................................... 156
Seat Belts .................................................... 38
Adjusting the Shoulder Anchor.................. 42
Automatic Seat Belt Tensioners ................. 40
Checking................................................... 44
Fastening .................................................. 41
