check engine HONDA ACCORD TOURING 2014 9.G Technology Reference Guide

45

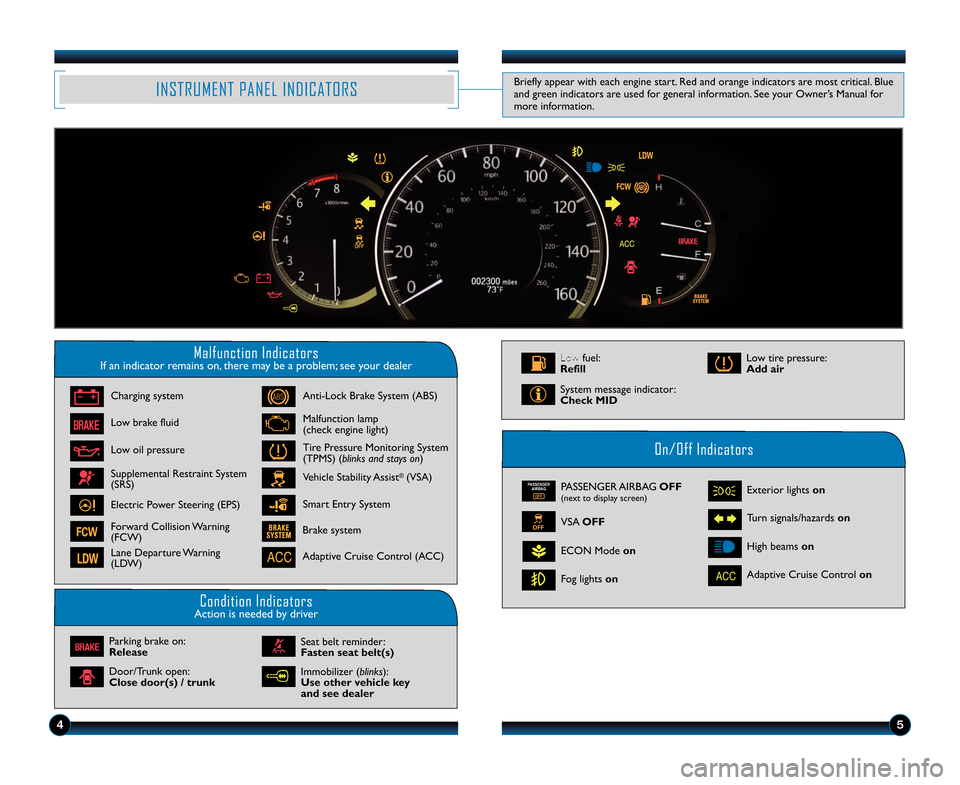

INSTRUMENT PANEL INDICATORS
Malfunction IndicatorsIf an indicator remains on\b there may be a problem; see your dealer
On/Off Indicators
Condition IndicatorsAction is needed by driver
PASSENGER AIRBAG OFF(next to display screen)
VSA OFF
ECON Mode on
Fog lights on Exterior lights on
Turn signals/hazards on
High beams on
Charging system
Low brake fluid AntiLock Brake System (ABS)
Malfunction lamp
(check engine light)
Tire Pressure Monitoring System
(TPMS) (blinks and stays on)
Vehicle Stability Assist
®(VSA)
Parking brake on:
Release Seat belt reminder:
Fasten seat belt(s)
Brake system
Adaptive Cruise Control (ACC)
Adaptive Cruise Control on
Smart Entry System
Low oil pressure
Supplemental Restraint System
(SRS)
Electric Power Steering (EPS)
Forward Collision Warning
(FCW)
Lane Departure Warning
(LDW)
Door/Trunk open:
Close door(s) / trunk Low tire pressure:
\bdd air
System message indicator:
Check MID
Low fuel:
Refill
Immobilizer (blinks):
Use other vehicle key
and see dealer
Briefly appear with each engine start. Red and orange indicators are most critical. Blue
and green indicators are used for general information. See your Owner’s Manual for
more information.
14 Accord 4D TRG_TOUR\AING_ATG_NEW STYLE \A7/10/2013 9\f38 AM \APage 4

89

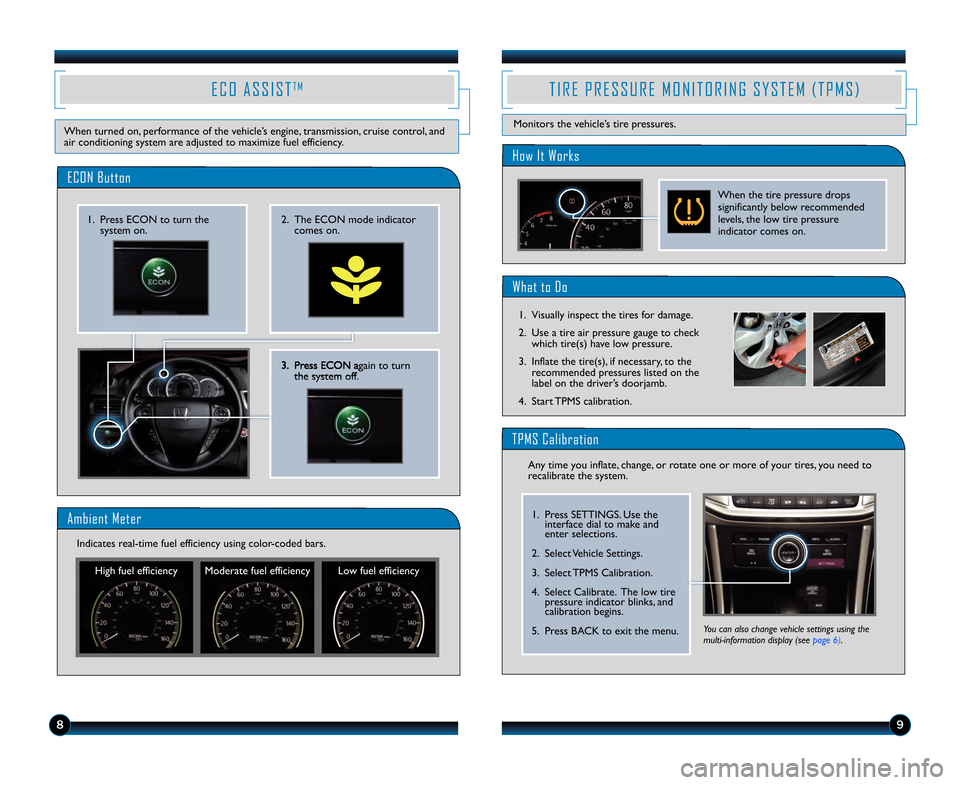

3. Press ECON again to turnthe system off.
2. The ECON mode indicatorcomes on.1. Press ECON to turn thesystem on.
ECON Button
E C O A S S I S TT M
When turned on, performance of the vehicle’s engine, transmission, cruise control, and air conditioning system are adjusted to maximize fuel efficiency.
Ambient Meter
High fuel efficiencyModerate fuel efficiency Low fuel efficiency
Indicates realtime fuel efficiency using colorcoded bars.
What to Do
1. Visually inspect the tires for damage.
2. Use a tire air pressure gauge to checkwhich tire(s) have low pressure.
3. Inflate the tire(s), if necessary, to therecommended pressures listed on the label on the driver’s doorjamb.
4. Start TPMS calibration.
T I R E P R E S S U R E M O N I T O R I N G S Y S T E M ( T P M S )
Monitors the vehicle’s tire pressures.
How It Works
When the tire pressure drops significantly below recommendedlevels, the low tire pressureindicator comes on.
Any time you inflate, change, or rotate one or more of your tires, you need to recalibrate the system.
You can also change vehicle settings using the multiinformation display (see page 6).
TPMS Calibration
1. Press SETTINGS. Use theinterface dial to make and enter selections.
2. Select Vehicle Settings.
3. Select TPMS Calibration.
4. Select Calibrate. The low tirepressure indicator blinks, and calibration begins.
5. Press BACK to exit the menu.
