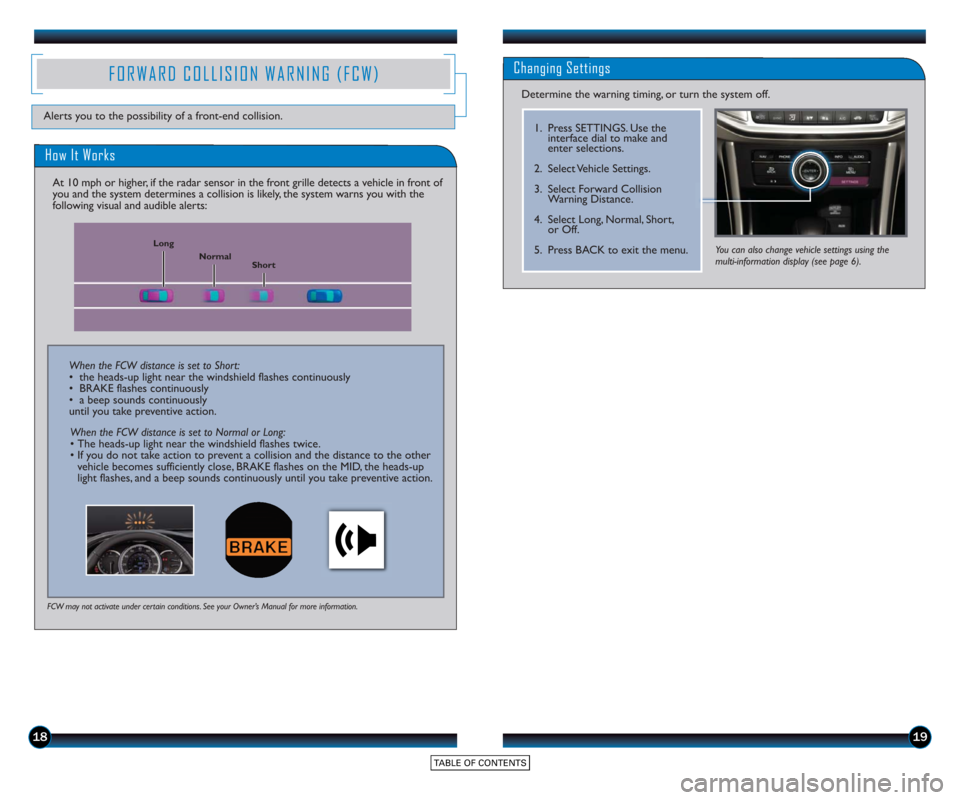

FORWARD COLLISION WARNING (FCW)
Alerts you to the possibility of a front-end collision.
Changing Settings
Determine the warning timing, or turn the system off.
1. Press SETTINGS. Use theinterface dial to make and
enter selections.
2. Select Vehicle Settings.
3. Select Forward Collision Warning Distance.
4. Select Long, Normal, Short, or Off.
5. Press BACK to exit the menu.
How It Works
At 10 mph or higher, if the radar sensor in the front grille detects a vehicle in front of
you and the system determines a collision is likely, the system warns you with the
following visual and audible alerts:
FCW may not activate under certain conditions. See your Owner’s Manual for more information.
Short
Normal
Long
When the FCW distance is set to Short:
• the heads-up light near the windshield flashes continuously
• BRAKE flashes continuously
• a beep sounds continuously
until you take preventive action.
When the FCW distance is set to Normal or Long:
• The heads-up light near the windshield flashes twice.
• If you do not take action to prevent a collision and the distance to the other vehicle becomes sufficiently close, BRAKE flashes on the MID, the heads-up
light flashes, and a beep sounds continuously until you take preventive action.
You can also change vehicle settings using the
multi-information display (see page 6).

2021

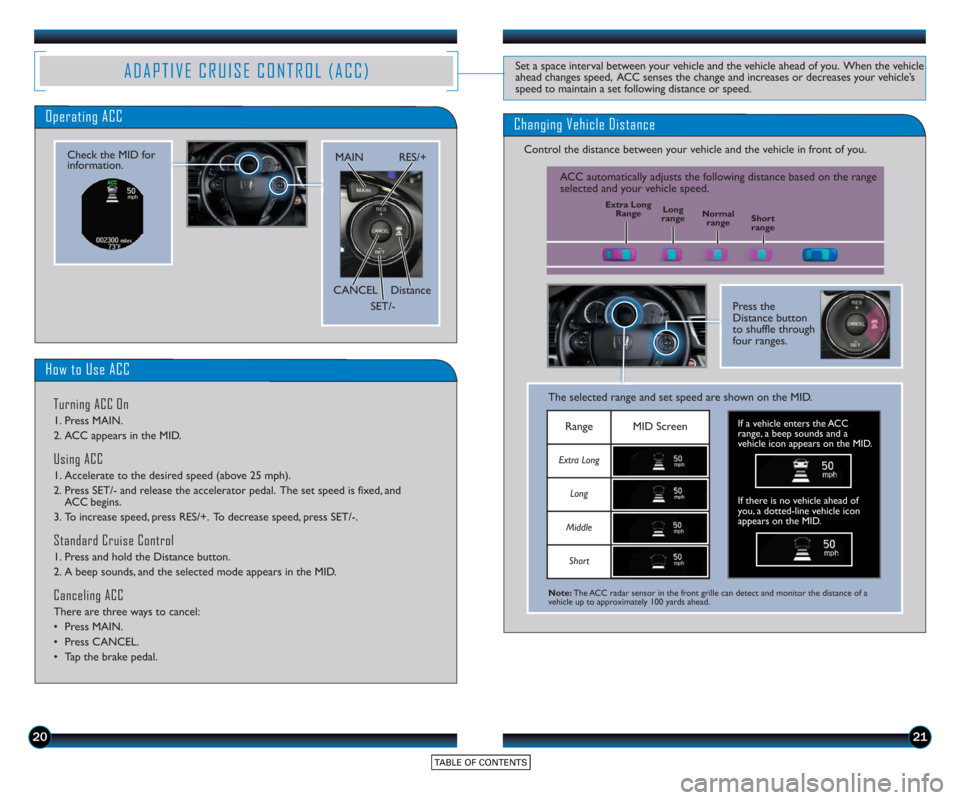

ADAPTIVE CRUISE CONTROL (ACC)Set a space interval between your vehicle and the vehicle ahead of you. When the vehicle
ahead changes speed, ACC senses the change and increases or decreases your vehicle’s
speed to maintain a set following distance or speed.
Operating ACC
How to Use ACC
Changing Vehicle Distance
Control the distance between your vehicle and the vehicle in front of you.
Press the
Distance button
to shuffle through
four ranges.
The selected range and set speed are shown on the MID.
RangeMID Screen
Extra Long
Long
Middle
Short
If there is no vehicle ahead of
you, a dotted-line vehicle icon
appears on the MID.
Note: The ACC radar sensor in the front grille can detect and monitor the distance of a
vehicle up to approximately 100 yards ahead.
If a vehicle enters the ACC
range, a beep sounds and a
vehicle icon appears on the MID.
Check the MID for
information.
Turning ACC On
1. Press MAIN.
2. ACC appears in the MID.
Using ACC
1. Accelerate to the desired speed (above 25 mph).
2. Press SET/- and release the accelerator pedal. The set speed is fixed, and ACC begins.
3. To increase speed, press RES/+. To decrease speed, press SET/-.
Standard Cruise Control
1. Press and hold the Distance button.
2. A beep sounds, and the selected mode appears in the MID.
Canceling ACC
There are three ways to cancel:
• Press MAIN.
• Press CANCEL.
• Tap the brake pedal.
MAIN
Distance
CANCEL RES/+
SET/-
Short range
Normal
range
Long
range
Extra Long
Range
ACC automatically adjusts the following distance based on the range
selected and your vehicle speed.
