ecm HONDA CIVIC 2003 7.G Workshop Manual

ECM ldle Learn Procedure
The idle learn procedure must be done so the ECM can
learn the engine idle characteristics.
Do the idle learn procedure whenever you do any of
these actions:. Disconnect the battery.
Replace the ECM or disconnect its connector.
Reset the ECM.
NOTE: Erasing DTCS with the Honda PGM Tester
does not require you to do the idle learn procedure.
Remove the No.6 ECU {ECM) ( 15A) fuse from the
under-hood fuse/relay box.
Remove the No.19 baftery (80A) fuse from the under-
hood fuse/relay box.
Remove PGM-FI main relay 1.
Remove any of the wires from the under-hood fuse/
retay Dox.
Disconnect any of the connectors from the under
hood fuse/relay box.
Disconnect the connector between the engine
compartment wire harness and ECM wire harness.
Disconnect the G2 terminal from the transmission
ho u srng.
Disconnectthe G'l terminal from the body.
Disconnectthe G101 terminal from the cylinder head
cover.
Procedure:
To complete the idle learn procedure, do this:
1. Make sure all electrical items (Ay'C, audio, rear
defogger, l:ghts, etc.,) are off.
2. Start the engine, and hold it at 3,000 rpm with no
load {in neutral) until the radiator fan comes on, or
until the engine coolanttemperature reaches 194"F(90'c).
3. Let the engine idle for about 5 minutes with the
throttle fully closed.
NOTE: lf the radiator fan comes on, do not include its
running time in the 5 minutes.
11-139

Fuel Pump Circuit Troubleshooting
lf you suspect a problem with the fuel pump, check that
the fuel pump actually runs; when it is on, you will hear
some noise if you listen to the fuel fill port with the fuel
fill cap removed. The fuel pump should run for 2
seconds when the ignition switch is first turned on. lf
the fuel pump does not make noise, check as follows:
1. Turn the ignition switch OFF.
2. Remove the glove box {see page 20-63), then
remove the PGM-FI main relay 2 (A).
Turn the ignition switch ON {ll).
Measure voltage between PGM-Fl main relay 2 5P
connector lerminal No. 5 and body ground.
PGM.FI MAIN RELAY 25P CONNECTOR
IGPl(YEL/BLK}
Wire side of female terminals
ls there battery voltage?
YES-Go to step 5.
NO Repair open in the wire between the PGM'Fl
main relay 1 and the PGM-Fl main relay 2.t
3.
5. N4easure voltage between PGM-Fl main relay 2 5P
connector terminal No. 1 and body ground.
PGM.FI MAIN RELAY 25P CONNECTOR
Wire side oJ female terminals
ls there battery voltage?
YES Go to step 6.
NO Repair open in the wire between the under-
dash fuse/relay box and PGM-Fl main relay 2.1
6. Turn the ignition switch OFF.
7. Disconnect ECM connector E (31P).
8. Check for continuity between PGM-FI mainrelay2
5P connector terminal No. 3 and ECM connector
terminal E1.
PGM-FI MAIN RELAY 2 5P CONNECTOB
Wire side of female terminals
ls there continuity?
YES-Go to step 9.
NO-Repair open in the wire between the PGM Fl
main relay 2 and the ECM (E1).1
IMOFPR(GBN/YEL)
(cont'd)
11-141
Et2lFtxm
7-
z
ECM CONNECTOR E 131P}

FuelSupply System
(
(
L
10.
1'].
Fuel Pump Circuit Troubleshooting (cont'dl
Reinstallthe PGM-Fl main relay 2.
Turn the ignition switch ON (ll).
Measure voltage between ECI\4/PCM connector
terminal E1 and body ground.
ECM CONNECTOB E {31P)
ls there battety voltage?
YES Go to step 12.
NO-Replace the PGM-Fl main relay 2.1
Turn the ignition switch OFF.
Reconnecl ECM connector E (31P).
Turn the ignition switch ON (ll), and measure
voltage between ECM connector terminal E1 and
body ground within the first 2 seconds after the
ignition switch was turned ON (ll).
ECM CONNECTOR E (31PI
13.
14.
Wire side of female terminals
Wire side of female terminals
11-142
t5.
to.
11.
18.
ls there battery voltage?
YES U pdate the ECM if it does not have the latest
so{1ware, or substitute a known-good ECM. then
recheck (see page 1 1-6). lf the symptom/indication
goes away with a known-good ECM, replace the
original ECM.I
NO Go to step 15.
Turn the ignition switch OFF.
Remove the rear seat cushion (see page 20-80).
Remove the access panel from the floor.
Measure voltage between fuel pump 5P connector
terminal No. 5 and body ground within the first 2
seconds after the ignition switch was turned ON (ll).
FUEL PUMP 5P CONNECTOR
wire side oI female terminals
ls there battery voltage?
YES Go to step 24.
NO-Go to step 19.
Turn the ignition switch OFF.
Remove the PGM-Fl main relay 2.
19.
20.

Catalytic Converter System
DTC Troubleshooting
DTC P0420: Catalytic System Efficiency
Below Threshold
NOTE: lf some of the DTCS listed below are stored at
the same time as DTC P0420, troubleshoot those DTCS
first, then recheck for DTC P0420.
P0137, P0138: Secondary Heated Oxygen Sensor(secondary HO2S) (Sensor 2)
P0141: Secondary HO2S (Sensor 2) heater
1. Reset the ECM {see page 1'l-4}, then continue to
step 2 through 5 to reset the readiness code.
2. Start the engine. Hold the engine at 3,000 rpm with
no load (in neutral) untilthe radiator fan comes on.
Drive for about l0 minutes without stopping. Your
speeo can vary.
With the transmission in 4th gear, drive at a steady
speed between 50 62 mph (80-'100 km/h) for
30 seconds.
Repeat step 4 three times. Between each repetition,
close the throttle completely for 1 2 seconds. lf
the engine is stopped during this part of the
procedure, repeat steps 3, 4 and 5.
Check for a Temporary DTC with the scan tool.
Does the scan tool indicate Temporaty DTC
P0420?
YES Check the TWC. lf necessary, replace the
TWC.I
NO Check for readiness code completion. lfthe
readiness is complete, it was a interminent failure,
and the system is OK at this time. lf the readiness
code is incomplete, repeat steps 2 through 5.1
4.
11-167

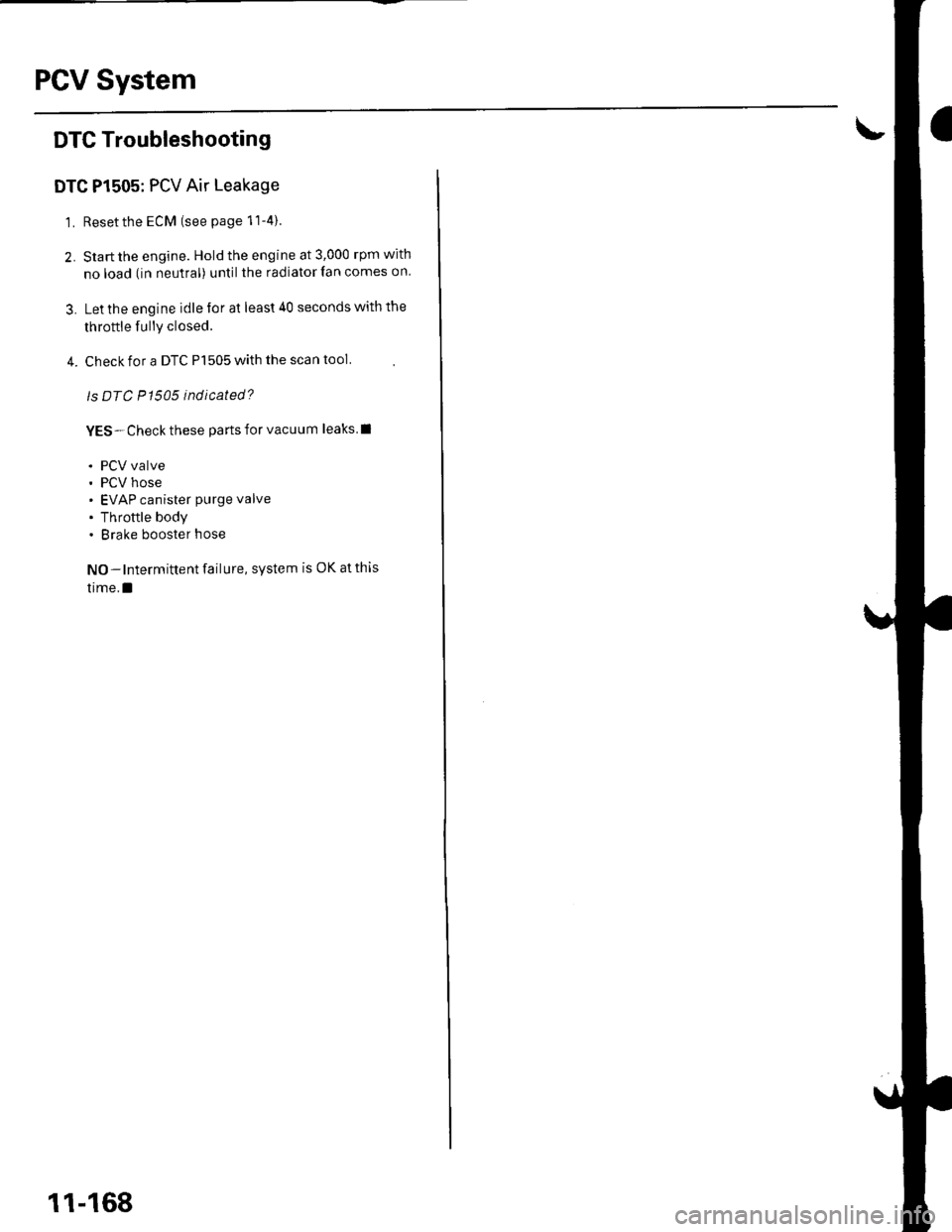

PCV System
DTC Troubleshooting
DTC P1505: PCV Air Leakage
1. Reset the ECM (see page 11-4).
2. Start the engine. Hold the engine at 3,000 rpm with
no load (in neutral) until the radiator fan comes on
3. Let the engine idle tor al least 40 seconds with the
throttle fully closed.
4. Check for a DTC P1505 with the scan tool
ls DTC P1505 indicated?
YES-Check these parts for vacuum leaks l
. PCV valve. PCV hose. EVAP canister purge valve
. Throttle body. Brake booster hose
NO - Intermittent failure, system is OK at this
time.l
11-168

DTC Troubleshooting
DTC P0451: FTP Sensor Range/Performa nce
Problem
Special Tools Required
Vacuum Pump/Gauge, 0-30 in. Hg A973X-041-XXXXX
1. Remove the fuel fill cap.
2. Turn the ignition switch ON (ll)
3. l\4onitor fuel tank pressure (FTP) sensorvoltage
with the Honda PGM Tester, or medsure voltage
between ECM connectorterminals E4 and E14.
ECM CONNECTOR E 131P)
Wire side of female terminals
ls there about 2.5V?
YES-Go to step 4.
NO Replace the FTP sensor.I
Turn the ignition switch OFF.
Disconnect the hose between the EVAP two way
valve and the FTP sensor at the EVAP two way
valve end.
4.
5.
7.
8.
6. Connect a vacuum pump to the open end of the
hose.
Turn the ignition switch ON {ll).
l\4onitor FTP sensor voltage with the Honds PGM
Tester, or measure voltage between ECM
connector terminals E4 and E14, and carefully
squeeze the vacuum pump a little.
ECM CONNECTOR E 13lPI
Wire side of lemale terminals
The voltage should smoothly drop from about 2.5 V
to about 1.5 V. Stop applying vacuum when the
voltage drops to about 1.5 V or damage to the FTP
sensor may occur.
Does the voltage drop to about 1.5 V and hold?
YES Check for misrouted, leaking, or broken FTP
sensor vacuum lines. lf the vacuum lines are OK,
update the ECM if it does not have the latest
software. or substitute a known-good ECM, then
recheck (see page 1 1-6). lf the symptom/indication
goes away with a known-good ECM, replace the
original ECM.I
NO Replace the FTP sensor. !
9.
11-171

EVAP System
DTC Troubleshooting (cont'd)
DTC P0452: FTP Sensor Circuit Low Voltage
1. Check the vacuum lines at the FTP sensor for
misrouting, leakage. breakage, or clogging.
Are the vacuum lines OK?
YES Go to step 2.
NO Repair or replace vacuum lines as
necessary. I
2. Reset the ECM (see page 11-4).
3. Remove the fuelfill cap.
4. Turn the ignition switch ON (ll)
5. Monitor FTP sensor voltage with the Honda PGM
Tester, or measure voltage between body ground
and ECM connector terminal E14.
ECM CONNECTOR E 131PI
1 2t3t45o/89
././114tc61./182C21
22123241 t26271/ 2931
TP (LT GRN)
Wire side of female terminals
ls thete about 2.5 V?
YES- Intermittent failure, system is OK at this time.
Check for poor connections or loose terminals at
the FTP sensor and at the ECrM.l
NO Go to step 6.
11-172
6. Turn the ignition switch OFF.
7. Reinstallthe fuel fill cap.
8. Disconnect the FTP sensor 3P connector.
9. Turn the ignition switch ON (ll)
10. Measure voltage between FTP sensor 3P connector
terminals No. 1 and No.2.
FUEL TANK PRESSURE SENSOR 3P CONNECTOR
VCgl {YEL/BLU}
Wire side of female terminals
ls there about 5 V?
YES Go to step 1 '1.
NO-Repair open in the wire between the FTP
sensor and the ECM {E5).1

't2.
13.
14.
11. Measure voltage between FTP sensor 3P connector
terminals No. 2 and No.3.
FUELTANK PRESSUBE SENSOR 3P CONNECTOR
FTP (LT GBN)
Wire side of femaleterminals
ls there about 5 V?
YES - Replace the FTP sensor. t
NO-Go to step 12.
Turn the ignition switch OFF.
Disconnect ECM connector E (31P),
Check for continuity between FTP sensor 3P
connector terminal No. 3 and body ground.
FTP SENSOR 3P CONNECTOB
FTP (LT GRNI
Wire side of femalelerminats
ls there continuity?
YES Repair short in the wire between the FTP
sensor and the ECI\4 {E14).I
NO-Update the ECM if it does not have the latest
software, or substitute a known-good ECM, then
recheck (see page 1 1-6). lf the symptom/indicationgoes away with a known-good EClvl, replace the
original ECM.I
DTC P0453: FTP Sensor Circuit High Voltage
1. Check the vacuum lines at the FTP sensor for
misrouting, leakage, breakage, or clogging.
Are the vacuum lines OK?
YES-Go to step 2.
NO Repair or replace vacuum lines as
necessary.I
2. Reset the ECM {see page 11'4).
3. Remove the fuel fill cap.
4. Turn the ignition switch ON (ll).
5. lvlonitor FTP sensor voltage with the Honda PGM
Tester, or measure voltage between body ground
and ECM connector terminal E'14.
ECM CONNECTOR E 131PI
112134567I9
56/ t182C21
242il./29 3031
TP {LT GRN}
Wire side of female terminals
Is there about 2.5 V?
YES Intermittent failure, system is OK at this time.
Check for poor connections or loose terminals at
the FTP sensor and at the ECM.I
NO Go to step 6.
{cont'd)
11-173

EVAP System
DTC Troubleshooting (cont'dl
6. Turn the ignition switch OFF.
7. Reinstall lhe fuel fill cap.
8. Disconnect the FTP sensor 3P connector.
9. Turn the ignition switch ON (ll).
'10. l\4easure voltage between FTP sensor 3P connector
terminals No. 1 and No.2.
FTP SENSOR 3P CONNECTOR
VCC3 (YEL/BLU)
Wire side of female terminals
ls there about 5 V?
YES Go to step 11.
NO-Repair open in the wire between the FTP
sensor and the ECM (E4). !
11-174
11, Measure voltage between FTP sensor 3P connector
terminals No.2 and No.3.
FTP SENSOR 3P CONNECTOR
FTP ILT GRN}
Wire side of female terminals
ls there about 5 V?
YES Replace the FTP sensor.l
NO Go to step 12.
l\4easure voltage between ECM connector
terminals E4 and E 14,
ECM CONNECTOR E (31P)
Wire side of female terminals
ls there about 5 V?
YES Repair open in the wire between the FTP
sensor and the ECM (E14).I
NO Update the ECM if it does not have the latest
software, or substitute a known-good ECN4. then
recheck (see page 11-6). lf the symptom/indication
goes away with a known-good ECM, replace the
original ECM.I
\

DTC Pl456: EVAP Control(Fuel Tank Svstem)
System Leakage
The fuel system is designed to allow specified
maximum vacuum and pressure conditions. Do not
deviate from the vacuum and pressure tests as
indicated in these procedures. Excessive pressure/
vacuum would damage the EVAP components or cause
eventual fuel tank failure.
Special Tools Required
Vacuum Pump/Gauge, 0-30 in. Hg A973X-041-XXXXX
This is a two-trip code. Once cleared, it cannot be
reproduced in one trip. Also, cenain specific driving
and ambient conditions must occur before the ECM will
complete the system checks. Additional test drives may
still not meet the specific conditions needed to
reproduce the code.
Follow these troubleshooting procedures carefully to
ensure the integrity of the system and to confirm the
cause of the problem or code.
NOTE: Fresh fuel has a higher volatility that createsgreater pressure/vacuum. The optimum condltlon for
testing is fresh fuel, and must be less than a full tank. lf
possible, to assist in leak detection, add 1 gallon of
fresh fuel to the tank (as long as it will not fill the tank).just before starting these procedures.
Fuel Fill Cap Check
1. Check the fuel fill cap (the cap must say "lf not
tightened 3 clicks check engine light may come
on" ).
ls the proper luel till cap installed and properly
tightened?
YES Go to step 2.
NO- Replace or tighten the cap.I
2. Check the fuel fill cap seal.
ls the tuel fill cap seal missing or damaged?
YES- Replace the fuel fill cap.I
NO The fuelfill cap is OK. Go to step 3.
EVAP Canister Purge Valve Test
3. Disconnect the vacuum hose from the EVAP
canister purge valve (A), and connect a vacuum
oumo to the hose.
A973X-041-XXXXX
Turn the ignition switch ON (ll).
Apply vacuum to the hose.
Does the valve hold vacuum?
YES-The EVAP canister purge valve is OK. Go to
step 11.
NO-Go to step 6.
Turn the ignition switch OFF.
Disconnect the EVAP canister purge valve 2P
connecror.
5.
7.
{cont'd)
11-175
